In Stock Maytech Esurf Efoil Kit with Waterproof / Watercooled 85165 Motor + Watercooled 300A ESC with Progcard UBEC + MTSKR1905WF IP67 Waterproof Remote With 12V Water Pump Set 300A 80V Anti-spark Switch
In Stock Maytech Esurf Efoil Kit with Waterproof / Watercooled 85165 Motor + Watercooled 300A ESC with Progcard UBEC + MTSKR1905WF IP67 Waterproof Remote With 12V Water Pump Set 300A 80V Anti-spark Switch
Regular price
$919.54 USD
Regular price
$999.50 USD
Sale price
$919.54 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

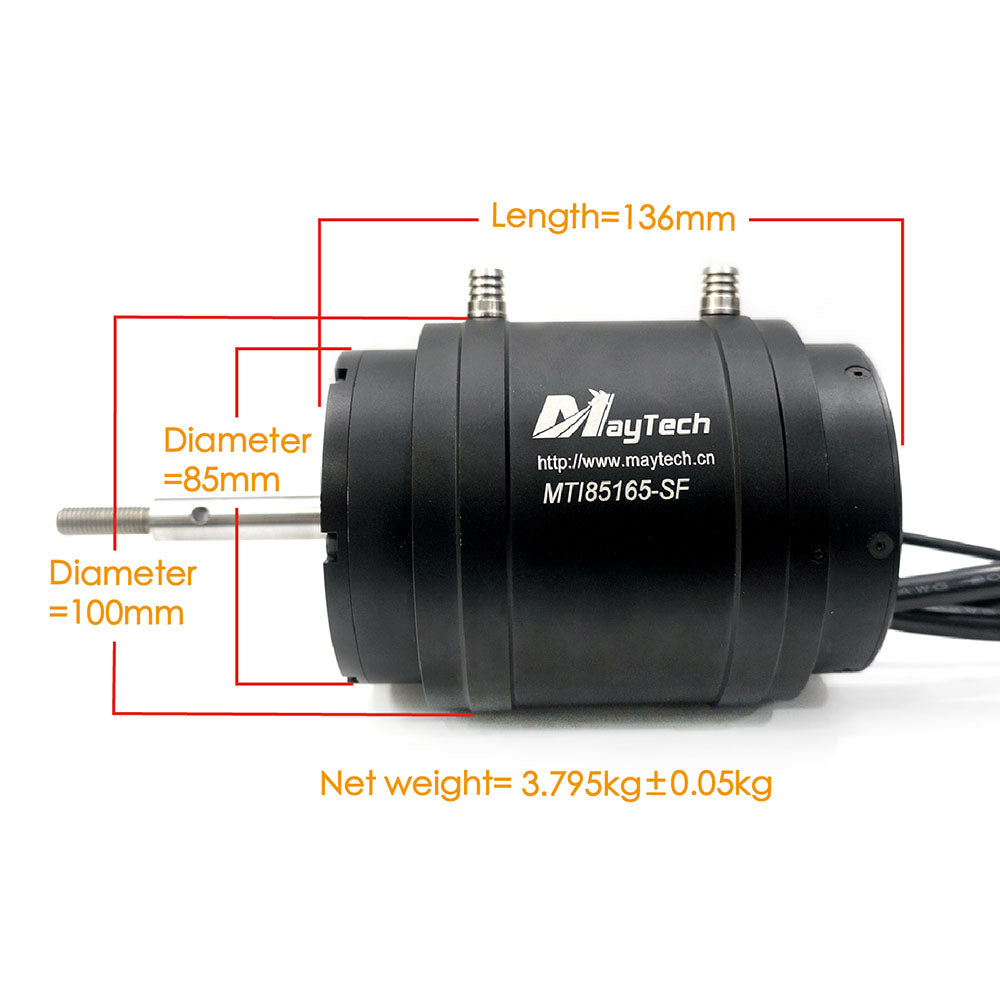

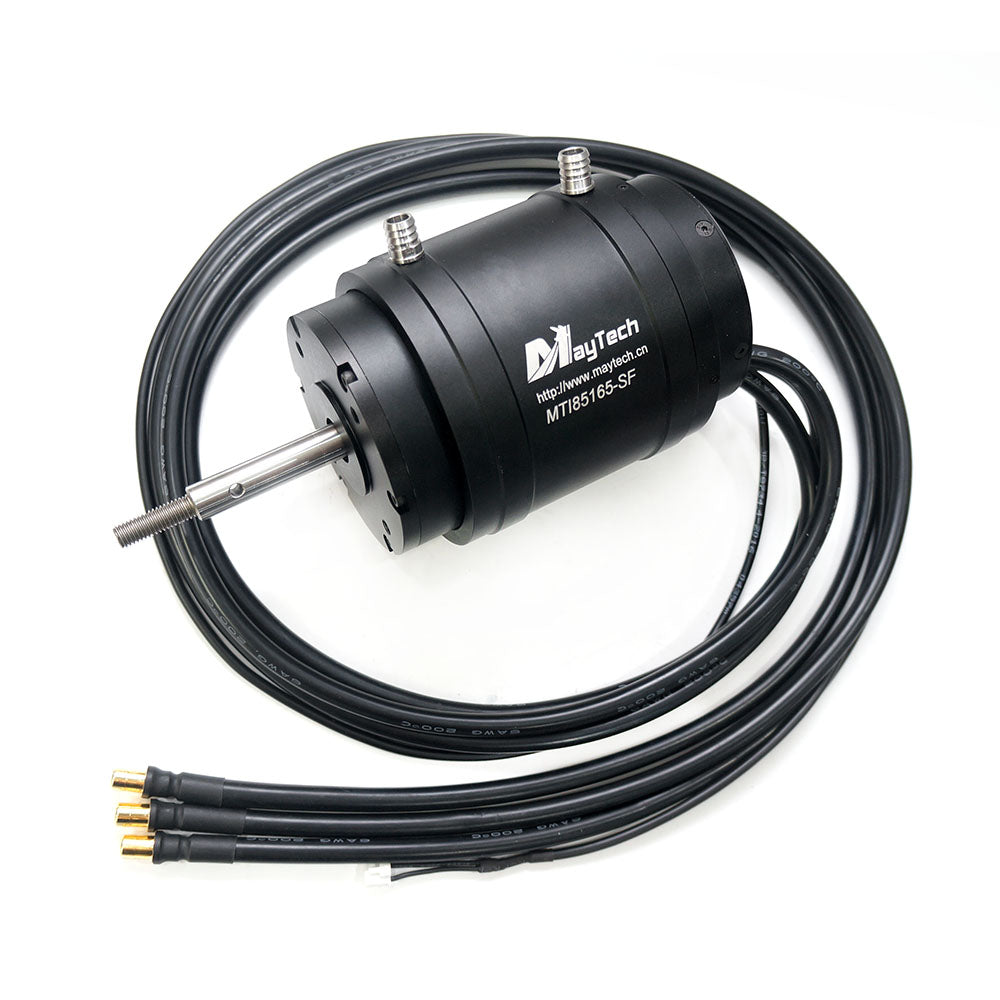

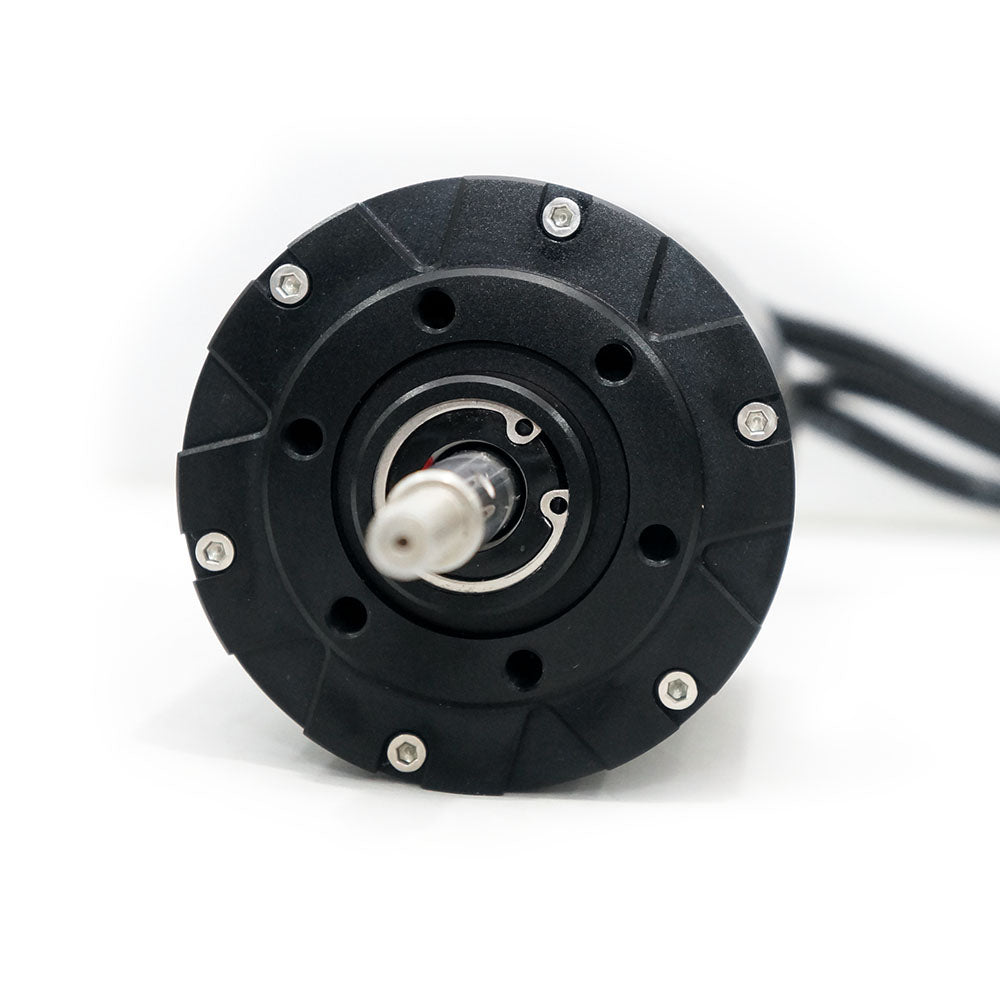

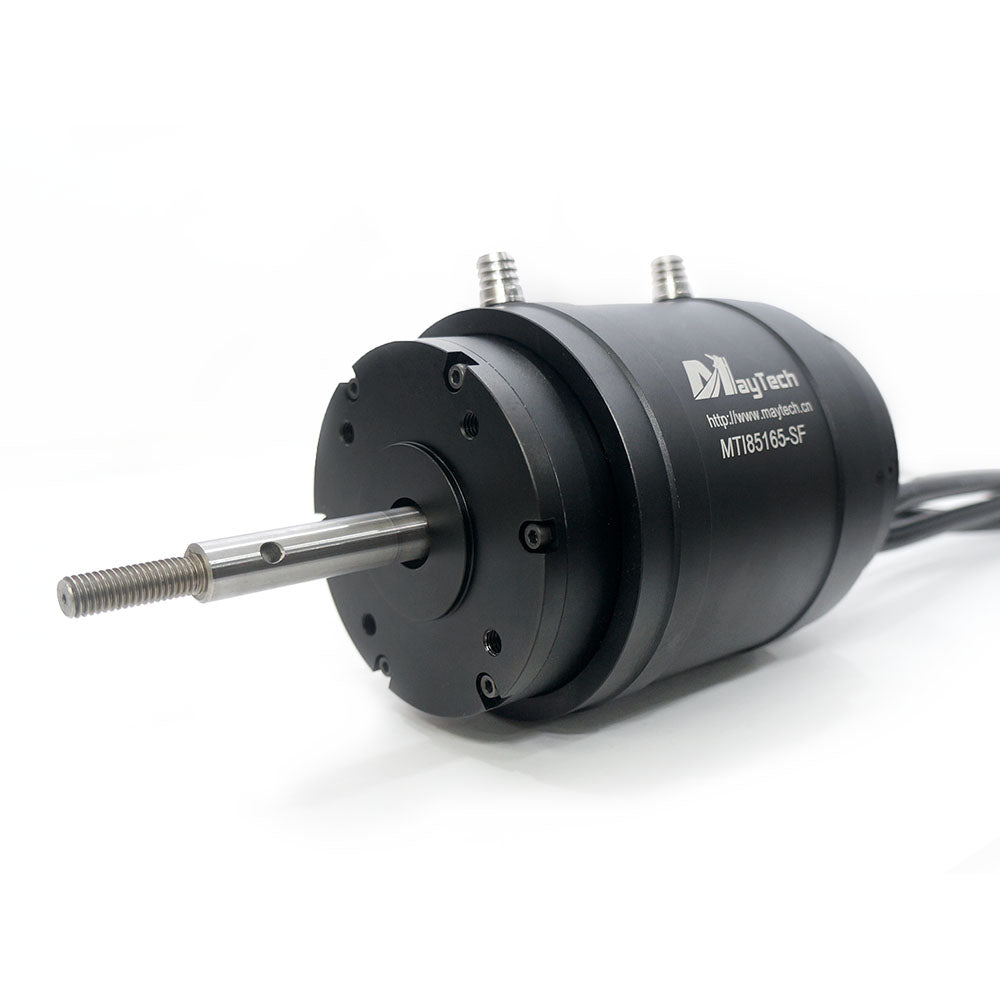

Maytech Esurf Efoil Kit with Waterproof / Watercooled 85165 Motor + Watercooed 300A ESC with Progcard UBEC + MTSKR1905WF IP67 Waterproof Remote +300A 80V Anti-spark Switch+ Water Pump for Electric Jetboard/Jetski/Motorized Surfboard/ Efoil /Hydrofoil
Different Options:

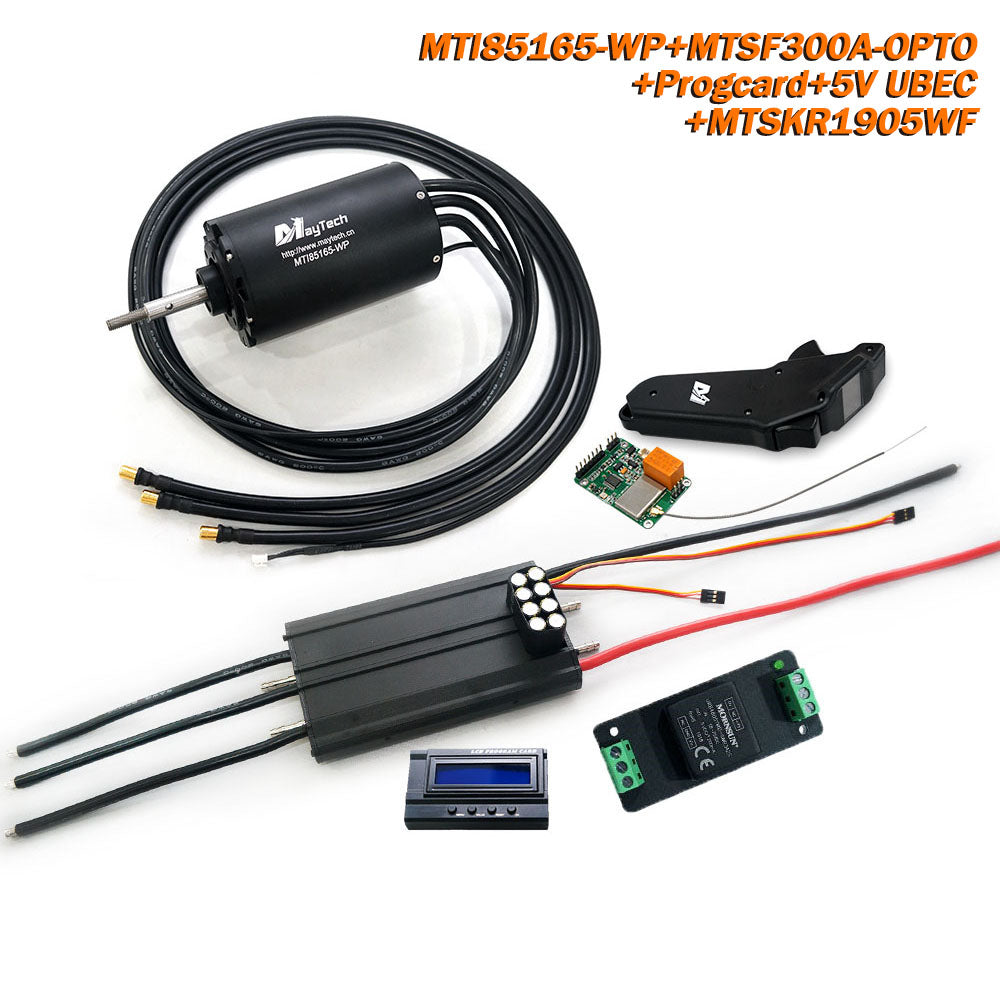

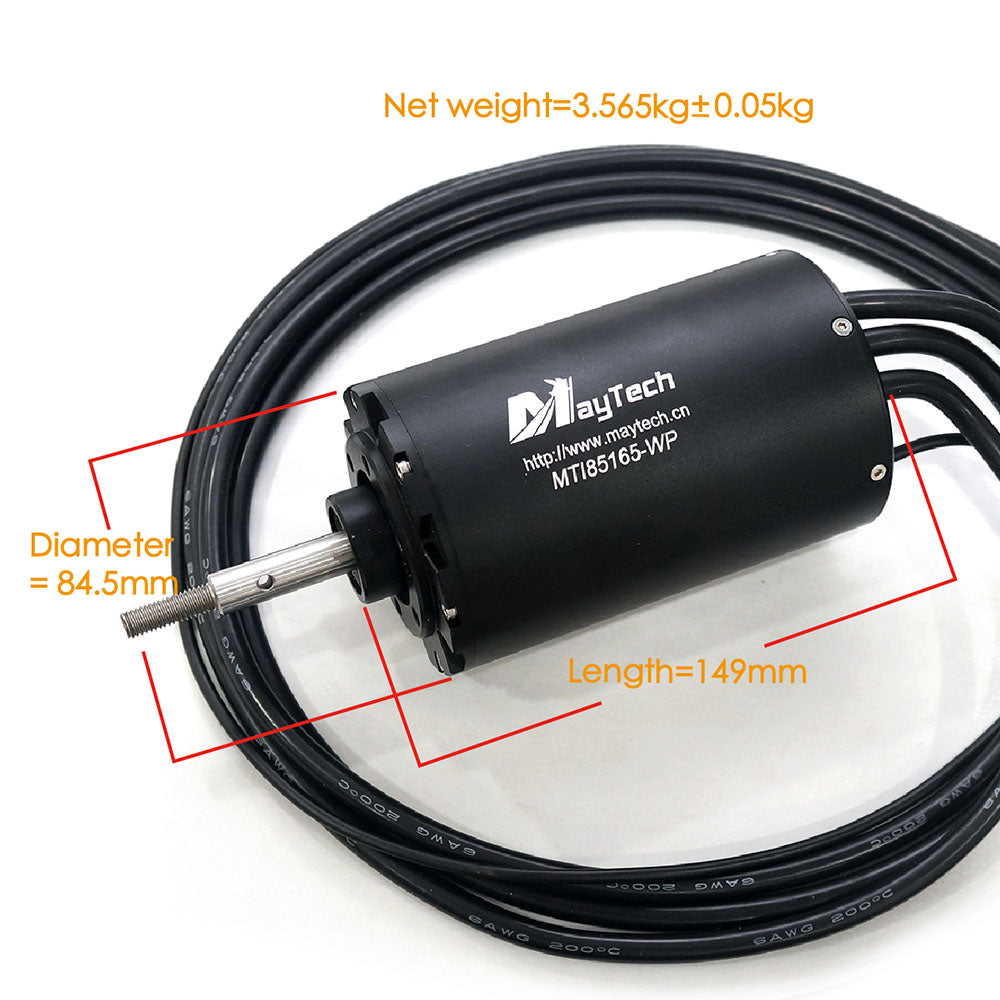

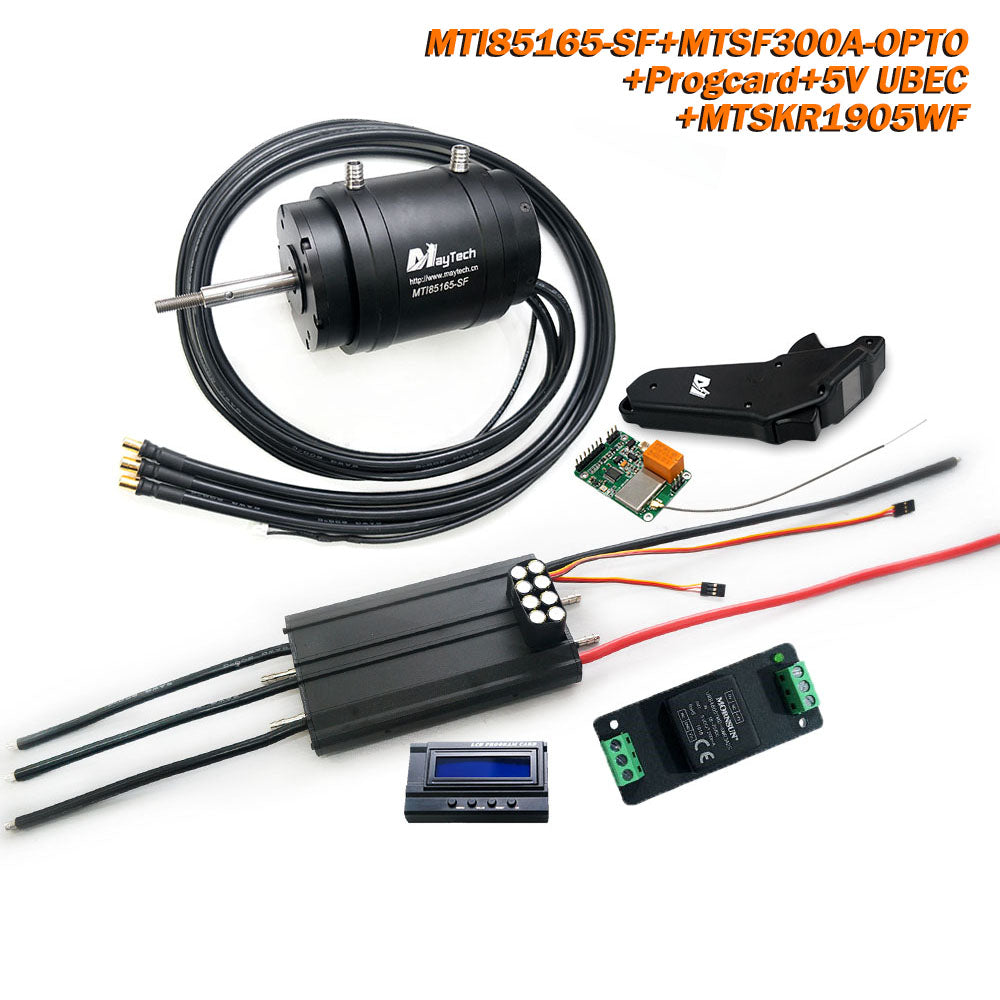

1. MTI85165-200-SF/MTI85165-200-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote

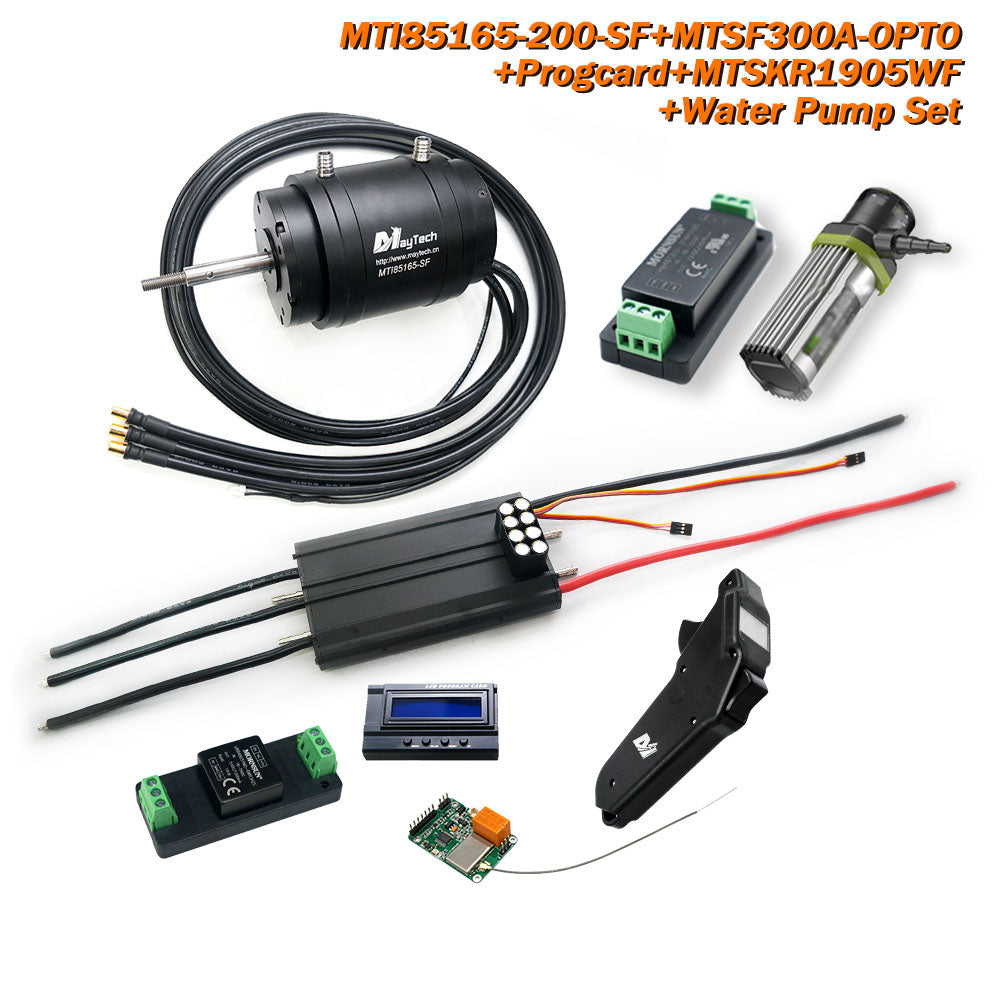

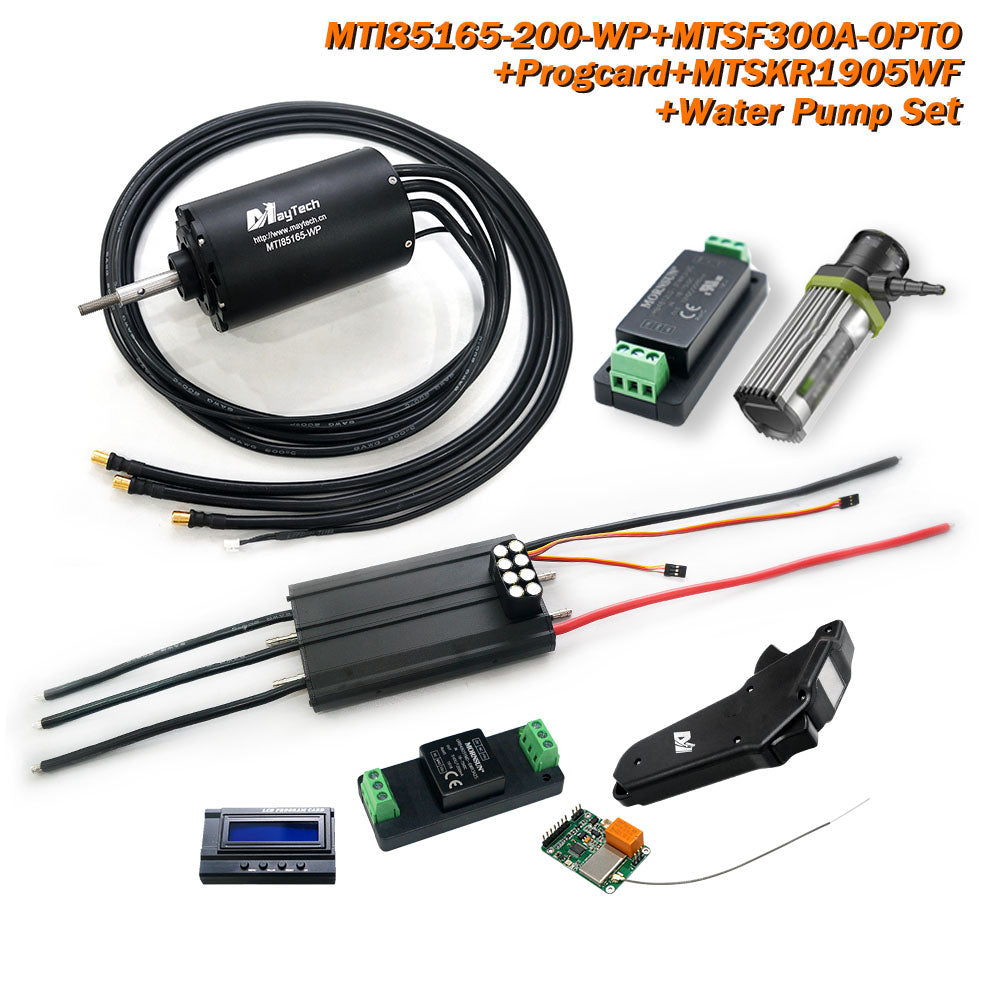

2. MTI85165-200-SF/MTI85165-200-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+Water Pump Set

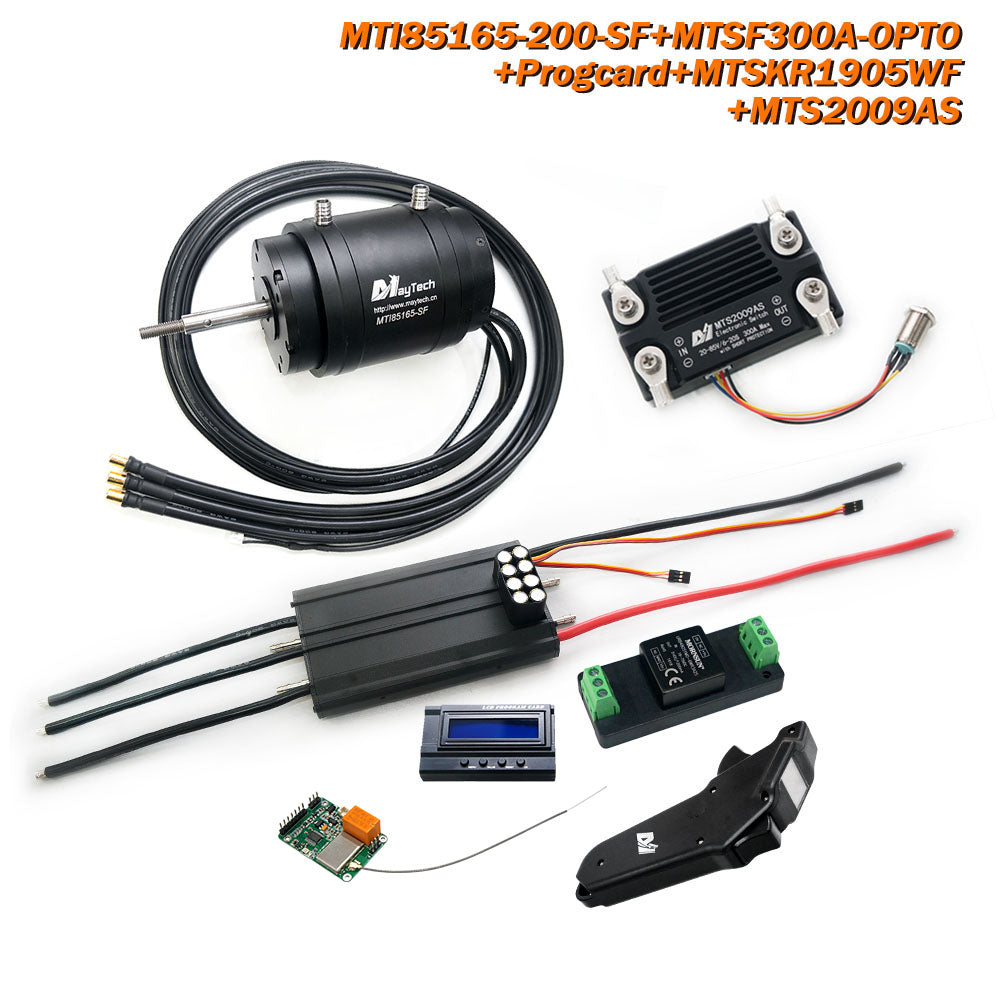

3. MTI85165-200-SF/MTI85165-200-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+MTS2009AS Anti-spark Switch

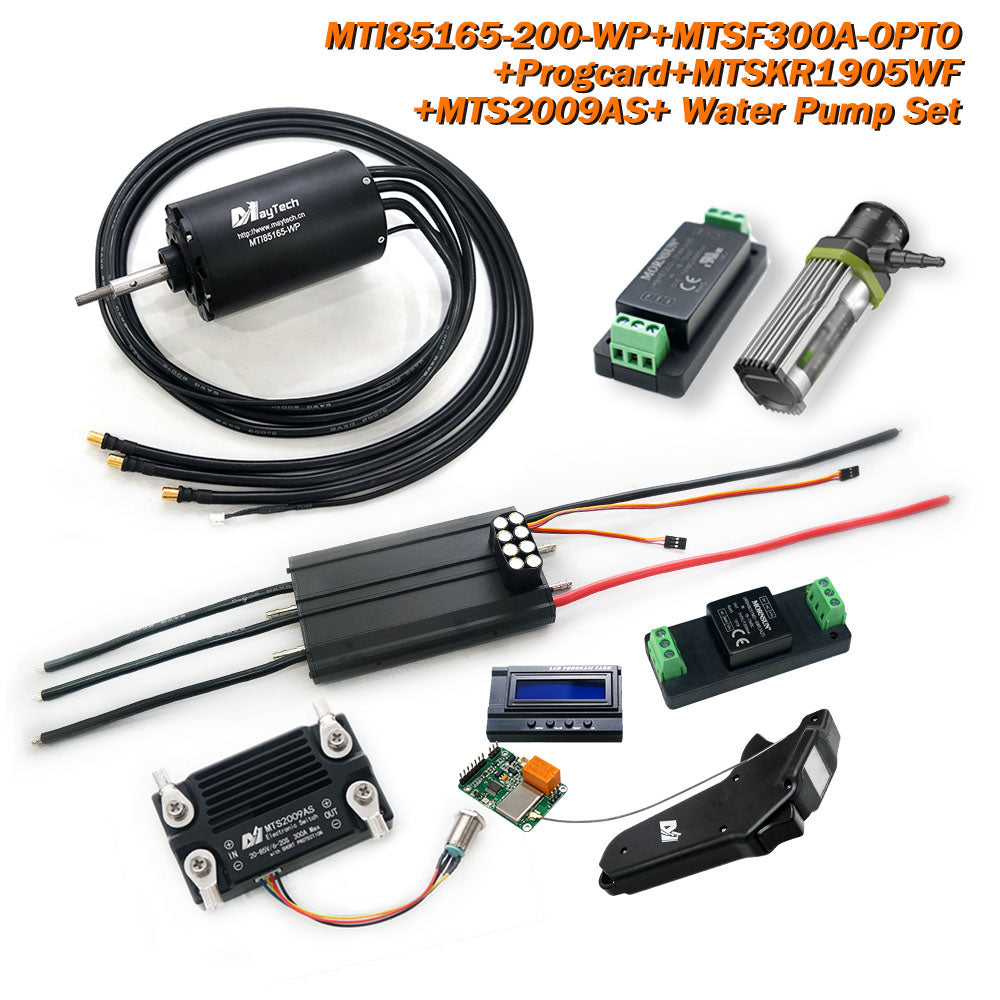

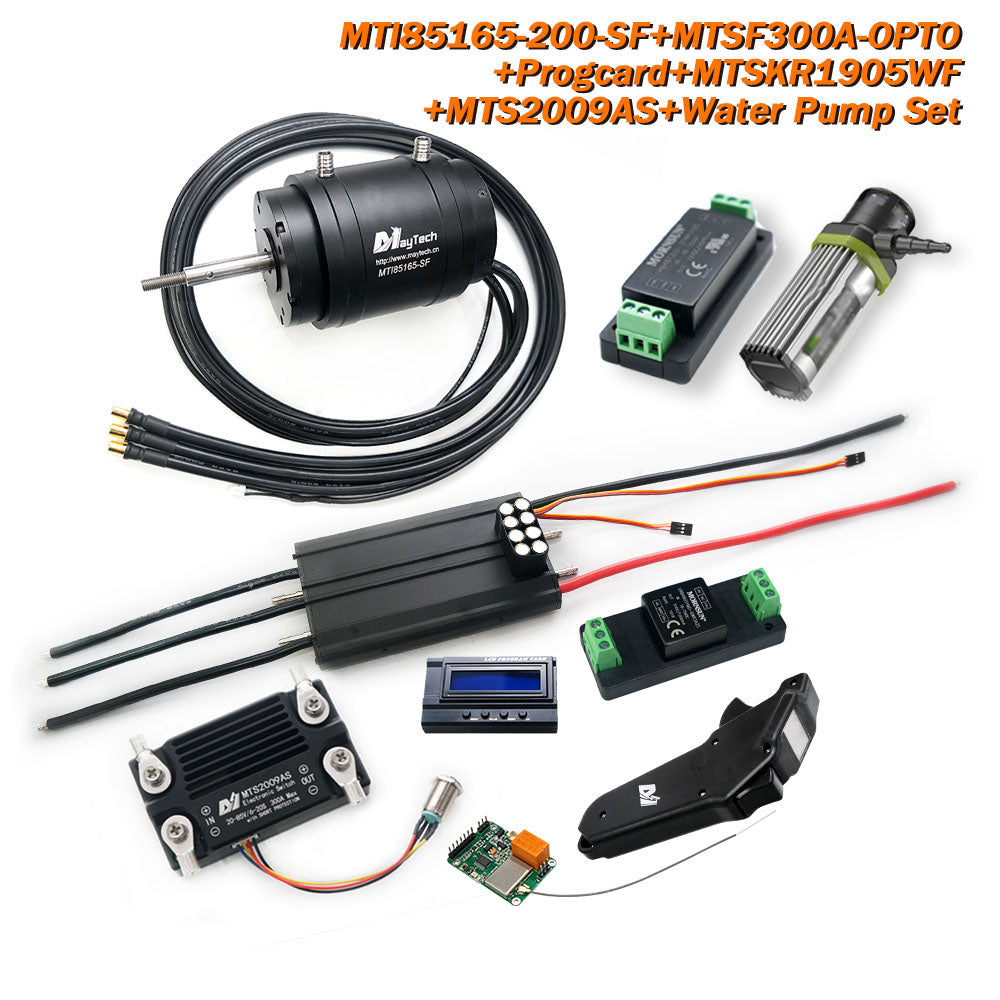

4. MTI85165-200-SF/MTI85165-200-WP+MTSF300A-OPTO+Progcard+5V UBEC+MTSKR1905WF Remote+Water Pump Set+MTS2009AS Anti-spark Switch
Specifications:
Noted Please:
Input Voltage: 6-12S Lipo (25-50V) for 200KV motor, max RPM for the motor is 10000.

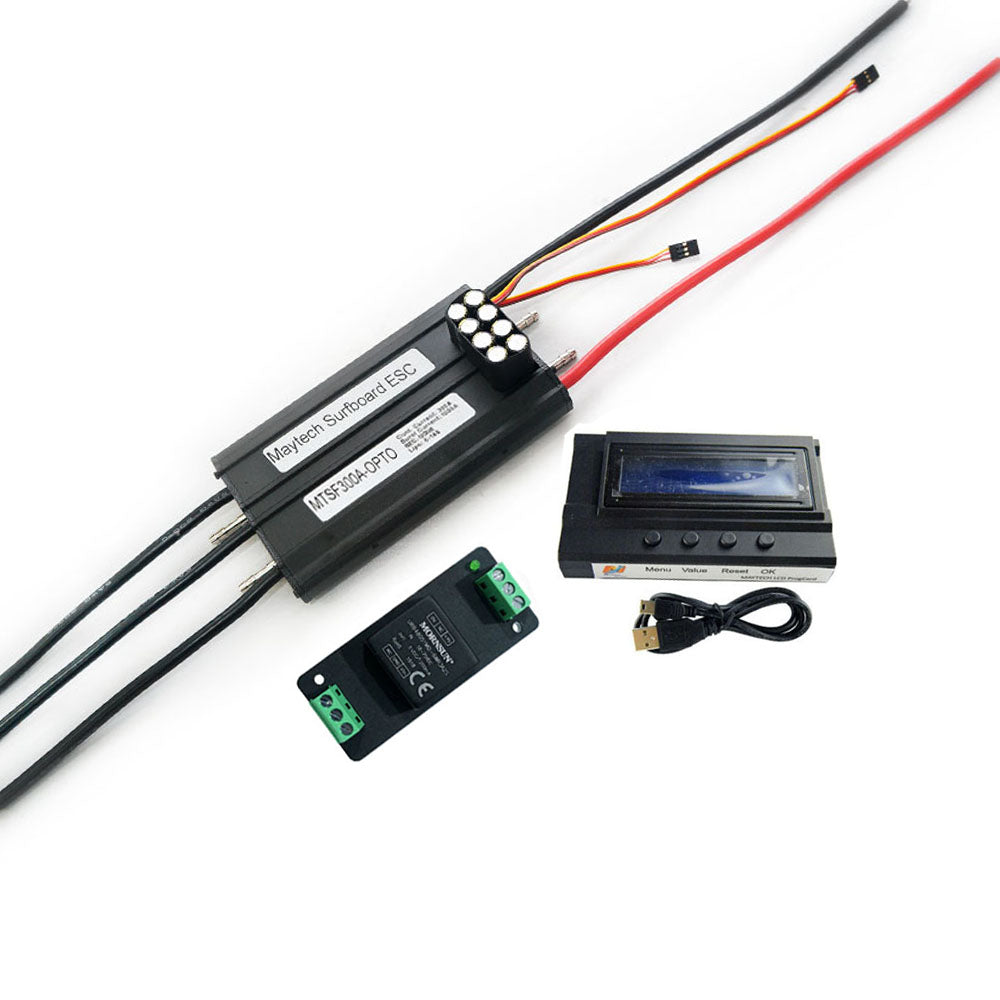

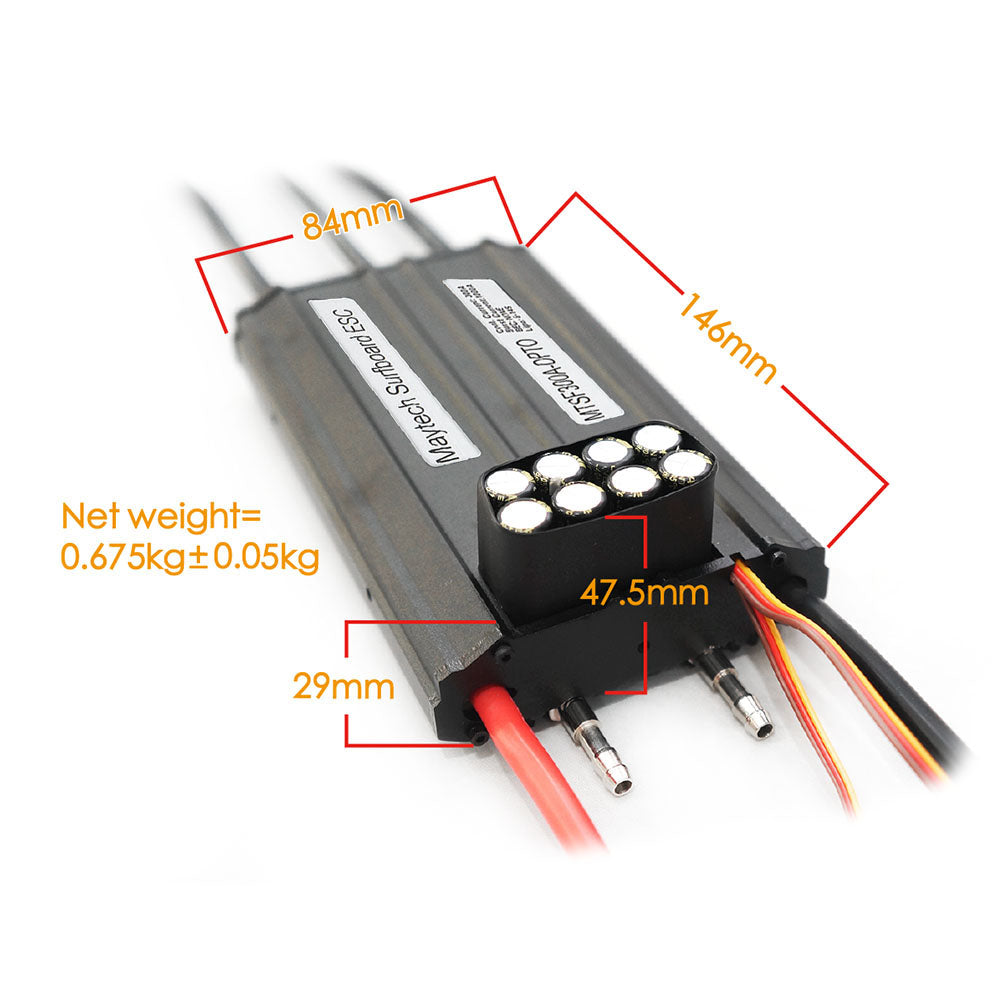

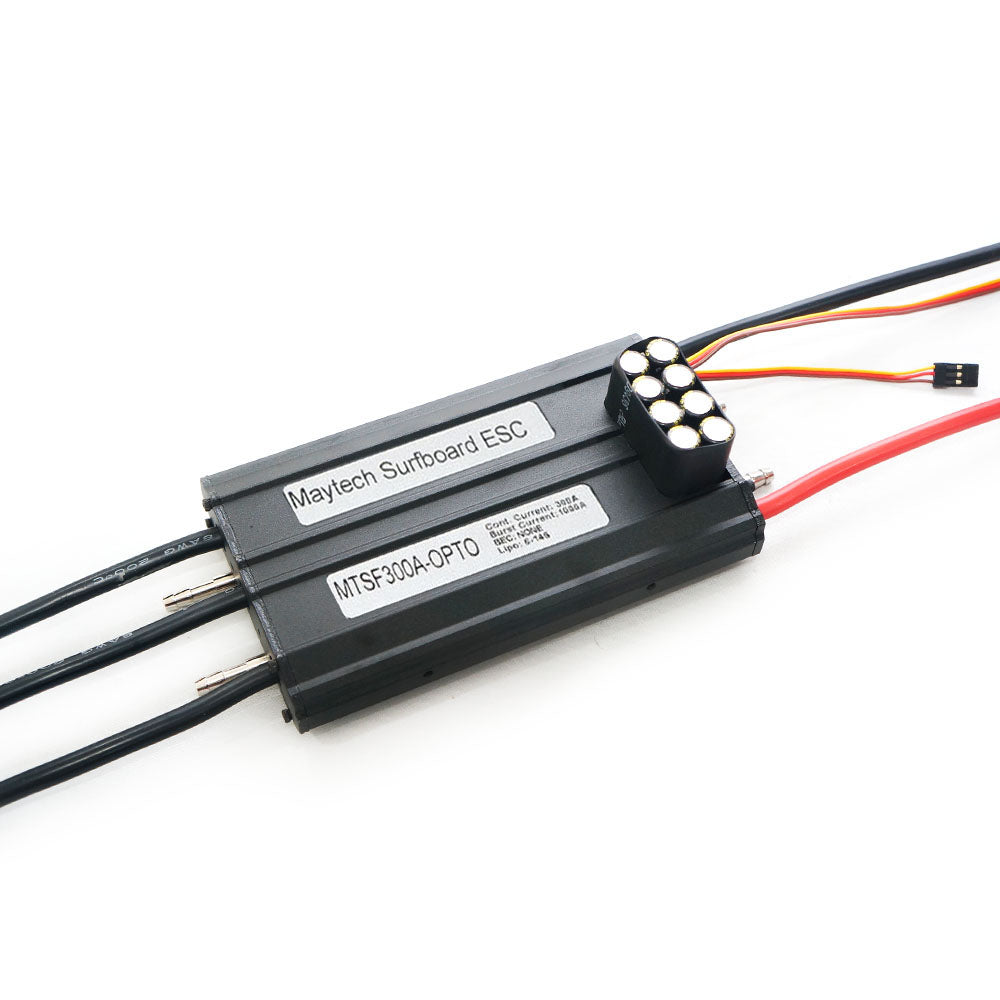

-ESC: MTSF300A-OPTO Watercooled 300A ESC Speed Controller
Model No.: MTSF300A-OPTO
Cont Current: 300A
Max Current: 1000A
Waterproof Rank: Splash proof
Watercooling: Yes, with
Input Volt: 6-14S Lipo (24V-58.8V)
BEC: Internal with 18-75V convert to 5V DC-DC Module
Signal Format: PWM (PPM)
Signal Output: 1-2ms
>Check Progcard Manual

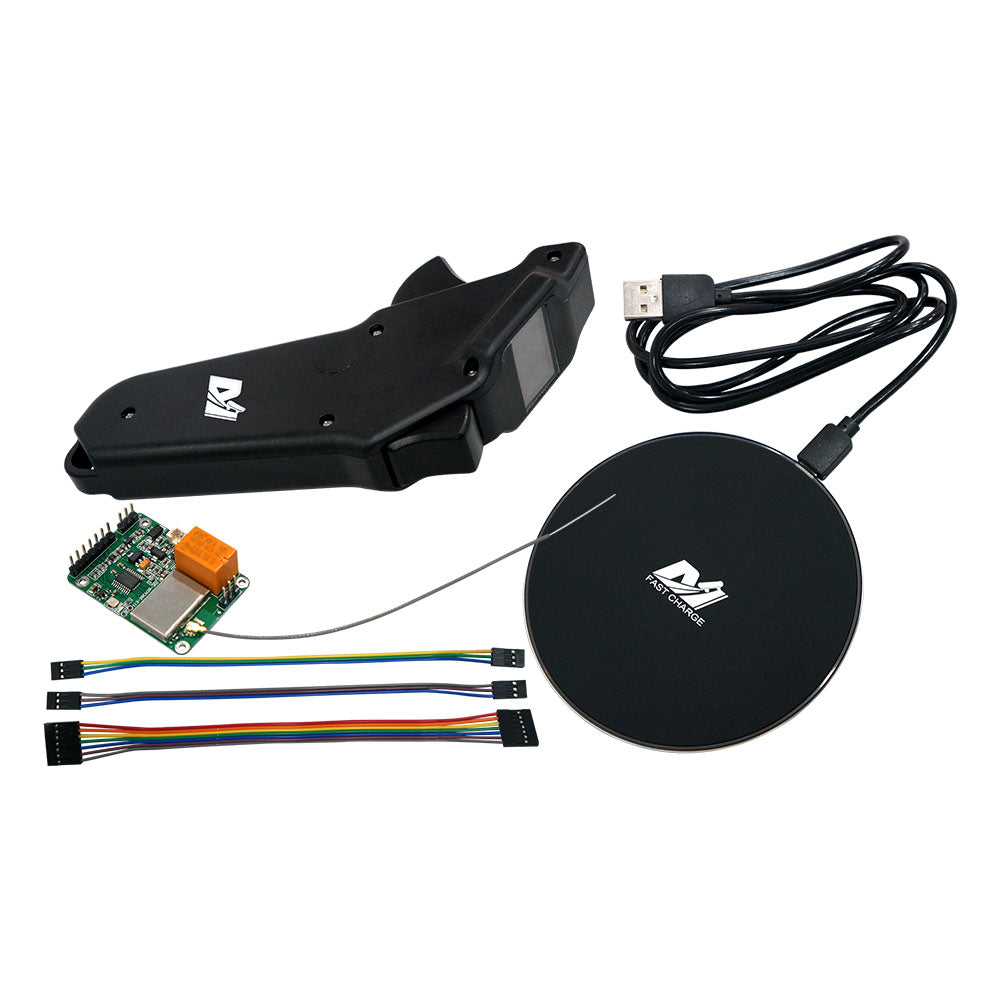

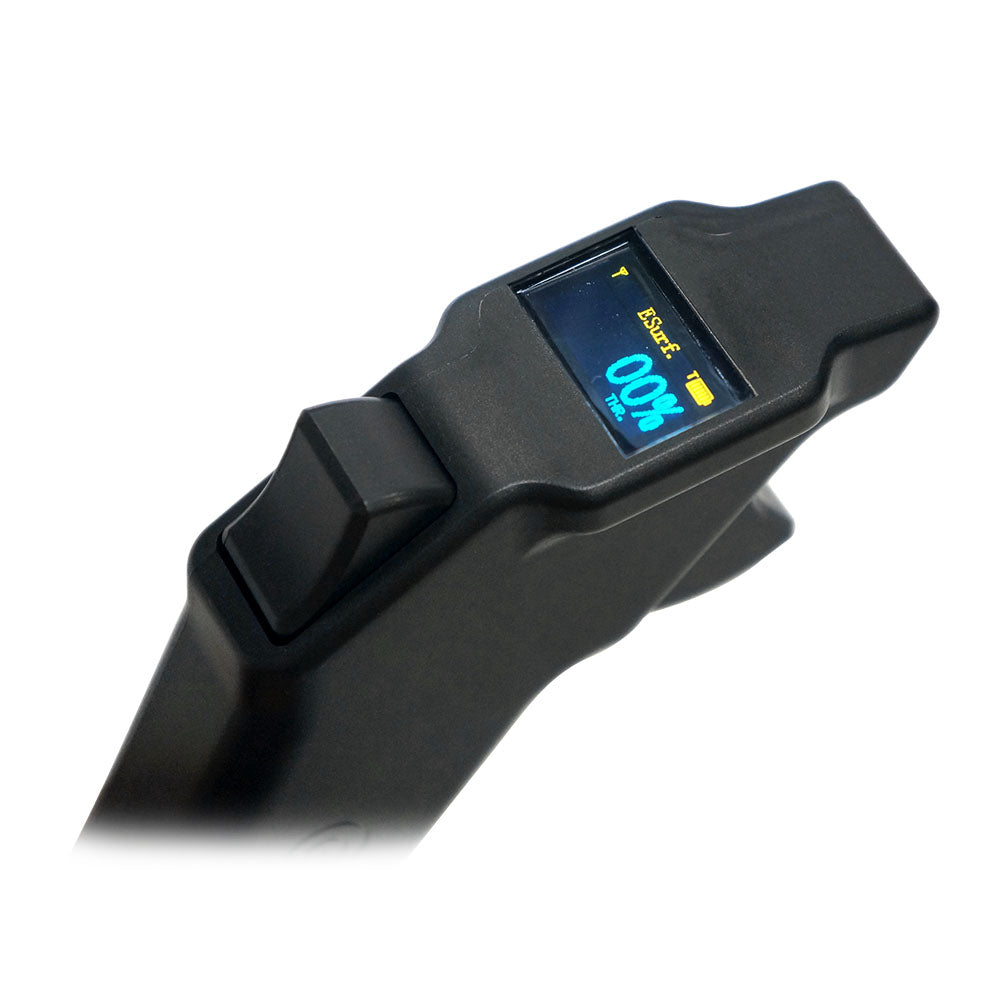

-Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR1905WF |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?
MTS2009AS 300A 80V Anti-spark Switch (Can cut off positive pole power)
|
Model No. |
MTS2009AS |
|
Max Current |
300A |
|
Max Voltage |
25V-80V |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Features |
First Switch that can cut off positive pole power in the market; |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc., |
Advice for Usage:
1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.
2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.
About Stock:

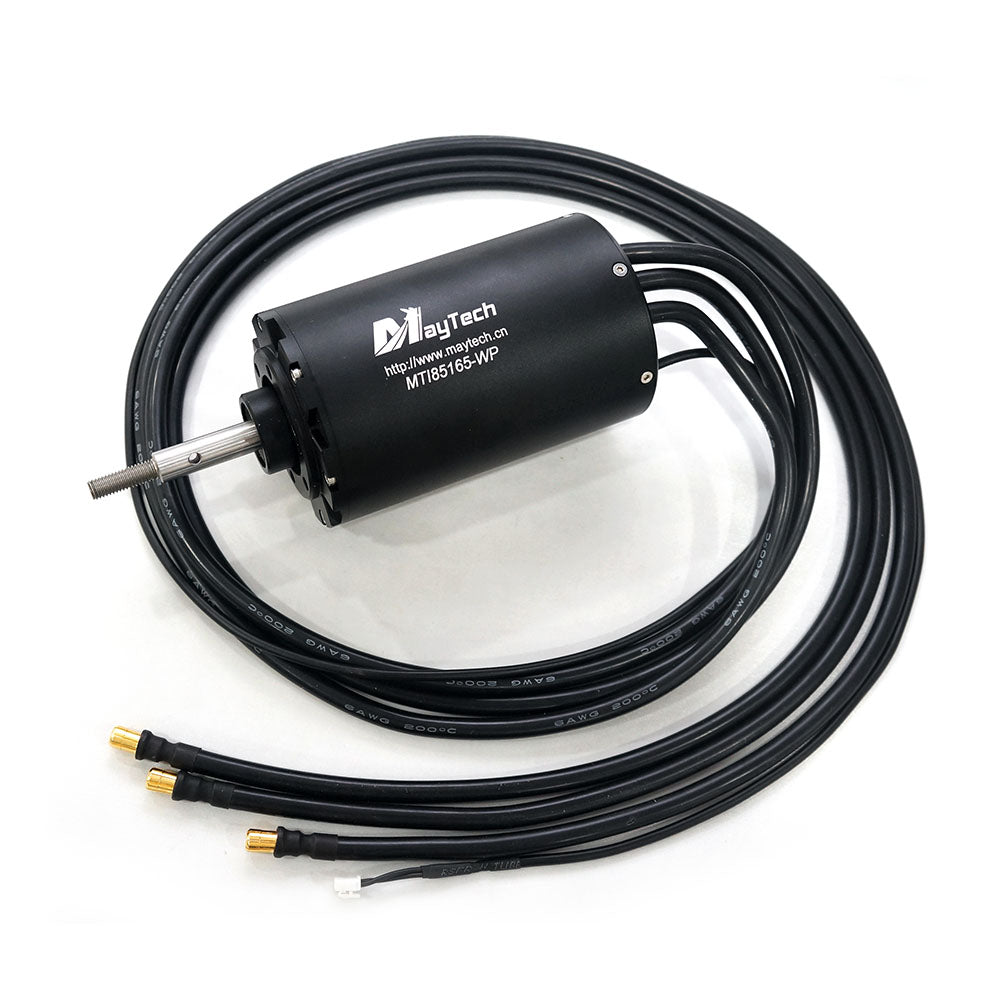

1. Standard stock for the motor is screw shaft, 200KV, if you need to other KV or another shaft, lead time is about 40-60 days after your order confirmed, and please contact us agnes@maytech.cn to tell us your requirement.
2. The standard stock is also limited, please confirm your order asap, and if you need very urgent, please contact us agnes@maytech.cn to check stock first.
