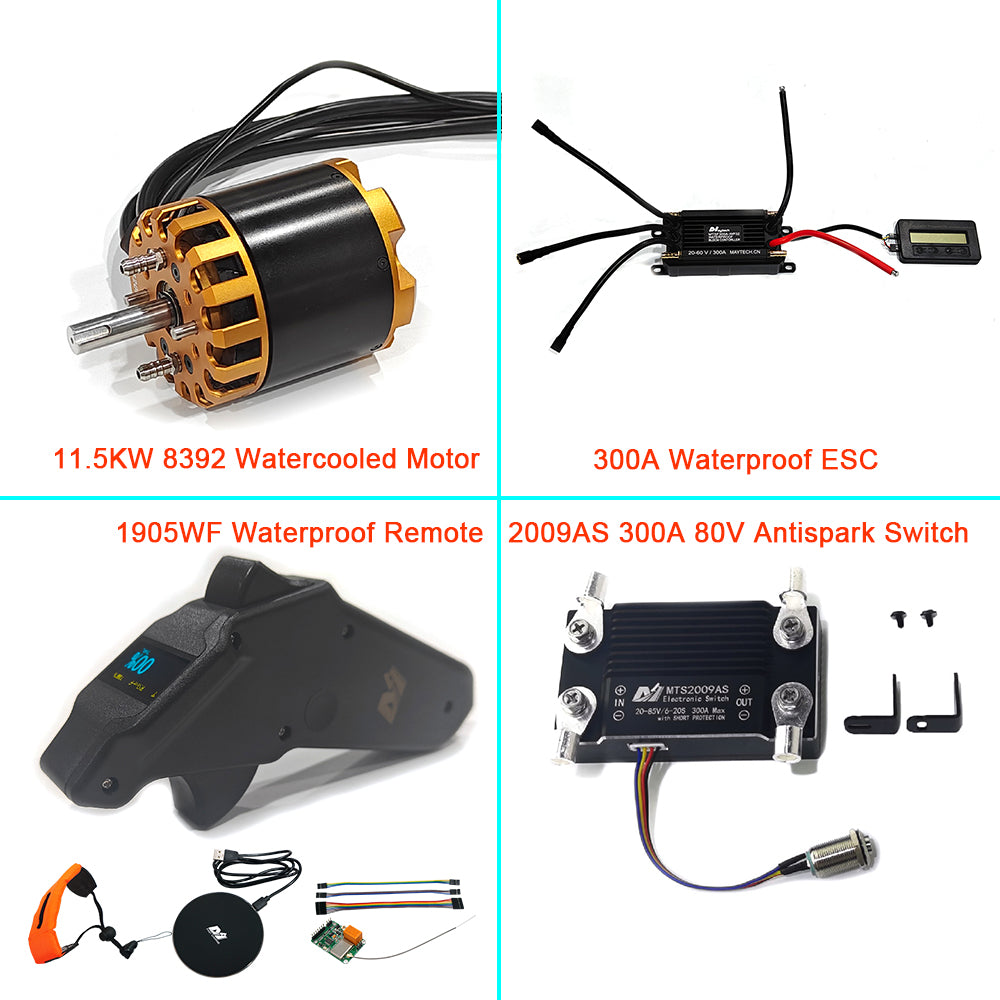

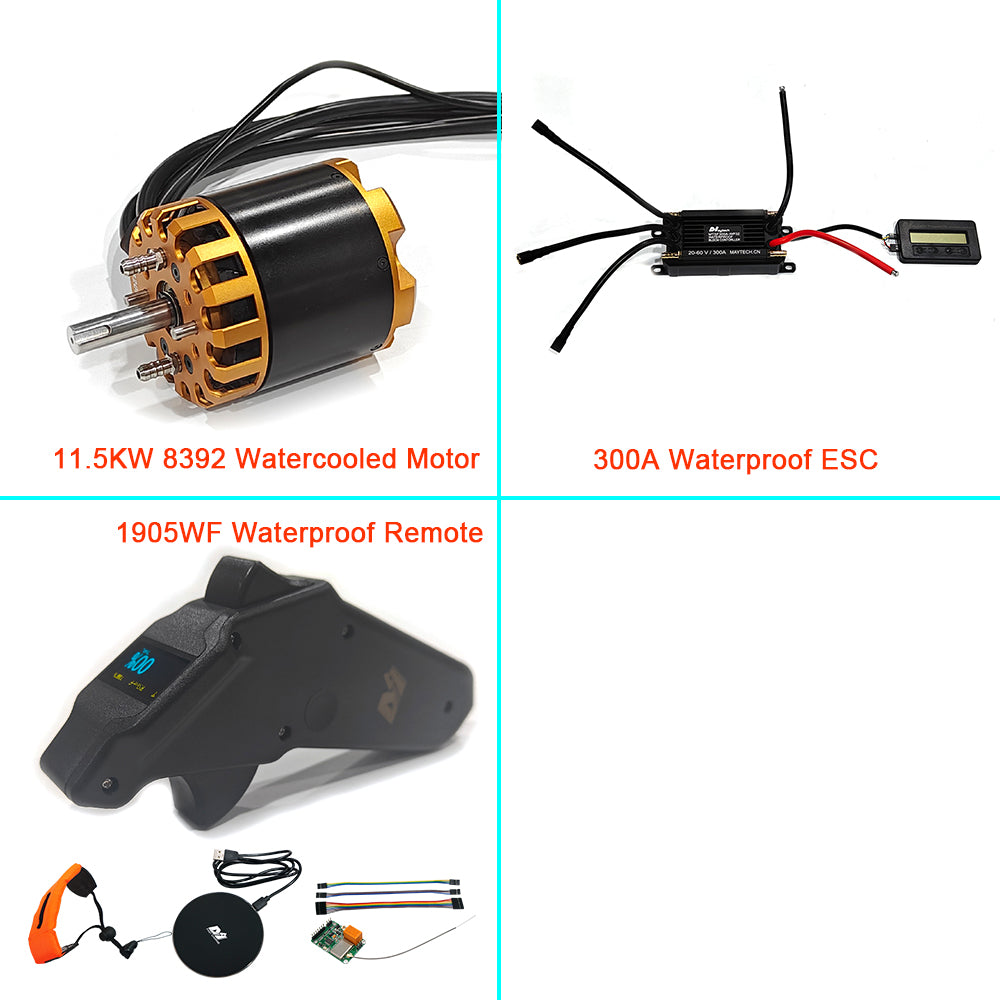

Maytech Watercooled Outrunner 8392 Motor + 300A-WP32 ESC for Esurf Electric Kayak Outboard
Maytech Watercooled Outrunner 8392 Motor + 300A-WP32 ESC for Esurf Electric Kayak Outboard
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please email to eileen@maytech.cn
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
> Click here to check the test video on Dynamometer with MTSF300A-WP32 ESC

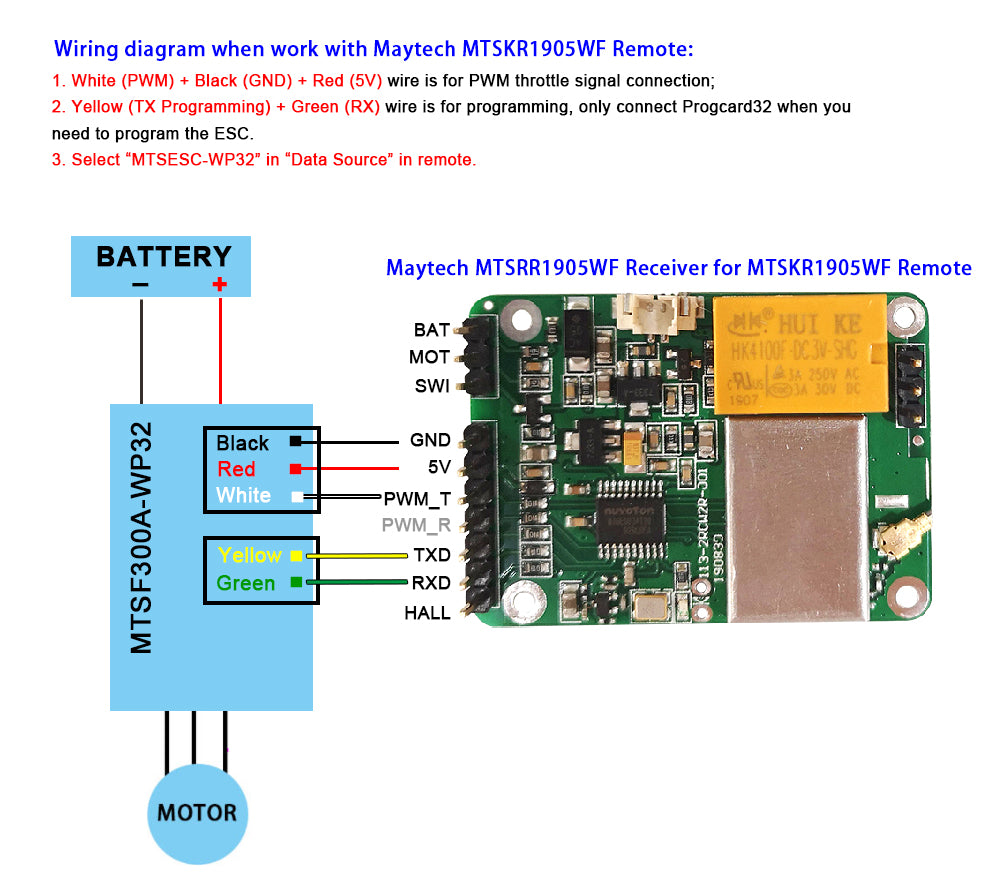

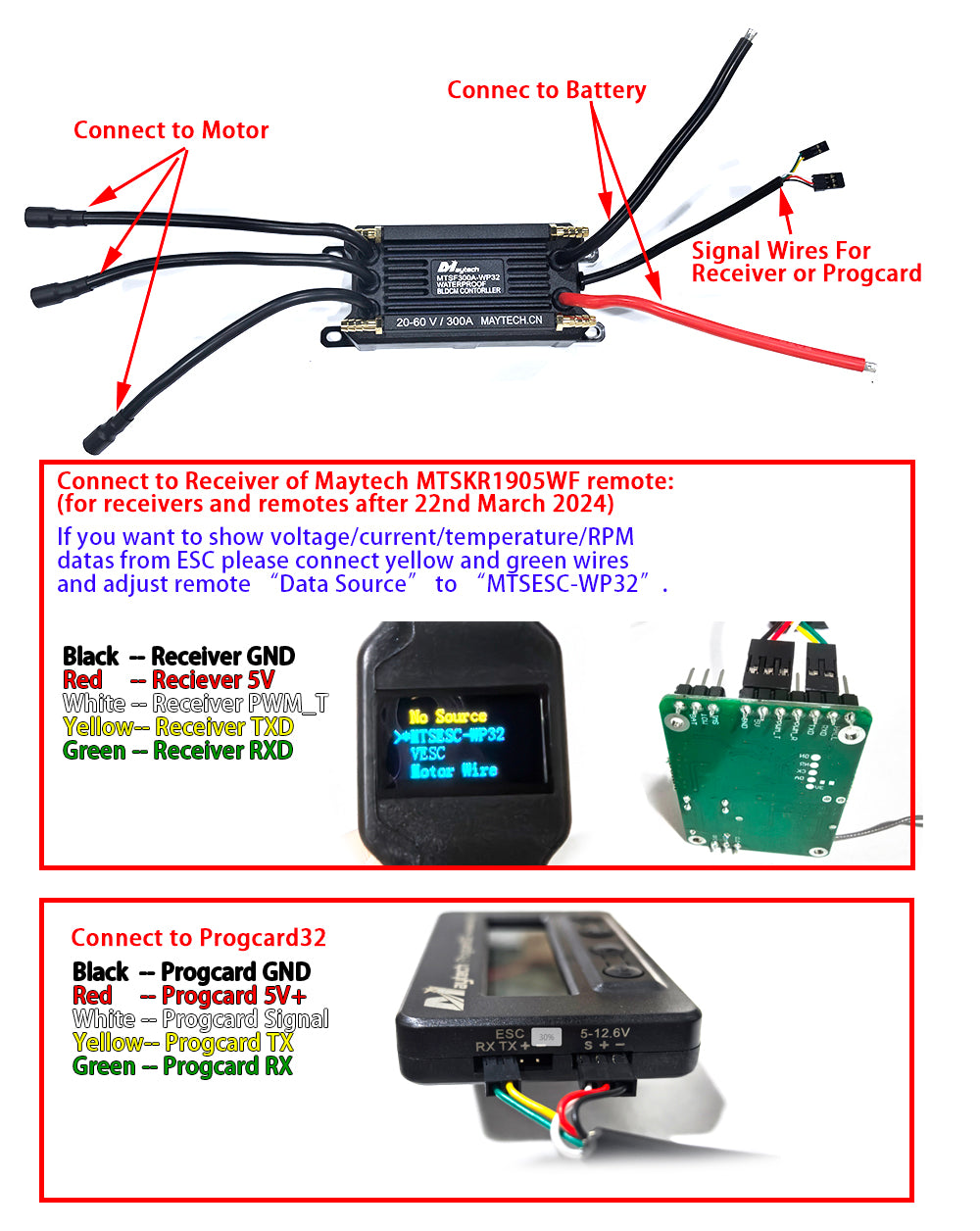

> How to set the ESC bidirectional with MTSKR1905WF remote for Boat application?
> Click to get ESC Progcard E-manual
> Get E-Manual: Remote Manual and Instruction
> Check Video Remote Using Instruction

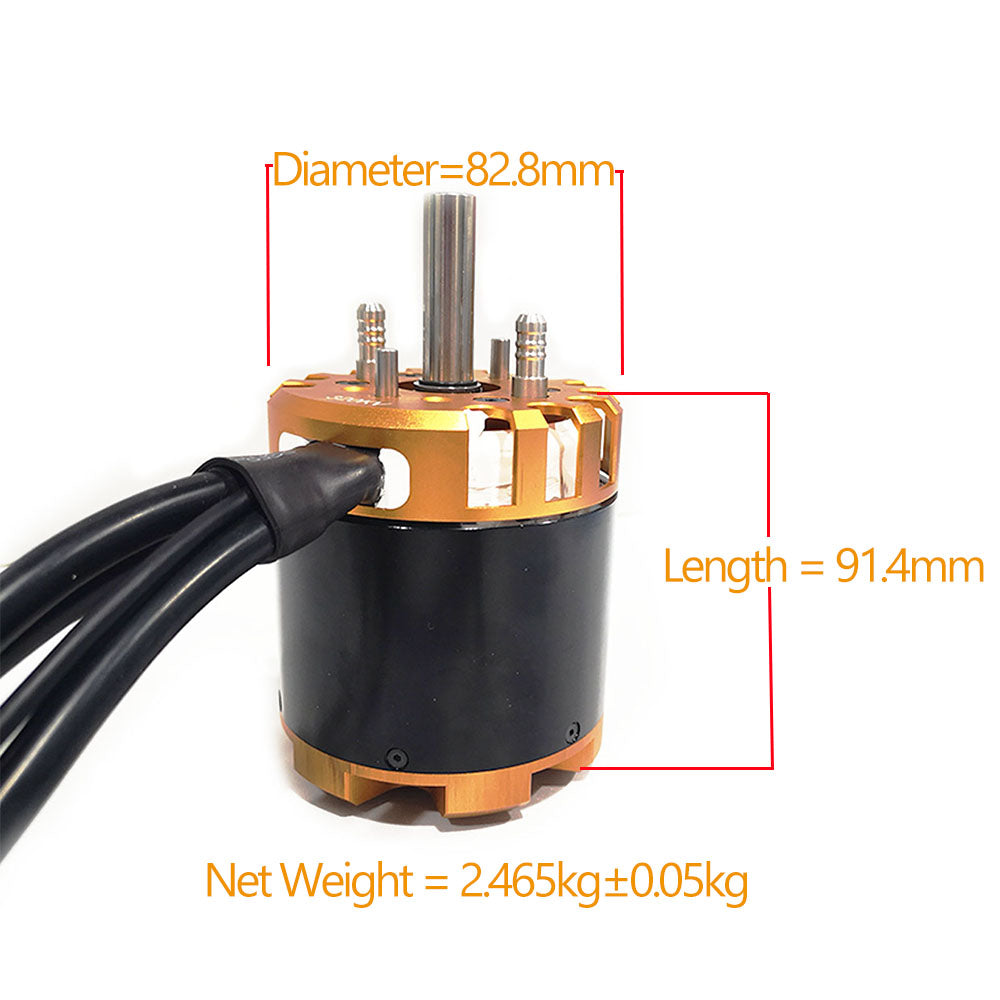

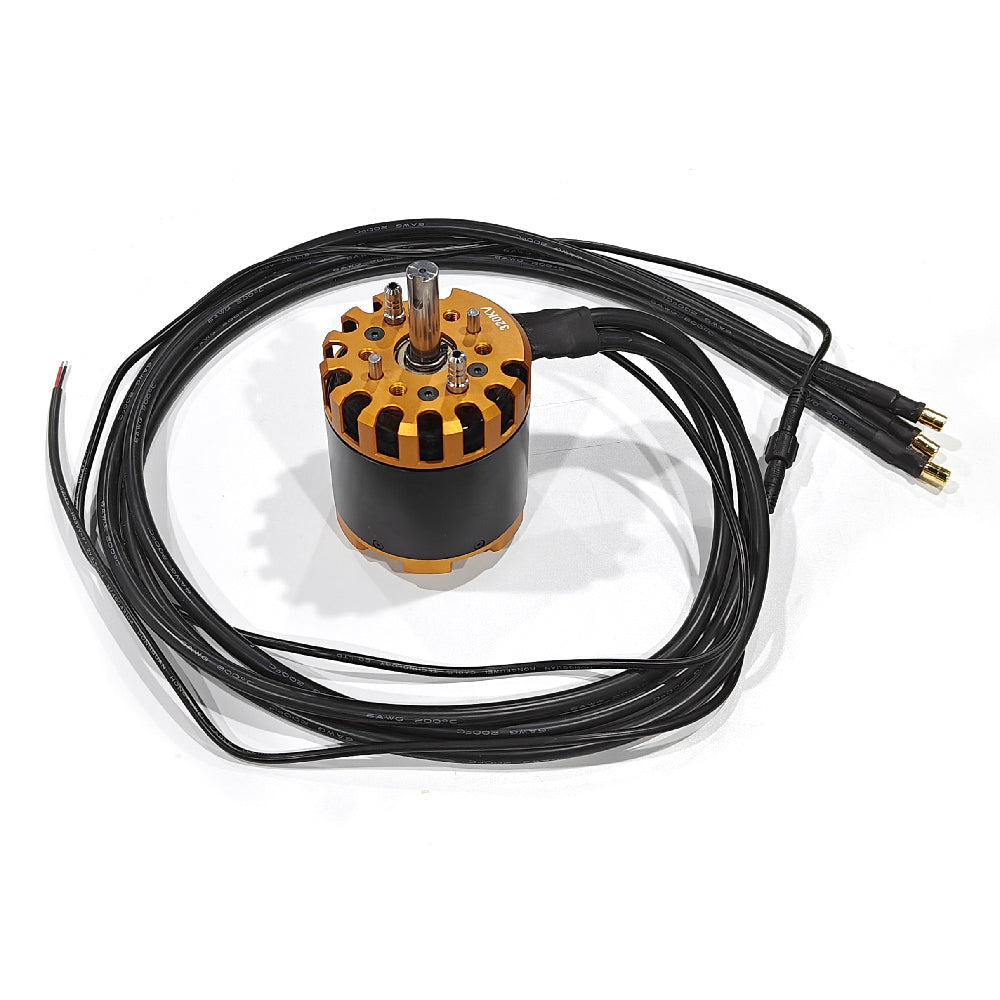

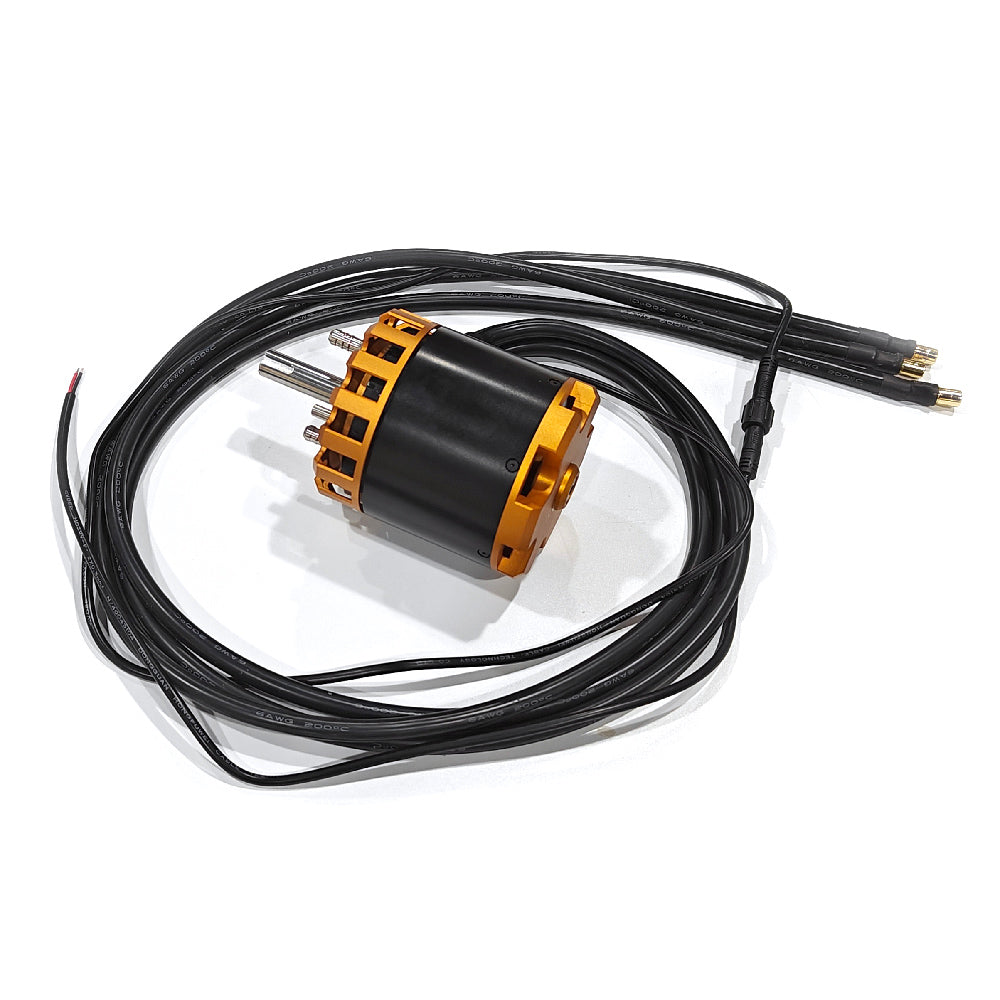

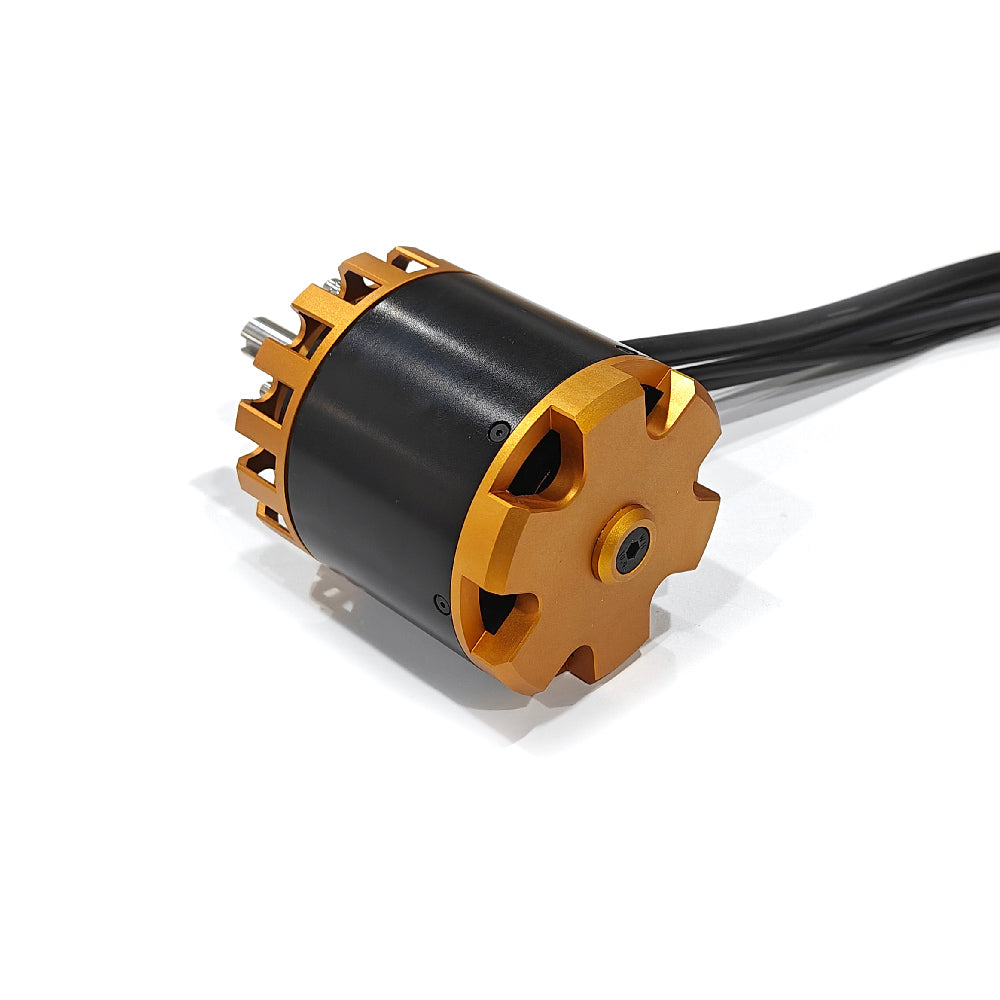

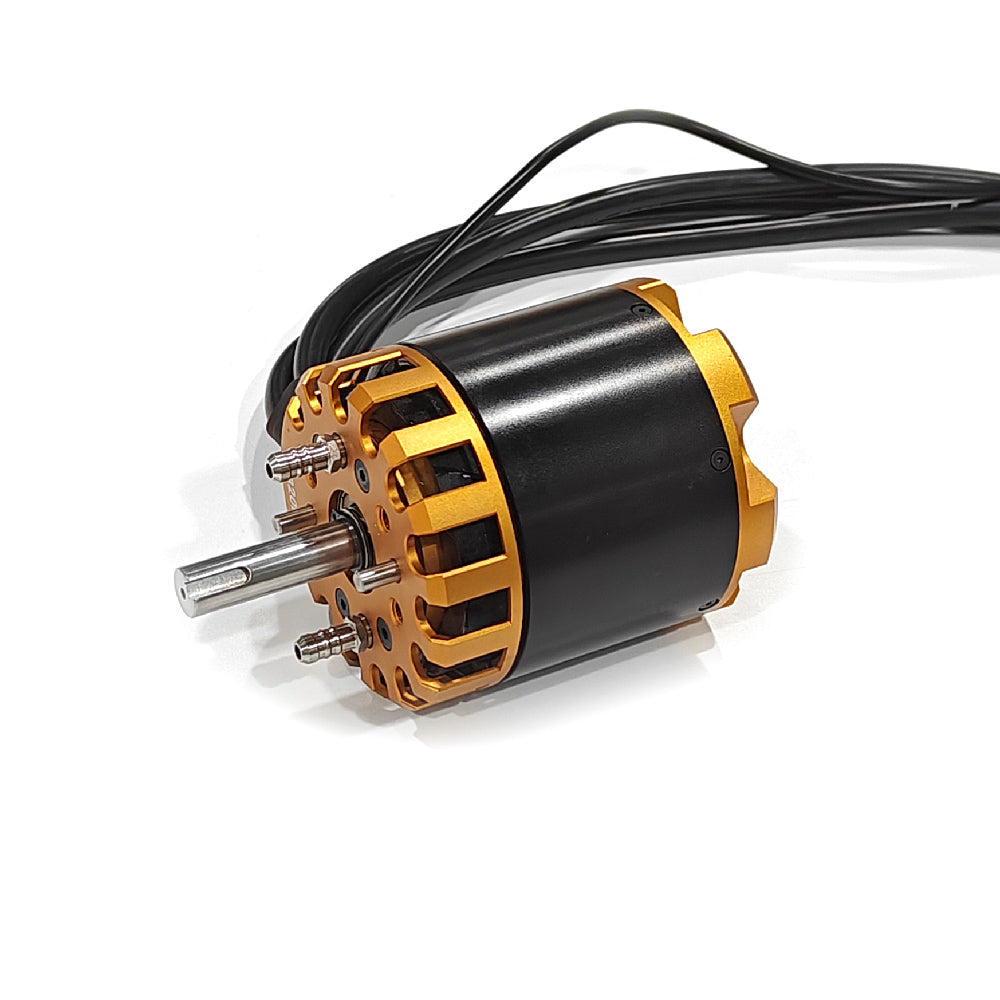

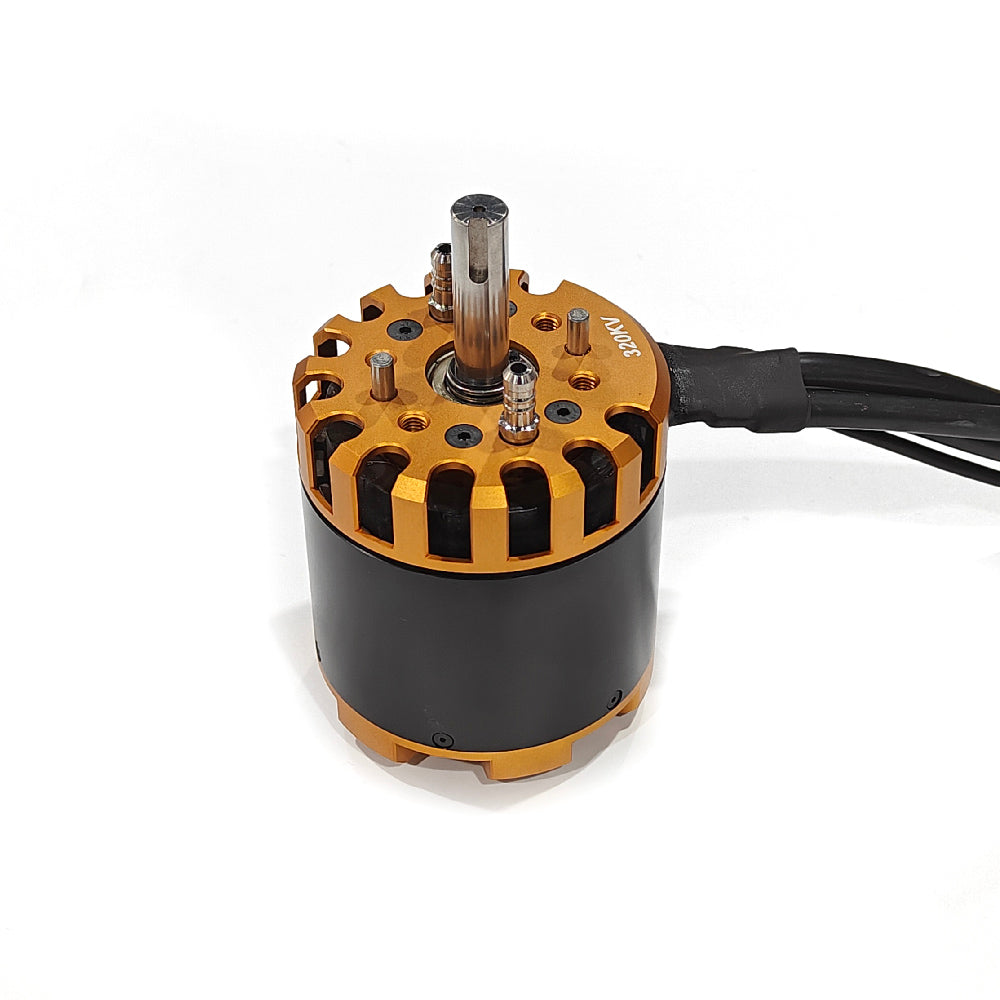

| Model No. | MTO8392-WC | Motor Type | Outrunner, Watercooled |
| Suggest Max RPM | 10000 | N/P | 24N20P |
| KV | 200 | Input Voltage | Suggest to use max 50V, please match suitable propeller size |
| Peak Torque | 15.5N.m | Peak Current | 300A |
Application: Electric surfboard, jetsurf, tow boogie, electric kayak, electric boat, electric outboard, underwater thruster, small hobby car, crawler truck, wrenching machines, drilling machine, electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, hydrofoil board, MegaBots, Battlebots, Robot combat, Combat Robots, etc.

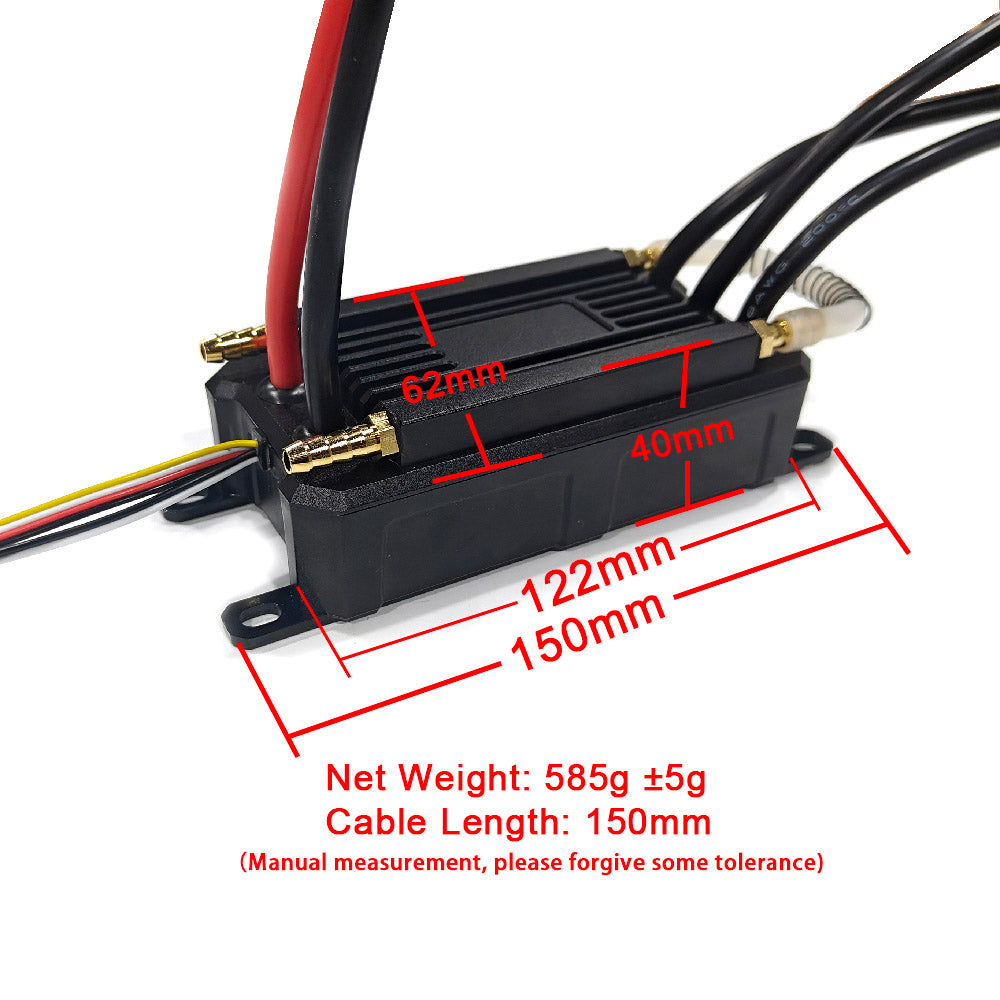

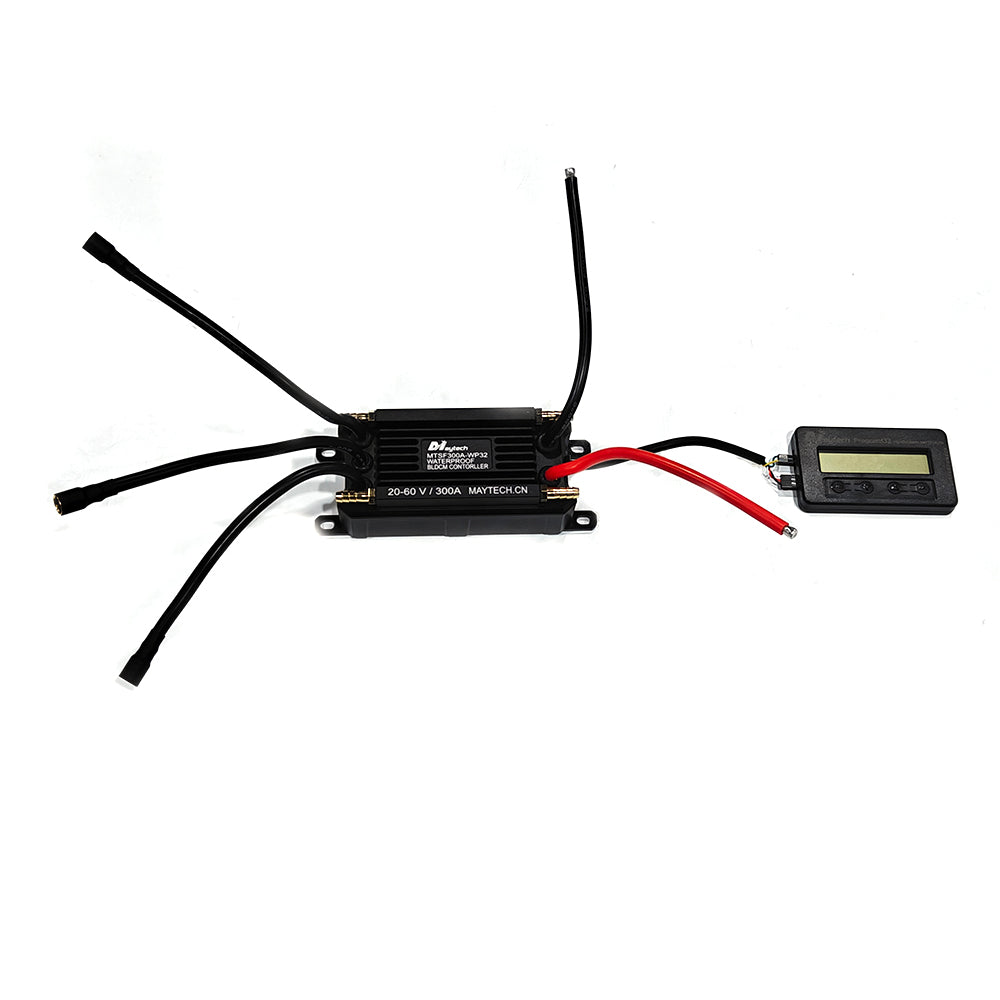

Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: Suggest to use max 50V in this kit
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor

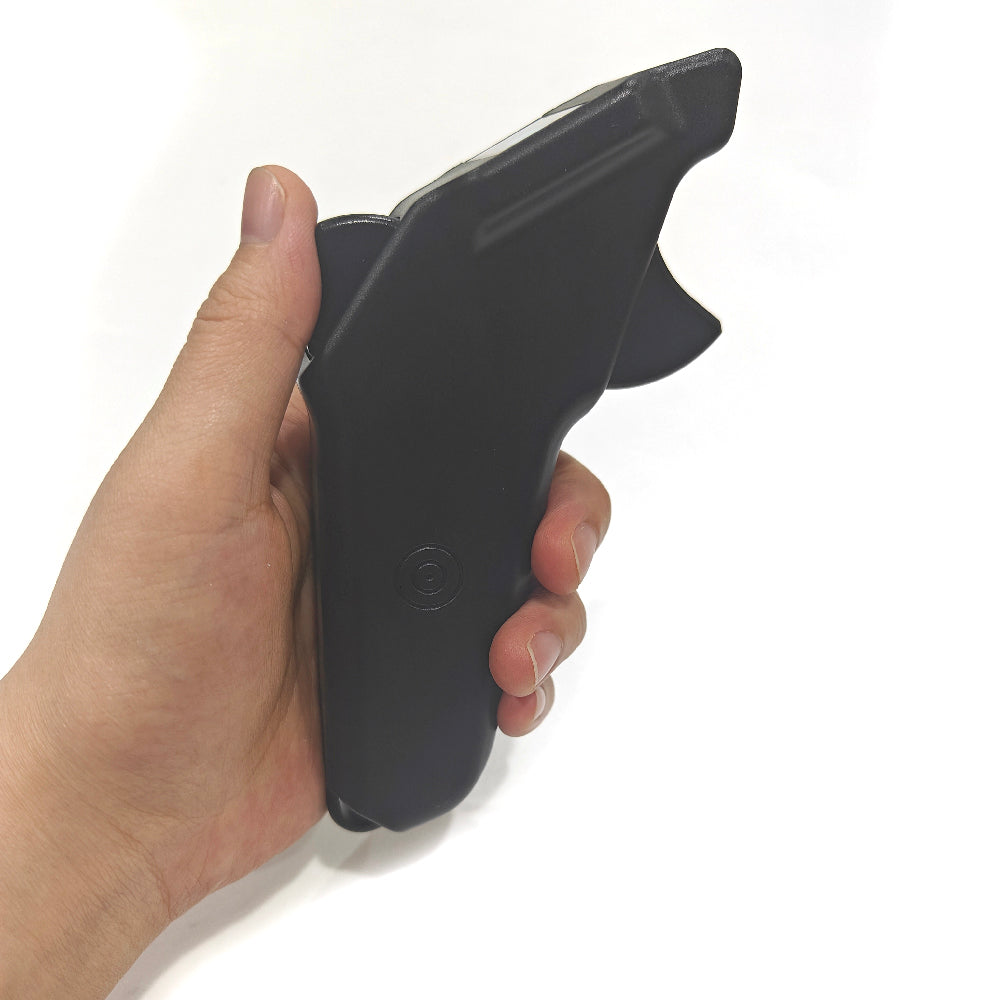

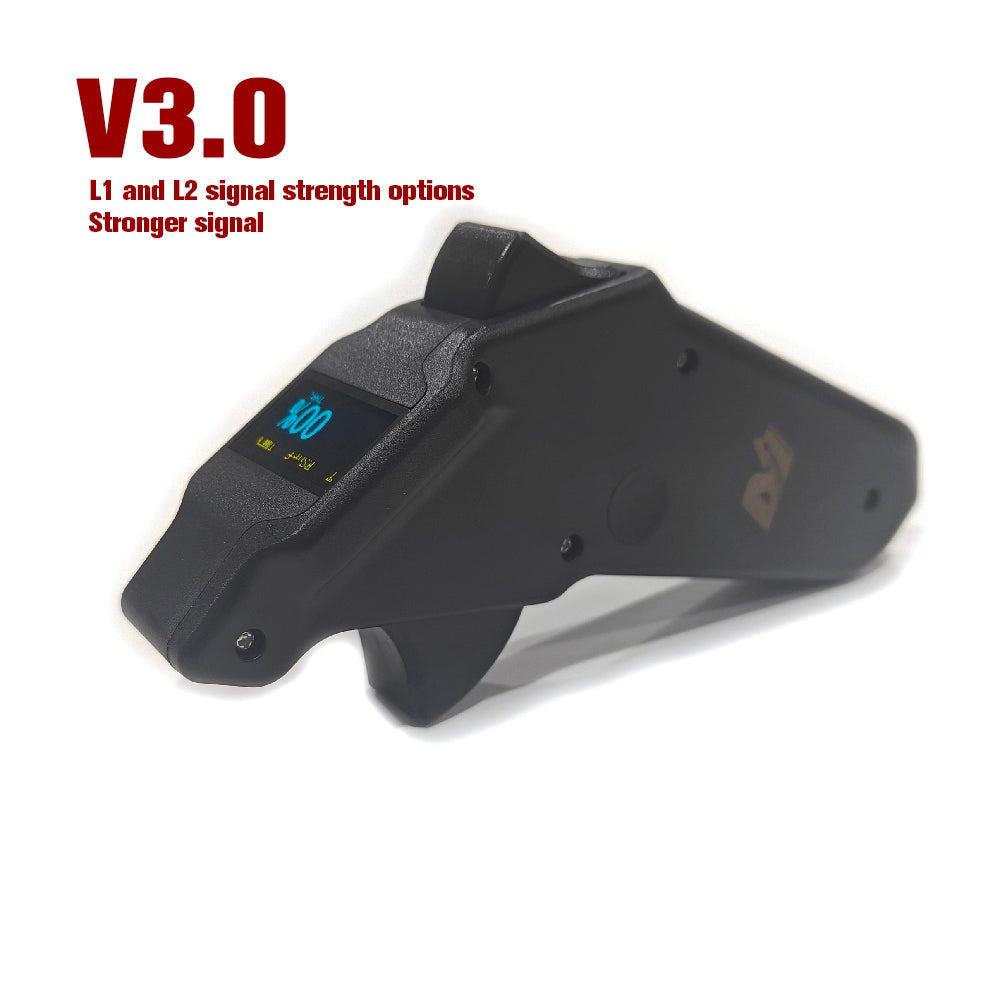

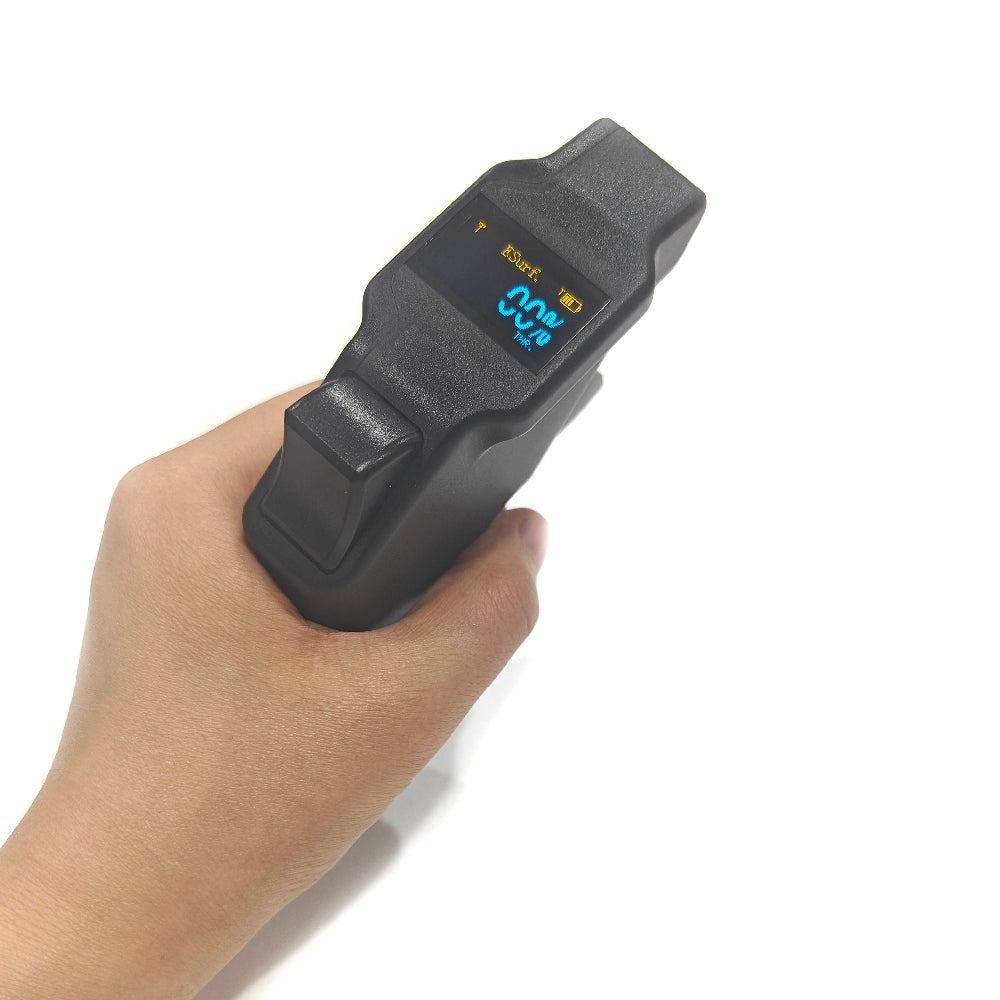

3. MTSKR26WF Waterproof Remote: with UART & PWM Receiver
| Model No | MTSKR26WF V5.0 |
| Updated Functions |
Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed) Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. |
| Waterproof Rank | IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen |
| Thr Mode | Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications |
| 3 Speed Modes | With, adjust throttle % from 20-100%, friendly for beginners |
| Power Modes | 2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro > ECO Power Consumption: PRO > ECO |
| Throttle Lock | Yes, 10-120S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
GPS Speed / Distance / Max Speed / Average Speed |
| Relay Switch | No, without Relay Switch on Receiver to save mounting space |
| Control Light | Yes (20V 2A Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake or Reverse | With in Esk8 Mode |

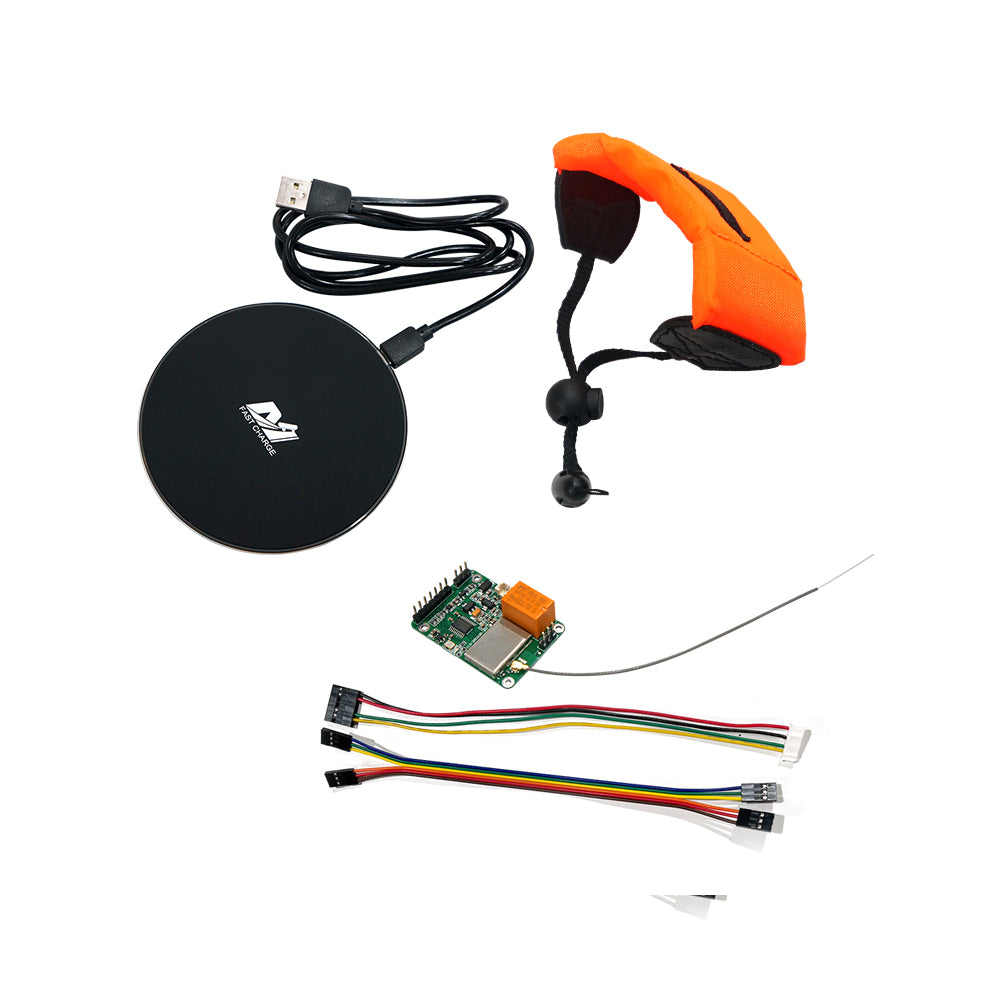

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |

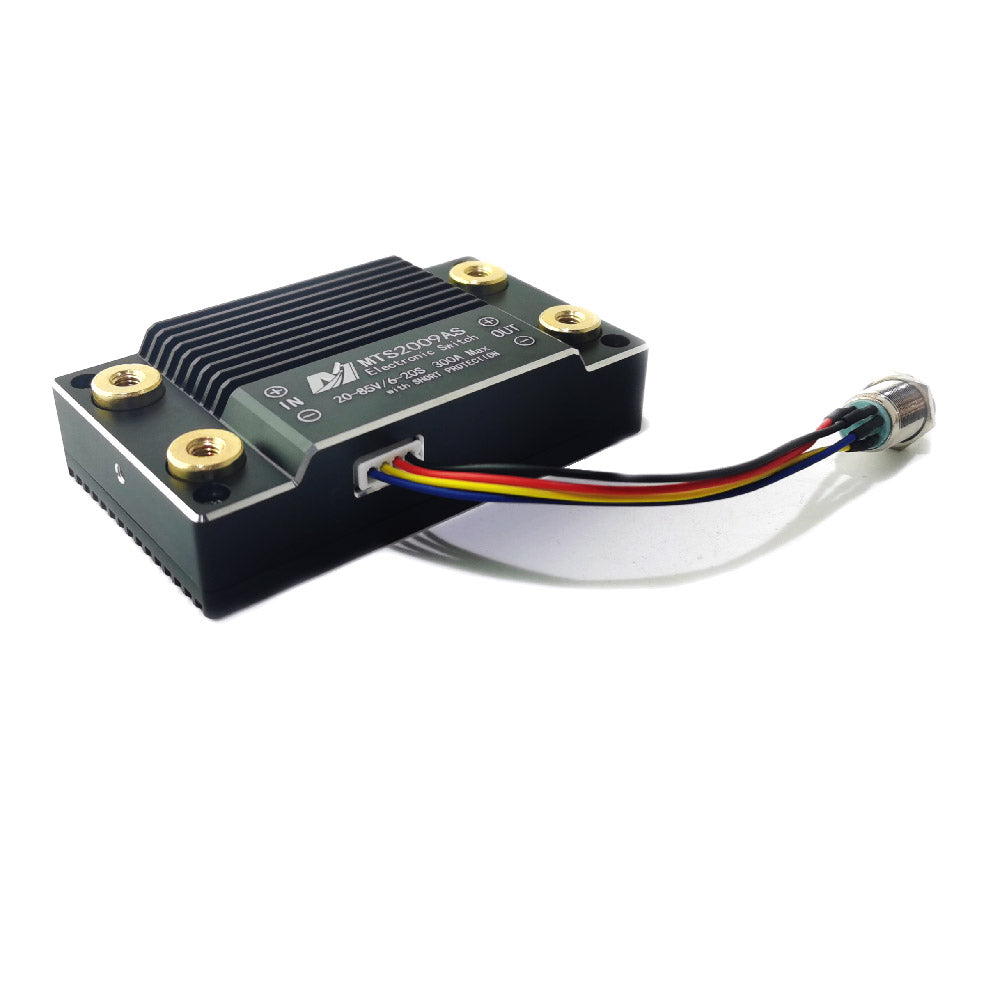

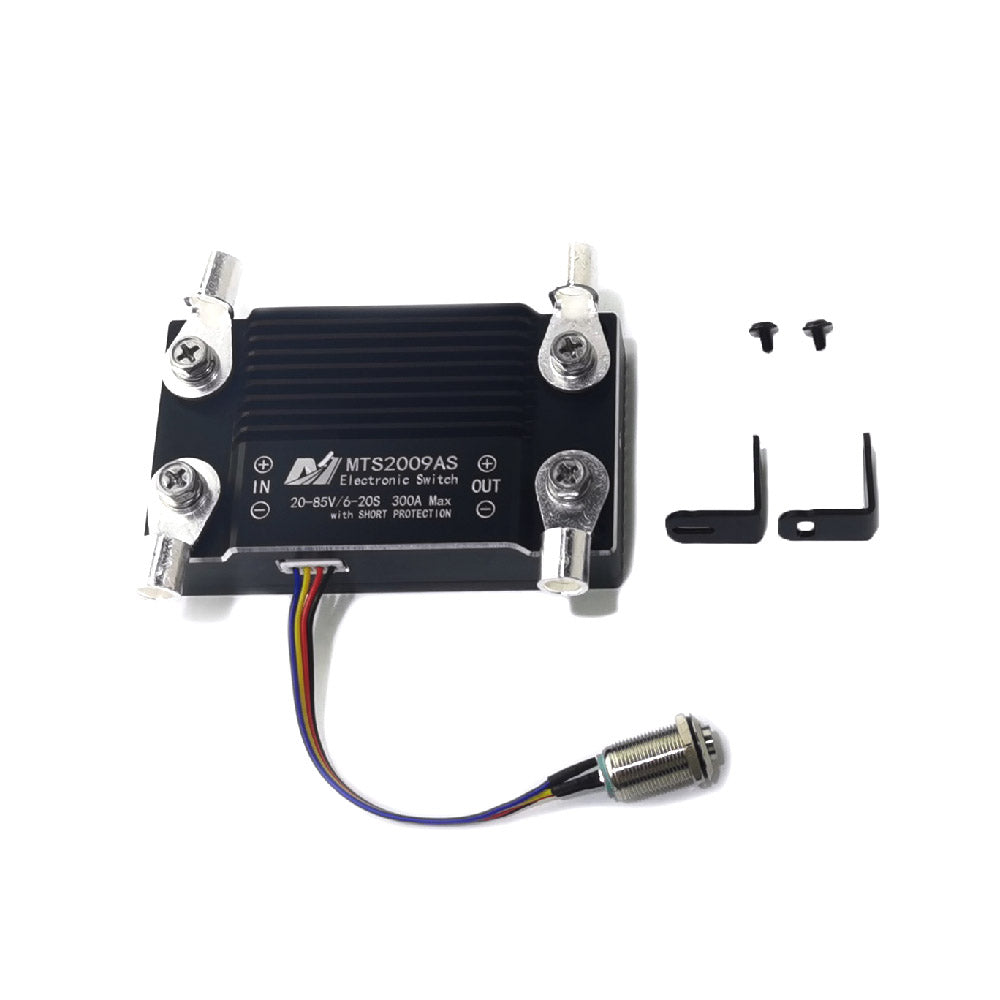

4. MTS2009AS Antispark Switch
| Model No. | MTS2009AS |
| Max Current | 300A |
| Input Voltage | 6-20S Lipo (25-85V), suggest to use max 50V in this kit |
| Swith Diameter | 12mm |
| Switch Type | NMOS to realize switching on/off Power positive |
| Waterproof | No, please keep the switch in dry space |
| Connector | With 4pcs Cold-pressed Terminal Connector |
| Function | Protect your controller and power supply system when brake or startup |
| Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
| Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |
