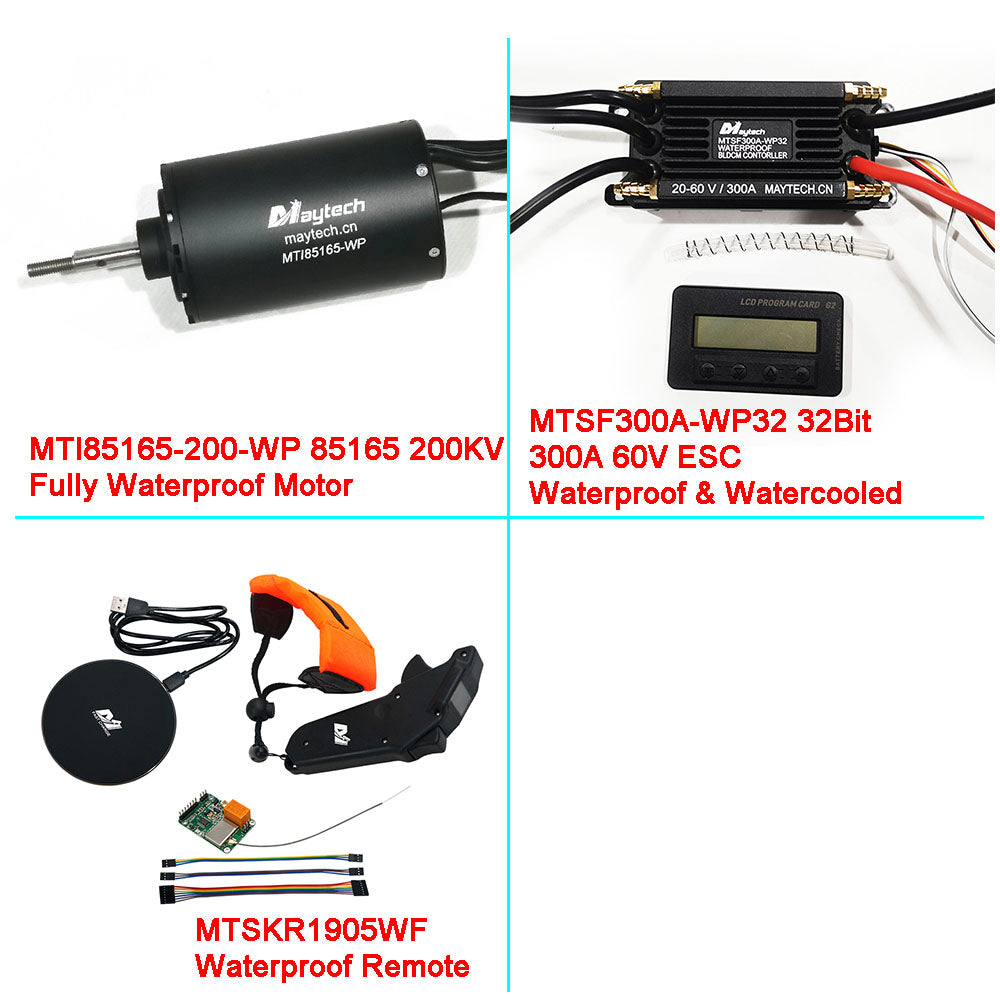

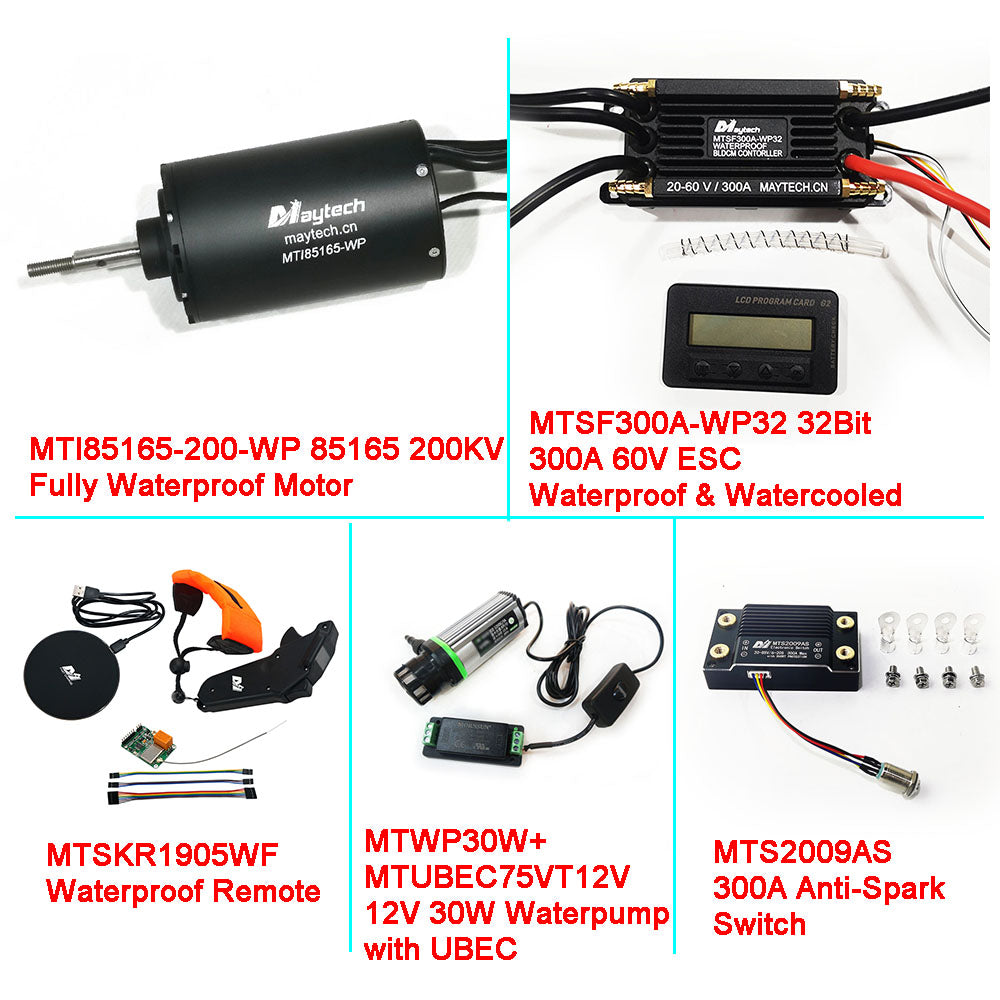

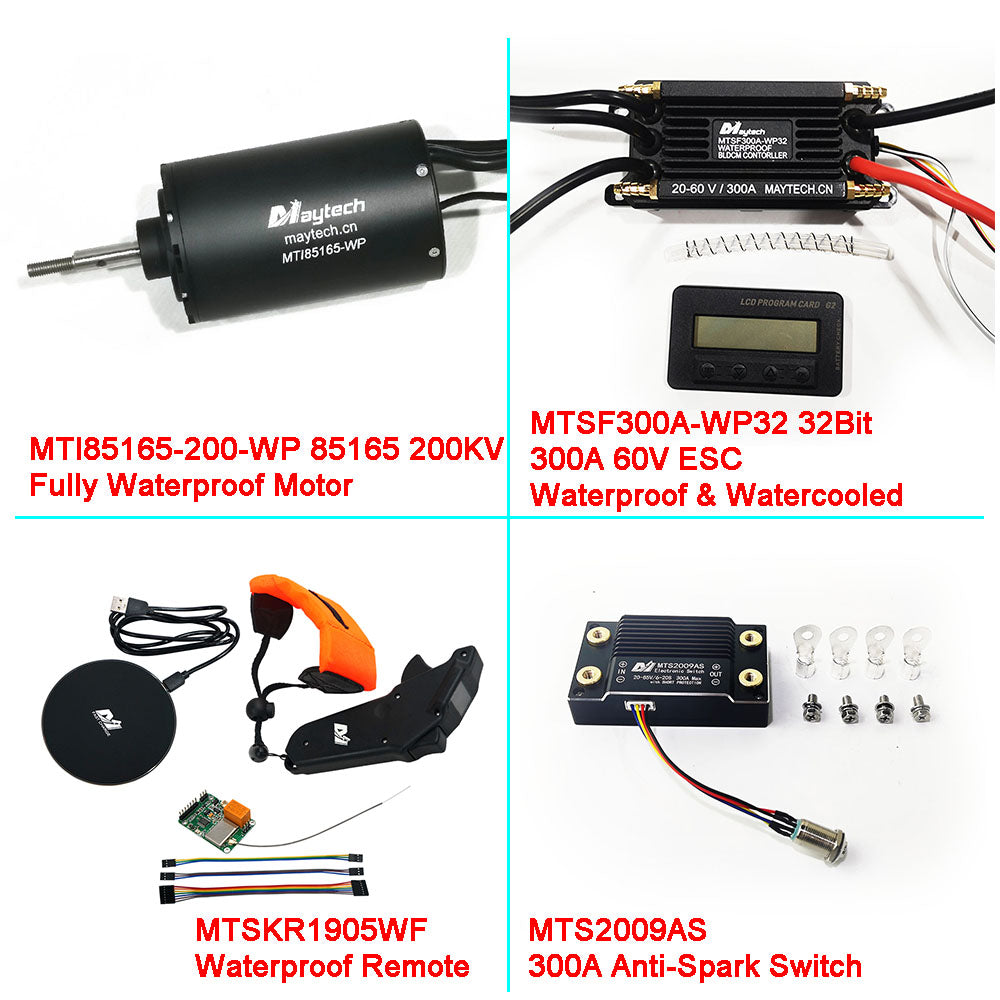

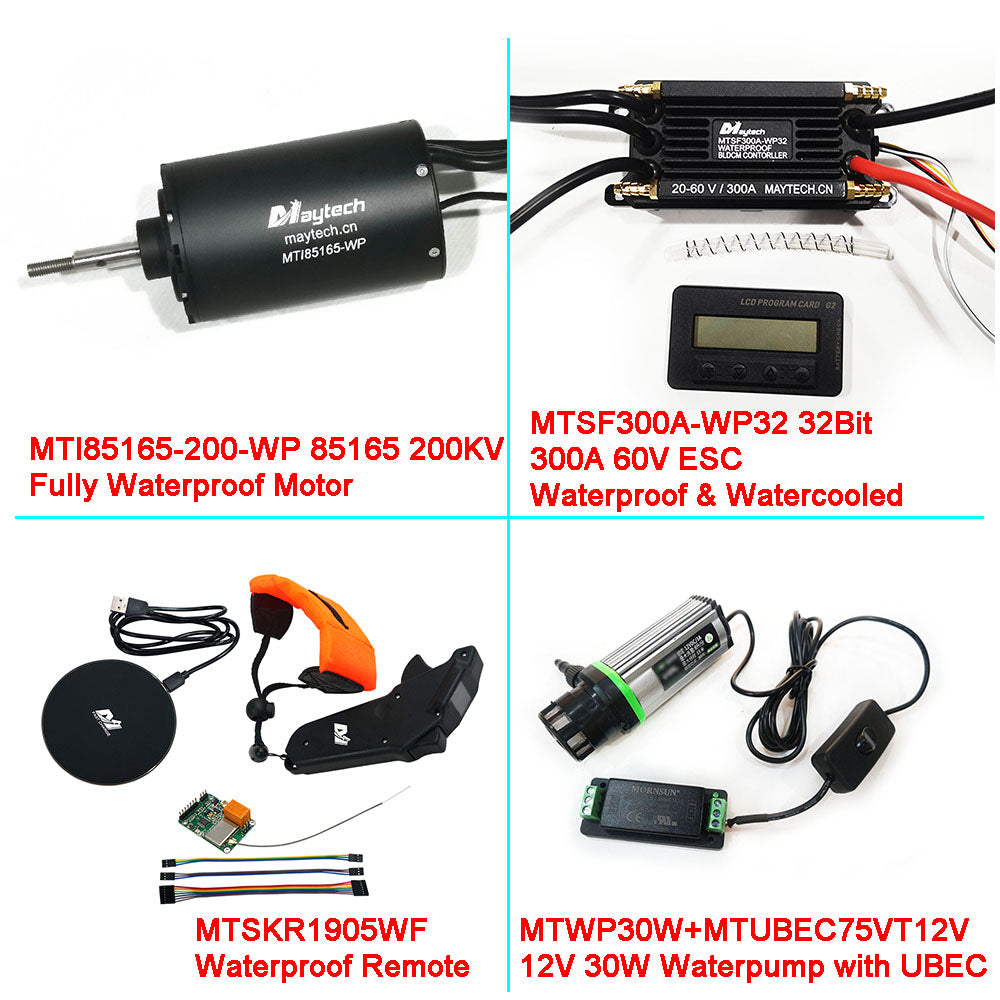

Waterproof Esurf/ Efoil Kit 85165 Motor + 300A 32Bit ESC+ MTSKR1905WF Remote + 300A 85V Switch + Water Pump
Waterproof Esurf/ Efoil Kit 85165 Motor + 300A 32Bit ESC+ MTSKR1905WF Remote + 300A 85V Switch + Water Pump
Regular price
$942.08 USD
Regular price
$1,024.00 USD
Sale price
$942.08 USD
Unit price
/
per
1. MTSF300A-WP32 32Bit ESC:
Model No.: MTSF300A-WP32
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-14S Lipo (22.2V-60V)
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-14S Lipo (22.2V-60V)
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,
Features:
-
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;--Faster respond, smoother startup;--Throttle linear is optimized, more accurate and smoother, better compatibility;2. Seperate control board and power board design--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.3. Support forward and reverse rotation--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,4. With kinetic energy recovery function--Save more energy;--Extend battery working time;--Reduce heat
5. Multiple protections--Startup protection;--Over-temp protection;--Low voltage protection;--Phase loss protection;--Signal loss protection

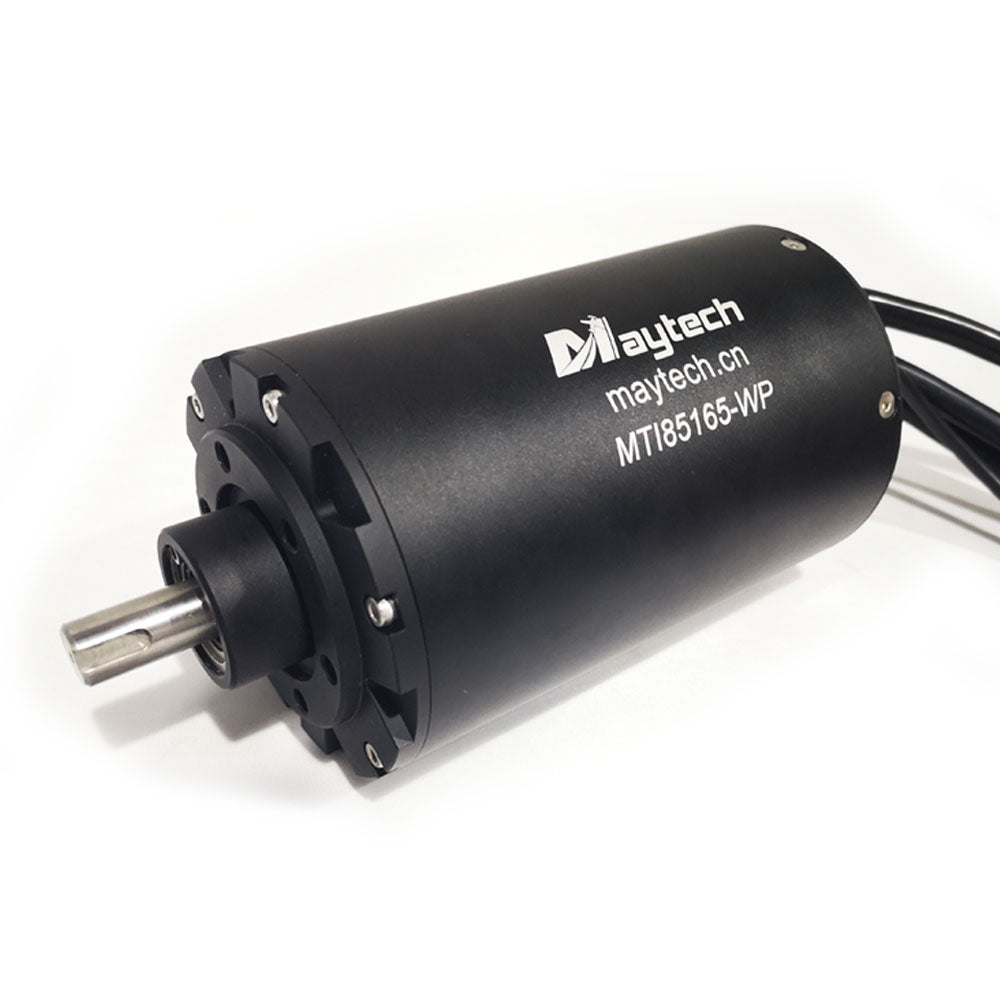

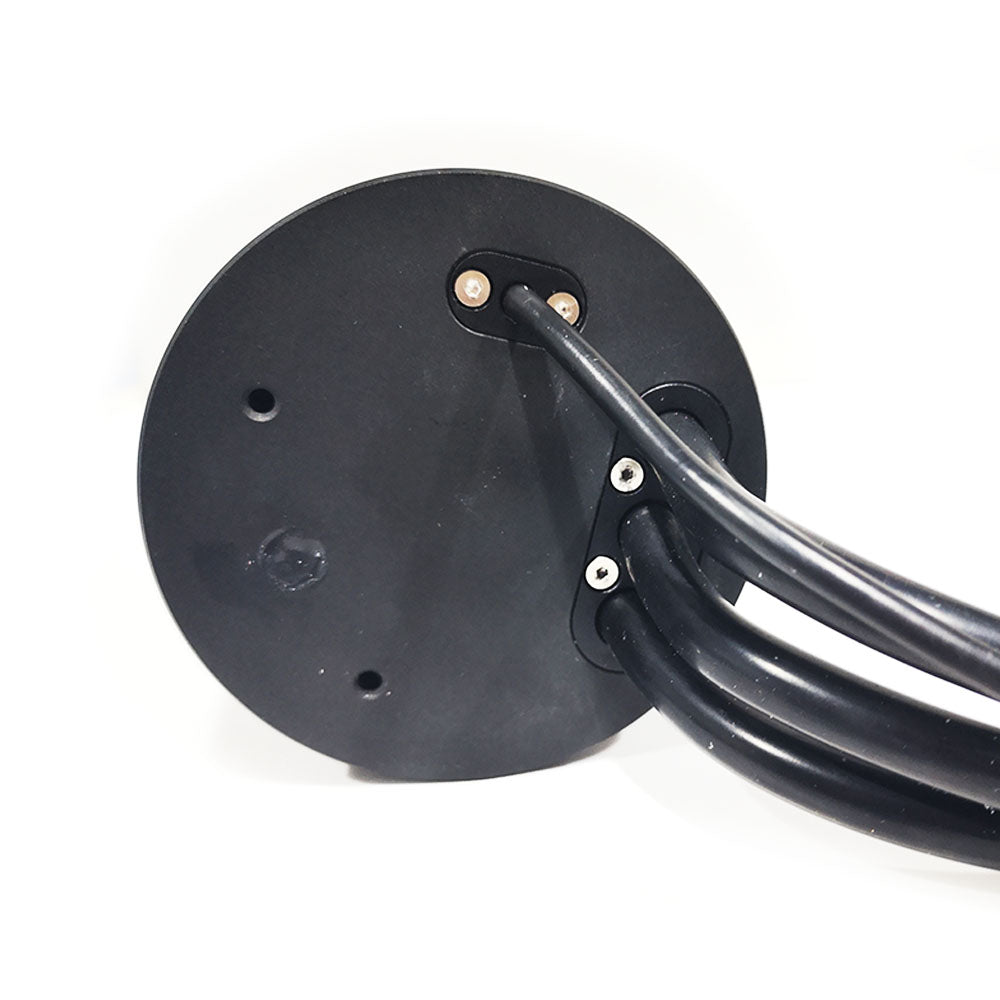

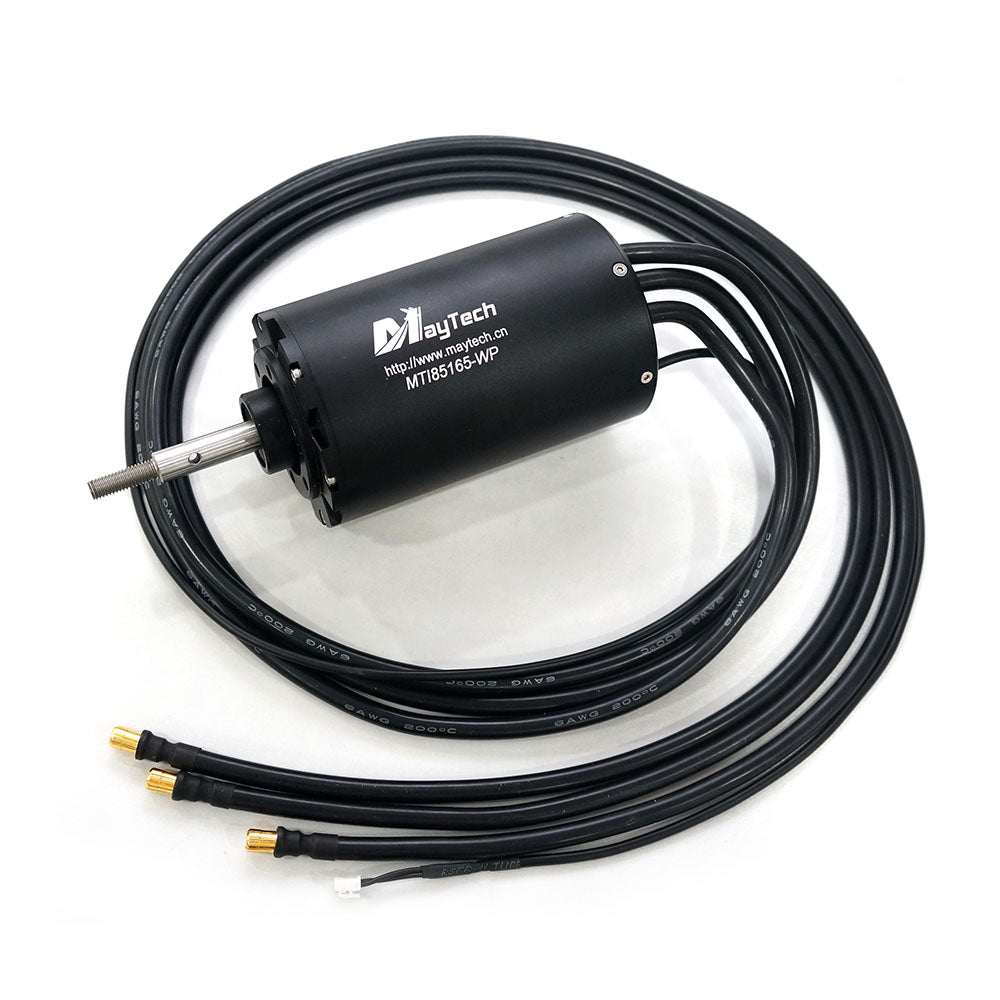

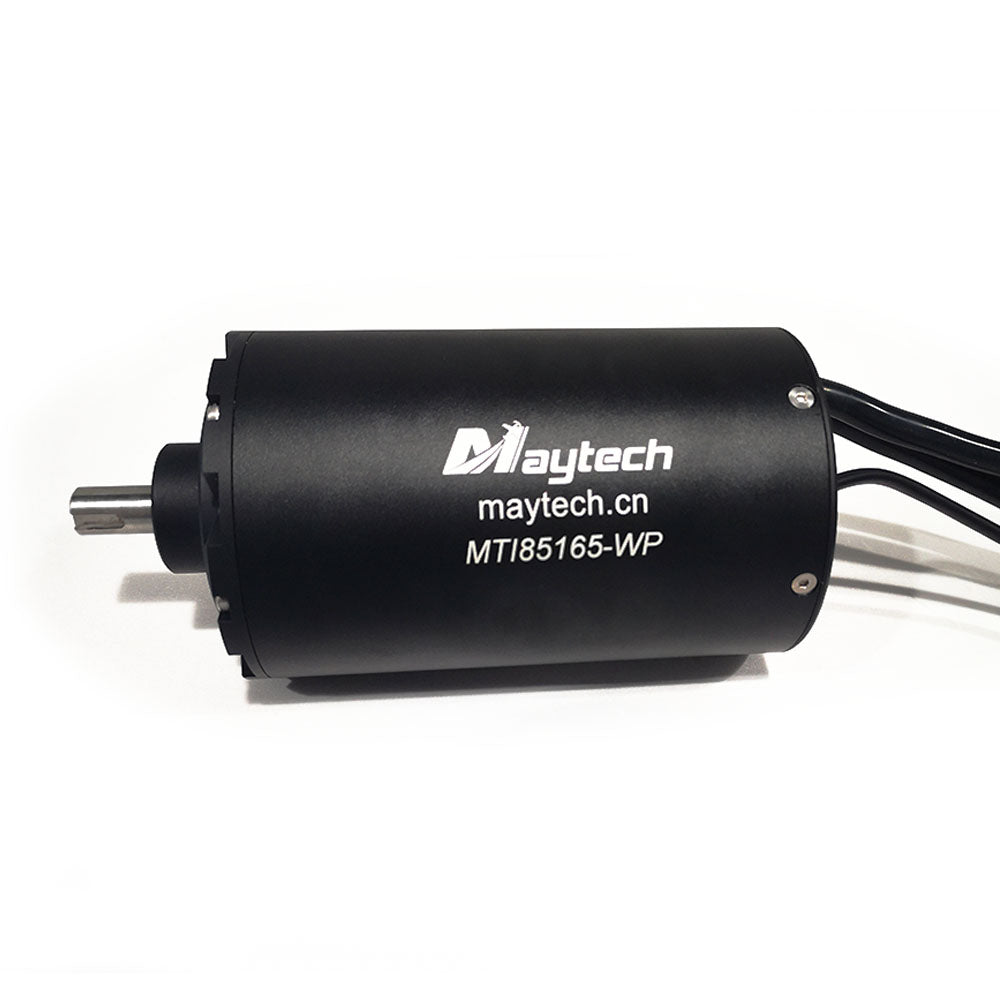

2. MTI85165 Inrunner Waterproof Motor
Model No. | MTI85165-200-WP |
KV | 200, if you want other KV, contact maytech@maytech.cn |
Shaft | Keyway Shaft or thread shaft (depending on stocks) |
Input Voltage | 6-12S Lipo (25V-50V) |
Waterproof Rank | IP Waterproof |
Watercooling | Without |
Max Current | 300A |
Max Output Power | 10.5KW |
Pole Number | 10 poles |
Max Torque | 15.5N.m |
Connector | 8.0mm male golded-plated bullet connector |
Hall Sensor | Without |
Customize | KV, logo, shaft, cable, connector, cover, case, etc., contact agnes@maytech.cn |

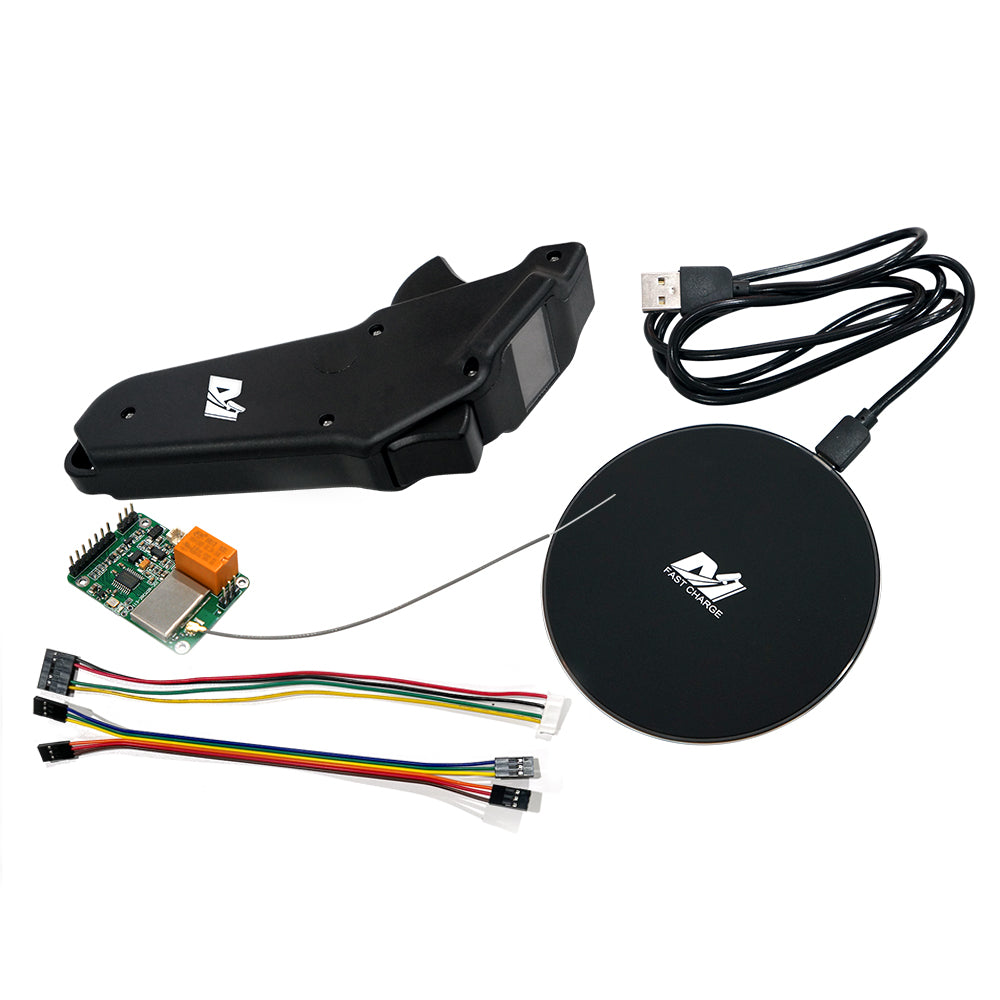

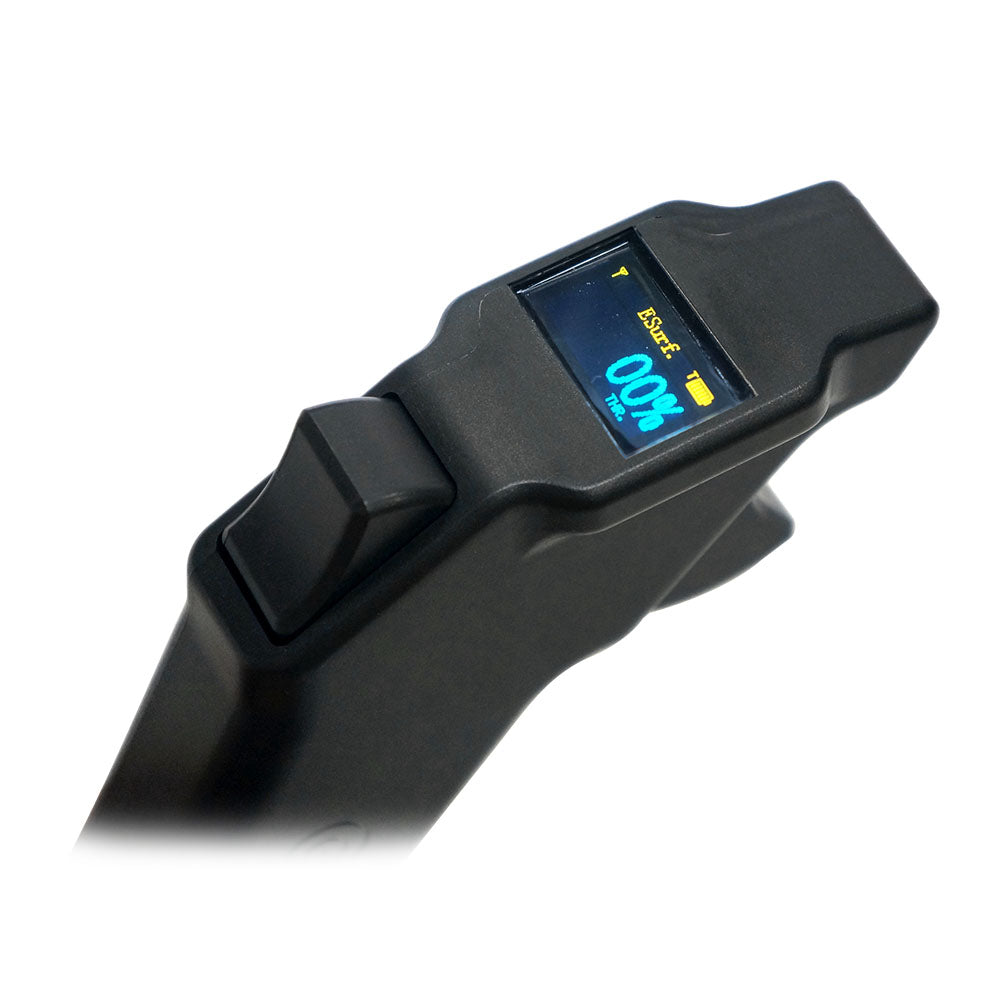

3. Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver
Model No | MTSKR1905WF V3.0 |
Waterproof Rank | IP67 double waterproof |
Thr Mode | ESURF (SF) and ESK8 (SK) |
3 Speed Modes | With, adjust throttle % from 20-100% |
Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
Throttle Lock | Yes, 10-30S optional |
Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
Output Signal | Max 3.3V |
Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
Control Pump | Yes (Relay Switch) |
Control Light | Yes (Transistor Switch) |
Safety Button | Support |
Cruise Control | With in Esurf Mode |
Brake | With in Esk8 Mode |
Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |

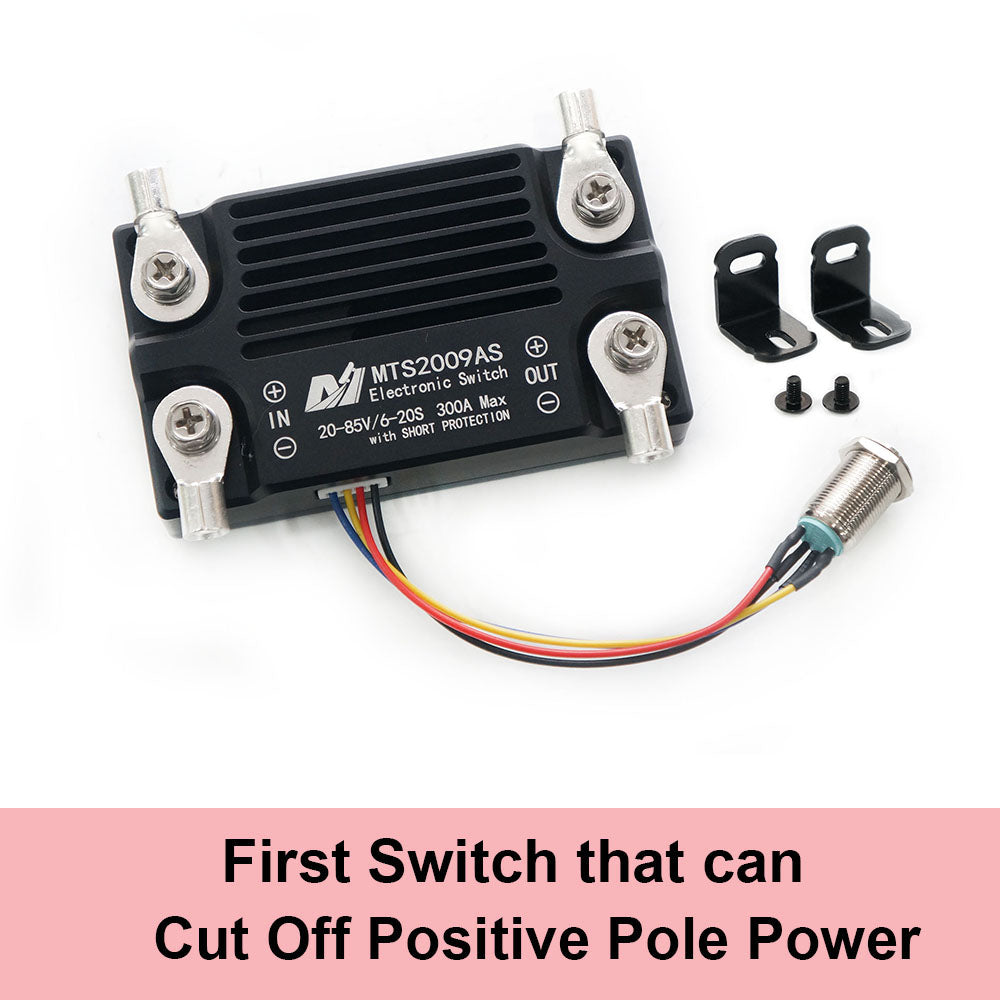

4. MTS2009AS Antispark Switch
Model No. | MTS2009AS |
Max Current | 300A |
Input Voltage | 6-20S Lipo (25-85V), recommend better work under 75V |
Swith Diameter | 12mm |
Switch Type | NMOS to realize switching on/off Power positive |
Waterproof | No, please keep the switch in dry space |
Connector | With 4pcs Cold-pressed Terminal Connector |
Function | Protect your controller and power supply system when brake or startup |
Application | Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc., |
Features: | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work. |
