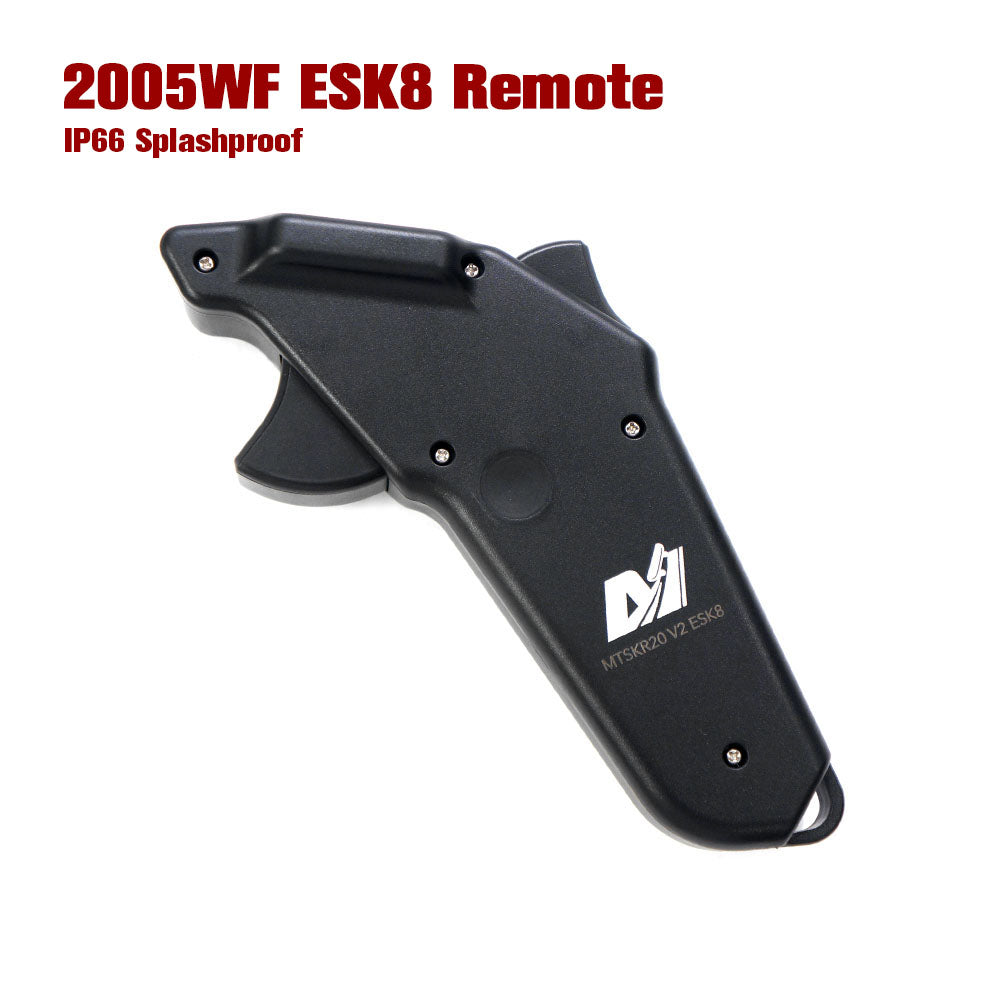

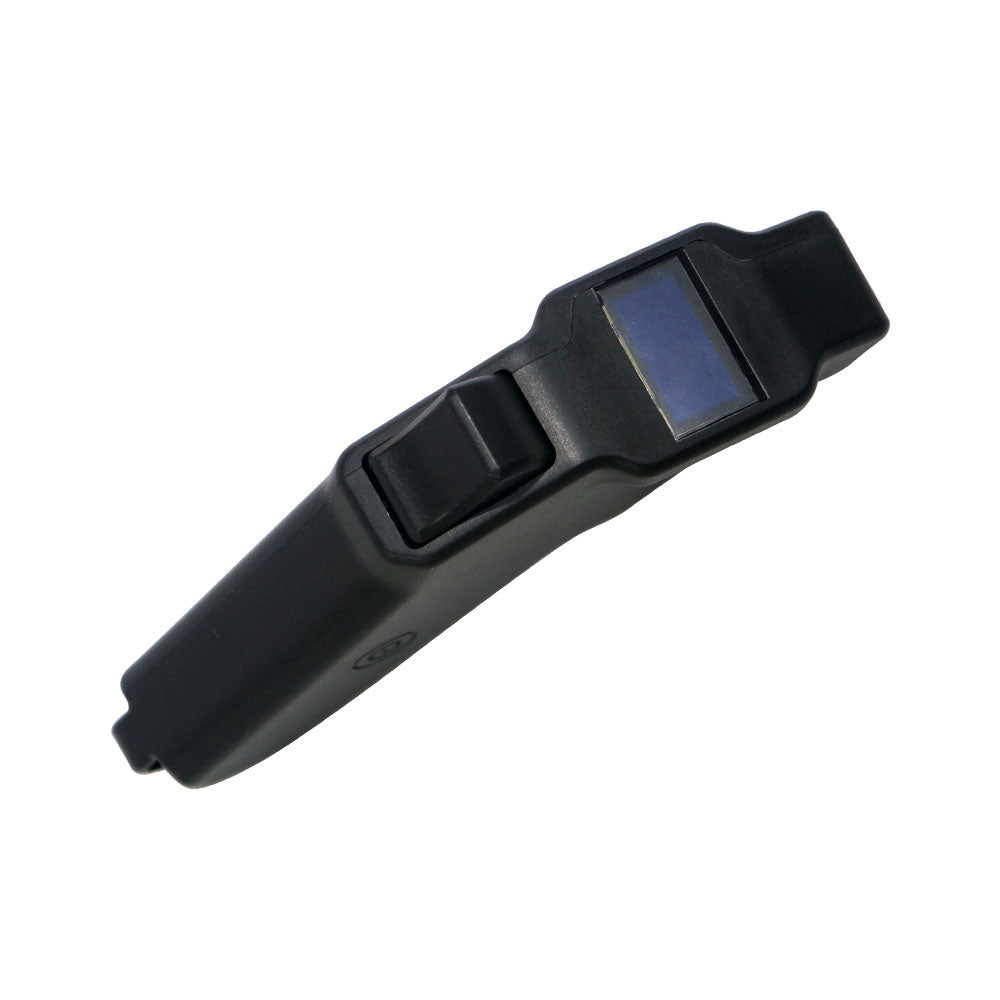

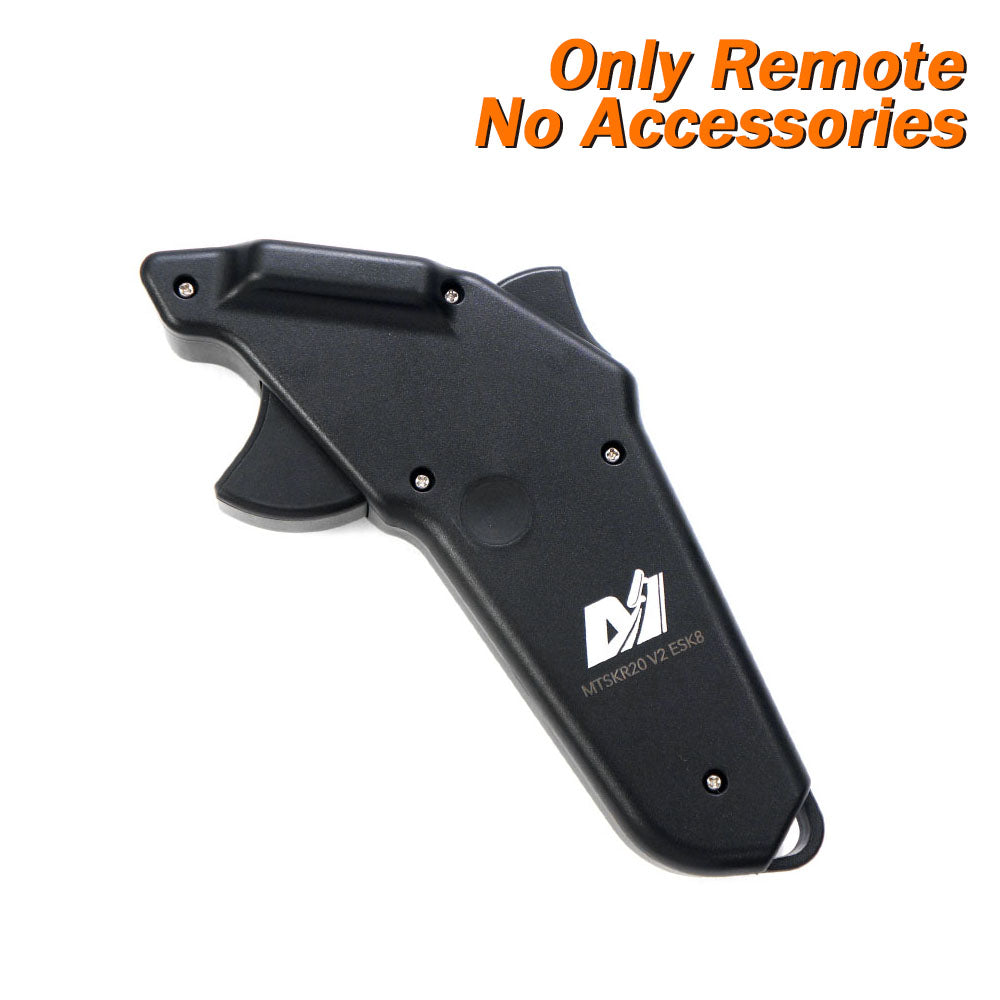

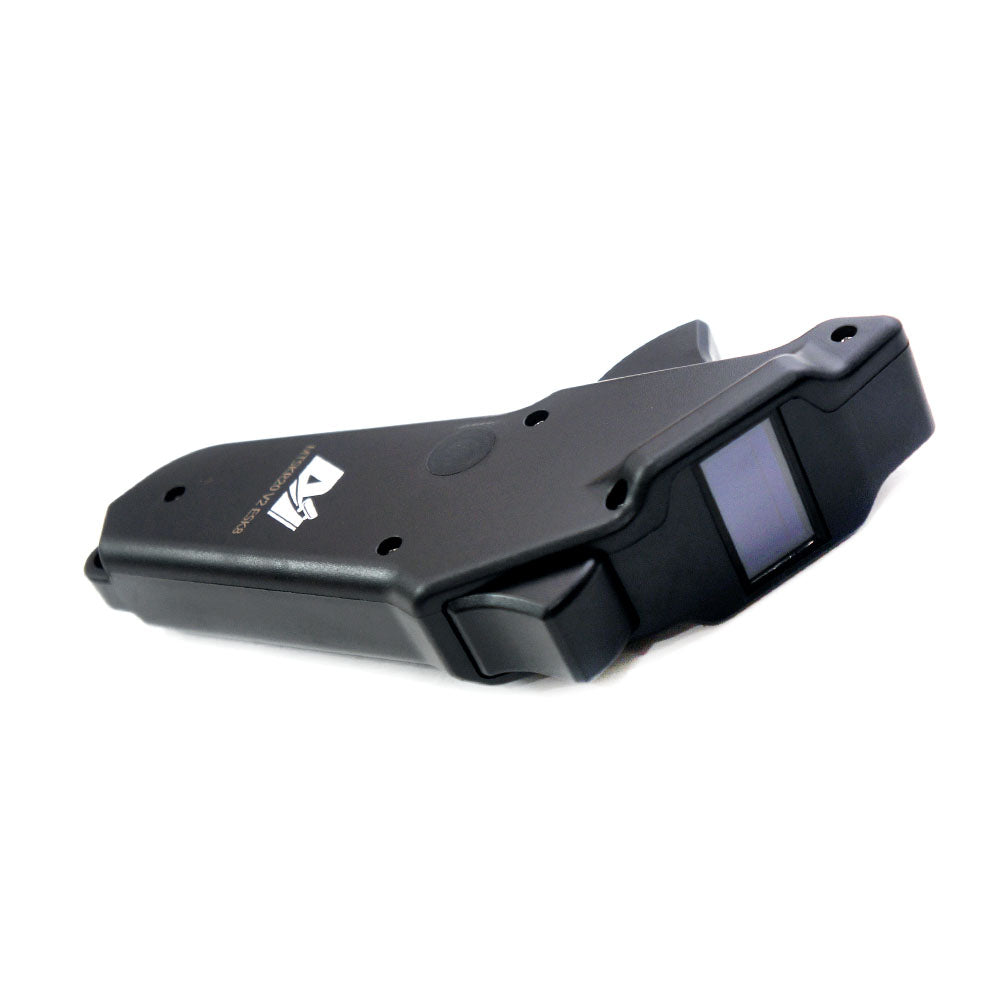

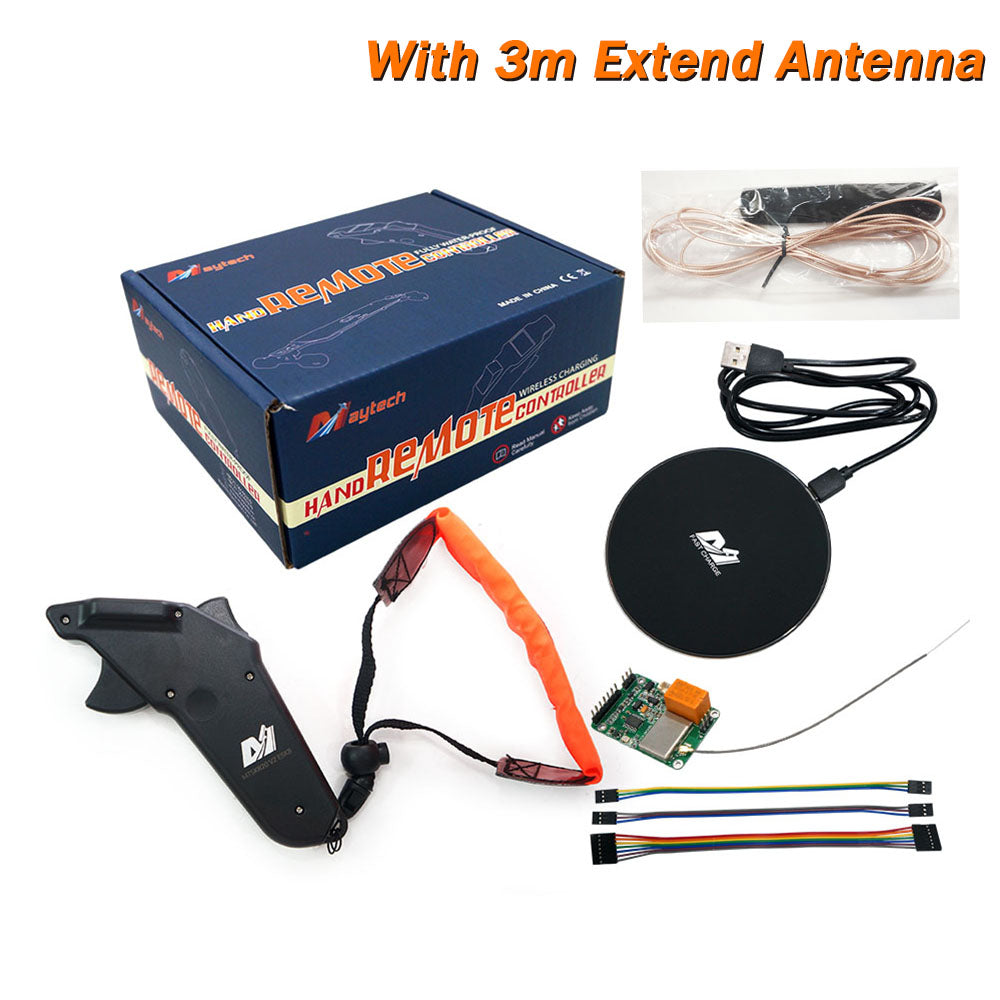

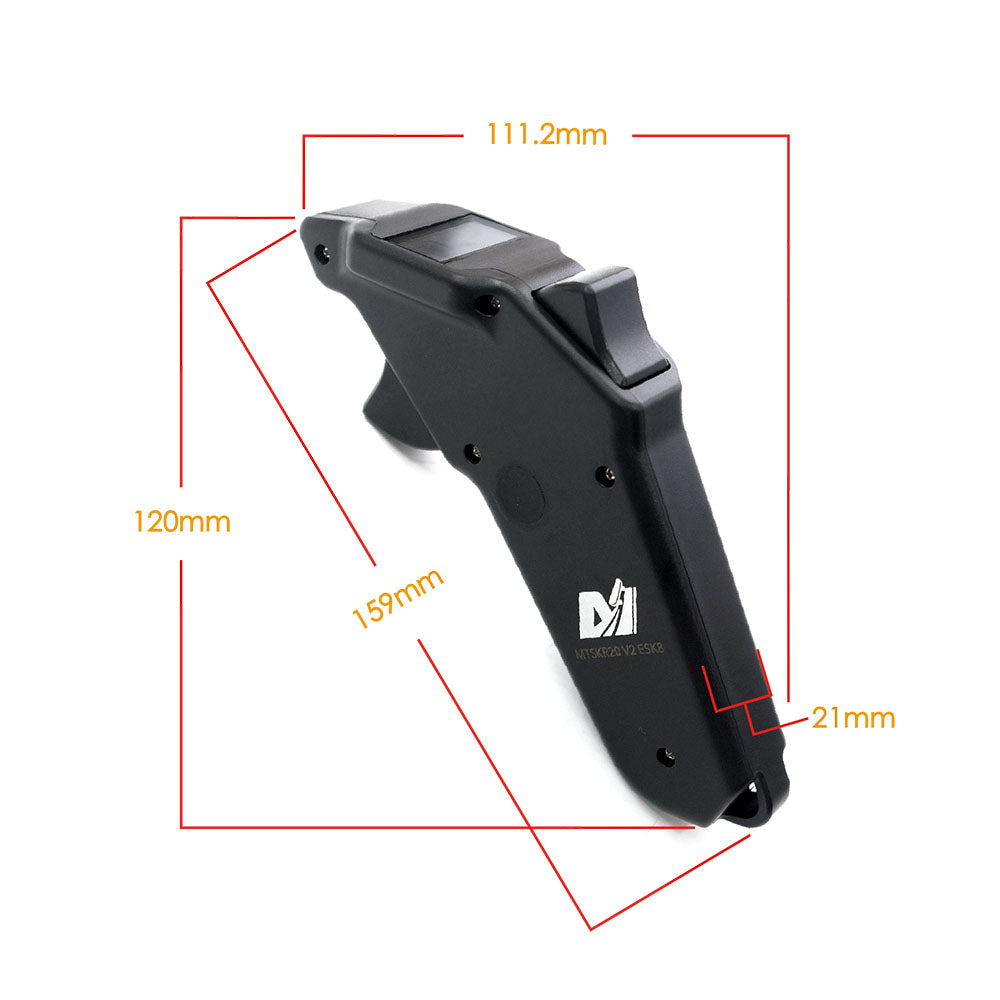

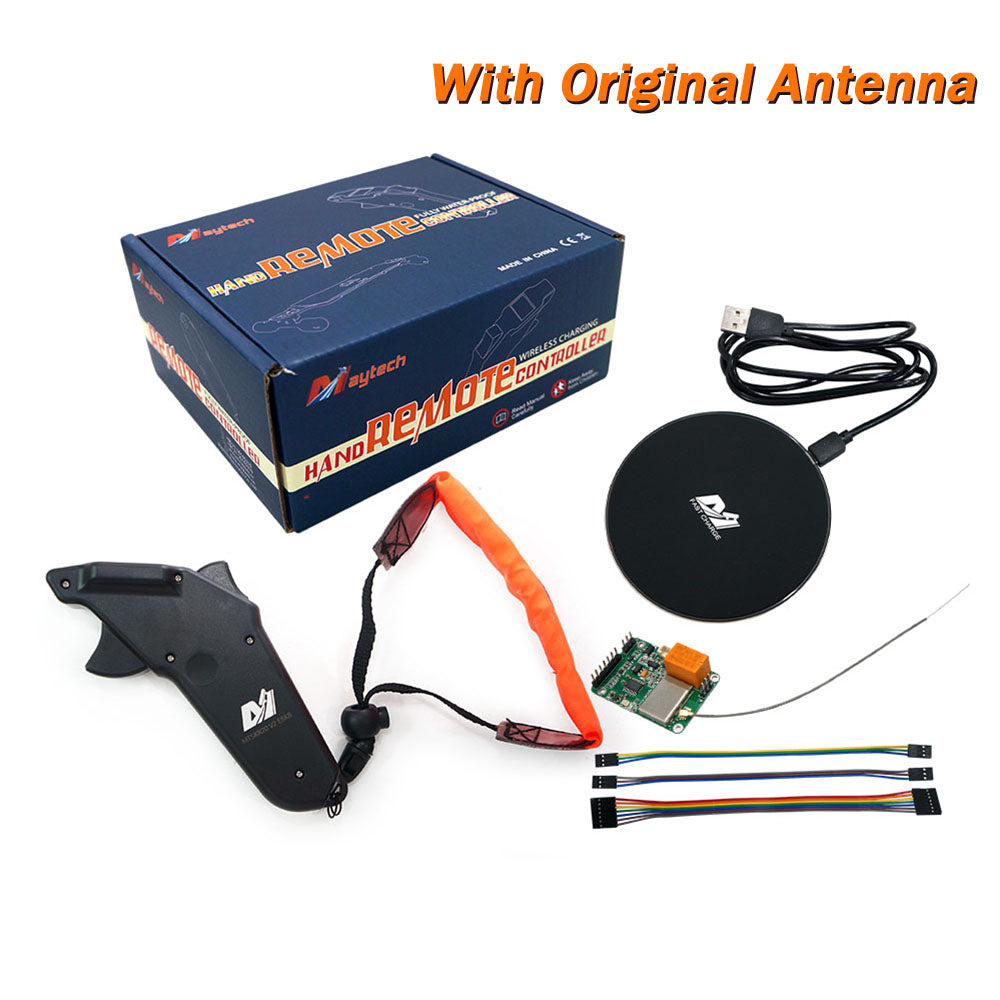

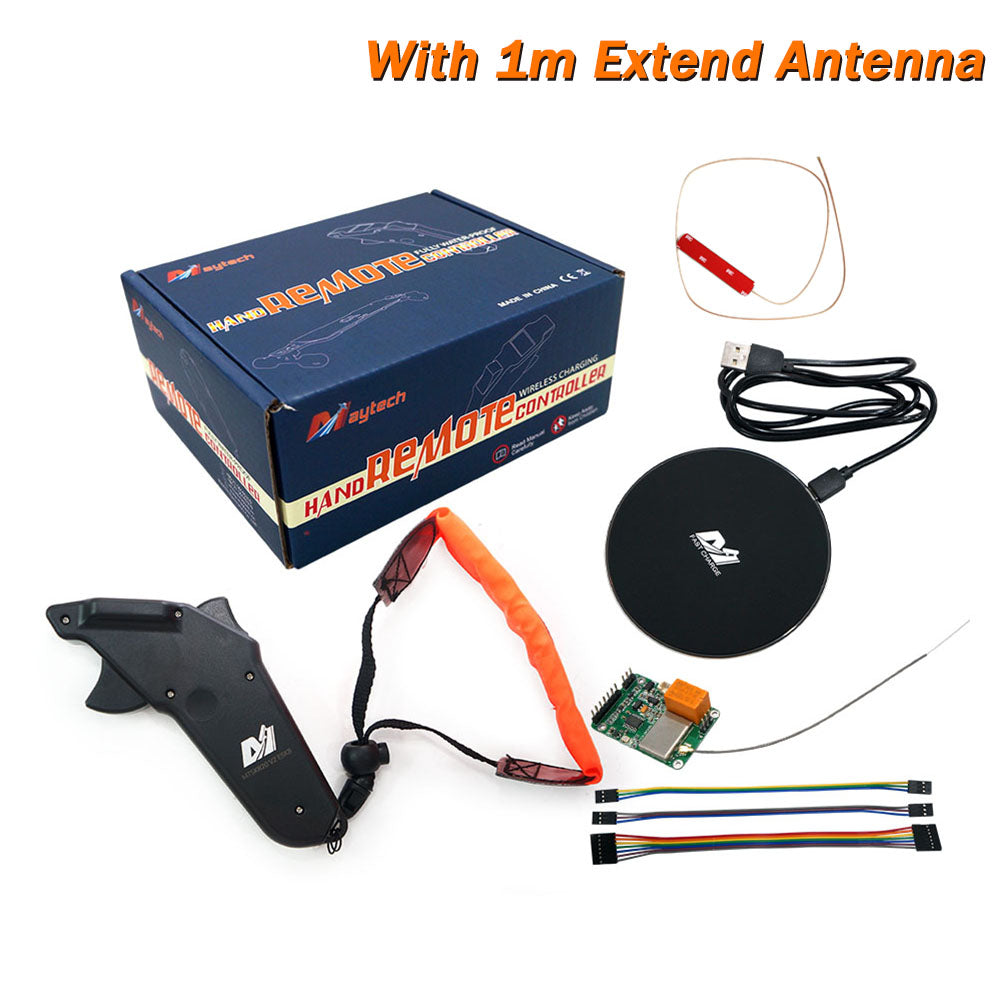

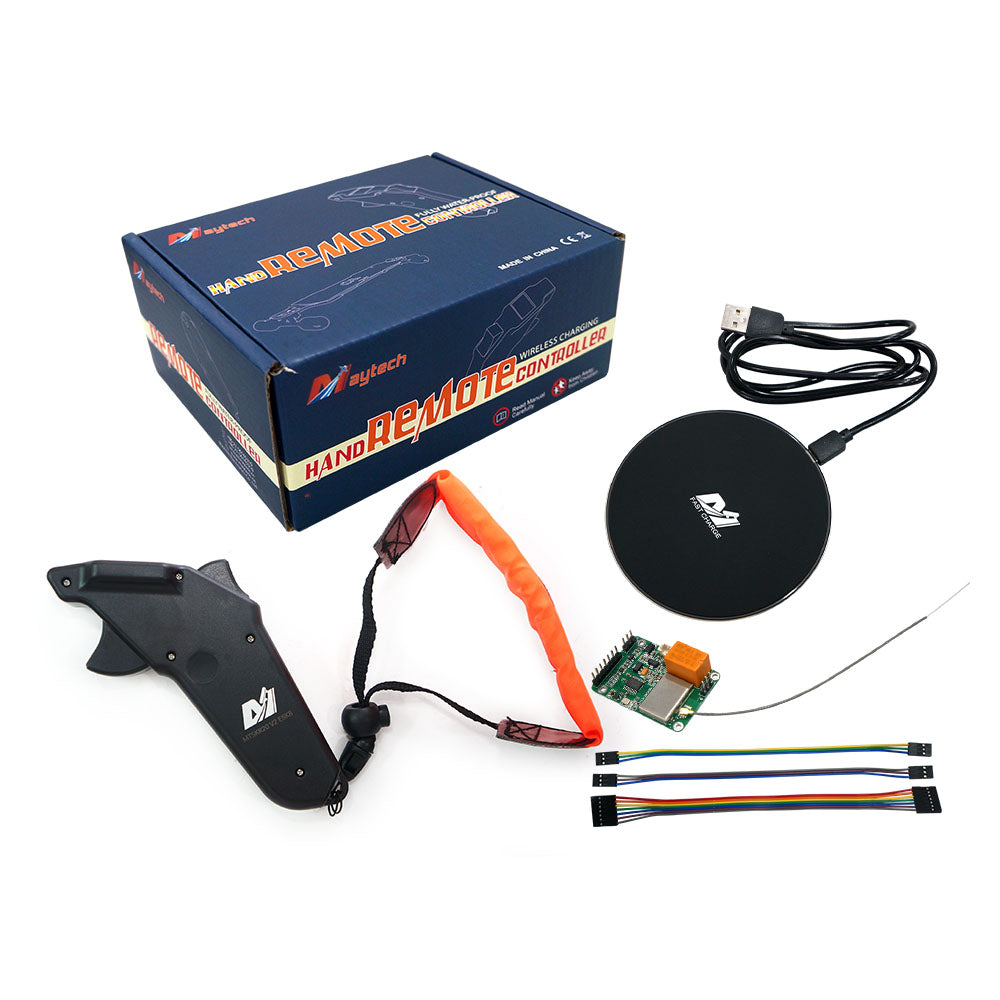

Maytech MTSKR2005WF IP66 Waterproof Esk8 Remote Electric Skateboard Elongboard Hand Remote with 3 Speed Modes
Frequency hopping: Capable

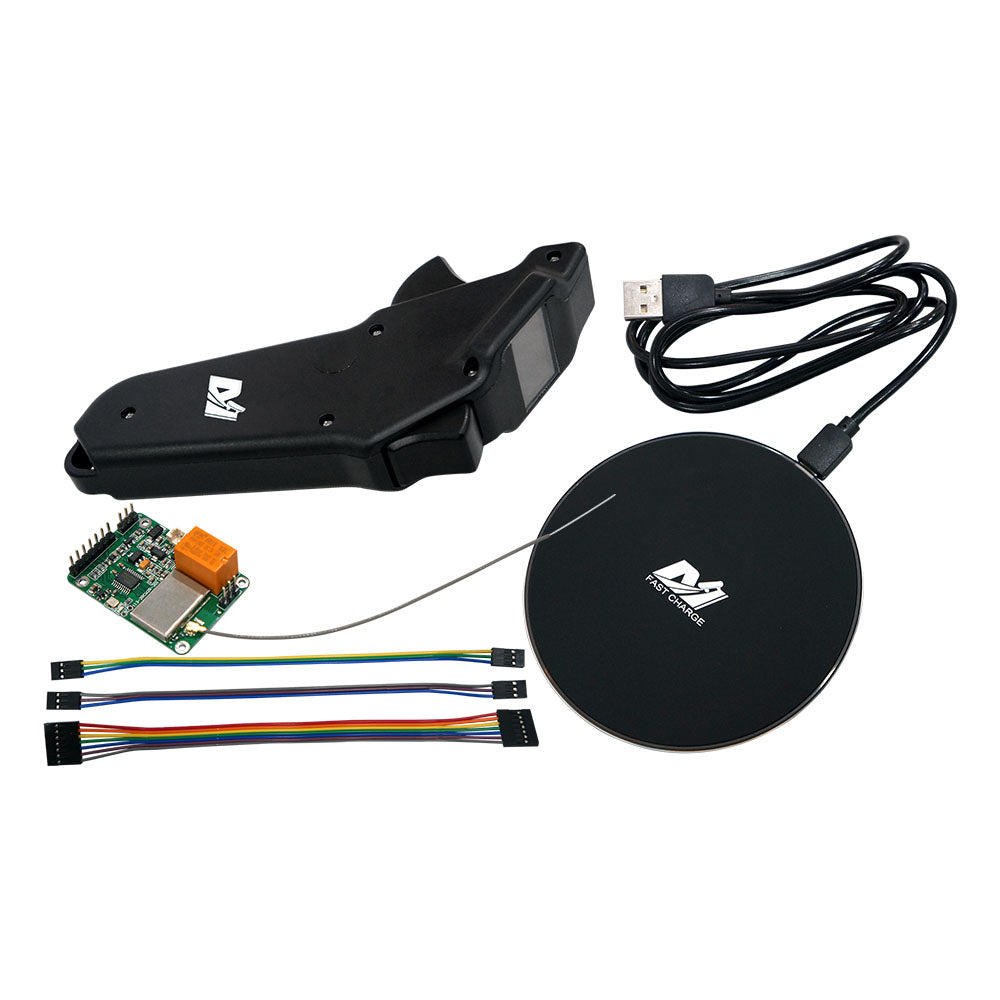

Difference comparison of MTSKR2005WF and MTSKR1905WF:
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit
problem.
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.

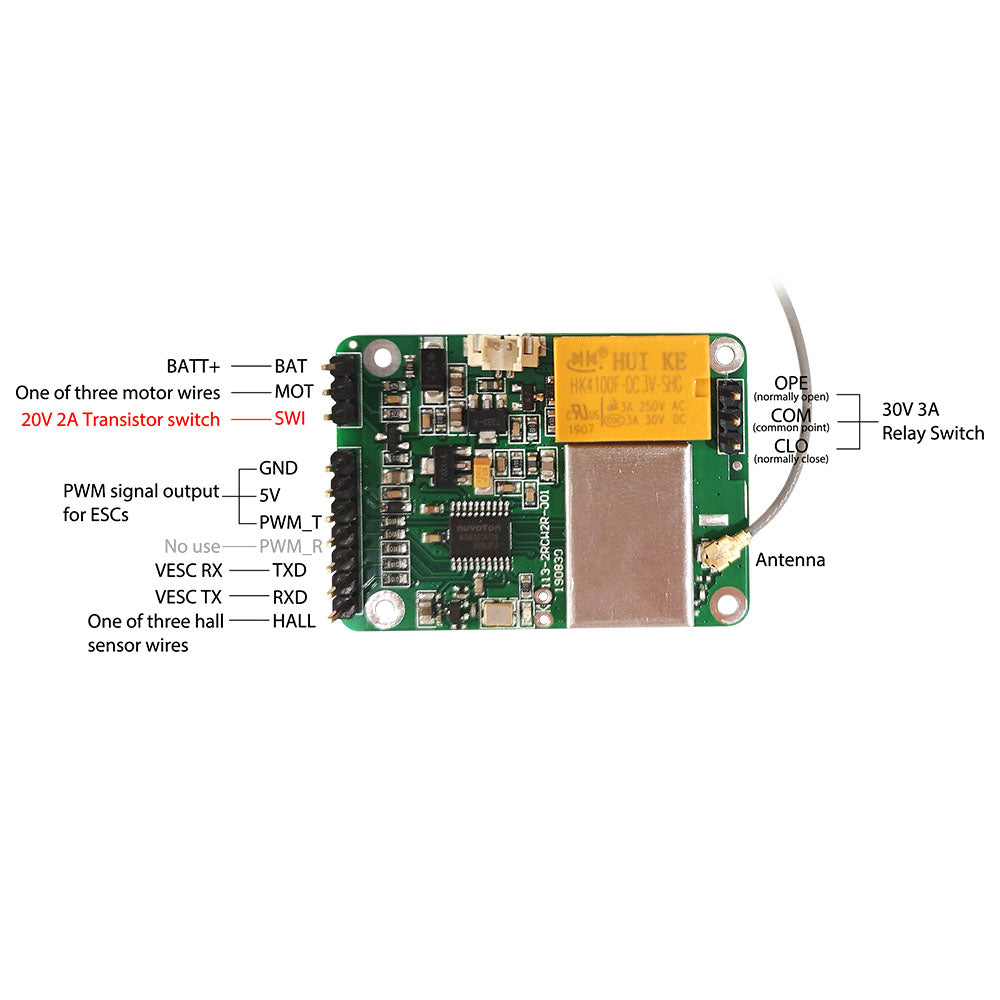

Wiring Diagram: just connect the ports according to the functions you need, no need to connect all ports.
1. PWM_T, +5V, GND (Receiver) - PWM, +5V, GND (VESC): Remote and VESC communication;
2. BAT(Receiver) - Positive Pole (Main Battery): Display main battery bar;
3. Receiver TX & RX cross connect with VESC RX & TX: UART, can display speed and distance, also voltage, current, temperature values
4. Relay Switch: To control Pump
5. Transistor Switch: To control light
6. Any of the three hall wires to Hall port: Display speed and distance
7. Any of the three motor wires to MOT port: Display speed and distance.
Above shows 3 ways to display speed and distance, you can choose one way for connection if you need this function.
Above functions also need to combine with your settings in remote, just check manual and instruction.
