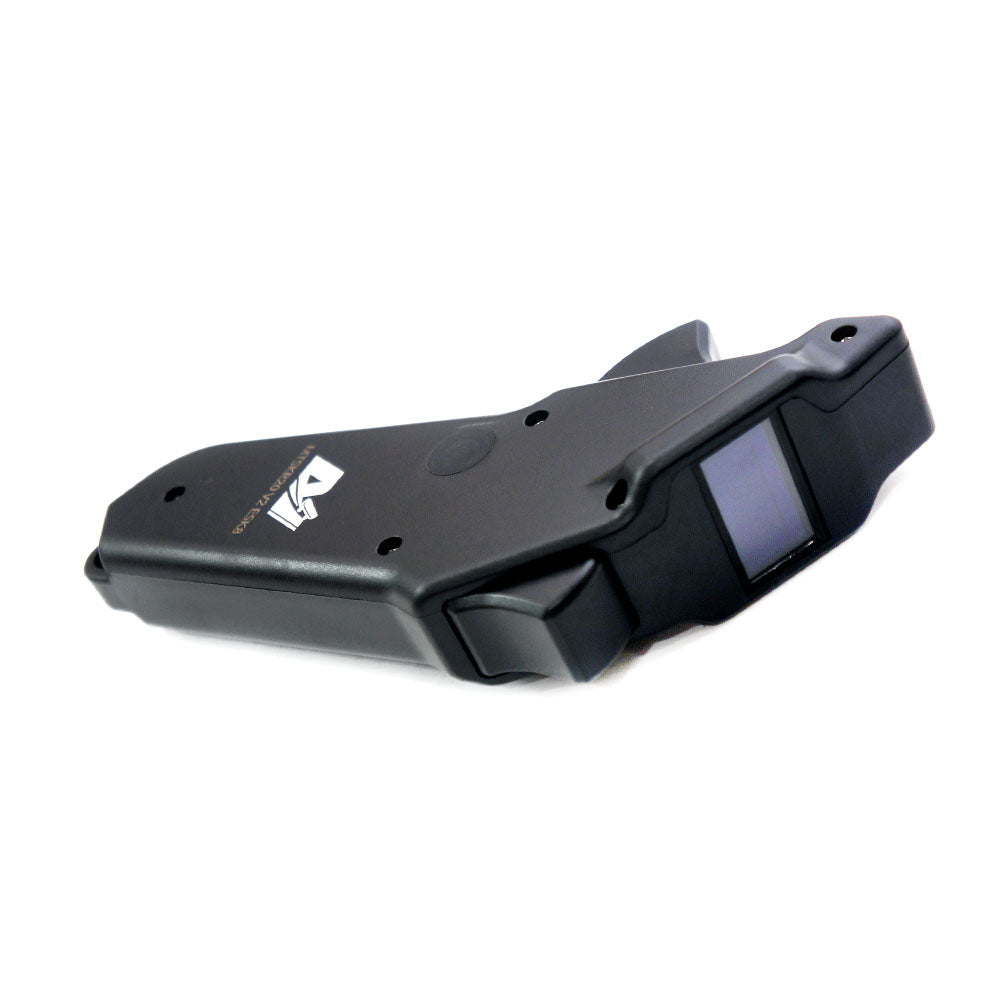

In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ
In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ
Regular price
$76.90 USD
Regular price
Sale price
$76.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

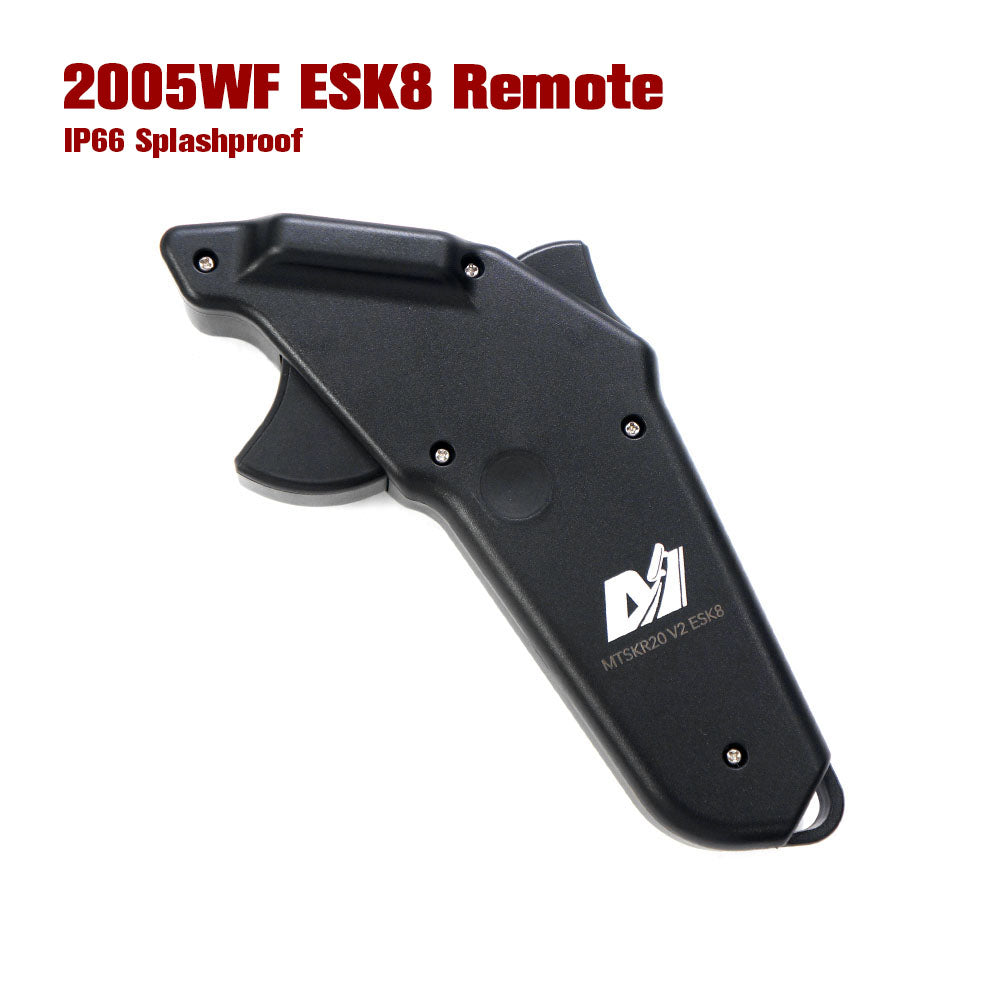

Maytech MTSKR2005WF IP66 Splashproof Esk8 Remote Electric Skateboard Elongboard Hand Remote with 3 Speed Modes
Notice:
This remote is splashproof, can only use for electric skateboard, mountainboard, elongboard, please do not use for any water sports, otherwise all consequences are at your own risk.
If you want to use for water sports, then please order our MTSKR1905WF IP67 waterproof remote Here>
Specifications:
| Model No. | MTSKR2005WF (MTSKR20WFV2) |
| Waterproof Rank | IP66 splashproof |
| Speed Display | Yes |
| Throttle and brake Display | ±100% |
| Speed Mode |
3 speed modes, each mode can adjust speed from 1%-100% throttle |
| Charger |
QC 2.0 wireless |

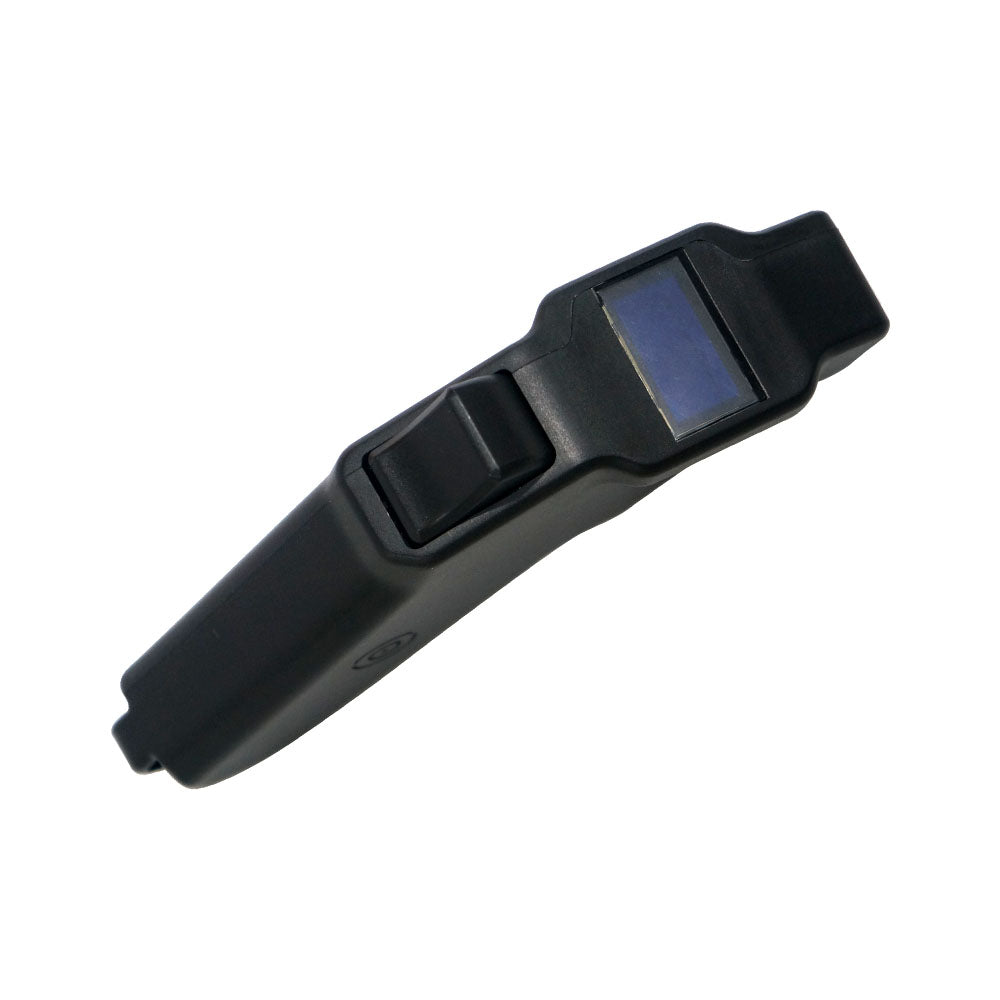

| Display Screen |
OLED yellow & blue screen |
| Throttle and Brake Signal Output Range |
1.5ms-2ms for throttle; 1.5ms-1ms for brake |
| Voltage Display |
Remote & main battery voltage level (lithium iron; lithium ion battery optional) |
| Telemeter Data by Receiver |
Motor RPM; main battery voltage |
| Telemeter Data by VESC | ESC voltage/ current/ temp; Motor temp/ RPM |
| Triggers | 2x high senstive triggers |
| Wireless Frequency | 2.4GHz wireless with 40 channels |
| VESC Control Mode | Duty Cycle/ Current Mode |
| Travel Mileage | Yes |
| Receiver Built-in Switch for Esk8 Light / Esurf Water Pump |
1x 30V 3A mechanical relay switch; 1x 20V 2A transistor electronic switch |

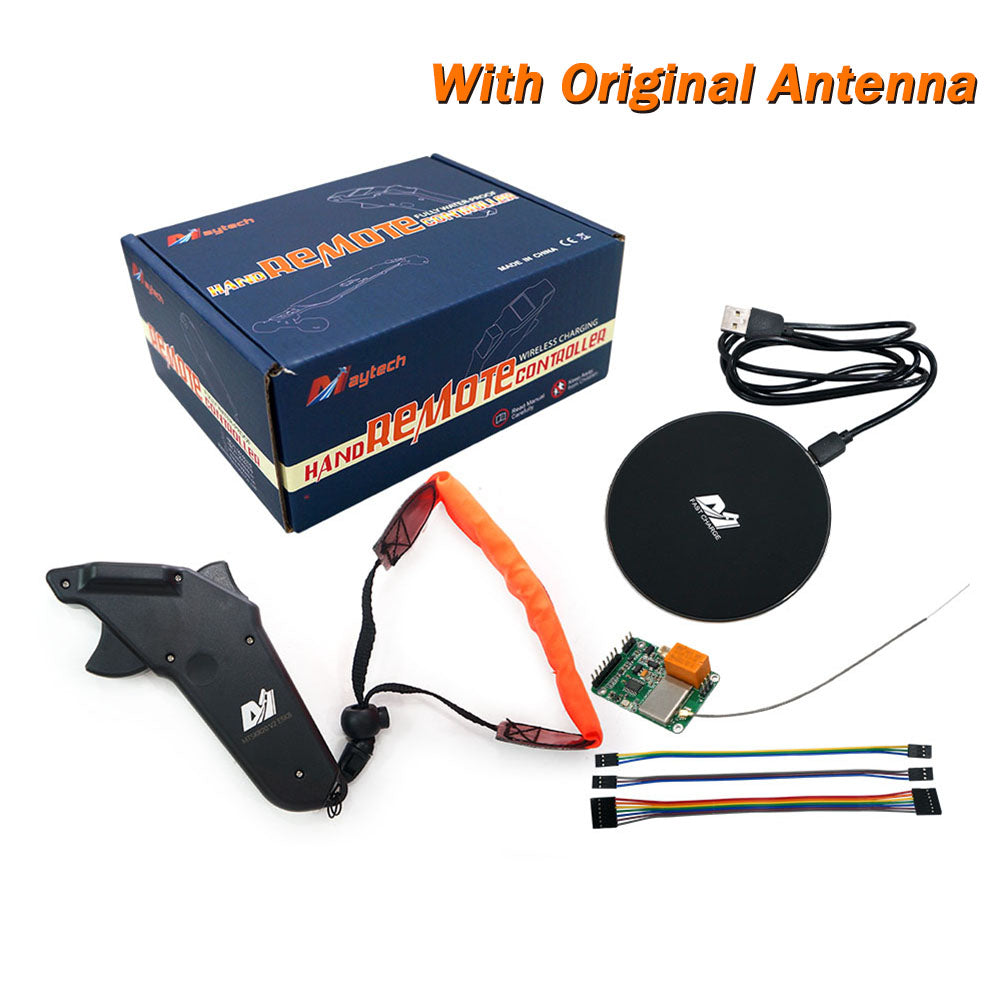

| Accessories | Wireless charging pad; receiver; 3pcs dupont cable |
| Compatible ESCs | VESCTOOL/ Focbox/ Other PWM ESCs that has same signal output range with the remote |
| Application | Only for Electric skateboard, elongboard, mountainboard |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
3. Display RPM (by 3 ways, hall sensor, VESC, motor wire)
> Get Manual: Remote Manual and Instruction

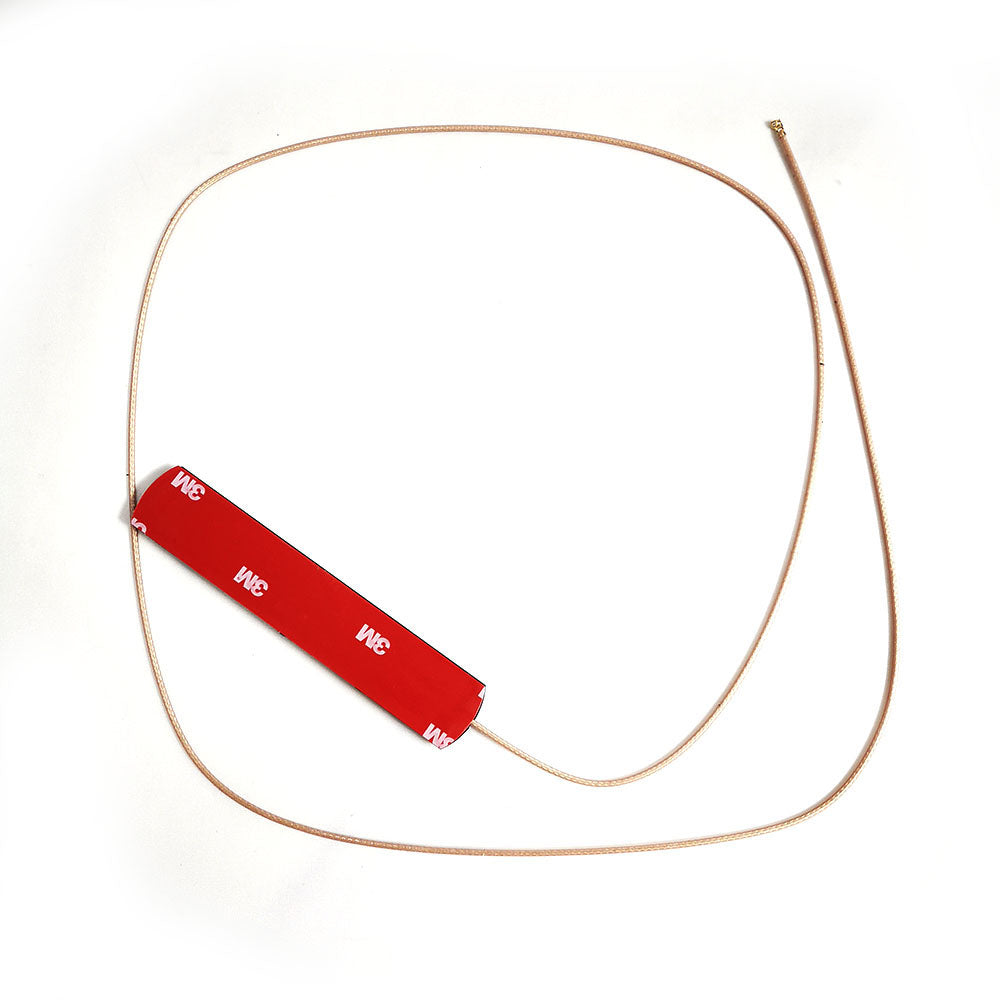

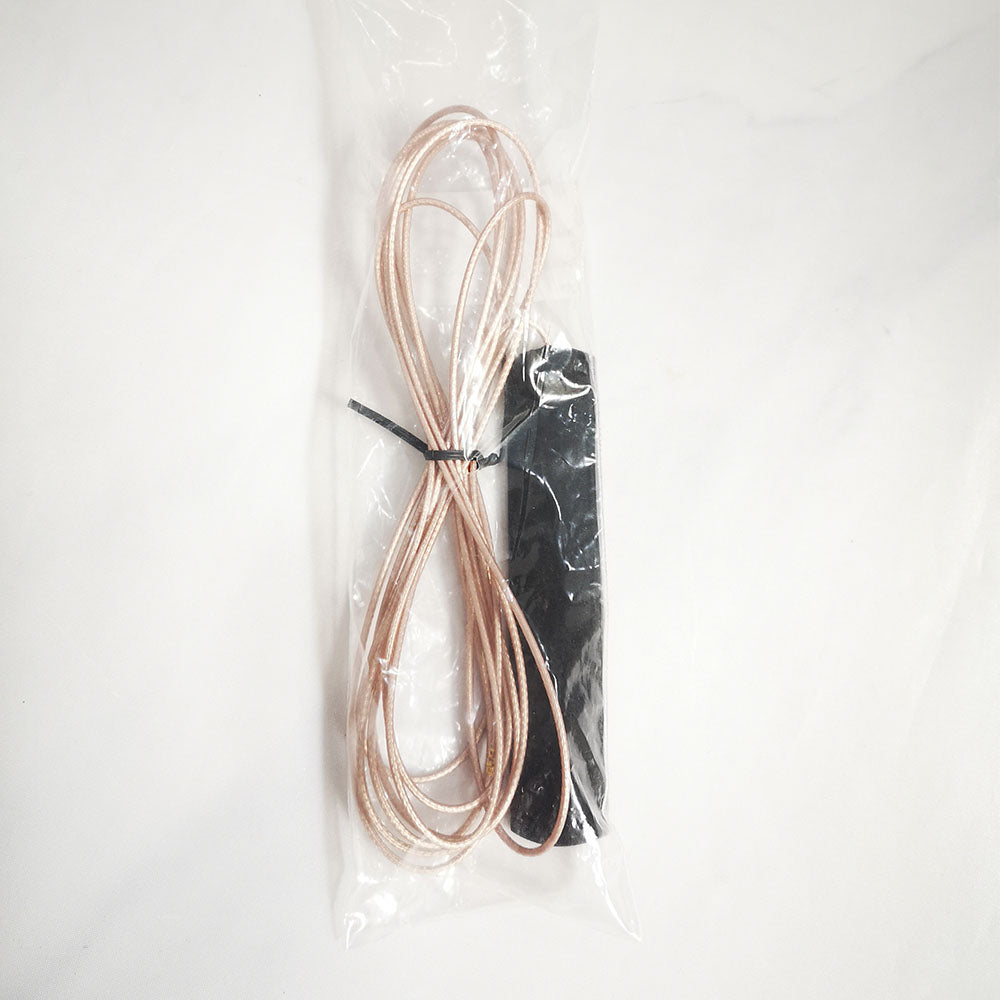

If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m Extend Antenna Here >
Tips for Usage:
1. This remote only has Esk8 mode, and it's just normal waterproof, can only work for electric skateboard, please do not use for Esurf.
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit problem.
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit problem.
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.
Go to the following Youtube Links to check the remote instruction videos:
1. 3 Speed Mode Setting: https://youtu.be/bSyG4k-D76U
2. Remote Main Battery Display Setting: https://youtu.be/ibd0431_NSg
3. Sub-menu 7-14 Settings: https://youtu.be/O8IgYdbT2-A
Wiring Diagram with VESC:
t the ports according to the functions you need, no need to connect all ports.
1. PWM_T, +5V, GND (Receiver) - PWM, +5V, GND (VESC): Remote and VESC communication;
2. BAT(Receiver) - Positive Pole (Main Battery): Display main battery bar;
3. Receiver TX & RX cross connect with VESC RX & TX: UART, can display speed and distance, also voltage, current, temperature values
4. Relay Switch: To control Pump
5. Transistor Switch: To control light
6. Any of the three hall wires to Hall port: Display speed and distance
7. Any of the three motor wires to MOT port: Display speed and distance.
Above shows 3 ways to display speed and distance, you can choose one way for connection if you need this function.
Above functions also need to combine with your settings in remote, just check manual and instruction.
