In Stock Maytech 300A OPTO ESC with Water-cooling Aluminum Case Controller for Esurf/Efoil/Hydrofoil

$464.37 USD

Sale Sold out

Shipping calculated at checkout.

5V UBEC and Progcard Both With Both Without With Progcard No UBEC With UBEC No Progcard

Water Pump Without With

300A 80V Anti-spark Switch Without With

Quantity

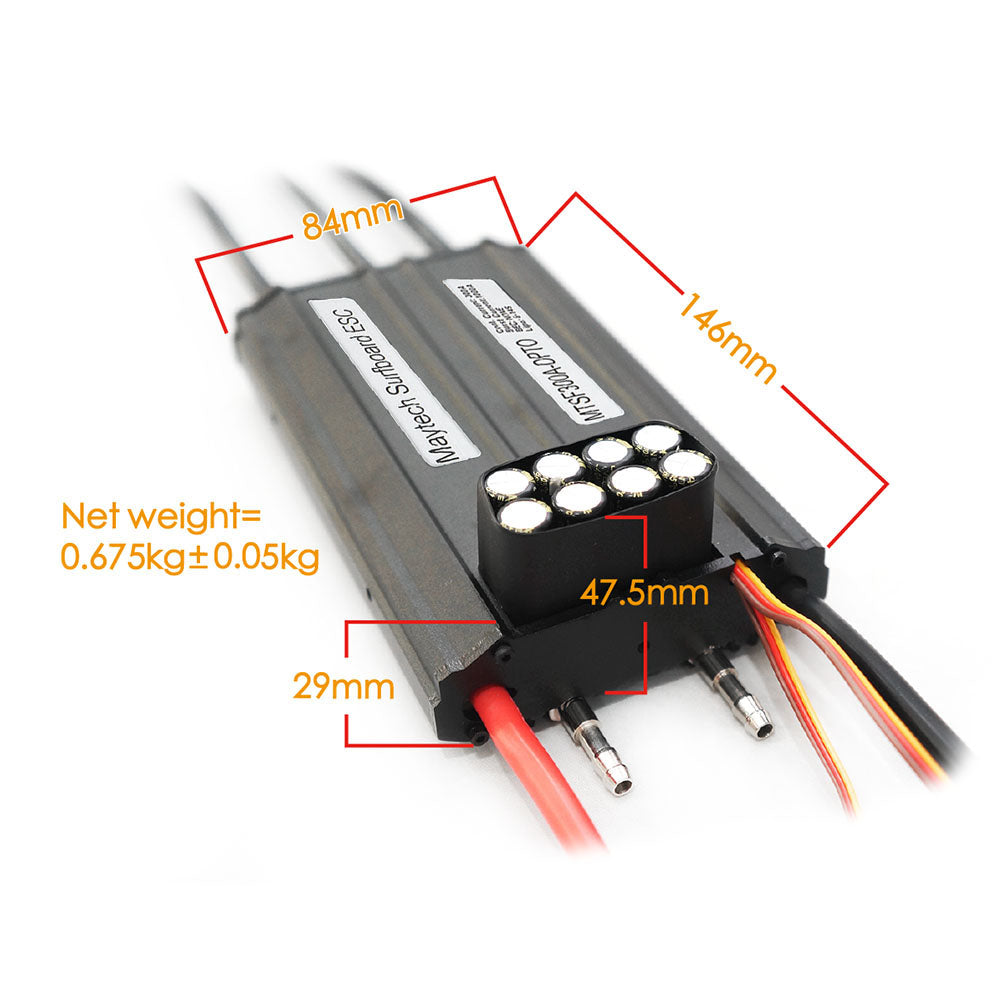

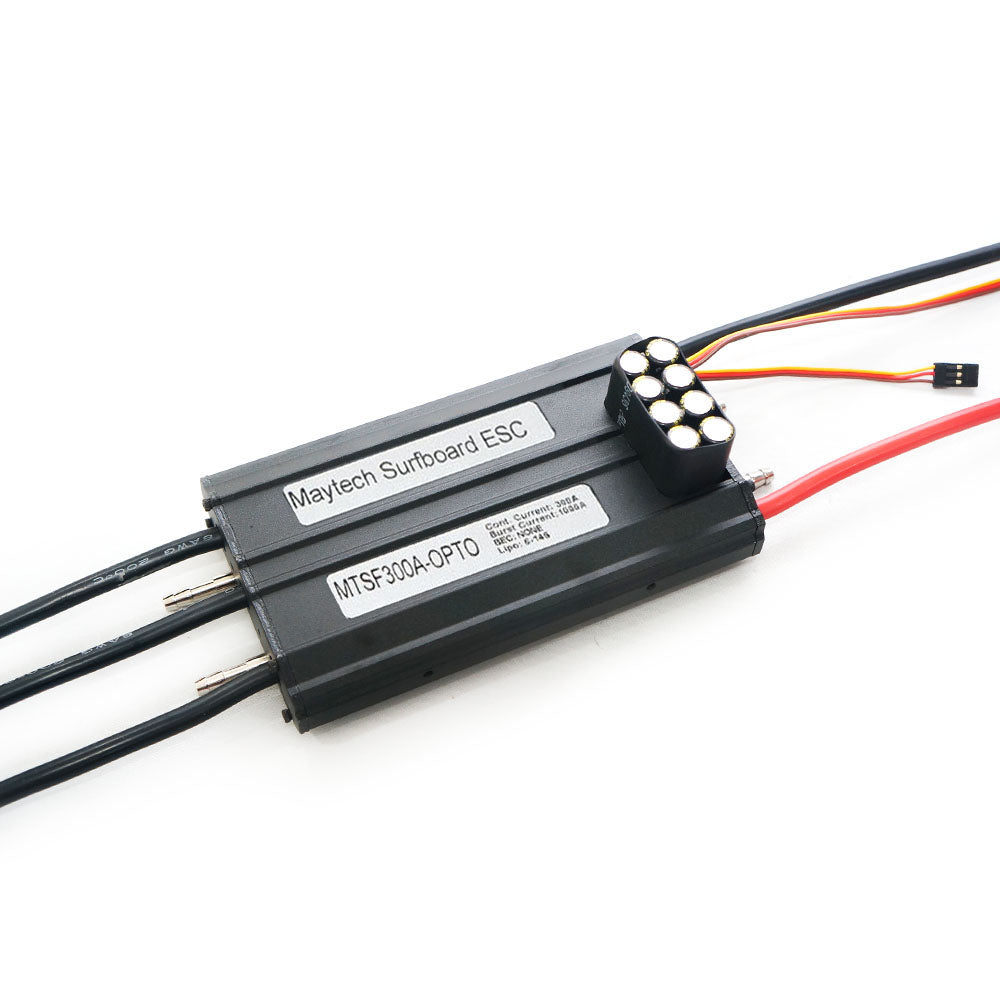

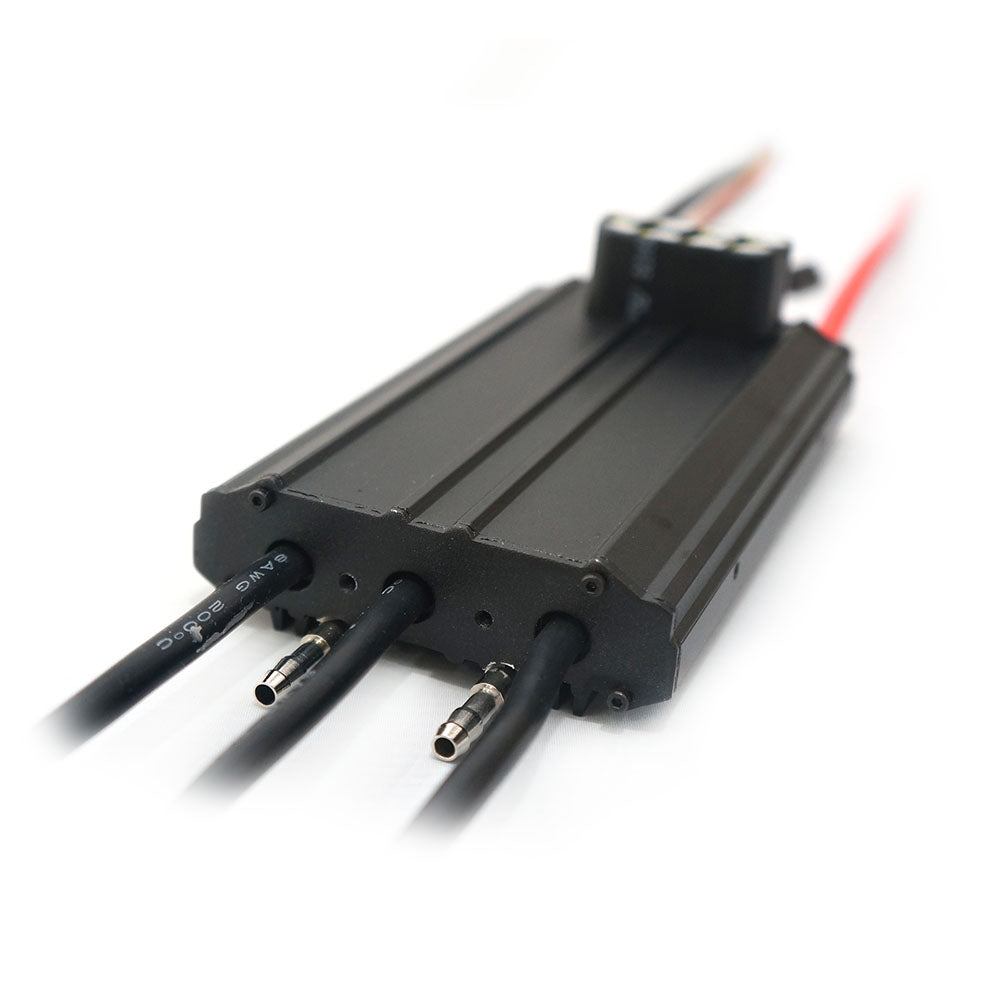

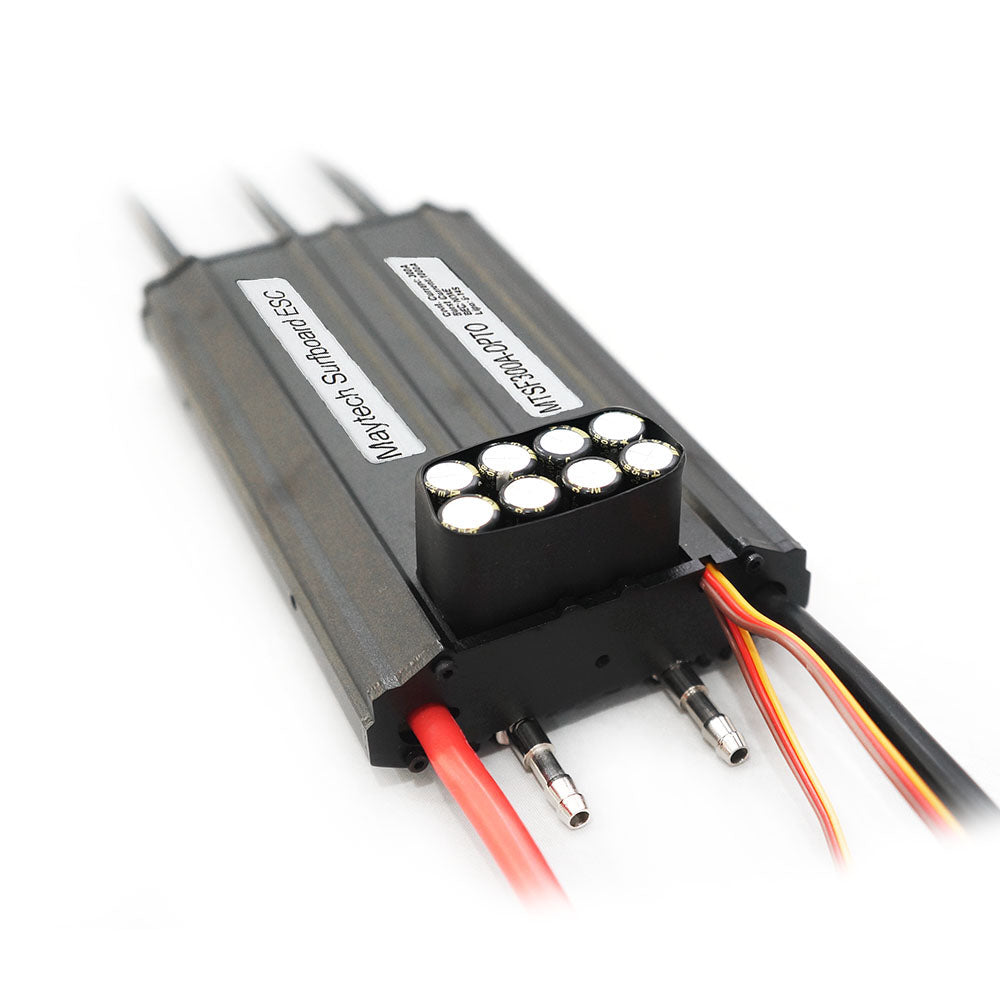

Maytech 300A ESC with Water-cooling Aluminum Case Controller for Esurf MTSF300A-OPTO for Efoil Electric Surfboard Hydrofoil

Specifications:

Model No.: MTSF300A-OPTO

Cont Current : 300A

Burst Current : 1000A

BEC : None

Input Volt : 6-14S Lipo (25-58.8v)

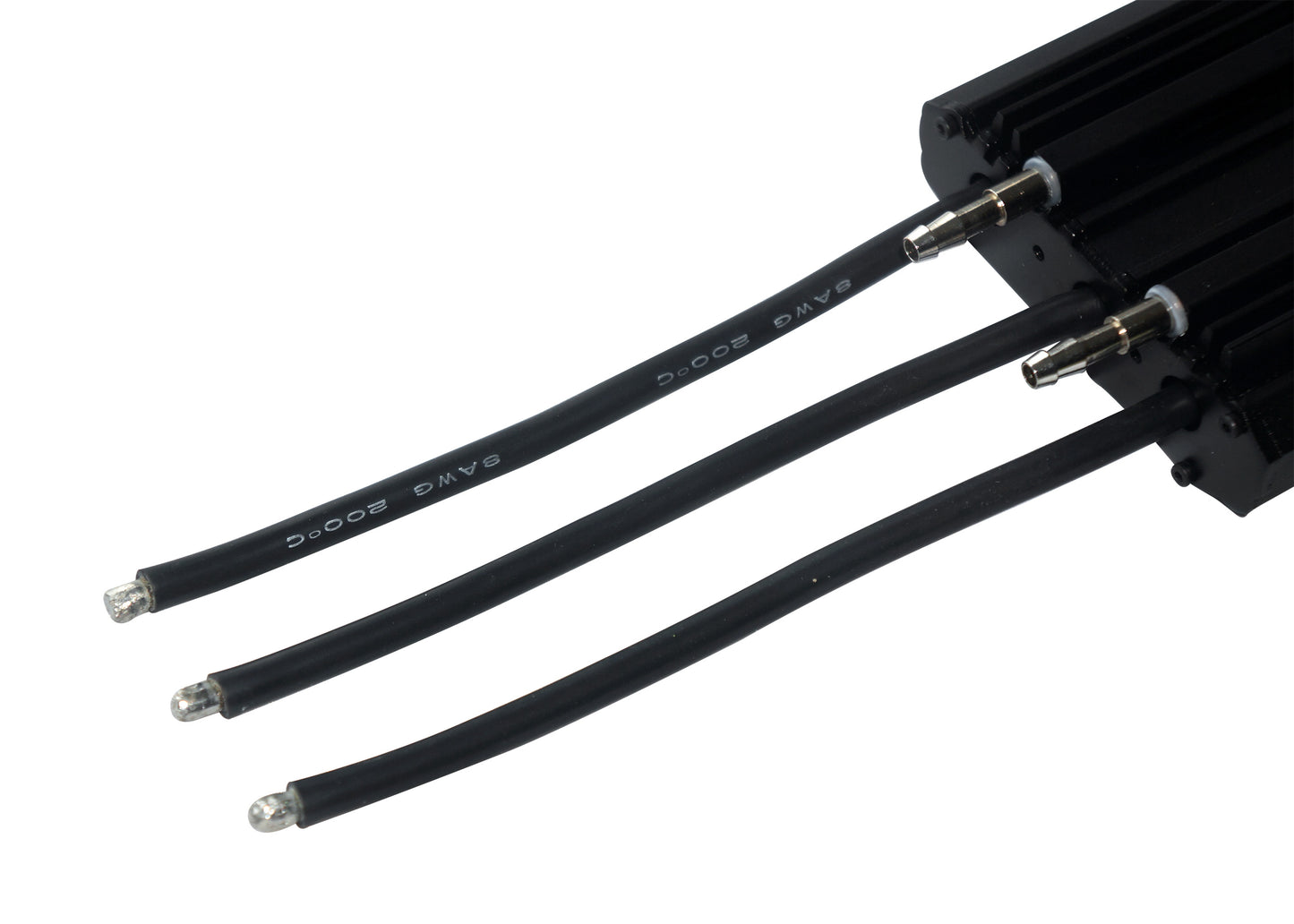

Cable Size : 8AWG silicon wire

Application: Electric surfboard/efoil/foilboard/rc boat/jetski/jetfoil/flyboard/eelctric foil/waterboard/water jet/water jet propulsion/motorized surfboard/esurf/hydrofoil/surf foil/foil surf, etc.,

Accessories Option : Progcard-HA / UBEC convert 18-75V to 5V

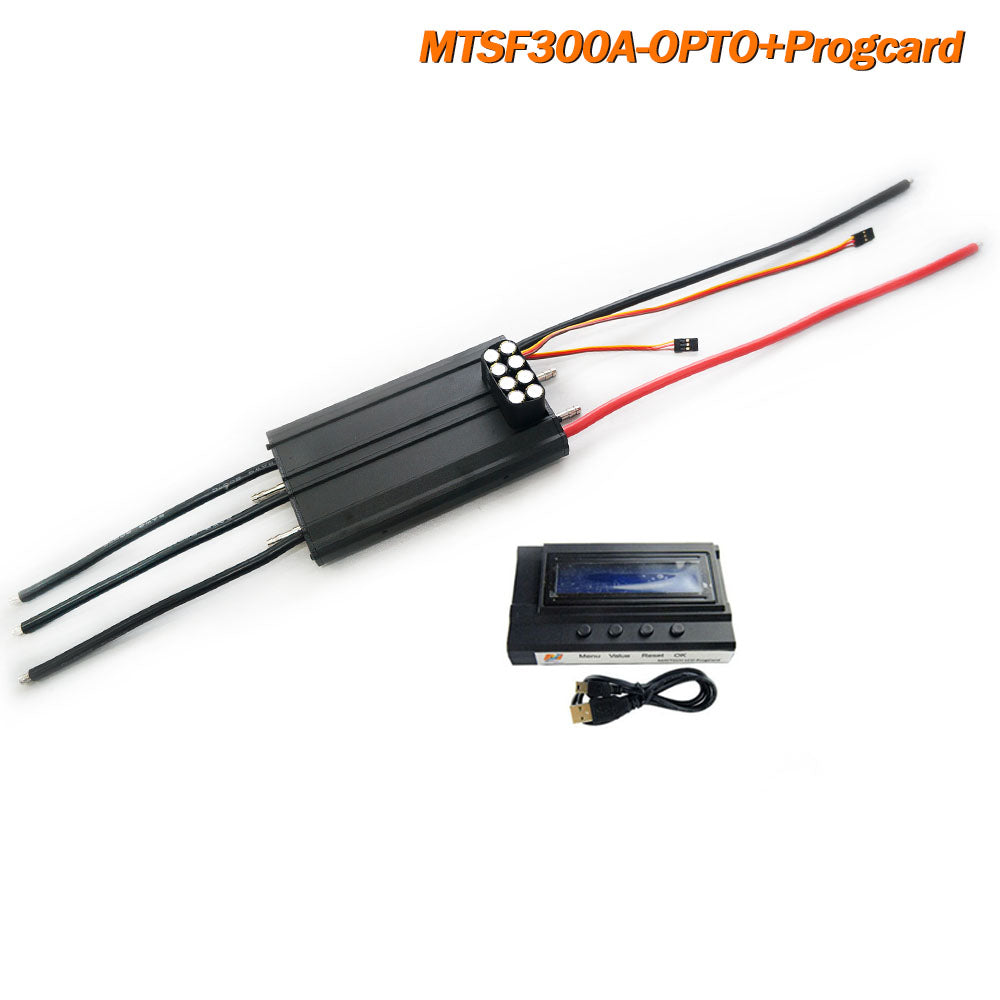

Progcard-HA : For program (if you want to program, please choose this)

UBEC : DC-DC module, convert from 18-75V to 5V, power for receiver

Water Pump : With 12 30W water pump and 12V power supply (Choose if you need)

Anti-spark Switch : MTS2009AS (protect for ESC and power system when startup and brake)

Please noted for usage:

Max ERPM recommended to use for the ESC is 50000.

ERPM = RPM x Motor pole pairs number

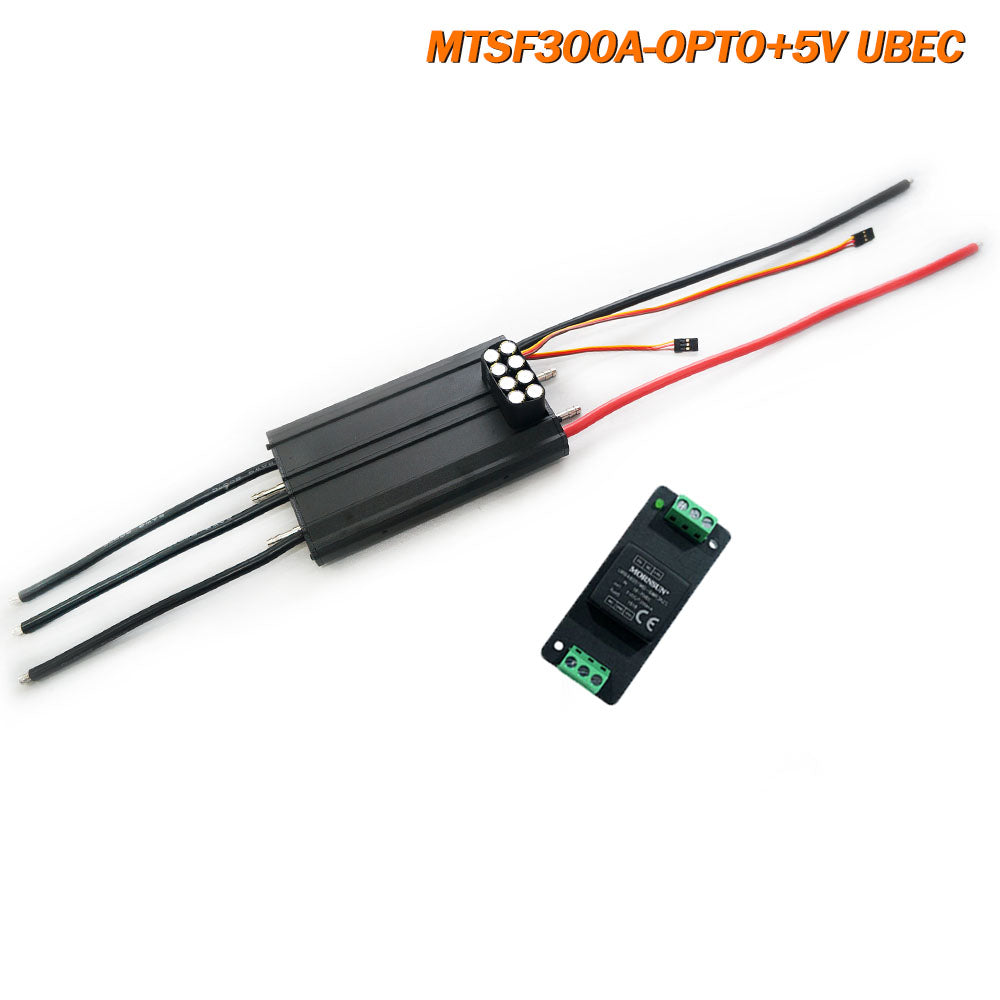

What is the Function of UBEC-75V DC-DC 5V Module?

It is to power the receiver, the ESC is not with BEC inside, so need this module to power your receiver, if you do not have the DC-DC power supply, please order the setup with UBEC-75V, otherwise your setup would not work.

Maytech 300A esc electric speed controller for electric surfboard rc boat electric foil foilboards

MTSF300A-OPTO Watercooled 300A ESC speed controller for under water scooter drive propulsion system vehicle

75V-5V UBEC DC-DC Module for remote receiver PWM signal power supply for esurf efoil foilboard rc boat

Specification for Water Pump Set:

Product Name	Water Pump Set	Water Pump	MTWP30W
Voltage	12V	Power	30W
Power Supply	UBEC6.12	Power Supply Input Volt	18V-75V
Power Supply Output Volt	12V 2500mA	Application	Efoil, electric hydrofoil, esurf, rc boat, jetsurf, etc

Anti-spark Switch Specification:

Model No.	MTS2009AS
Max Current	300A
Max Voltage	25V-85V
Size	96.5 x 56 x 25 (mm)
Switch Diameter	12mm
Switch Type	Use NMOS to realize switching on/off Power positive
Connector	With 4pcs Cold-pressed Terminal Connector
Function	Protect your controller and power supply system when brake or startup
Features	First Switch that can cut off positive pole power in the market; Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Automatic short circuit protection when work.
Application	Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.,

Maytech MTS2009AS 300A 80V Electronic Anti-spark Switch Battery Cutoff Switch with Short Circuit Protection for Electric Hydrofoil Efoil Surfboard

Recommend Products: Clicking the following pictures to check specs

Maytech V2 IP67 Waterproof Remote MTSKR1905WF:

Maytech Fully Waterproof Efoil/Esurf/Boat Kit with Inrunner Motor+Remote+300A ESC:

MTI85165 Water-cooling Motor 10.5KW:

Fully Waterproof MTI85165 210KV Inrunner Brushless Sensorless Motor for Esurf/Efoil/RC Boat KV Customized

MTI120116-SF 18.8KW Powerful Motor with Water-cooling:

Fully Waterproof 300A ESC with water-cooling, with internal UBEC and receiver:

maytech 300A ESC MTSF300-OPTO-WP with 100% waterproof and cooling cluminum case for electric surfboard foilboards waterboard electric speed controller
