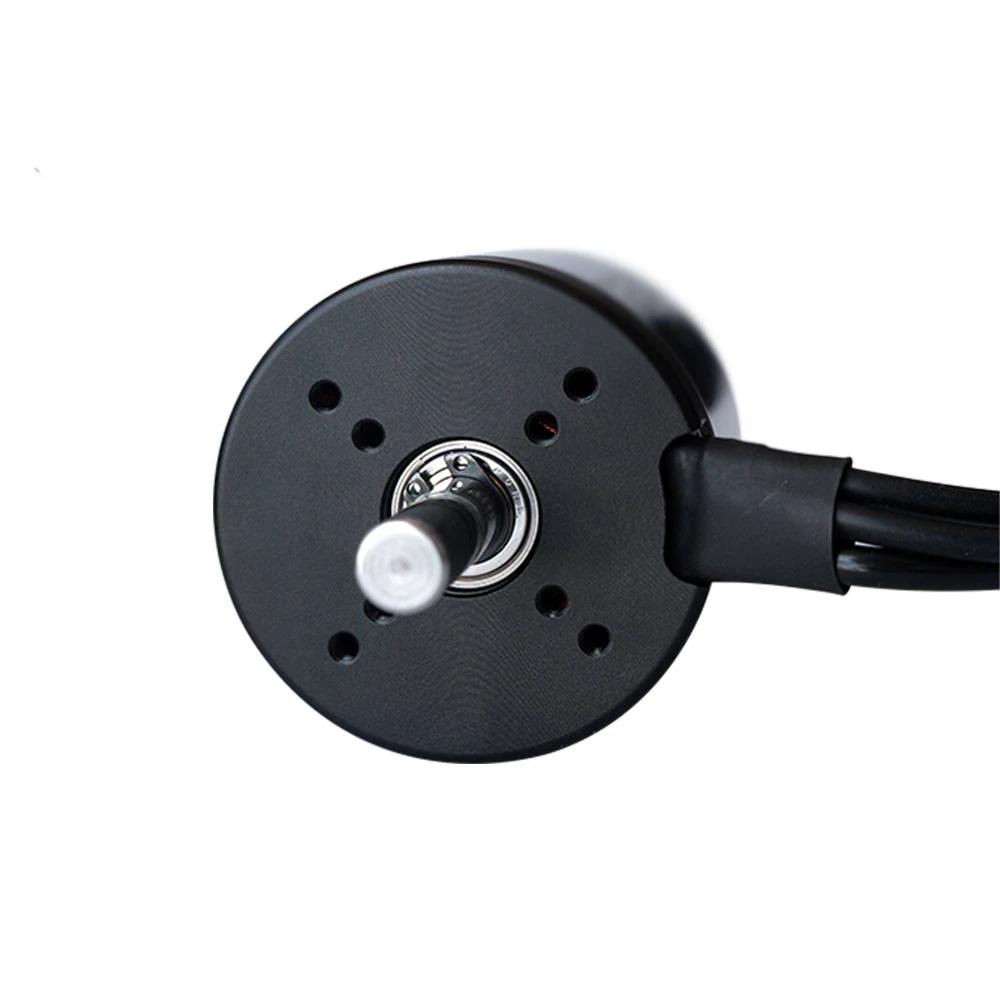

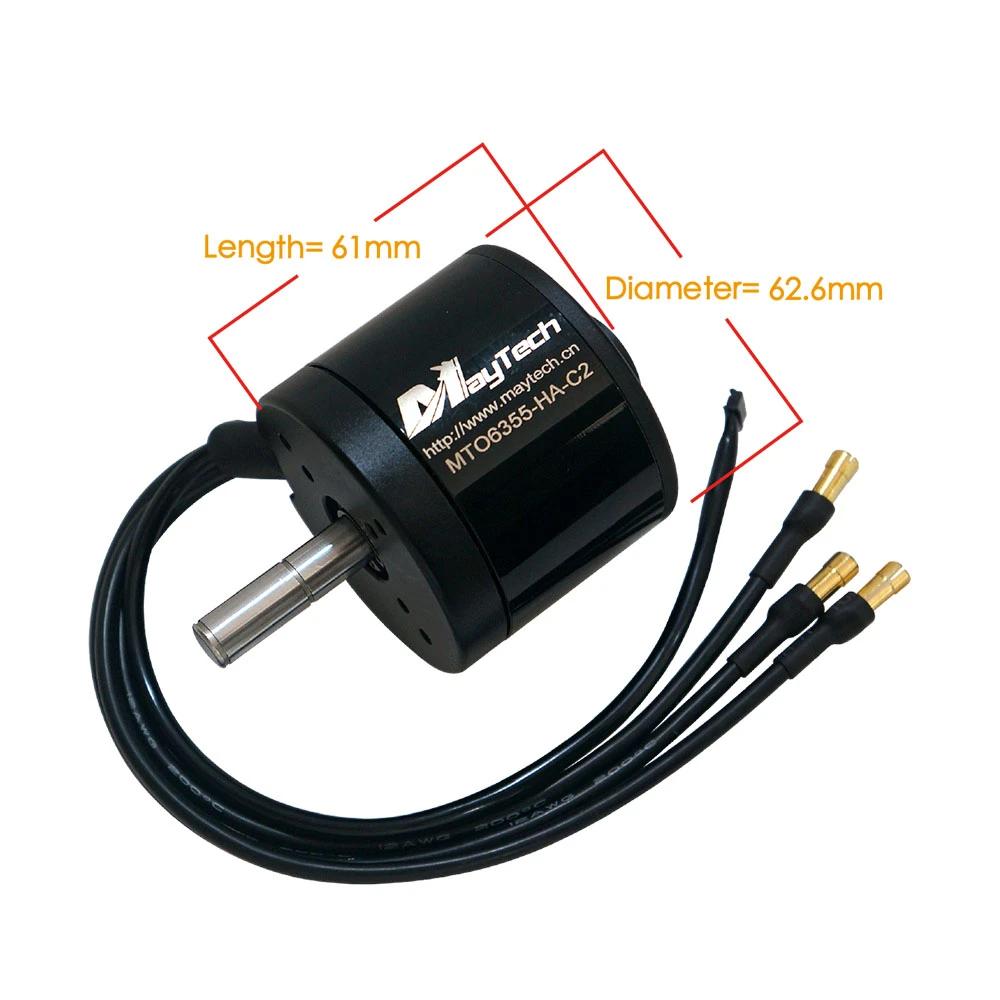

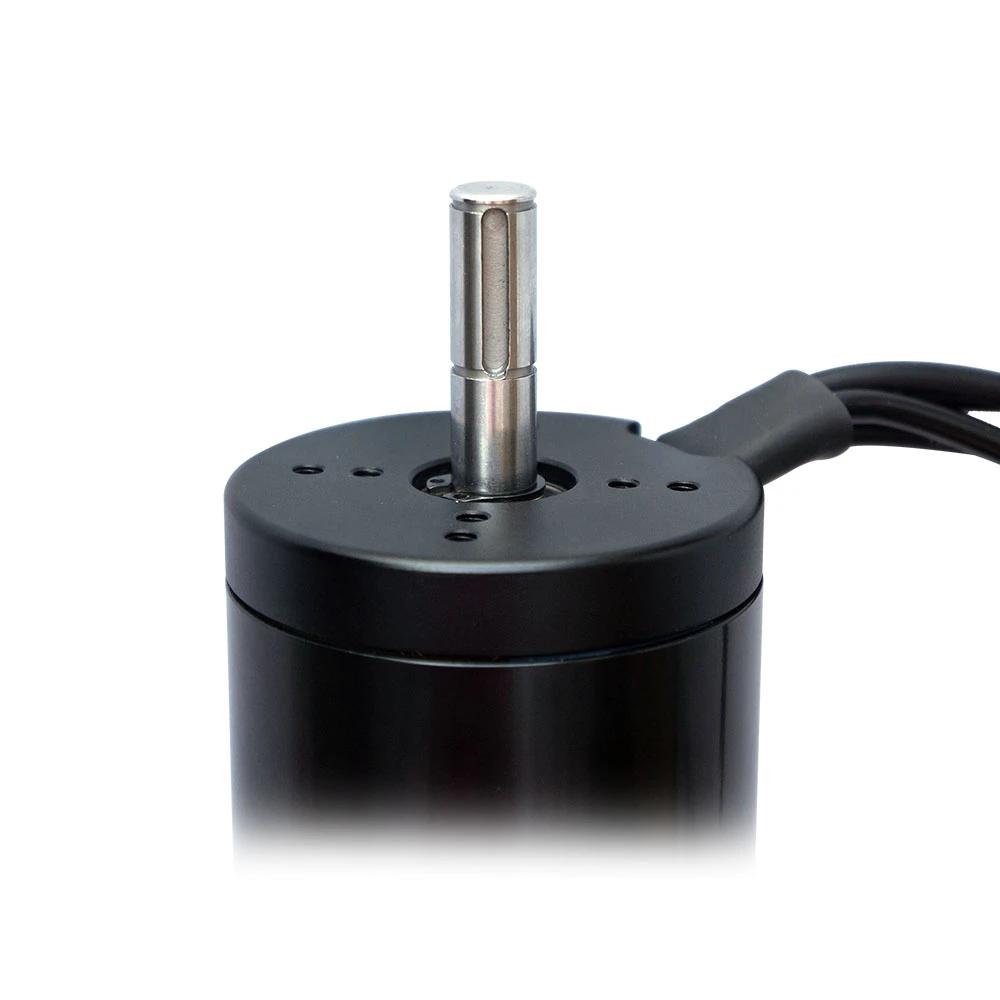

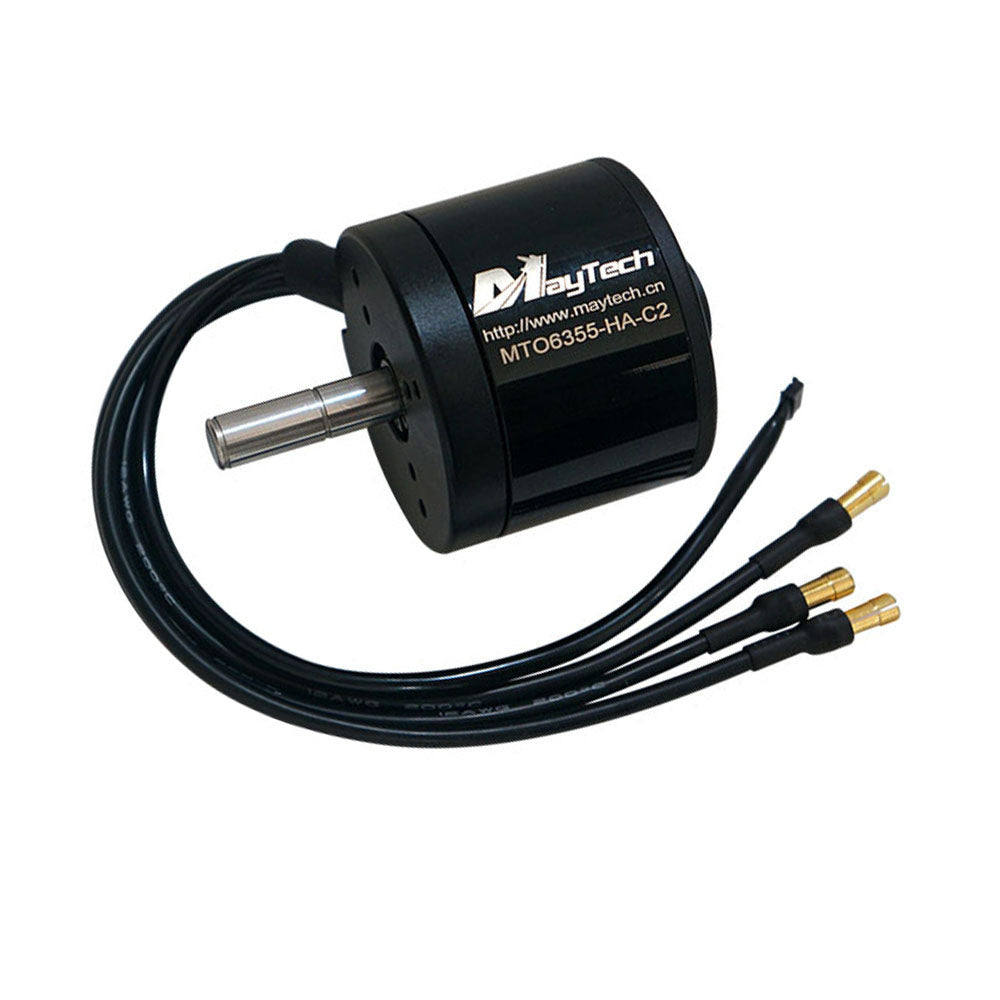

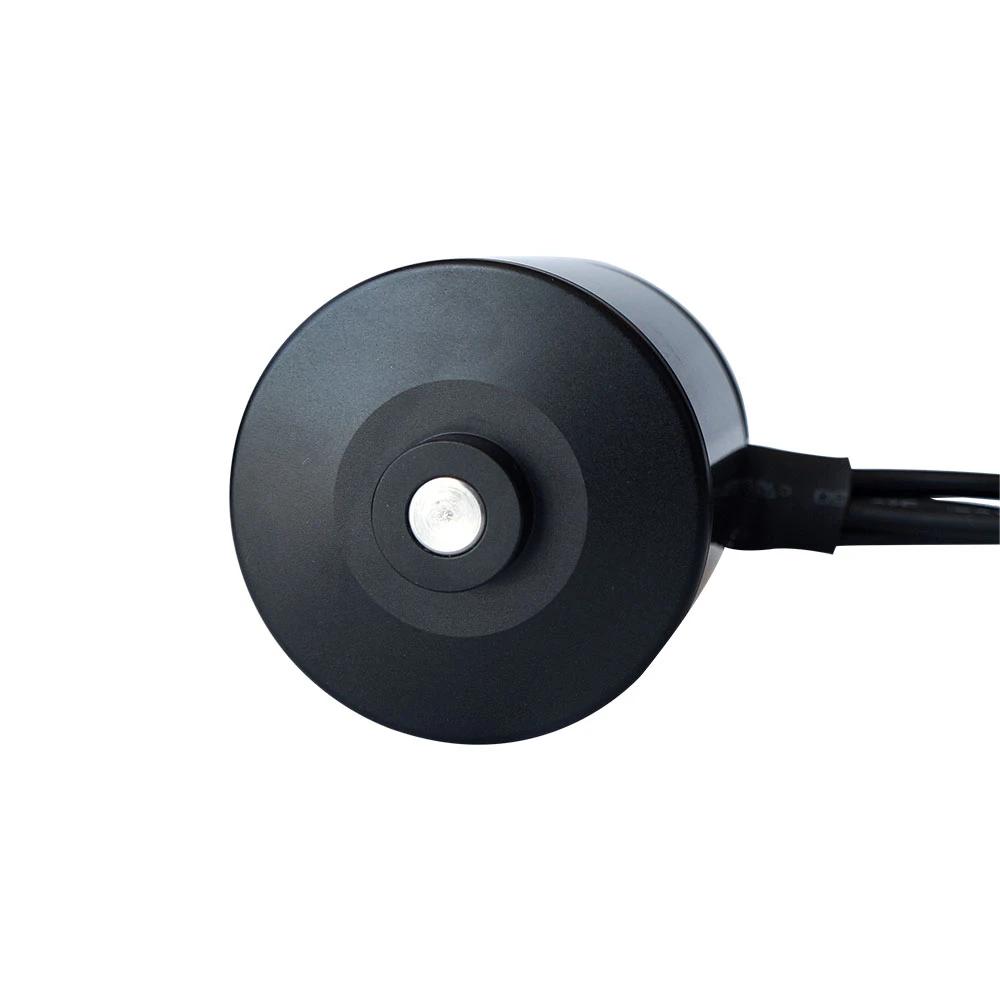

Brushless 6355 Sealed Motor 10mm Shaft Sensored 170KV
Brushless 6355 Sealed Motor 10mm Shaft Sensored 170KV
Couldn't load pickup availability
Maytech Brushless 6355 170KV Outrunner Sealed Cover IP54 Waterproof Motor for Esk8/E-bike/Robots/Mountainboard/E-scooter MTO6355-170-HA-C2
Model No
|
MTO6355-HA-C2
|
KV
|
170/190
|
Idle Current
|
1.0A
|
Max Current
|
65A
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3510W
|
Max Pull
|
12000g
|
Rated Current
|
55A
|
Motor Weight
|
610g
|
Shaft
|
10mm
|
Output Shaft Length
|
34mm
|
Internal Resistance
|
0.0441
|













Stock Notice Before Place Order:
1.This motor is not in stock, production time is about 35-55 days after order confirmed, if you need urgently, suggest you order MTO6355-170-HA-C with 8mm shaft, and please contact us agnes@maytech.cn to check stock first.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors:
Maytech VESC_TOOL Compitable controller:
Maytech MTSKR1712 Small and Light Cheap Remote:
Motor Drawing:
Share







😍 Frequently Bought Together
- In Stock SUPERFOC6.8 50V V6.0 based Speed Controller Great FOC Function
$159.00 - +
- In Stock Brushless 6355 Sealed Motor 8mm Shaft Sensored 170/190KV
$86.80 - +
- In Stock Brushless 6355 Unsealed Motor 8mm Shaft Sensored 170KV
$83.40 - +
- In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ
$76.90 - +
- In Stock Maytech MTSKT310DB 310mm New Truck Set with Motor Mount for Dual Belt-driven Skateboard Elongboard Truck Front and Rear Truck
$112.90 - +
- Maytech MTSKPS2005 Pulley Belt Comb with 36T 5M Wheel Pulley with Ball Bearing 14T 5M Motor Pulley 51T 5M HTD255 Belt for Electric Skateboard/Elongboard
$8.99

In Stock SUPERFOC6.8 50V V6.0 based Speed Controller Great FOC Function
Specification:
Model No. | MTSPF6.8 |
Input Voltage | 3-12S Lipo (12.6V-50V) |
Hardware | VESC6.0 |
Firmware | Updatable |
Cont Current | 50A |
Burst Current | 240A |
Software | VESCTOOL Compatible |
Heat Sink | Without |
Application | Electric skateboard, elongboard, fighting robots, ebike, escooter, electric vehicles, friction drive ebike, etc., |
Notice:
Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.




Attention Points when you receive the Controller Please:
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
- When you receive the controller, please test without load and do not connect motor, first check if the controller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to controller is very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the controller default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESCTOOL didn't change to FOC mode, then when you push throttle, would easy burn the VESC, same as FOC mode.
-
In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage - If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- For V4 based controller:
Do not suggest to use FOC mode, suggest to use BLDC mode.
If need to use FOC mode, then must use voltage under 20V.
- The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
V5 Bluetooth Module:
Model No. | MTBLEV5 V5 Upgraded version |
Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
With 6 LED Lights status | power, communication, data tranmission |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software | VESCTOOL App |
Frequency | 2.4Ghz |
Distance | 15m |
Input Voltage | 3.3-24V |
PCB Size | 46mm x 32mm |
V2 Bluetooth Module:
Model No. | MTBLEV2 V2 Version |
With 3 LED Lights status | power, communication, database |
Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
Compatible Software |
VESCTOOL App |
Frequency | 2.4Ghz |
ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
PCB Size | 41mm x 21mm |
Net Weight | 5g |
Antenna Length | 90mm |
Recommend Products: Click below pictures to check more information

In Stock Brushless 6355 Sealed Motor 8mm Shaft Sensored 170/190KV
Maytech Brushless 6355 170/190KV 8mm Shaft Closed Cover Outrunner Sensored Motor IP54 Splash Waterproof for Esk8/Robotics/E-bike/E-scooter/Mountainboard/Offroad Board
Model No
|
MTO6355-HA-C
|
KV
|
170/190/220
|
Idle Current
|
1.0A
|
Max Current
|
65A
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3510W
|
Max Pull
|
12000g
|
Rated Current
|
55A
|
Motor Weight
|
605g
|
Shaft
|
8mm
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0441
|
Stock Notification:
Our standard stock KV is 170KV and 190KV, 70KV is not stock item, lead time is about 35-45 days after your order confirmed if you order 70KV.
Notice:
The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.
Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.













Stock Notice Before Place Order:
2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors
Maytech VESC_TOOL Compitable Controller:
Maytech MTSKR1712 Small and Light Cheap Remote:

In Stock Brushless 6355 Unsealed Motor 8mm Shaft Sensored 170KV
Maytech Brushless 6355 170KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robots/Mountainboard/E-scooter
Model No
|
MTO6355-HA |
KV
|
170 |
Idle Current
|
1A
|
Max Current
|
65A
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3510W
|
Max Pull
|
12000g
|
Rated Current
|
55A
|
Motor Weight
|
600g
|
Shaft
|
8mm
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0441
|
Notice:
The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.
Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.












Stock Notice Before Place Order:
1. The motor is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Motor Drawing:


In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ
Maytech MTSKR2005WF IP66 Splashproof Esk8 Remote Electric Skateboard Elongboard Hand Remote with 3 Speed Modes
If you want to use for water sports, then please order our MTSKR1905WF IP67 waterproof remote Here>
Specifications:
Model No. | MTSKR2005WF (MTSKR20WFV2) |
Waterproof Rank | IP66 splashproof |
Speed Display | Yes |
Throttle and brake Display | ±100% |
Speed Mode |
3 speed modes, each mode can adjust speed from 1%-100% throttle |
Charger |
QC 2.0 wireless |
Display Screen |
OLED yellow & blue screen |
Throttle and Brake Signal Output Range |
1.5ms-2ms for throttle; 1.5ms-1ms for brake |
Voltage Display |
Remote & main battery voltage level (lithium iron; lithium ion battery optional) |
Telemeter Data by Receiver |
Motor RPM; main battery voltage |
Telemeter Data by VESC | ESC voltage/ current/ temp; Motor temp/ RPM |
Triggers | 2x high senstive triggers |
Wireless Frequency | 2.4GHz wireless with 40 channels |
VESC Control Mode | Duty Cycle/ Current Mode |
Travel Mileage | Yes |
Receiver Built-in Switch for Esk8 Light / Esurf Water Pump |
1x 30V 3A mechanical relay switch; 1x 20V 2A transistor electronic switch |
Accessories | Wireless charging pad; receiver; 3pcs dupont cable |
Compatible ESCs | VESCTOOL/ Focbox/ Other PWM ESCs that has same signal output range with the remote |
Application | Only for Electric skateboard, elongboard, mountainboard |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
> Get Manual: Remote Manual and Instruction
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit problem.
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.

In Stock Maytech MTSKT310DB 310mm New Truck Set with Motor Mount for Dual Belt-driven Skateboard Elongboard Truck Front and Rear Truck
Maytech MTSKT310DB 310mm New Truck Set for Dual Belt-driven Skateboard Elongboard Truck Front and Rear Truck
Model No. | MTSKT310DB | Product Name | Front and Rear Truck |
Material | 356-T6 Alloy Aluminum | Truck Size | 9 Inch |
Suitable Motor | 5055/5065/6355/6365/6374 |
Related Products: (Click the following pictures to check more products)
Rear Truck for Dual Hub Motor:
Related Products: (Click the following pictures to check more products)
Maytech Brushless Outrunner Sensored Motors
Maytech VESC_TOOL Compitable VESC:
Maytech Fully Waterproof Remote MTSKR1905WF:

Maytech MTSKPS2005 Pulley Belt Comb with 36T 5M Wheel Pulley with Ball Bearing 14T 5M Motor Pulley 51T 5M HTD255 Belt for Electric Skateboard/Elongboard
Maytech MTSKPS2005 Pulley Belt Comb with 36T 5M Wheel Pulley with Ball Bearing 14T 5M Motor Pulley 51T 5M HTD255 Belt for Electric Skateboard/Elongboard
The kit includes:
1. MTSKP2005C Wheel Pulley: 36T 5M 16mm Width, with 2pcs ball bearing
2. MTSKG2005 Motor Pulley: 14T 5M 16mm Width, with 8mm Hole diameter, compatible with 8mm shaft motor.

3. MTSKB2005 Belt: 51T 5M HTD 255-5M, 15mm Width.
