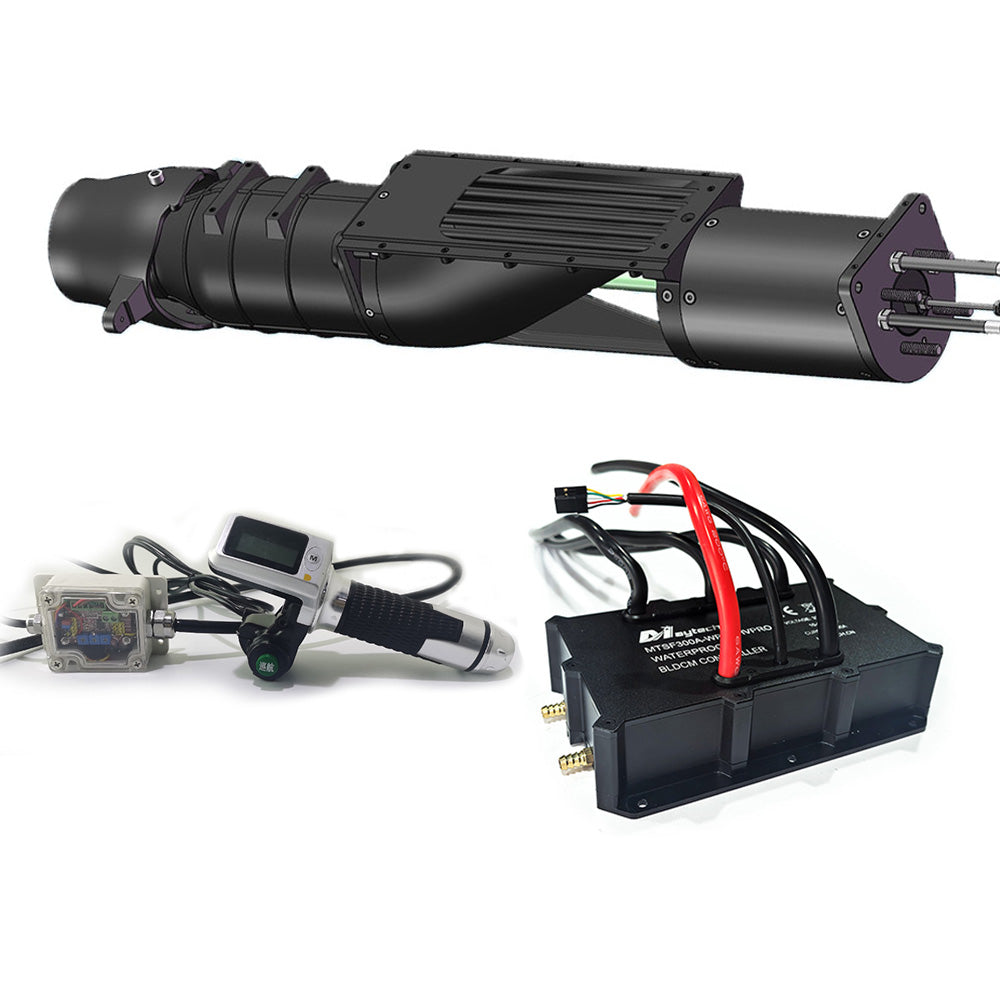

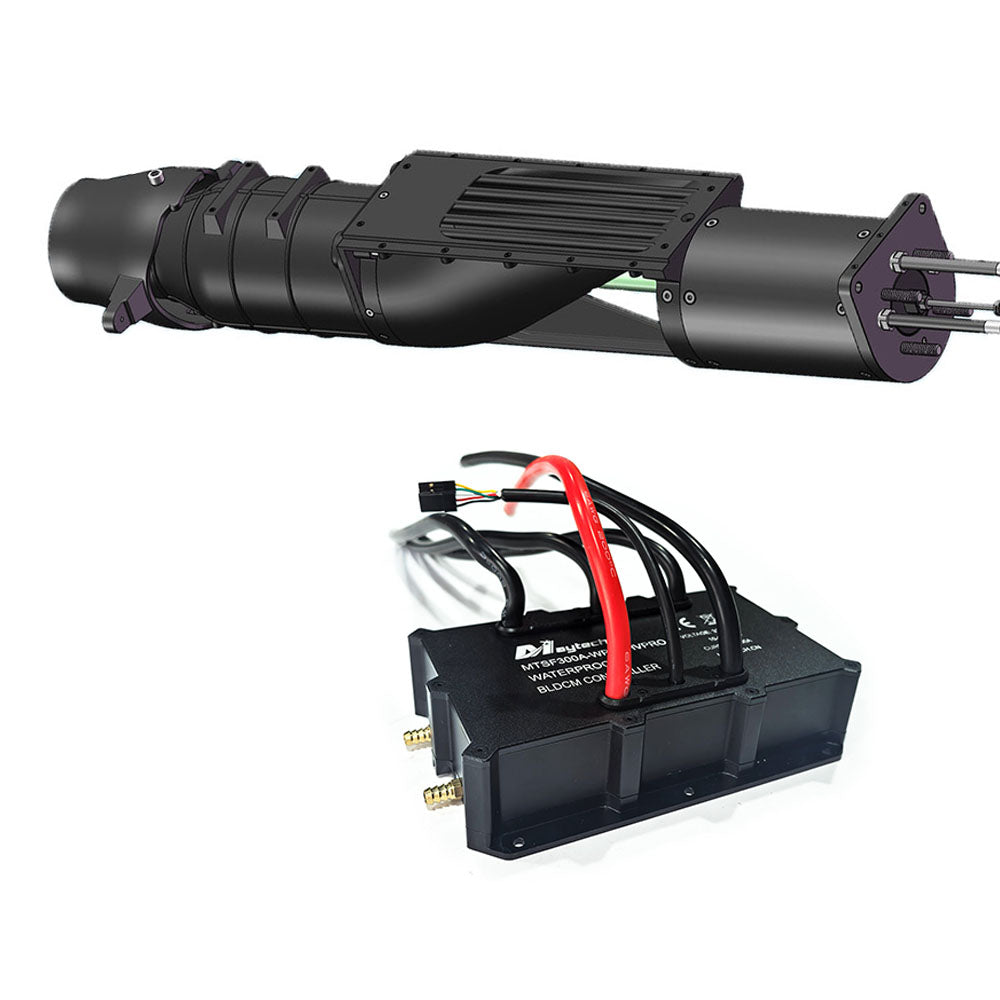

Maytech Pro Kit 72V Jet Propulsion System MTWJ20KW + 300A ESC for Yacht Jetski Jet Boat Jetboard Jet Kayak
Maytech Pro Kit 72V Jet Propulsion System MTWJ20KW + 300A ESC for Yacht Jetski Jet Boat Jetboard Jet Kayak
Regular price
$1,774.50 USD
Regular price
Sale price
$1,774.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Maytech High Volt Waterjet Pump Kit MTWJ20KW + 85V 300A ESC for Yacht Jetski Jet Boat Jetboard Jet Kayak
> Check Test Video with load in water tank

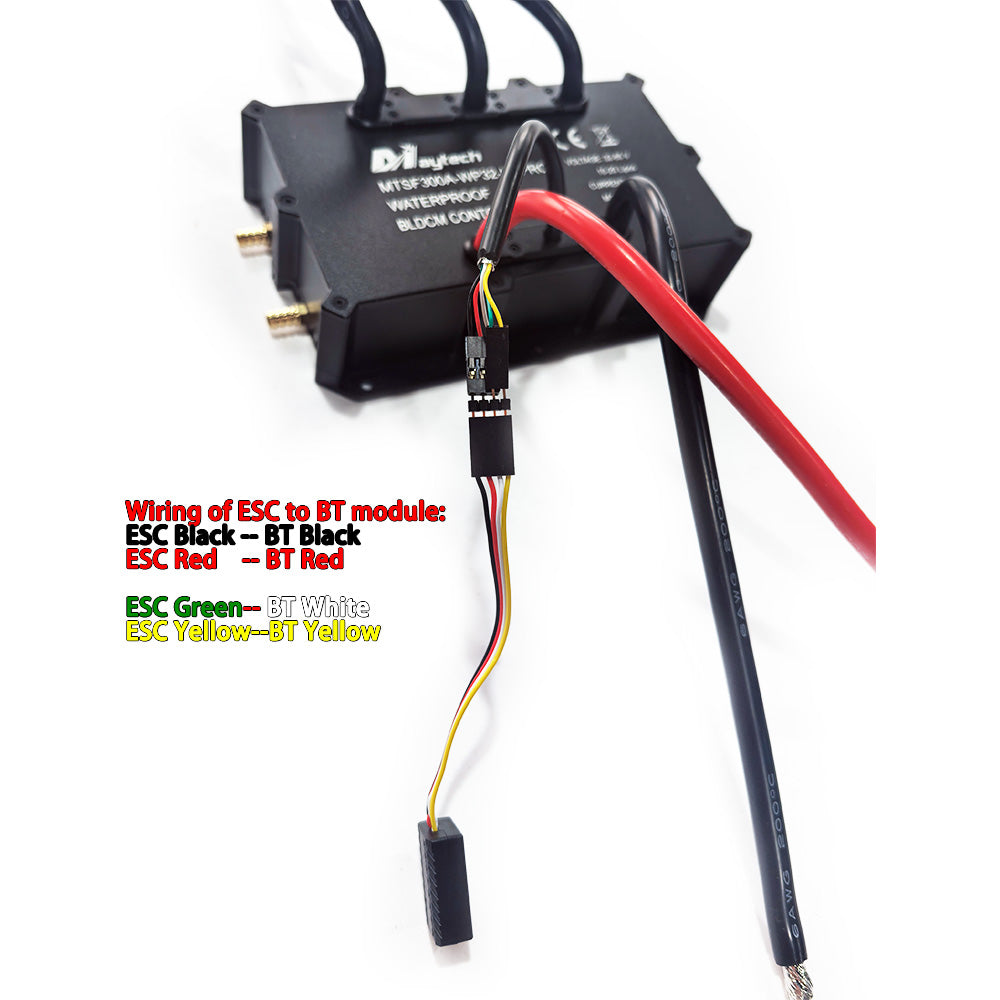

Wiring diagram and parameters display on remote:
Display parameters correctly, please follow:
Settings in remote and Wiring for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | MTSESC-WP32 |
| 10) M.Pole Pairs | 10 |
| 12) Gear Ratio | 1.0 |
1. MTWJ20KW Water Jet Thruster
> Check test data, test curve
Specification:
| Model No. | MTWJ20KW |
| Voltage | Max 72V in this kit |
| Motor KV | 160 |
| Max Power | 20.5KW at 72V |
| Peak Current | 285A for short time at 72V |
| Max Torque | 114.8kg at 72V |
| Pole Number | 10P |
| Working Temperature | -20℃-60℃ |
| Plug | 10mm bullet male connector |
| Temp Sensor | With |
| Customize | Logo, shaft, cable, connector, etc., contact Email: eileen@maytech.cn |
| Appliacation | Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive outboard, jet drive kayak, boat thruster etc., |
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust (kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
153
|
5508
|
4600 |
61.3
|
100
|
11.13
|
|
2
|
48
|
245 |
11760
|
6100 |
101.2
|
100
|
8.61 |
|
3
|
60
|
275
|
16500
|
7150 |
111.2
|
100
|
6.74 |
| 4 |
72
|
285
|
20520
|
8500 |
114.8
|
100
|
5.59 |
Version: With steering nozzle drawing(you can remove the steering nozzle yourself if you don't need it)

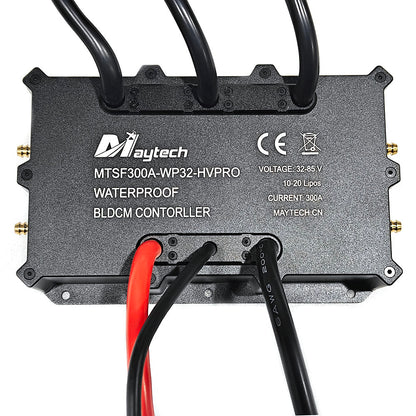

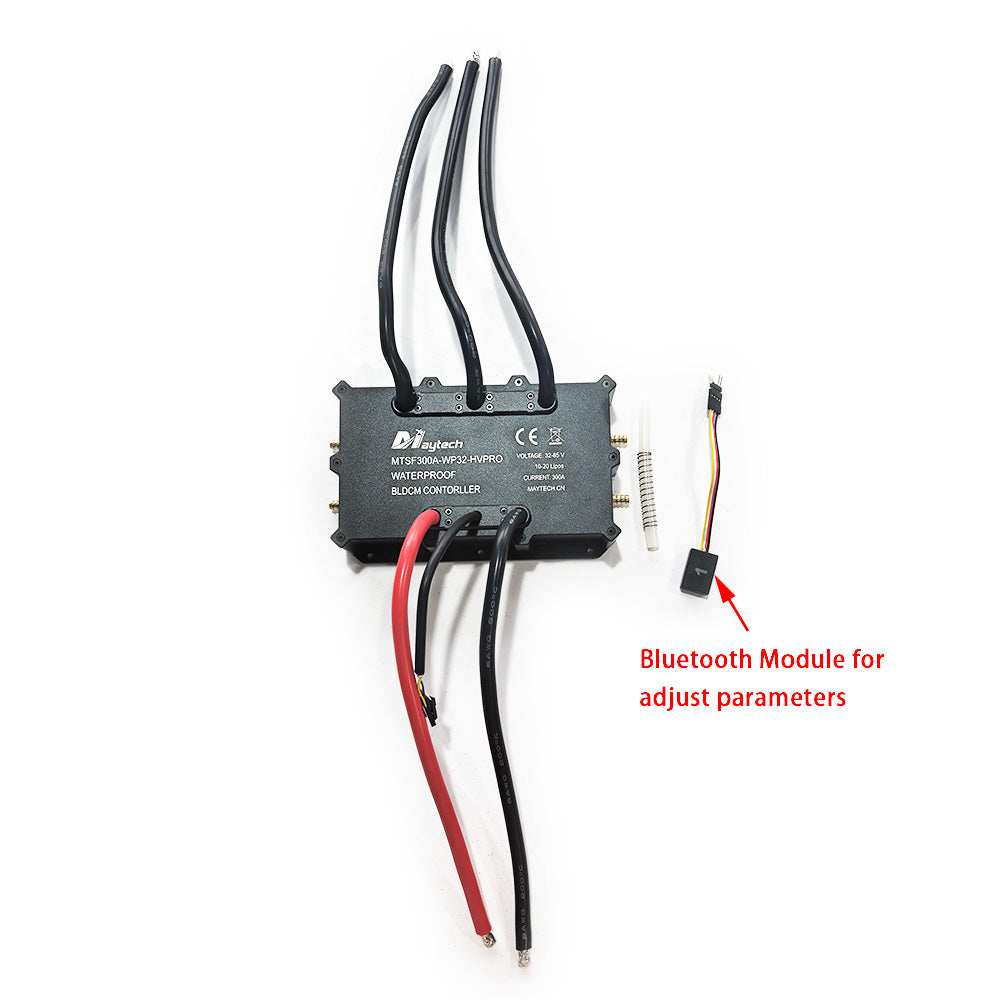

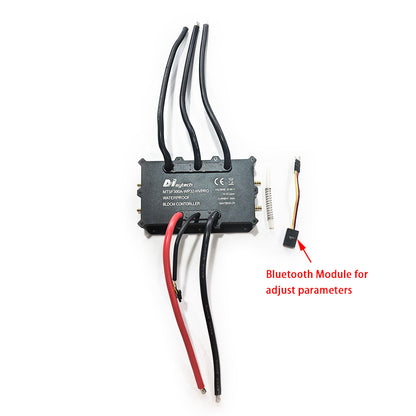

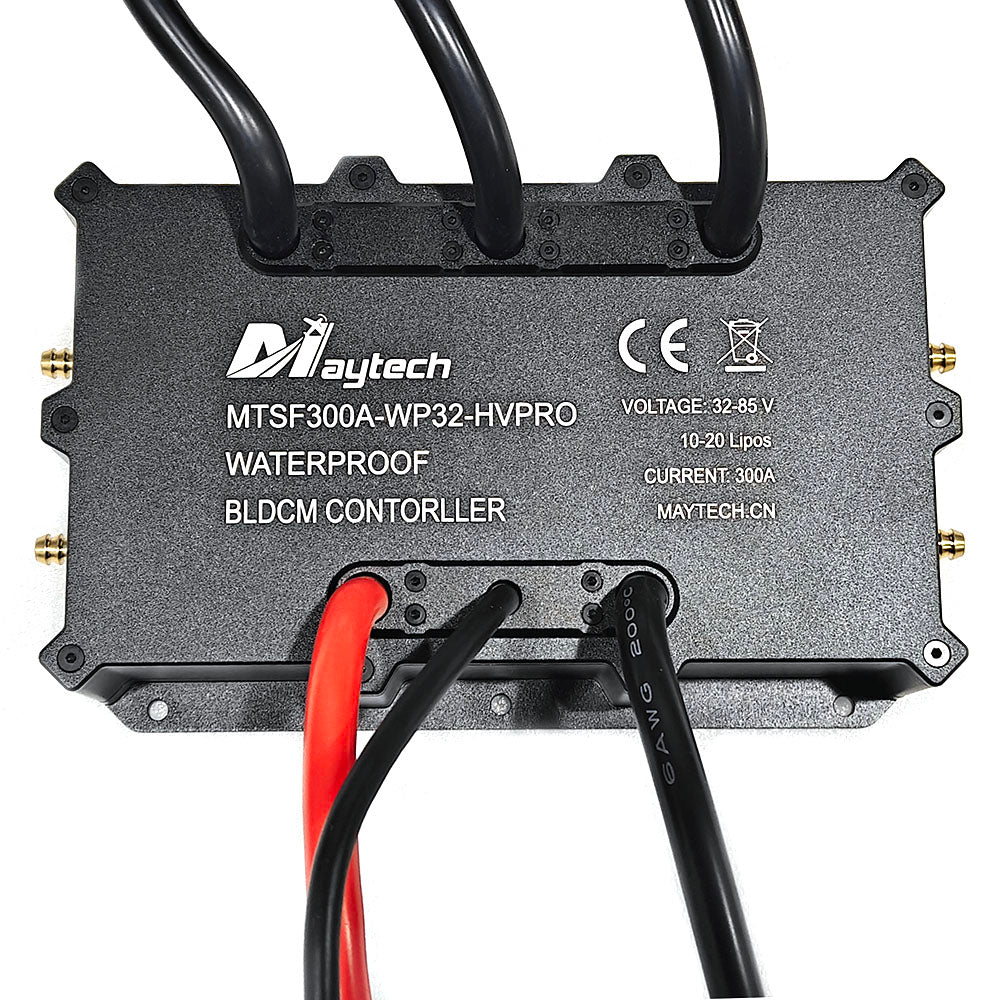

2. Maytech 300A 85V Waterproof ESC for Electric Surfboard Jetboard Boat Kayak
Model No.: MTSF300A-WP32-HV PRO
Cont Current: 300A
Peak Current at 10S: 320A
Waterproof Rank: IP68 Waterproof
Watercooling: Yes, with
Input Volt: 24V-72V in this kit
Signal Format: PWM (PPM)
Signal Output: 1-2ms
Case Material: Alloy aluminum case

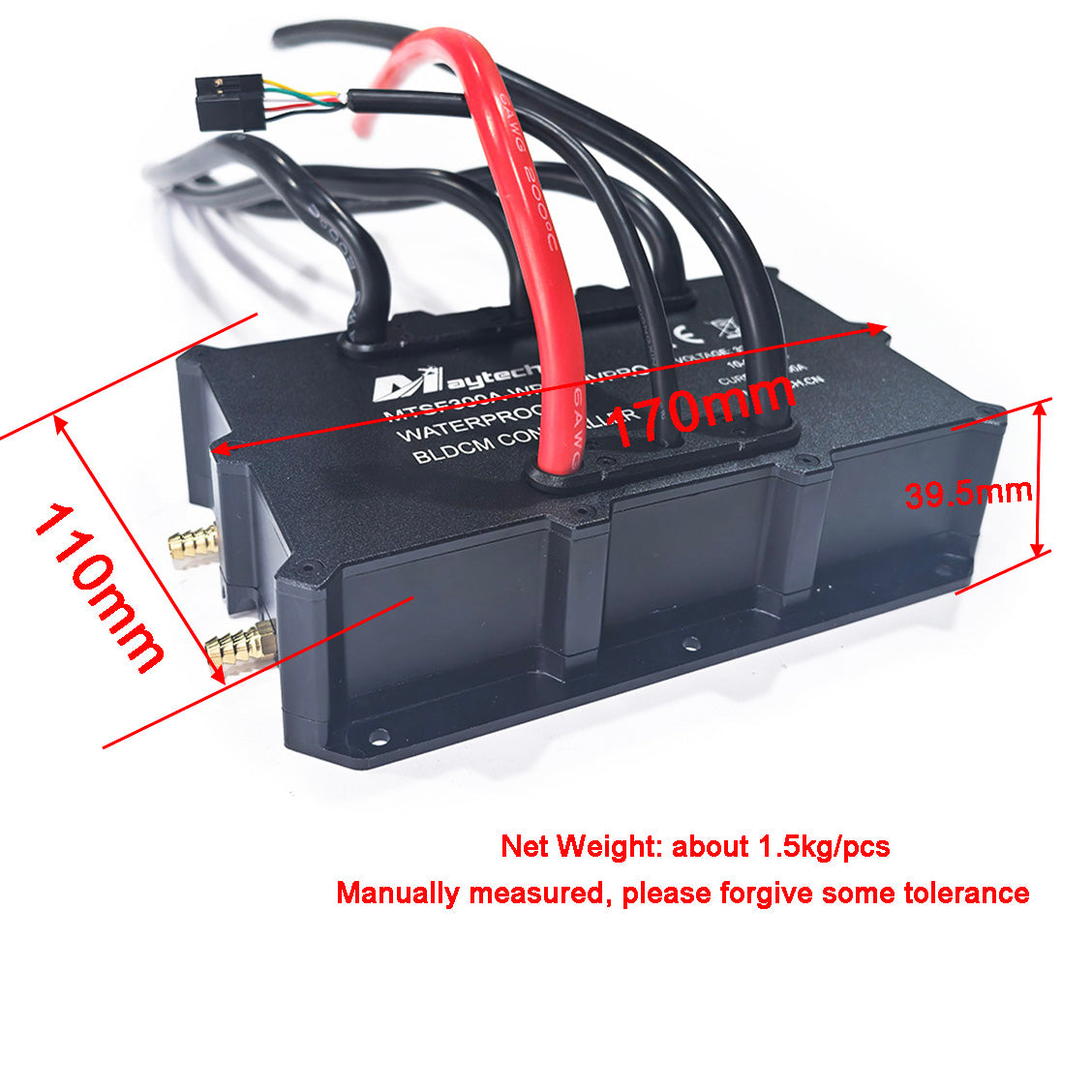

Net Weight: 1.39kg/pcs

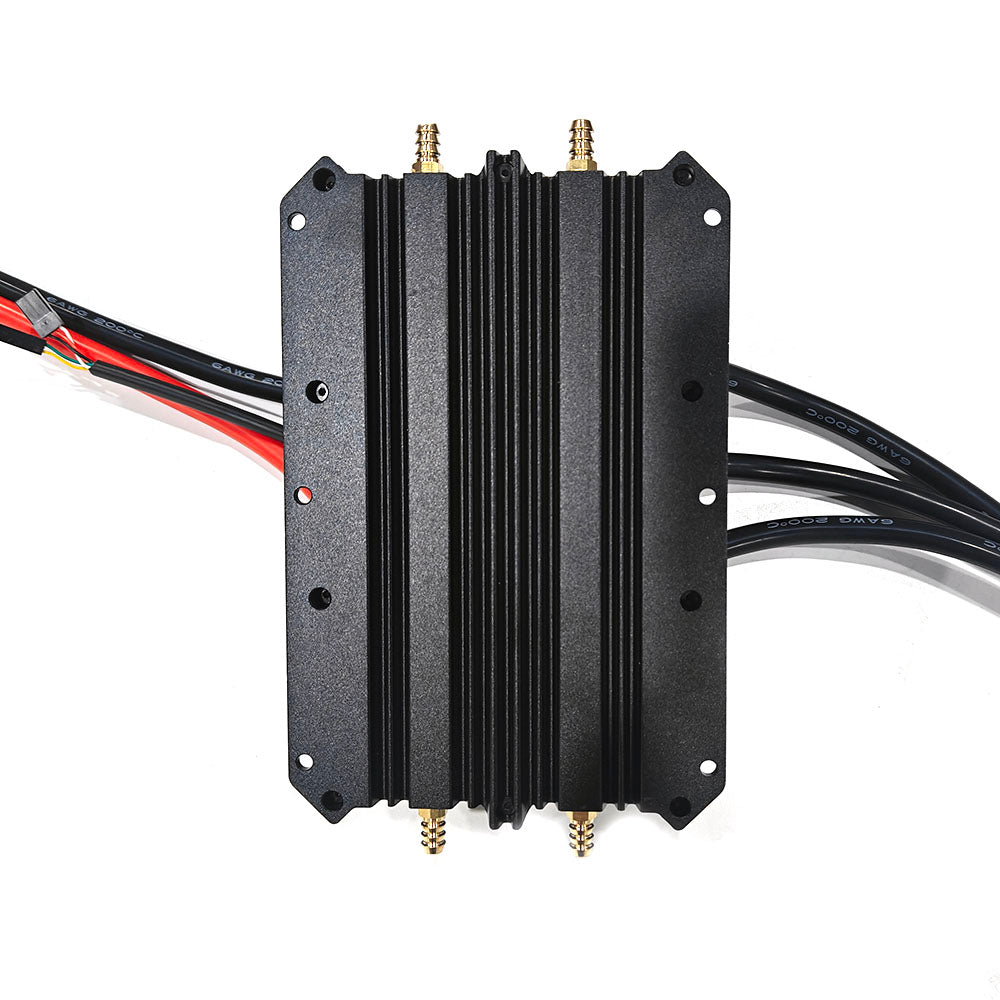

Cooling Way: By water directly or by water pump through water cooling tube
Connector: Standard is 10.0mm golden female connector on motor cable side, battery size is not with connector, with IP68 waterproof protector for connectors
3. Throttle Options:

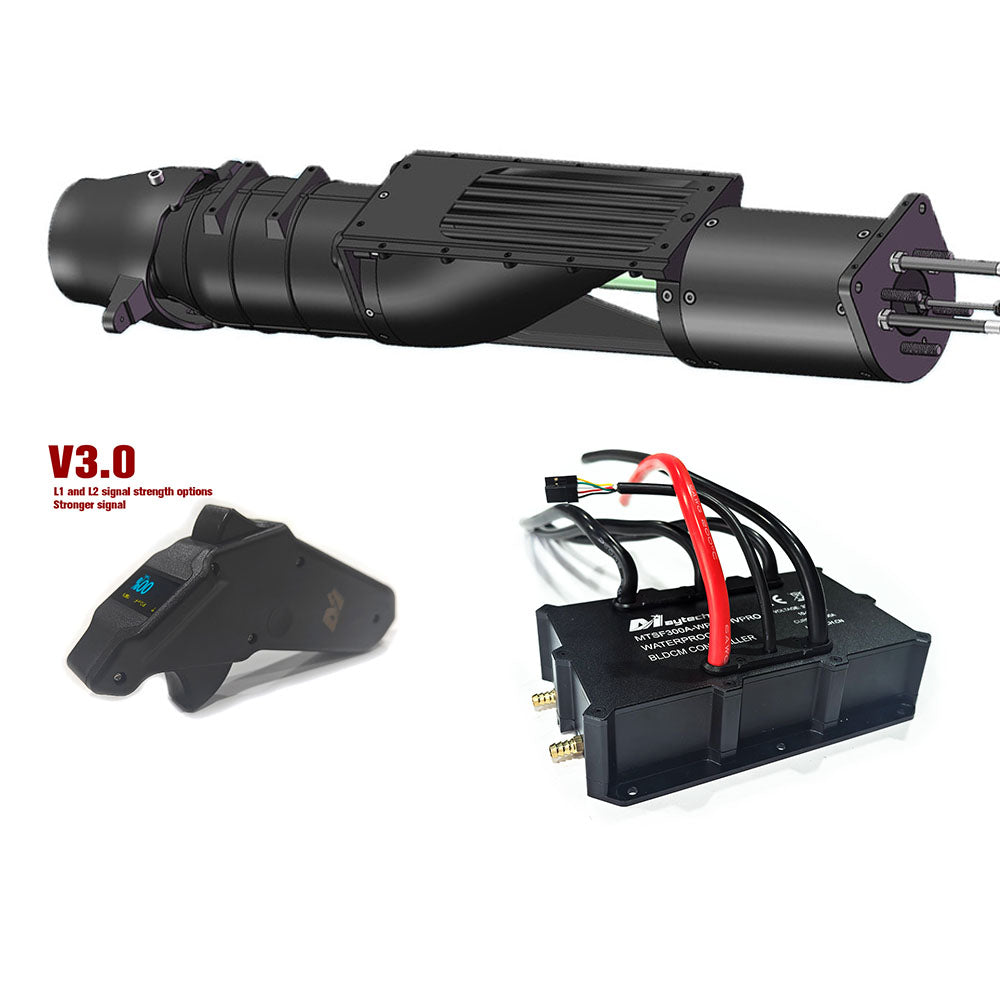

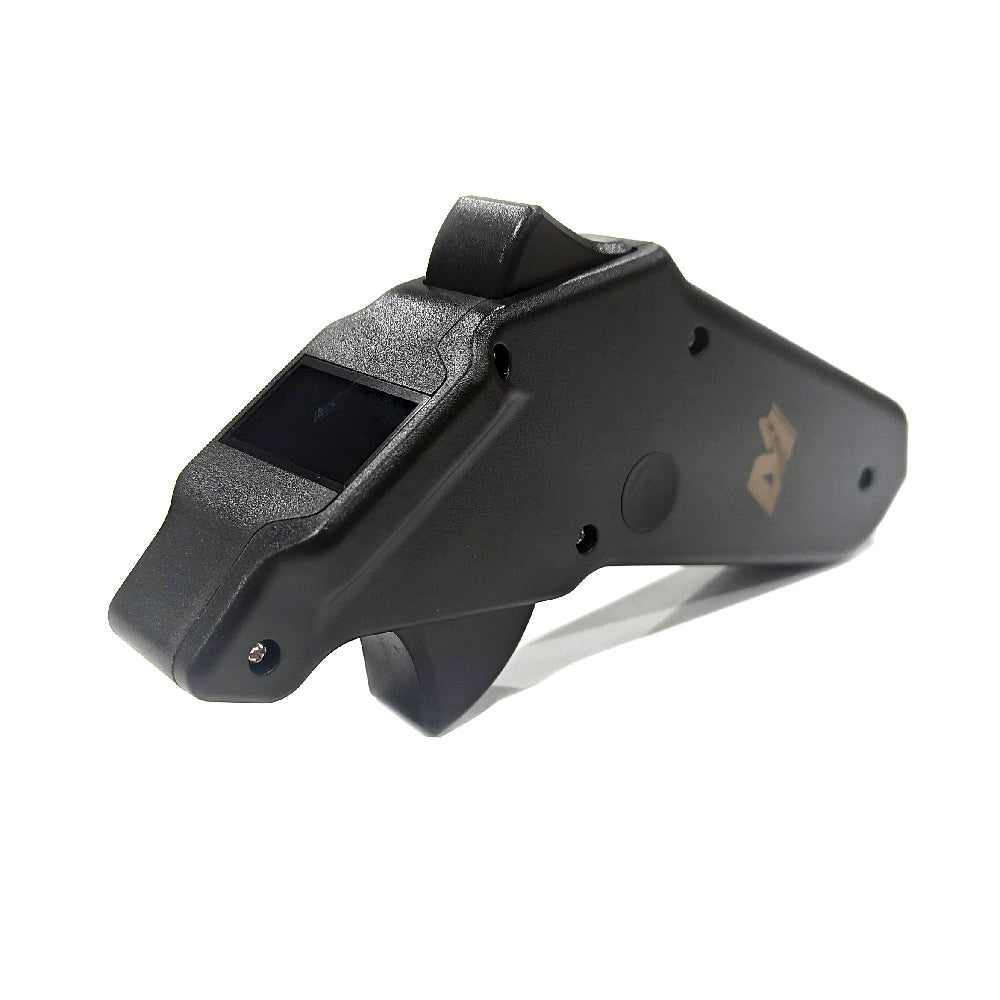

3-1: Remote: V3.0 MTSKR1905WF IP68 Waterproof Remote, can display battery voltage, RPM, etc parameters
| Model No | MTSKR1905WF V3.0 |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |

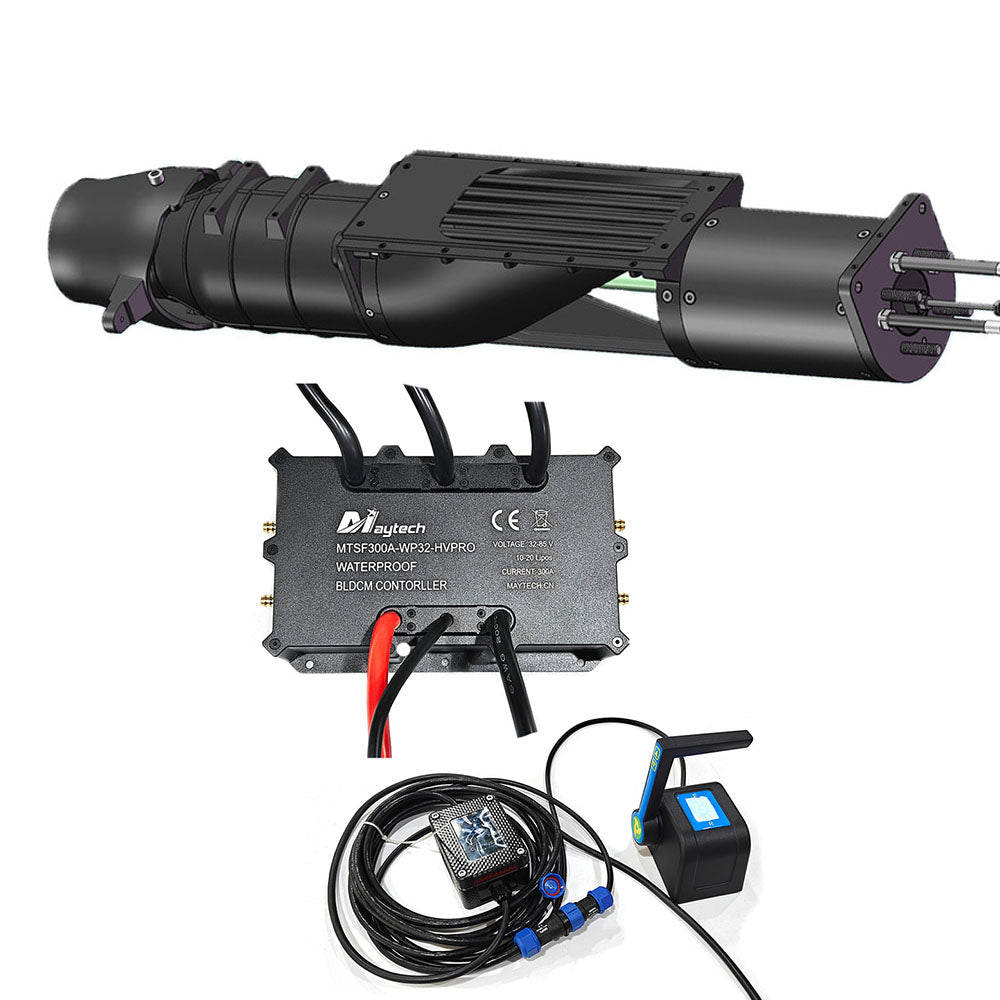

3-2: Boat throttle Lever, Maytech Electric Boat Forward Backward Throttle Lever For Marine Control Electric Boat Yacht
| Model No | MTTR26 |
|
Voltage
|
5V
|
|
Output signal range
|
1-2ms PWM (Stop position 1.5ms, 1.5m-1.0ms Backward, 1.5-2ms Forward)
|
| Accessories | With signal conversion junction box |
| Suitable ESCs |
Maytech MTSF300A-WP 18-60V, |
| Appliacation | Electric Yacht, Electric Boat, Sailboat, etc. |
3-3: Twist throttle, ADC signal, can only control forward direction, no other functions
Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us eileen@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
