Maytech MTSKR1905WF + SUPERFOC6.8 + 50xx Motor Comb V2 Fully Waterproof Remote 50A VESC6.0 based Controller 5055/5065/5570 Motor Electric Skateboard Kit

Maytech.cn

$382.80 Regular price $788.90
SKU: SUPERFOC6.8+MTSKR1905WF+MTO5055-HA

Maytech MTSKR1905WF + SUPERFOC6.8 + 50xx Motor Comb V2 Fully Waterproof Remote 50A VESC6.0 based Controller 5055/5065/5570 Motor Electric Skateboard Kit



4 Sets Comb:

Comb 1: SUPERFOC6.8 + MTSKR1905WF + MTO5055-HA (220KV, Open cover, 6mm shaft)

Comb 2: SUPERFOC6.8 + MTSKR1905WF + MTO5065-HA (220KV, Open cover, 6mm shaft)

Comb 3: SUPERFOC6.8 + MTSKR1905WF + MTO5065-HA-C (170/190KV, Closed cover, 8mm shaft)

Comb 4: SUPERFOC6.8 + MTSKR1905WF + MTO5570-HA-C (170/190KV, Closed cover with big ball bearing, 8mm shaft)

Above motor KV is our standard KV, your order will be shipped as the KV we have. If you have other needs, please contact us first, we accept customize service.


Specifications:

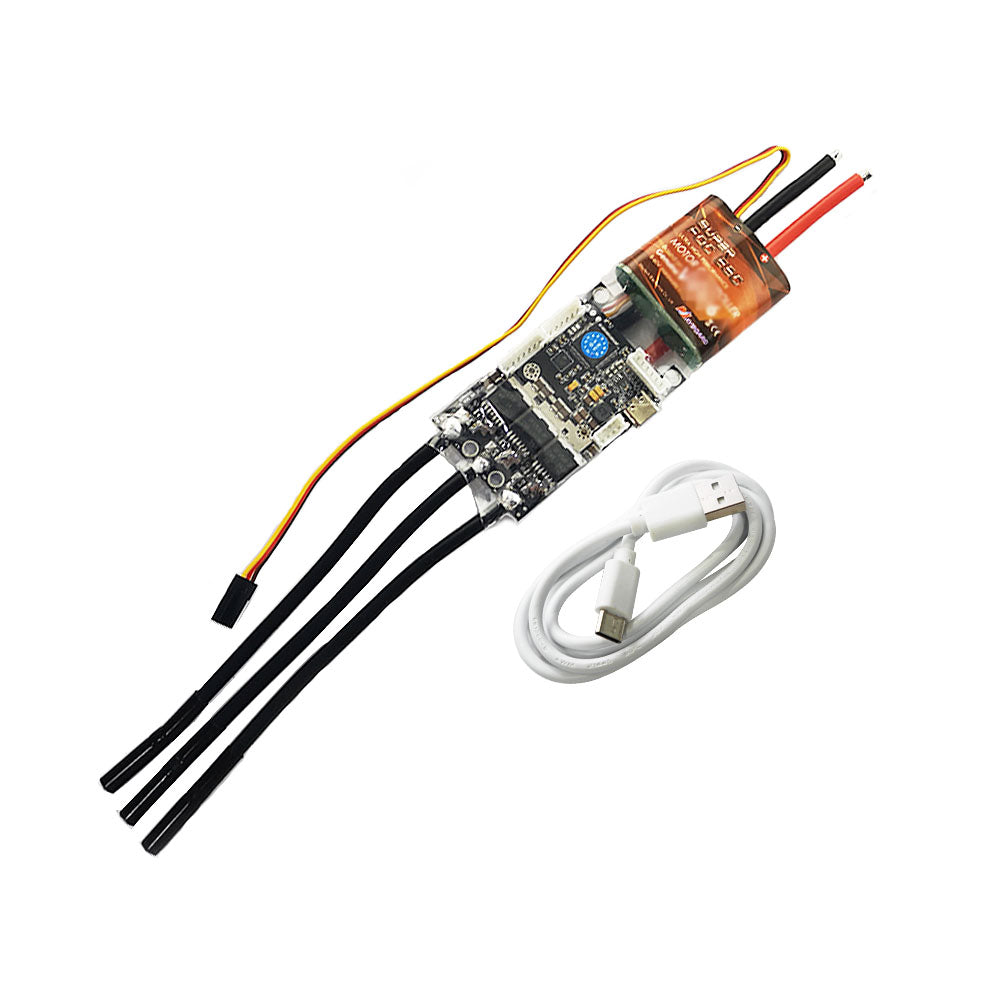

Product 1: Maytech SUPERFOC6.8 50A VESC6.0 based Controller with Great FOC Function with No case

Model No
MTSUPERFOC6.8 Cont Current 50A
Lipo Voltage 3-12S
Burst Current
240A
BEC 5V PCB Size 40mm*60mm
Capatitor 3pcs 680uf63V MOS IRF7530
Hardware Based on VESC6.0 Firmware Updatable



【Spring Sale 20% OFF】Maytech SUPERFOC6.8 50A VESC6-based speed controller compatible to VESCtool Programmable for Esk8/Ebike

maytech superfoc6.8 50a vesc6.0 based controller for eelctric skateboard longboard fighting robots mountainboard powerful great foc function great performance

Maytech SUPERFOC6.8 50A VESC6-based speed controller compatible to VESCtool for Electric Skateboard/Longboard/Fighting Robots/UAV Drone/E-bike/E-scooter, etc



Product 2: V2 Fully Waterproof Remote MTSKR1905WF

Model No. MTSKR1905WF (V2) Mode Esk8/Esurf
Waterproof  Fully Waterproof with 2 Layers Nanometer Coating  Display Screen Remote & Battery Power; Throttle Percentage; Signal Strength; RPM; Current; Temp; Volt; Speed; Distance (when work with VESC)
Signal  PWM Double Source Accept 5V power by ESC built in BEC or extran 5V power
Control Light  Yes (Transistor Switch) Control Pump Yes (Relay Switch)
Firmware Updatable  Yes Set Safety Button Acceptable
Brake Button Yes (Esk8) Cruise Control Yes (Esurf)
Wireless Charging  Yes Accessories Charging Pad; receiver; 3pcs Dupond cables

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil

Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
Fully waterproof remote for electric skateboard/longboard/robotics/walking robotics/airplane/Esk8/mountainboard/all terrain offroad skateboard/Esurf/Eskate/Efoil/Foilsurf/jetboard/jetski/hydrofoil
maytech fully waterproof remote controller for electric surfboard skateboard mountainboard long board



specs of MTSKR1905WF remote waterproof remote brake and trigger throttle speed up can be customized for motorized skateboard jetboard

Product 3: Maytech MTO5055-HA 220KV Brushless Outrunner Sensored Motor Open Cover

  • Open Cover: Better heat dissipation
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • ​Battle Hardened: Yes
Model No
MTO5055-220-HA
KV
220
Idle Current
0.5A
Max Current
30A
Inpur Voltage
2-10s Lipo
Max Output Watt
1170W
Max Pull
5400g
Rated Current
25.5A
Motor Weight
335g
Shaft
 6mm
Output Shaft Length
26mm
Internal Resistance
0.1022


【Spring Sale 20% OFF】Maytech Brushless 5055 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/ROV

【Spring Sale 20% OFF】Maytech Brushless 5055 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/ROV

MTO5055-HA brushless outrunner sensored motor open cover with 6mm shaft great heat dissipation brushless motor for electric skateboard longboard mountainboard rov fighting robots

Product 4: Maytech MTO5065-HA 220KV Brushless Outrunner Sensored Motor Open Cover

  • Open Cover: better heat dissipation
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • ​Battle Hardened: Yes
  •

    Model No
    MTO5065-HA
    KV
    220
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    435g
    Shaft
     8mm
    Output Shaft Length
    26mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

    Product 5: Maytech MTO5065-HA-C 170KV Brushless Outrunner Sensored Motor

  • Closed Cover: Splash proof and dustproof
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • Battle Hardened: Yes

  • Model No
    MTO5065-170-HA-C
    KV
    170
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    450g
    Shaft
     8mm
    Output Shaft Length
    26mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter



    Product 6: Maytech MTO5570-HA-C3 190KV Brushless Outrunner Sensored Motor

    • Closed Cover: Splash proof and dustproof
    • Motor Connector: 4mm golden male connector
    • Hall Sensor: 6Pin, 2mm Pitch
    • Motor Cable Length: 240mm
    • Sensor Cable Length: 500mm
    • Customize: KV, logo, motor case, color, etc.,
    • Battle Hardened: Yes
    Model No
    MTO5570-190-HA-C3
    KV
    190
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    660g
    Shaft
     8mm
    Output Shaft Length
    45.5mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots


    Related Products: (Click the following pictures to check more products)

    1. Maytech Brushless Outrunner Sensored Motors

    Maytech brushless outrunner motor for electric skateboard 6355/6374/6365.6880/6396 sensored brushless engines

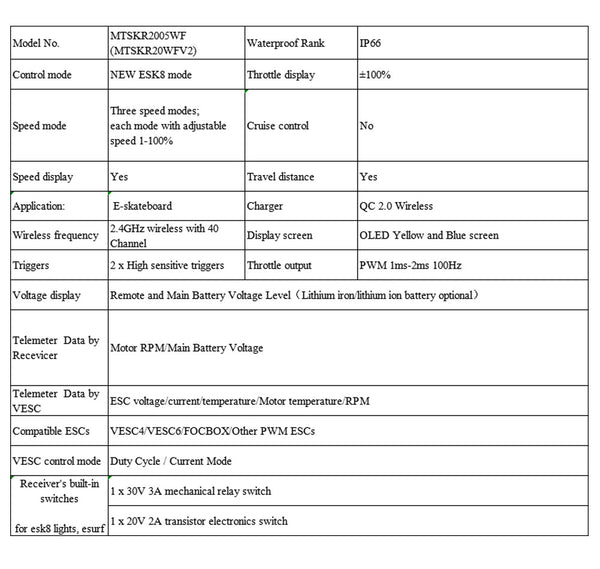

    2. Maytech New Esk8 Remote MTSKR2005WF with 3 speed Modes Esk8 Only:
