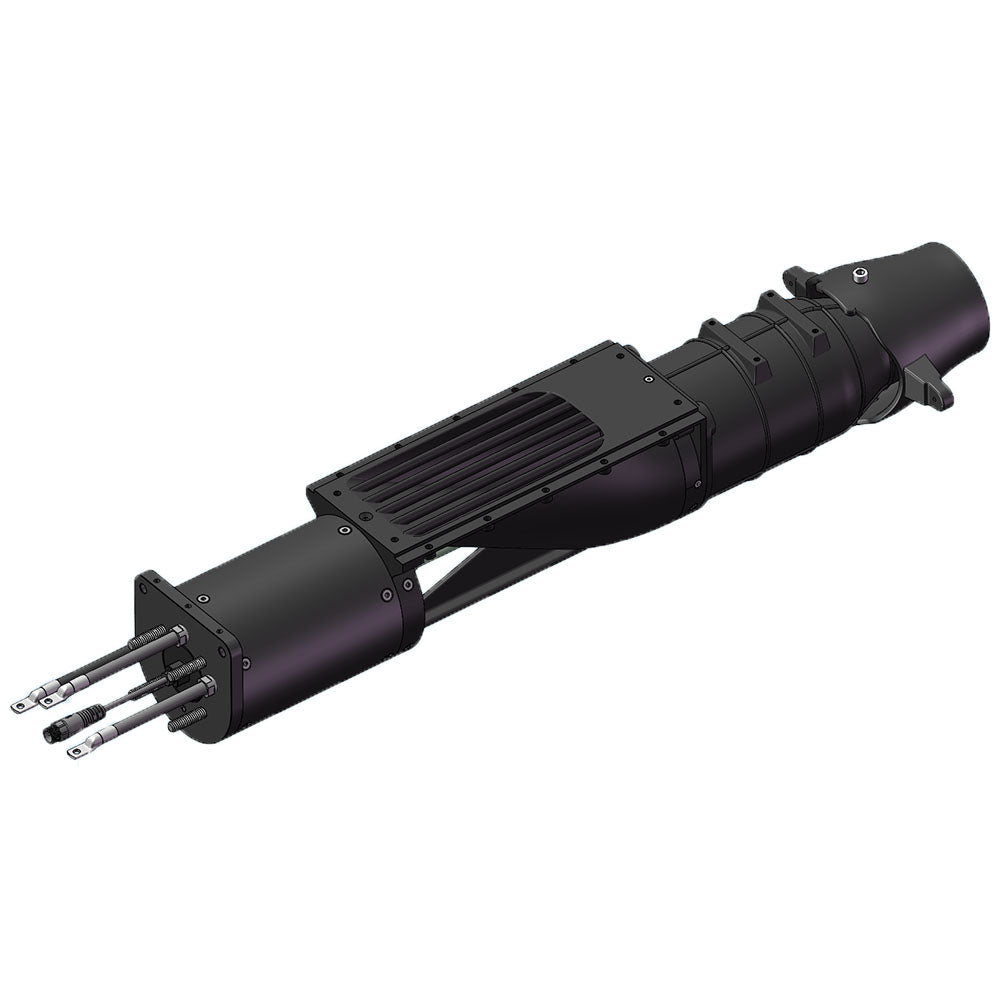

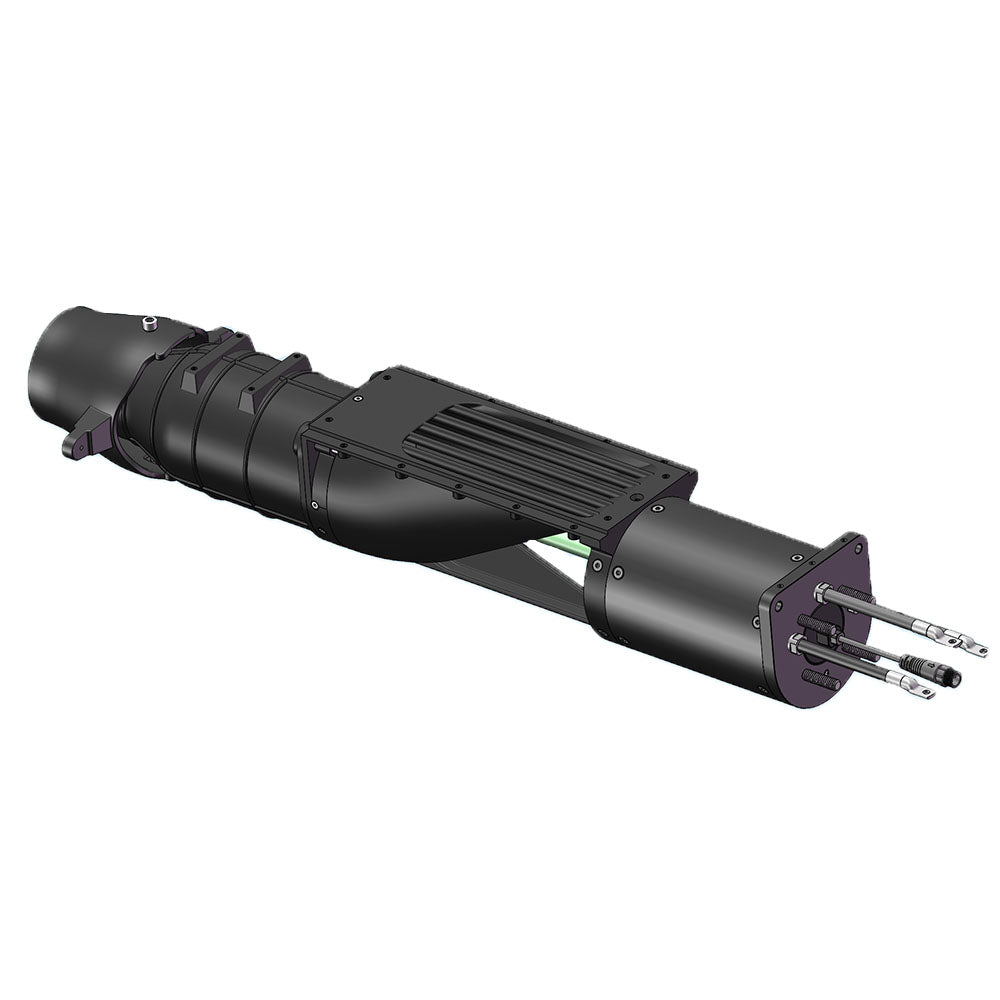

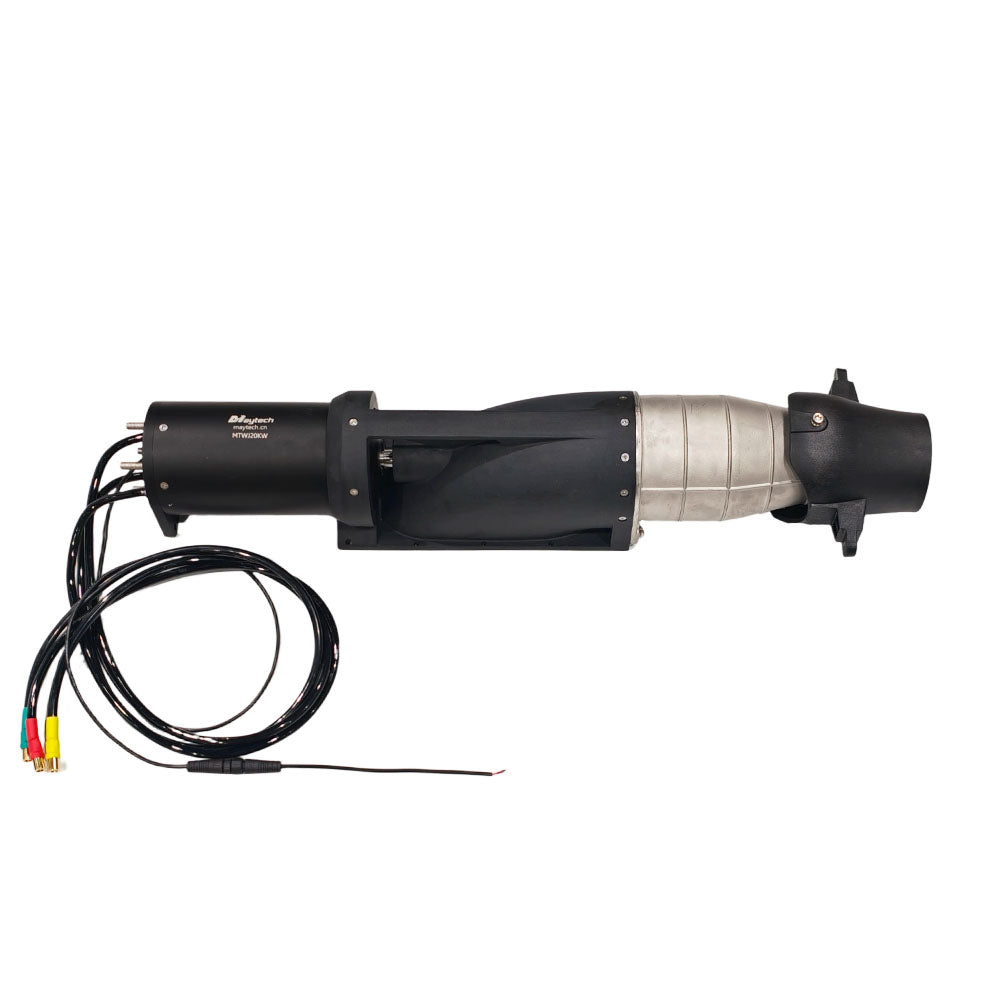

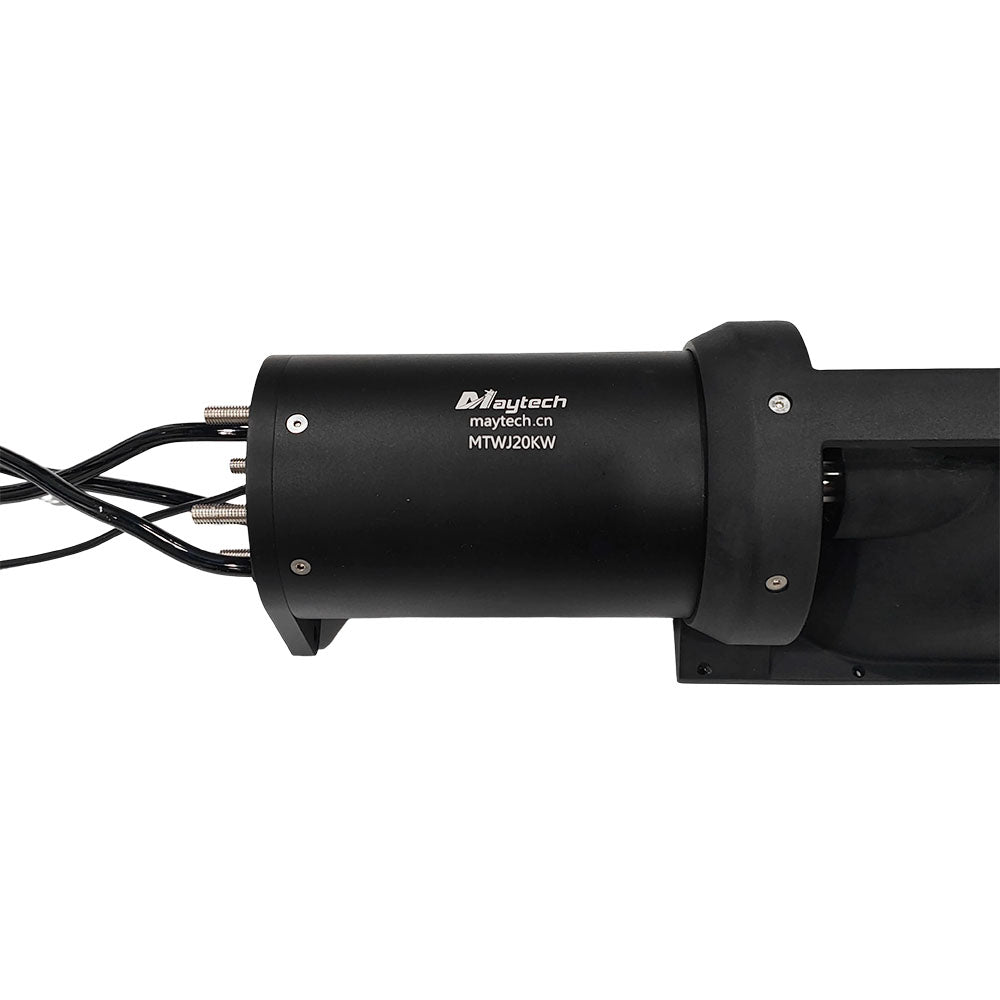

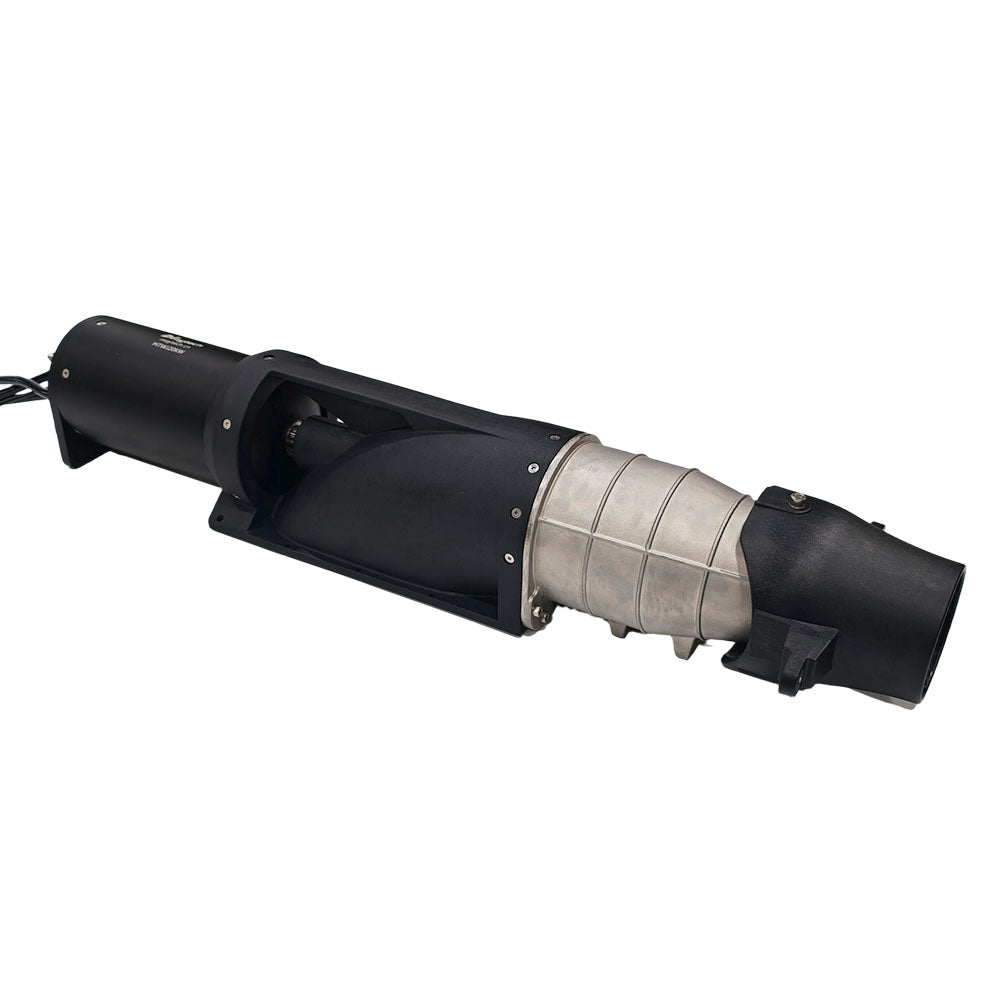

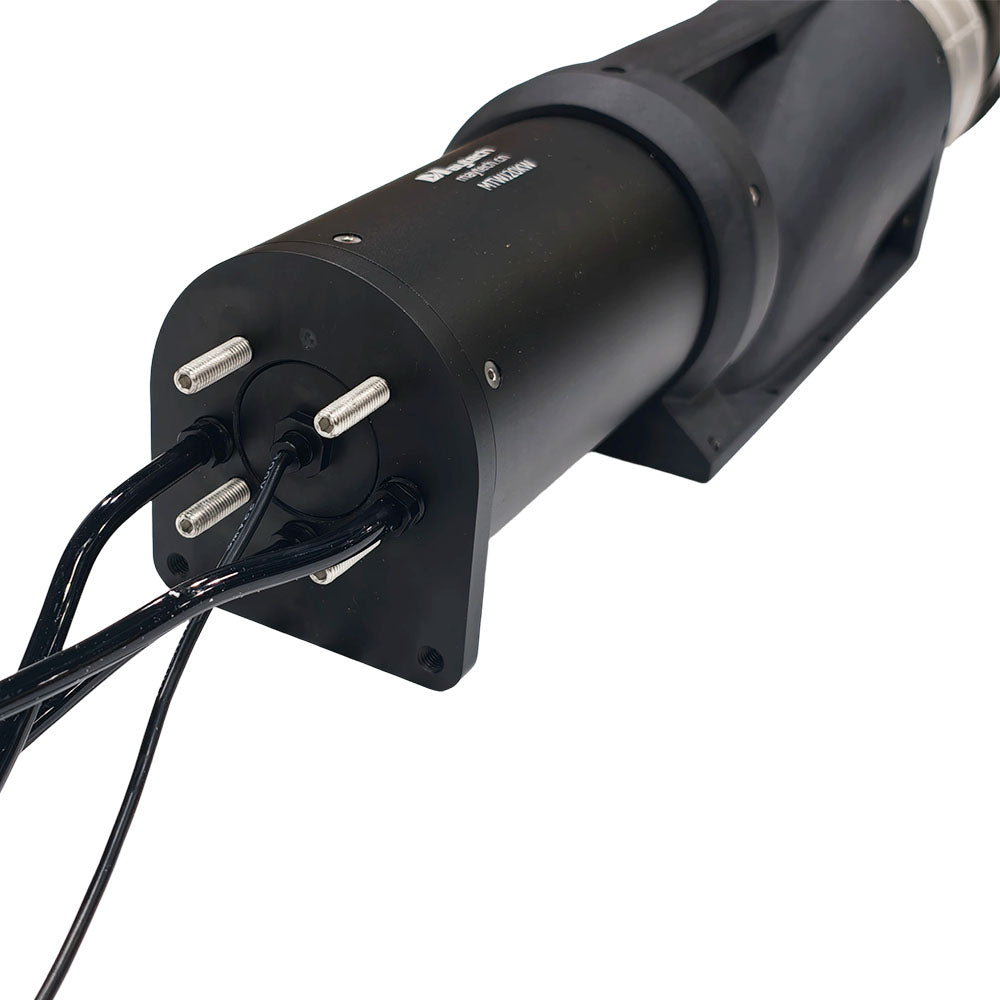

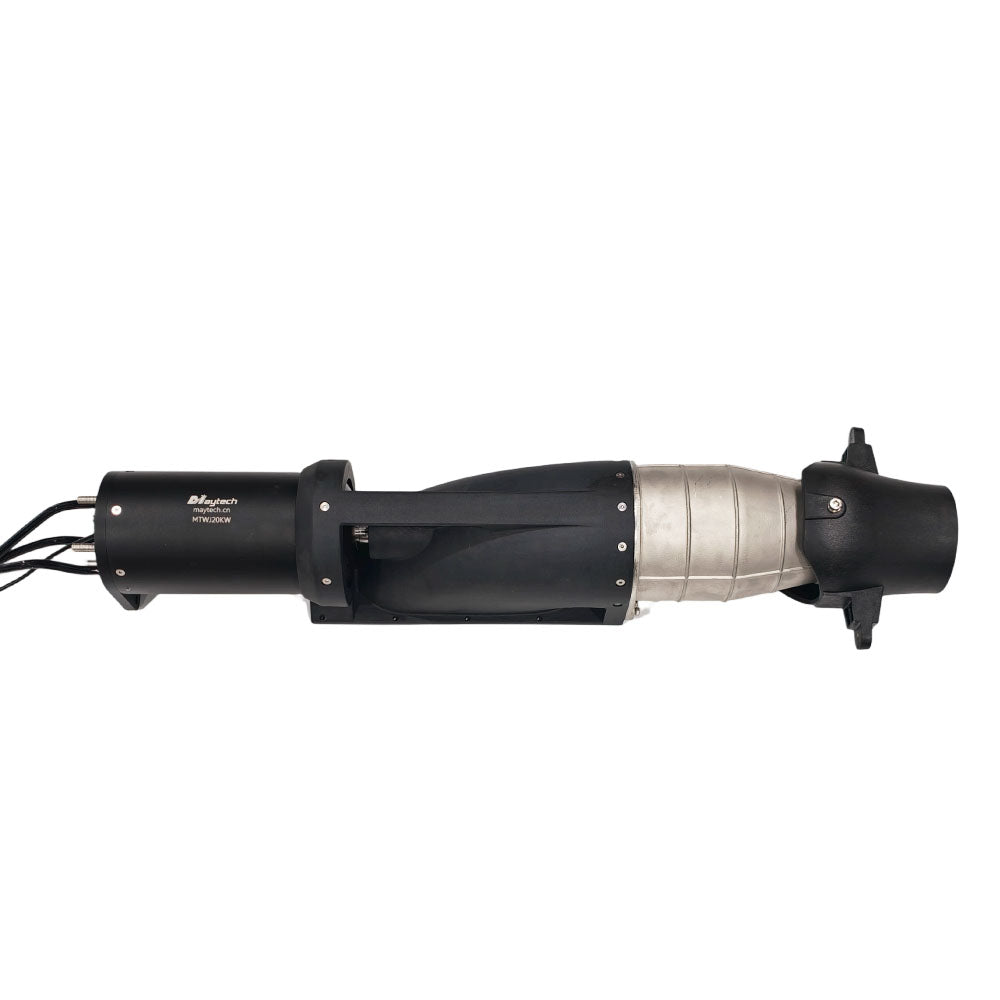

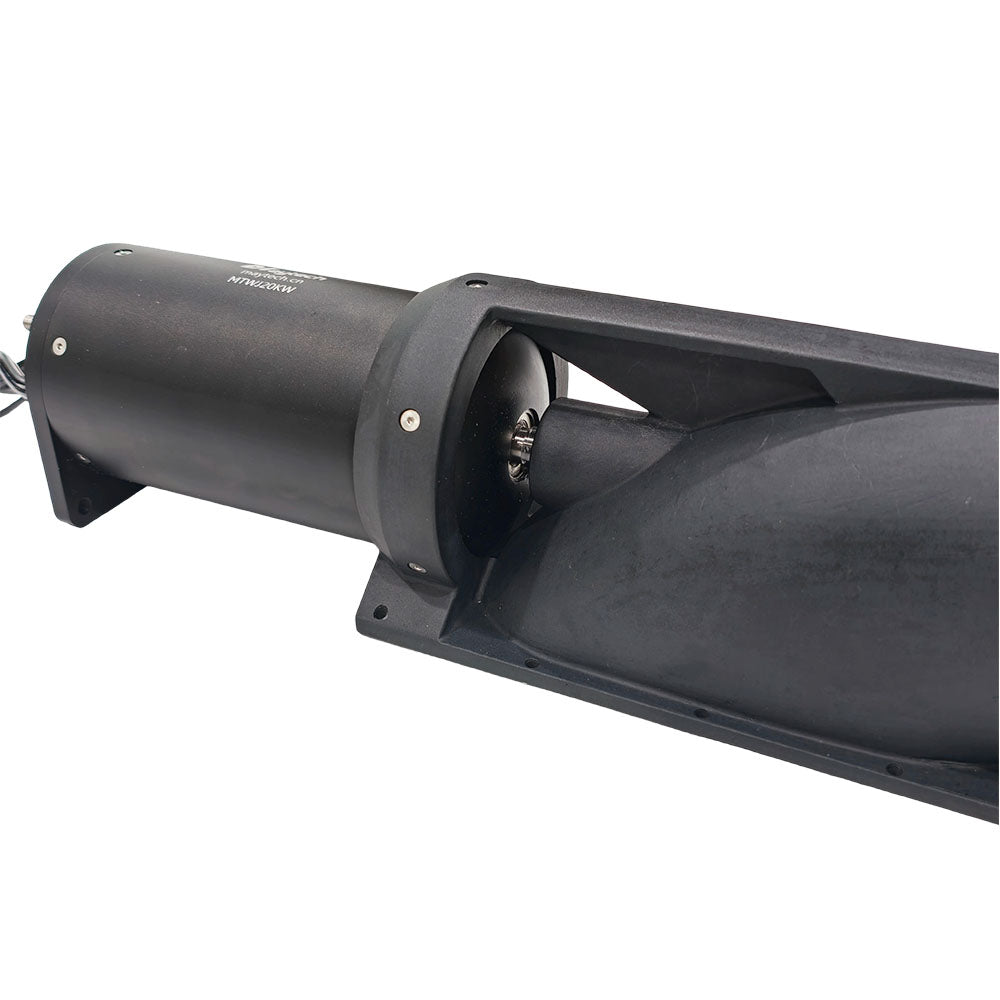

Maytech MTWJ20KW Boat Thruster Motor Max 21KW Powerful Boat Thruster with Impeller Steering Nozzle for Electric Surfboard / Jetski / Jetboat

Maytech MTWJ20KW Boat Thruster Motor Max 21KW Powerful Boat Thruster with Impeller Steering Nozzle for Electric Surfboard / Jetski / Jetboat

$1,208.70 USD
$1,208.70 USD
Sale Sold out
Shipping calculated at checkout.

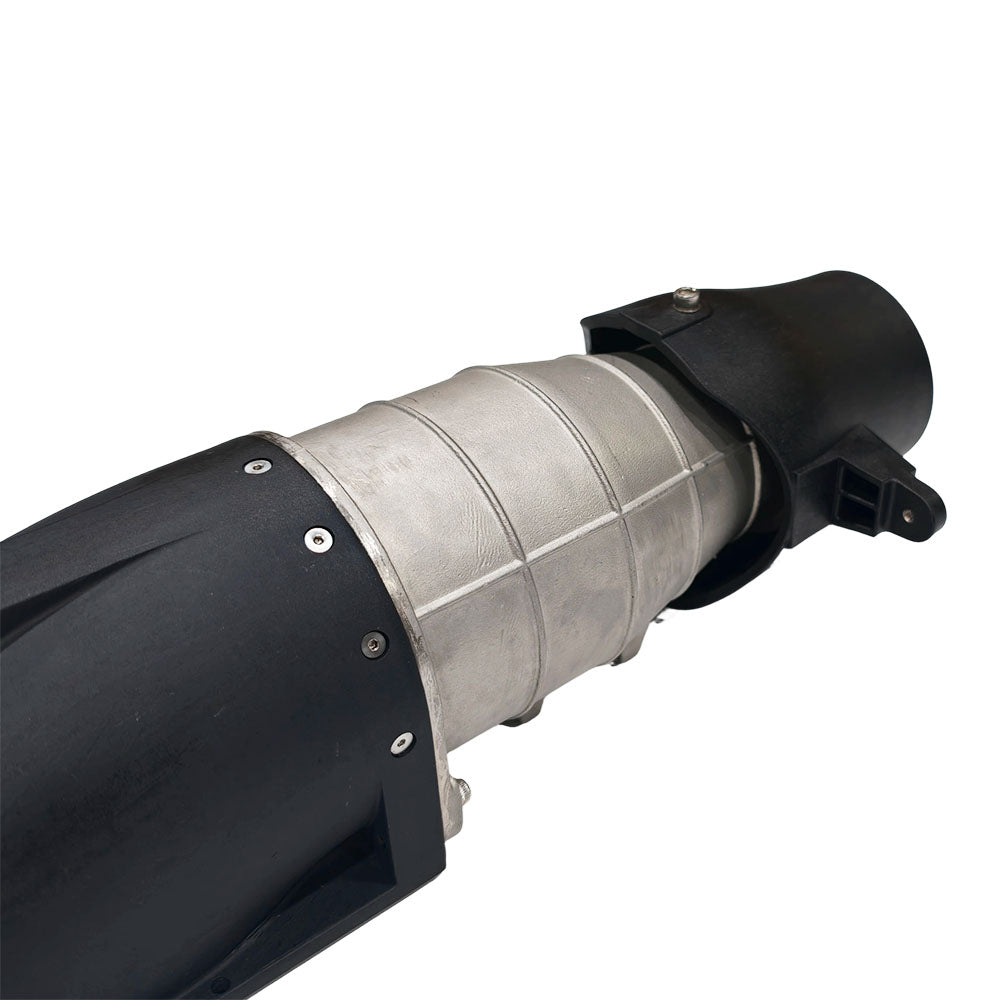

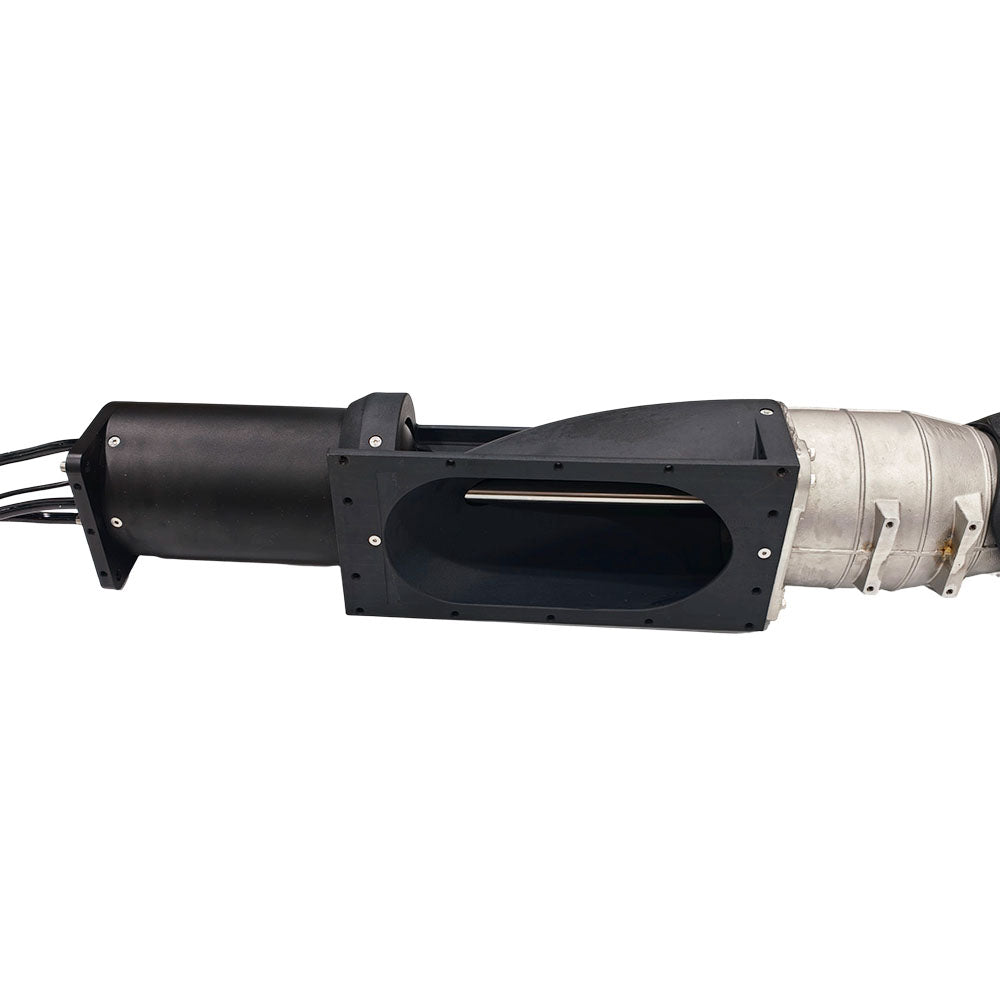

MTWJ20KW-S Waterjet

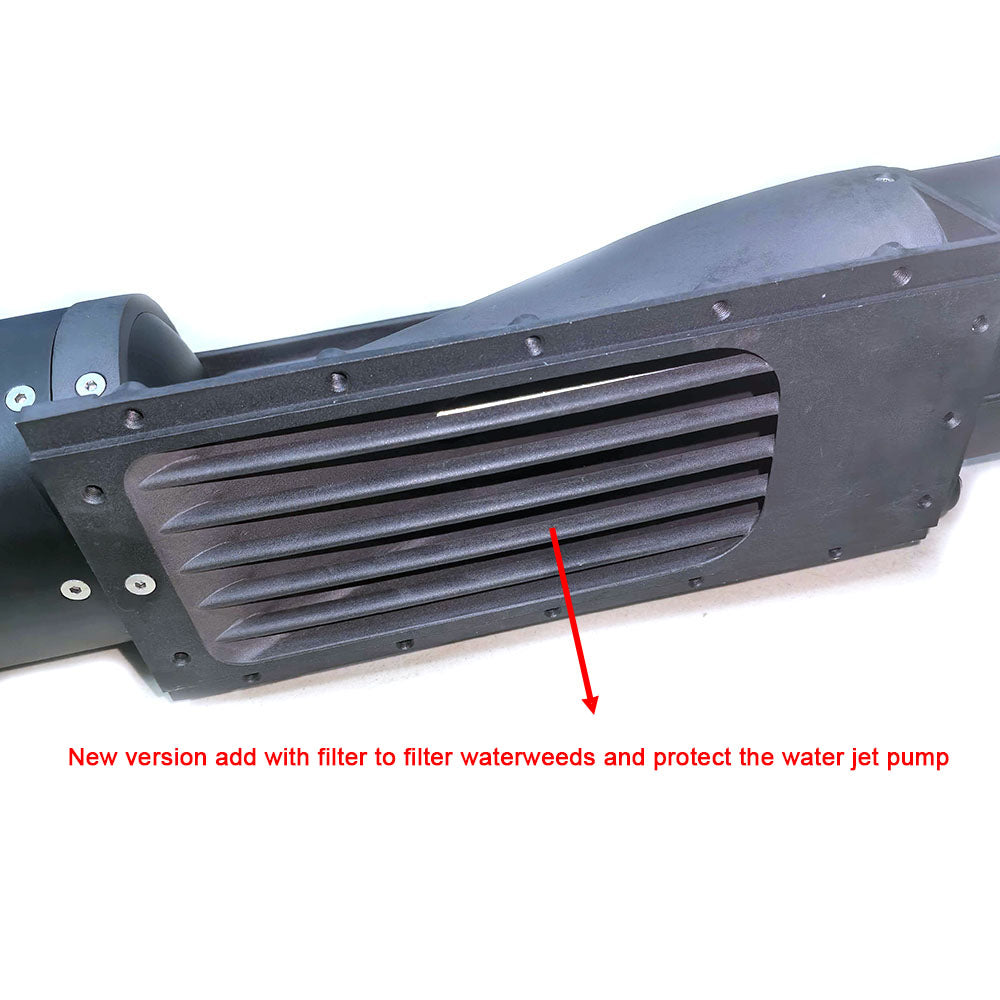

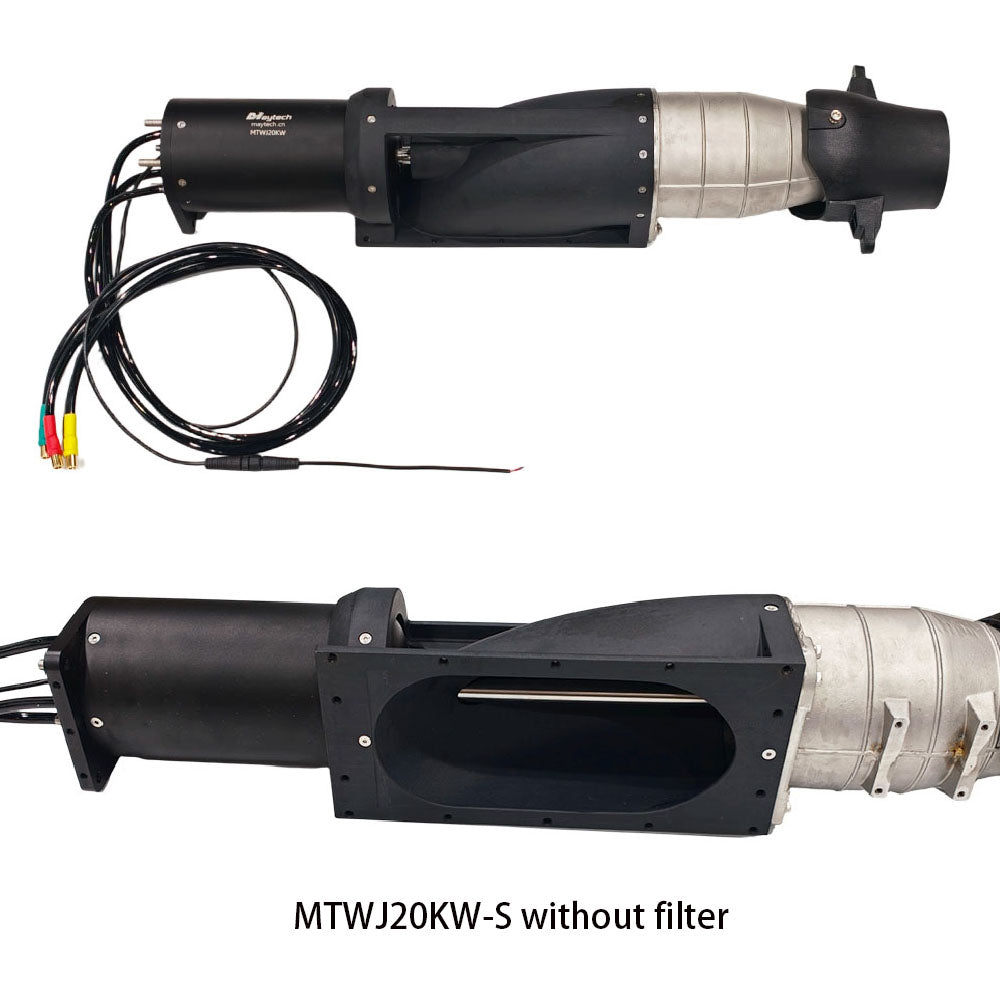

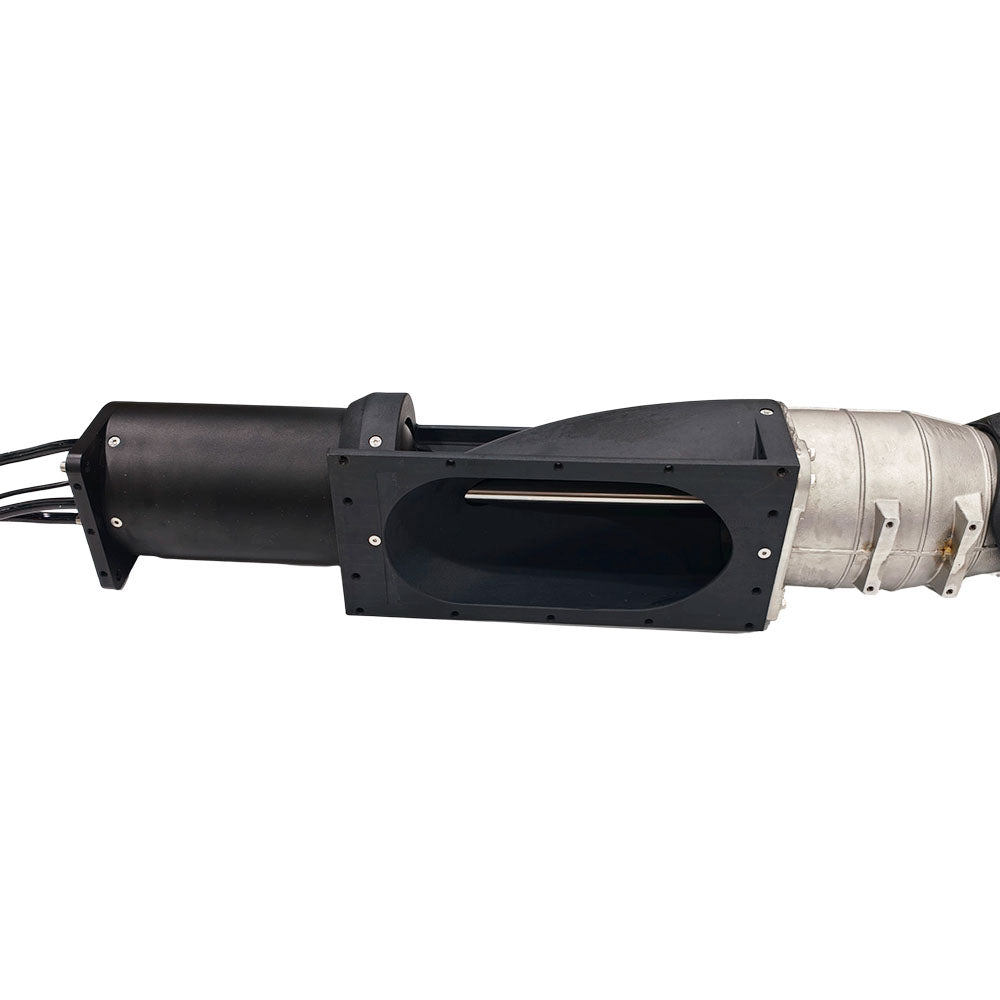

MTWJ20KW-S filter
Compatible Products

Notice:

The motor actual apperance is a little different from the picture, please subject to drawing and actual motor you receive.

Maytech MTWJ20KW Water Jet Pump 21KW Powerful Jet Engine for Electric Surfboard / Jetski / Jetboat Boat Thruster

> Check test data, test curve

Specification:

Model No. MTWJ20KW
Recomend ESCs

MTSF300A-WP32-HVPRO 10-20S Lipo Max 85V 300A ESC with Bluetooth module BLT32PROHV

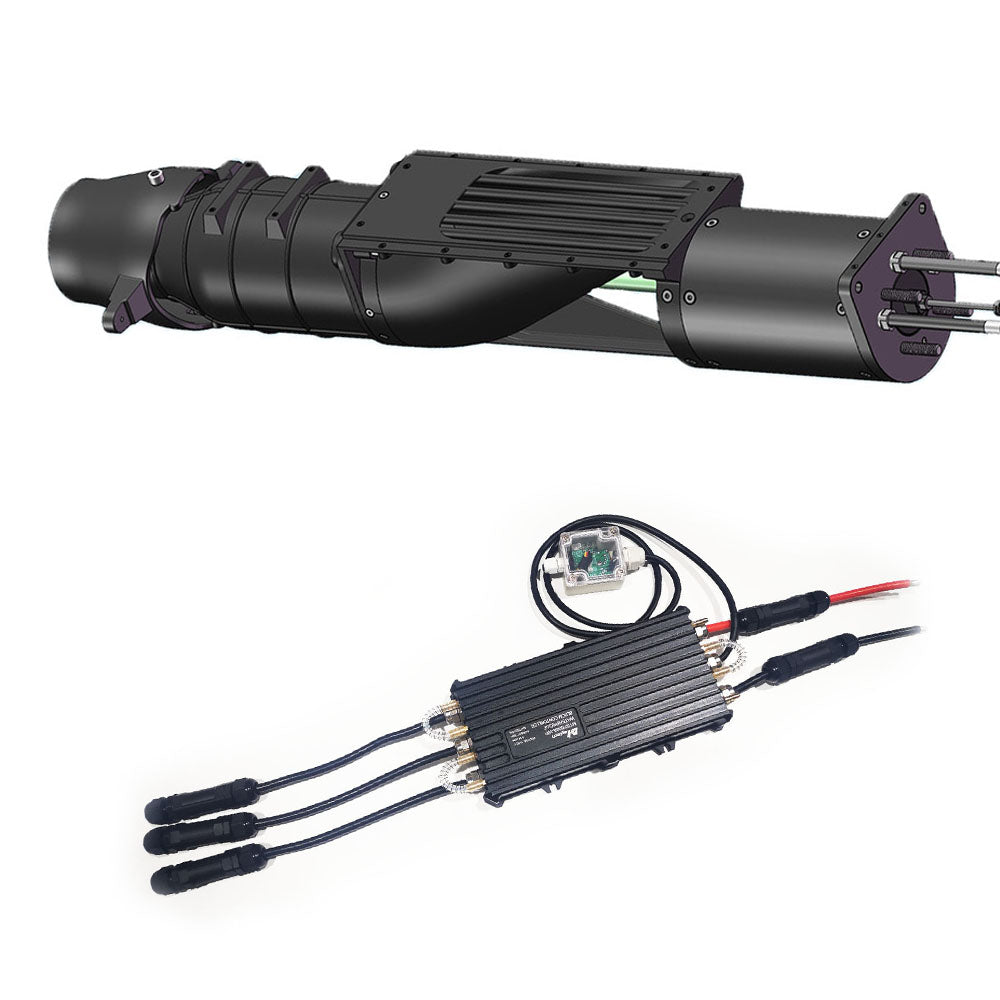

MTSF500A-WP 6-14S Lipo Max 60V 500A ESC with Progcard-HA
Voltage 36-84V
Motor KV 100
Max Power 20.5KW
Peak Current 239A@84V
Max Torque 128.4kg at 84V
Pole Number 10P
Working Temperature -20℃-60℃

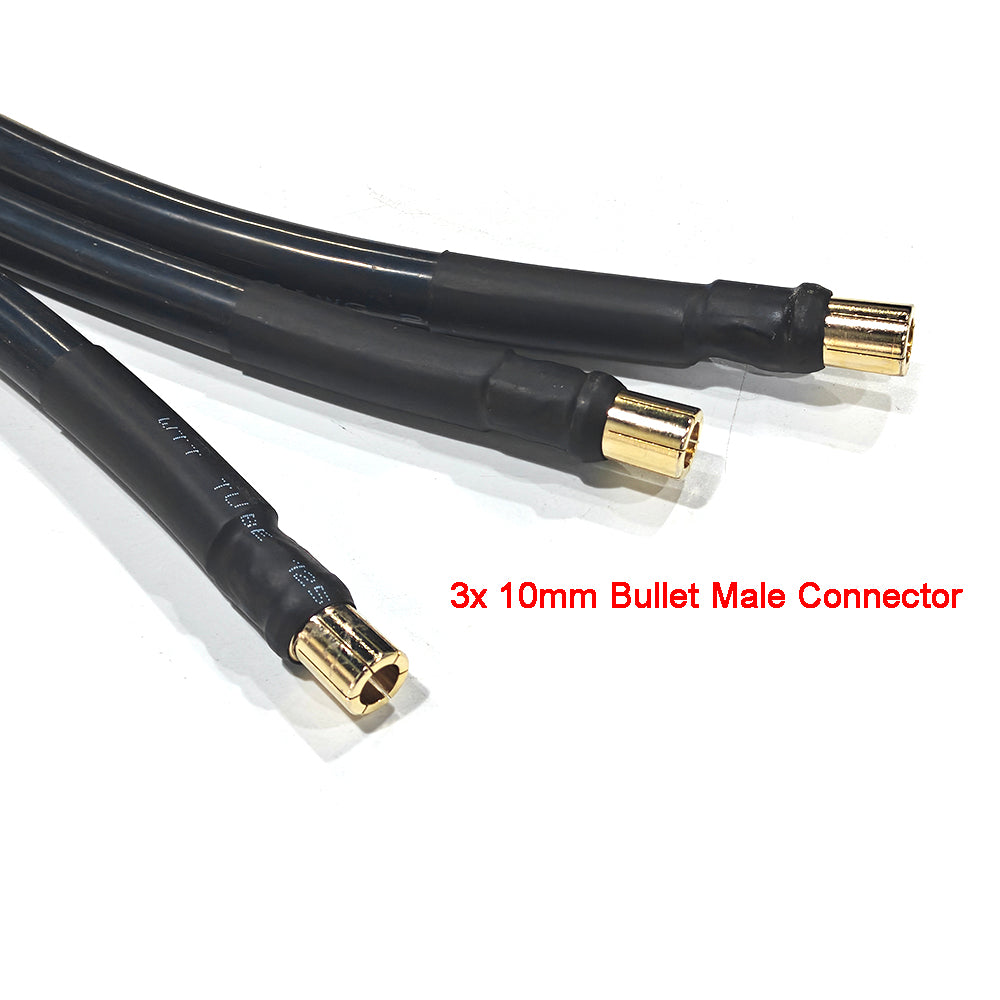

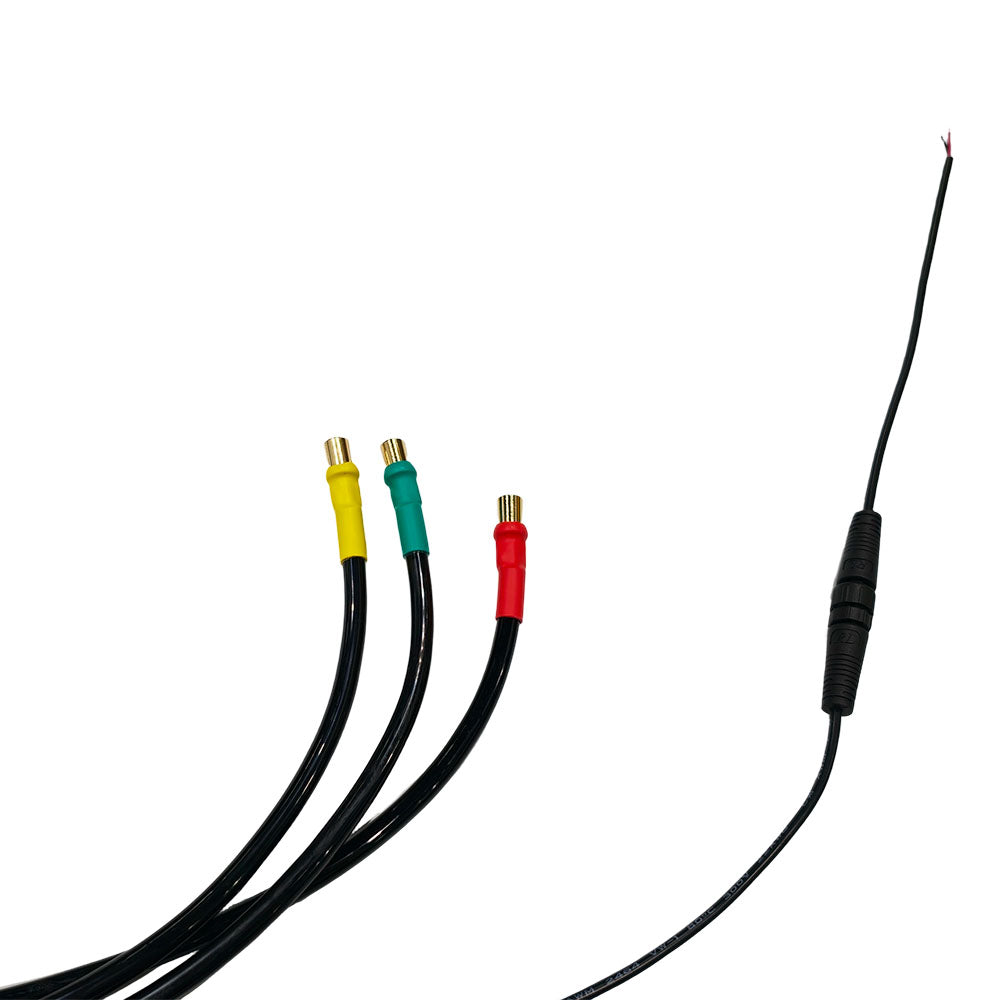

Plug 10mm bullet male connector

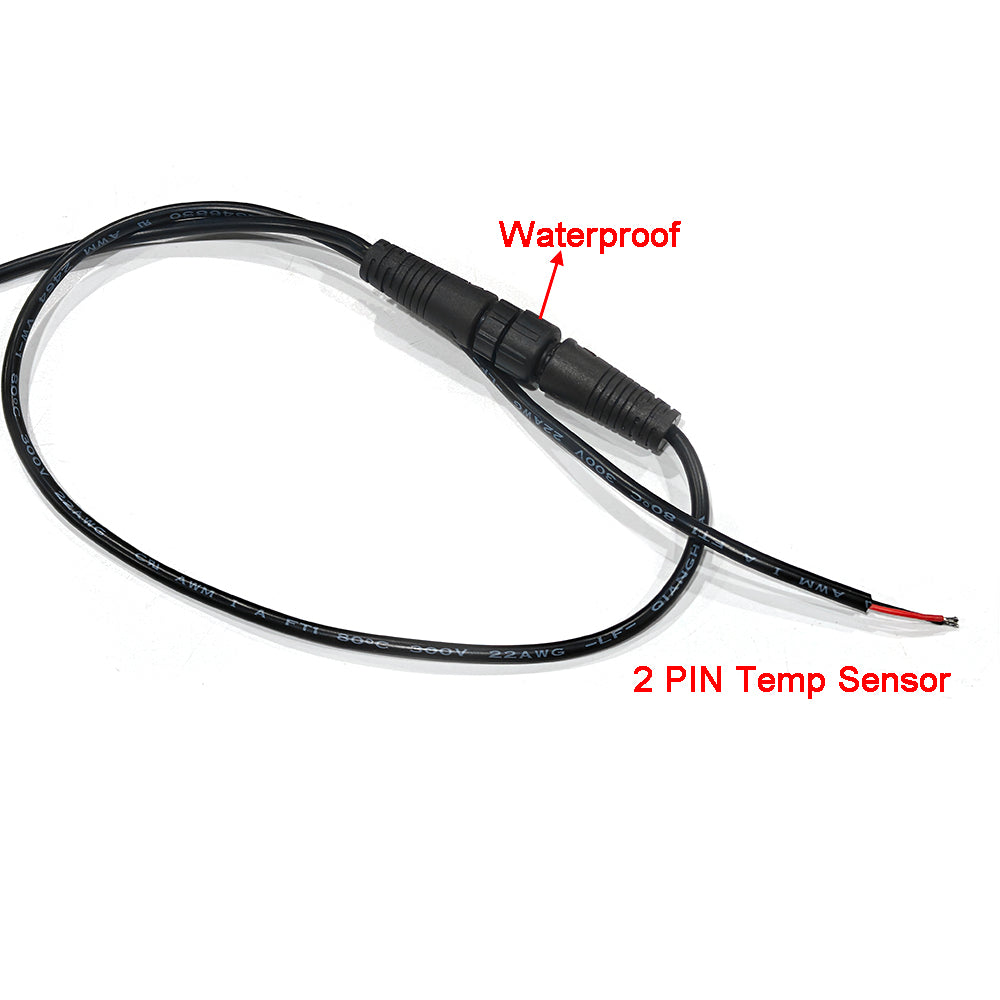

Temp Sensor With
Customize Logo, shaft, cable, connector, etc., contact Email: sales11@maytech.cn
Appliacation Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive outboard, jet drive kayak, boat thruster etc.,
Maytech MTWJ20KW Boat Thruster Motor Max 21KW Powerful Boat Thruster with Impeller Steering Nozzle for Electric Surfboard / Jetski / Jetboat

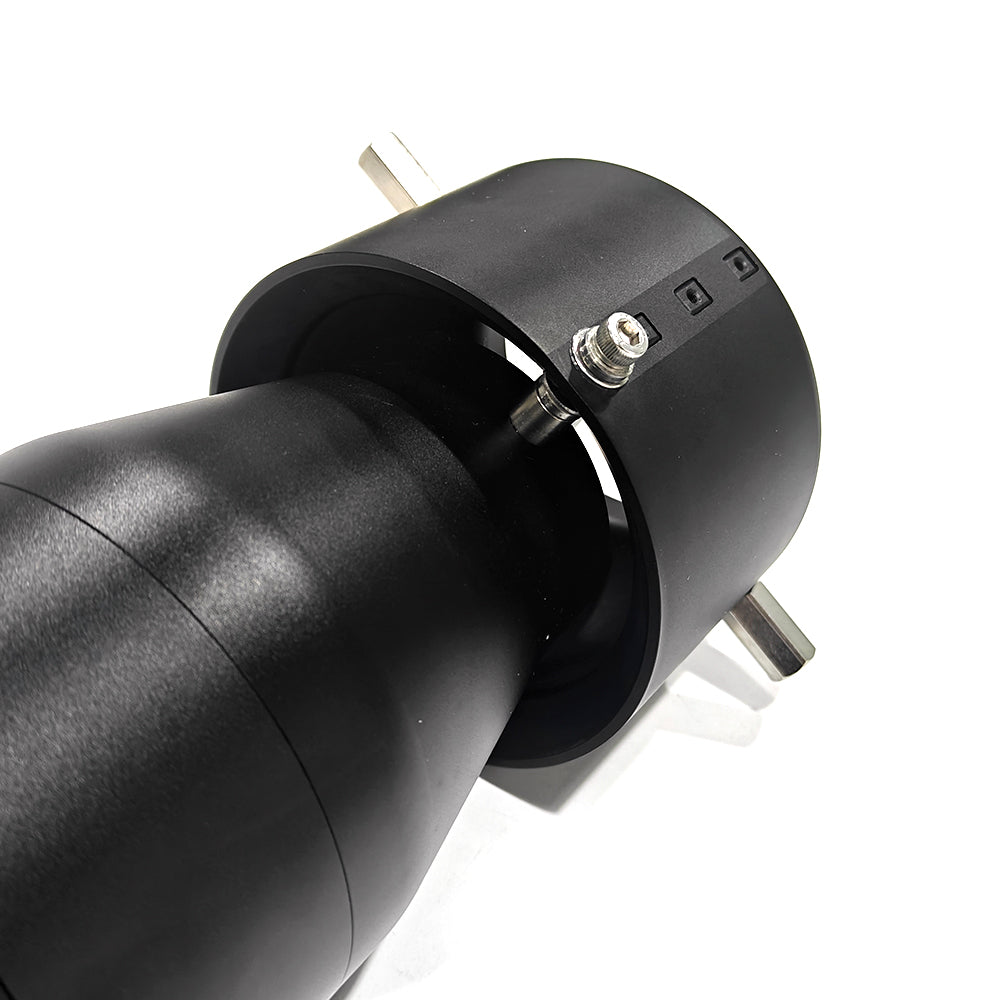

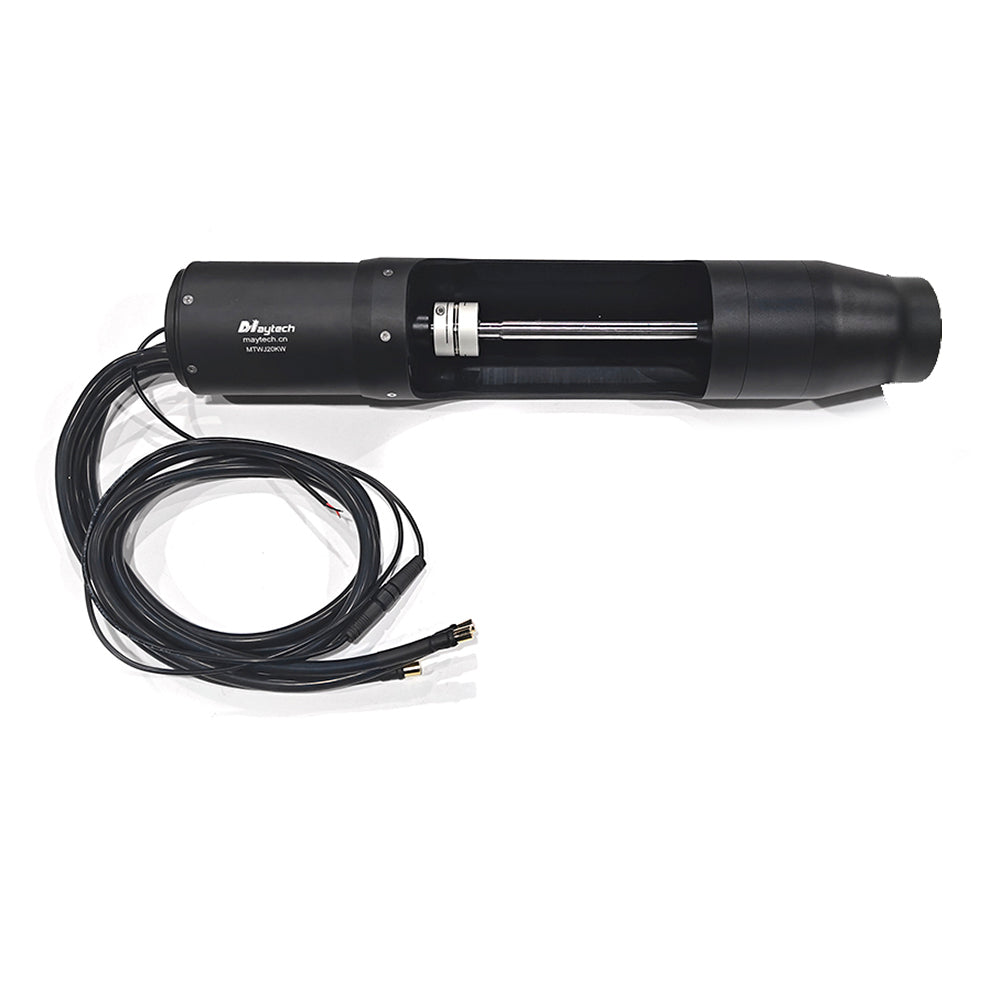

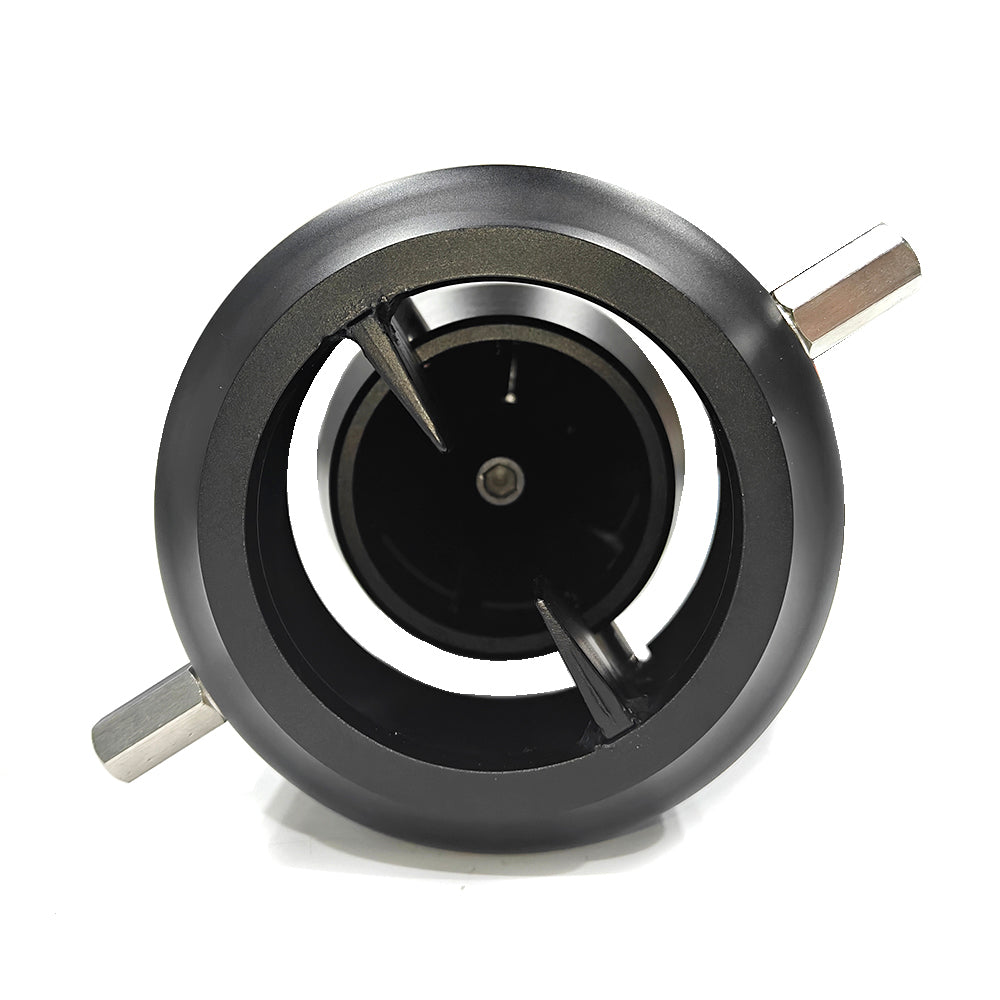

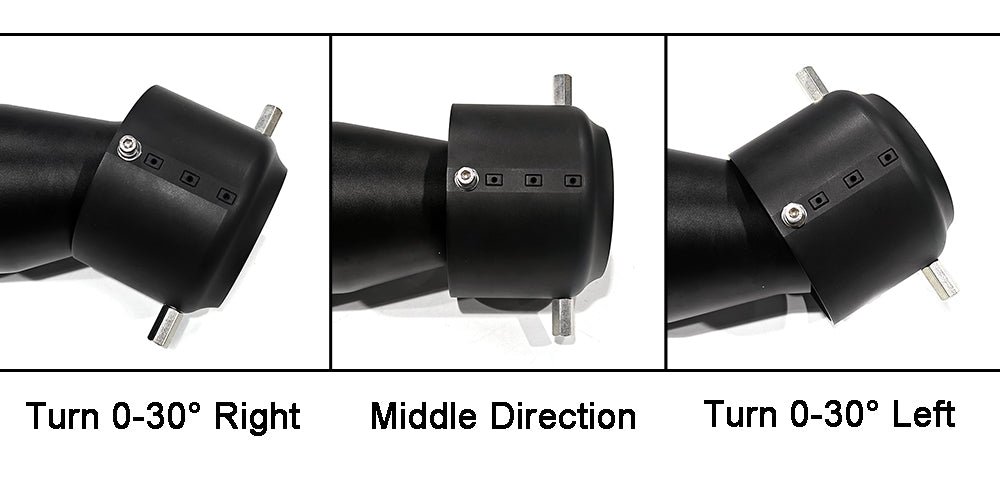

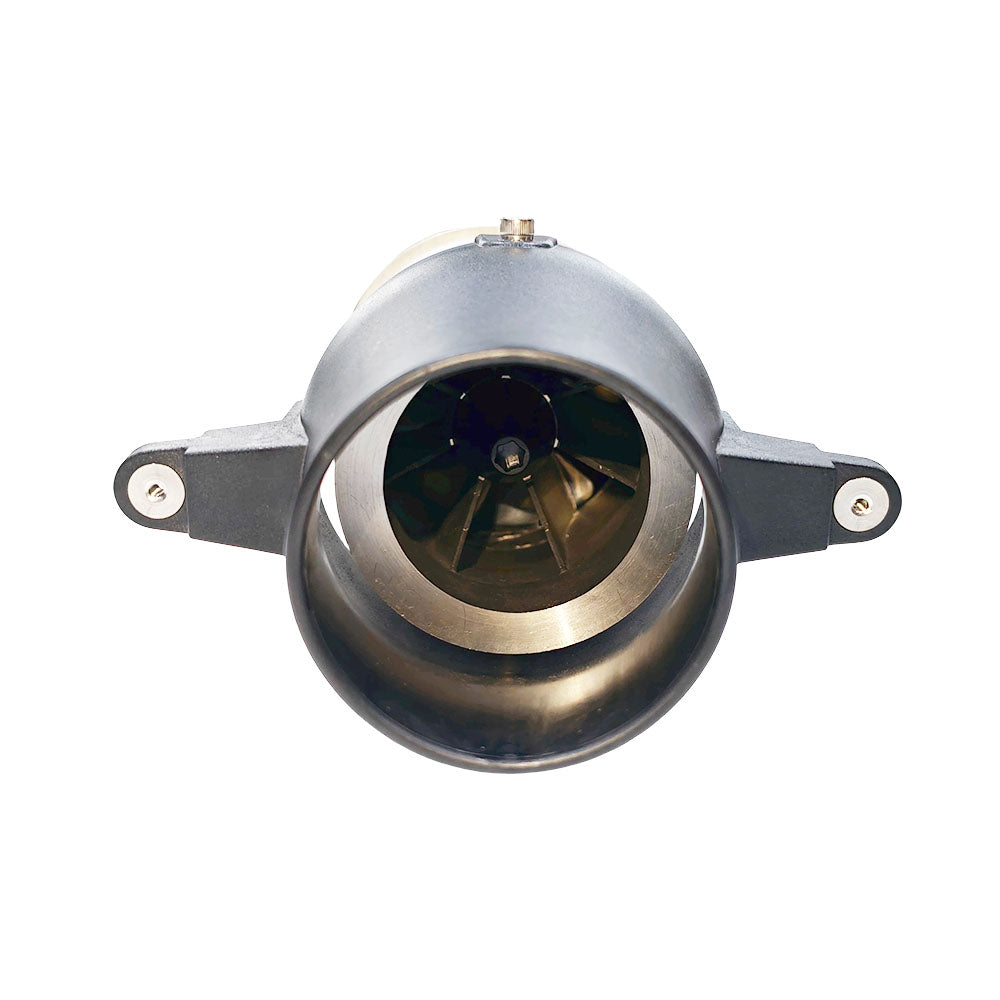

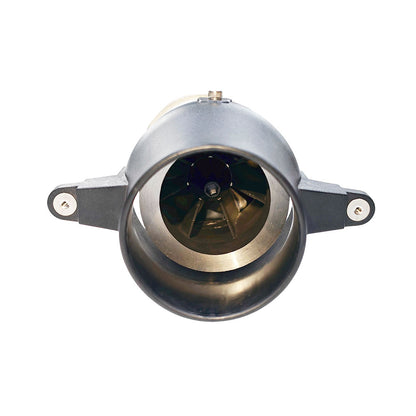

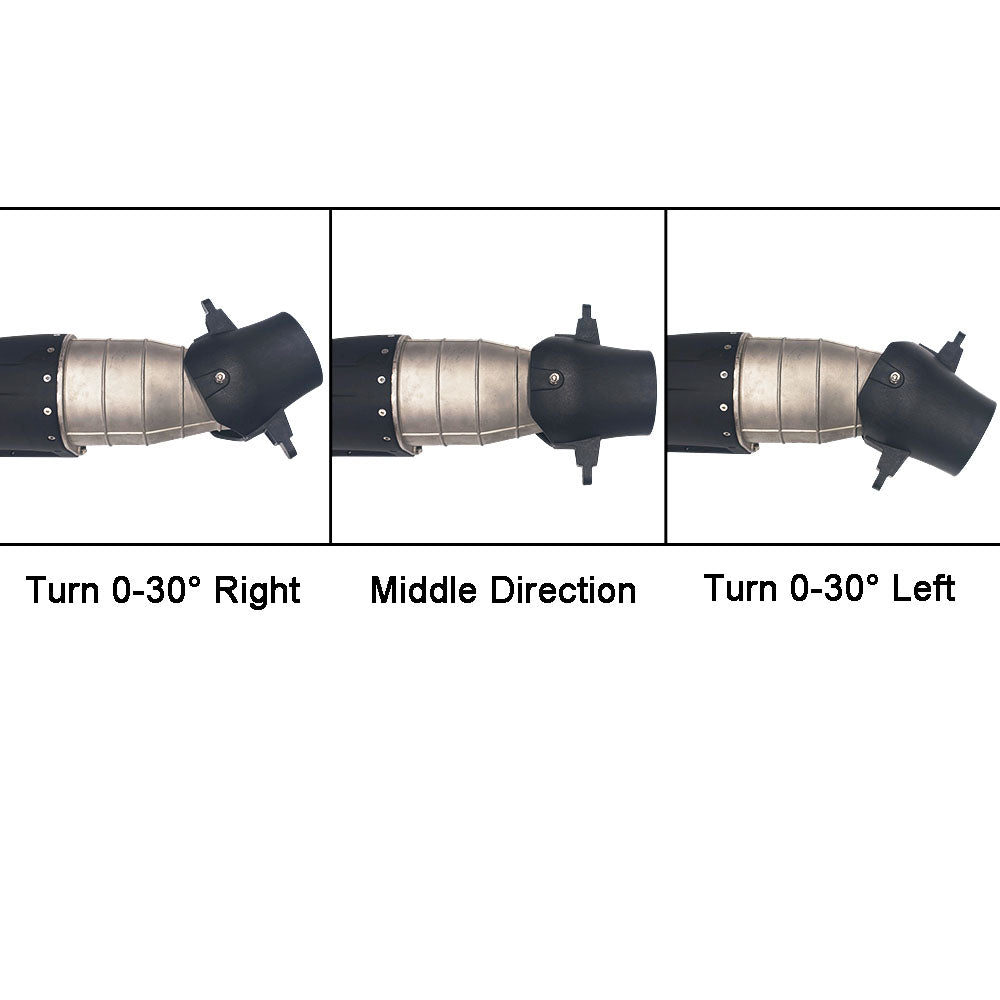

Version: With steering nozzle drawing(you can remove the steering nozzle yourself if you don't need it)


Maytech MTWJ20KW Boat Thruster Motor Max 21KW Powerful Boat Thruster with Impeller Steering Nozzle for Electric Surfboard / Jetski / Jetboat

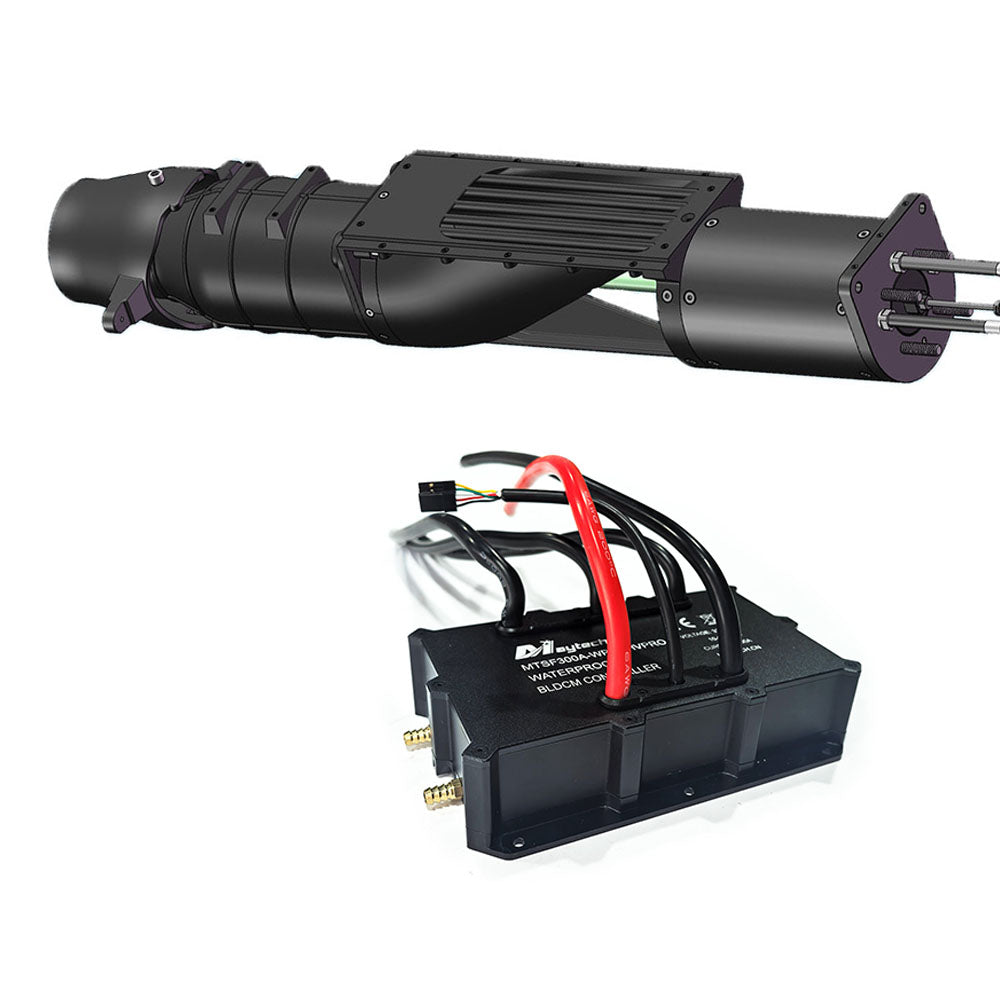

Settings and wiring to work with MTSF300A-WP32-HVPRO ESC and MTSKR1905WF Waterproof Remote:
In ESC App:
Motor Poles: set according to your motor pole number, if your motor pole number is 10, then in ESC set to 10


In Remote MTSKR1905WF:
Data Source: MTSESC-WP32
M.Pole Pairs: 1
Gear Drive: 1.0 (for direct drive), if you need to use gear then set according to your actual gear ratio
Batt type and Batt Ser Num: Set accoding to your battery specs

Different throttle options:

Stock Notice before Place Order:

The motor stock is limited, please email to sales11@maytech.cn if you're interested.

Related Products: Clicking the following pictures to check specs





View full details
Variant Variant total Quantity Price Variant total
With / Without / Without (Select this if you need MTWJ20KW-S waterjet)
With / Without / Without (Select this if you need MTWJ20KW-S waterjet)
$1,208.70/ea		 $0.00
$1,208.70/ea $0.00
With / With / Without (Select this if you need MTWJ20KW-S waterjet)
With / With / Without (Select this if you need MTWJ20KW-S waterjet)
$1,208.70/ea		 $0.00
$1,208.70/ea $0.00

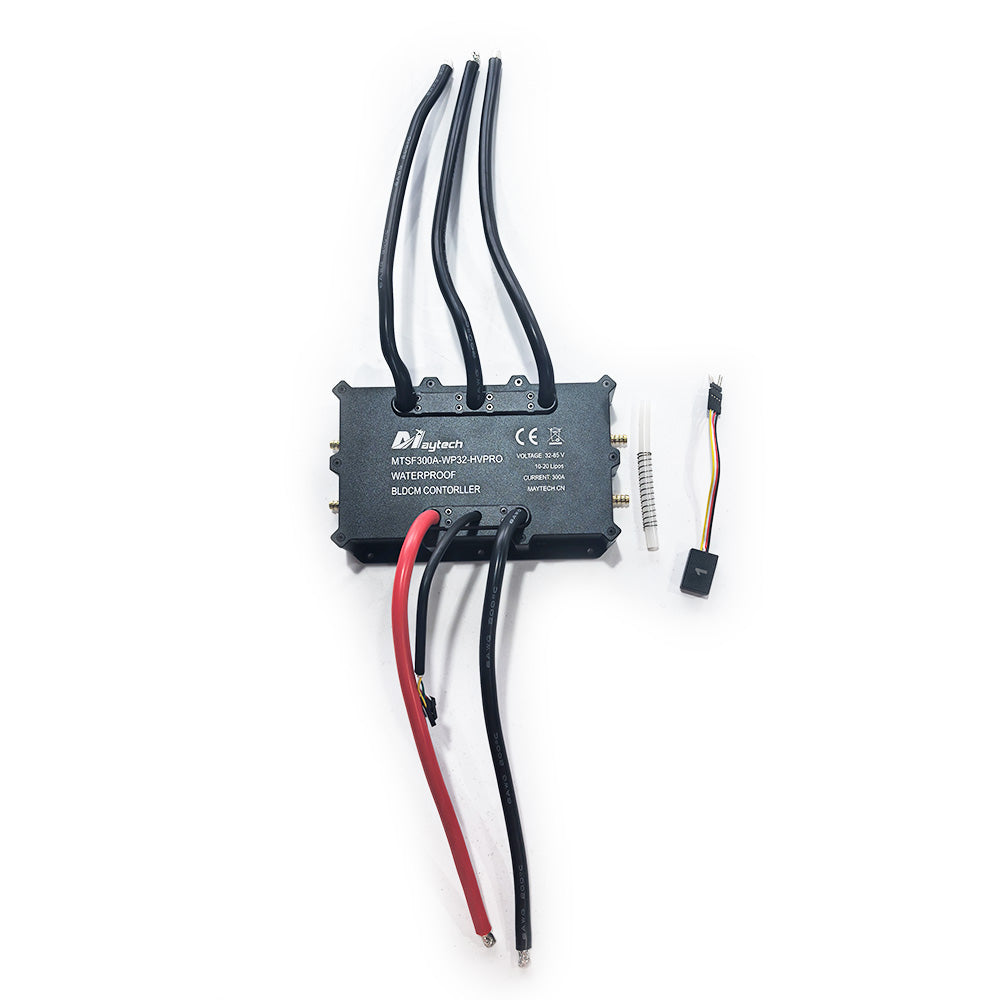

Without (Select this if you want ESC / switch / throttle) / Without / MTSF300A-W32-HVPRO 85V ESC
Without (Select this if you want ESC / switch / throttle) / Without / MTSF300A-W32-HVPRO 85V ESC
$360.00/ea		 $0.00
$360.00/ea $0.00

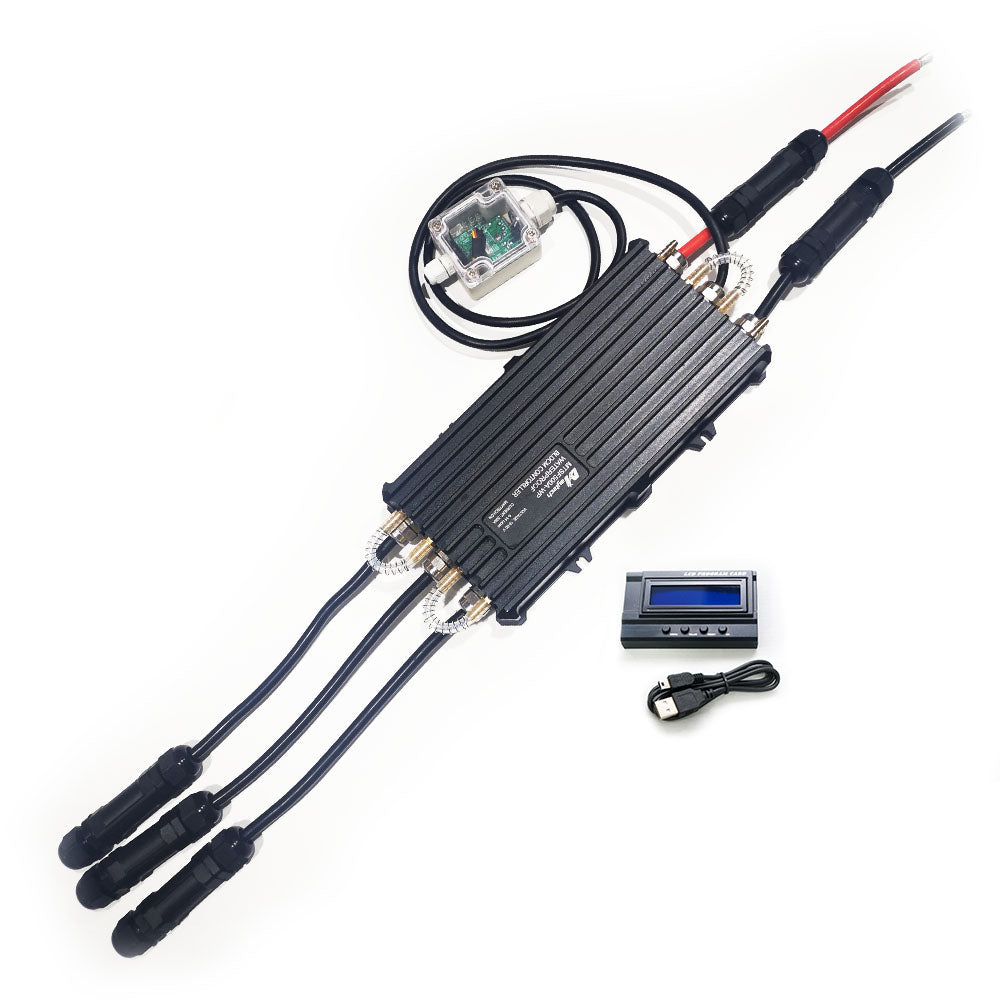

Without (Select this if you want ESC / switch / throttle) / Without / MTSF500A-WP 60V ESC
Without (Select this if you want ESC / switch / throttle) / Without / MTSF500A-WP 60V ESC
$876.40/ea		 $0.00
$876.40/ea $0.00

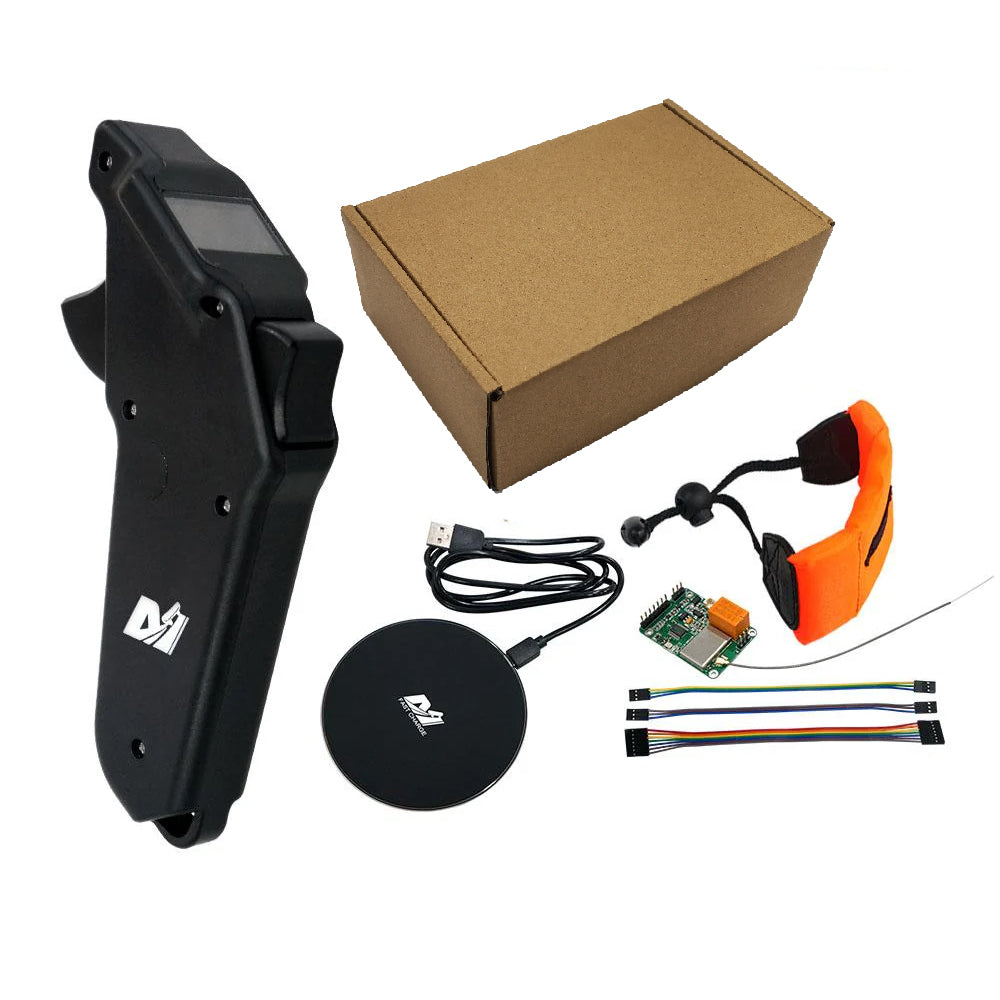

Without (Select this if you want ESC / switch / throttle) / Without / MTSKR1905WF V3 Wireless remote
Without (Select this if you want ESC / switch / throttle) / Without / MTSKR1905WF V3 Wireless remote
$89.90/ea		 $0.00
$89.90/ea $0.00

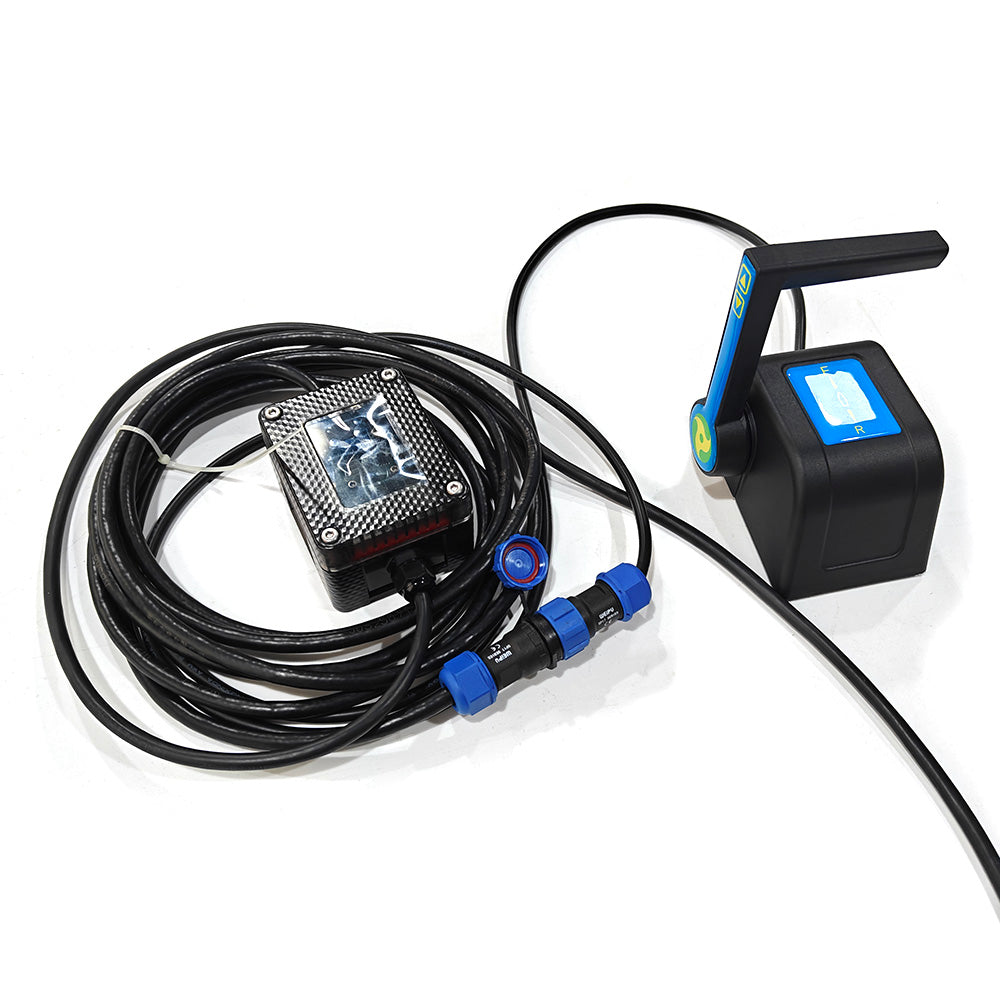

Without (Select this if you want ESC / switch / throttle) / Without / Throttle lever
Without (Select this if you want ESC / switch / throttle) / Without / Throttle lever
$89.90/ea		 $0.00
$89.90/ea $0.00

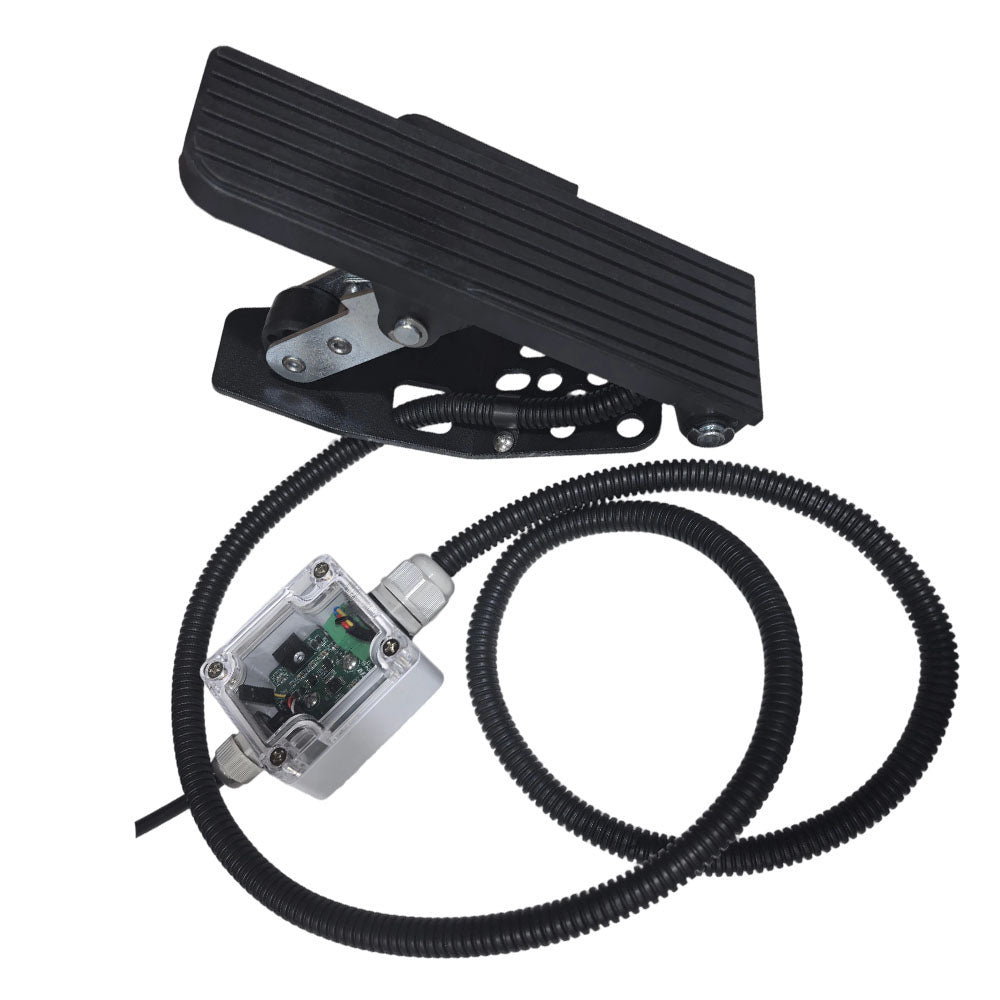

Without (Select this if you want ESC / switch / throttle) / Without / Pedal throttle
Without (Select this if you want ESC / switch / throttle) / Without / Pedal throttle
$89.90/ea		 $0.00
$89.90/ea $0.00

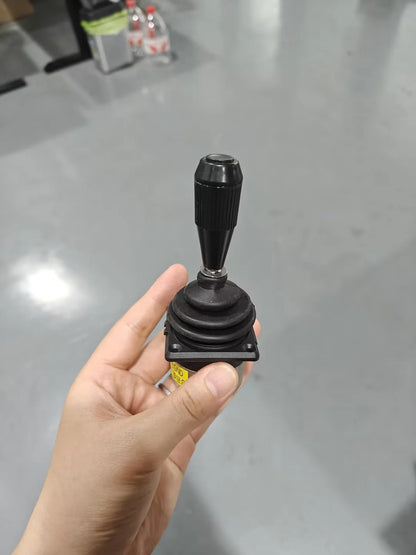

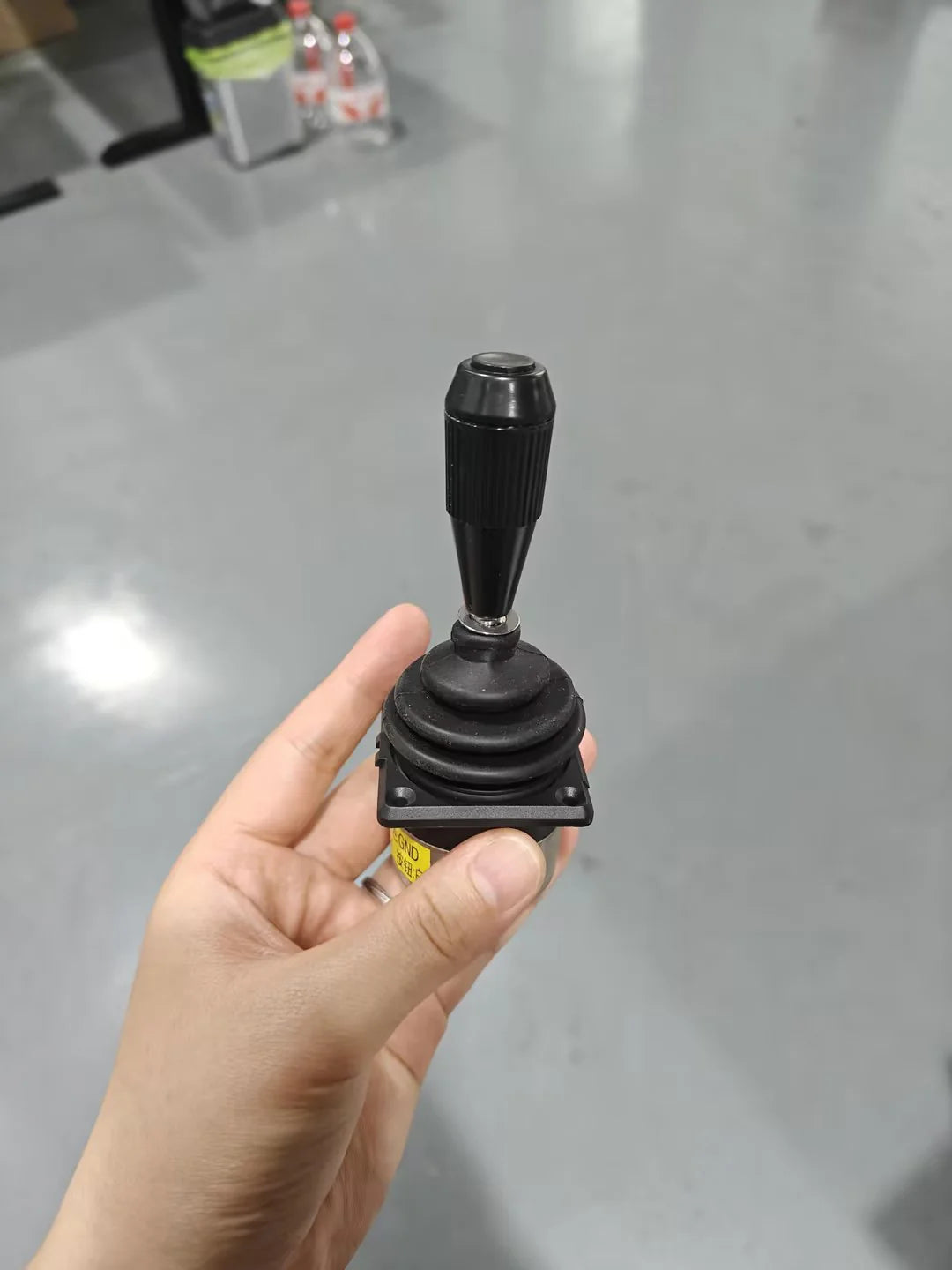

Without (Select this if you want ESC / switch / throttle) / Without / Joystick throttle
Without (Select this if you want ESC / switch / throttle) / Without / Joystick throttle
$99.90/ea		 $0.00
$99.90/ea $0.00

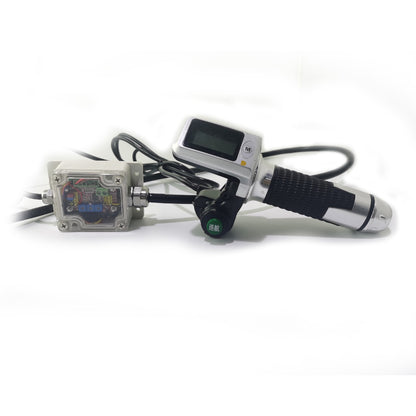

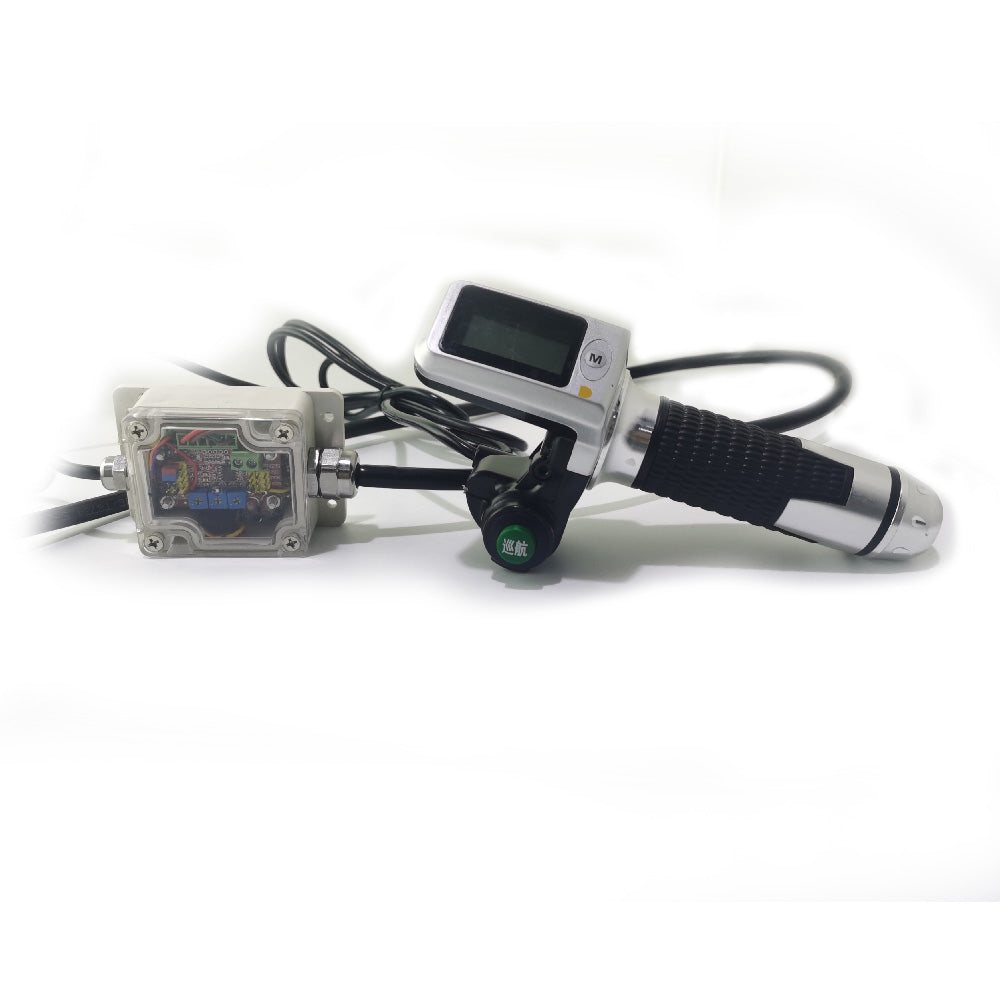

Without (Select this if you want ESC / switch / throttle) / Without / Twist throttle
Without (Select this if you want ESC / switch / throttle) / Without / Twist throttle
$89.90/ea		 $0.00
$89.90/ea $0.00

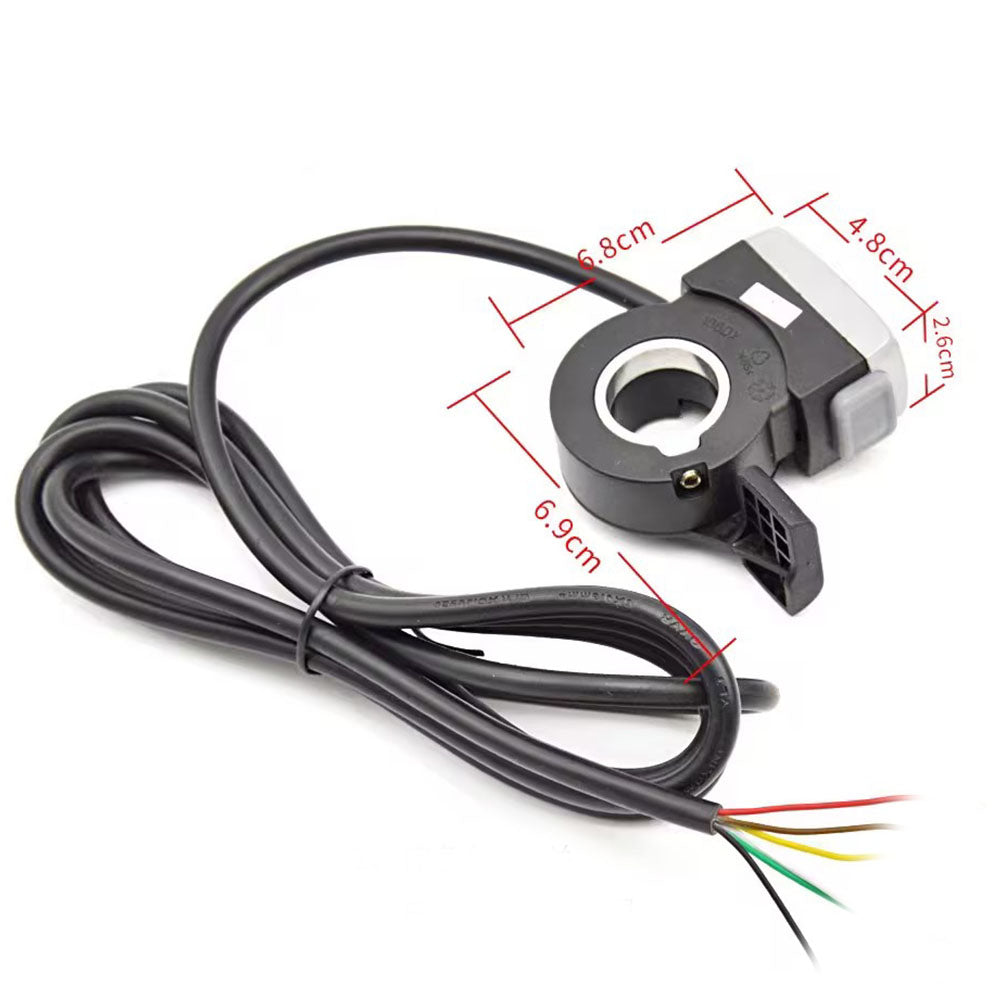

Without (Select this if you want ESC / switch / throttle) / Without / Thumb throttle
