Maytech SUPERFOC6.8 50A VESC6.0 based Controller Comb with MTSKR1712 Cheap Remote + 50xx Motors Kit for Electric Skateboard/Longboard

Maytech.cn

$251.30 Regular price $525.80
SKU: SUPERFOC6.8+MTSKR1712+MTO5055-HA

Maytech SUPERFOC6.8 50A VESC6.0 based Controller Comb with MTSKR1712 Cheap Remote + 50xx Motors Kit for Electric Skateboard/Longboard

4 Sets Comb:

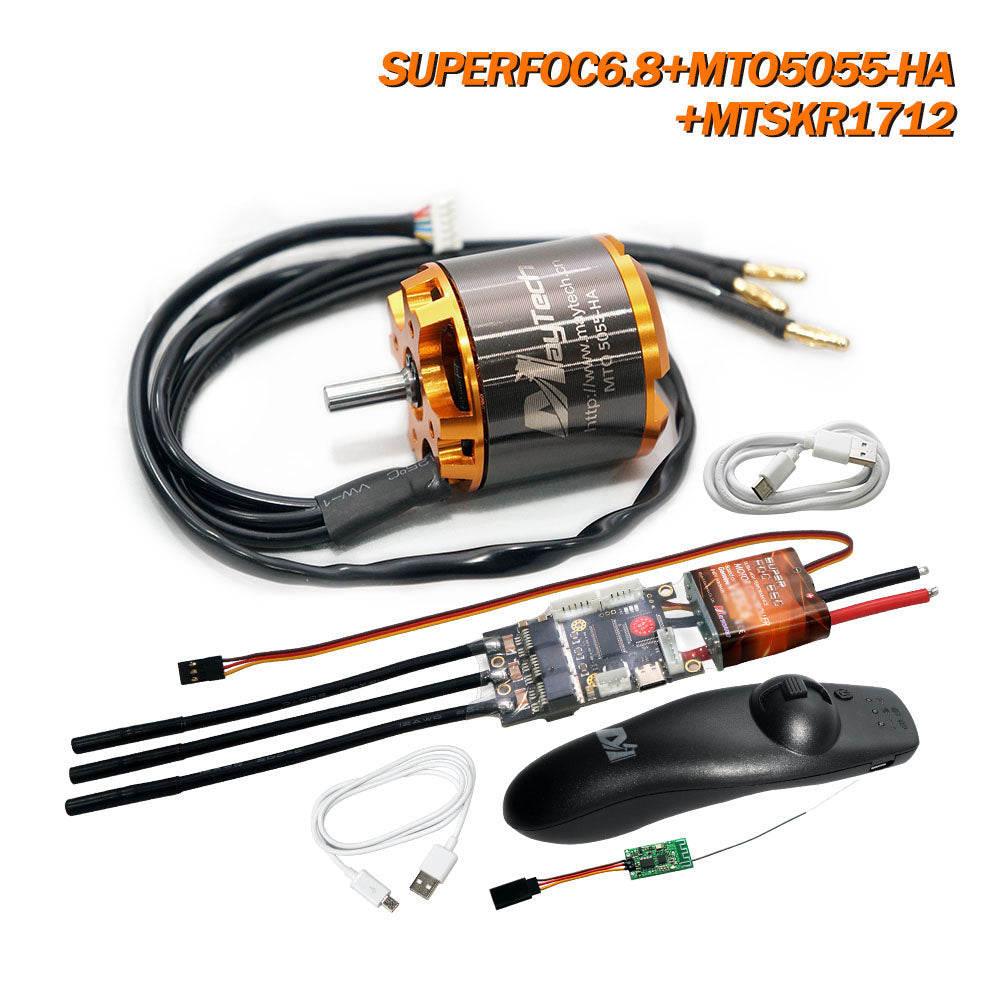

Comb 1: SUPERFOC6.8 + MTSKR1712 + MTO5055-HA (220KV, Open cover, 6mm shaft)

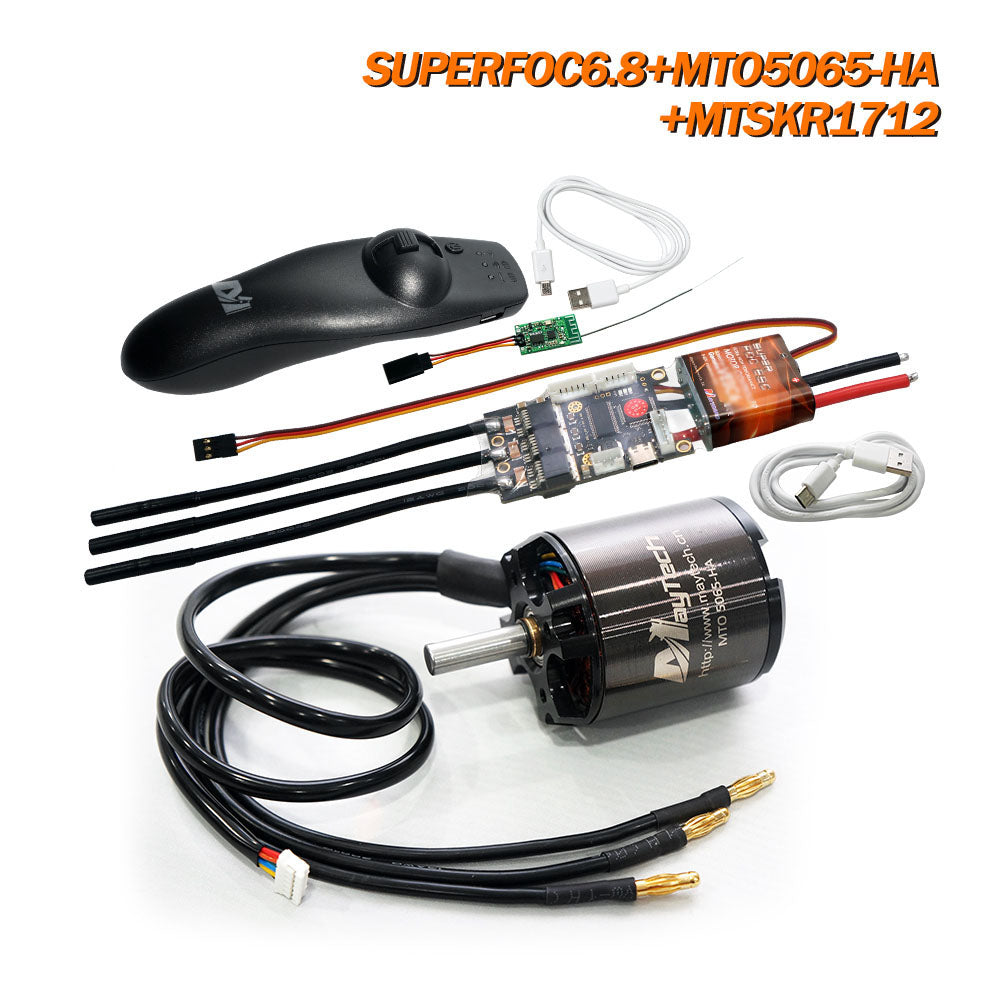

Comb 2SUPERFOC6.8 + MTSKR1712 + MTO5065-HA (220KV, Open cover, 6mm shaft)

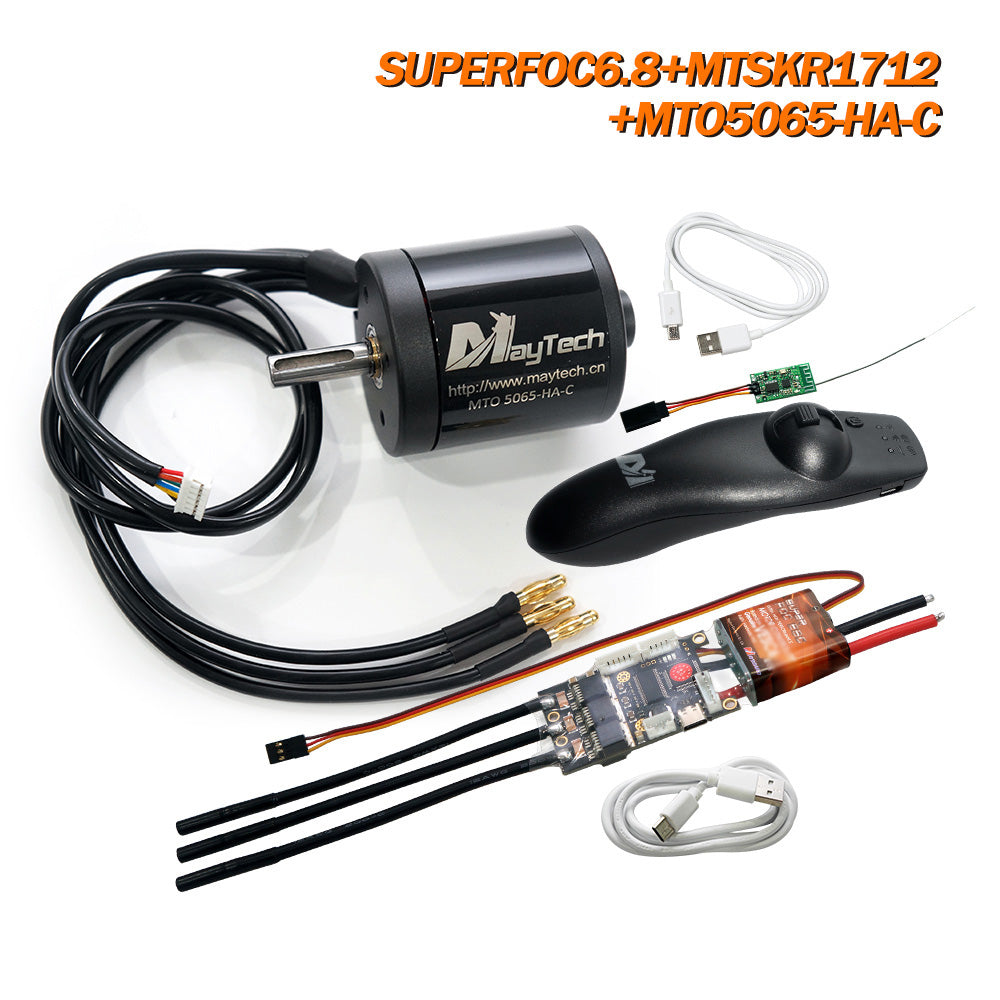

Comb 3: SUPERFOC6.8 + MTSKR1712 + MTO5065-HA-C (170/190KV, Closed cover, 8mm shaft)

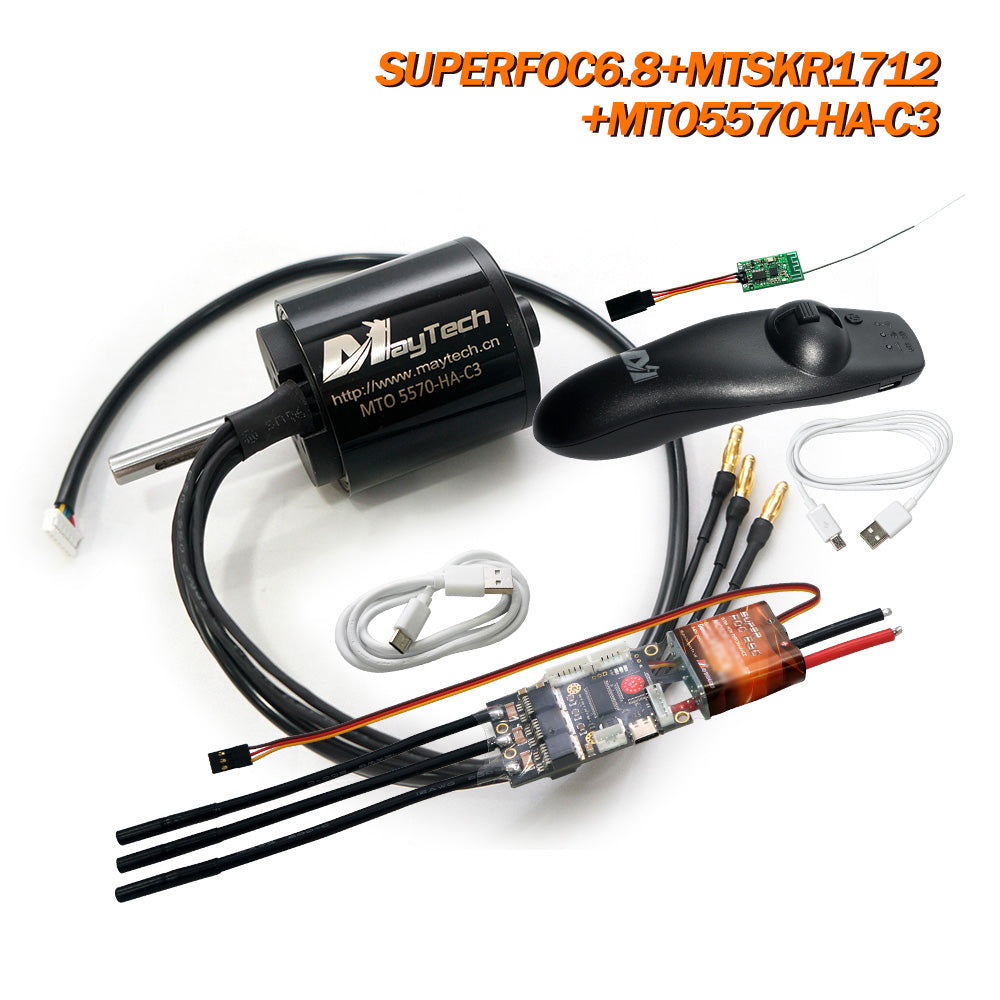

Comb 4: SUPERFOC6.8 + MTSKR1712 + MTO5570-HA-C (170/190KV, Closed cover with big ball bearing, 8mm shaft)

Above motor KV is our standard KV, your order will be shipped as the KV we have. If you have other needs, please contact us first, we accept customize service.


Specifications:

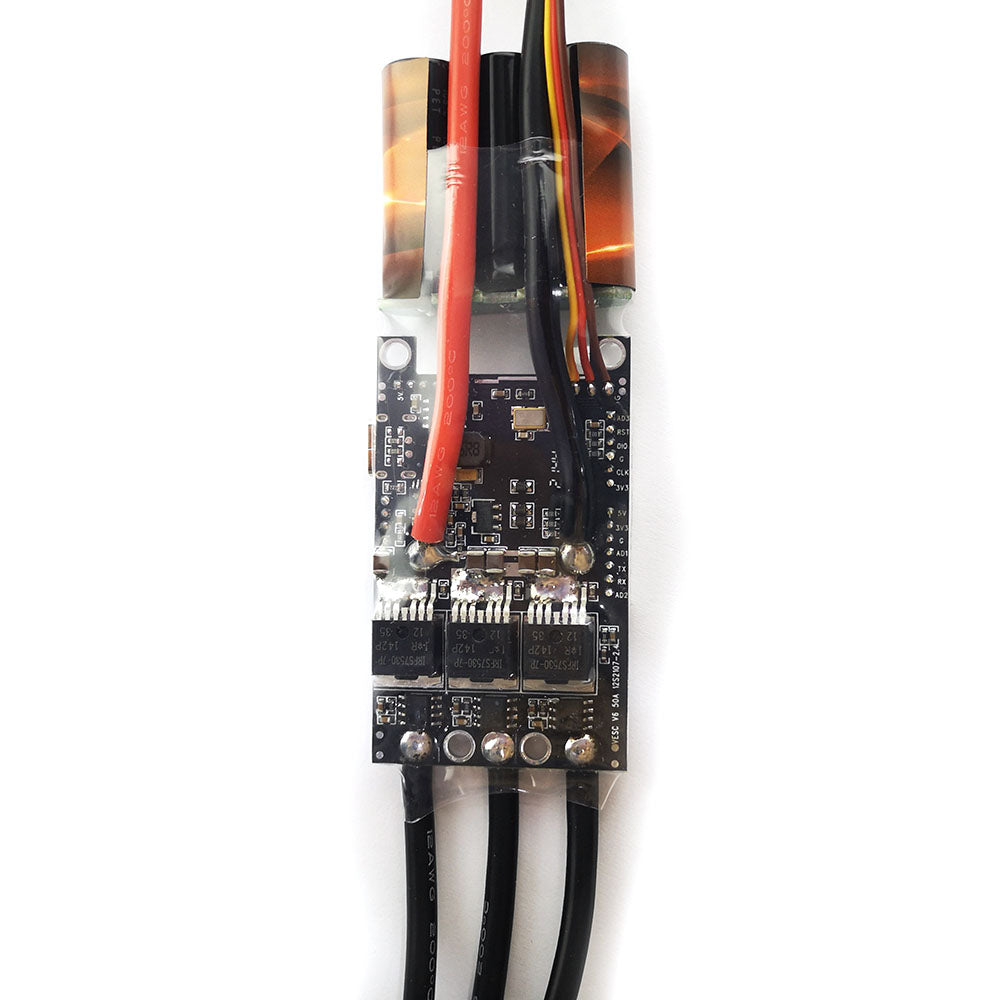

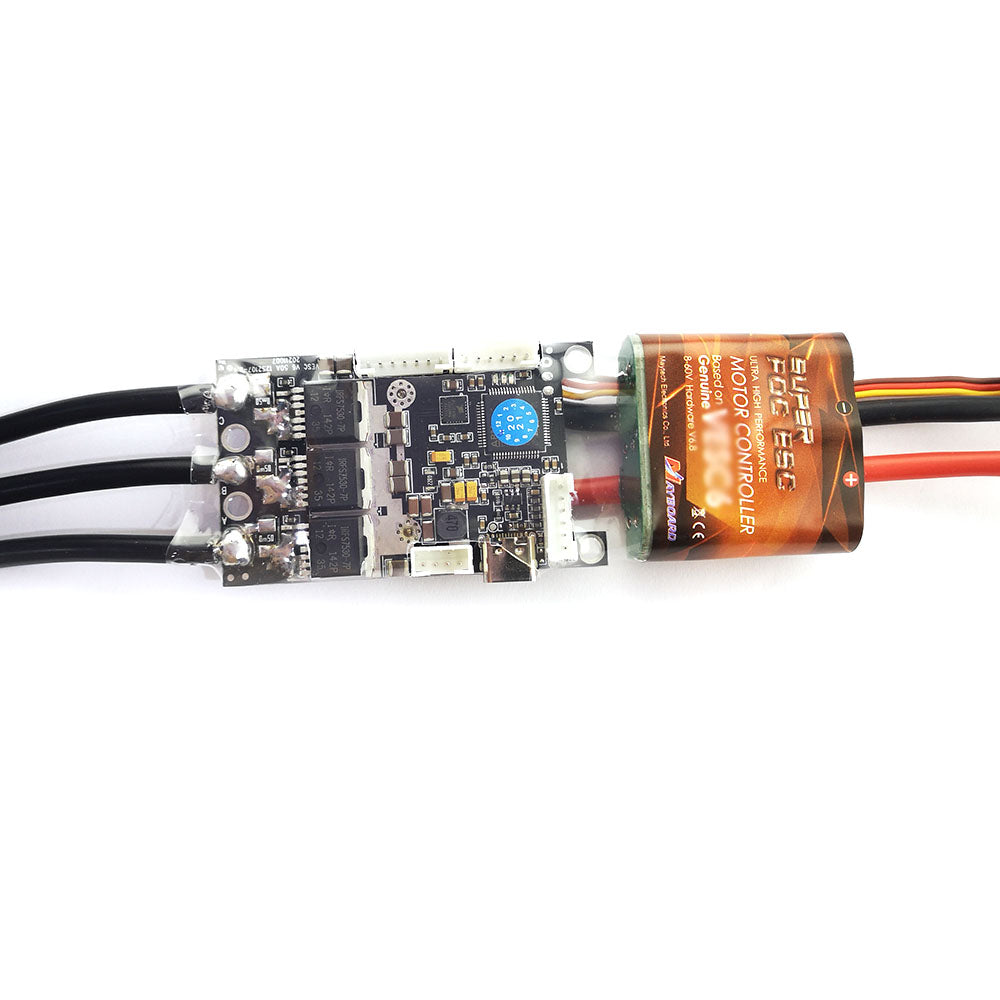

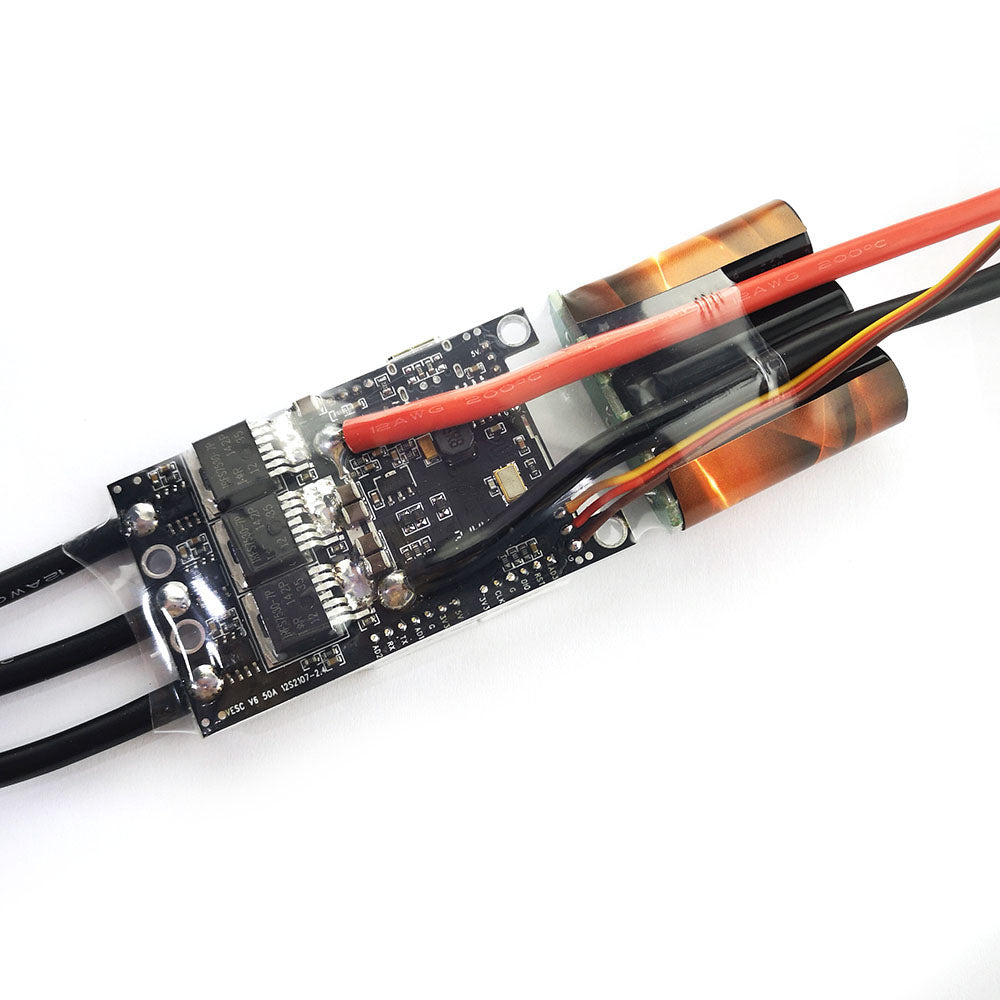

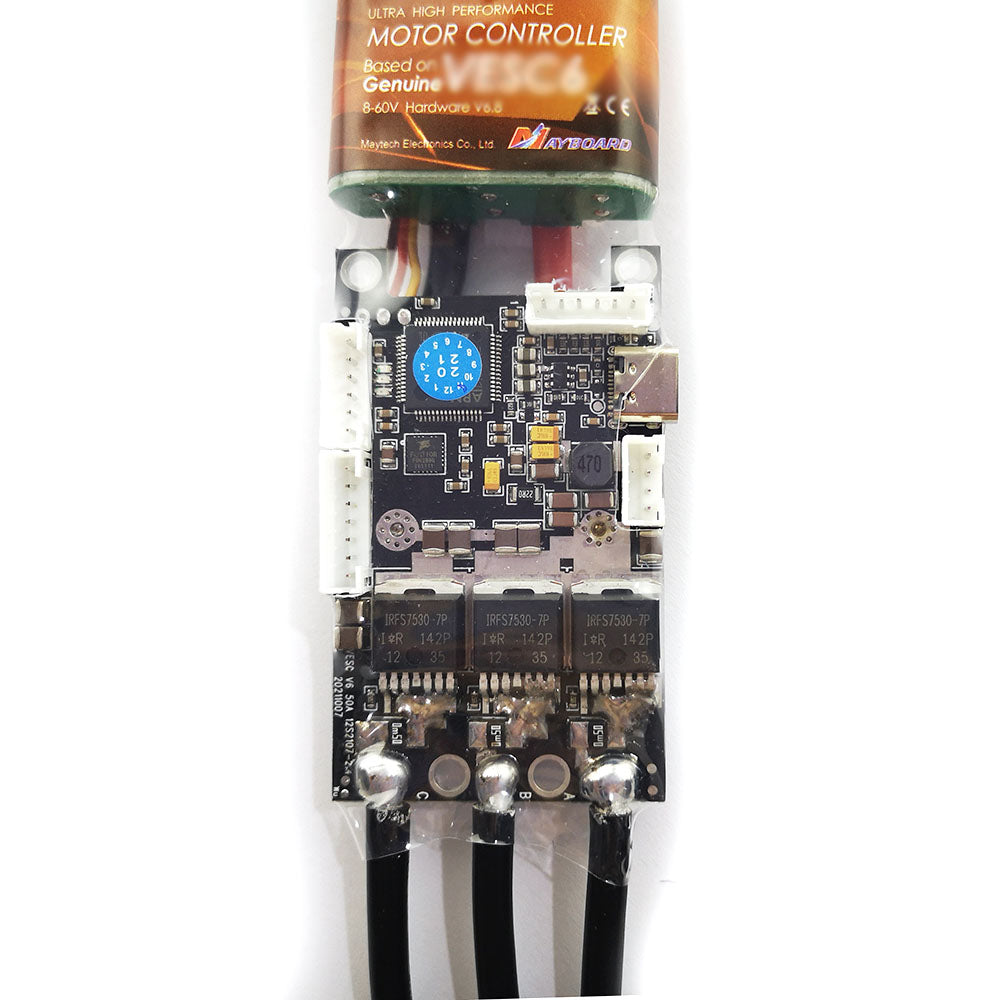

Product 1: Maytech SUPERFOC6.8 50A VESC6.0 based Controller with Great FOC Function with No case

Model No
MTSUPERFOC6.8 Cont Current 50A
Lipo Voltage 3-12S
Burst Current
240A
BEC 5V PCB Size 40mm*60mm
Capatitor 3pcs 680uf63V MOS IRF7530
Hardware Based on VESC6.0 Firmware Updatable



【Spring Sale 20% OFF】Maytech SUPERFOC6.8 50A VESC6-based speed controller compatible to VESCtool Programmable for Esk8/Ebike

maytech superfoc6.8 50a vesc6.0 based controller for eelctric skateboard longboard fighting robots mountainboard powerful great foc function great performance

Maytech SUPERFOC6.8 50A VESC6-based speed controller compatible to VESCtool for Electric Skateboard/Longboard/Fighting Robots/UAV Drone/E-bike/E-scooter, etc

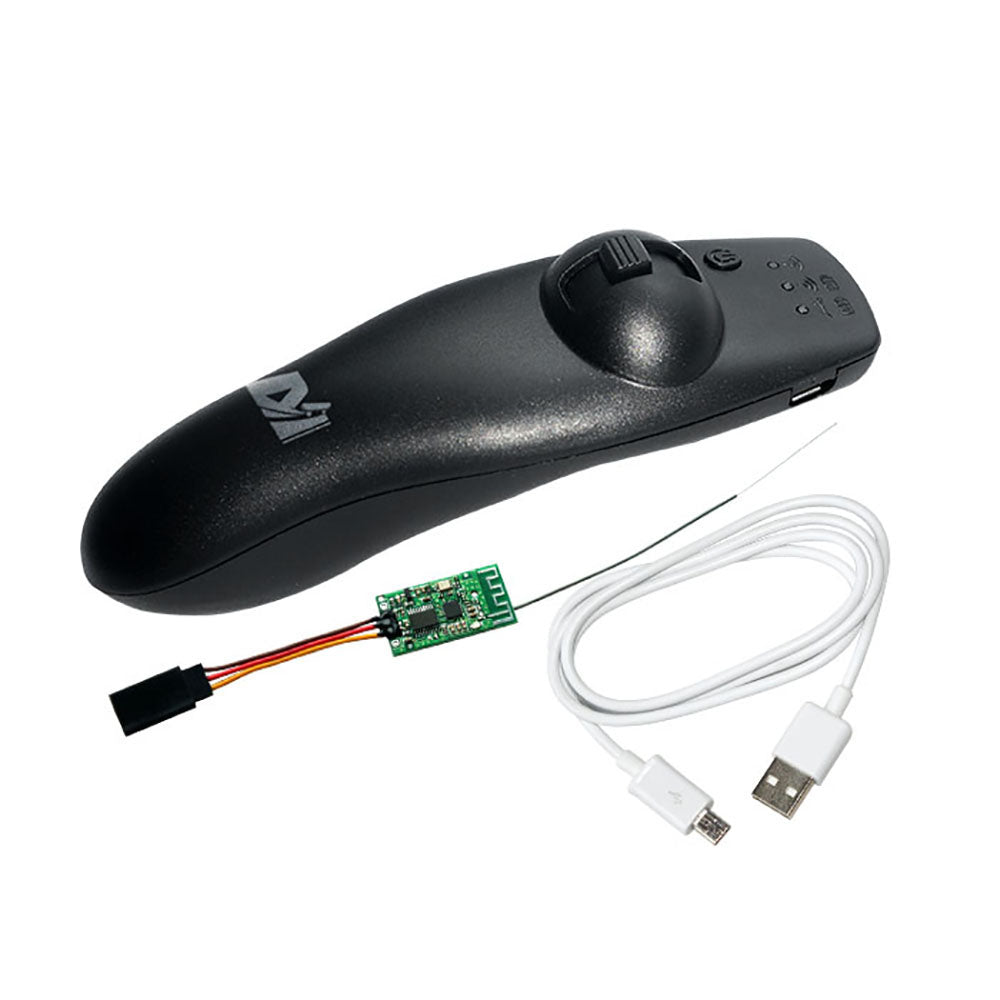

Product 2: MTSKR1712 Remote Controller Cheap and Simple for Esk8

【Spring Sale 20% OFF】Maytech 2.4GHz Remote Controller MTSKR1712 Small and Light Hand Remote for Esk8/Esurf

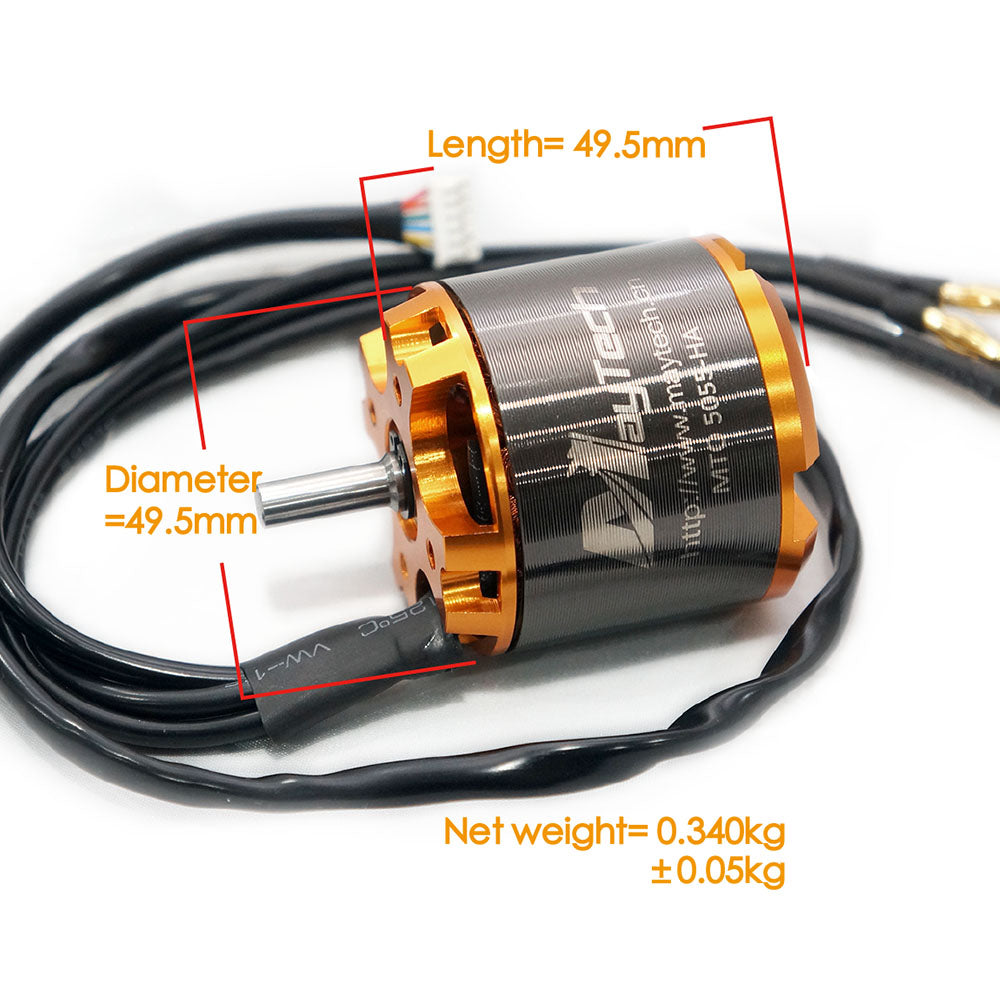

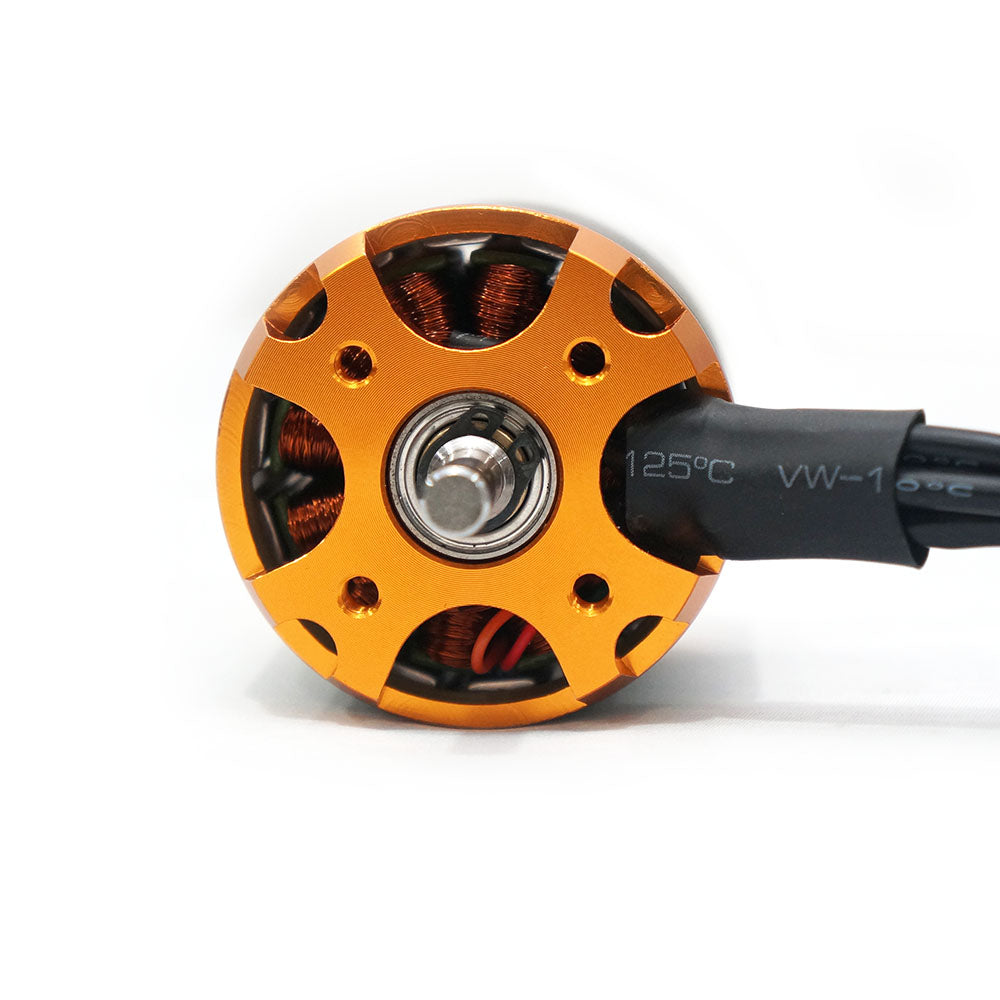

Product 3: Maytech MTO5055-HA 220KV Brushless Outrunner Sensored Motor Open Cover

  • Open Cover: Better heat dissipation
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • ​Battle Hardened: Yes
Model No
MTO5055-220-HA
KV
220
Idle Current
0.5A
Max Current
30A
Inpur Voltage
2-10s Lipo
Max Output Watt
1170W
Max Pull
5400g
Rated Current
25.5A
Motor Weight
335g
Shaft
 6mm
Output Shaft Length
26mm
Internal Resistance
0.1022


【Spring Sale 20% OFF】Maytech Brushless 5055 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/ROV

【Spring Sale 20% OFF】Maytech Brushless 5055 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/ROV

MTO5055-HA brushless outrunner sensored motor open cover with 6mm shaft great heat dissipation brushless motor for electric skateboard longboard mountainboard rov fighting robots

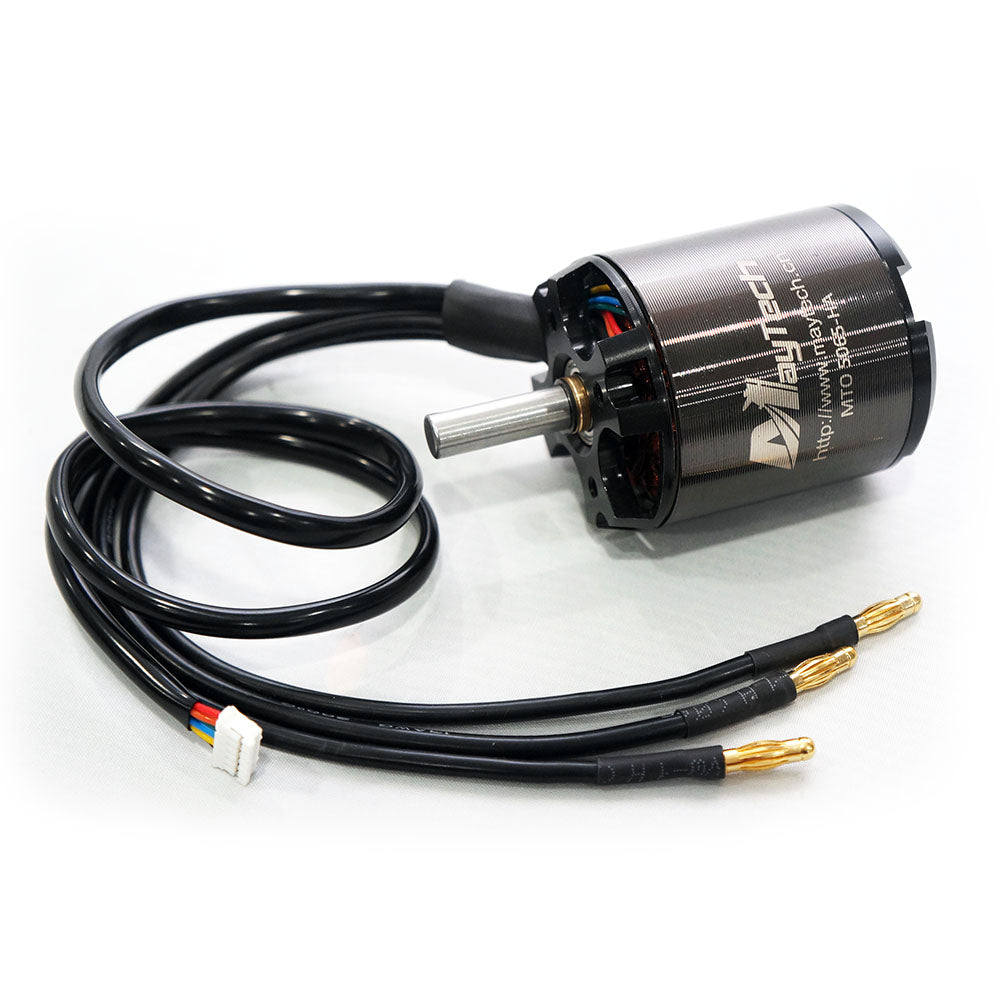

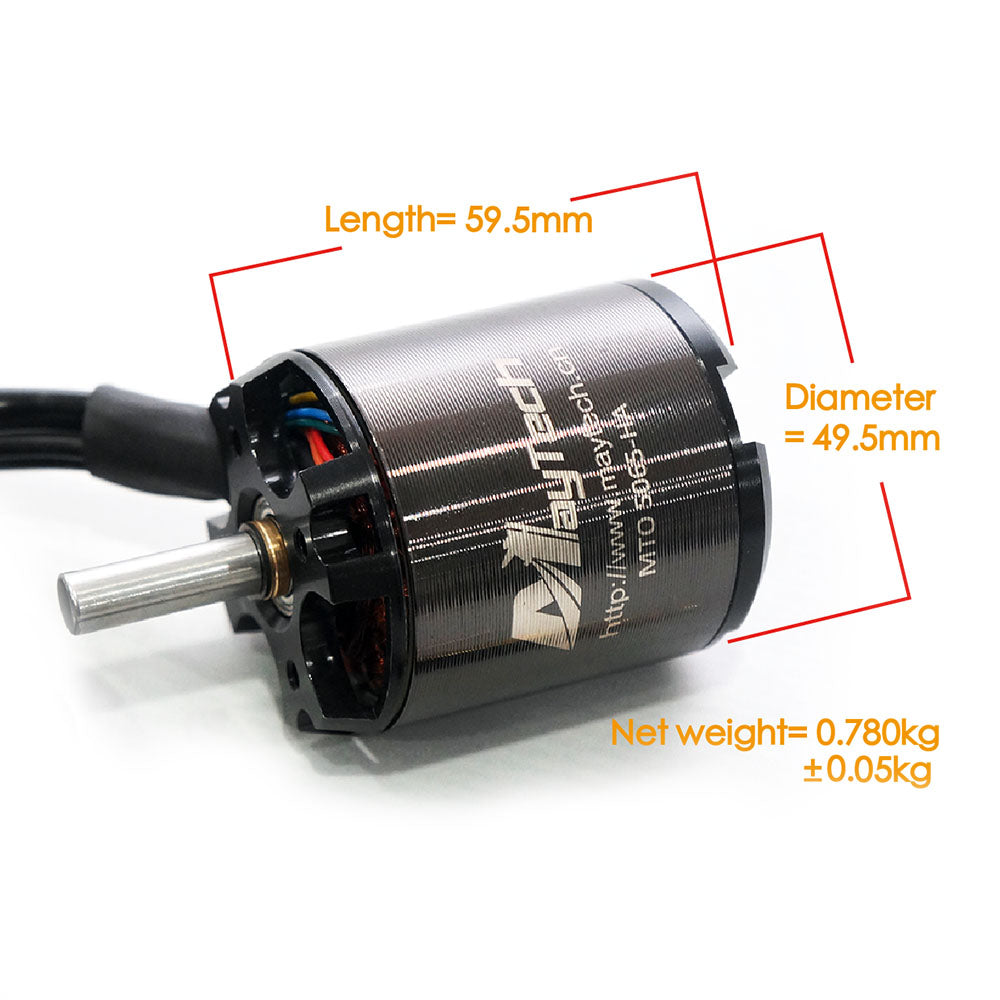

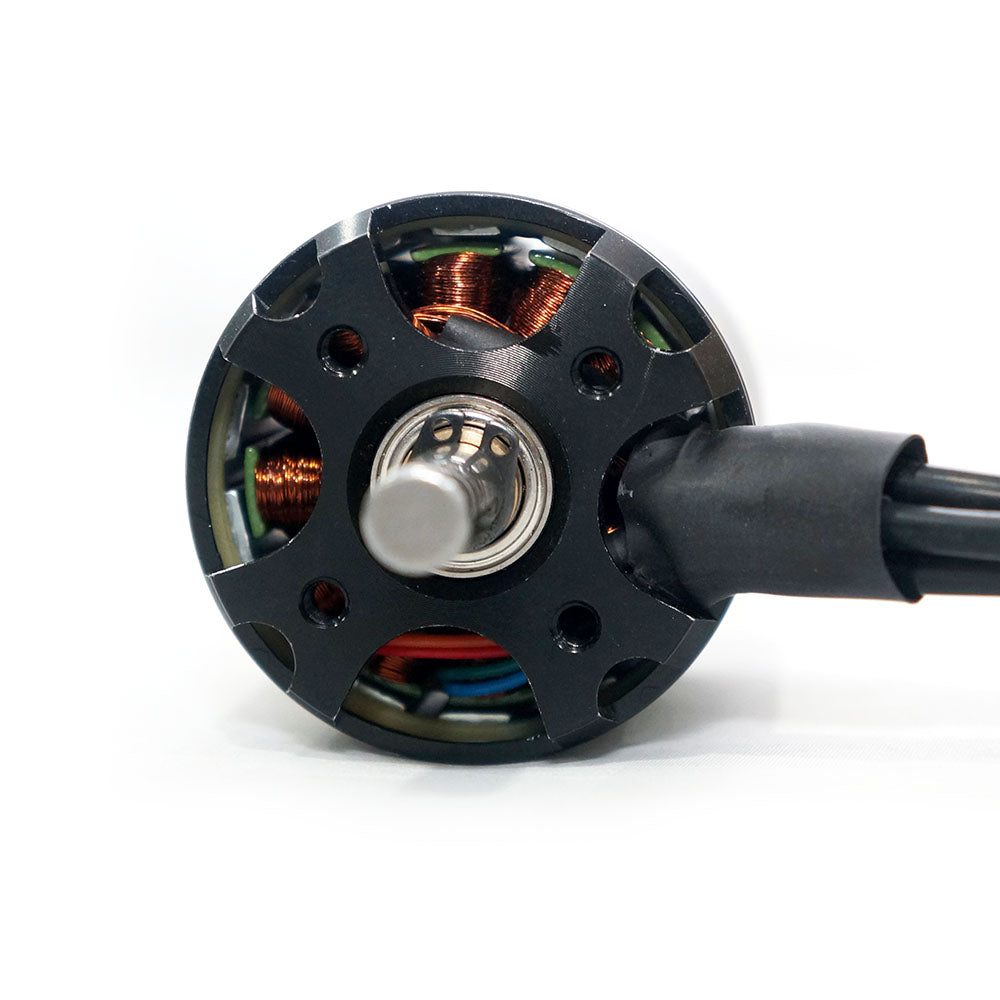

Product 4: Maytech MTO5065-HA 220KV Brushless Outrunner Sensored Motor Open Cover

  • Open Cover: better heat dissipation
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • ​Battle Hardened: Yes
  •

    Model No
    MTO5065-HA
    KV
    220
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    435g
    Shaft
     8mm
    Output Shaft Length
    26mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

    【Spring Sale 20% OFF】Maytech Brushless 5065 70/220KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Robotics

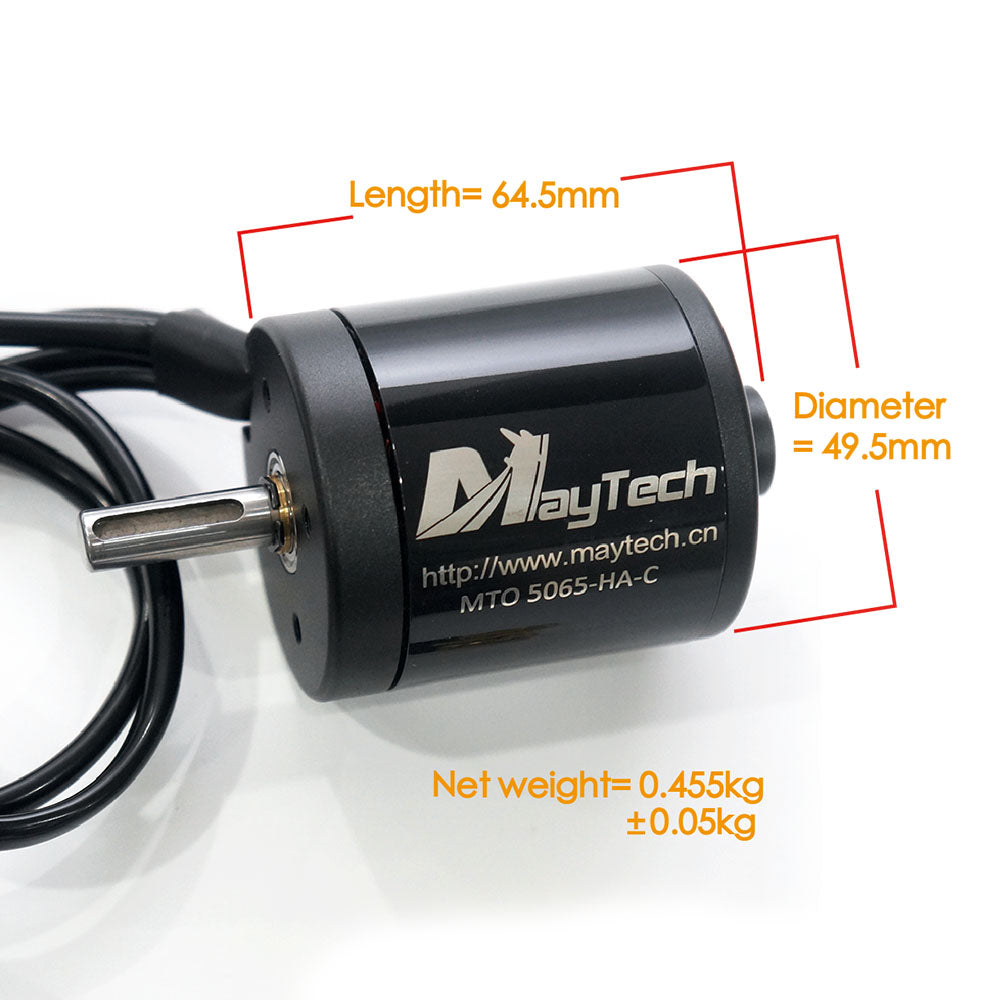

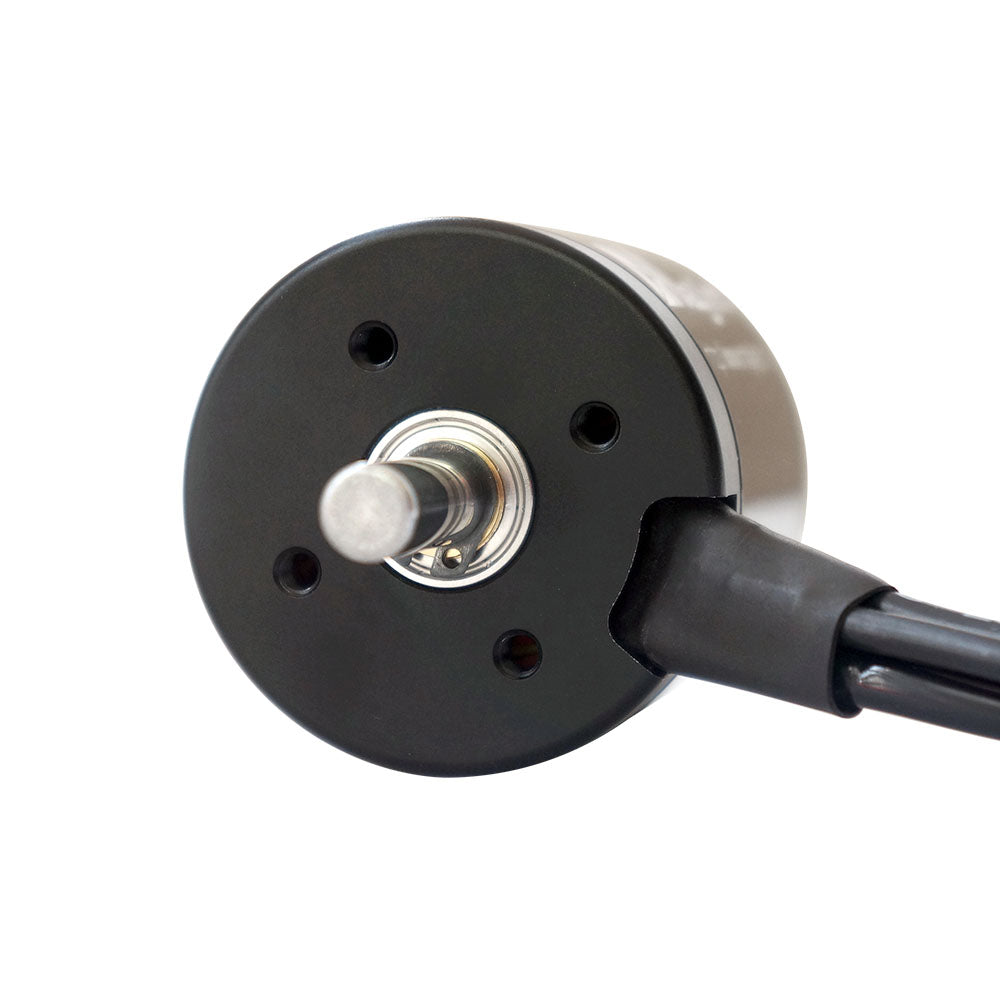

    Product 5: Maytech MTO5065-HA-C 170KV Brushless Outrunner Sensored Motor

  • Closed Cover: Splash proof and dustproof
  • Motor Connector: 4mm golden male connector
  • Hall Sensor: 6Pin, 2mm Pitch
  • Motor Cable Length: 240mm
  • Sensor Cable Length: 500mm
  • Customize: KV, logo, motor case, color, etc.,
  • Battle Hardened: Yes
  •

    Model No
    MTO5065-170-HA-C
    KV
    170
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    450g
    Shaft
     8mm
    Output Shaft Length
    26mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter【Spring Sale 20% OFF】Maytech Brushless 5065 70/170/220KV Closed Cover Sensored IP54 Waterproof Motor For Esk8/E-scooter

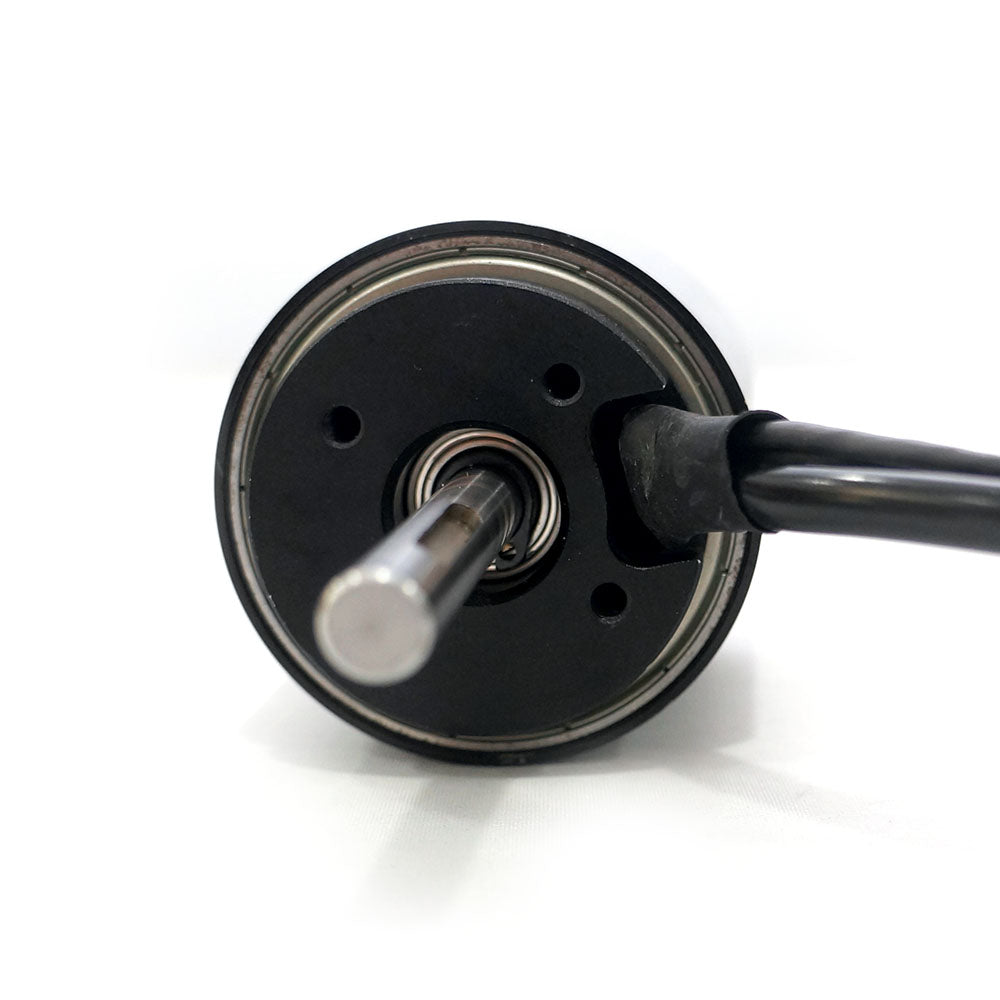

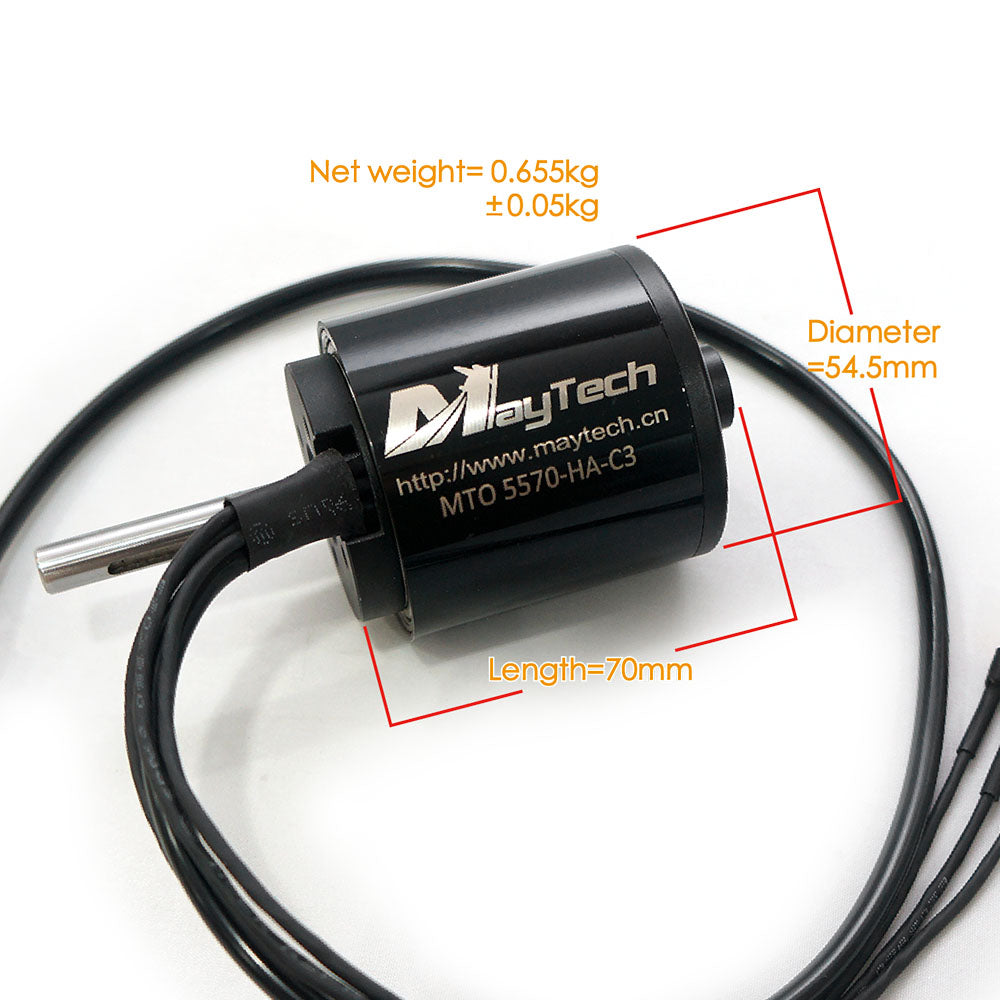

    Product 6: Maytech MTO5570-HA-C3 190KV Brushless Outrunner Sensored Motor

    • Closed Cover: Splash proof and dustproof
    • Motor Connector: 4mm golden male connector
    • Hall Sensor: 6Pin, 2mm Pitch
    • Motor Cable Length: 240mm
    • Sensor Cable Length: 500mm
    • Customize: KV, logo, motor case, color, etc.,
    • Battle Hardened: Yes
    Model No
    MTO5570-190-HA-C3
    KV
    190
    Idle Current
    1.2A
    Max Current
    50A
    Inpur Voltage
    2-10s Lipo
    Max Output Watt
    1815W
    Max Pull
    6700g
    Rated Current
    42.5A
    Motor Weight
    660g
    Shaft
     8mm
    Output Shaft Length
    45.5mm
    Internal Resistance
    0.0361



    【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots【Spring Sale 20% OFF】Maytech Brushless 5570 190KV Closed Cover Sensored Waterproof Motor for Esk8/Robots
