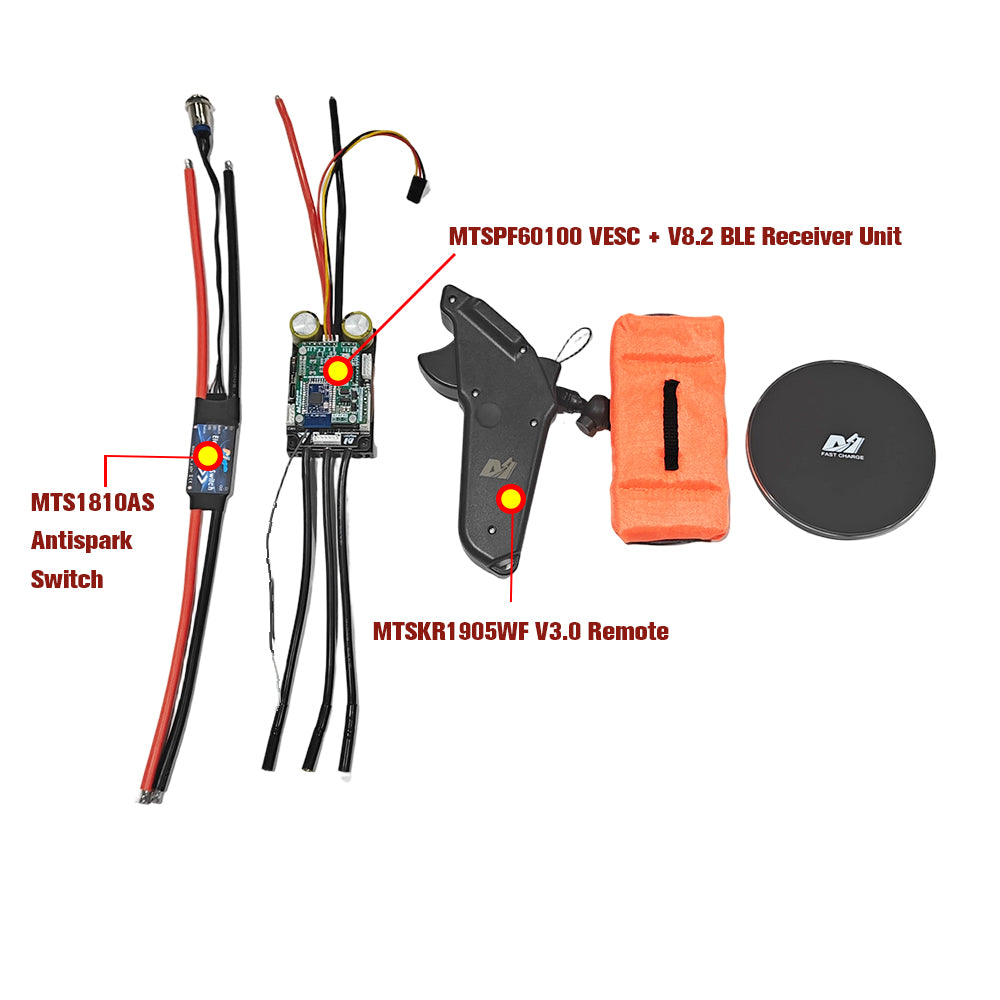

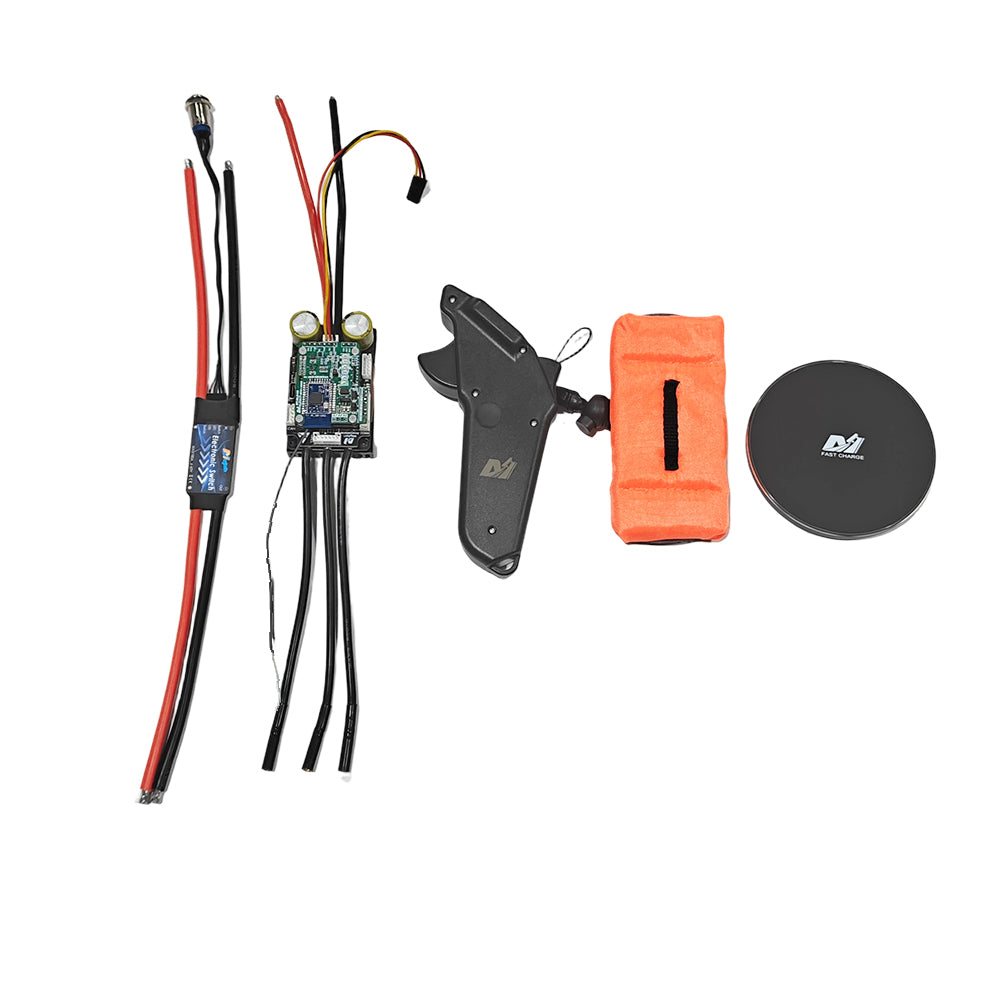

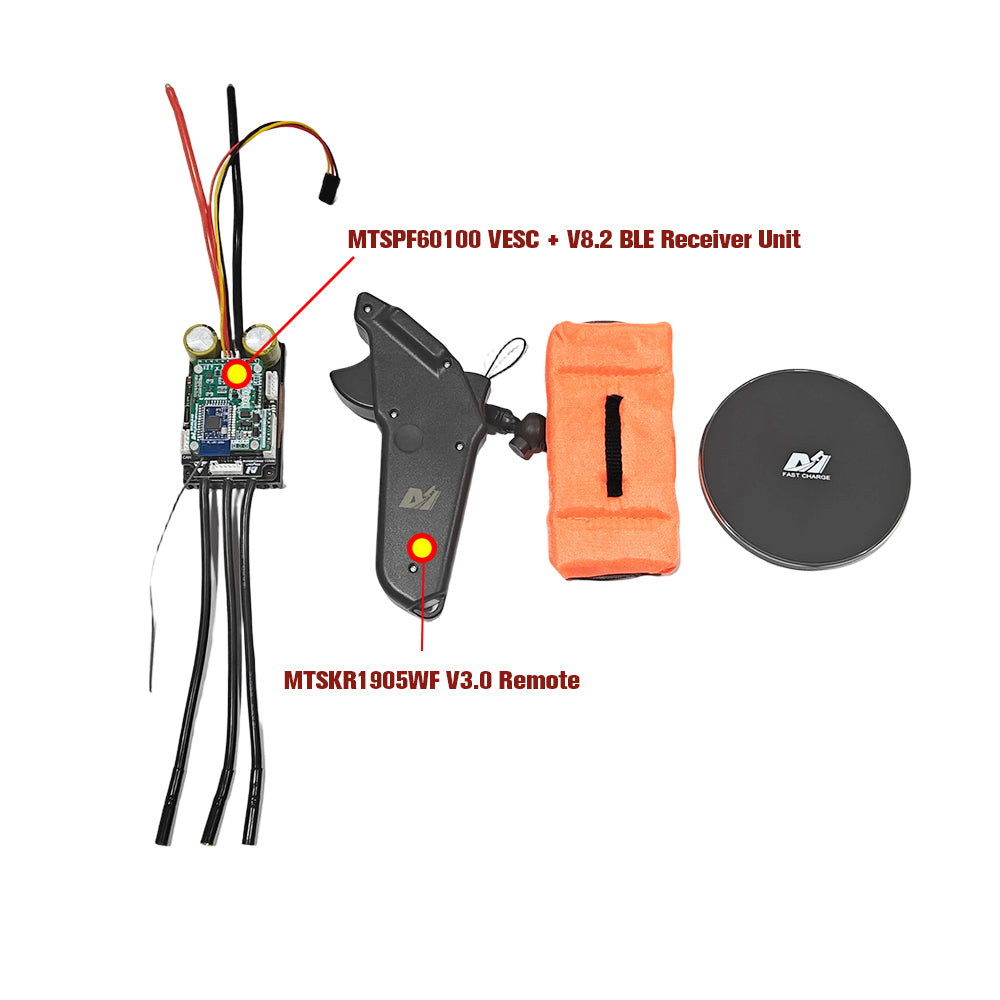

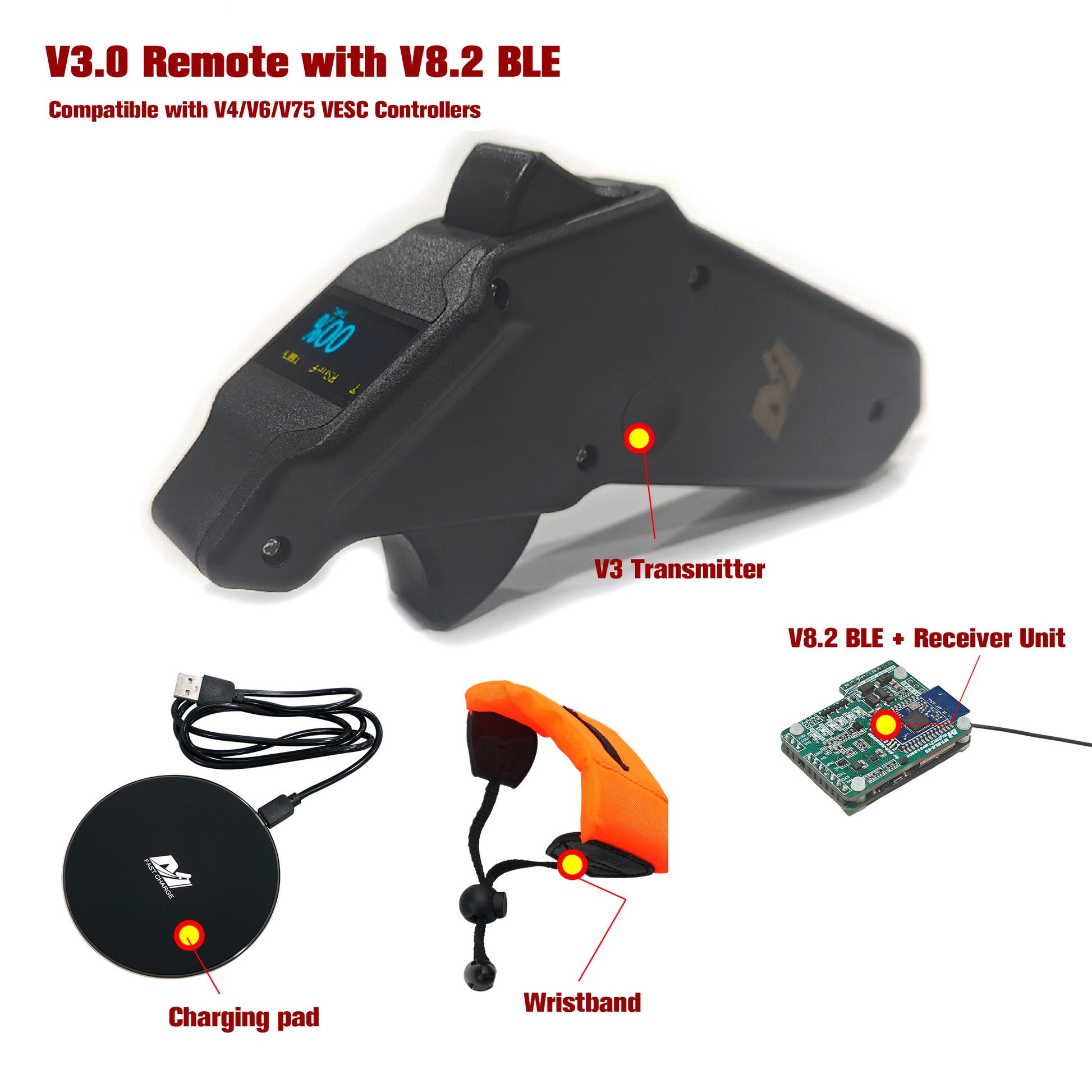

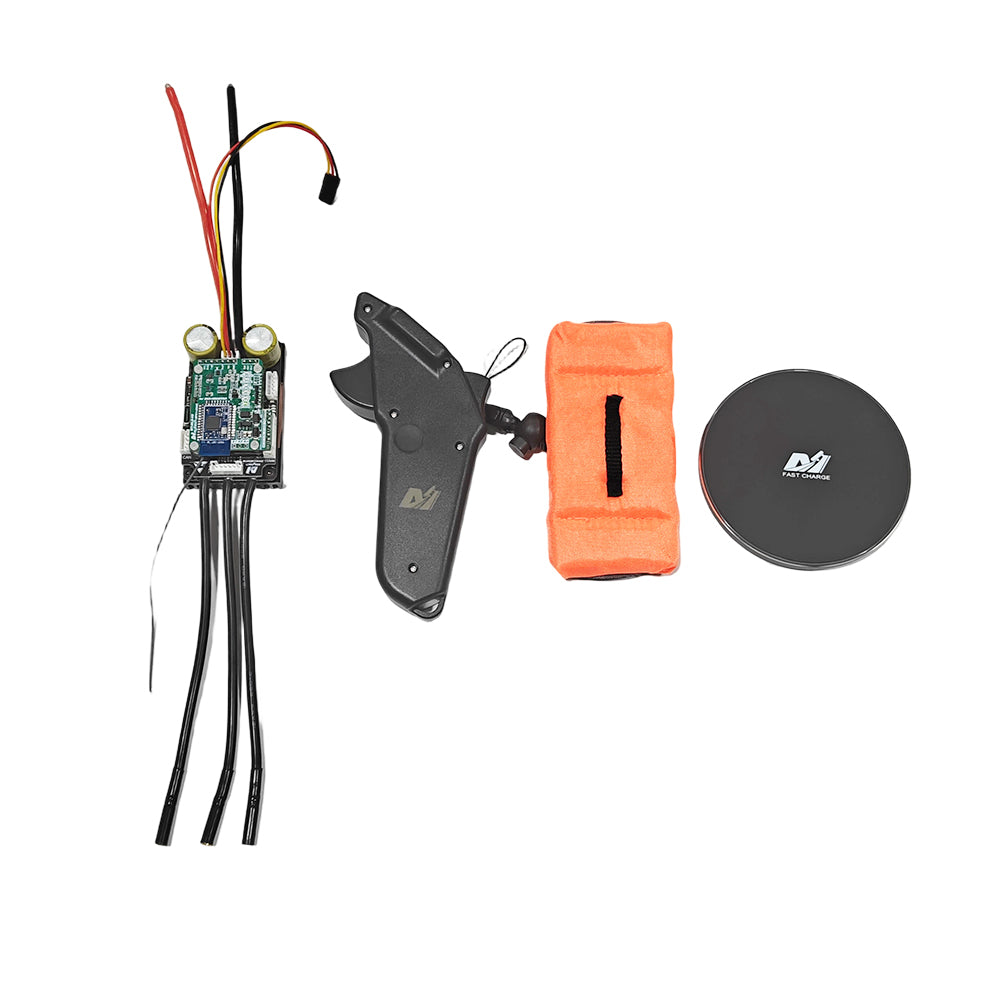

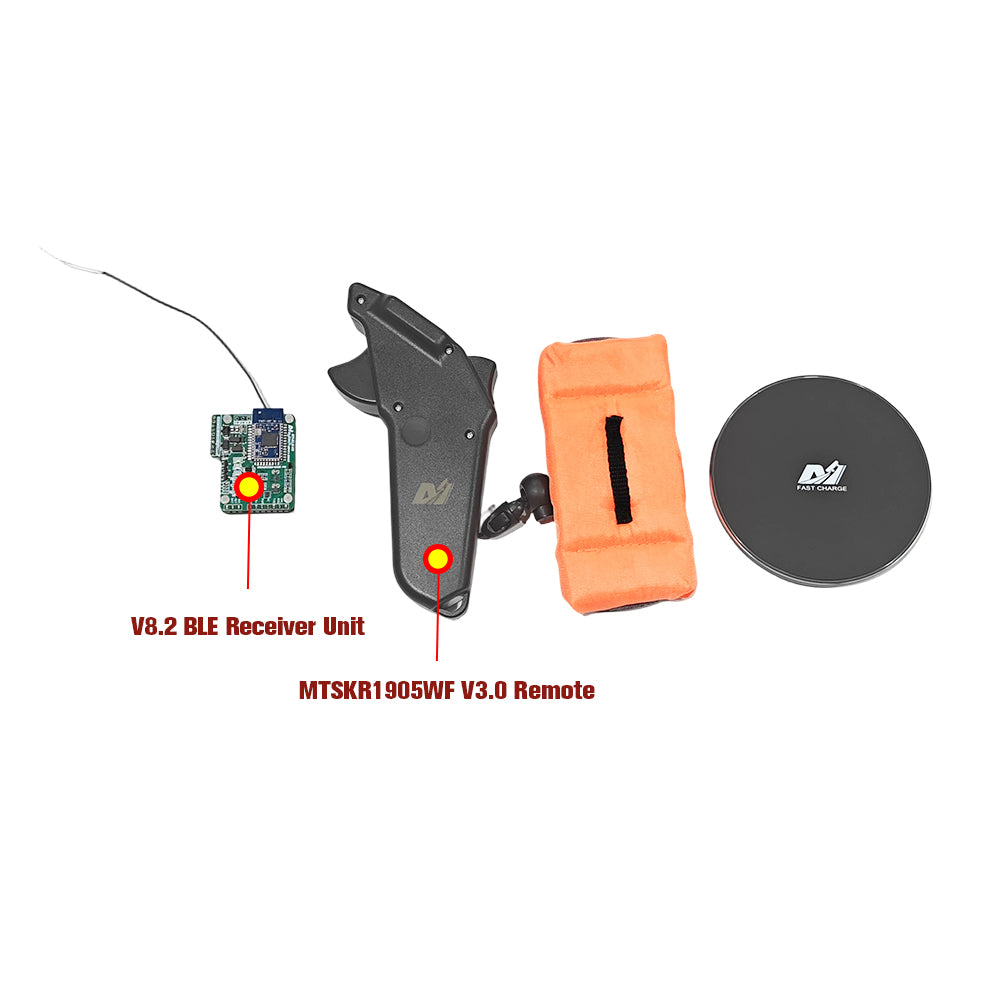

Maytech V8 BLE Unit with MTSRR1905WF Receiver + V3 MTSKR1905WF Remote + 60100 VESC for Foil Assist Esk8 Tiny Size
Maytech V8 BLE Unit with MTSRR1905WF Receiver + V3 MTSKR1905WF Remote + 60100 VESC for Foil Assist Esk8 Tiny Size
Regular price
$38.50 USD
Regular price
Sale price
$38.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact agnes@maytech.cn
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.

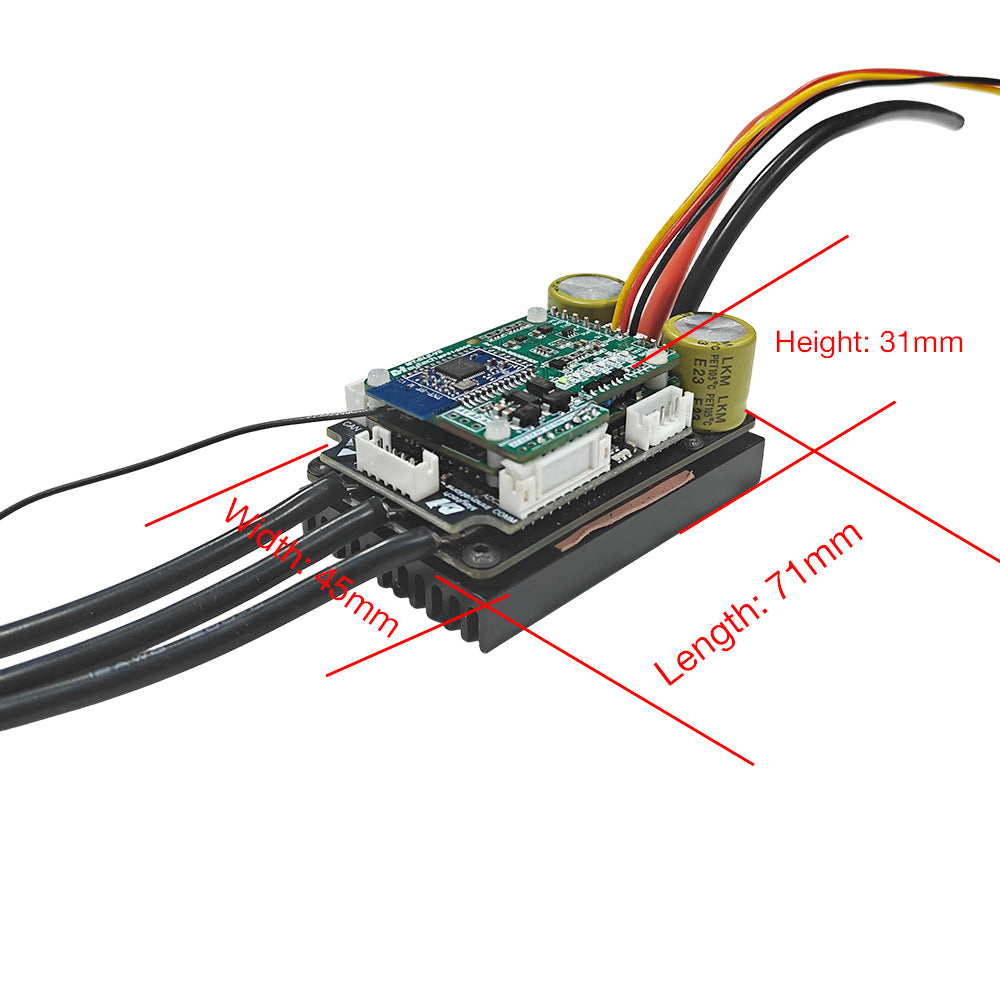

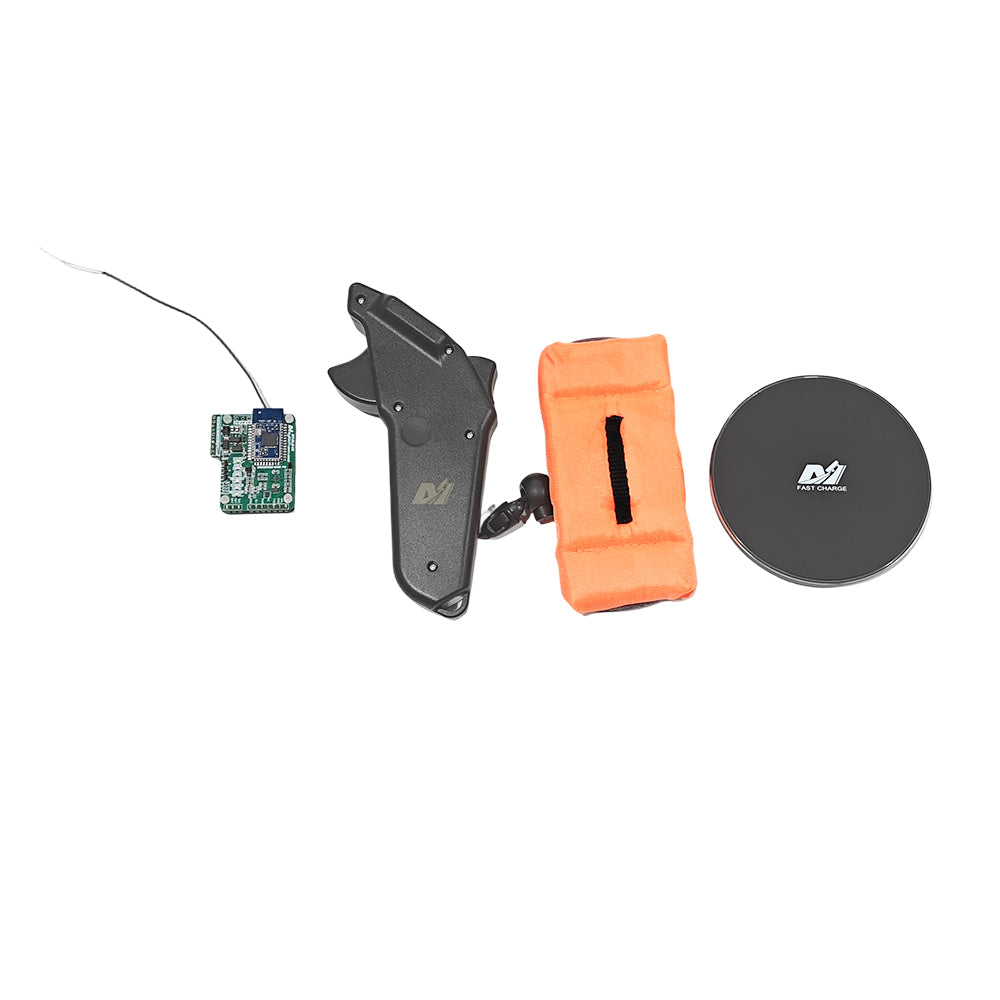

Maytech V8 BLE Unit with MTSRR1905WF Receiver + V3 MTSKR1905WF Remote + 60100 VESC for Foil Assist Esk8 Tiny Size
The bluetooth module PCB outlook and size may vary for different production batch. Please refer to the actual product you receive.
Application: Electric skateboard, electric longboard, motorized mountainboard, efoil, surfboard, boat, etc.,
Diaplay: Voltage, current, temperature
Clieck here to check instruction video:

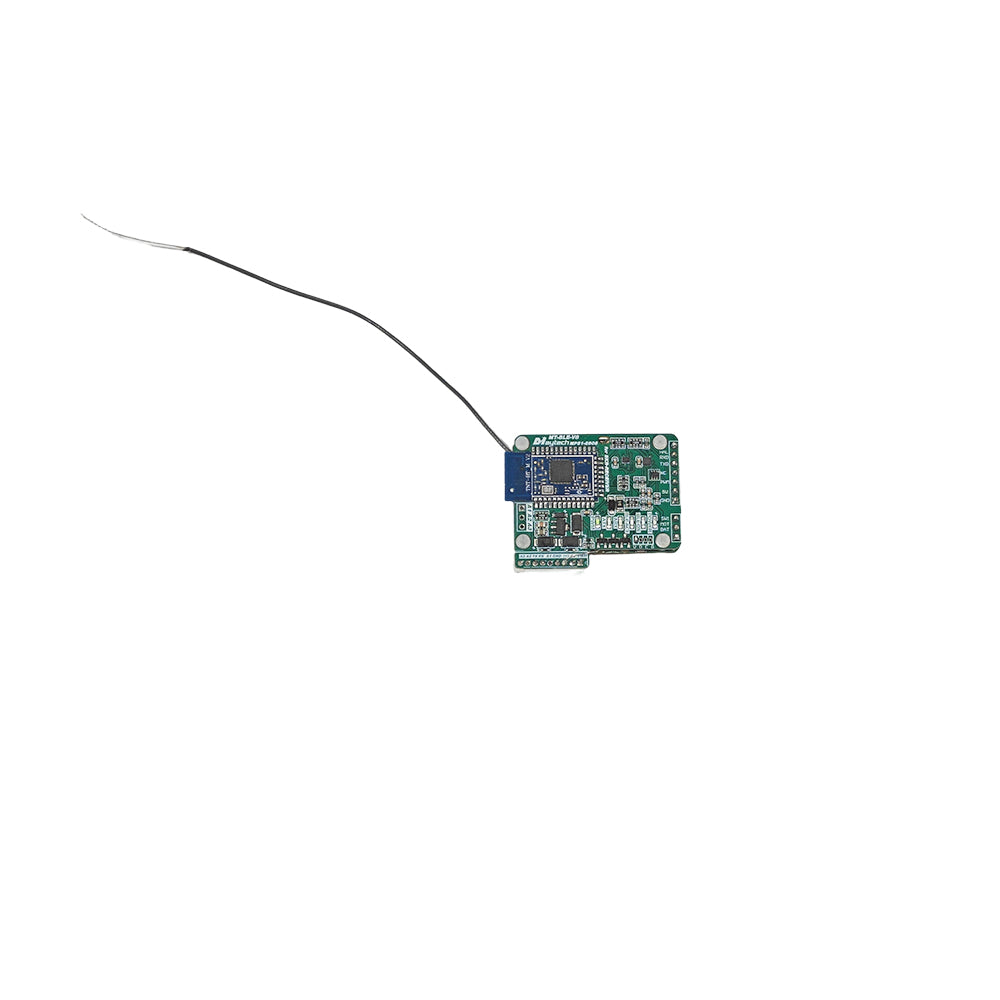

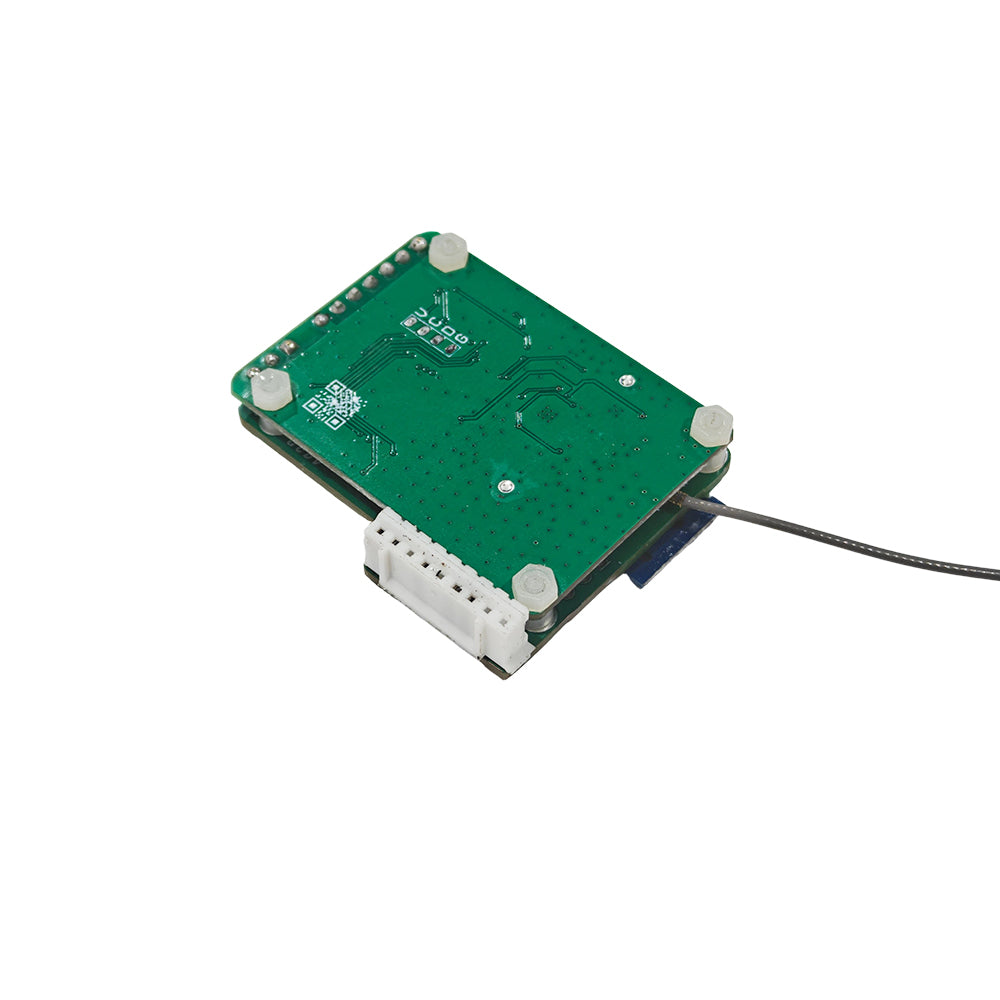

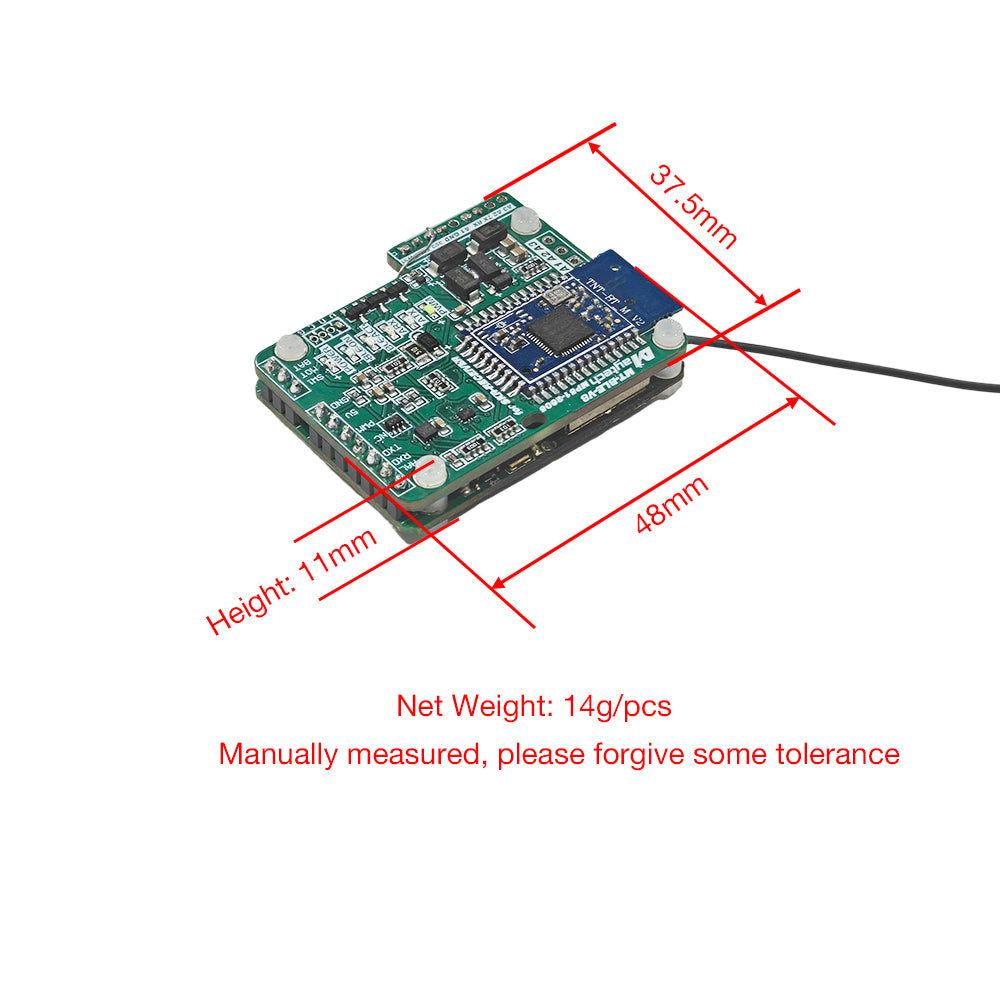

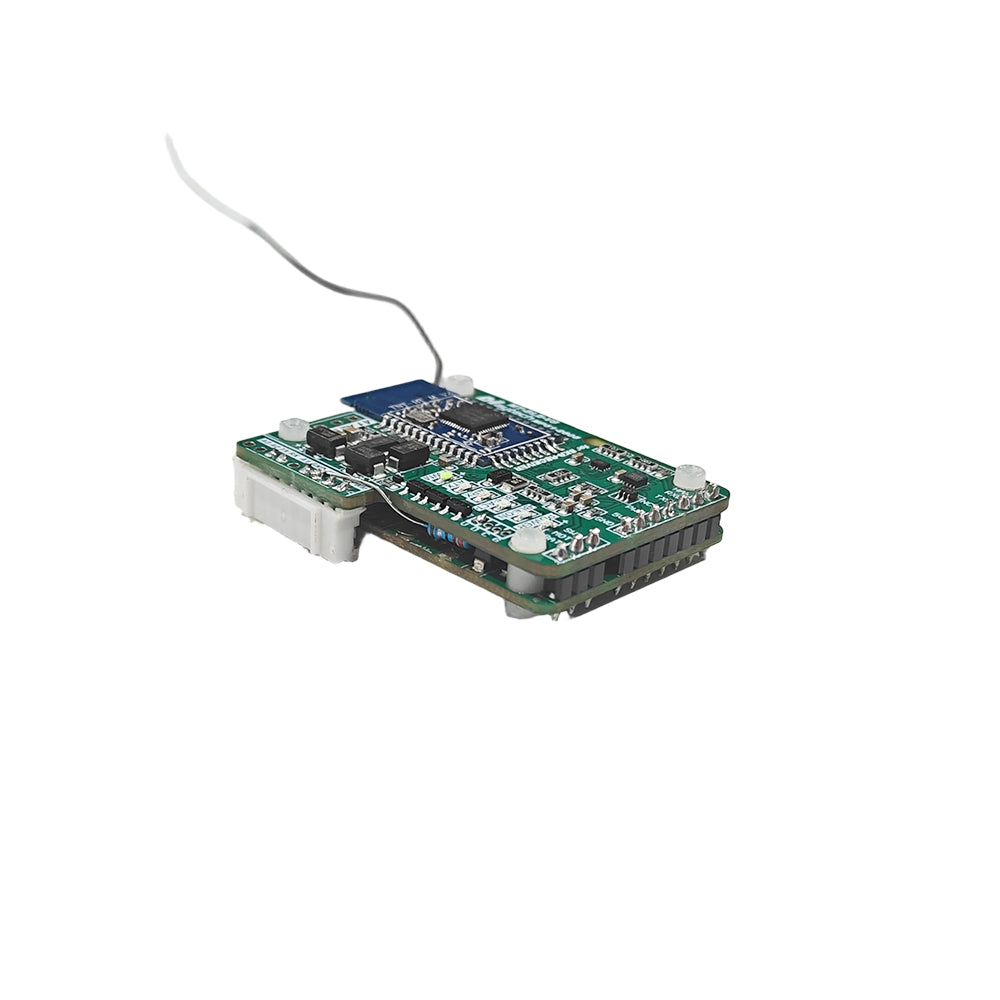

| Model No. | MTBLEV8 BLE Unit with Receiver |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |

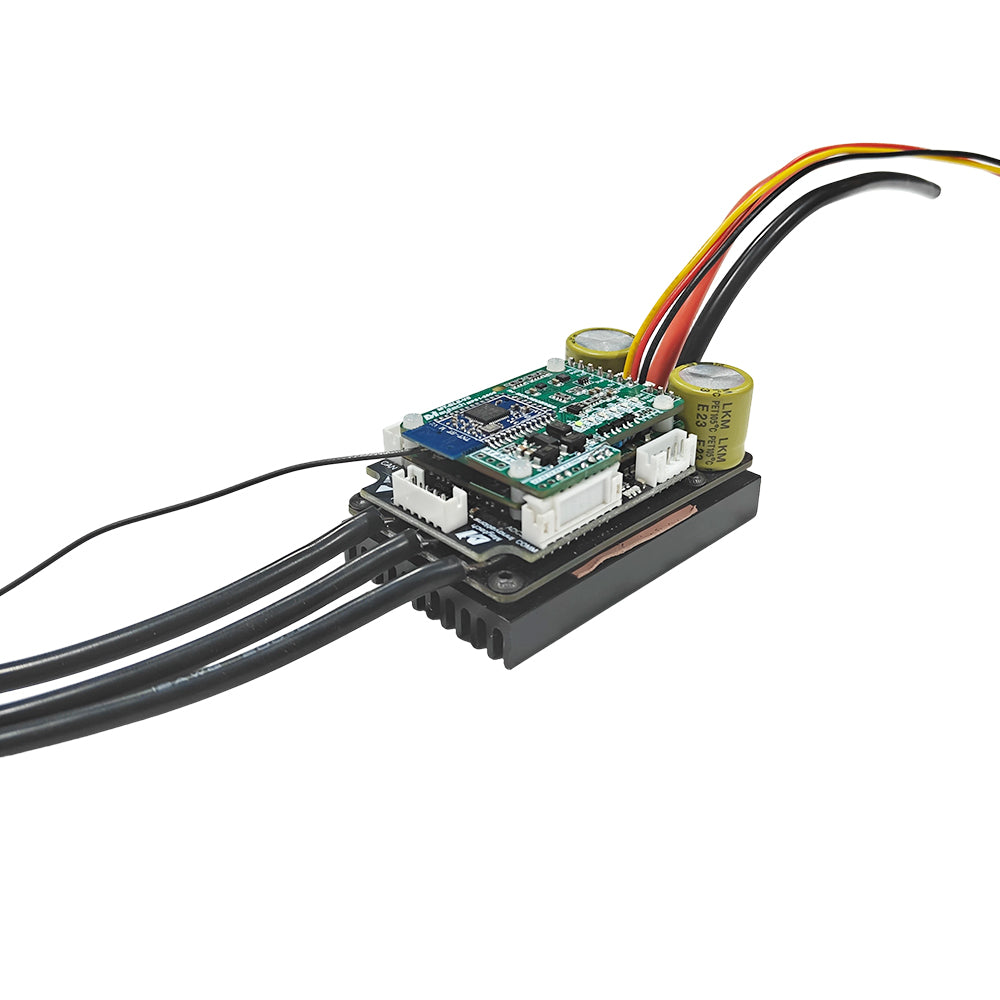

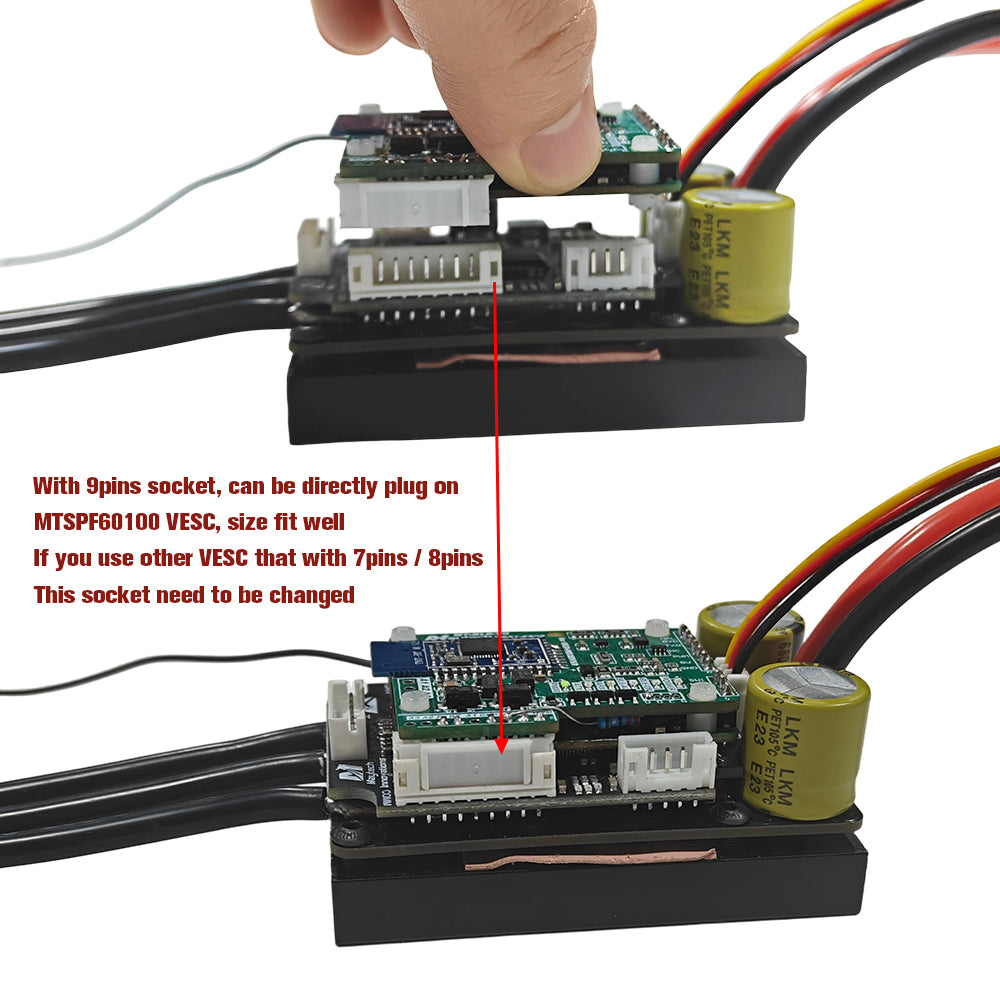

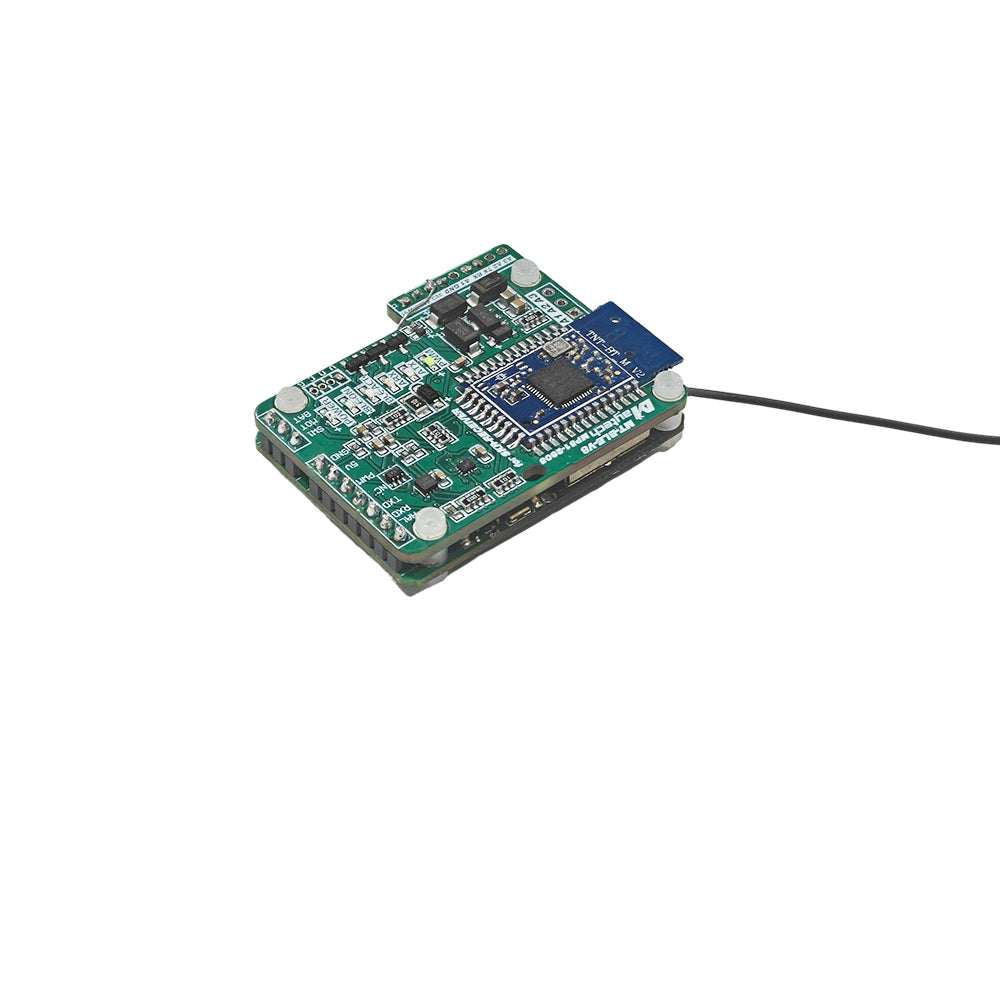

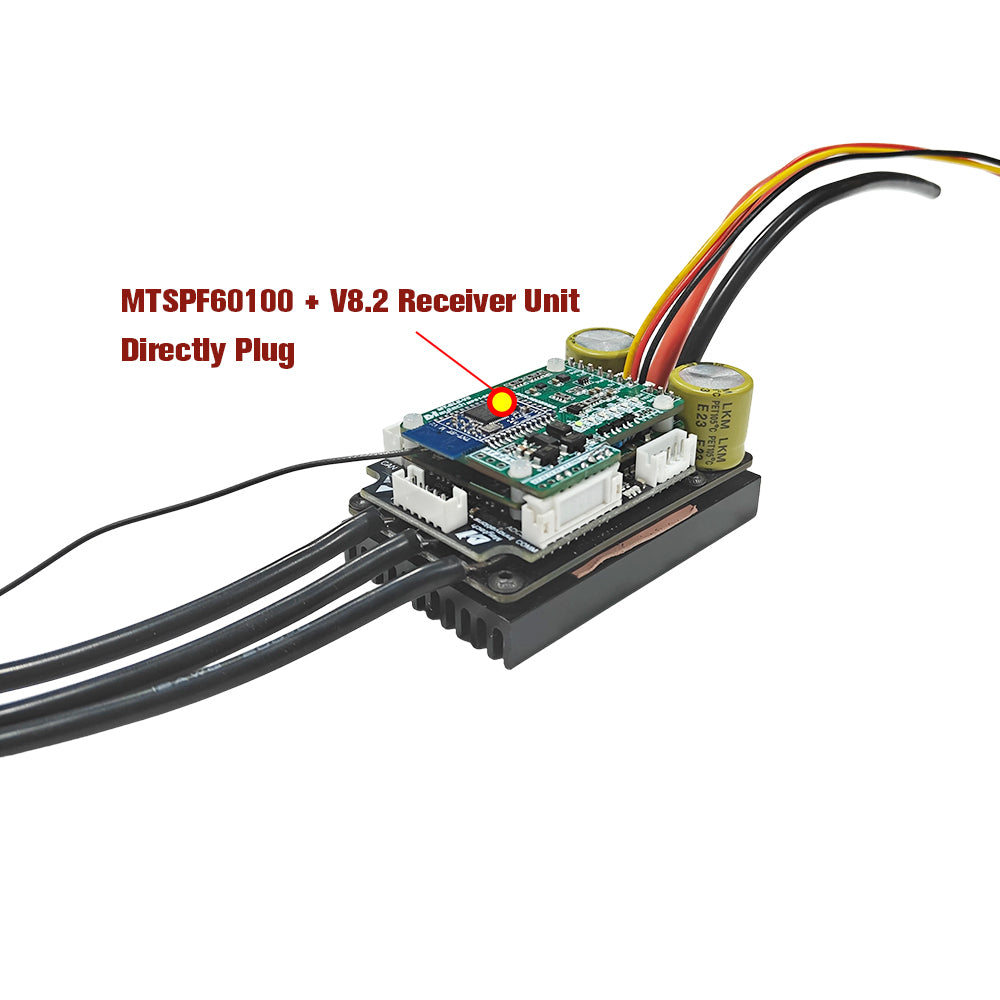

| Difference with V6 BLE | V8 BLE is soldered with MTSRR1905WF receiver, PPM wire and UART are connected on one side, great to match with MTSPF60100 VESC, save more space |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
Functions:
1. The bluetooth is developed for communication between controller and VESCTOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.
2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.
3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.
4. It supports VESCTOOL Compatible controller based on V4, V6.0, V75_300 hardware, please choose the correct hardware version of your controller, we will match compatible cable for you.
5. Firmware is updatable.
VESCTOOL Compatible Speed Controllers:
