Kill Switch for Efoil / Jetsurf / Esk8 !

Kill Switch for Efoil / Jetsurf / Esk8 !

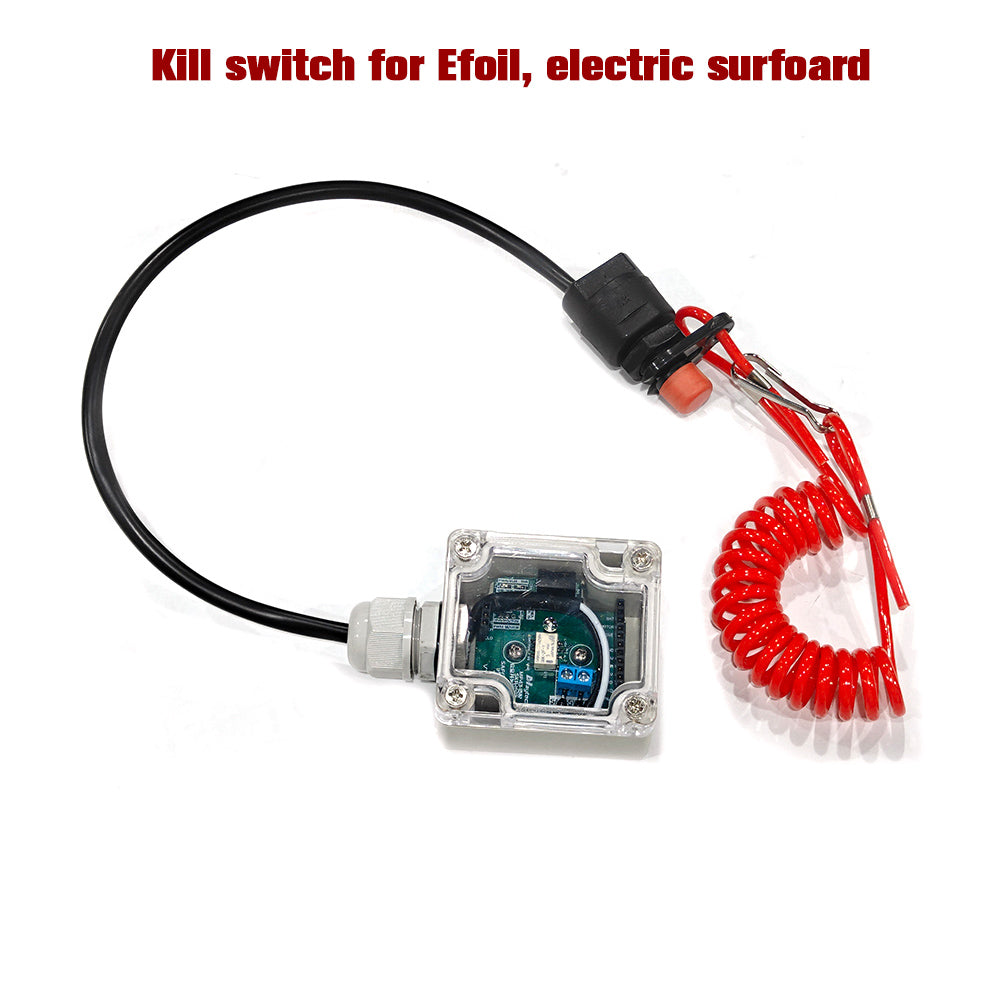

To meet customers' demand, we made a kill switch that can be tight on wrist or foot for customers, it can compatible with VESC / ESCs that support PWM signal, and fit well with our MTSRR1905WF receiver and work well with our Waterproof V3 MTSKR1905WF / Esk8 MTSKR2005WF remotes, can be used on Efoil / Electric surfboard/ Jetsurf/ Jetboard/ Jetski/ Electric kayak/ Electric boat/ Foil assist board/ Esk8, etc applications.

Because the kill switch working logic is reverse, so we made a converter board and with a junction box, our MTSRR1905WF receiver can be greatly fit in the box, and if you do good waterproof job for the box, it can be submerged in water.

Below is the steps to tell you the way to install ESC/VESC and receiver to the kill switch, here we use our MTSF300-WP32 waterproof ESC and MTSRR1905WF receiver as example:

1. Unscrew the cap on the box and insert PWM signal cable on ESC/VESC through wire hole

Safety Switch for Efoil Jetsurf Surfboard Esk8 Compatible with MTSKR1905WF V3 Remote VESC/ESCs
2. Plug PWM connector on PWM signal socket in the box, White--PWM, Red--5V, Black--GND Here MTSF300A-WP32 ESC’s TX and RX plug is no need to be plugged

3. Install receiver (The ports in the box is compatible with our MTSKR1905WF/ MTSKR2005WF  remotes receiver)

Notice: the antenna terminal must be put on w ater surface, if you will put this box underwater,  we suggest you use extend antenna cable, we  have 1m and 3m options, email to  agnes@maytech.cn for more information.

4. Tight the cover and cap, if you need to put the box in water, please fill with waterproof glue on  4 bolts position and cap.
