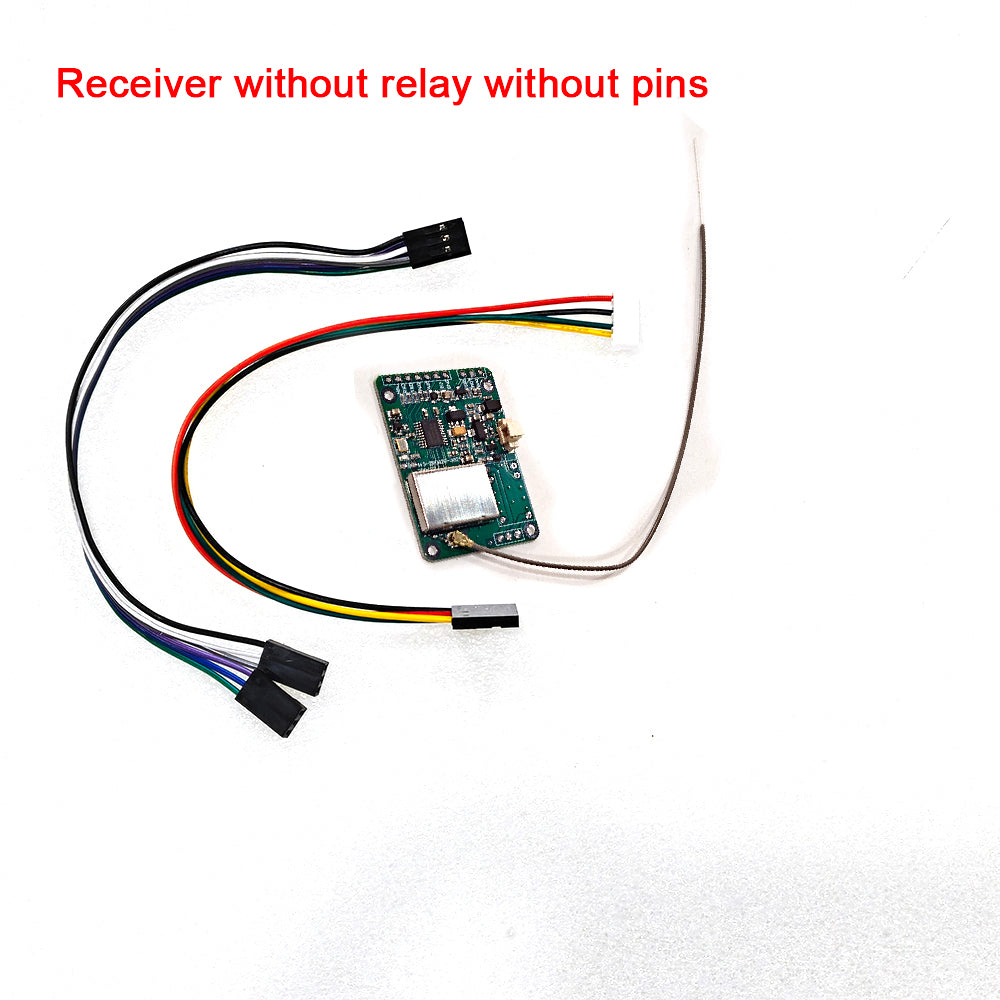

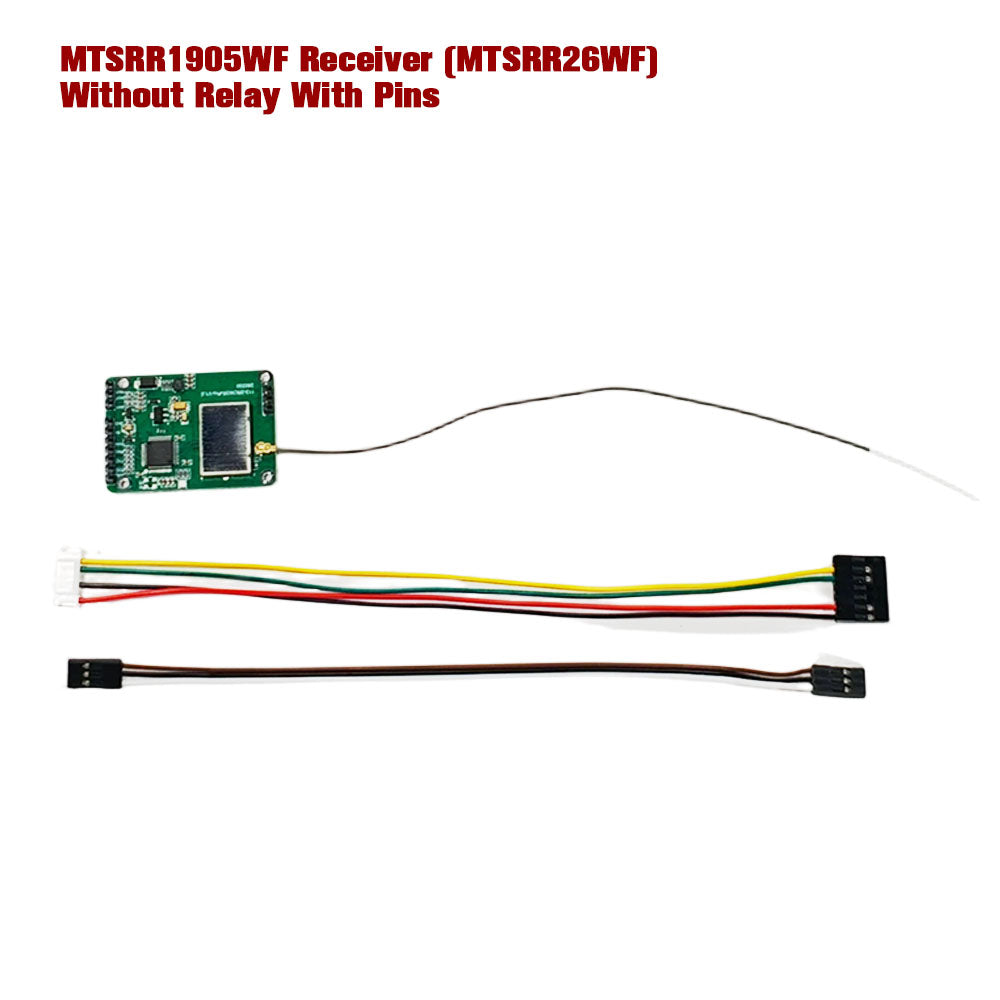

In Stock MTSRR1905 Receiver for MTSKR1905WF / MTSKR2005WF Remote
In Stock MTSRR1905 Receiver for MTSKR1905WF / MTSKR2005WF Remote
Couldn't load pickup availability
MTSRR1905 Receiver for MTSKR1905WF / MTSKR2005WF Remote
Compatible Remote:
MTSKR1905WF IP67 Waterproof Esk8 & Esurf Remote:
MTSKR2005WF IP66 Waterproof Esk8 Only Remote.
Compatible Remotes:
Share
😍 Frequently Bought Together
In Stock Brushless 6374 Unsealed Motor 8mm Shaft Sensored 90/190KV$148.50$133.65- +
In Stock Brushless 8085 Sealed Motor 12mm Shaft Sensored 160KV$221.90$199.71- +
In Stock DIY Foil Boost Motor 6374 Waterproof Outrunner 150KV Sensorless Motor for Electric Propulsion System Power Assist Efoil$120.90$108.81- +
In Stock Maytech Foil Boost VESC 100A V6 Speed Controller with Heat Fin for SUP Foil Esk8 Robots$141.70$127.53- +
In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil$99.90- +
In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ$76.90
In Stock Brushless 6374 Unsealed Motor 8mm Shaft Sensored 90/190KV
Maytech Brushless 6374 190KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Fighting Robots/Mountainboard/E-scooter
|
Model No
|
MTO6374-HA |
KV
|
90/170/190 |
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3550W
|
|
Max Pull
|
13000g
|
Rated Current
|
60A
|
|
Motor Weight
|
825g
|
Shaft
|
8mm
|
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0402
|
Notice:
The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.
Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.
New embeded hall sensor version VS old version:
1. New version is with embedded hall sensor to stator:
Hall sensor board is more stable and motor has more precise positioning and more smooth starup.
2. With changing the hall sensor position, inside space is bigger than before and the original small bearing inside the stator can be replaced with a larger model, which increases the lifetime of the motor.
3. Mounting holes are updated to 8x M4 with deeper thread 11mm. Motor installation will be firmer.
Stock Notice Before Place Order:
1. The motor 90KV and 190KV are stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Motor Drawing:
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors
Maytech VESC_TOOL Compitable controller:
Maytech MTSKR1712 Small and Light Cheap Remote:
In Stock Brushless 8085 Sealed Motor 12mm Shaft Sensored 160KV
Maytech Brushless 8085 160KV Closed Cover Sensored 12mm Shaft IP54 Splash Waterproof Motor for Esk8/E-scooter Underwater Scooter MTO8085-160-HA-C
|
Model No
|
MTO8085-160-HA-C |
KV
|
160 |
|
Idle Current
|
1.5A
|
Max Current
|
90A
|
|
Inpur Voltage
|
6-14s Lipo
|
Max Output Watt
|
5330W
|
|
Max Pull
|
15500g
|
Rated Current
|
64A
|
|
Motor Weight
|
1115g
|
Shaft
|
12mm
|
|
Output Shaft Length
|
44mm
|
Internal Resistance
|
0.028
|
| Thermistor Type | NTC10K at 25℃ | Beta Value | 3950k |
Noted Please:
This motor actual length is not 85mm, according to customers needs, we have modified the motor length once, but model number is not changed, the motor actual length is 74mm.
And the motor stator size is 68 (diameter )* 25 (height) * 25 (inner diameter), to make the motor more stable and to have better heat dissipation, to extend motor lifespan, the motor top and bottom cover is much thicker than other motors, so the stator height is not as longer than other motors, but the motor diameter is much larger than other motors, power is higher.
Stock Notice Before Place Order:
1. The motor is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF IP66 Waterproof Esk8 Remote:
Maytech Brushless Outrunner Sensored Motors
Maytech VESC_TOOL Compitable Controller:
Maytech Fully Waterproof Remote MTSKR1905WF:
Maytech MTSKR1712 Small and Light Remote:
In Stock DIY Foil Boost Motor 6374 Waterproof Outrunner 150KV Sensorless Motor for Electric Propulsion System Power Assist Efoil
Specifictions:
| Model No | MTO6374-150-WPC Motor |
| KV | 150, can customize, contact agnes@maytech.cn if you want other KV |
| Idle Current | 0.8A |
| Max Current | 65A |
| Rated Current | 60A |
| Input Voltage | 3-12S Lipo (12-50V) |
| Max Output Watt | 3550W |
| Shaft | No output shaft |
| Hall Sensor | Without |
| Waterproof Rank | IPX8 |
| Mounting Hole Pattern | 28mm, 30mm, 44mm Hole distance |
| Mounting Hole Diameter | M4 |
| Bearing | Ceramic bearing, better waterproof |
| Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact agnes@maytech.cn |
Application:
DIY foil assist on wing foil, wind surf foil, sup foil board, kite foil, underwater thruster, sup foil assist, paddle assist, wind foil board, sup board, downwind, hull cleaning device, underwater rov, underwater cleaning robot, boat cleaner, quariums or submerged environments, tank cleaning, underwater drone, etc.,
Difference between ceramic bearing and stainless steel bearing:
Stainless Steel Bearing:
1. Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep the motor all dry, so to expand lifespan.
2. Can withstand higher speed.
3. Cost is less than cermic bearing.
Ceramic Bearing:
1. Better anti-rust performance, good for sea water condition
2. It’s brittle, can’t withstand very high speed, easier damage at high speed
3. cost is higher than stainless steel bearing.
Customers Feedbacks:
Stock Notice Before Place Order:
1. The motor 150KV is in limited stock, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.
2. Shipping time is about 24 working hours after your order confirmed for stock item, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)
In Stock Maytech Foil Boost VESC 100A V6 Speed Controller with Heat Fin for SUP Foil Esk8 Robots
| Model No. | MTSPF60100 VESC Controller |
| Input Voltage | 3-12S Lipo (12.6V-50V) |
| Hardware | VESC6.0 |
| Firmware | Updatable |
| Cont Current | 100A |
| Burst Current | 240A |
| Software | VESCTOOL Compatible |
| Heat Sink | With, attach to mosfet, better heat dissipation |
| Waterproof | No, not waterproof, please do good waterproof job if you use it for water sports |
Click Here: How to Display Volt, Current, RPM with TX and RX?
Application:
V5 Bluetooth Module:
| Model No. | MTBLEV5 V5 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm |
V2 Bluetooth Module:
| Model No. | MTBLEV2 V2 Version |
| With 3 LED Lights status | power, communication, database |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
|
Compatible Software |
VESCTOOL App |
| Frequency | 2.4Ghz |
| ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
| PCB Size | 41mm x 21mm |
| Net Weight | 5g |
| Antenna Length | 90mm |
Recommend Products: Click below pictures to check more information
Brushless Outrunner Motors:
In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil
Specification:
| Model No | MTSKR1905WF (V2), upgraded waterproof and signal strength |
| Waterproof Rank | IP67 with 2 layers nanometers coating |
| Control Mode | Esk8/ Esurf |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display |
Remote and battery power, signal strength, throttle and brake percentage, RPM; speed, mileage; Current, voltage, temp when work with VESC |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |
| Wireless Charging | Yes |

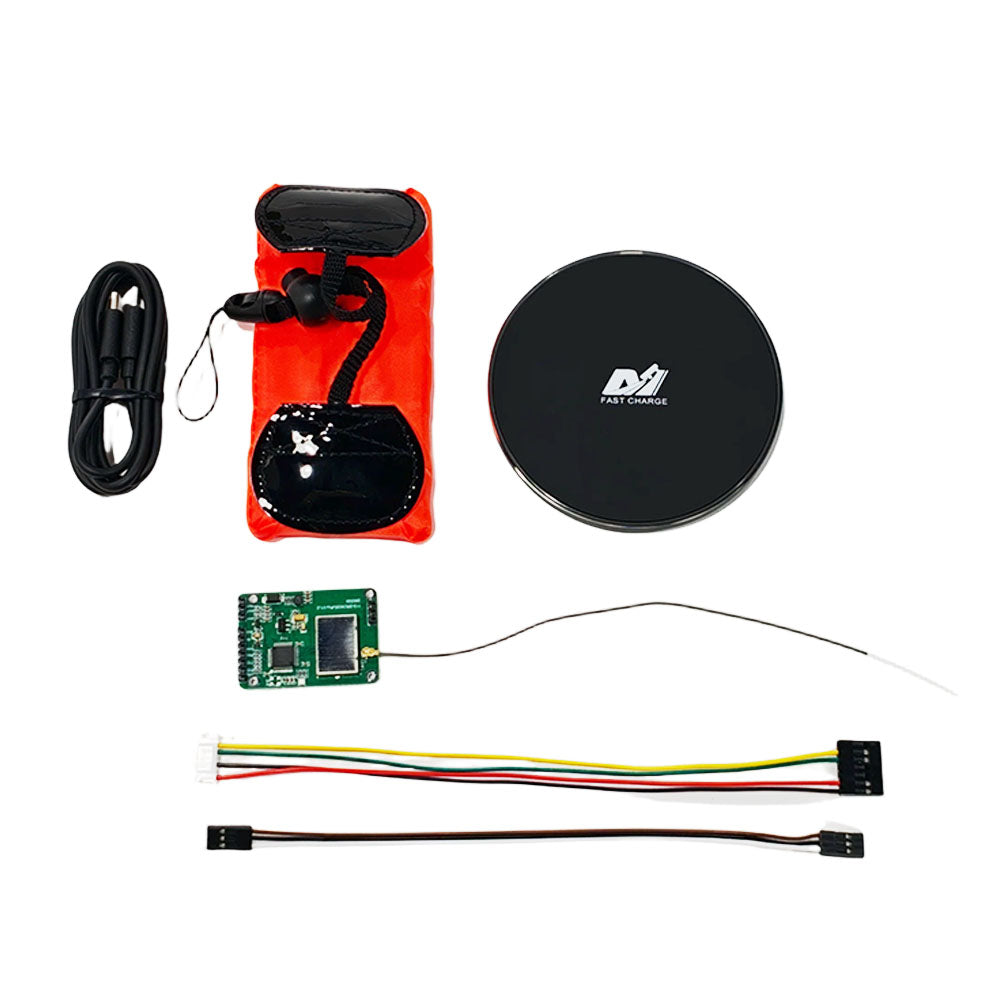

| Package Includes | Transmitter, receiver, charging Pad, receiver, wristband, 3pcs dupont cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
> Get Manual: Remote Manual and Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.
Tips After Using:

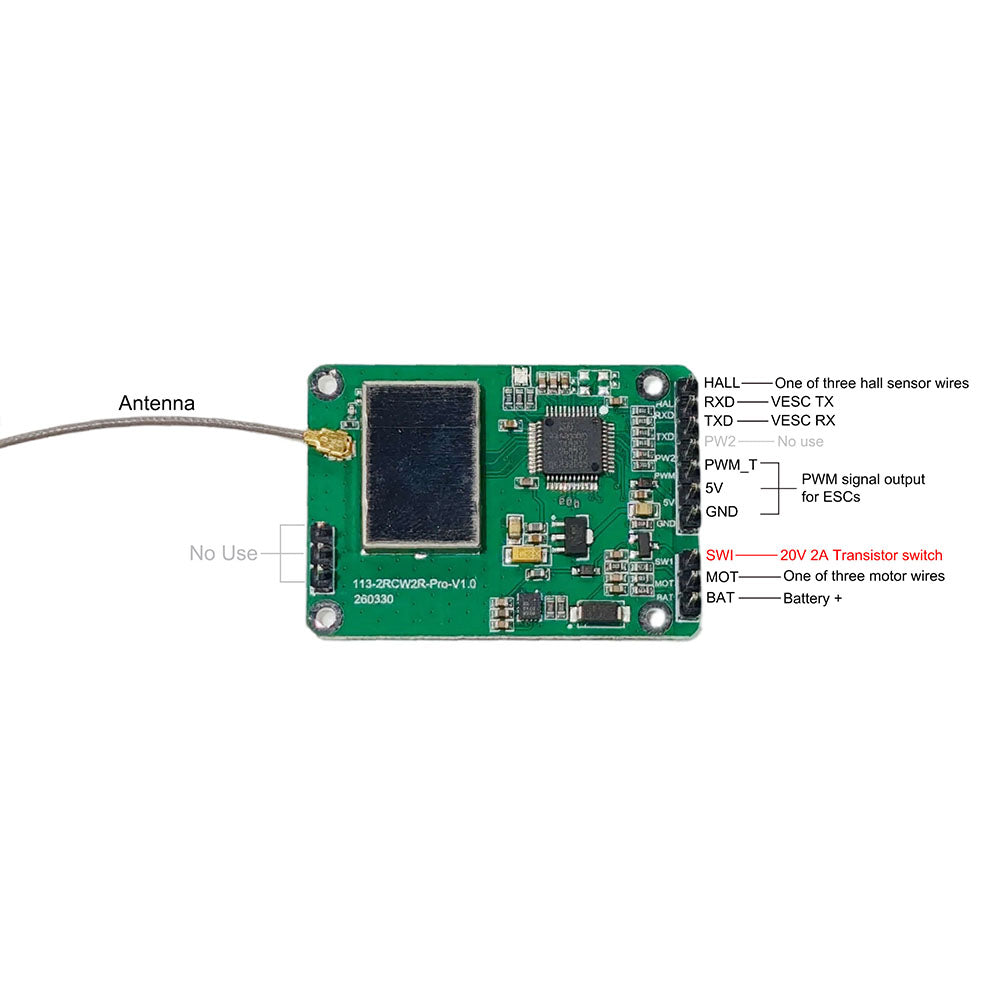

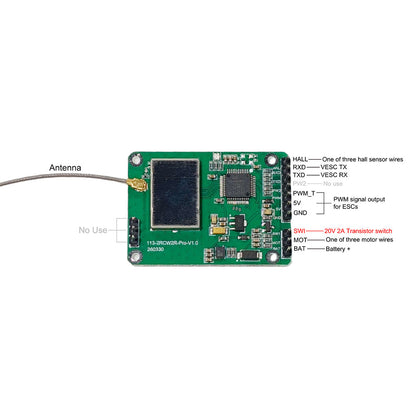

10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)
In Stock Maytech Electric Skateboard Splashproof Remote Control MTSKR2005WF IP66 2.4GHZ
Maytech MTSKR2005WF IP66 Splashproof Esk8 Remote Electric Skateboard Elongboard Hand Remote with 3 Speed Modes
If you want to use for water sports, then please order our MTSKR1905WF IP67 waterproof remote Here>
Specifications:
| Model No. | MTSKR2005WF (MTSKR20WFV2) |
| Waterproof Rank | IP66 splashproof |
| Speed Display | Yes |
| Throttle and brake Display | ±100% |
| Speed Mode |
3 speed modes, each mode can adjust speed from 1%-100% throttle |
| Charger |
QC 2.0 wireless |
| Display Screen |
OLED yellow & blue screen |
| Throttle and Brake Signal Output Range |
1.5ms-2ms for throttle; 1.5ms-1ms for brake |
| Voltage Display |
Remote & main battery voltage level (lithium iron; lithium ion battery optional) |
| Telemeter Data by Receiver |
Motor RPM; main battery voltage |
| Telemeter Data by VESC | ESC voltage/ current/ temp; Motor temp/ RPM |
| Triggers | 2x high senstive triggers |
| Wireless Frequency | 2.4GHz wireless with 40 channels |
| VESC Control Mode | Duty Cycle/ Current Mode |
| Travel Mileage | Yes |
| Receiver Built-in Switch for Esk8 Light / Esurf Water Pump |
1x 30V 3A mechanical relay switch; 1x 20V 2A transistor electronic switch |
| Accessories | Wireless charging pad; receiver; 3pcs dupont cable |
| Compatible ESCs | VESCTOOL/ Focbox/ Other PWM ESCs that has same signal output range with the remote |
| Application | Only for Electric skateboard, elongboard, mountainboard |
Features:
1. Display speed (km/h or mph) in Esk8 mode (for electric skateboard)2. Display voltage in V, current, temperature when work with VESC based controller
> Get Manual: Remote Manual and Instruction
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit problem.
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.
