Water-cooling MTI120116 Inrunner Brushless DC Motor for Electric Surfboard/Efoil/Jetski/Boat

$890.00 Regular price $990.00

Brushless 120116 Inrunner Brushless DC Motor for Electric Surfboard/Efoil/Jetski/Boat MTI120116 with Water-cooling Non-waterproof

Model NO.: MTI120116-200-SF

Idle Current: 2.8A/8.4V

Internal resistance:  0.0322Ω

Max. Current: 380A

Input Volt.:  10‐16S Lipo

Max. Output Watt:18.8KW

Max. Pull: 20.6 N.m

Motor Weight: 4400g

max torque@60%: 20.6N.m

Shaft: 15mm

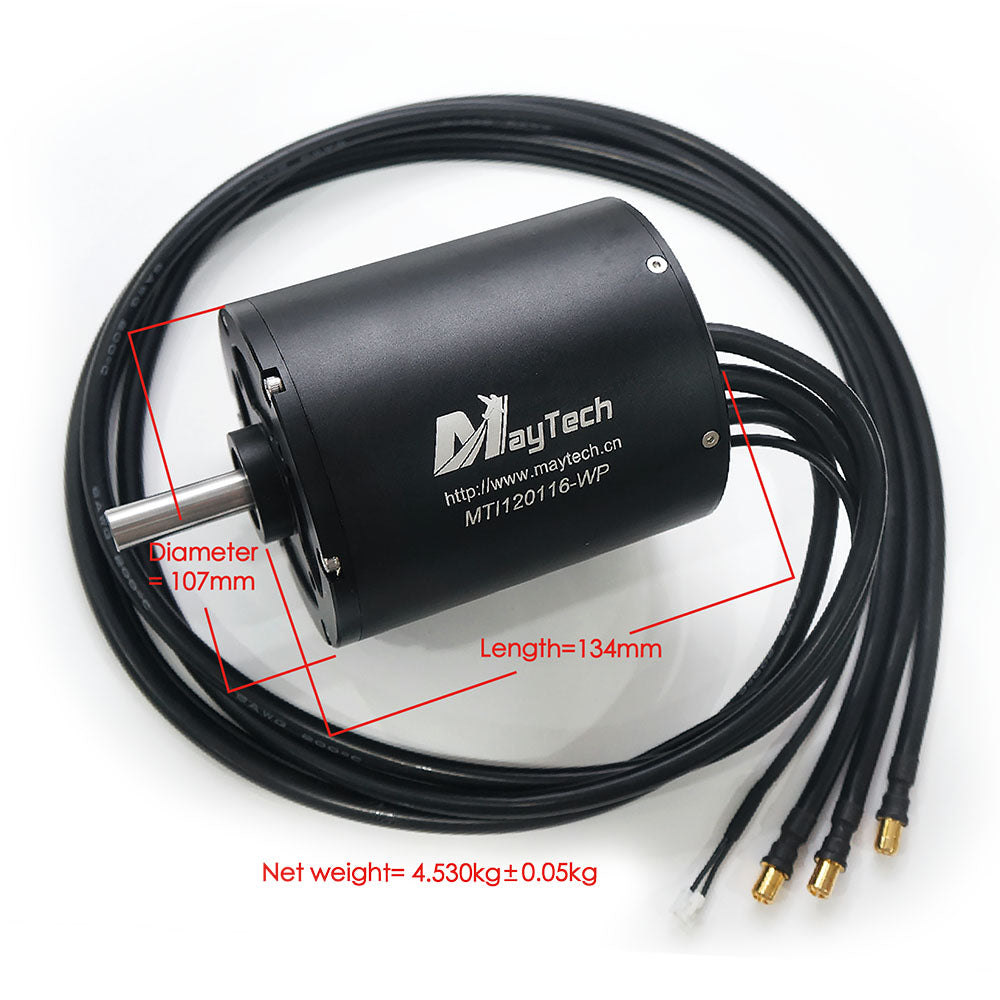

Motor dimension: Φ120x 116mm

Construction: 12N/10P

Max working temperature: 120︒C

Insulation voltage & leak current: AC500V/10MA/3S

Shaft Extension: D15*L30

Lead wires extension: 6AWGx300mm

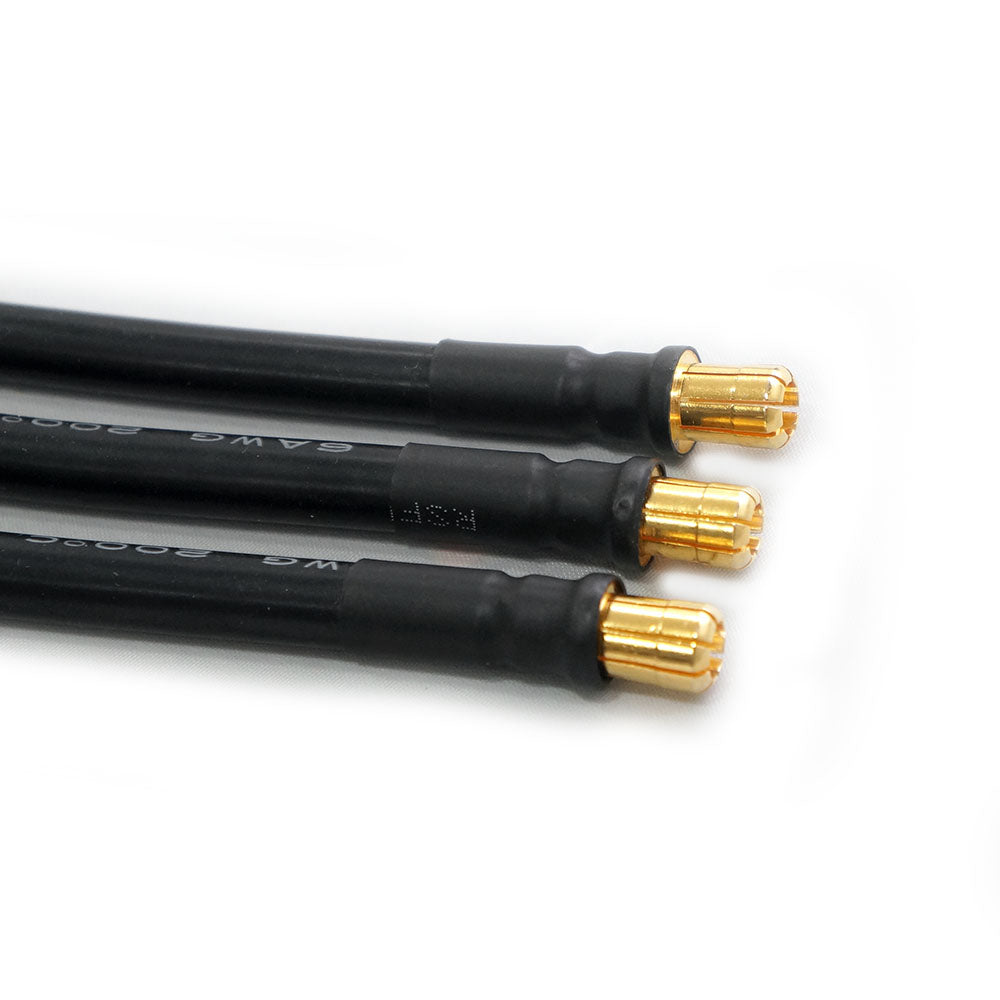

Plug: 10.0mm plug

Life Span: 8000H

With no Hall Sensor

Price does not include accessory

Application: Electric surfboard, efoil, electric power tools, hydrofoil board, waterboard, RC Boat, etc.,


Maytech Brushless Inrunner Motor for Electric Surfboard, Efoil, Hydrofoil, RC Boat, Waterboard, etc.,

maytech electric jetboard jetsurf waterboard electric speed controller ESC fully waterproof


Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.
