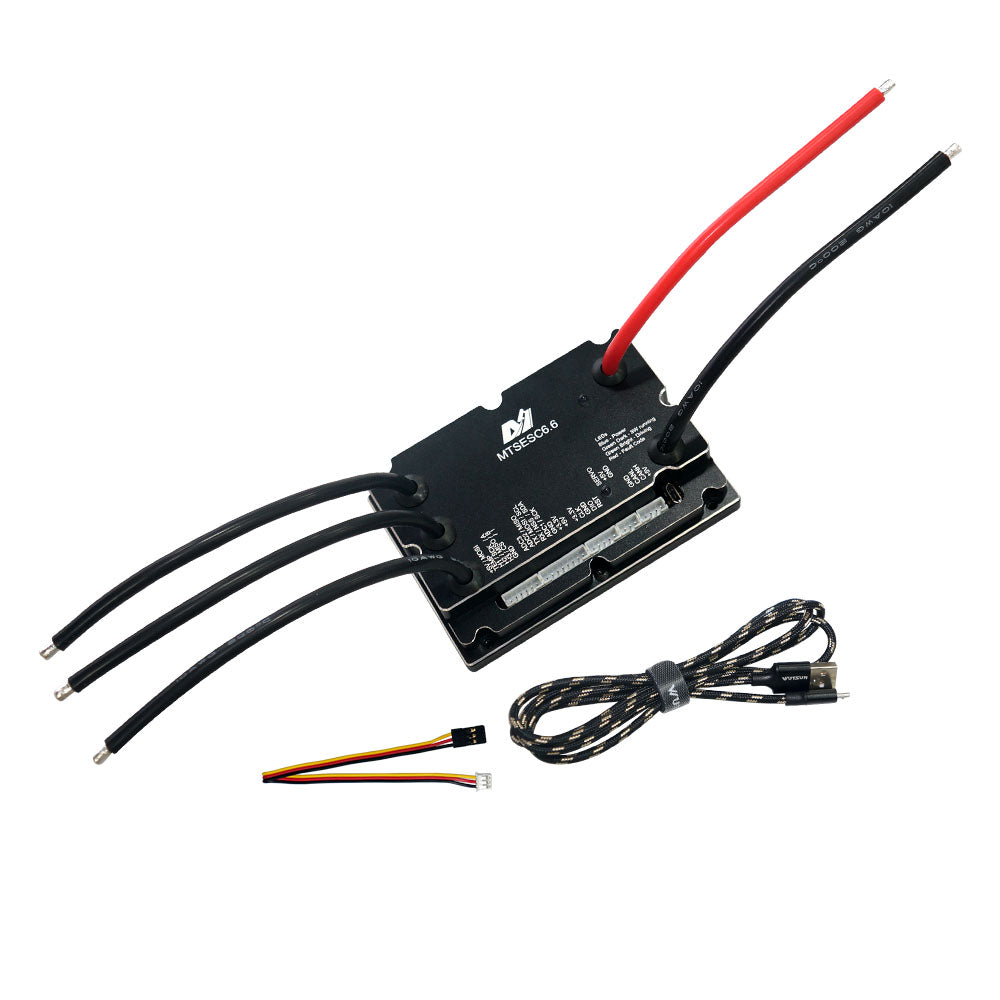

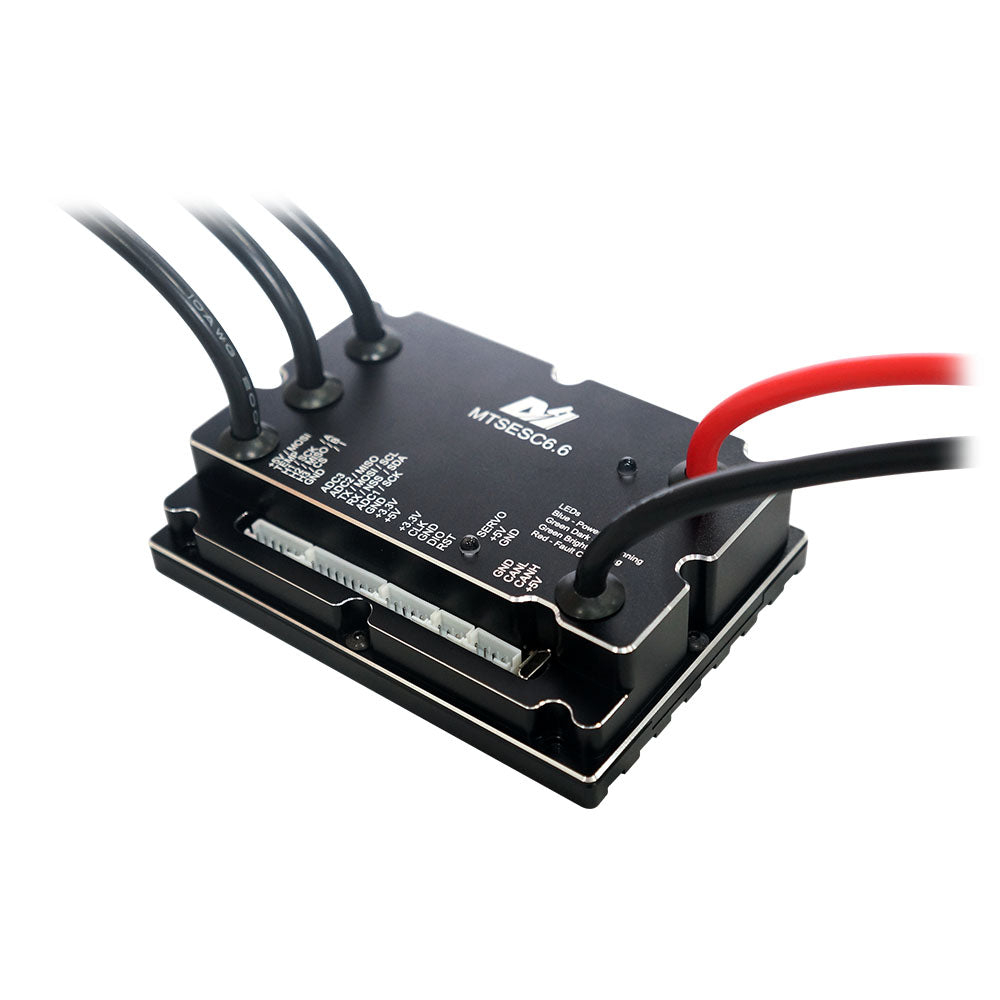

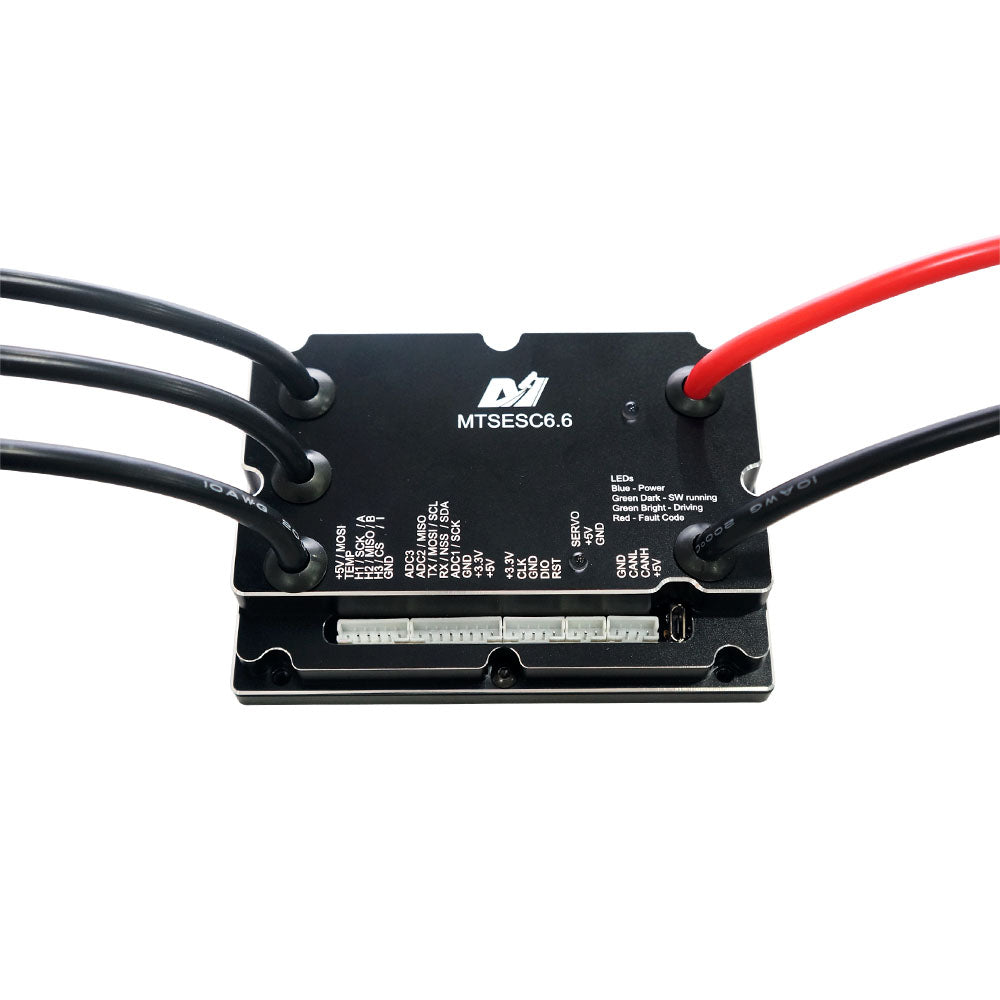

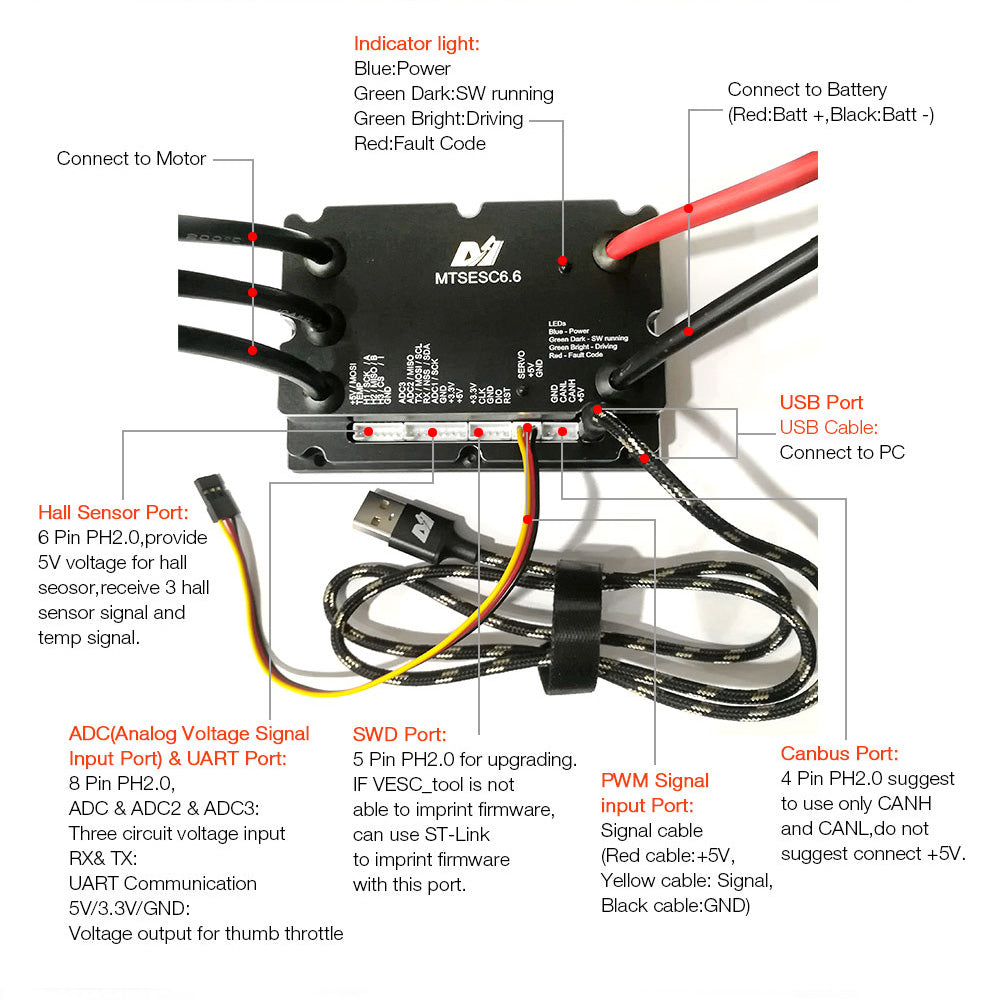

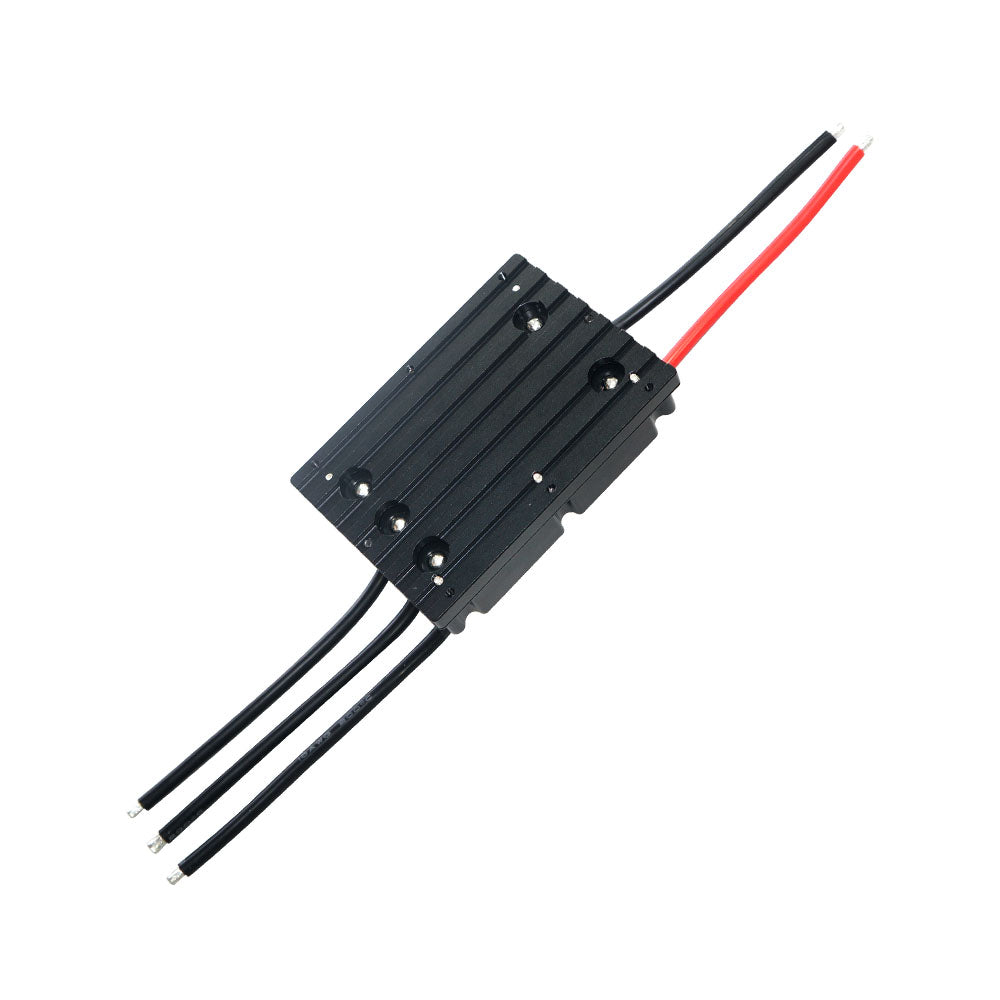

Maytech 200A V6 based Speed Controller for Electric Skateboard Mountainbaord E-bike/E-scooter Powerful MTSPF6.6 Lawnmower Robot/ Camera motorized dolly
|Cont Current||200A||Splash Waterproof||Yes|

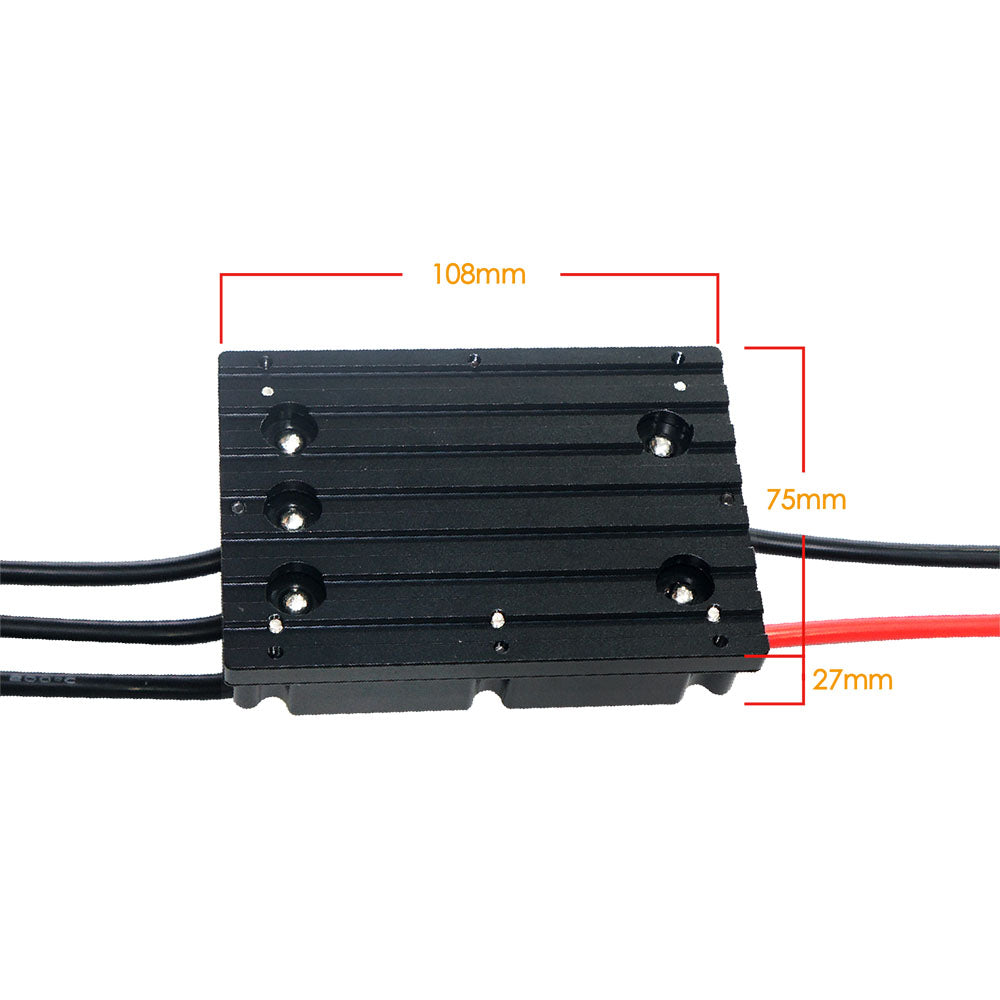

|Lipo Volt||3-12S (12.6V-50V)||Size||108*75*27mm|
|Hardware||Based on V6||Firmware Updatable||Yes|
Attention Points when you receive the controller Please:
- When you receive the controller, please test without load and do not connect motor, first check if the controller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to controller is very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the VESC default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESCTOOL didn't change to FOC mode, then when you push throttle, would easy burn the controller, same as FOC mode.
In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage

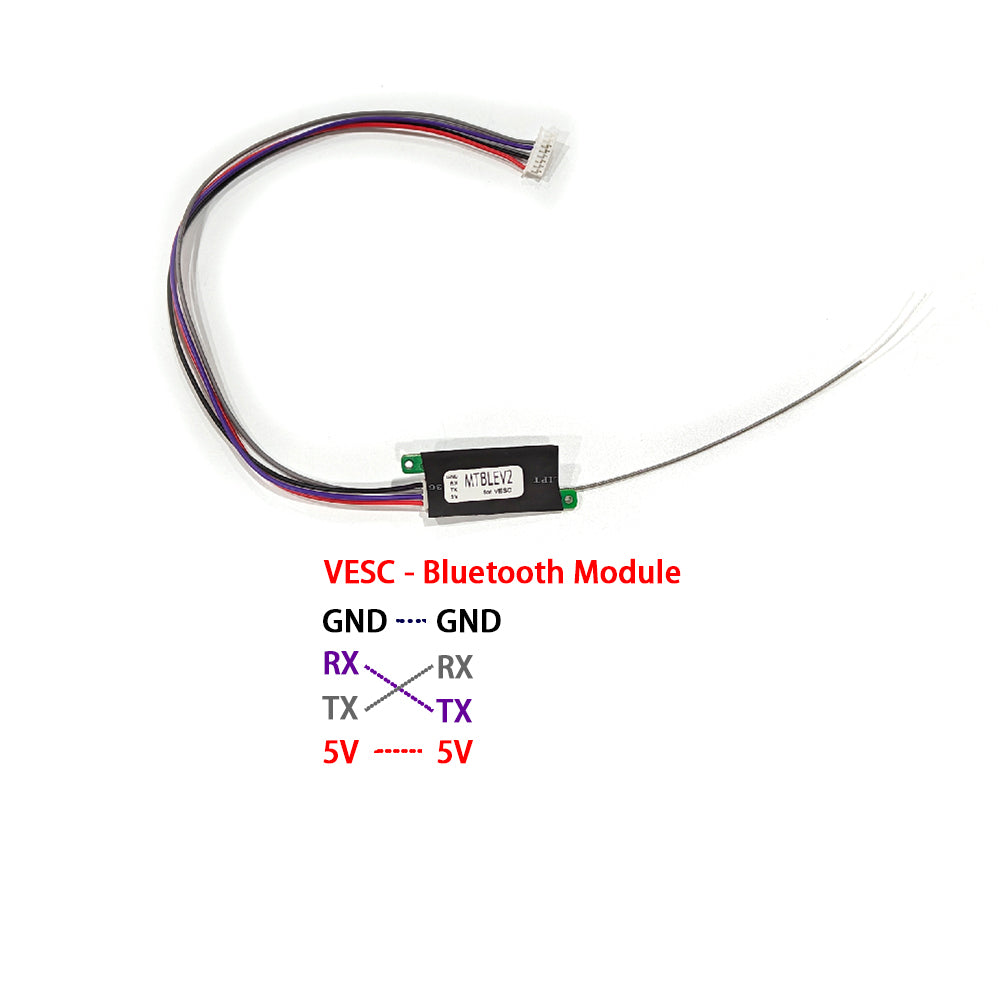

- If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- For V4 based controller:
Do not suggest to use FOC mode, suggest to use BLDC mode.
If need to use FOC mode, then must use voltage under 20V.
- The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
Electric skateboard, Esk8, Eskate, Elongboard, Mountainboard, Offroad skateboad, All terrain skateboard, Eskate, E-bike, Electric bike, Electirc motorcycle, E-scooter, Electric scooter, motorized skateboard, ROV/RPVEE, Remote operated vehicles, underwater robots, Underwater robotics, Underwater remotely operated vehicles, Subsea robots, Cablecam, Cable camera, Broadcast, IBC2019, Ultra drones, Security monitoring robots, Robots for security and safety monitoring in harsh terrain, Agile robots, Autonomous agile robots, Security robots, Autonomously monitor security, Combat robots, Fighting robots, Electric surfboard, Efoil, etc.,
