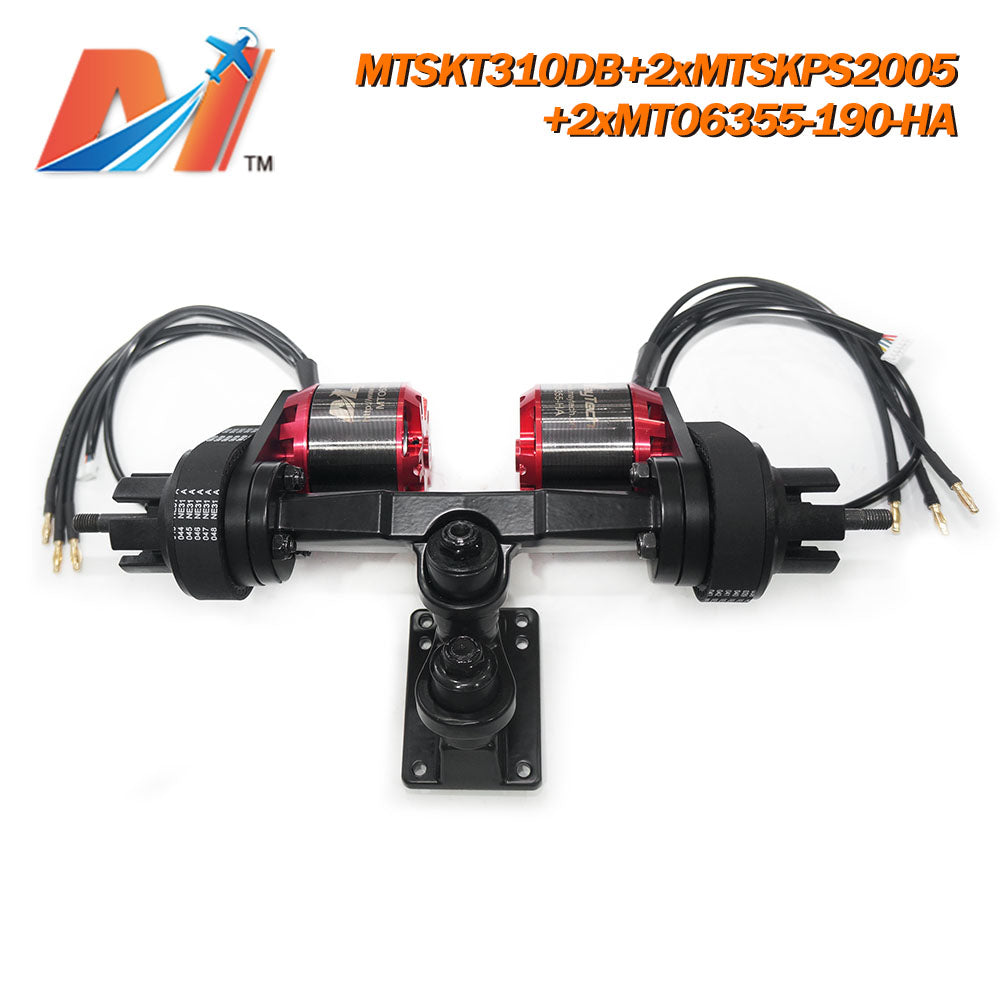

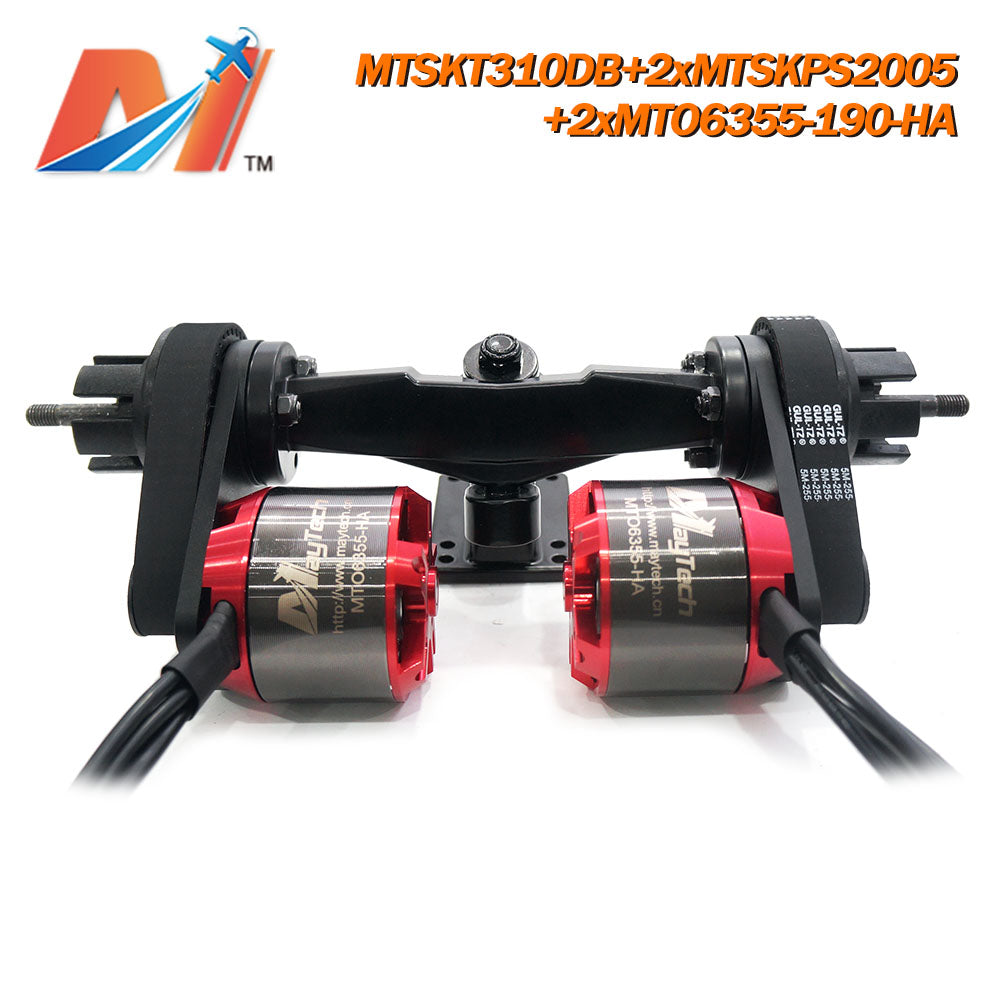

Maytech Electric Skateboard Kit with 2x Unsealed 6355 6365 6374 Motor + MTSKT310DB Front & Rear Truck + 2x MTSKPS2005 Pulley Belt System for Esk8 Elongboard

Maytech Electric Skateboard Kit with 2x Unsealed 6355 6365 6374 Motor + MTSKT310DB Front & Rear Truck + 2x MTSKPS2005 Pulley Belt System for Esk8 Elongboard

Regular price $384.54 USD
Regular price Sale price $384.54 USD
Sale Sold out
Shipping calculated at checkout.
Motor

Maytech Electric Skateboard Kit with 2x Unsealed 6355 6365 6374 Motor + MTSKT310DB Front & Rear Truck + 2x MTSKPS2005 Pulley Belt System for Esk8 Elongboard

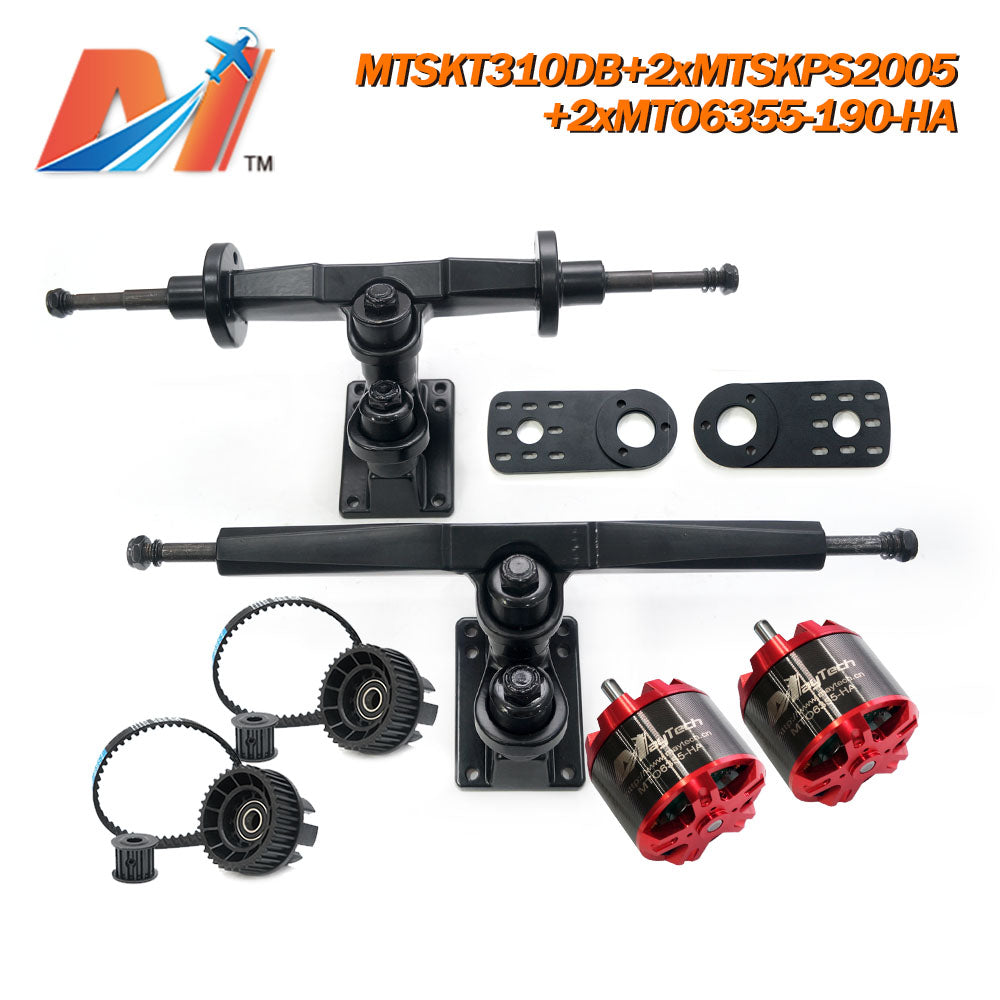

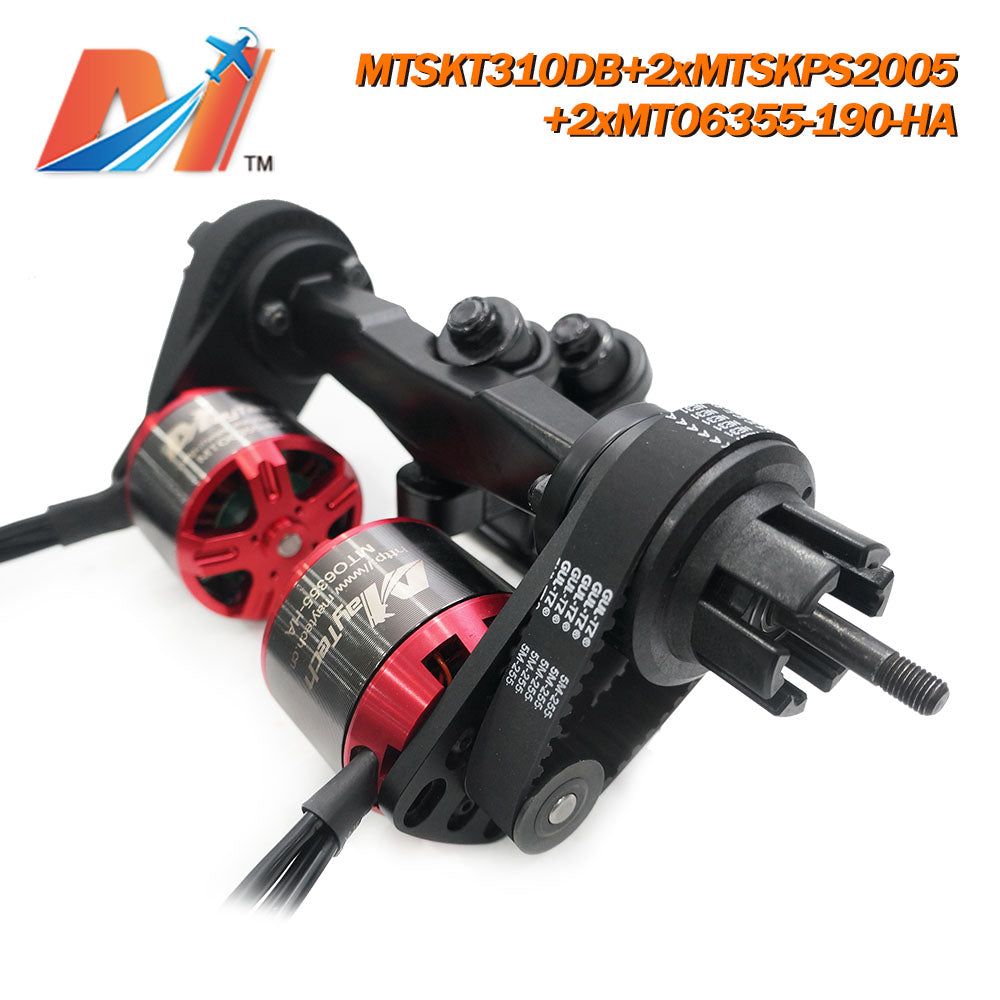

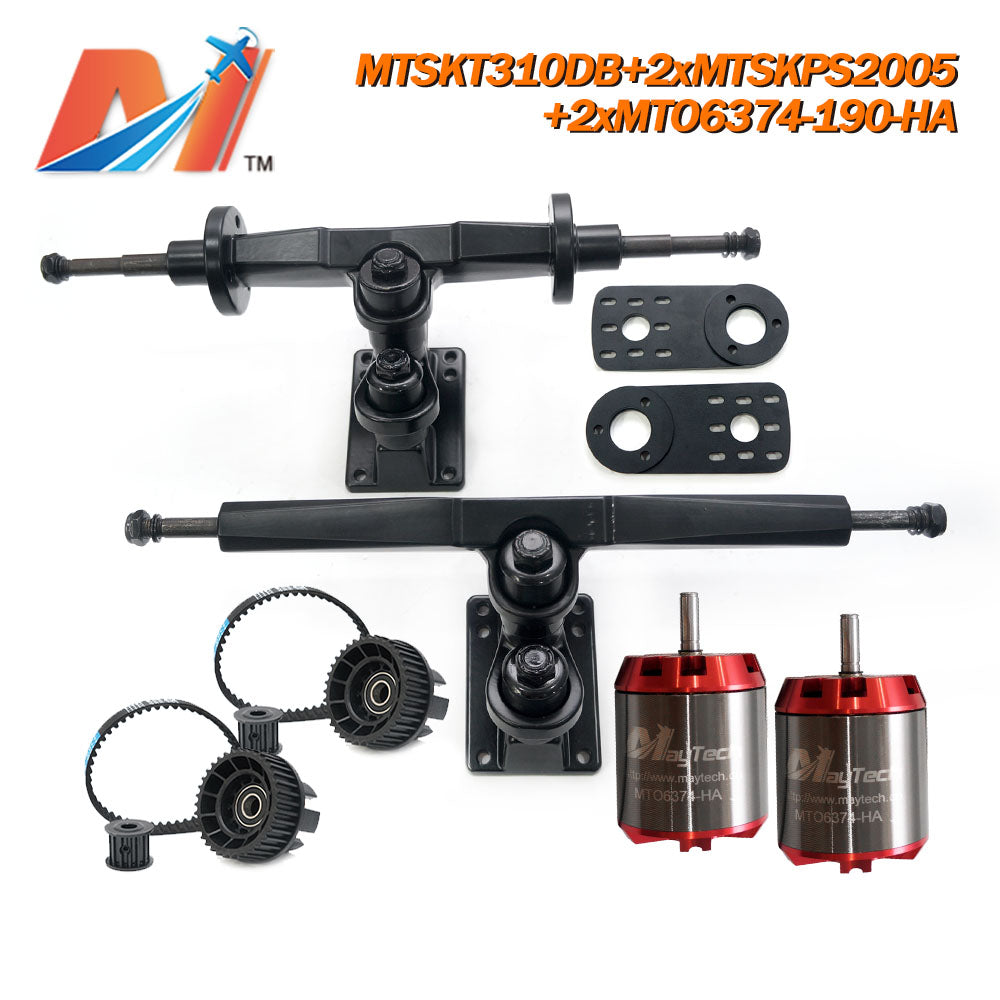

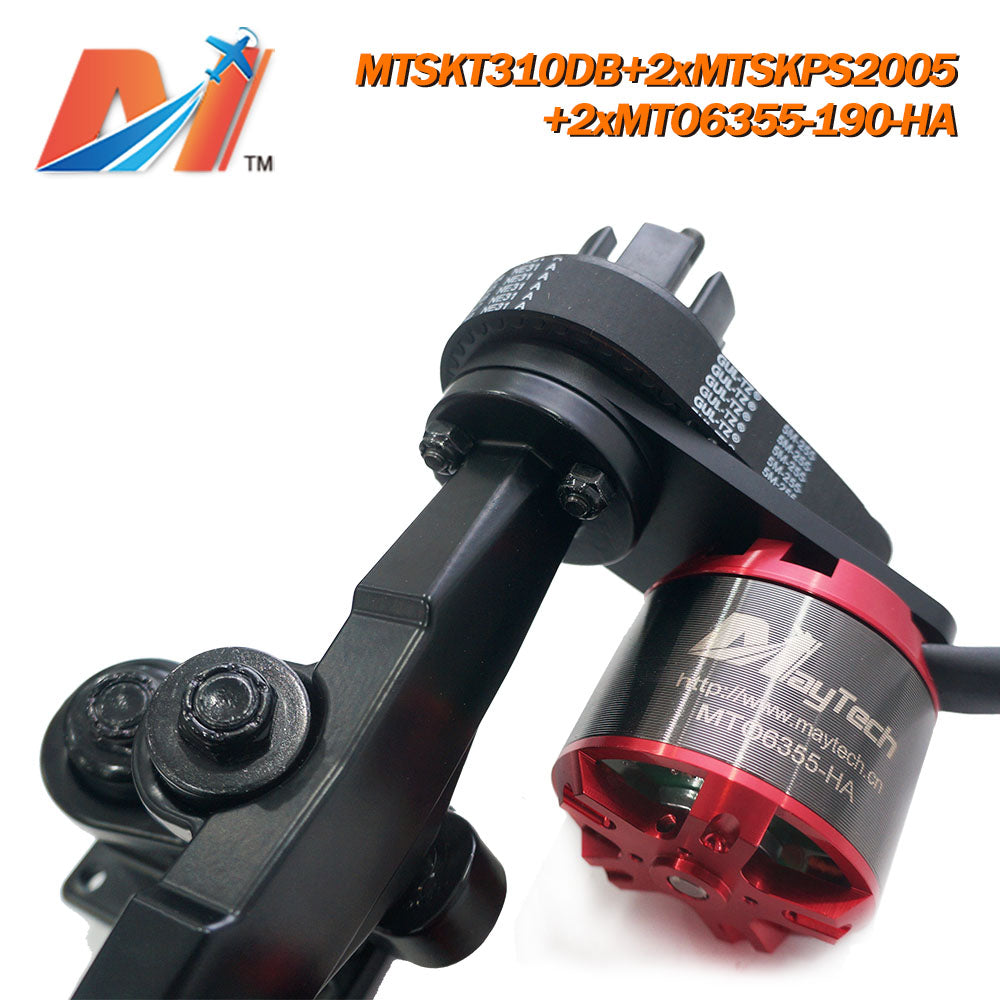

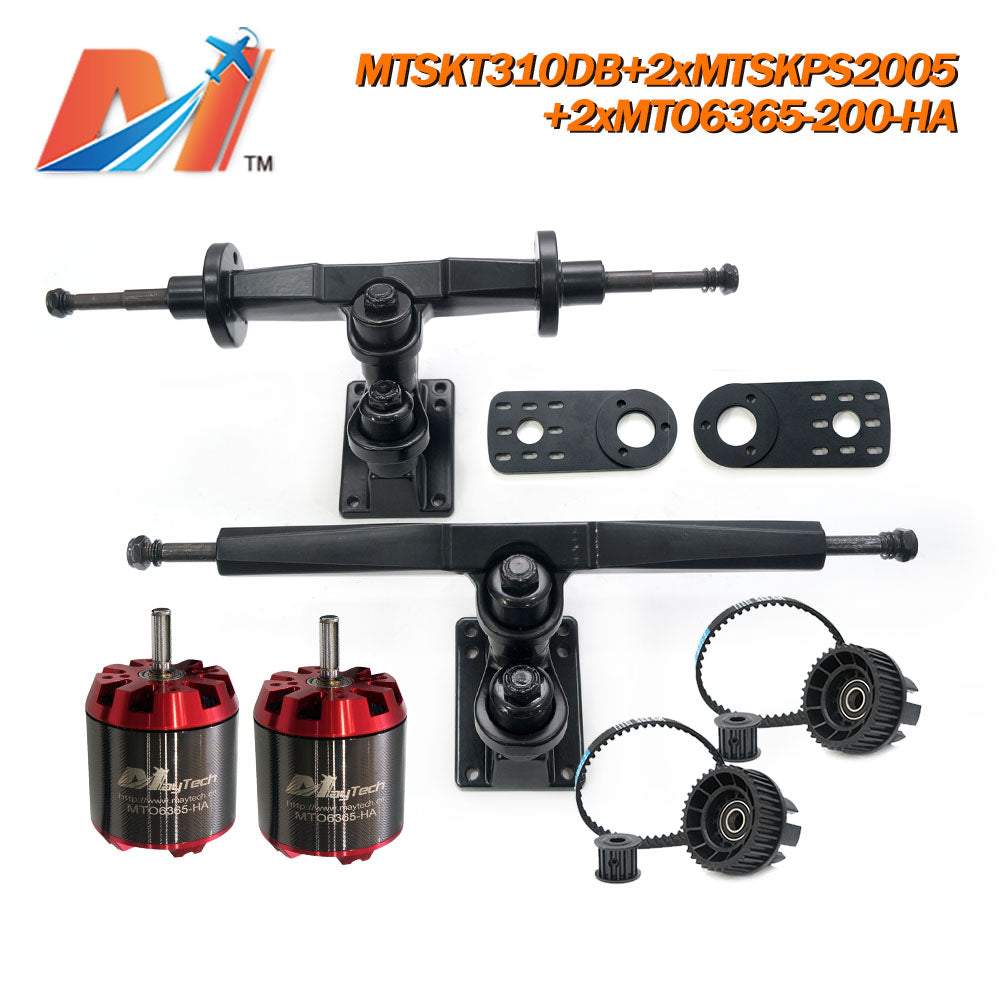

The kit include below products:

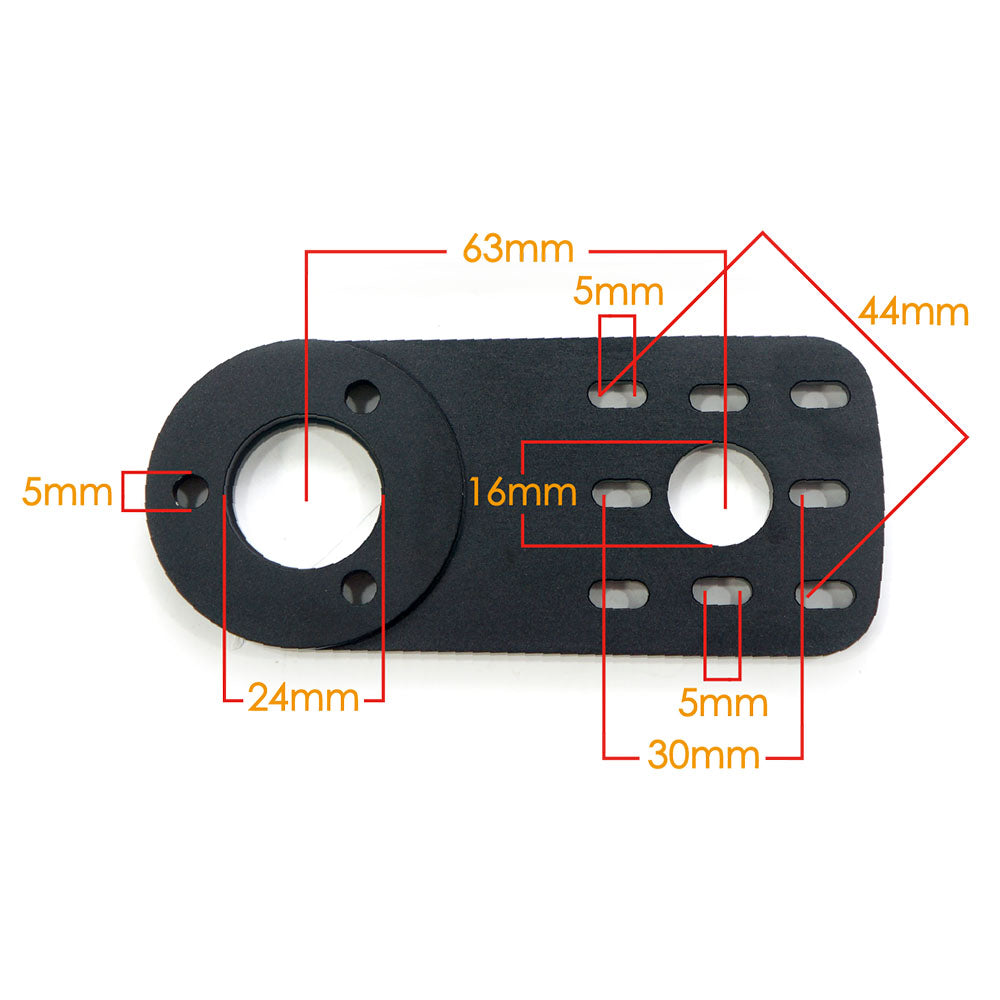

1x MTSKT310DB: Front and Rear Truck set dual motor drive truck with 2pcs motor mount and screws

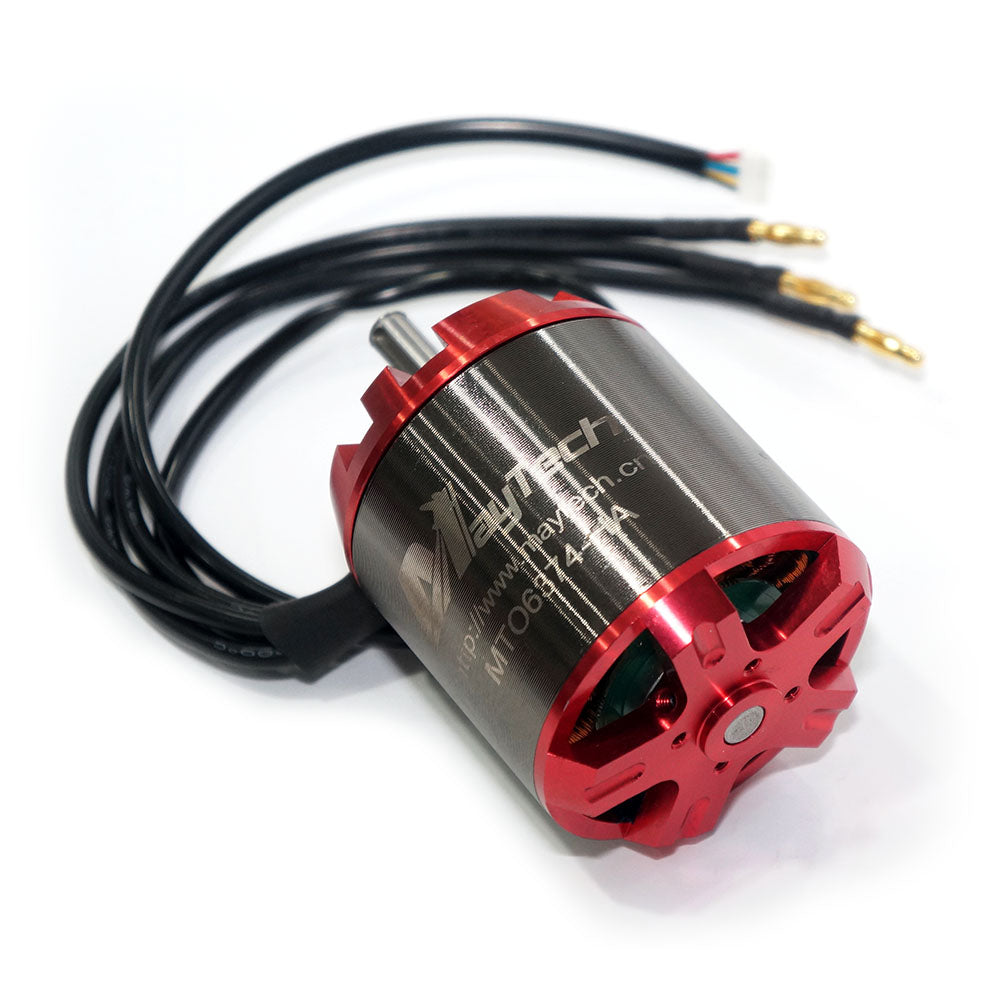

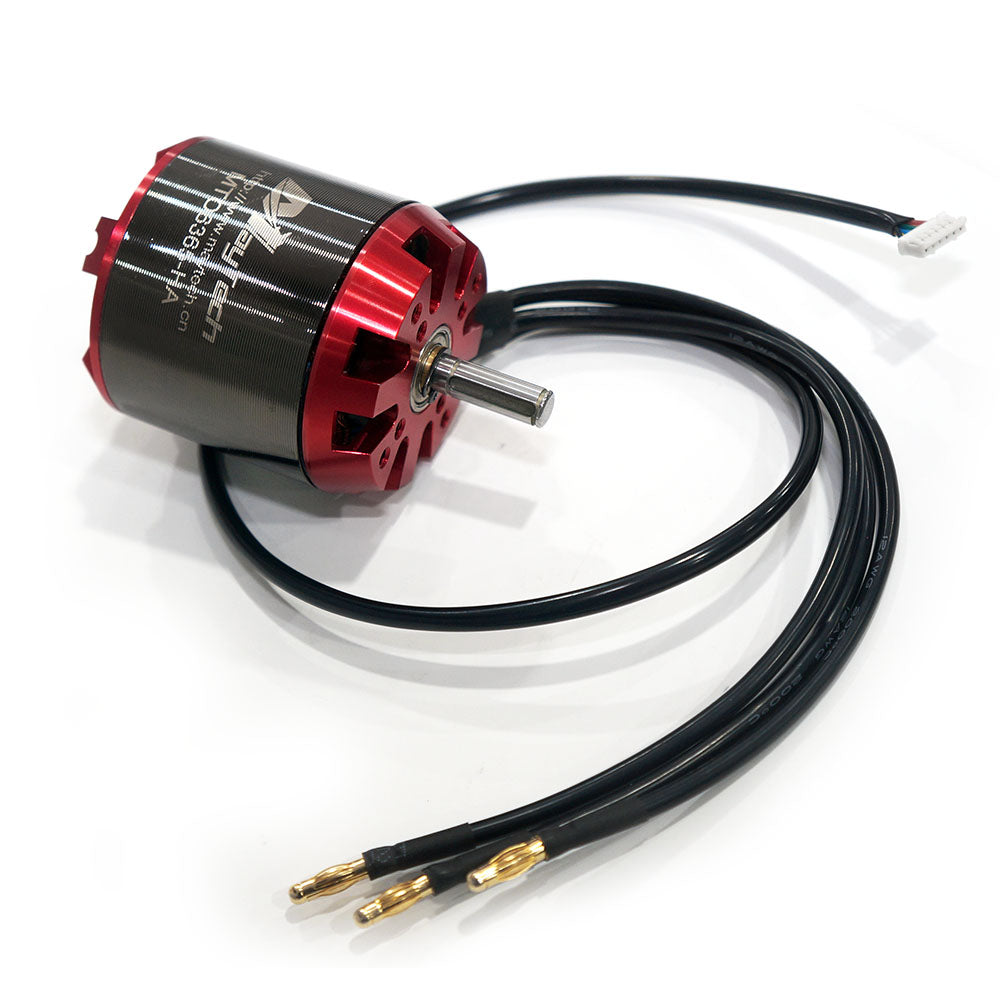

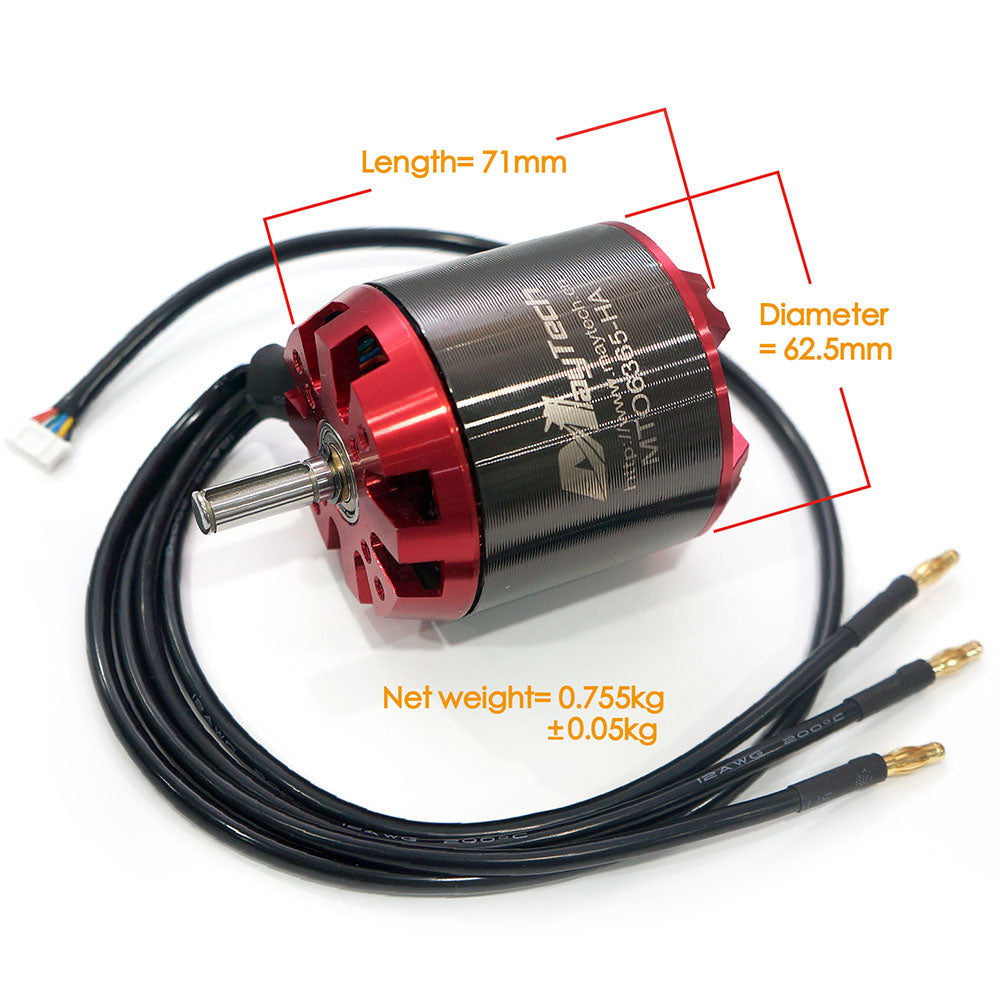

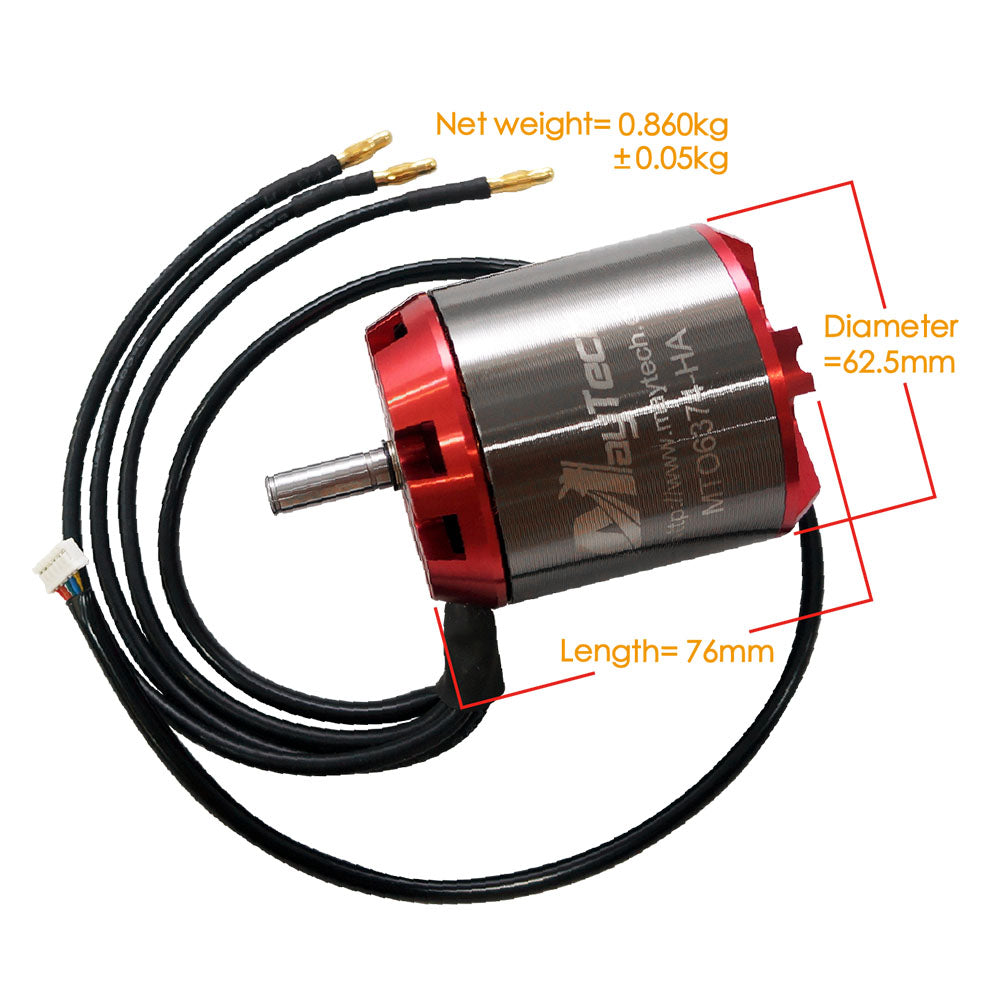

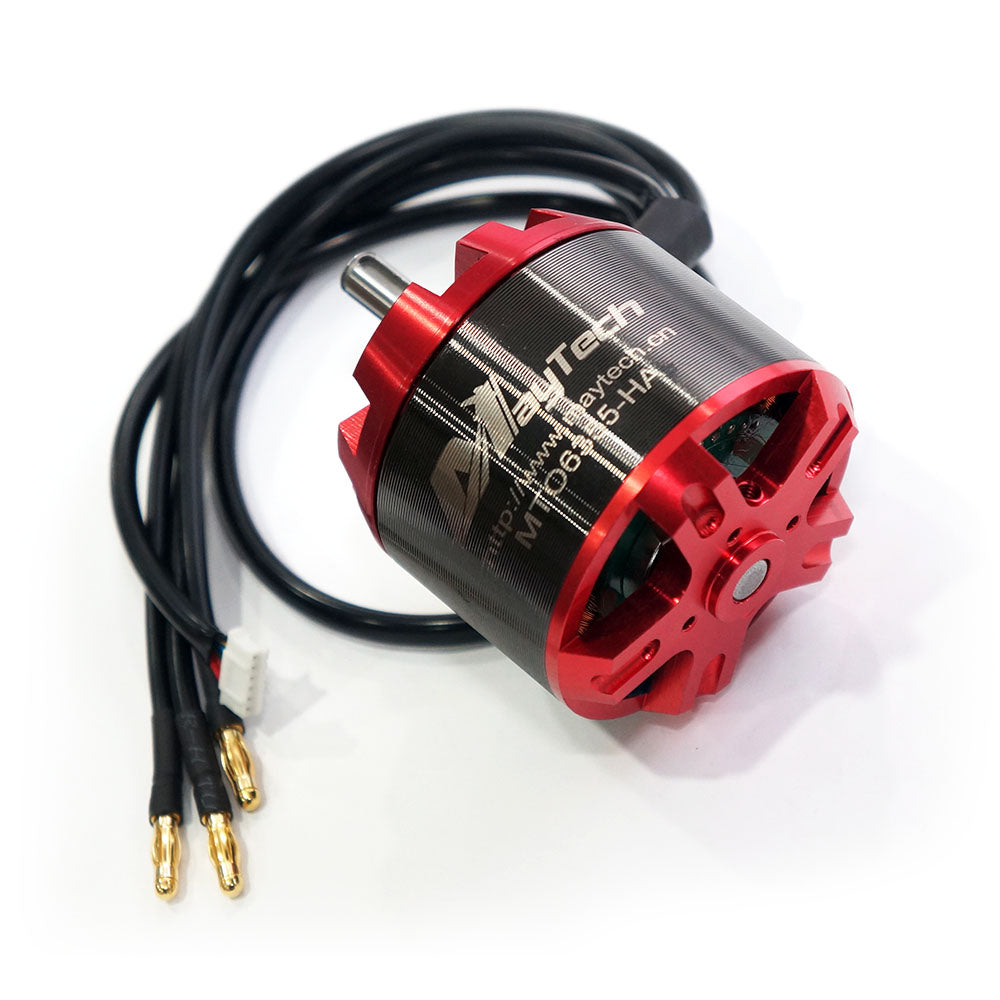

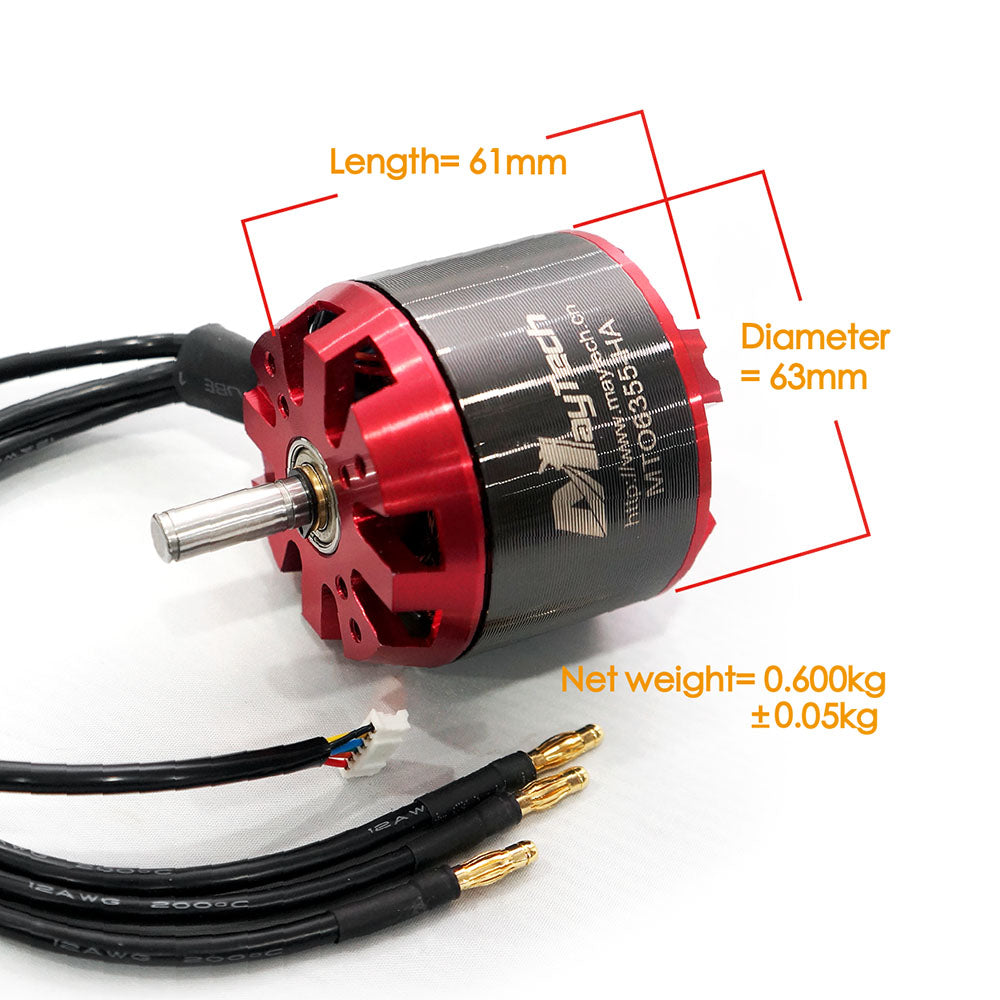

2x MTO6355-190-HA / MTO6365-200-HA / MTO6374-190-HA:

Unsealed Brushless Outrunner Sensored Motor

2x MTSKPS2005: Pulley belt system with wheel pulley, motor pulley, belt

Noted Please:

The kit is not assembled, products shipped in one package seperately, you ned to assemble on your side.

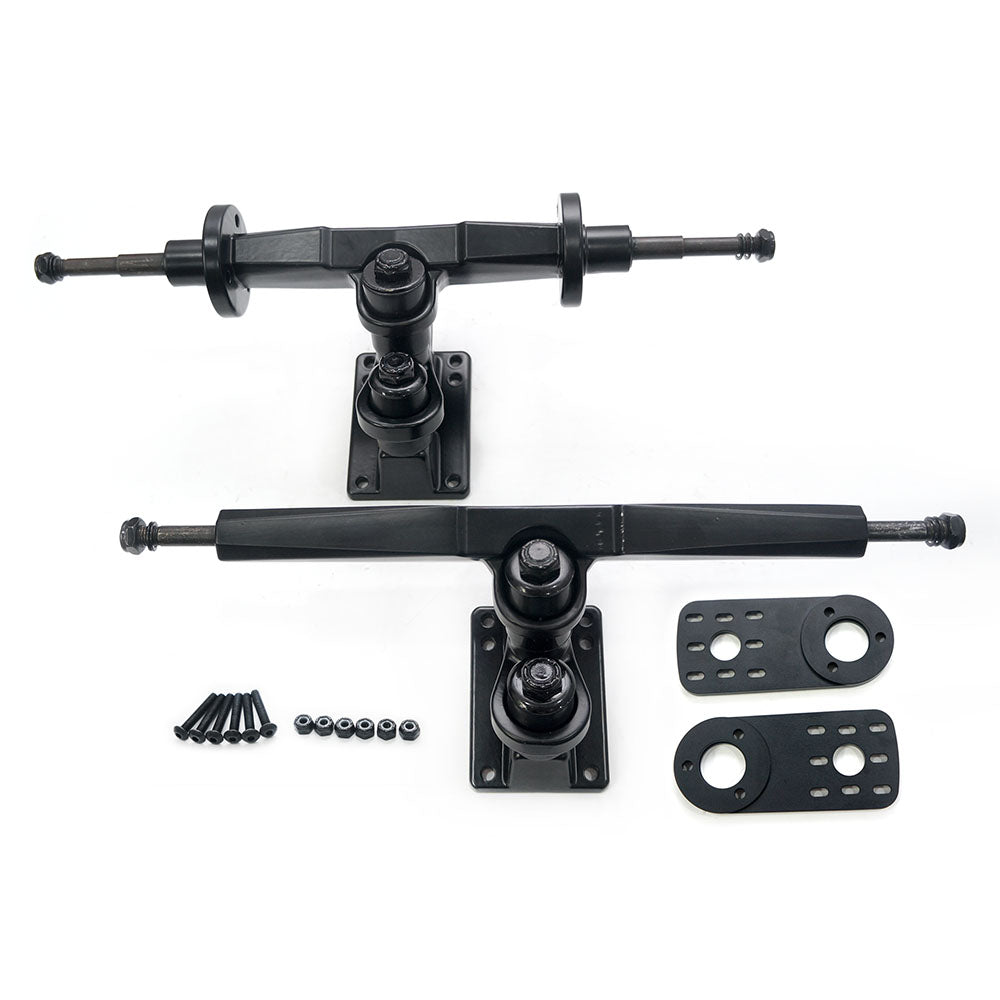

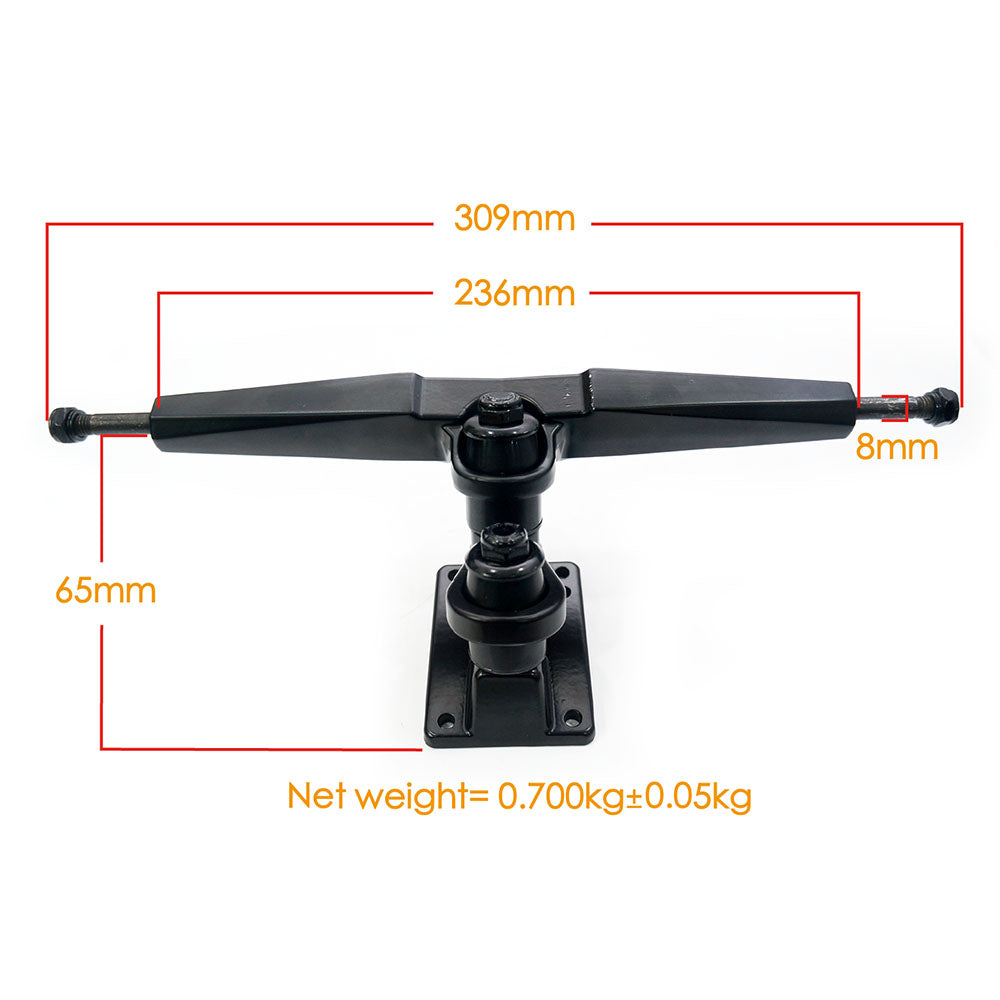

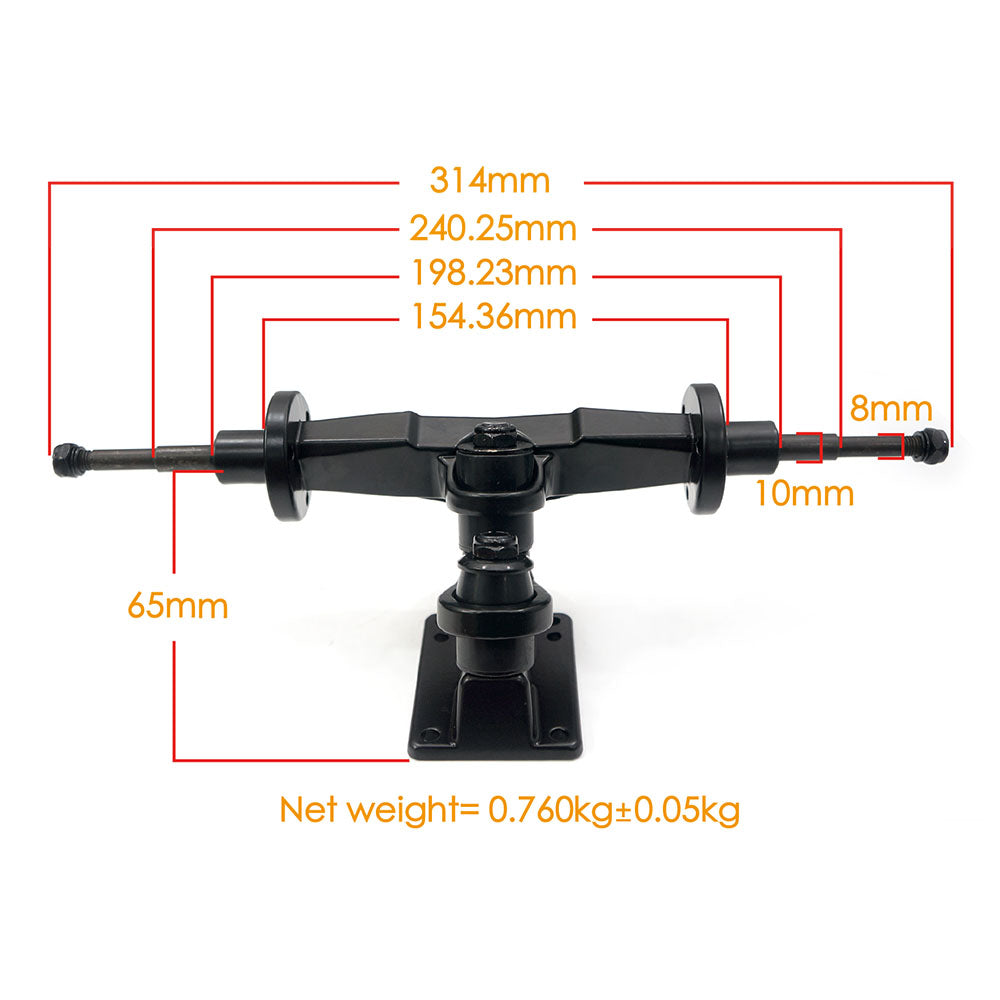

1. MTSKT310DB Dual belt-driven Skateboard Trucks Rear and Front trucks with two motor mounts Truck size: 12inch Frame materials: 356-T6 alloy aluminum alloy Weight: 760g/pcs for back truck, 700g/pcs for front truck Suitable for 5055/5065/6355/6365/6374 motors



New Gravity Casting Technology: 1). Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly. 2). do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before. 3).  Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.

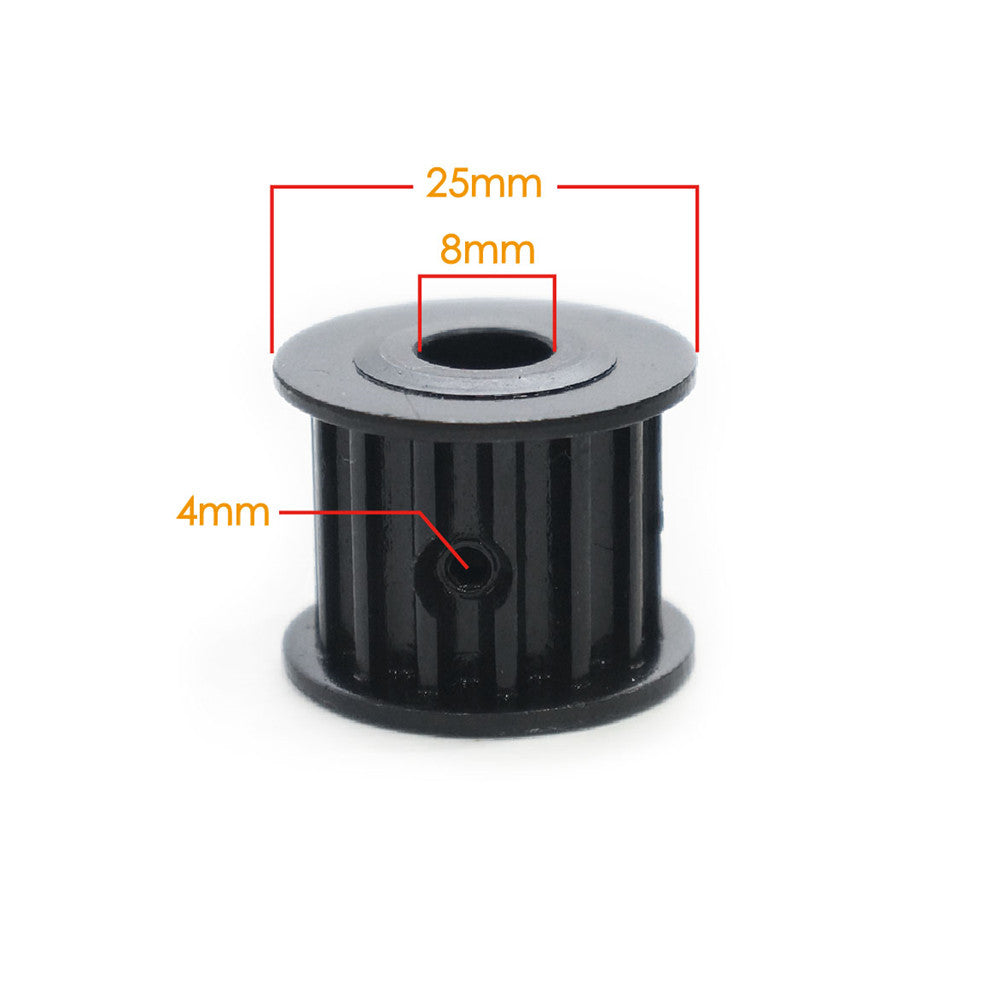

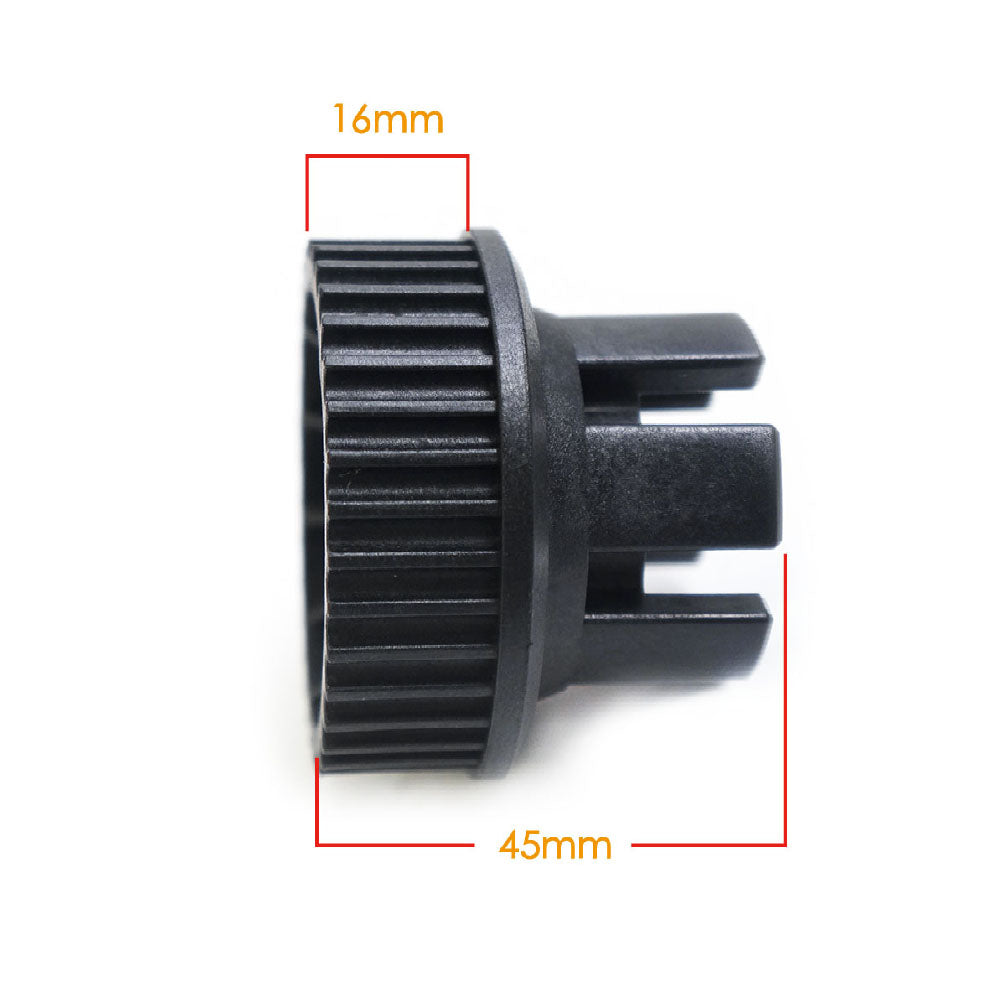

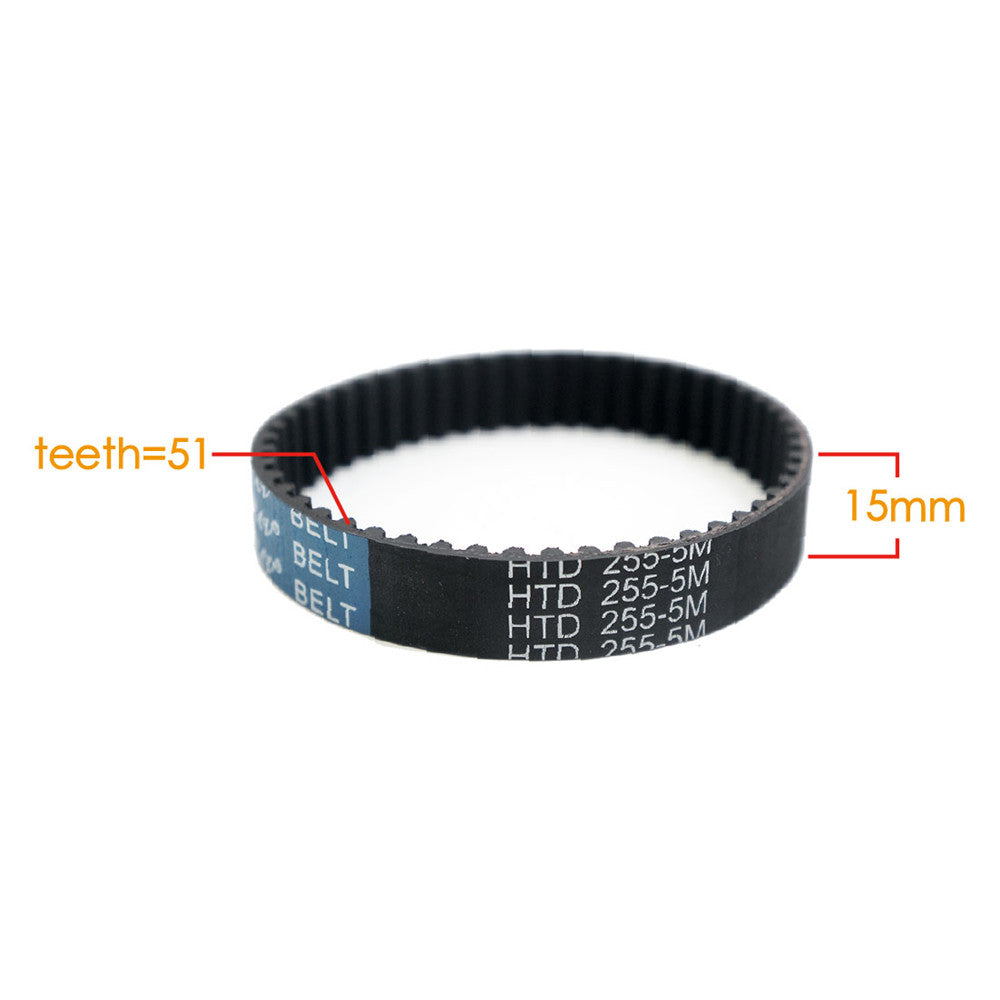

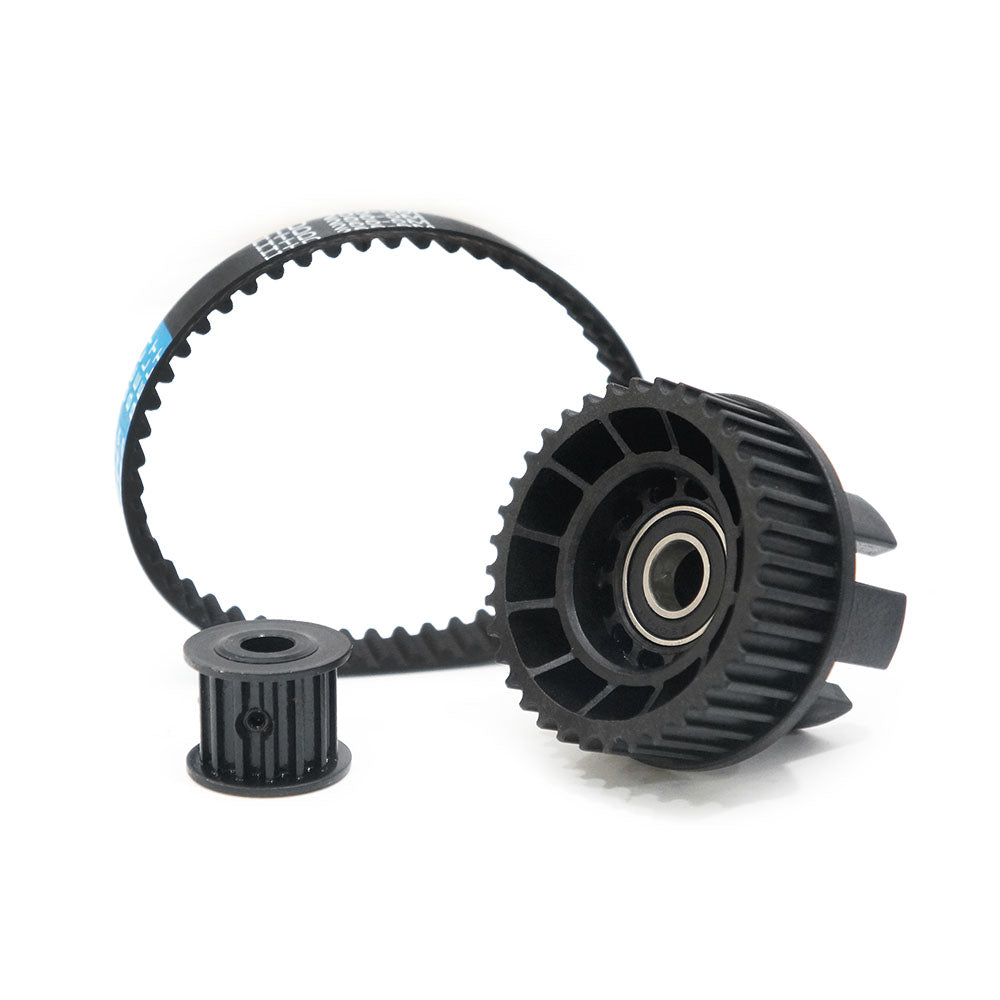

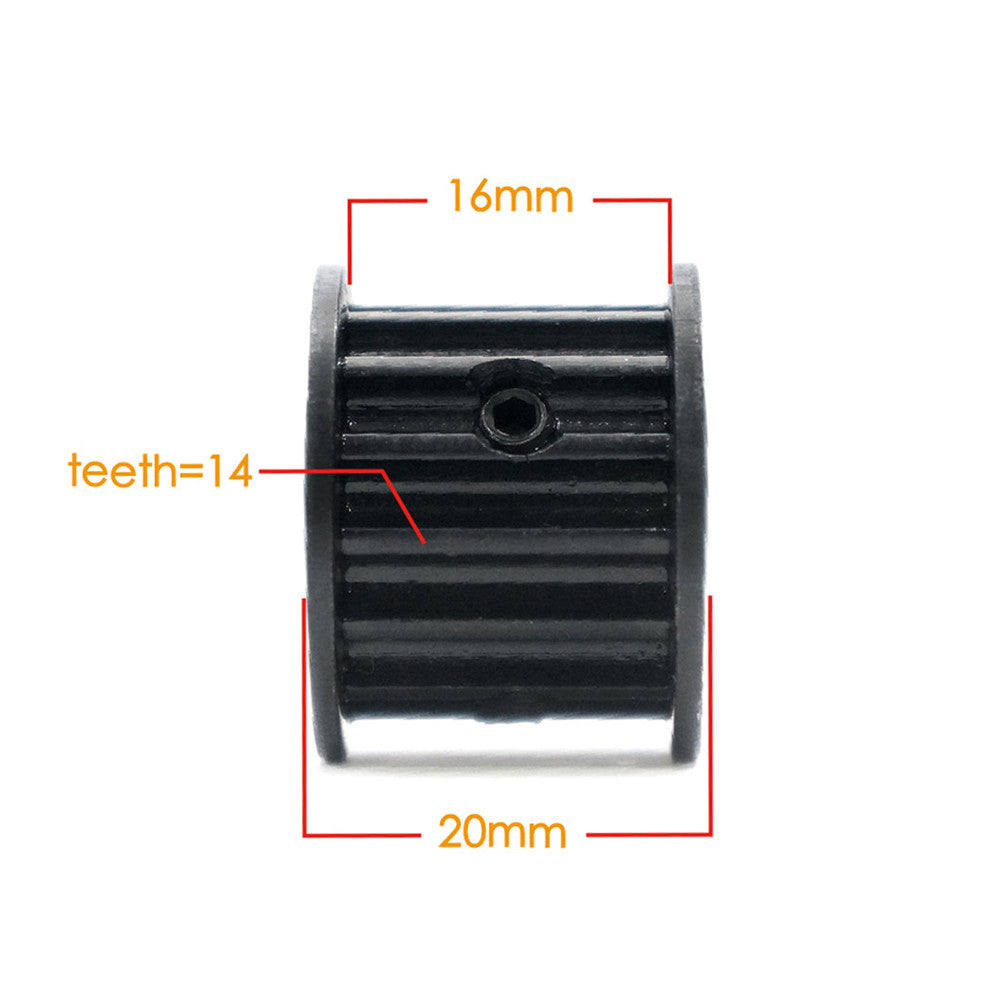

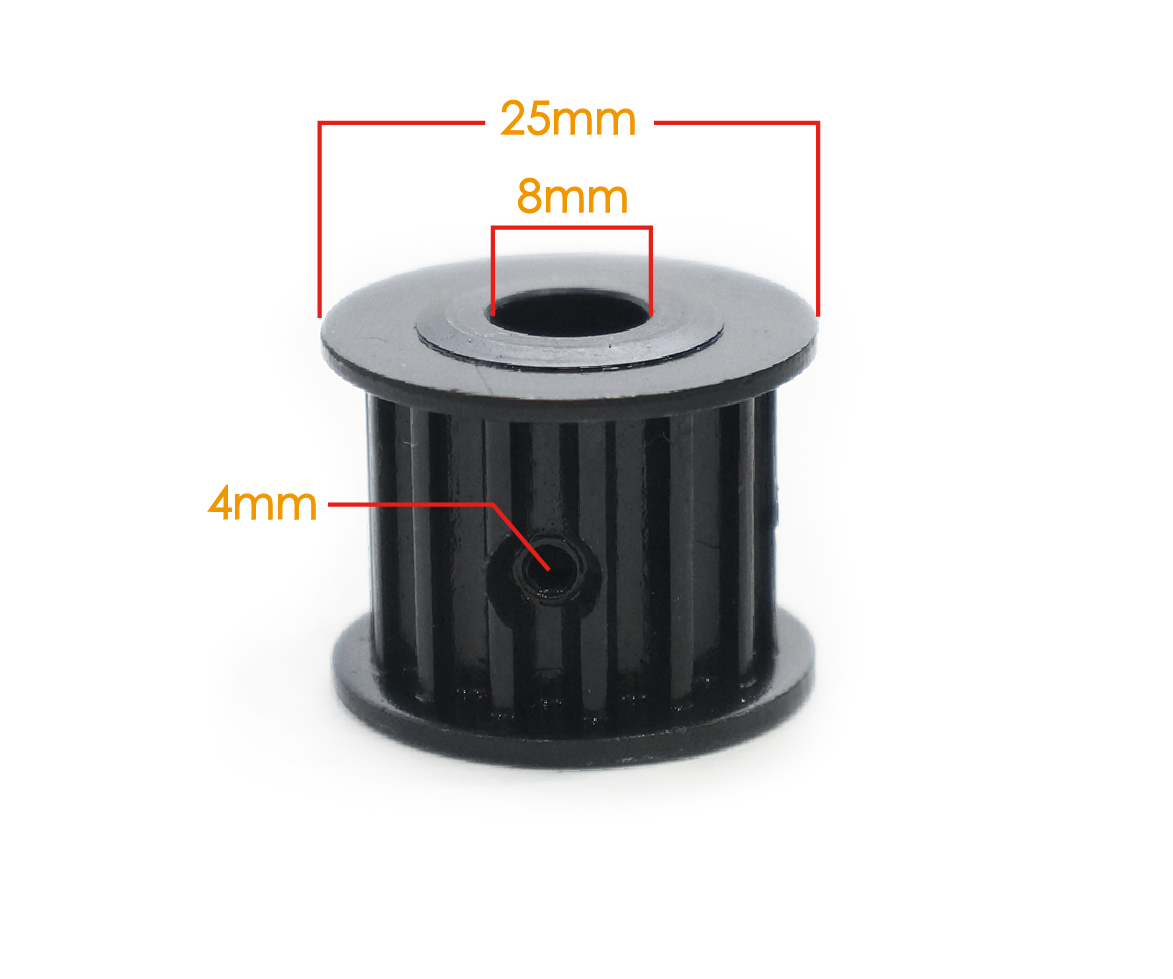

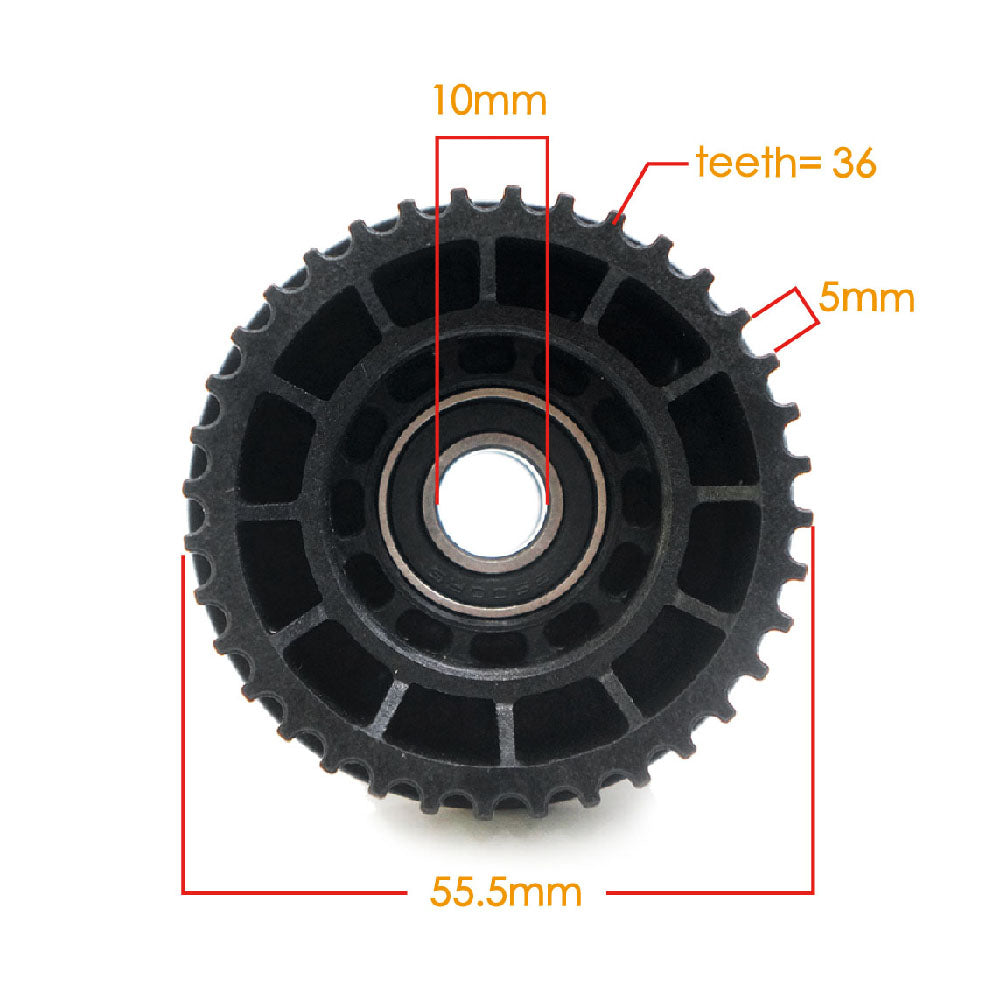

2. Pulleys and Belt Kits (2sets) MTSKPS2005 Belt HTD5M-255, width 15mm; Motor pulley 14T, 5mm pitch, width 16mm;  Wheel pulley 36T, 5mm pitch, width 16mm.





Maytech MTSKPS2005 Pulley Belt Comb with 36T 5M Wheel Pulley with Ball Bearing 14T 5M Motor Pulley 51T 5M HTD255 Belt for Electric Skateboard/Elongboard



maytech brushless motor electric skateboard fighting robots outrunner sensored motor with hall sensor electric skateboard kit elongboard mountainboard esk8 ROV sealed 6355 6365 6374 motor powerful engine



Mayetch Brushless 6355 170KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/Fighting Robots





Maytech Brushless 6365 200KV Open Cover Outrunner Sensored Motor for Esk8/E-bike/E-scooter
Maytech Brushless 6374 90/190KV Open Cover Outrunner Sensored Motor for Esk8/Robots



Stock Notice Before Place Order:

1. The motor is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.

2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.

3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
