In Stock Brushless 6365 Sealed Motor 8mm Shaft Sensored 170/220KV
In Stock Brushless 6365 Sealed Motor 8mm Shaft Sensored 170/220KV
Couldn't load pickup availability

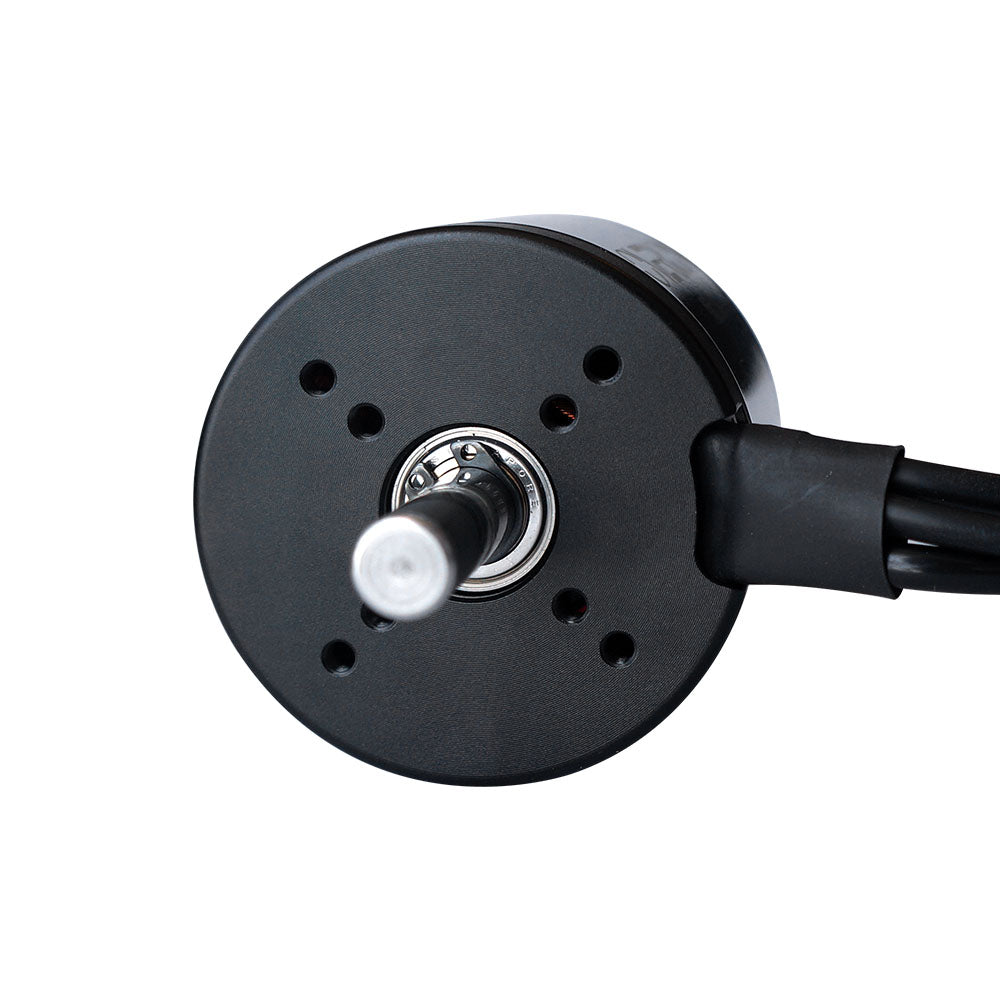

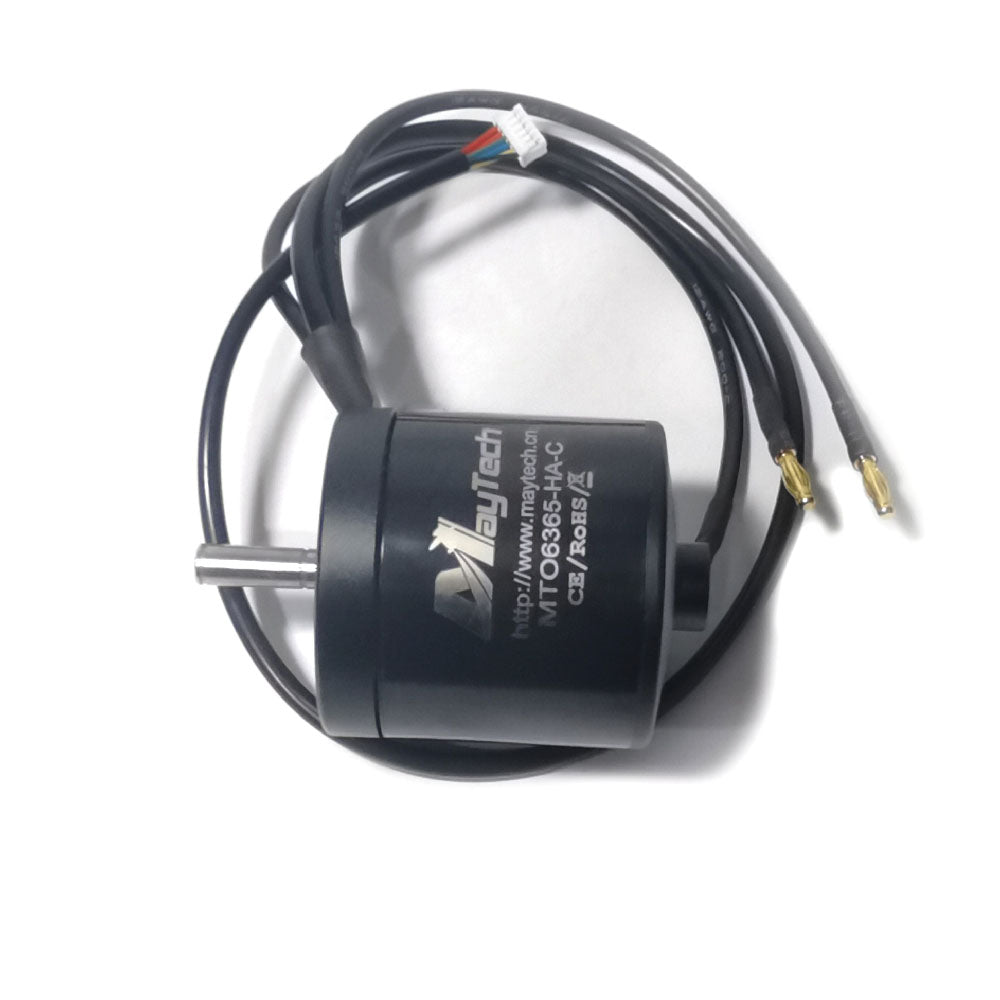

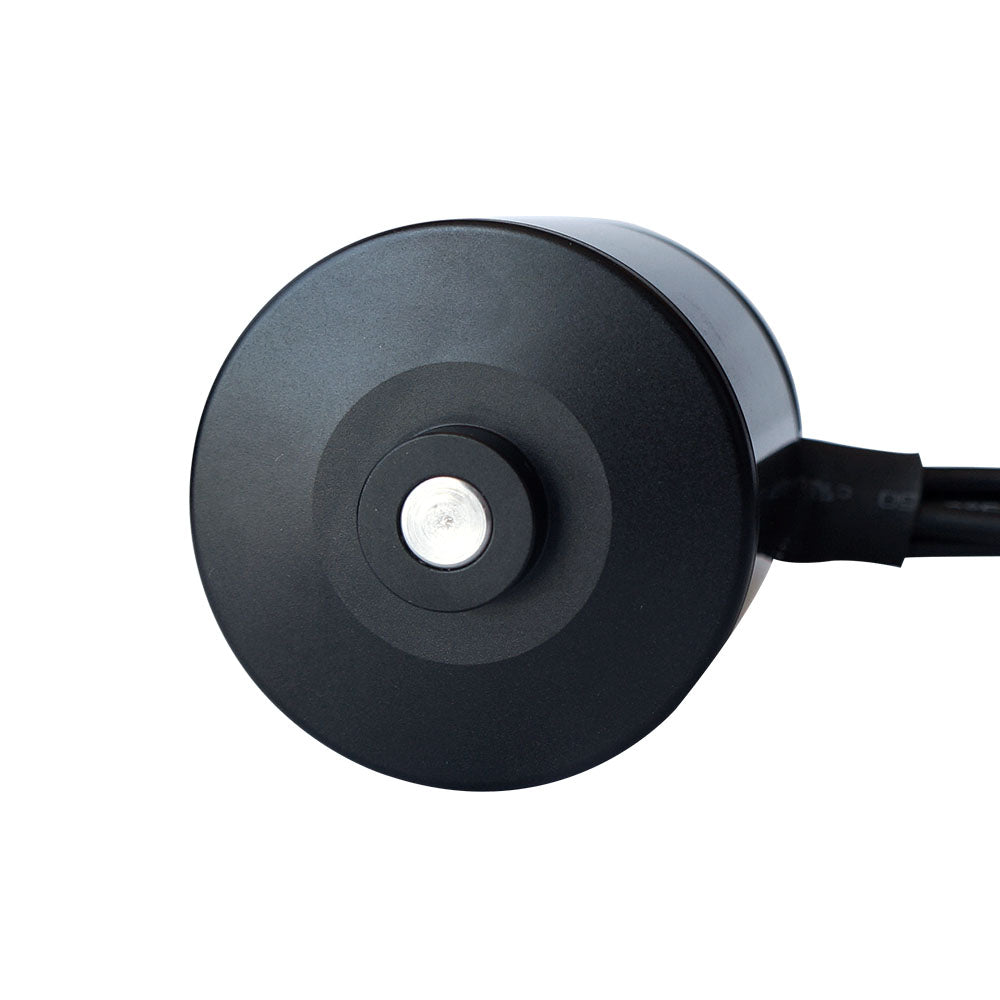

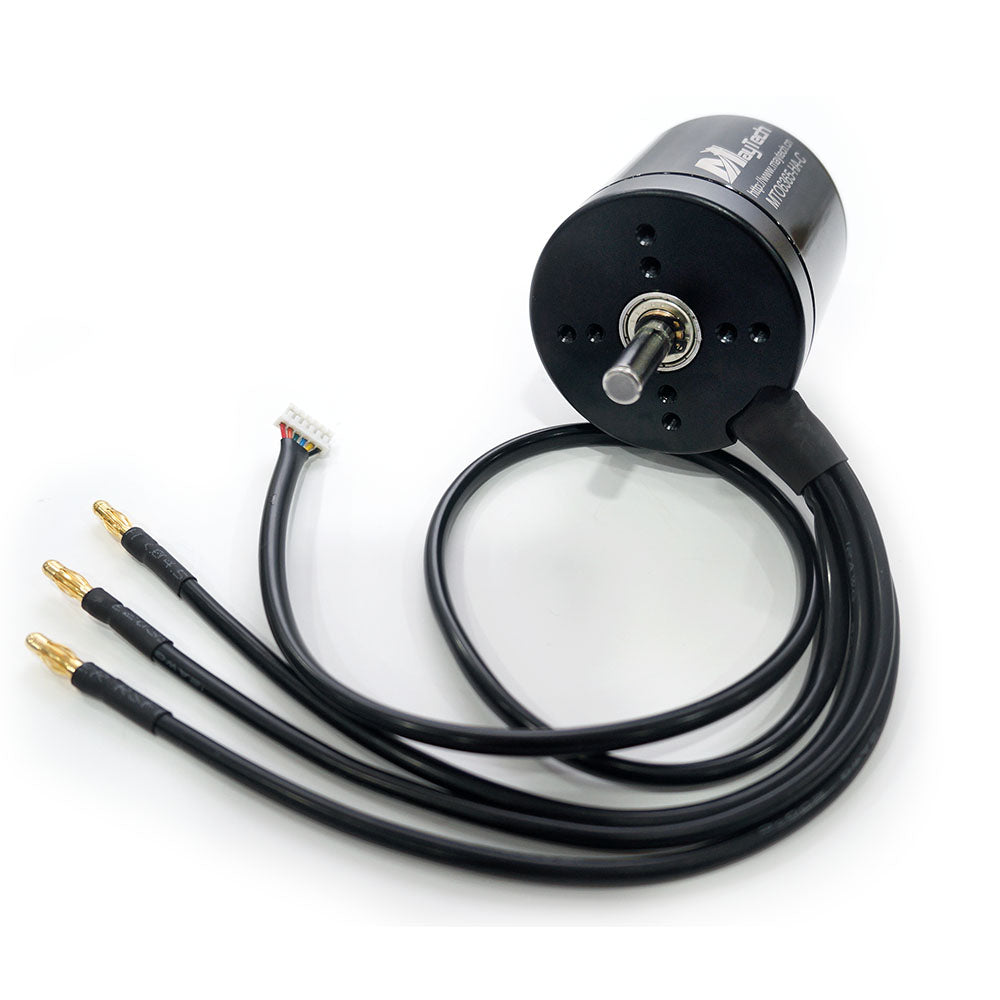

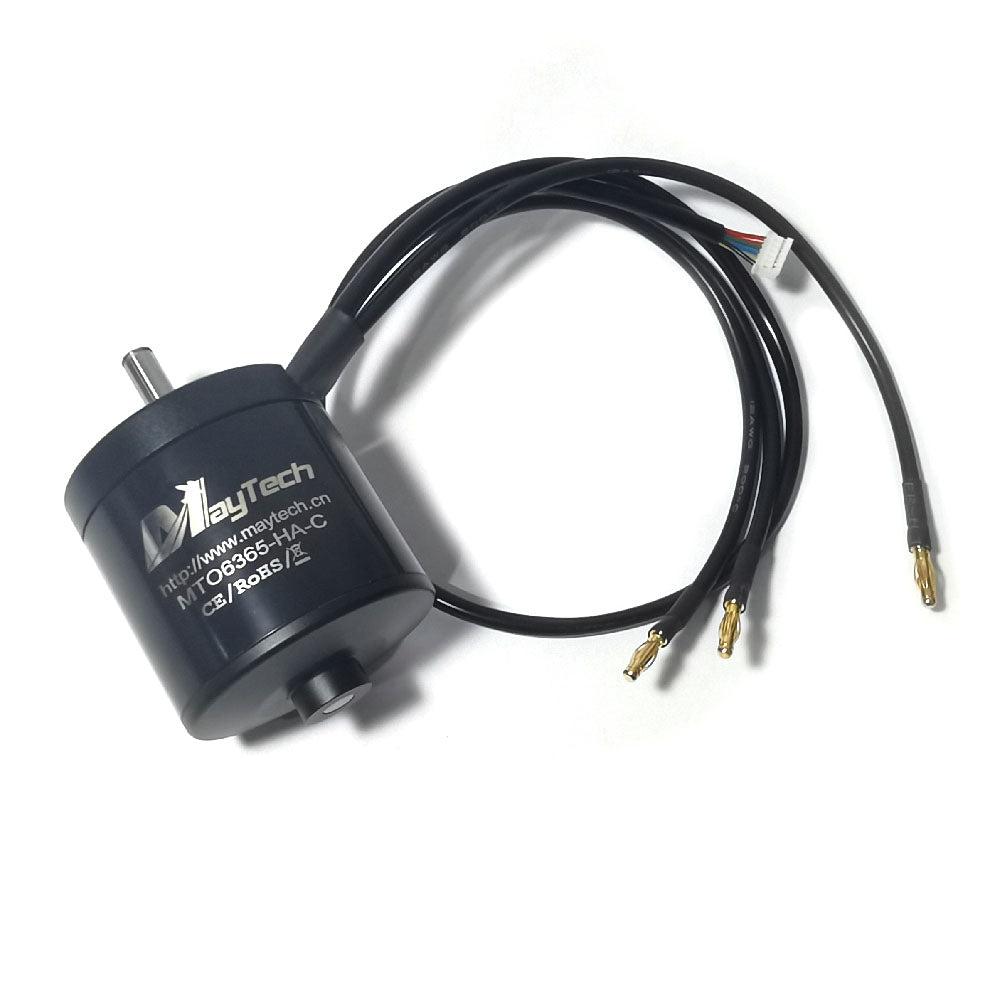

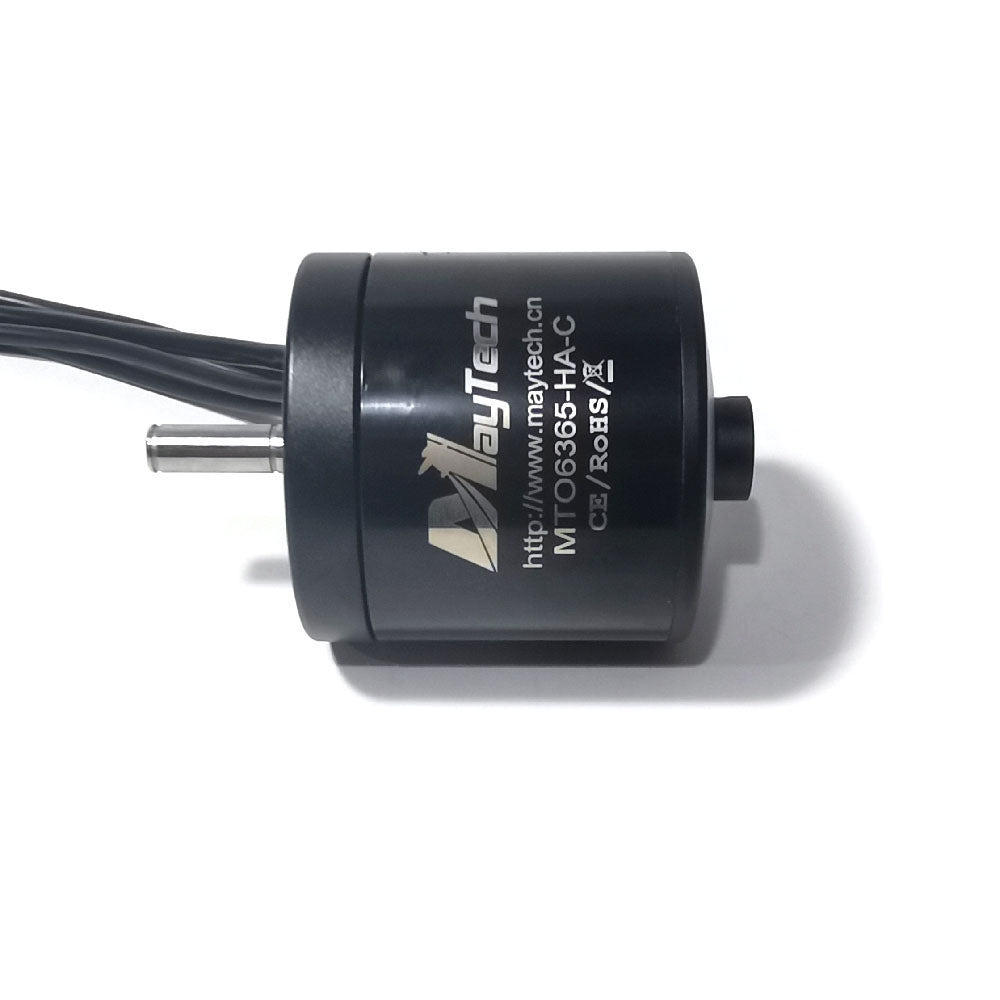

Maytech Brushless 6365 170KV Closed Cover Outrunner Sensored Motor 8mm Shaft IP54 Splash Waterproof for Electric Skateboard/Robots/Mountainboard MTO6365-170-HA-C
Model No
|
MTO6365-HA-C
|
KV
|
170/220
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3520W
|
Max Pull
|
9700g
|
Rated Current
|
60A
|

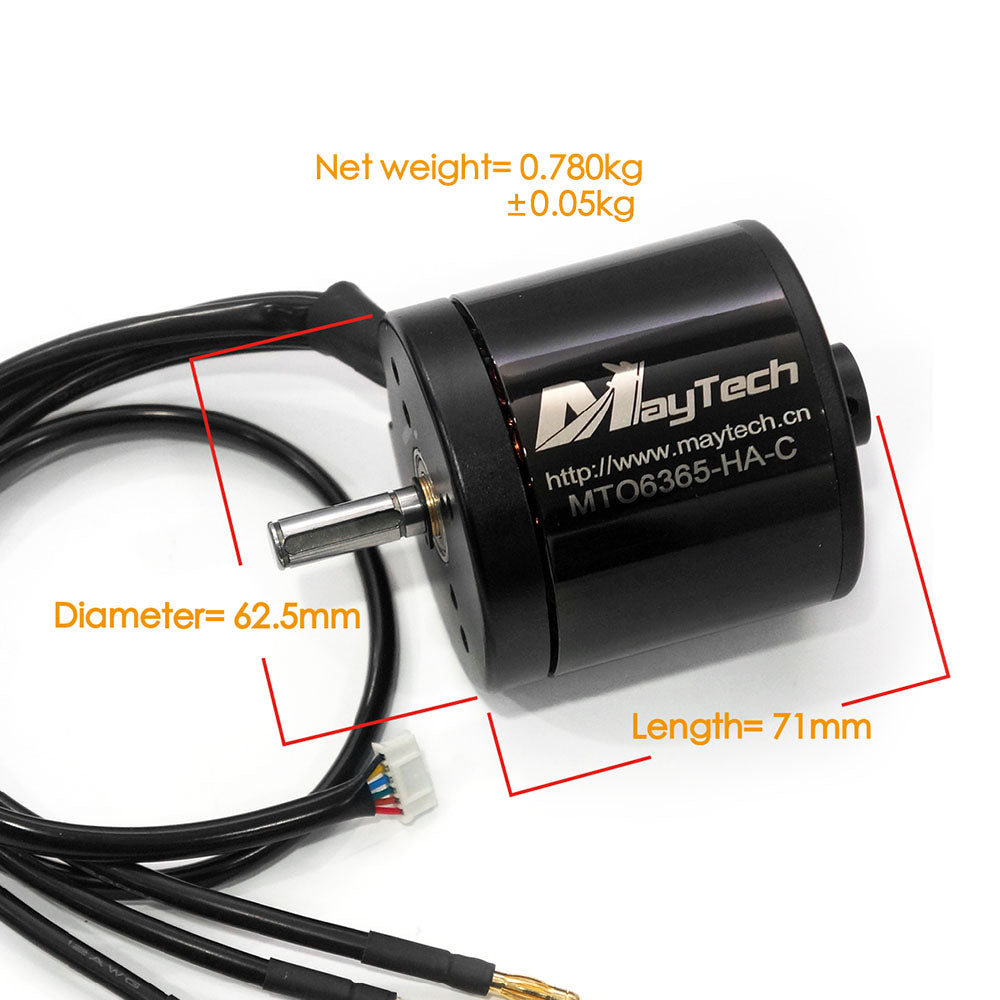

Motor Weight
|
760g
|
Shaft
|
8mm
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0402
|
Notice:

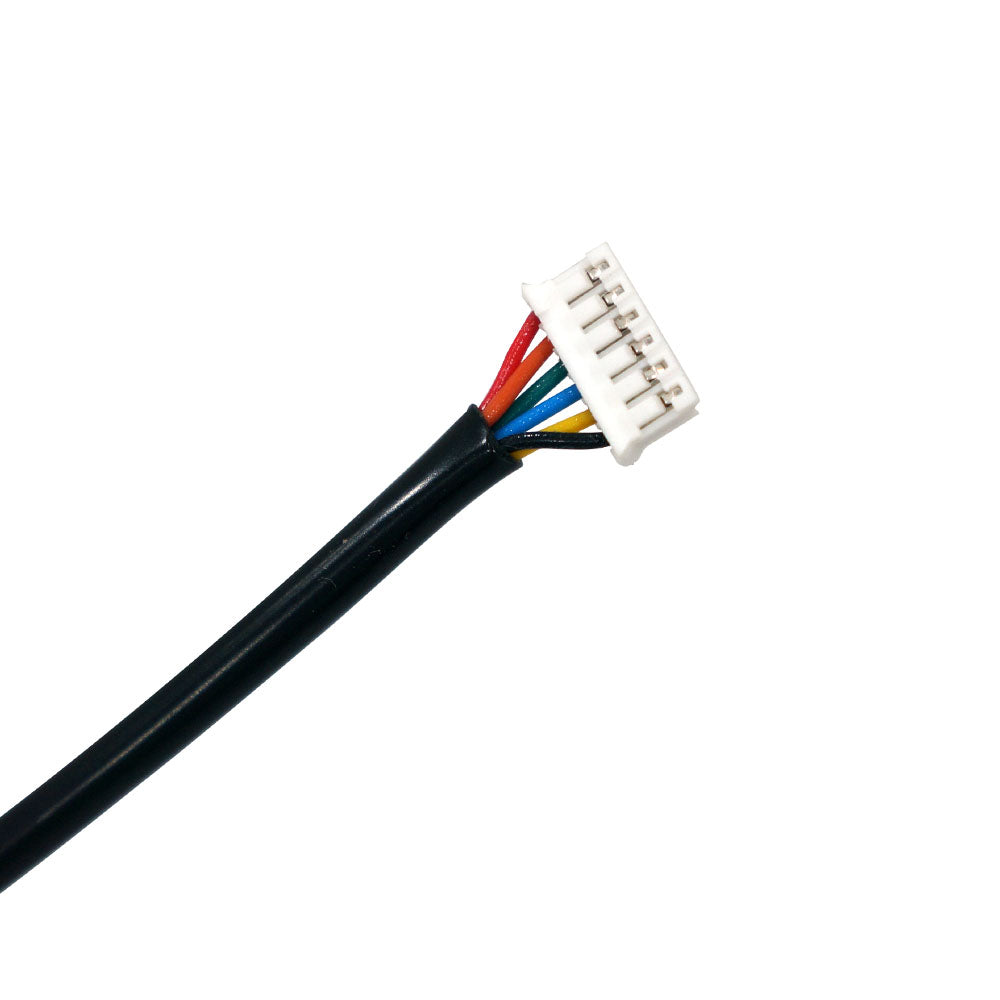

The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.

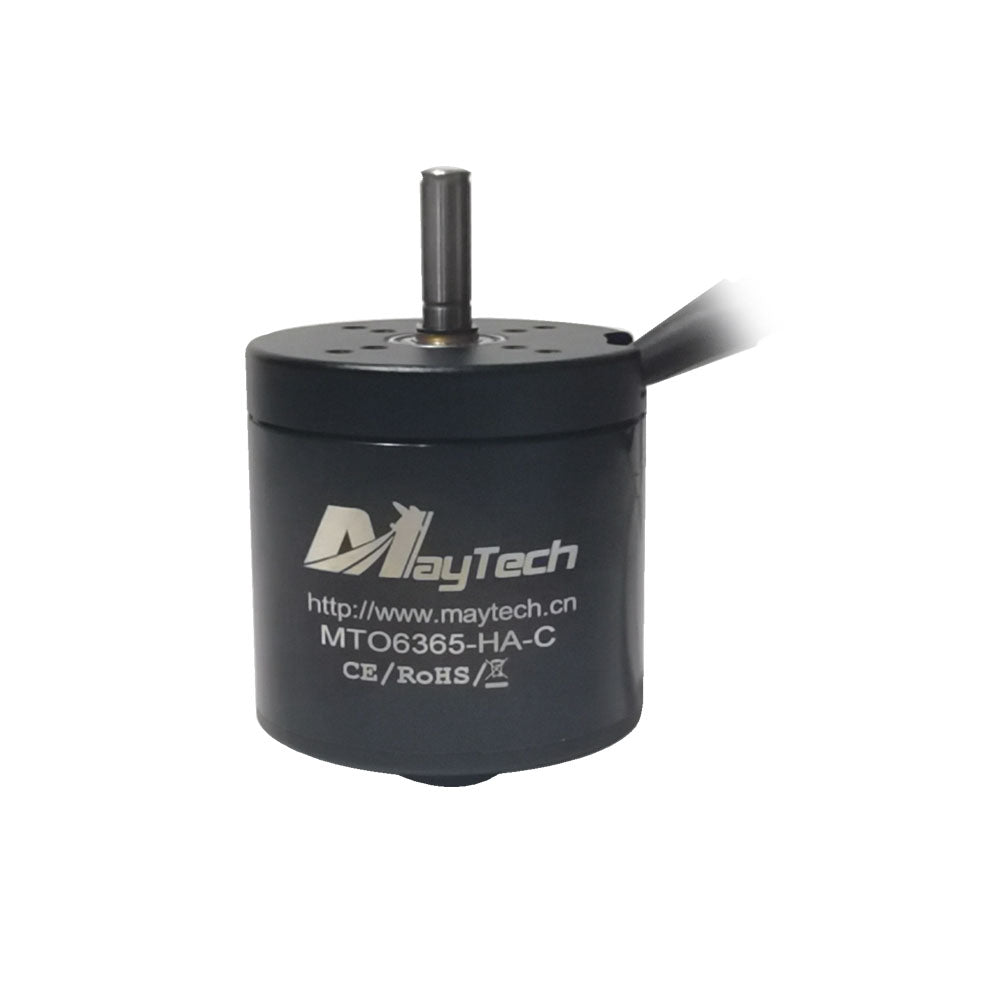

Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.













Stock Notice Before Place Order:
1. The motor 170KV is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Related Products: (Click the following pictures to check more products)
Maytech MTSKR2005WF New Waterproof Remote for Esk8 Only with 3 Speed Modes
Maytech Brushless Outrunner Sensored Motors
Maytech VESC_TOOL Compitable Controller:
Maytech MTSKR1712 Small and Light Cheap Remote:
Motor Drawing:
