In Stock Maytech MTI120116 18.8KW Watercooled BLDC Motor Inrunner Sensorless Engine for Esurf/ RC Boat

Esurf / Boat Kit: Watercooed 120116 Motor 18.8KW 500A Waterproof ESC MTSKR1905WF Remote Water Pump

Esurf / Boat Kit: Watercooed 120116 Motor 18.8KW 500A Waterproof ESC MTSKR1905WF Remote Water Pump

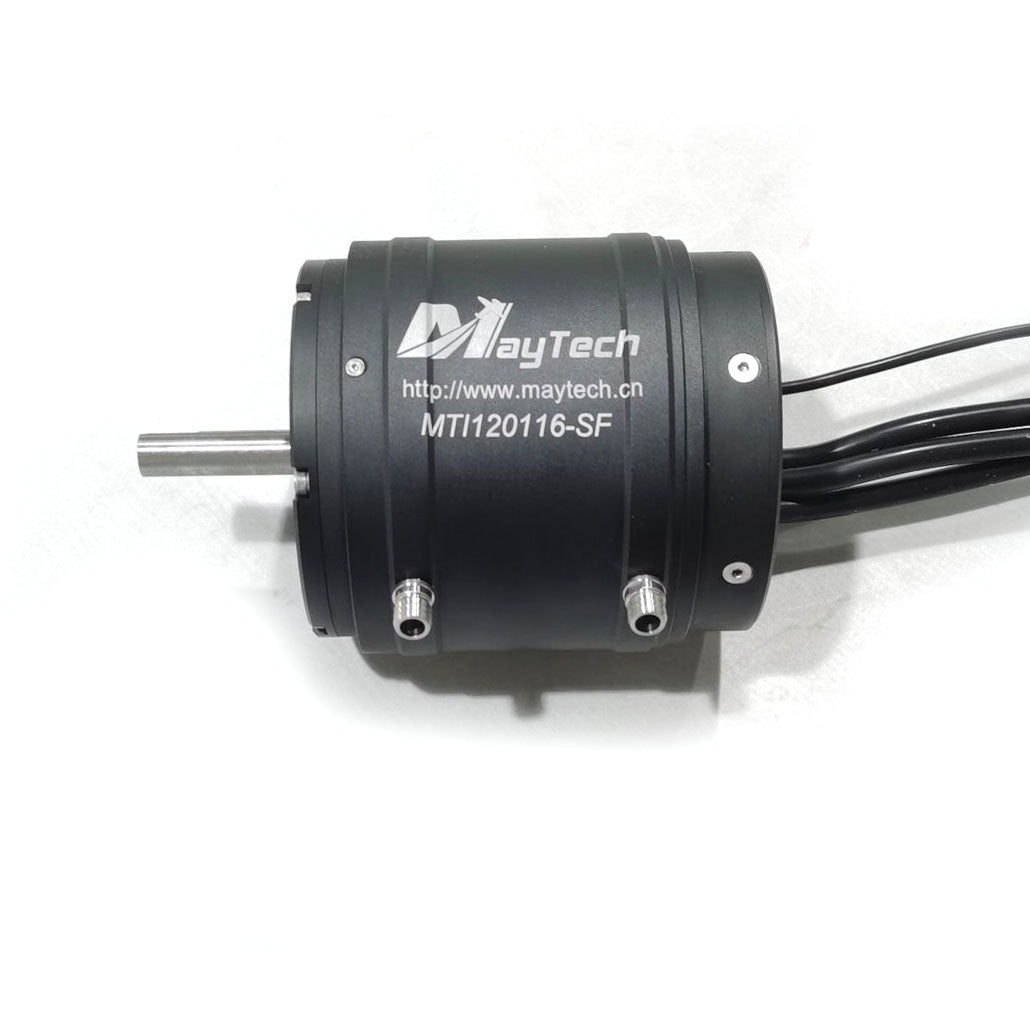

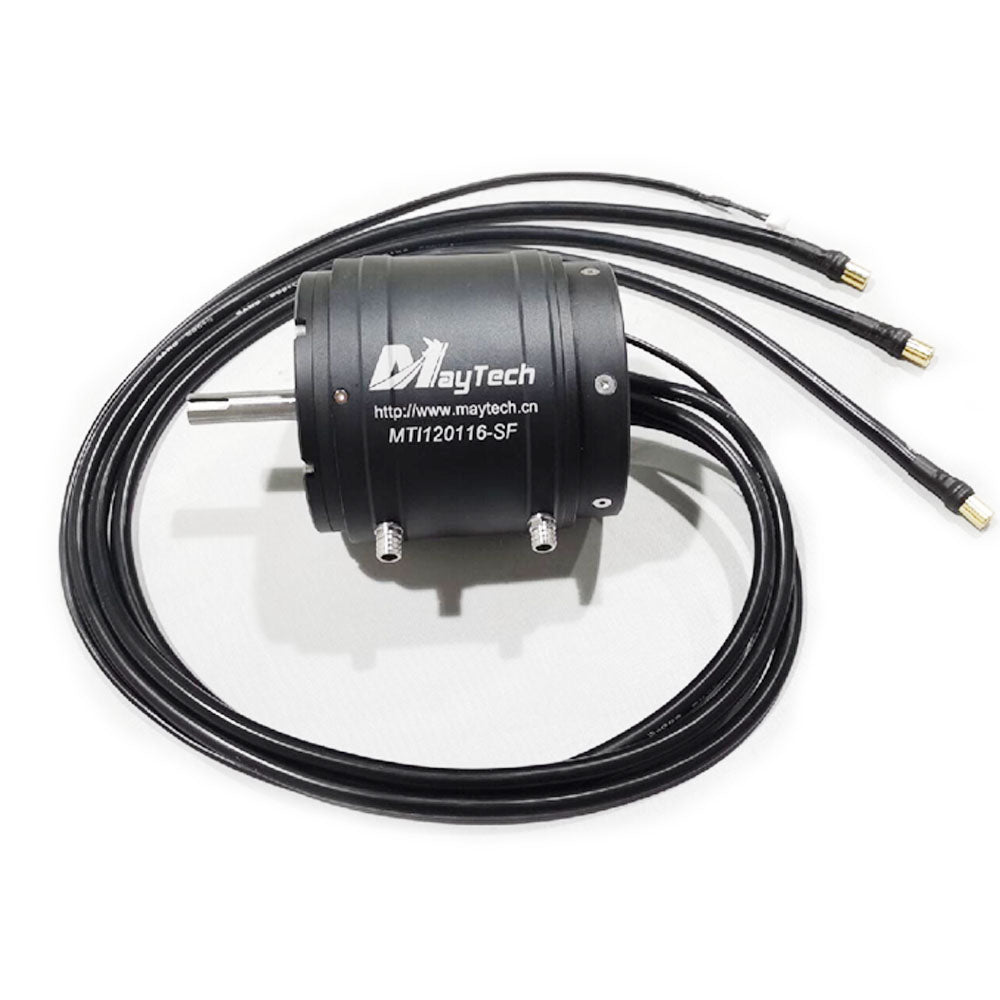

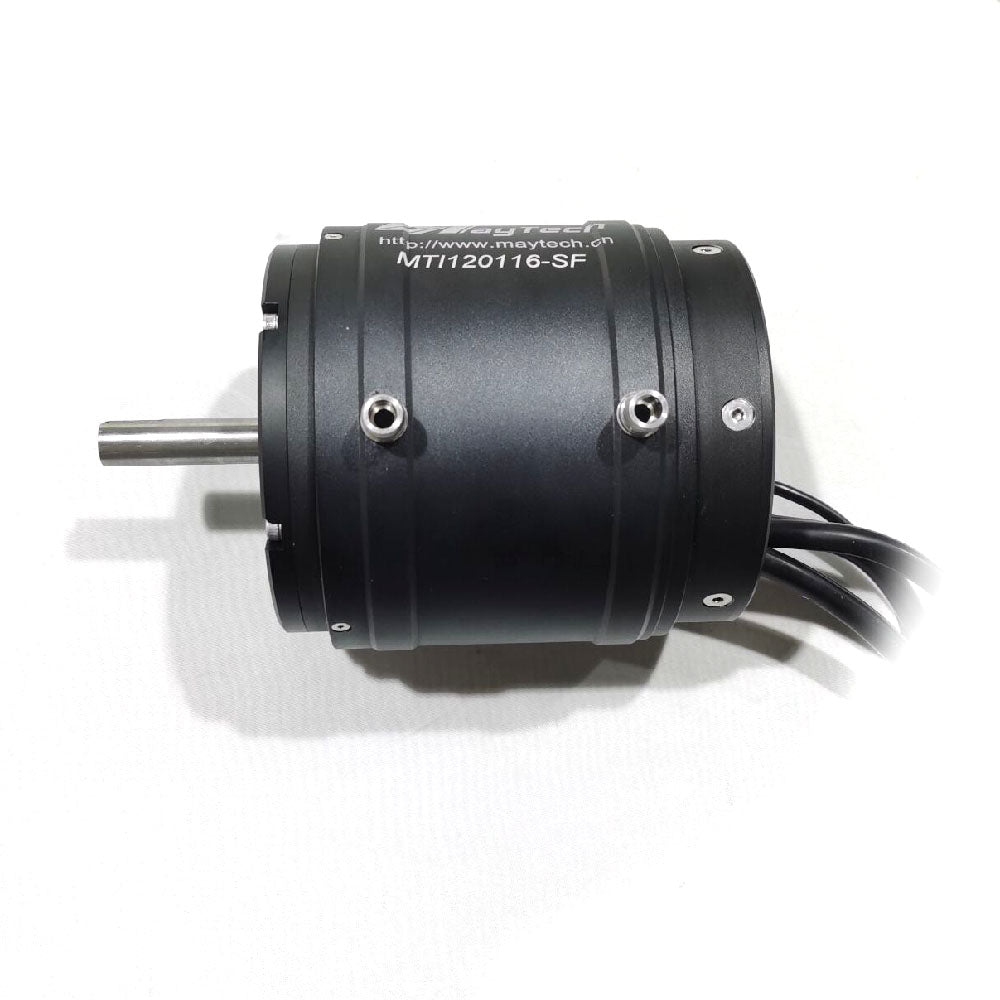

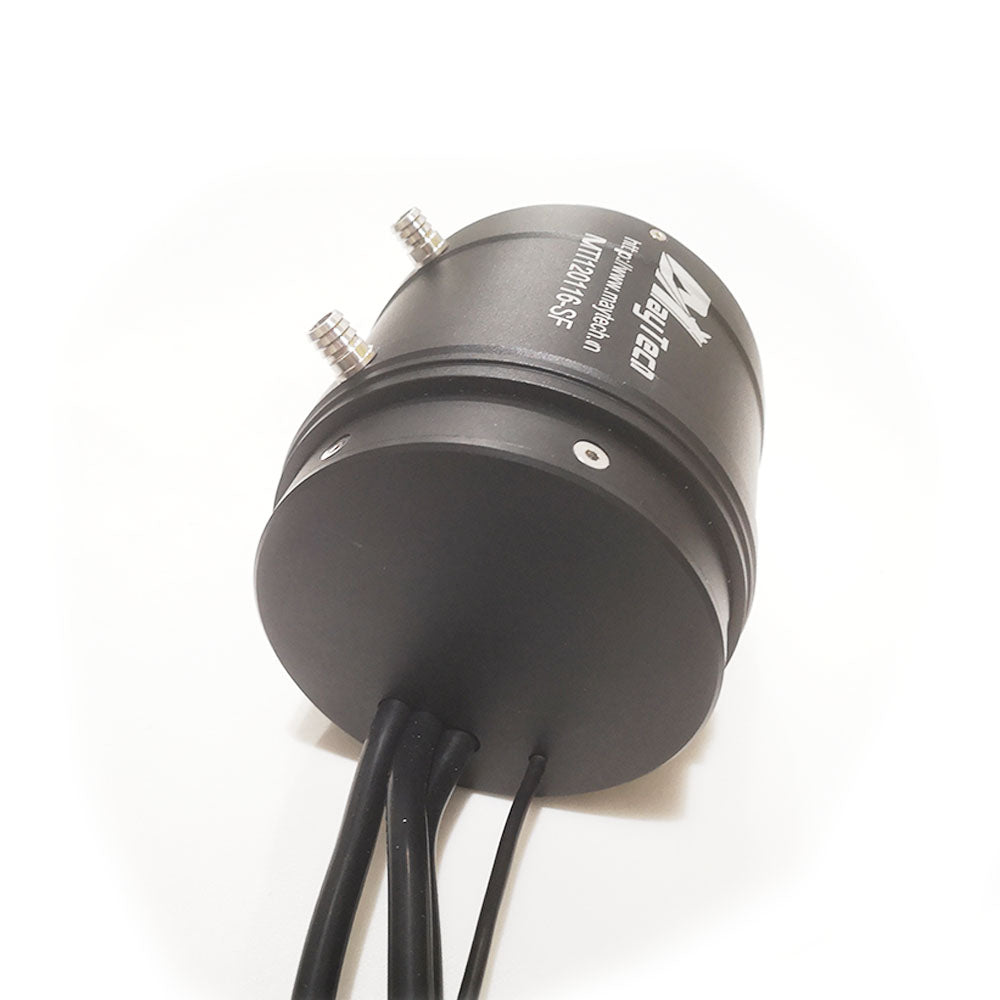

-Motor: MTI12016-SF Watercooled Sensorless Inrunner BLDC Motor

Please note:

ESC has been upgraded with a waterproof junction box as beow picture:

100KV Test Datasheet:

-ESC: MTSF500A-WP Waterproof & Watercooled 500A ESC Speed Controller, with Internal DC-DC Module (Convert from 18-75V to 5V, power for receiver)

Model No.:  MTSF500A-WP

Cont Current: 500A

Max Current: 1000A

Waterproof Rank: IP68 Waterproof

Watercooling: Yes, with

Input Volt: 6-14S Lipo (24V-58.8V)

BEC: Internal with 18-75V convert to 5V DC-DC Module

Signal Format: PWM (PPM)

Signal Output: 1-2ms

Case Material: Alloy aluminum case

Net Weight: 3.72kg/pcs

Cooling Way: By water directly or by water pump through water cooling tube

Connector: Standard is 10.0mm golden female connector on motor cable side, battery size is not with connector, with IP68 waterproof protector for connectors

Questions You May Ask:

• Can I put the ESC underwater directly? Is it ok to work in sea water?

     --Yes, the ESC is with waterproof case, you can put underwater directly, it can use work in sea water, but because sea water has corrosion, to expand the ESC lifespan, please use fresh water to clean the sea water on the surface, and put the ESC for all dry for next time use.

• I don't want to put the ESC underwater directly, what should I do?

    --If you don't want to put the ESC underwater, don't worry, it's also watercooled, you just need to connect a water pump to cooling the ESC, and if so, please order the kit with 2 sets water pump, each motor pump can only cool for 1 item, in this kit the motor is watercooled also needs water pump for cooling.

With Progcard, below parameters are adjustable by progcard:

Click here for progcard manual.



-Remote: MTSKR1905WF IP67 Waterproof Remote for Esurf, with PWM & UART Receiver

Item	MTSKR1905WF (V2)
Waterproof Rank	IP67 Waterproof with 2 Layers Nanometers Coating
Control Mode	Esk8/Esurf
Signal Format	PWM (PPM)
Signal Output Range	1-2ms
Double Source Power Supply	Accept 5V power by ESC built in BEC or extra 5V power
Firmware Updatable	Yes
Control Pump	Yes (Relay Switch)
Control Light	Yes (Transistor Switch)
Set Safety Button	Acceptable
Brake Button	Yes
Cruise Control	Yes, in Esurf mode
Wireless Charging	Yes
Accessories	Charging Pad; Receiver; 3pcs Dupont Cables

-Water Pump Set: MTWP30A+MTUBEC6.12 12V 30W Water Pump Set with Power Supply

Bench Test with 120116 Motor:

Advice for Usage:

1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.

2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

About Stock:

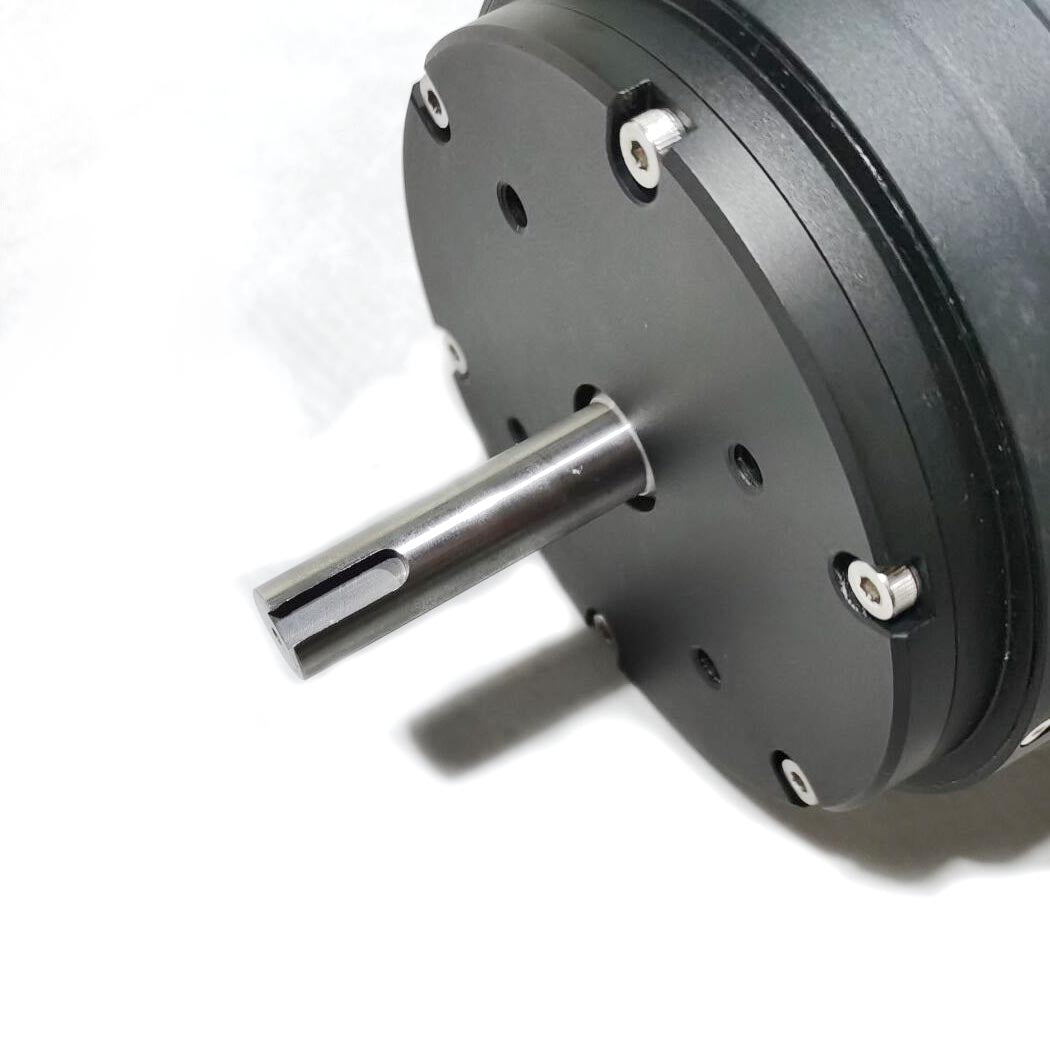

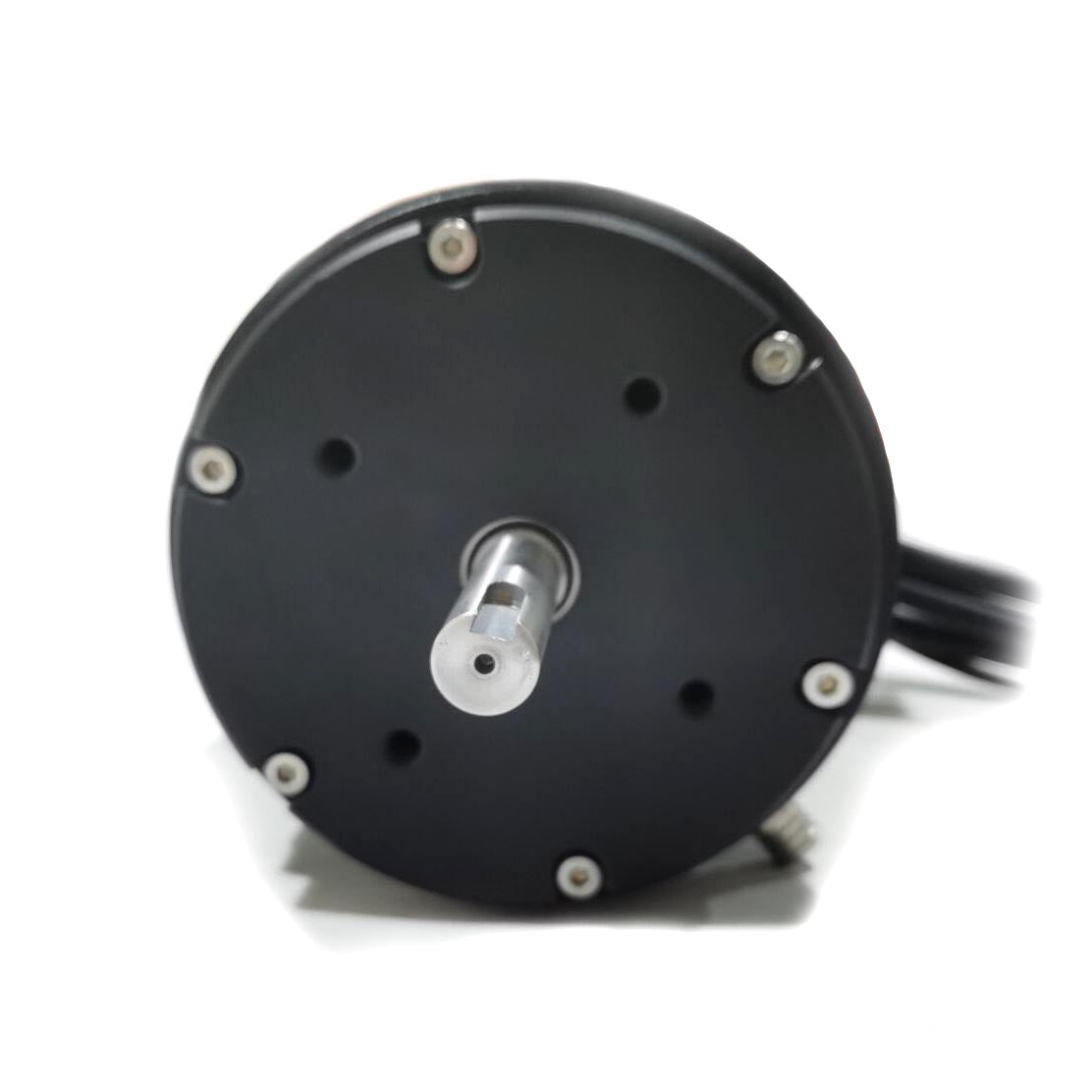

1. Standard stock for the motor is 100KV and 200KV with keyway shaft as picture, if you want other KV lead time is about 60-90 days after your order confirmed, and please contact us agnes@maytech.cn to tell us your requirement.

2. The standard stock is also limited, please confirm your order asap, and if you need very urgent, please contact us agnes@maytech.cn to check stock first.

3. The ESC waterproof case and inner circuit are handmade by our engineer, it will be start make after your order confirmed, takes about 5-10 days after your order confirmed, but the material are limited, so please better confirm your order earlier.

Any other questions and requirements, contact us agnes@maytech.cn

Related Products: Click the folloing picture to check more details:

Waterproof / Watercooled Esurf Kit with 18.8KW 120116 Motor + 300A ESC + MTSKR1905WF



Maytech MTSF500A-WP 500A Waterproof ESC with Watercooling Tube for Powerful Surfboard Boat

Maytech MTSF500A-WP 500A Waterproof ESC with Watercooling Tube with Progcard Speed Controller for Powerful Surfboard Boat

Upgrade Notice:

From 2022, October, the ESC upgrade with below waterproof junction box for receiver wiring, easier connection for receiver, relay and mosfet switches and receiver can be waterproof, also add indicator light for BEC and throttle signal.

Maytech Waterproof 300A 14S 60V Watercooled ESC for Efoil Electric Surfboard Jetsurf

Maytech MTSF300A-WP IP68 Waterproof 300A ESC 300A 85V Anti-spark Switch Water Pump Esurf Kit Speed Controller for Efoil/RC Boat

Upgraded Notice Since July 29, 2022.

Upgrade with waterproof junction box for wiring as below picture:

Receiver can be put in the junction box to be waterproof, too:

In Stock Maytech IP67 Waterproof Remote MTSKR1905WF Controller for Esk8/ Esurf/ Efoil

Specification:

Features:

> Get Manual: Remote Manual and Instruction

Click Here: How to Display Volt, Current, RPM with TX and RX?

The remote has 2 Modes, signal output pulse width is different in 2 modes:

• Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:

PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms

Or you can use wizard mode to detect compatible value.

• Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.

Please noted to match compatible parameters for different modes in VESC_TOOL.

Tips After Using:

In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.

Go to the following Youtube Links to check the remote instruction videos:

1. Motor RPM display by MOTOR WIRE: https://youtu.be/N1IV1dJbil0

2. Motor RPM display by Hall Sensor: https://youtu.be/YBRBzAa-3ww

3. Motor RPM display by VESCTOOL compatible controller: https://youtu.be/qqaZf78ilV4

4. Esk8 mode with speed, current, distance, etc: https://youtu.be/ycFya3Xn7YU

5. Adjust Current mode and Duty cycle mode by remote: https://youtu.be/BPRIhySE7lw

6. Connect to controller or VESCTOOL Compatible Controller: https://youtu.be/sDiAPsg0hWc

7. Remote voltage display for Esk8 and Esurf: https://youtu.be/LZf98XgVwwI

8. Remote can control two switches for Esk8 light and Esurf pump: https://youtu.be/USQHbe3tCOs

9. Receiver wiring with VESCTOOL compatible speed controller

(You can select the functions you need and connect them accordingly.)

10. Receiver wiring with Maytech MTSF300A-OPTO ESC or other OPTO ESC, (You can select the functions you need and connect them accordingly.)

11. Maytech MTSF300A-WP and MTSF500A-WP fully waterproof ESC:

In Stock 12V 30W Water Pump 18-75V 40-160V Convert to 12V DC-DC Module UBEC Power Supply

Maytech 12V 30W Water Pump 18-75V 40-160V Convert to 12V DC-DC Module UBEC Power Supply Comb for Electric Surfboard Efoil Jetski

Specifications:

UBEC 1: 18-75V Input DC Convert to 12V Output DC

If you use voltage from 18-75V voltage, please choose this option.

If you order the water pump together with UBEC, we will solder the UBEC to the water pump for your convenient to use:

Related Products:

Electric Surfboard Kits

Maytech Waterproof 18KW Brushless DC Motor 120116 100KV Splined Shaft for Electric Surfboard Boat Jetboard

Maytech Waterproof 18KW Brushless DC Motor 120116 100KV Splined Shaft for Electric Surfboard Boat Jetboards

Specification:

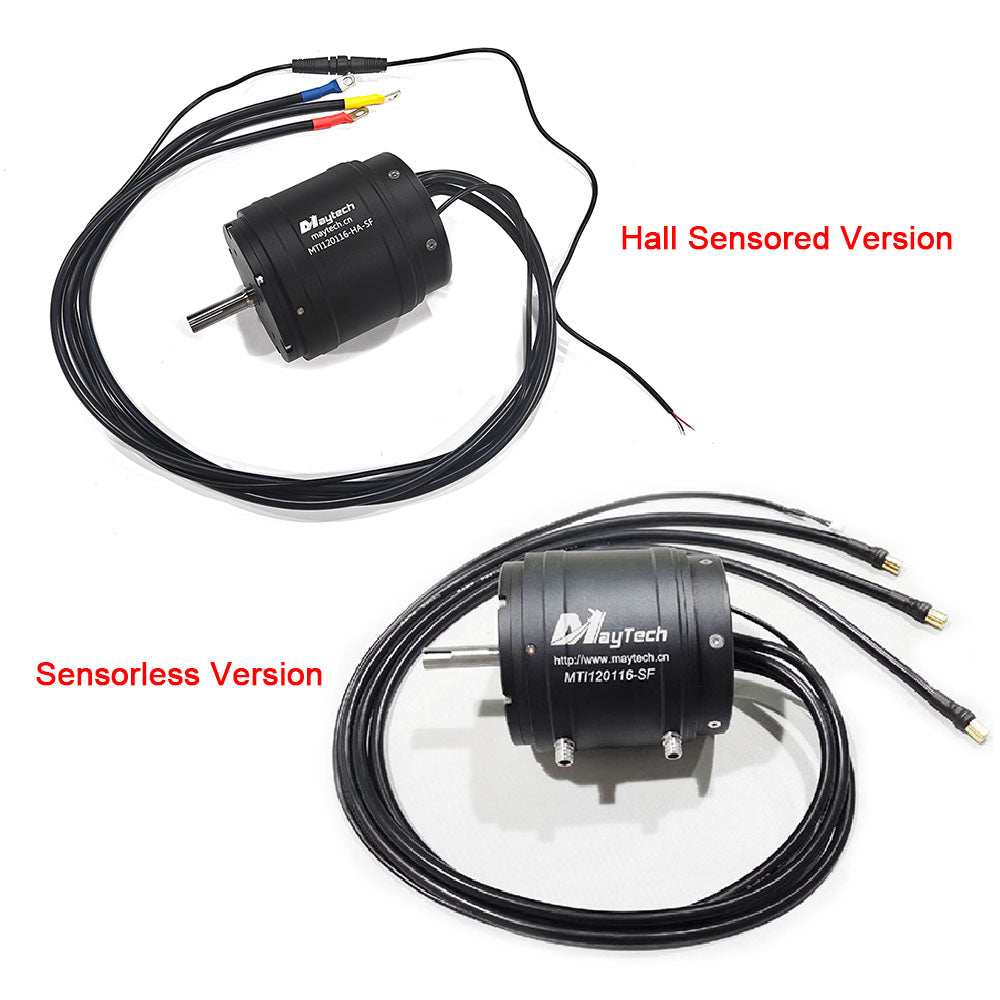

Different application for Sensored and Sensorless Version:

To meet different customers requirements, we designed one version with hall sensor, one version without hall sensor.

Sensored version can not only be used underwater but also can be used on electric skateboard, fighting robots, electric cars, etc.,

Sensorless version usually use for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,

Application:

Electric surfboard/Hydrofoil/jetski/jetboard/waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, catamaran, budsboat, pontoon, hydrofoiling boat, rescue boat, etc.,

Warning:

Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.

Esurf Kit Test: MTI120116-200-WP+MTSF300A-OPTO-WP+MTSKR1905WF
