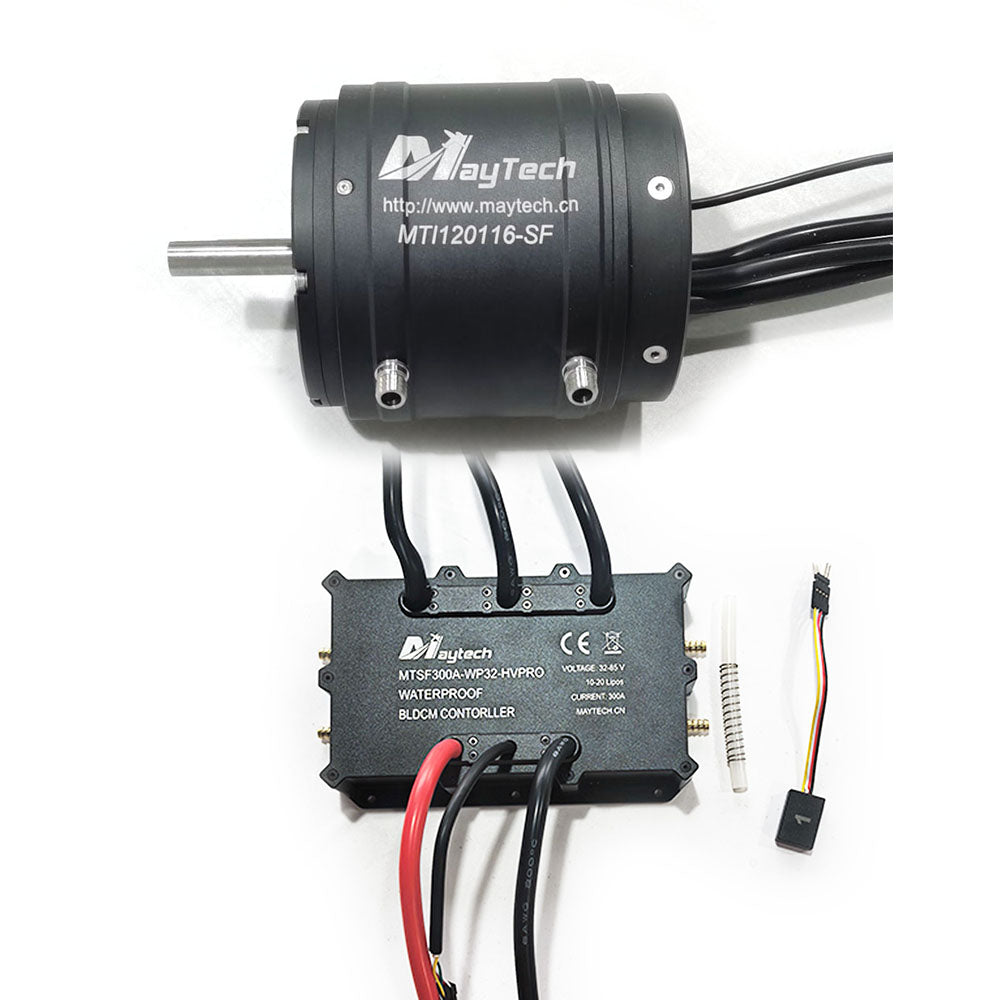

In Stock Maytech MTI120116 18.8KW Watercooled BLDC Motor Inrunner Sensorless Engine for Esurf/ RC Boat

Model No.	MTI120116	Idle Current	2.8A/8.4V
Internal Resistance	0.0322Ω	Max Current	380A
Input Volt	10-16S Lipo	Max Output Watt	18.8KW
Max Pull	20.6 N.m	Motor Weight	4400g
Motor Touque @60%	20.6 N.m	Shaft	Keyway Shaft
Motor Size	120x116mm	Construction	12N/10P
Max Working Temperature	120℃	Insulation Volt & Leak Current	AC500V/10MA/3S
Shaft Extension	D15*L30	Lead Wires Extension	6AWGx300mm
Plug	8mm	Lifespan	8000h

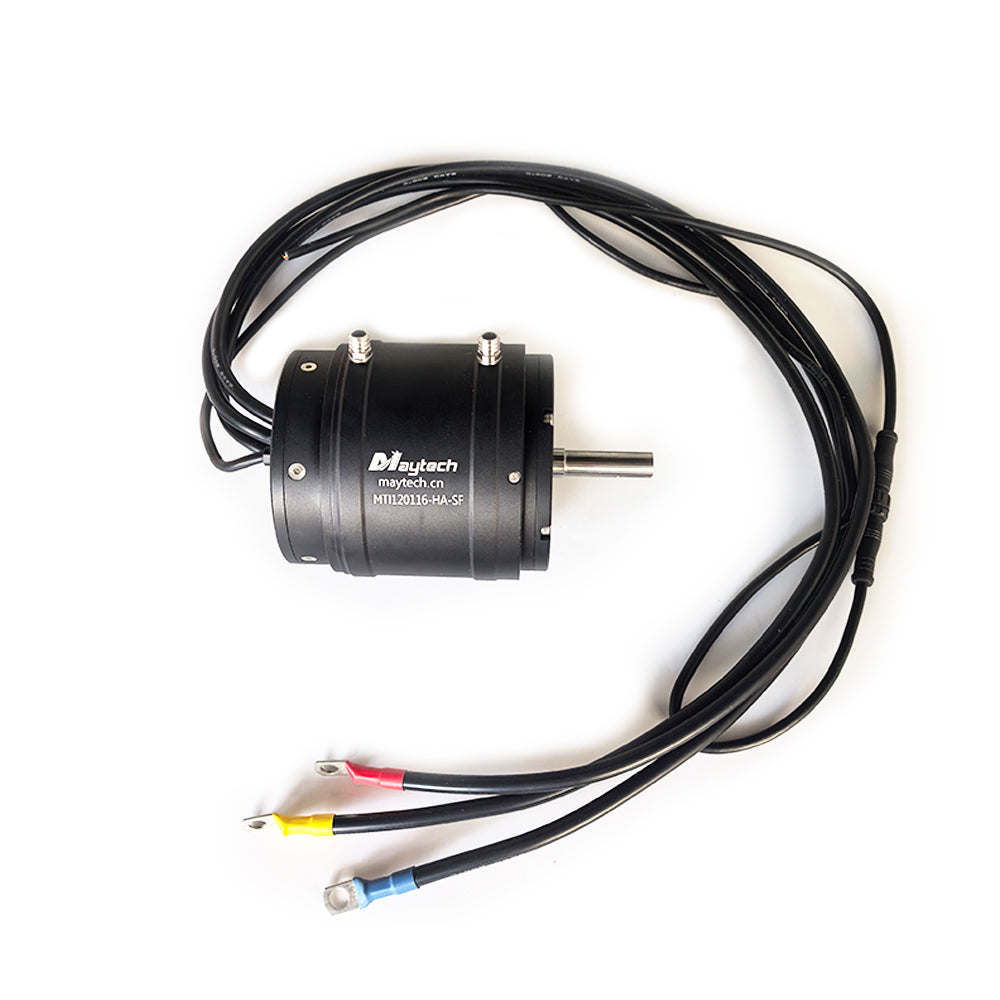

To meet different customers requirements, we designed one version with hall sensor, one version without hall sensor.

Sensored version can not only be used underwater but also can be used on electric skateboard, fighting robots, electric cars, etc.,

Sensorless version usually use for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,

Electric surfboard/Efoil/Hydrofoil/jetski/jetboard/waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, hydrofoiling boat, rescue boat, etc.,

Drawing:

> Check MTI120116-SF Watercooled Sensorless Drawing

> Check MTI120116-HA-SF Watercooled Sensored Drawing

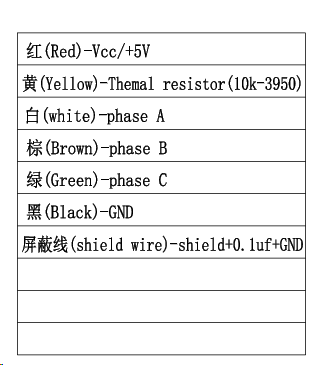

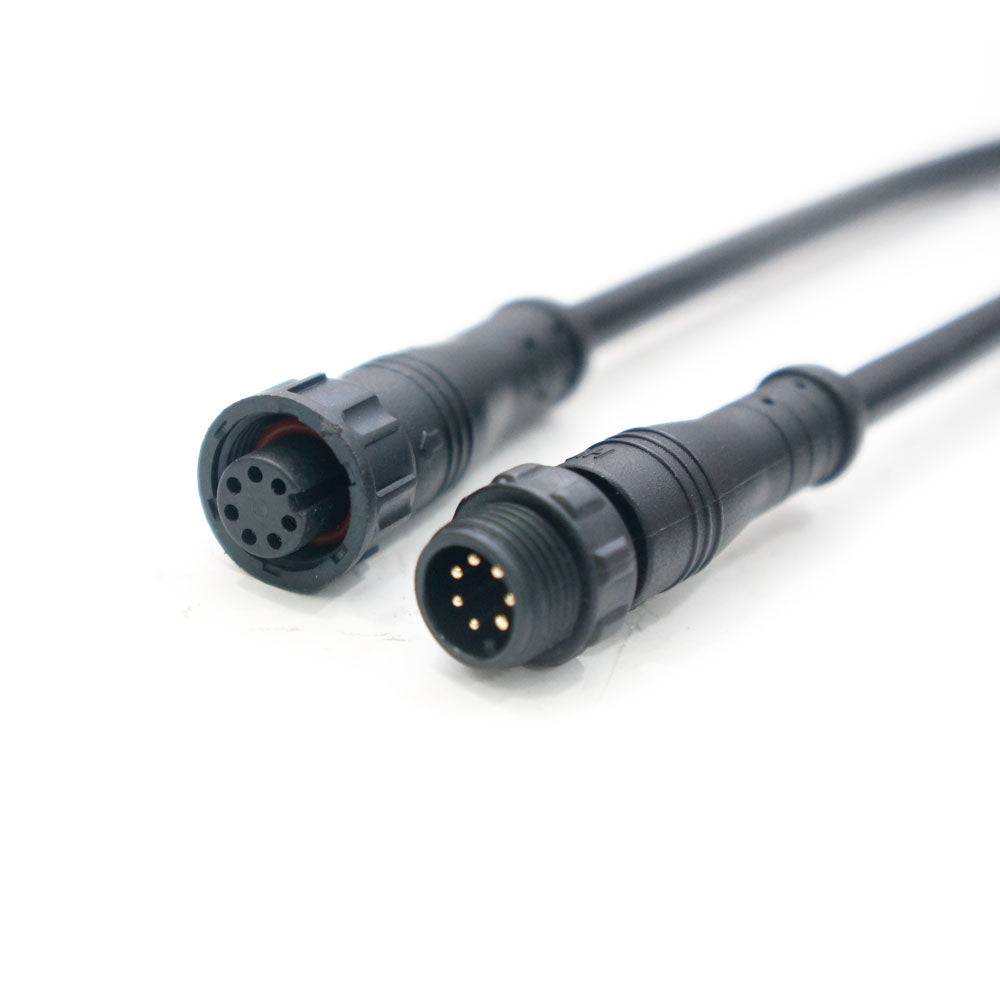

Definition of Hall Sensor Cable:

Red: +5V

Yellow: Temp Sensor (NTC10K 3950k)

White: Hall A

Brown: Hall B

Green: Hall C

Black: GND

Stock Notice before Place Order:

The motor stock is limited, please confirm order asap.

And if you need very urgently, please contact us eileen@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.

If not in stock, production time 30-50 days after order confirmed.
