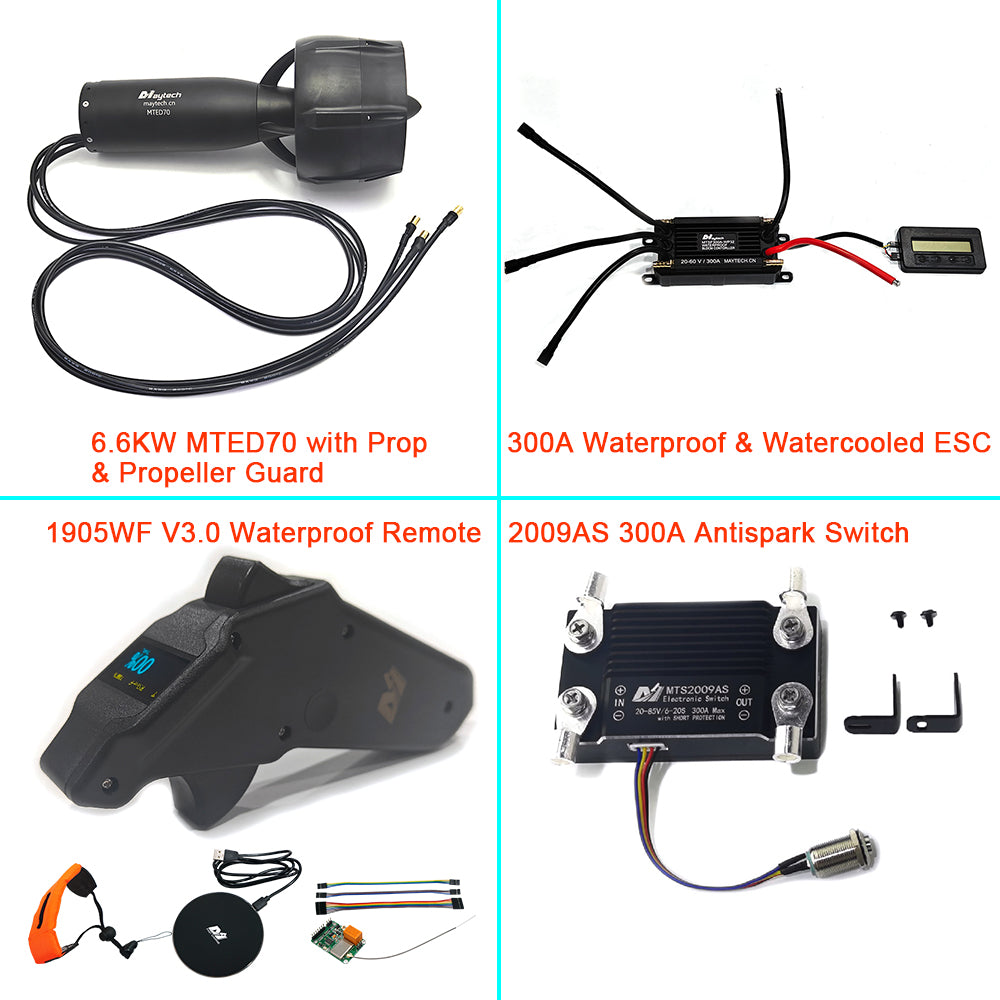

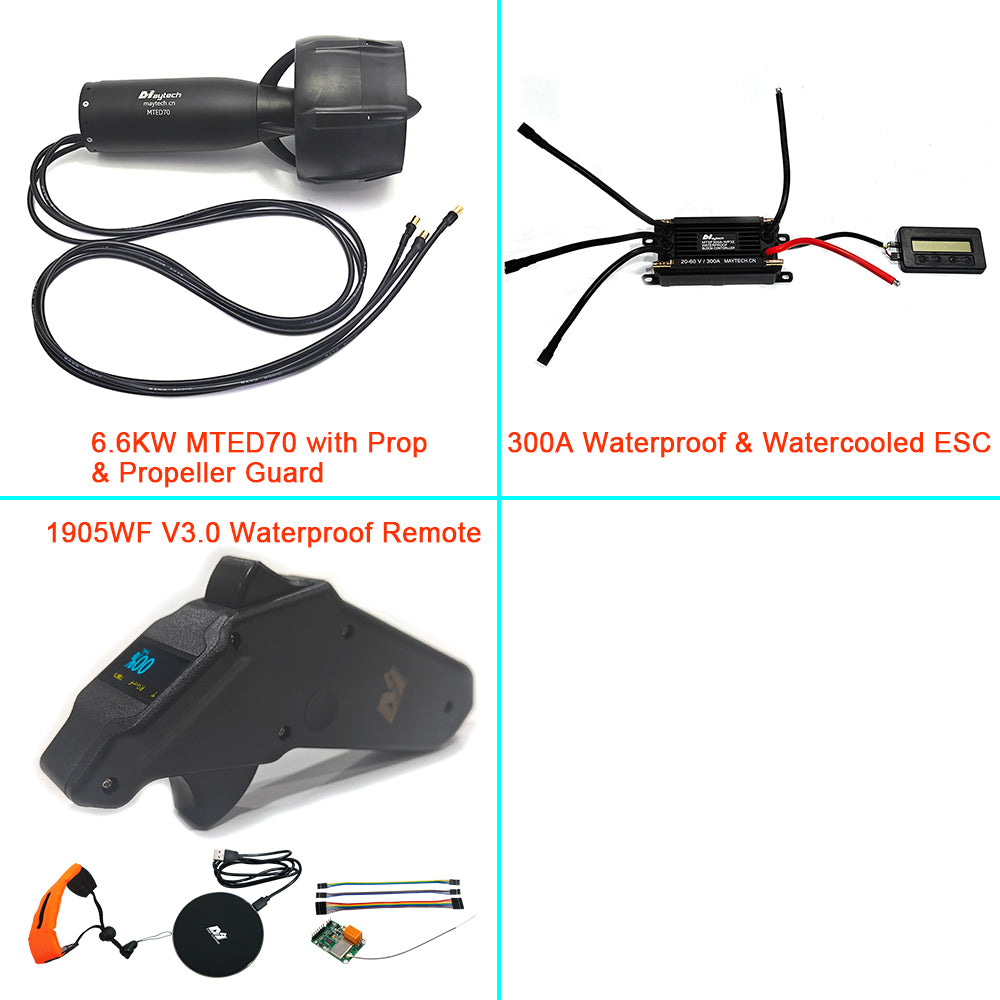

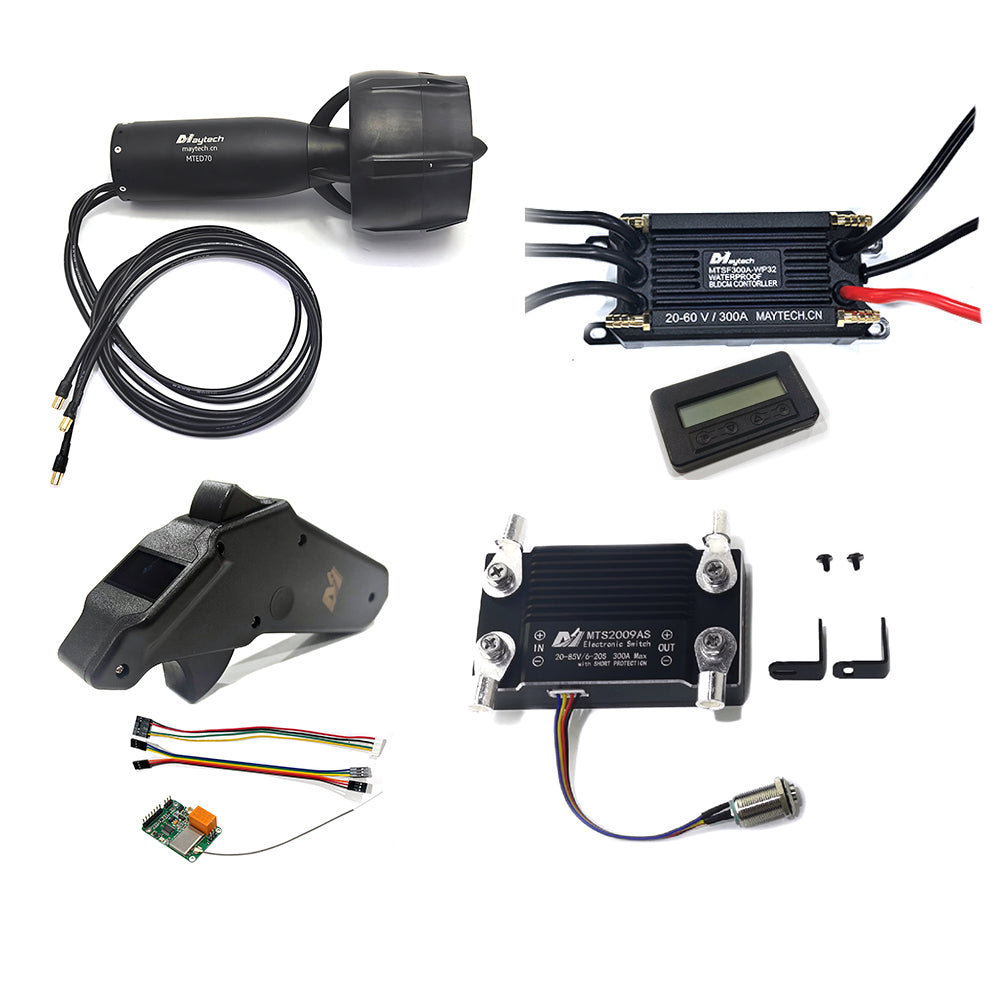

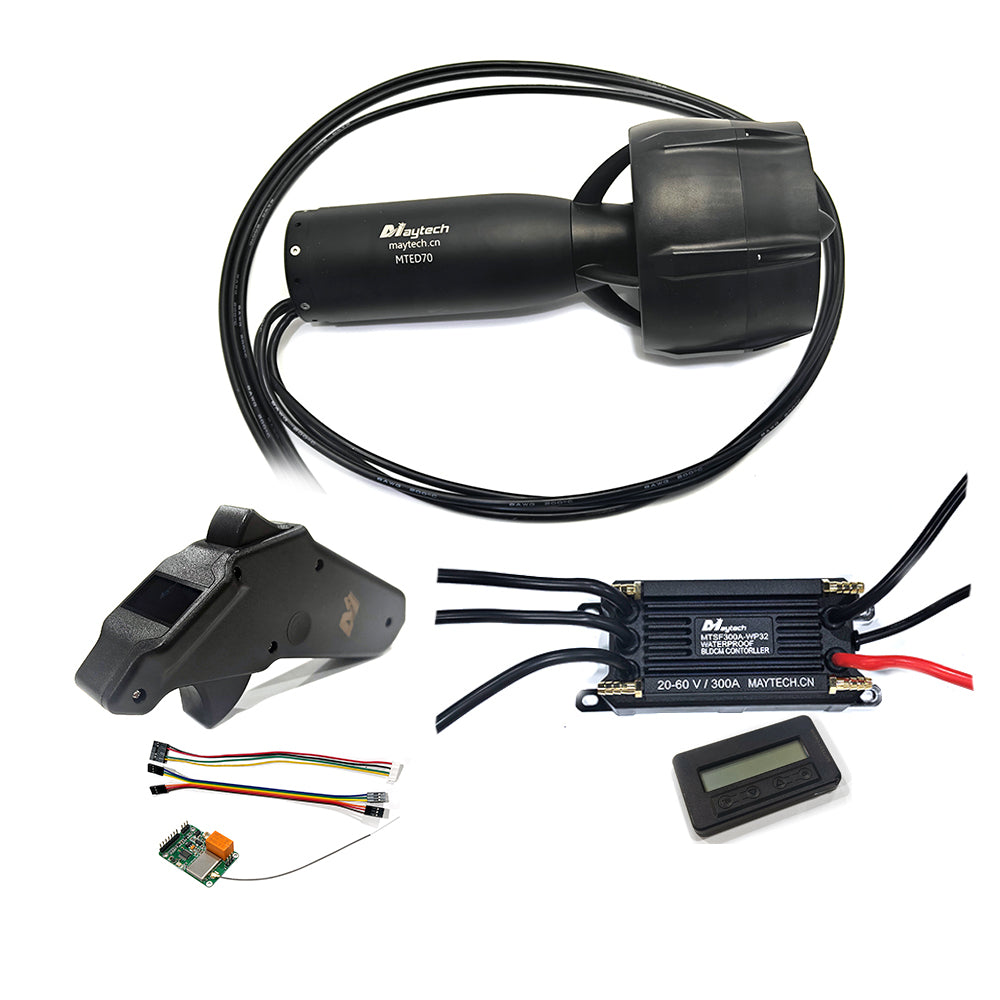

IP68 Waterproof MTED70 Efoil Kit with 6.6KW Motor + 300A ESC + MTSKR26WF V5.0 Remote

IP68 Waterproof MTED70 Efoil Kit with 6.6KW Motor + 300A ESC + MTSKR26WF V5.0 Remote

Regular price $954.80 USD
Regular price Sale price $954.80 USD
Sale Sold out
Shipping calculated at checkout.
Anti-Spark Switch

IP68 Waterproof Efoil Kit with 6.6KW 60V Motor + 300A ESC + MTSKR26WF V5.0 Remote for Electric surfboard, Efoil, jetfoiler, electric hydrofoil, countercurrent swiming training, etc.,

Wiring diagram and parameters display on remote:

If you want to display RPM and battery power bar and voltage %, please follow:

The ESC firmware had been updated since Aug, 2025.

Remote can display Voltage, RPM, Current by connecting TX and RX cable on receiver.

Settings in remote and Wiring for this kit:

1)Thr Mode: Surfboard
--5) and 6) Batt Type and Batt Ser Num Please set according to your battery.
9) Data Source MTSESC-WP32
10) M.Pole Pairs 10

1. MTSF300A-WP32 6-14S Lipo New 32Bit ESC:

Specification:
Model No.: MTSF300A-WP32 with Progcard32
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-12S Lipo (22.2V-50V) in this kit
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,

> How to set the ESC bidirectional with MTSKR1905WF remote for Boat application?

Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord Specification:

Maytech New 300A 60V Waterproof ESC Smaller Size for Efoil Underwater Thruster Electric Surfbord Specification:

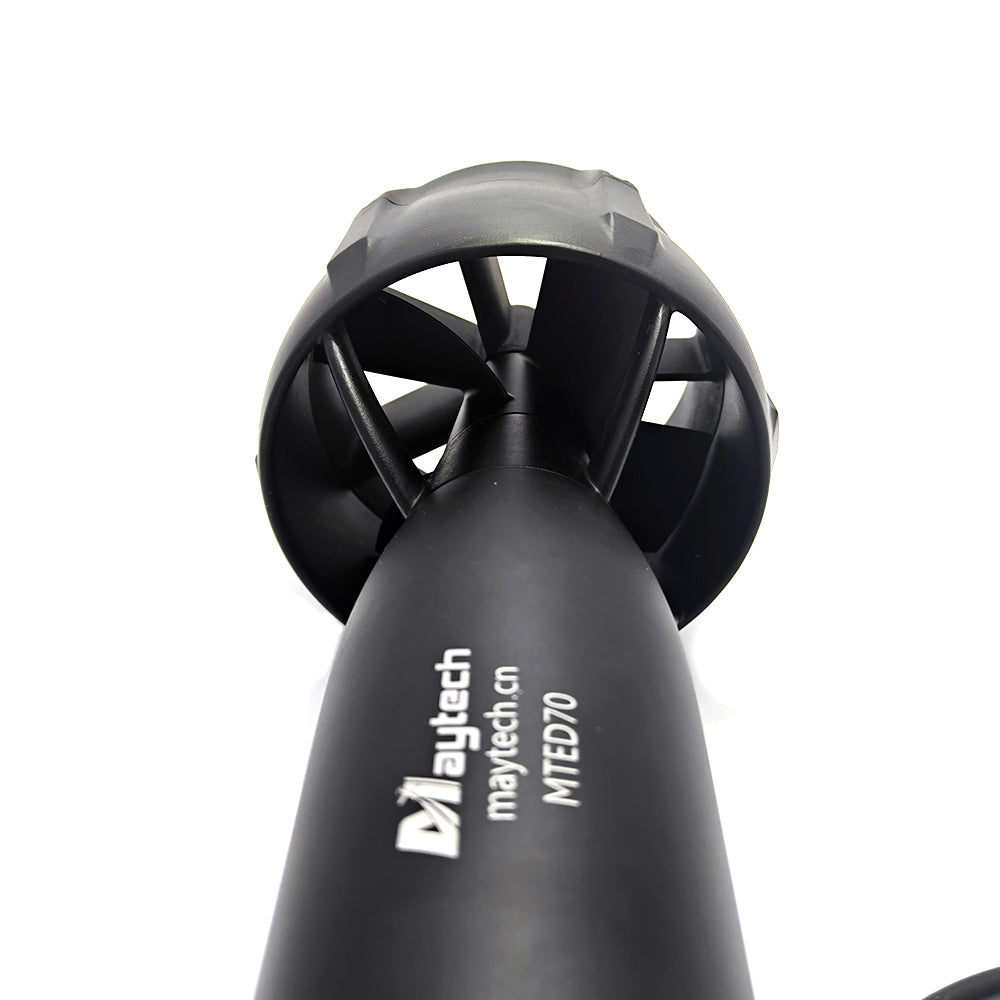

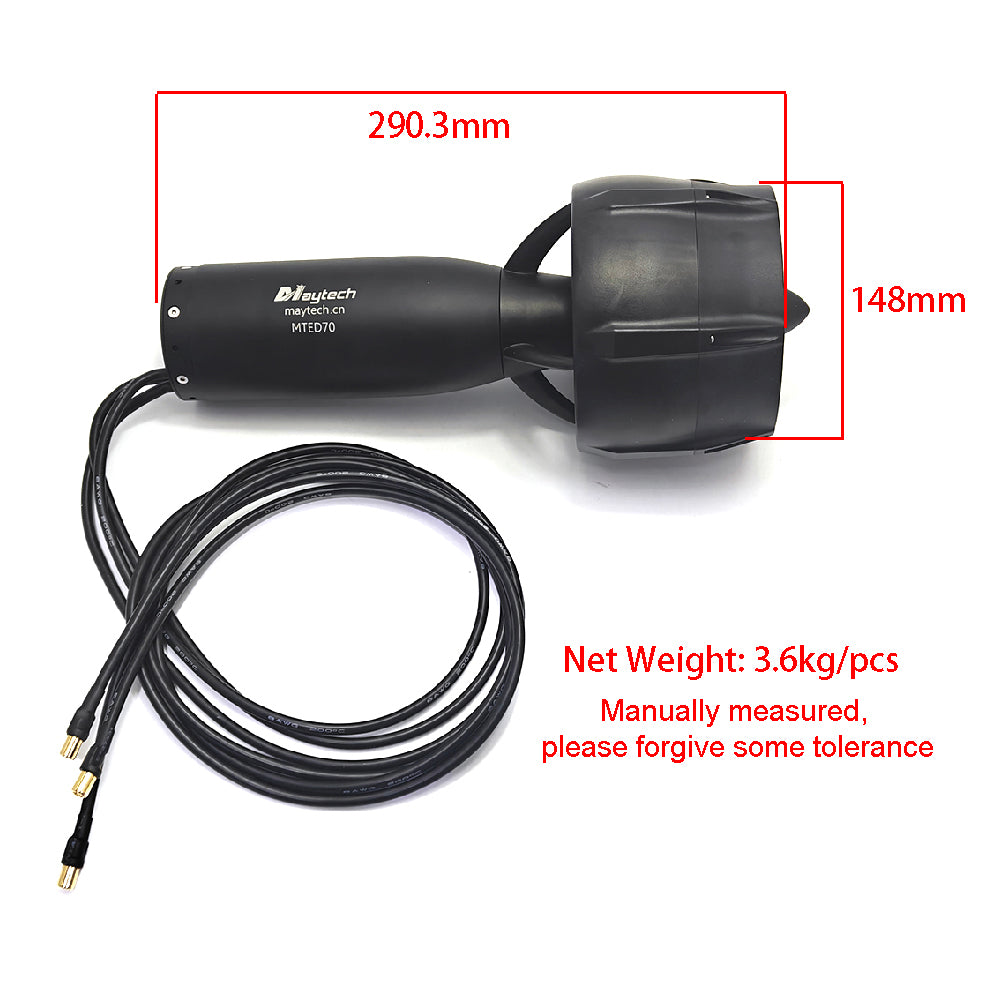

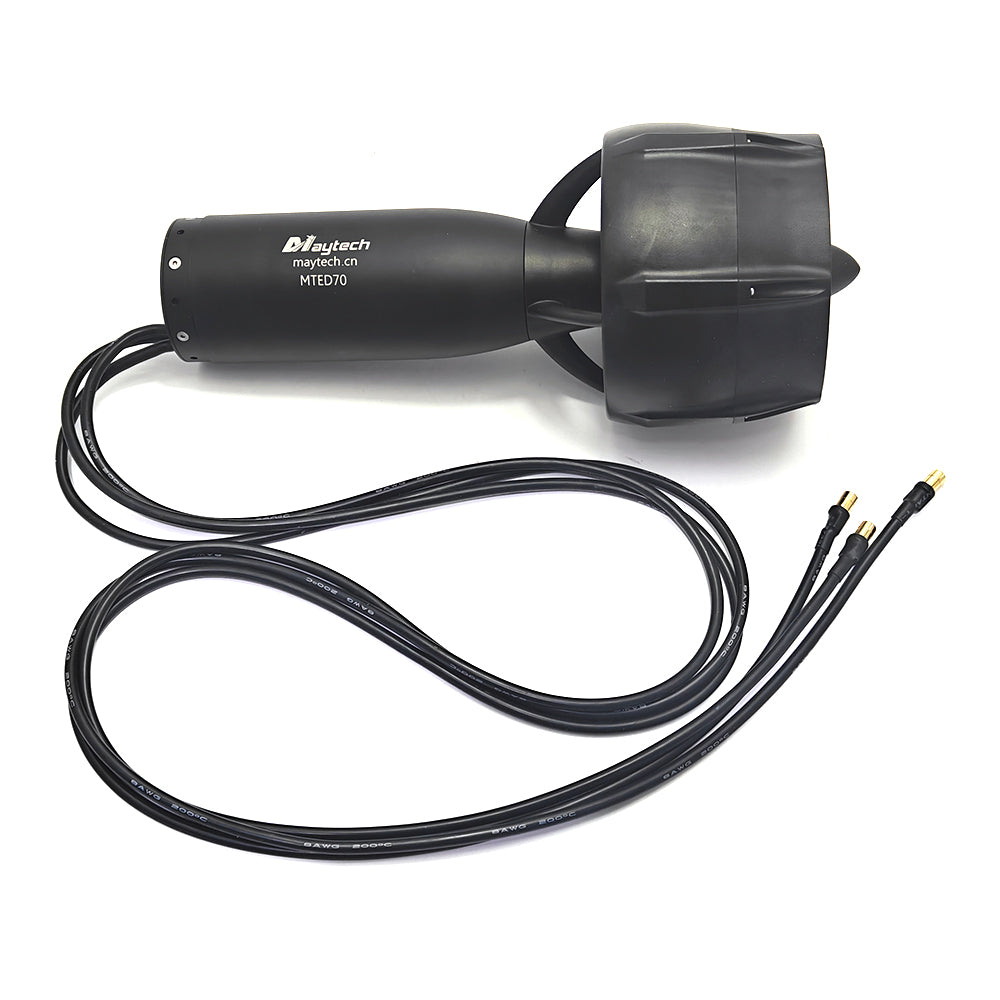

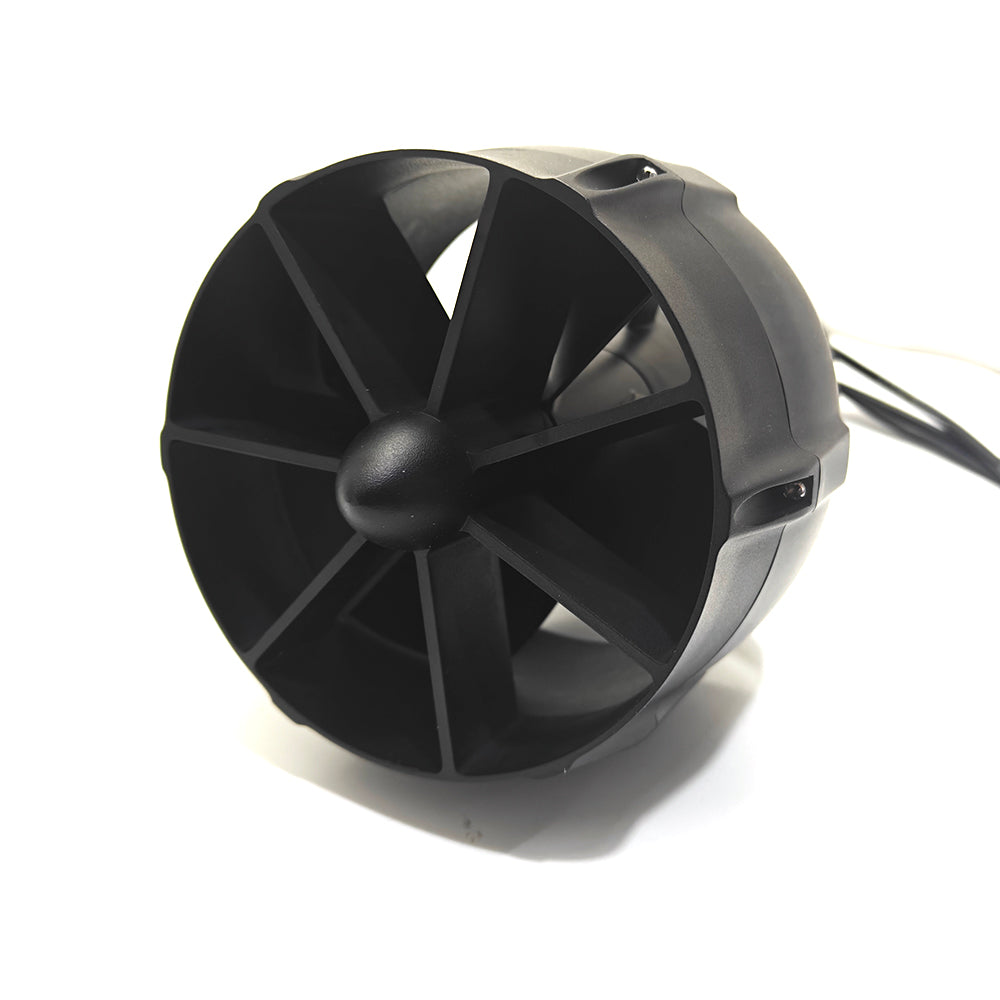

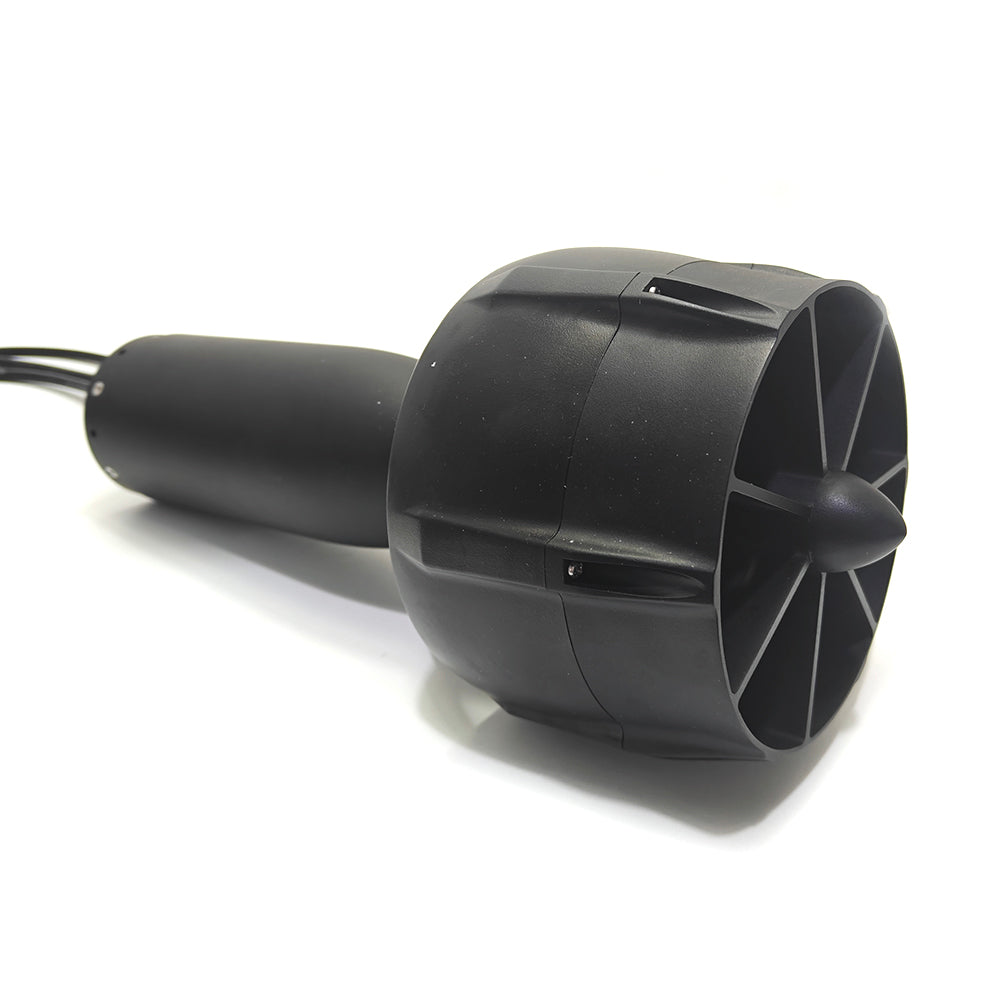

2. MTED70 Inrunner Waterproof Motor with Aluminum Alloy Propeller and Propeller Guard

Model No. MTED70
KV 103
Shaft Screw Shaft
Input Voltage 6-12S Lipo (20V-50V)
Waterproof Rank IP68
Current 137A at 48V
Max Output Power 6576W at 48V
Pole Number 6 poles
Max Torque 14N.m at 48V
Max Thrust 56.9kg at 48V
Propeller Material Aluminum alloy
Propeller Guard With
Connector 8.0mm male gold-plated bullet connector
Hall Sensor Without
Customize KV, logo, shaft, cable, connector, cover, case, etc., contact eileen@maytech.cn

Maytech MTED65 waterproof motor with propeller and propeller guard for efoil surfboard hydrofoil sup board mast foiling board
Maytech New Motor MTED70 Waterproof Motor with Propeller and Prop Guard for Eoil / Tow Boogie / Thruster / Jet Propulsion / Underwater Scooter

3. Remote: V5.0 MTSKR26WF Waterproof GPS Remote for Esurf, with PWM & UART Receiver

Model No MTSKR26WF V5.0
Updated Functions

Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed)

Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to  30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board. And Tilt protection can be turned off for experienced users.

Waterproof Rank IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen
Thr Mode Esurfboard (SF) , with cruise control
and ESK8 (SK), can control forward and reverse when use on marine applications
3 Speed Modes With, adjust throttle % from 20-100%, friendly for beginners
Power Modes 2 levels, Eco (Level 1) & Pro (Level 2) optional
Signal strength: Pro > ECO
Power Consumption: PRO > ECO
Throttle Lock Yes, 10-120S optional
Signal Format Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger)
In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse
Double Source Power Supply Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal Max 3.3V
Display Parameters

GPS Speed / Distance / Max Speed / Average Speed
Tilt sensor angle
RPM+Current+Voltage+Temp(When work with VESC and MTSF-WP32 series ESCs)

Signal strength, remote and battery power bars, battery voltage%, RPM, speed (km/miles), with VESC, Maytech WP32 ESC and other ESCs

Relay Switch No, without Relay Switch on Receiver to save mounting space
Control Light Yes (20V 2A Transistor Switch)
Safety Button Support
Cruise Control With in Esurf Mode
Brake or Reverse With in Esk8 Mode
Accessories Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable
Compatible Controllers VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,
NEW V5.0 GPS Remote Maytech V5.0 IP68 Waterproof Remote MTSKR26WF Controller With GPS and Tilted Protection Function for Esk8/ Esurf/ Efoil

4. MTS2009AS Antispark Switch

Model No. MTS2009AS
Max Current 300A
Input Voltage 6-20S Lipo (25-85V), recommend better work under 75V
Swith Diameter 12mm
Switch Type NMOS to realize switching on/off Power positive
Waterproof No, please keep the switch in dry space
Connector With 4pcs Cold-pressed Terminal Connector
Function Protect your controller and power supply system when brake or startup
Application Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, Airplane, VTOL, UAV, Dronesetc.,
Features:  Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.

Maytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switchMaytech 300A electric switch protection for electric skateboard elimanite sparks when connection high current high power switch antispark switch on and off switch

Advice after usage:

1. To expand the products life, please better wipe off the waters on the products and keep them for all dry after everytime use.

2. For this kit of the ESC, because the motor is sensorless, suggest to use the default value in the ESC, we have tested the kit before shipment with the default value, do not suggest to modify the values.

If you have other requirement on motor KV, ESC or other questions, please contact us at eileen@maytech.cn .
