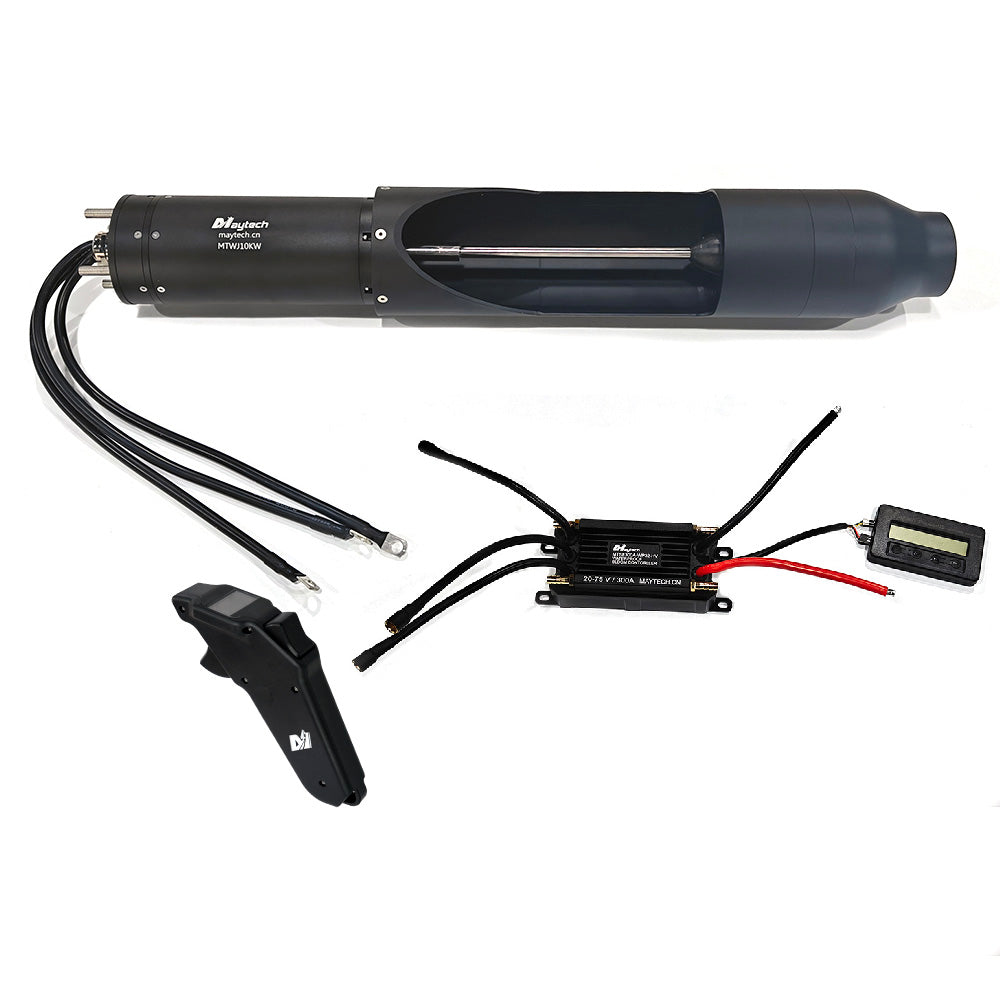

Maytech 13KW Water Jet Motor Kit with 60V 72V 300A ESC + V5 MTSKR26WF Remote for Jetsurf Jetboard Underwater Thruster
Maytech 13KW Water Jet Motor Kit with 60V 72V 300A ESC + V5 MTSKR26WF Remote for Jetsurf Jetboard Underwater Thruster
Couldn't load pickup availability
Build your own electric jetboard, jetsurf, jet kayak, upgrade your ROV propulsion system.,etc

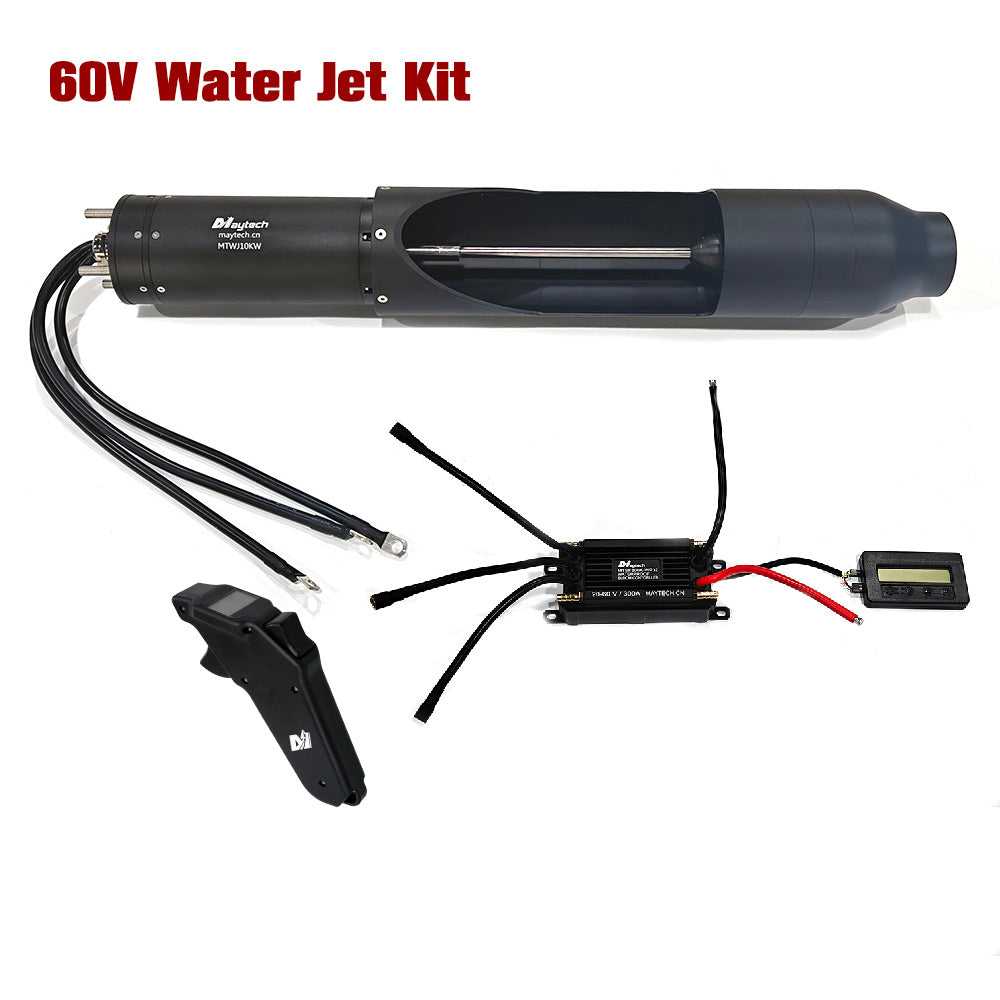

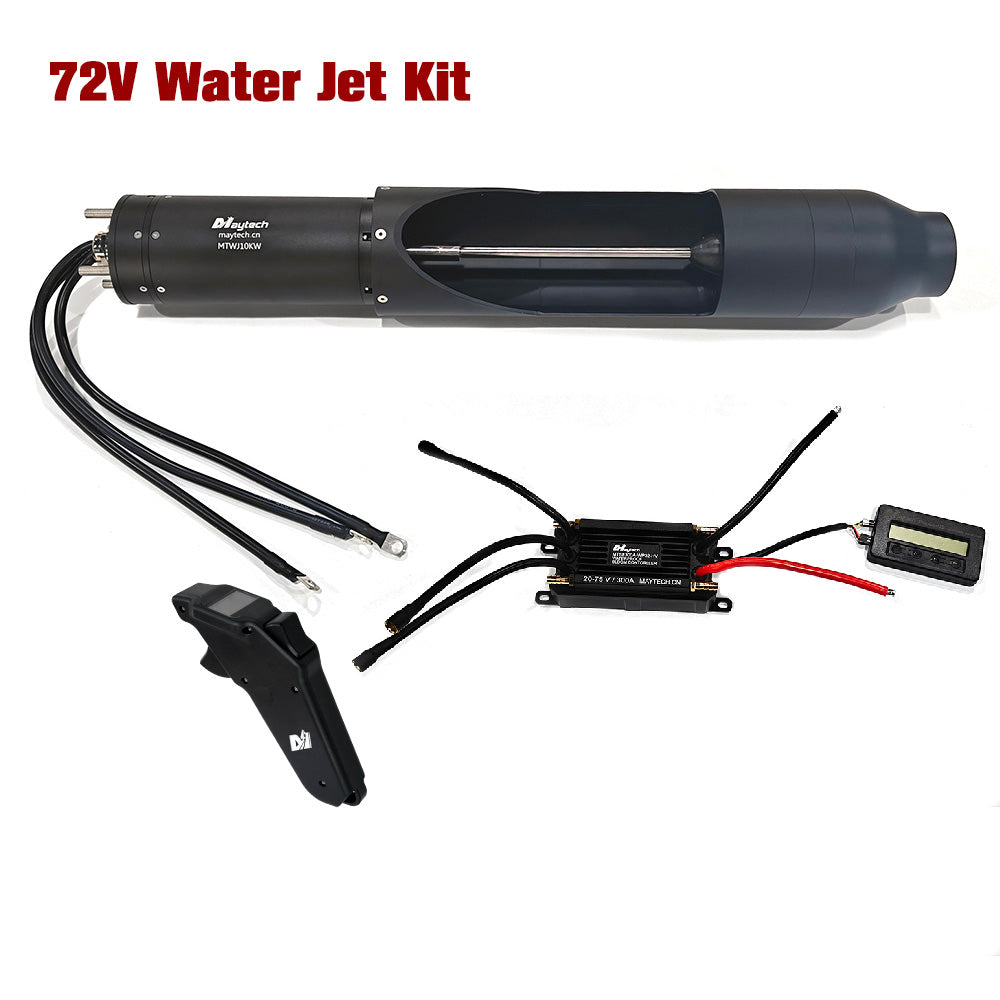

Maytech 13KW Water Jet Thruster Kit with 60V 72V 300A ESC + V5 MTSKR26WF Remote Water Jet Motor for Jetsurf Jetboard Underwater Thruster
> Check Test Video with load in water tank
Wiring diagram and parameters display on remote:
If you want to display RPM and battery power bar and voltage %, please follow:
The ESC firmware had been updated since Aug, 2025.
Remote can display Voltage, RPM, Current by connecting TX and RX cable on receiver.
Settings in remote and Wiring for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | MTSESC-WP32 |
| 10) M.Pole Pairs | 10 |

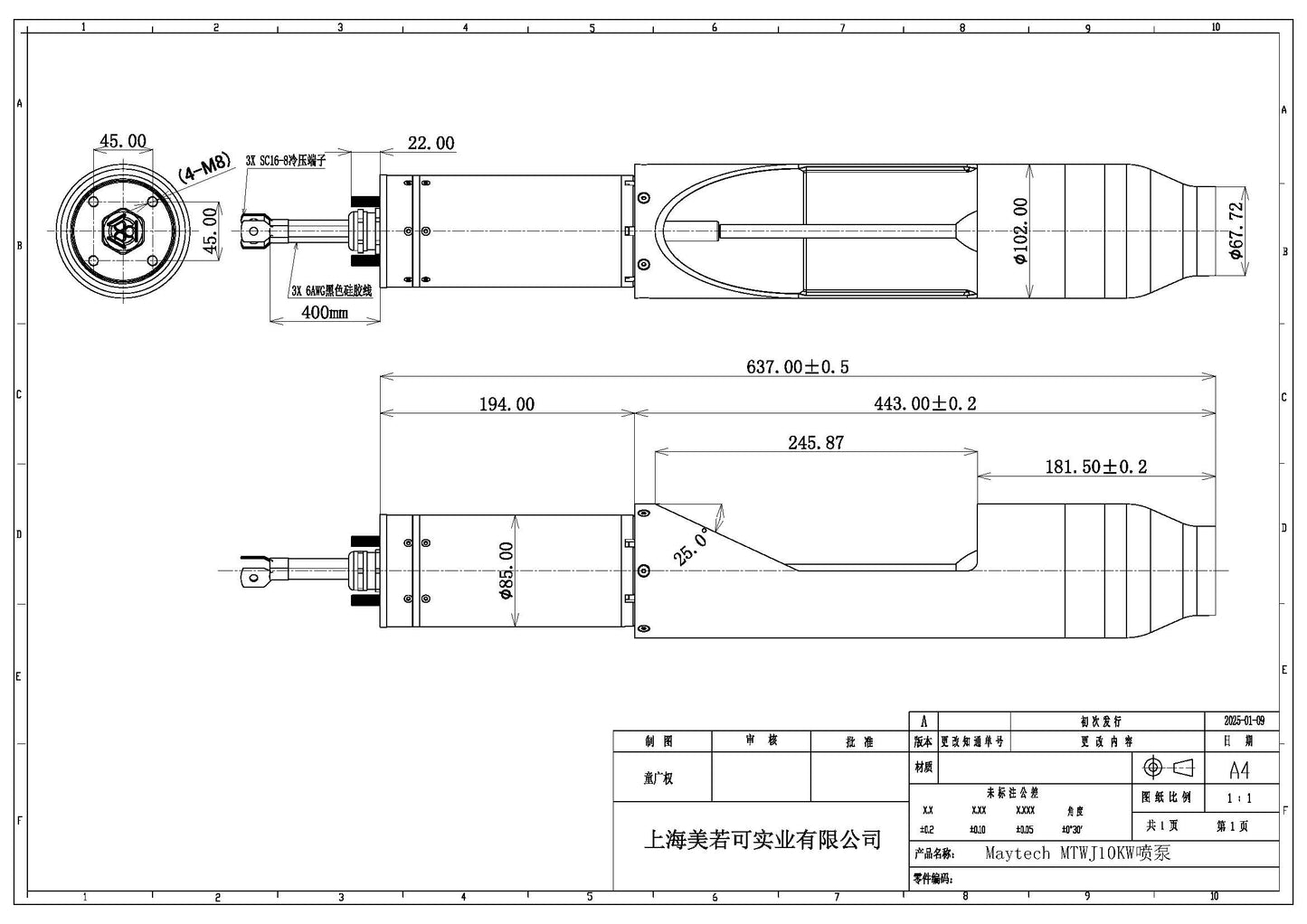

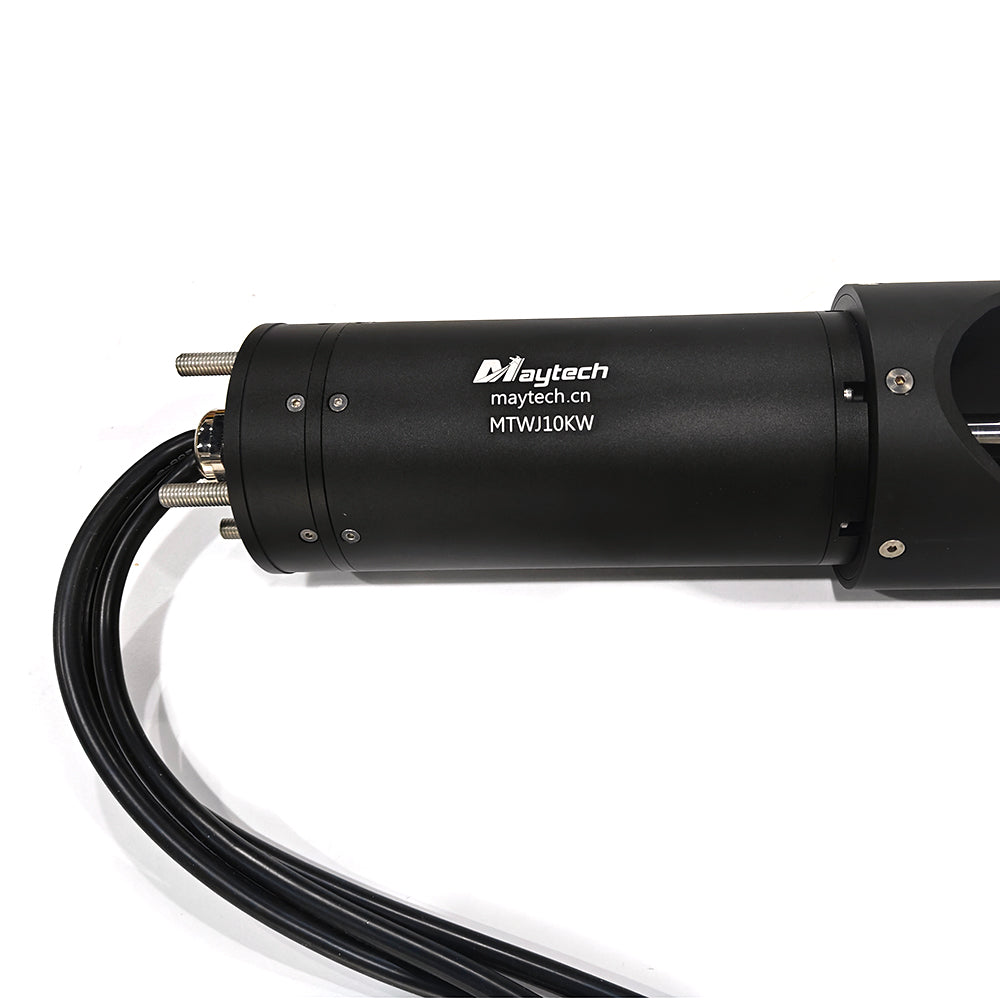

1. MTWJ10KW Water Jet Pump:
| Model No. | MTWJ10KW |
| Voltage | 48-60V / 48-72V according to ESC option |
| Max Spin Speed | 10920 |
| Impeller | With |
| Max Power | 13KW at 84V |
| Peak Current | 250A |
| Max Torque | 81kg at 84V |
| Motor Consuction | 12N10P |
| Max Working Temp | 120℃ |
| Wire Guage | 6AWG |
| Temp Sensor | With |
| Customize | KV, logo, shaft, cable, connector, etc., contact Email: eileen@maytech.cn |
| Appliacation | Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive outboard, jet drive kayak, etc., |
> Check Test Data Sheet

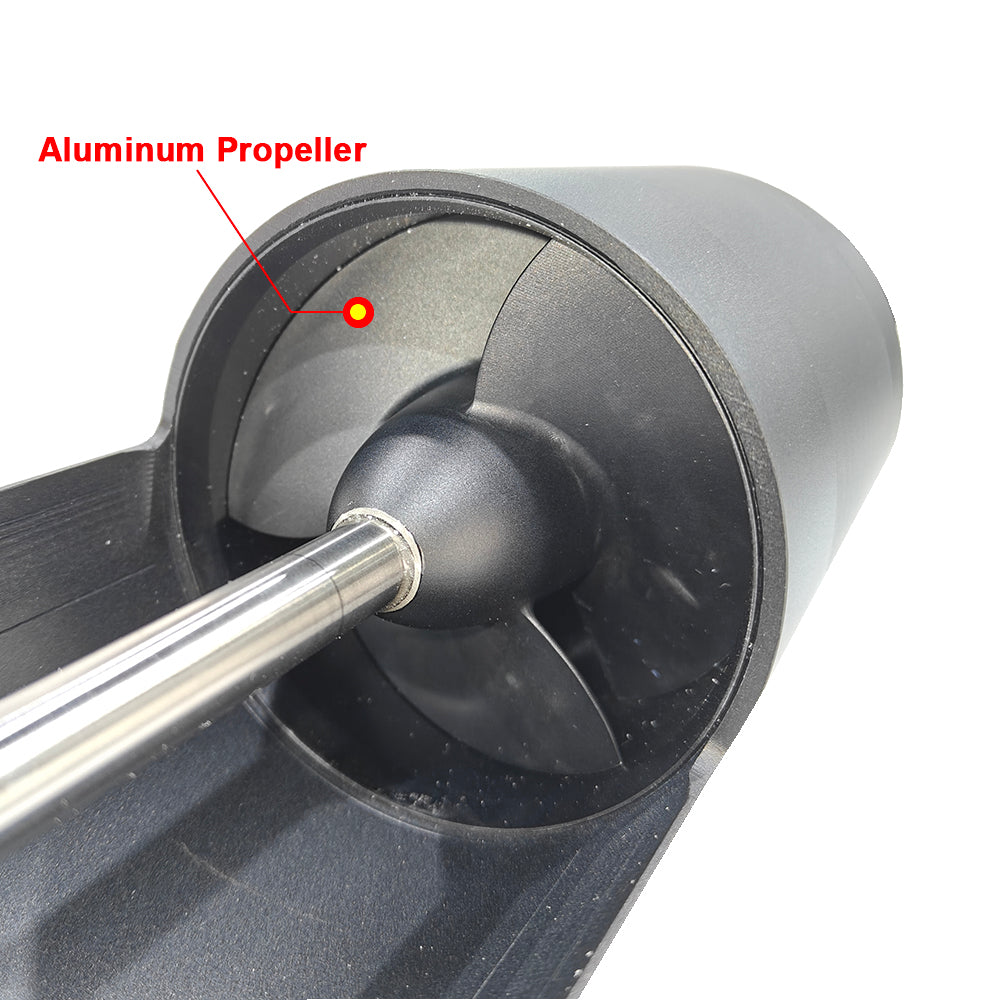

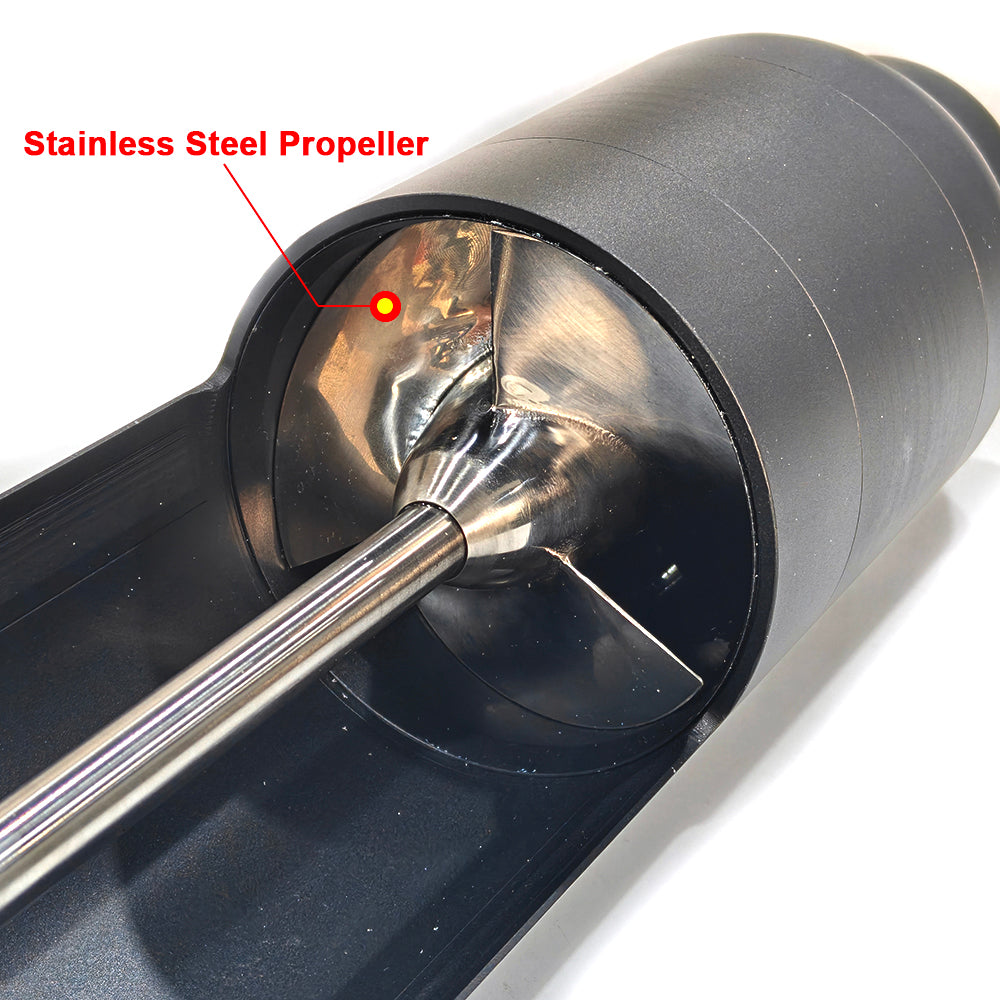

2 Types Impeller will be shipped randomly:

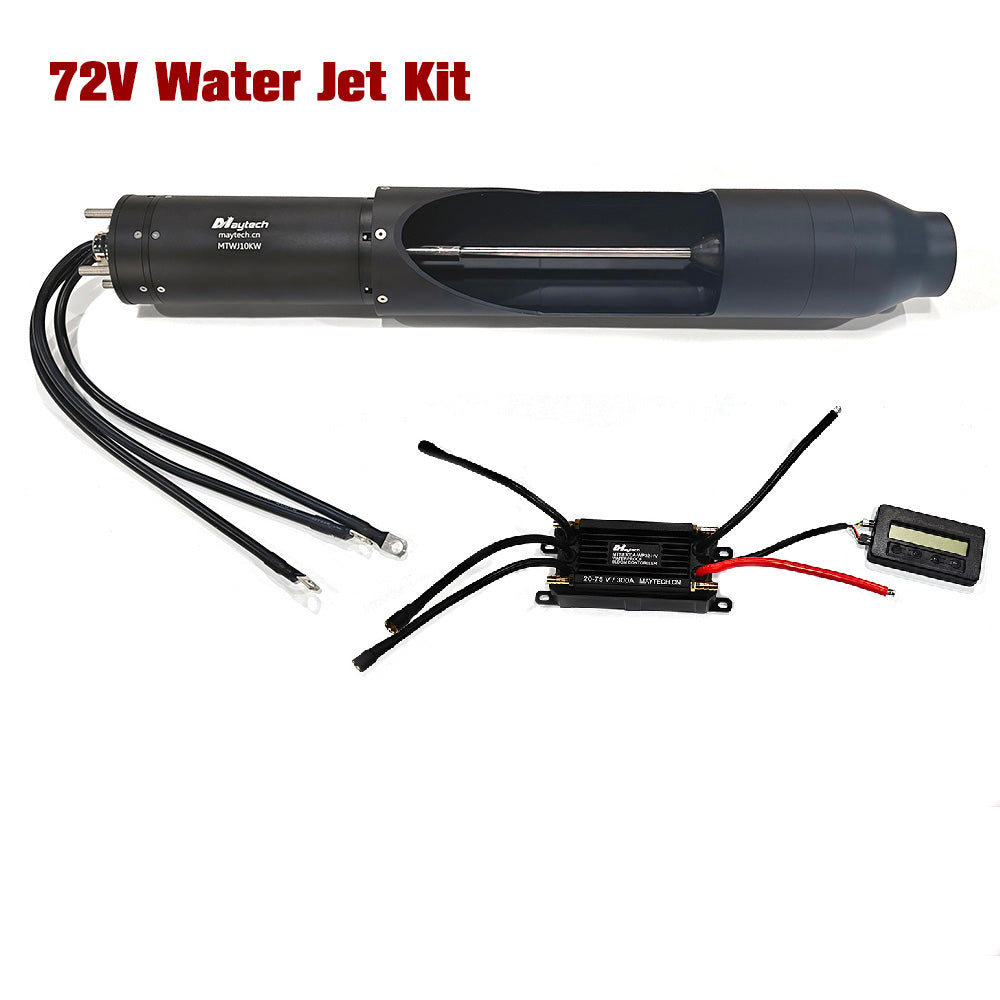

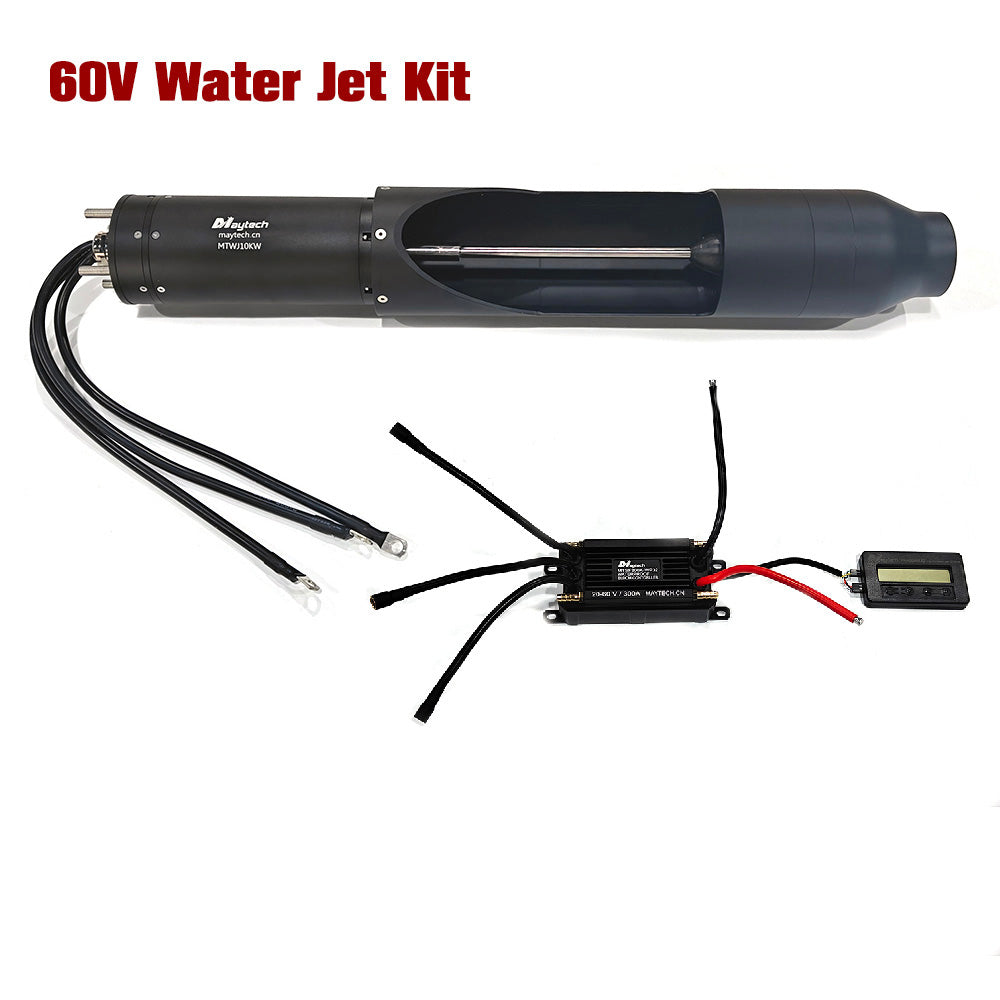

2. MTSF300A ESC 2 Versions: Max 60V and Max 72V versions
Specification:
Model No.: MTSF300A-WP32 Max 60V / MTSF300A-WP32-HV Max 72V
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 48-60V for MTSF300A-WP32 / 48-72V for MTSF300A-WP32-HV in this kit
Cable Guage: 8AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.,
> How to set the ESC bidirectional with MTSKR1905WF remote for Boat application?



3. Remote: V5.0 MTSKR26WF Waterproof GPS Remote for Esurf, with PWM & UART Receiver
| Model No | MTSKR26WF V5.0 |
| Updated Functions |
Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed) Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. |
| Waterproof Rank | IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen |
| Thr Mode | Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications |
| 3 Speed Modes | With, adjust throttle % from 20-100%, friendly for beginners |
| Power Modes | 2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro > ECO Power Consumption: PRO > ECO |
| Throttle Lock | Yes, 10-120S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | In Esk8(SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf(SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
GPS Speed / Distance / Max Speed / Average Speed |
| Relay Switch | No, without Relay Switch on Receiver to save mounting space |
| Control Light | Yes (20V 2A Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake or Reverse | With in Esk8 Mode |
| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |


Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us eileen@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
If not in stock, production time 30-50 days after order confirmed.
