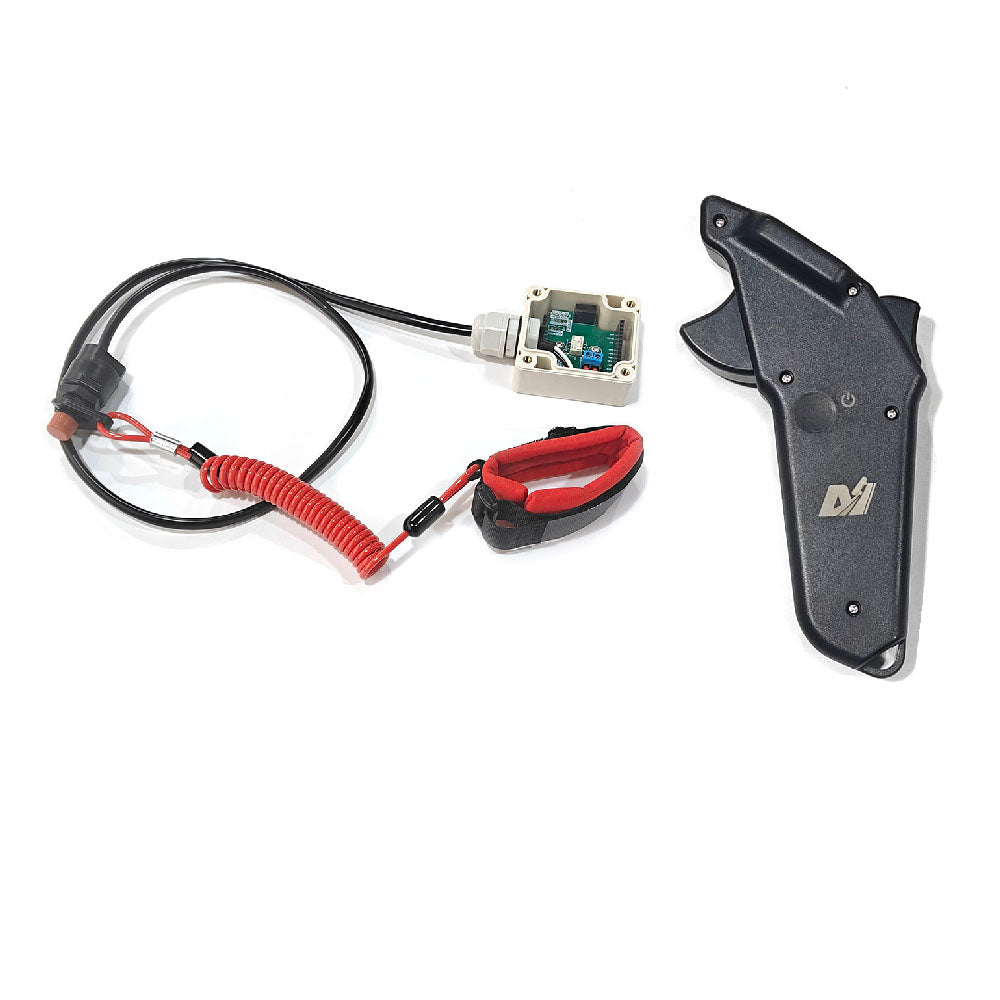

Kill Switch Stop Motor When Fall off from Board Safety for Efoil Jetsurf Surfboard Esk8 Compatible with MTSKR1905WF V3 Remote VESC/ESCs
Kill Switch Stop Motor When Fall off from Board Safety for Efoil Jetsurf Surfboard Esk8 Compatible with MTSKR1905WF V3 Remote VESC/ESCs
Regular price
$34.90 USD
Regular price
Sale price
$34.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact agnes@maytech.cn
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Specification:
| Model No | MTSKR1905SK |
| Compatible Remote | MTSKR1905WF / MTSKR2005WF |
| Compatible Controllers | VESC / ESCs that support PWM signal |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, etc., |

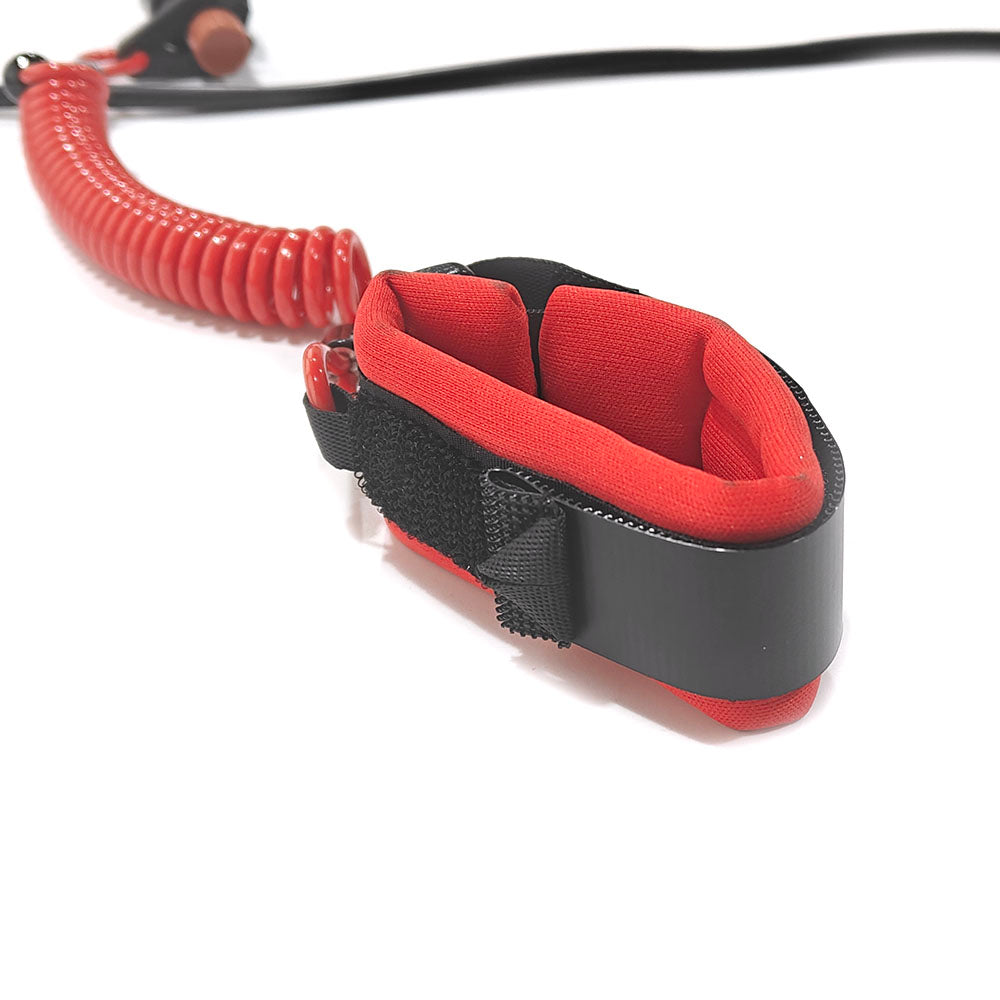

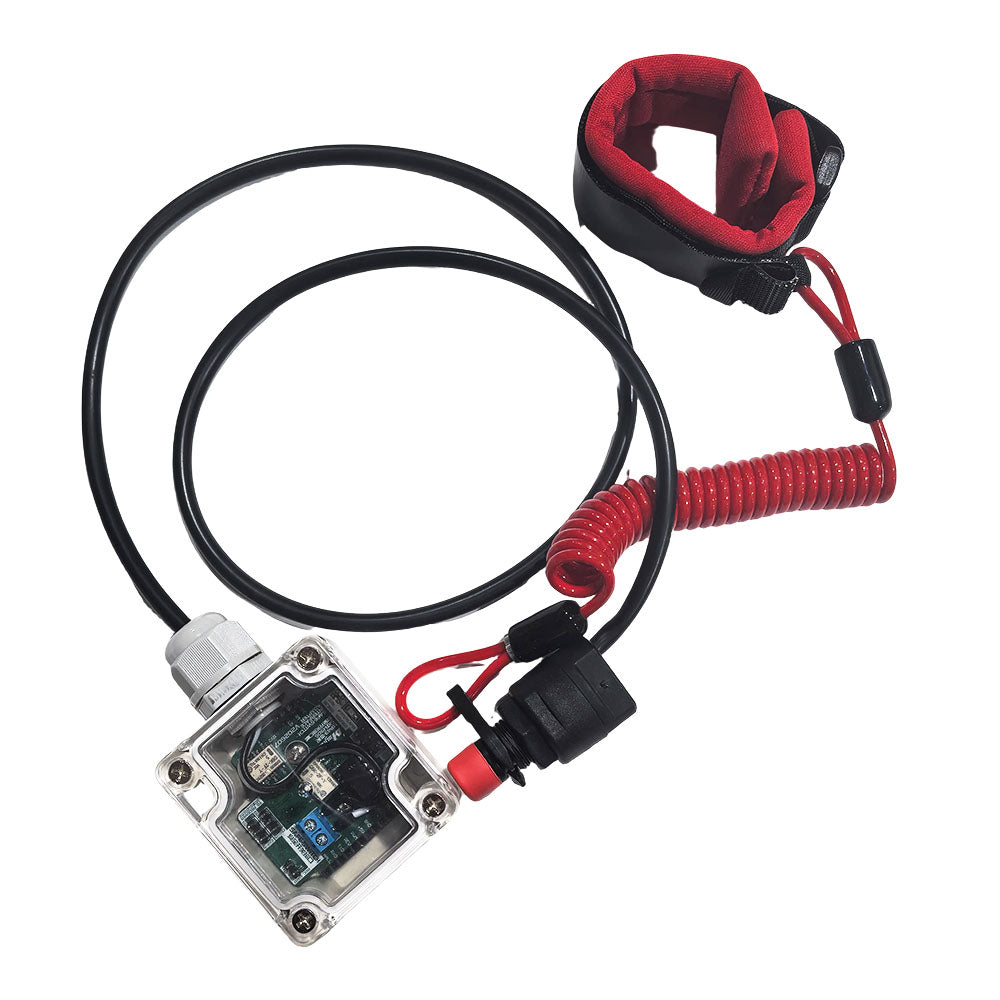

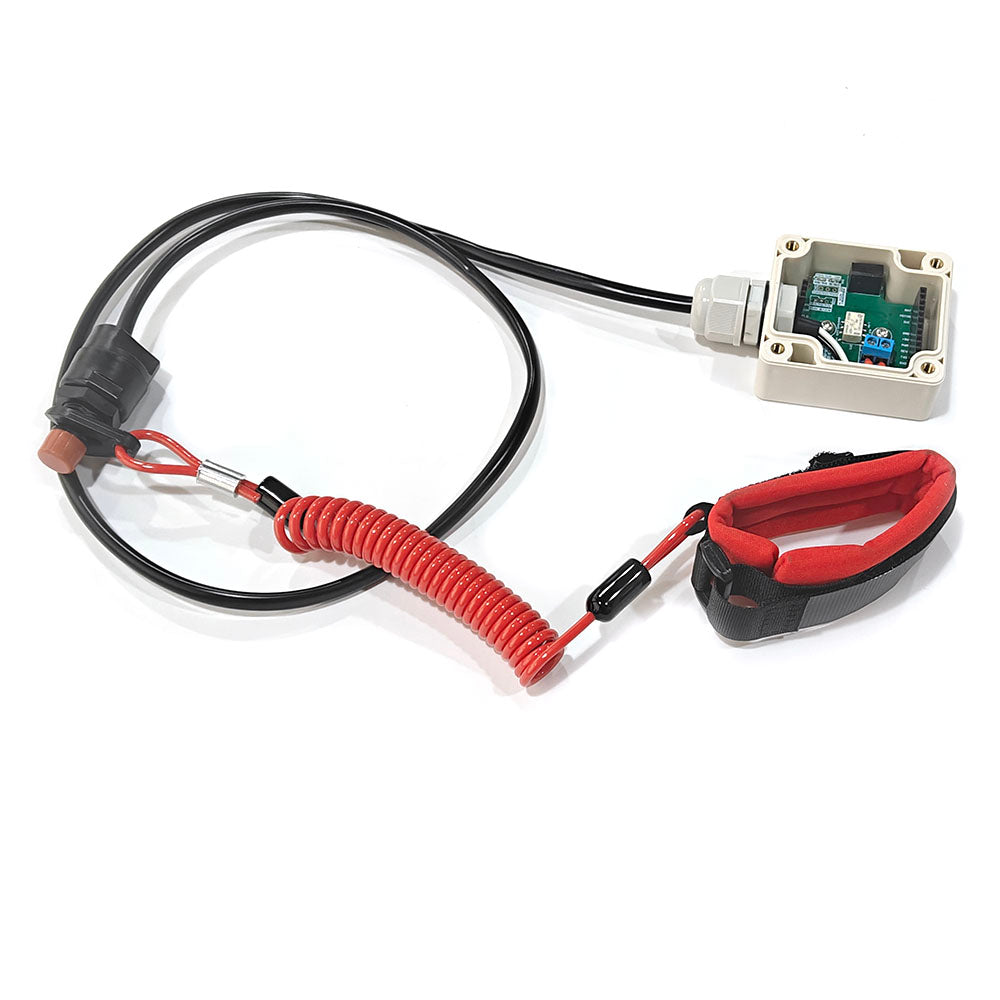

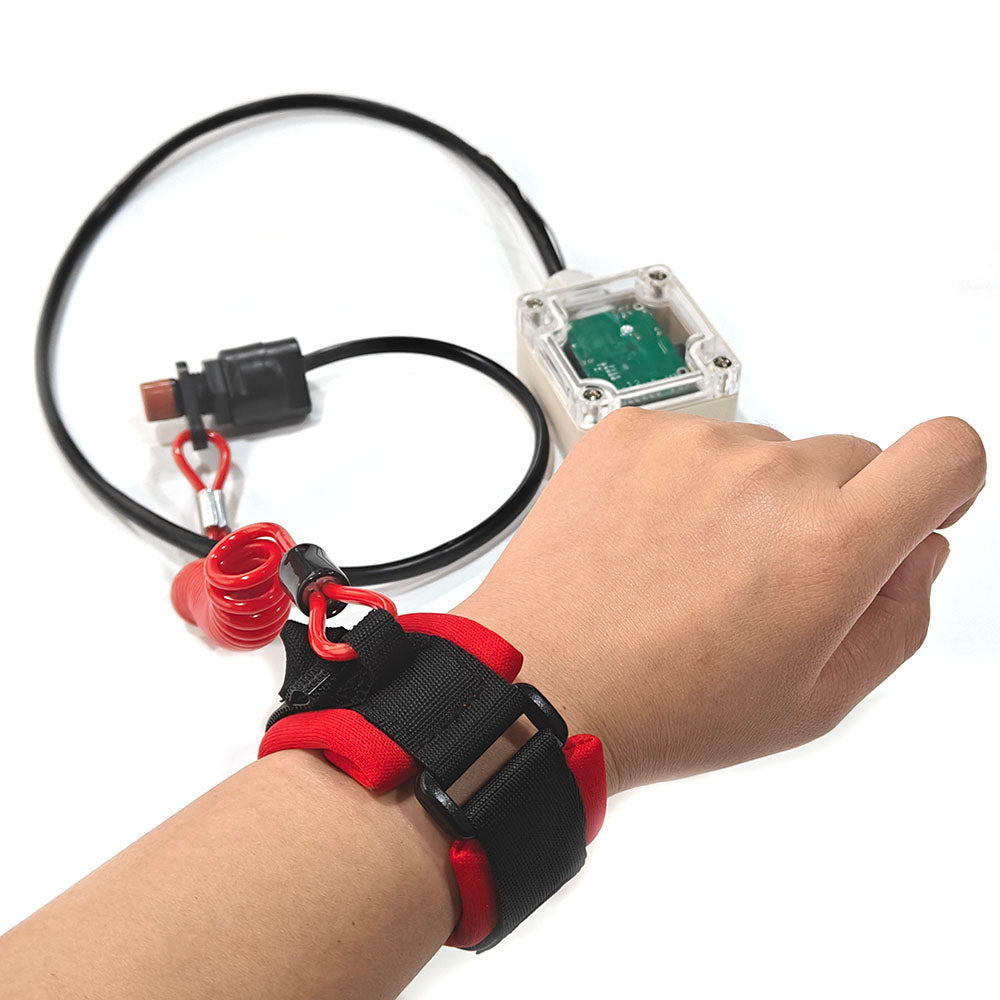

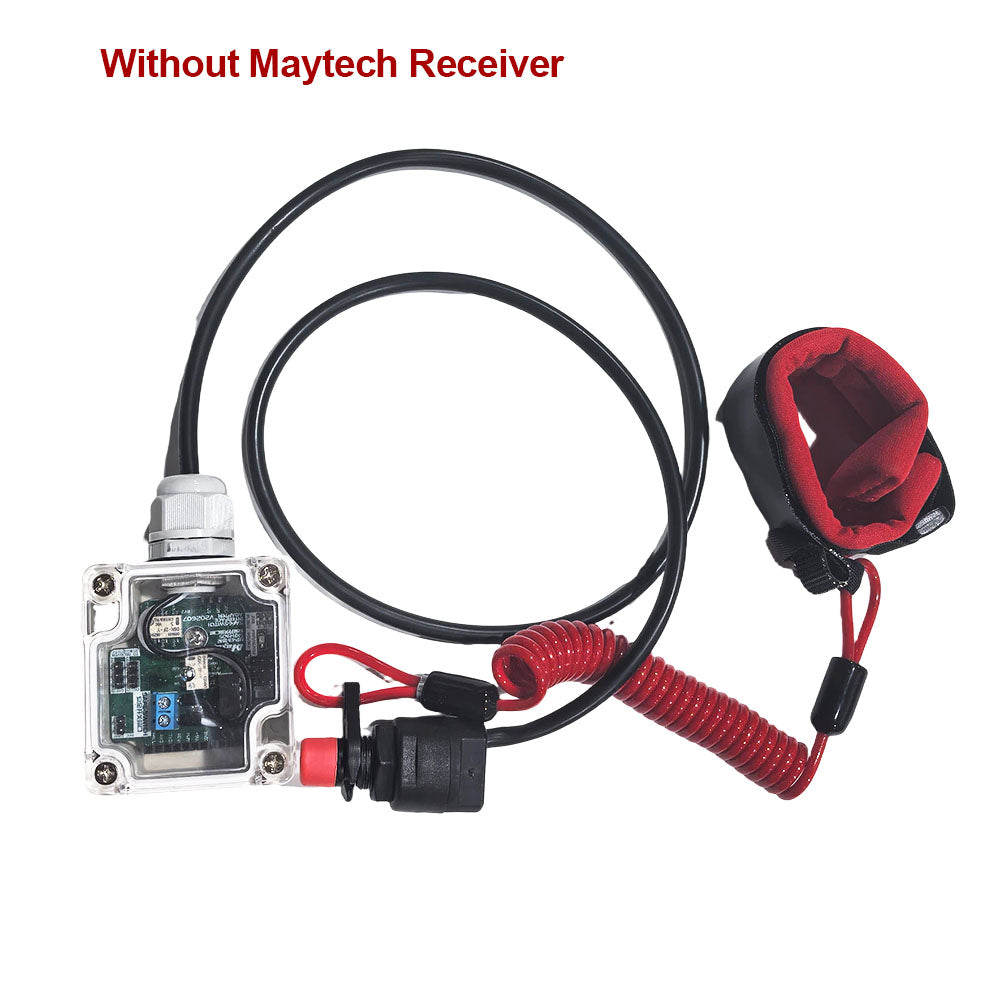

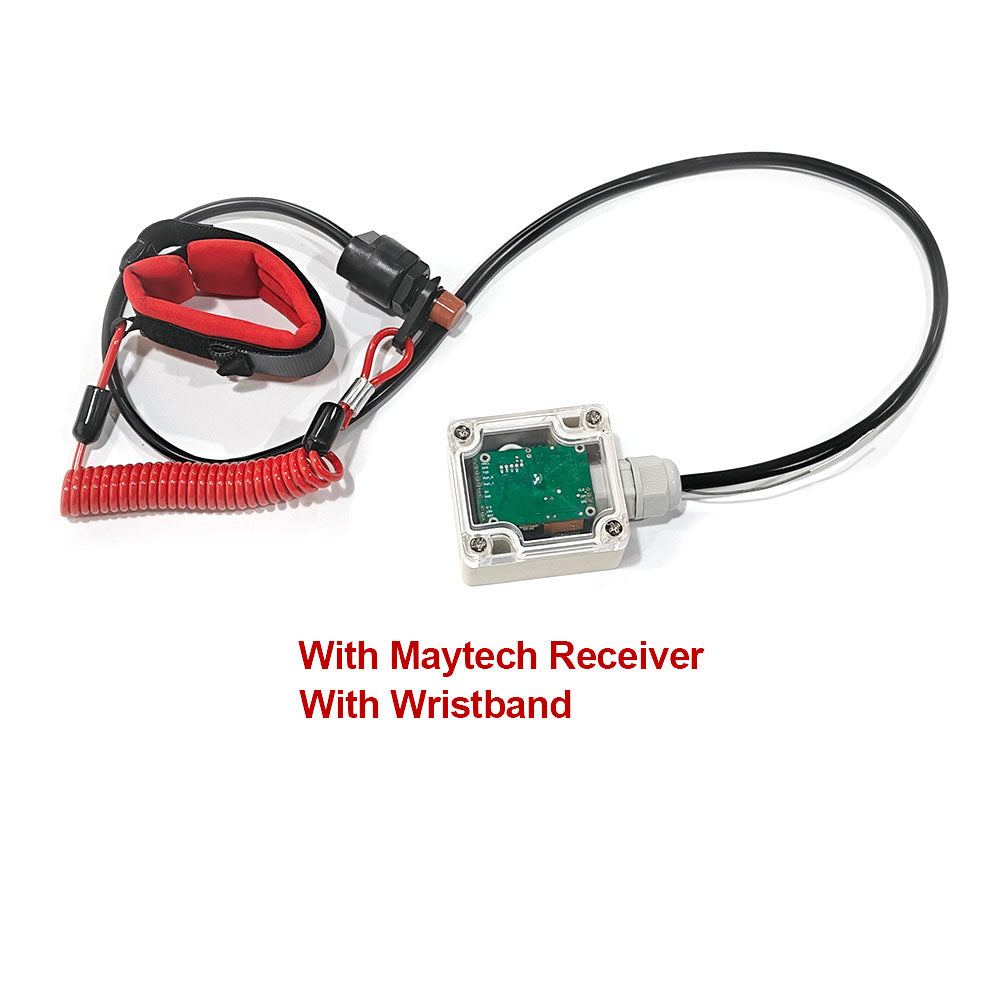

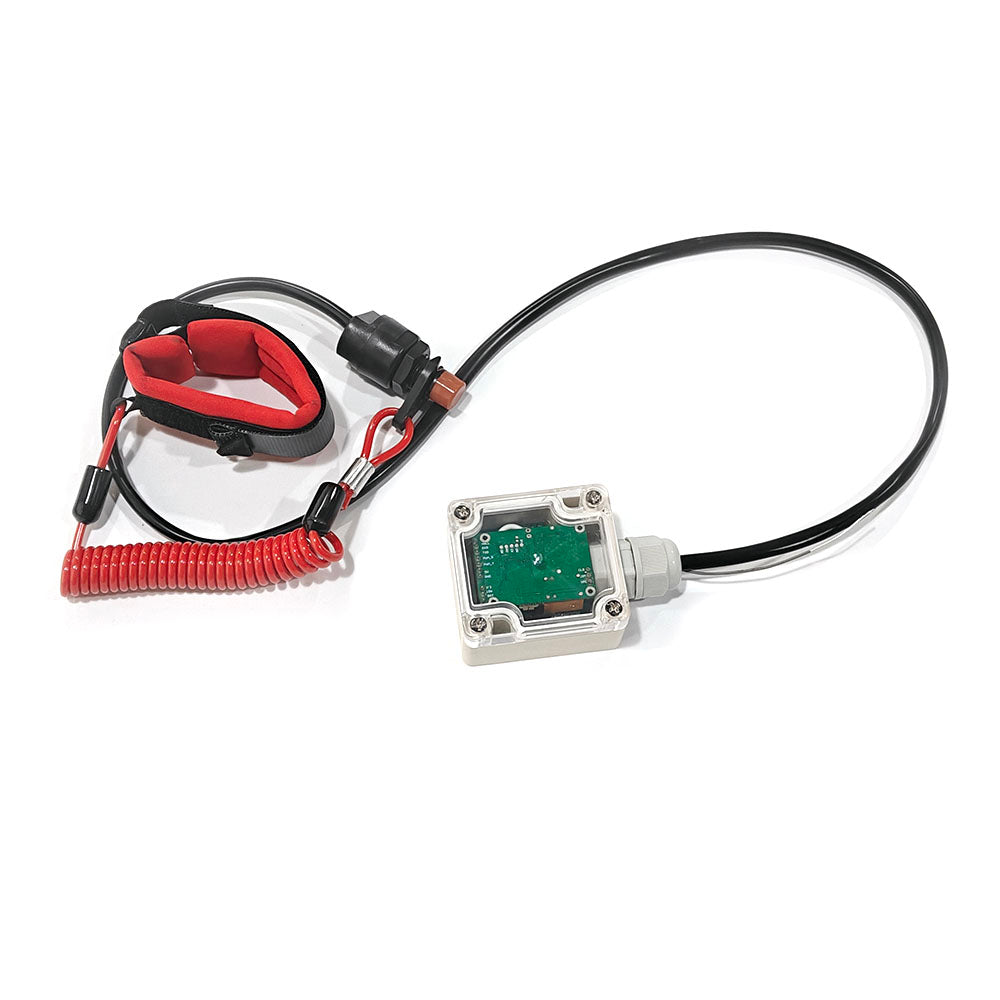

Product 1: Kill switch:
> Check Video Using Instruction

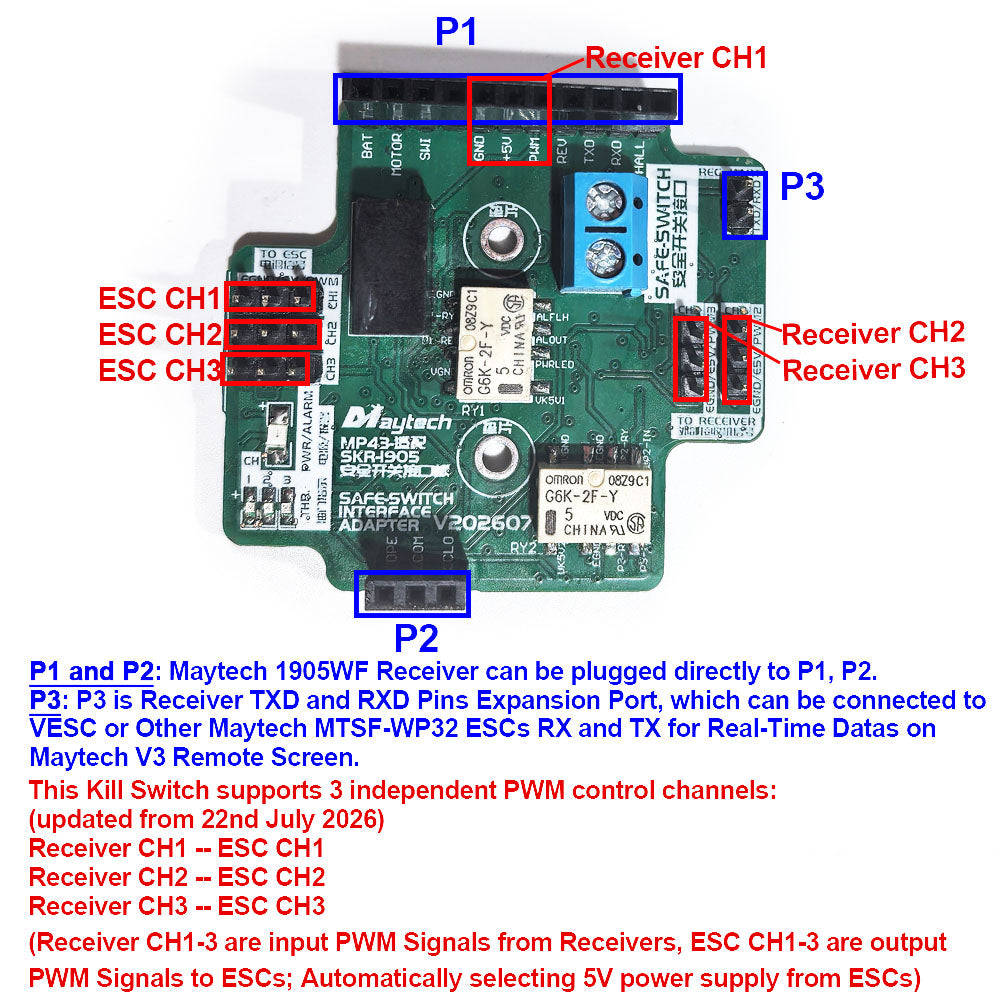

> Check the way to install your ESC/VESC with the switch
Product 2: MTSKR1905WF Remote:
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.
Tips After Using:
In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
