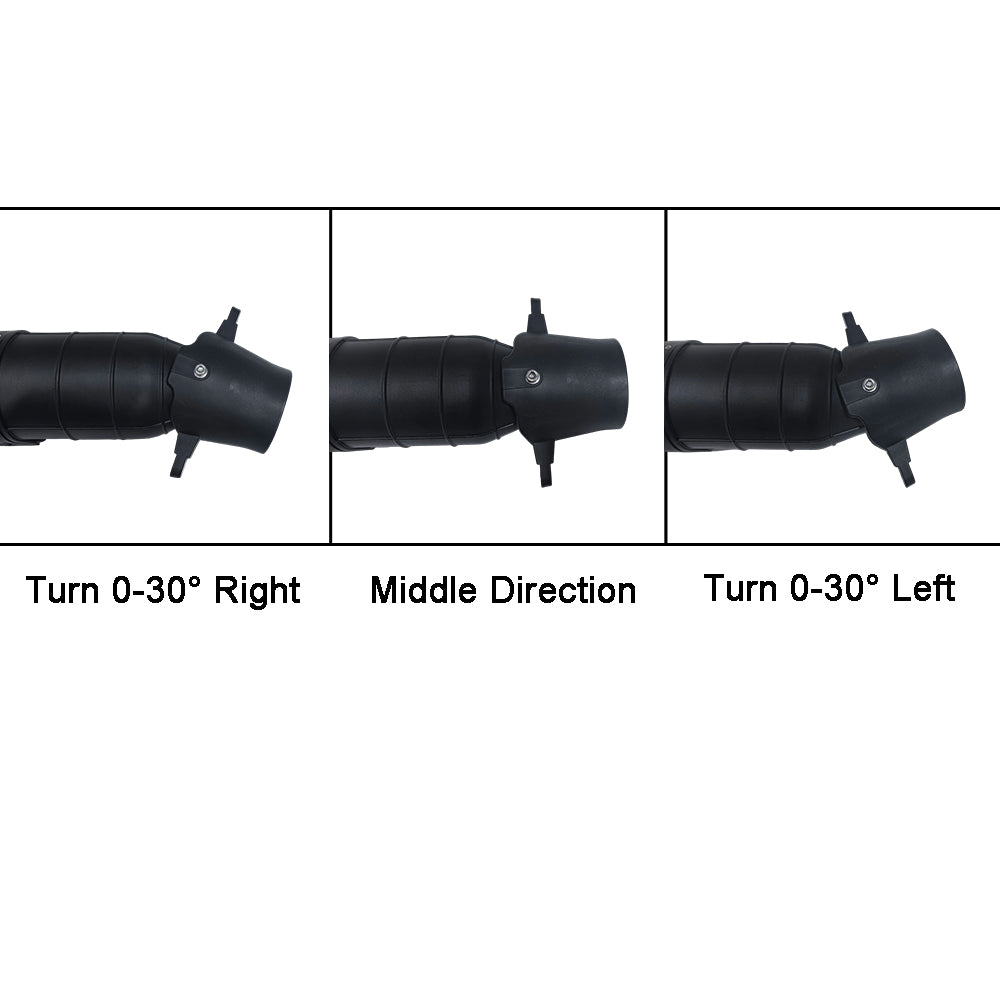

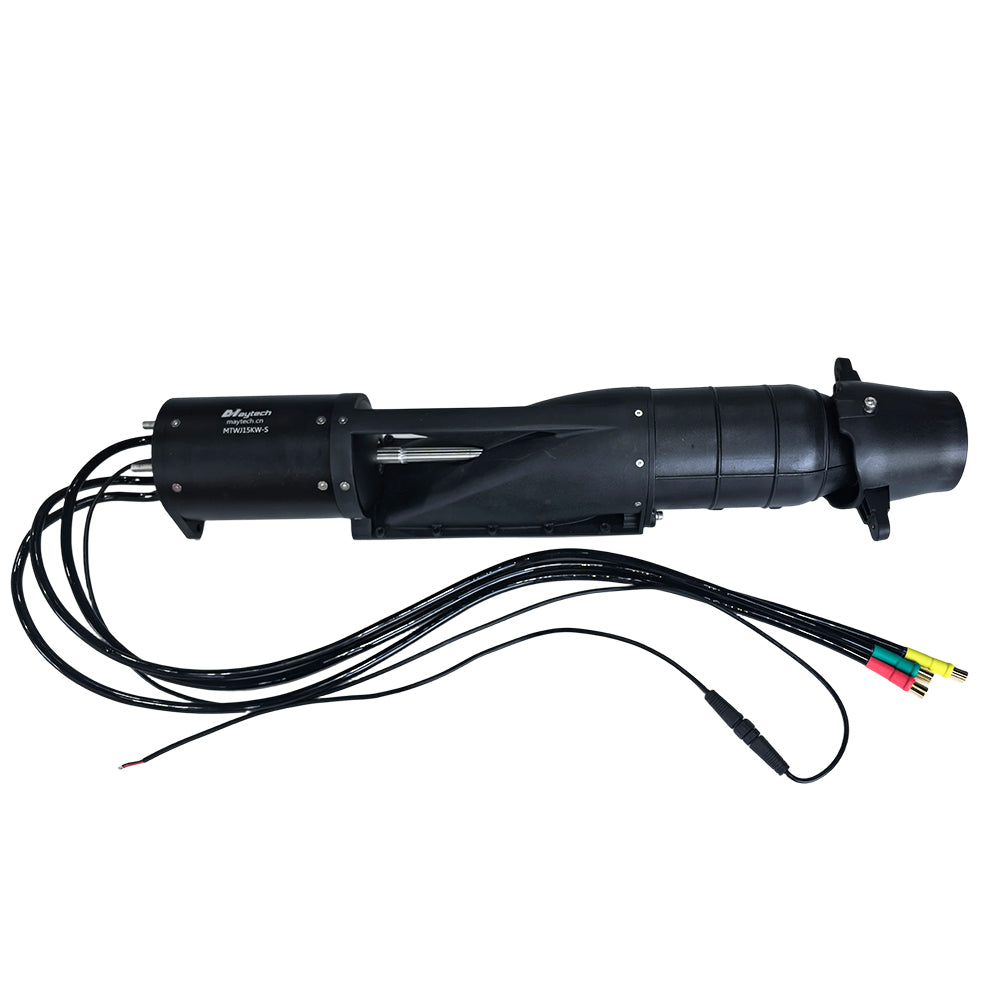

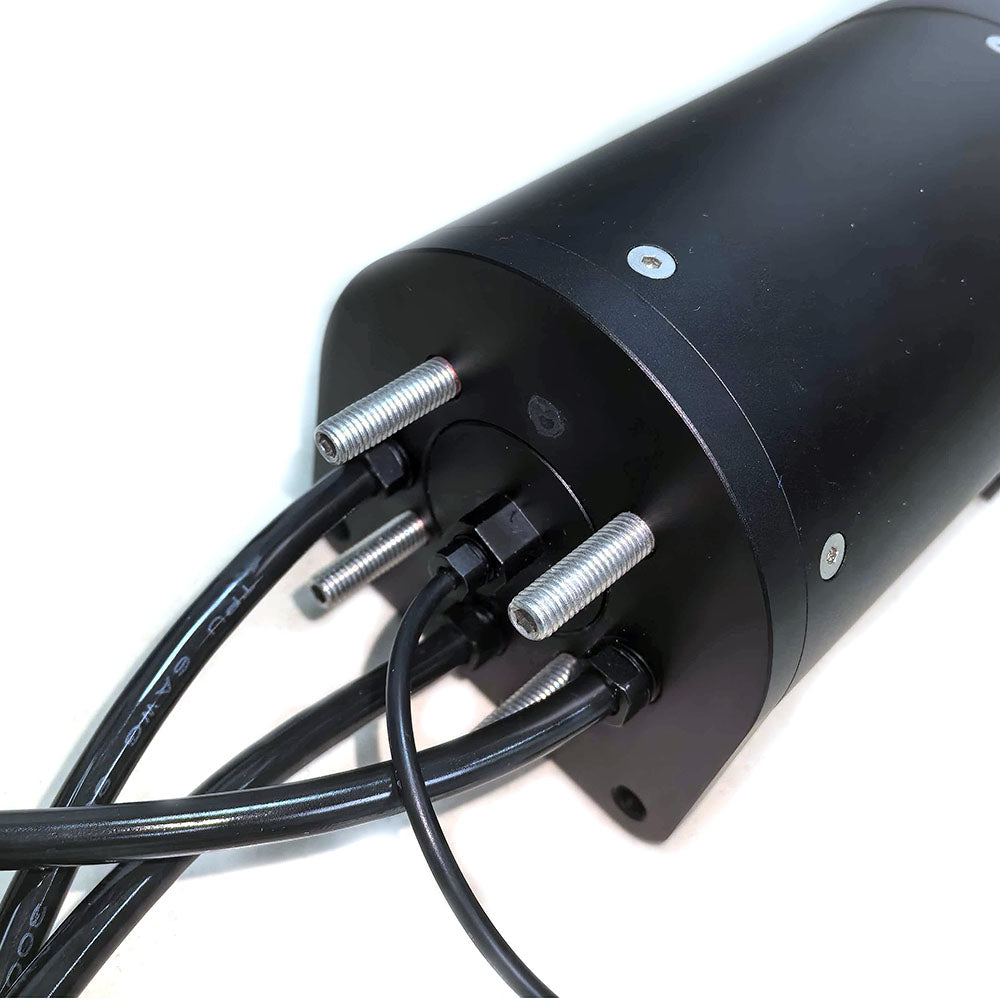

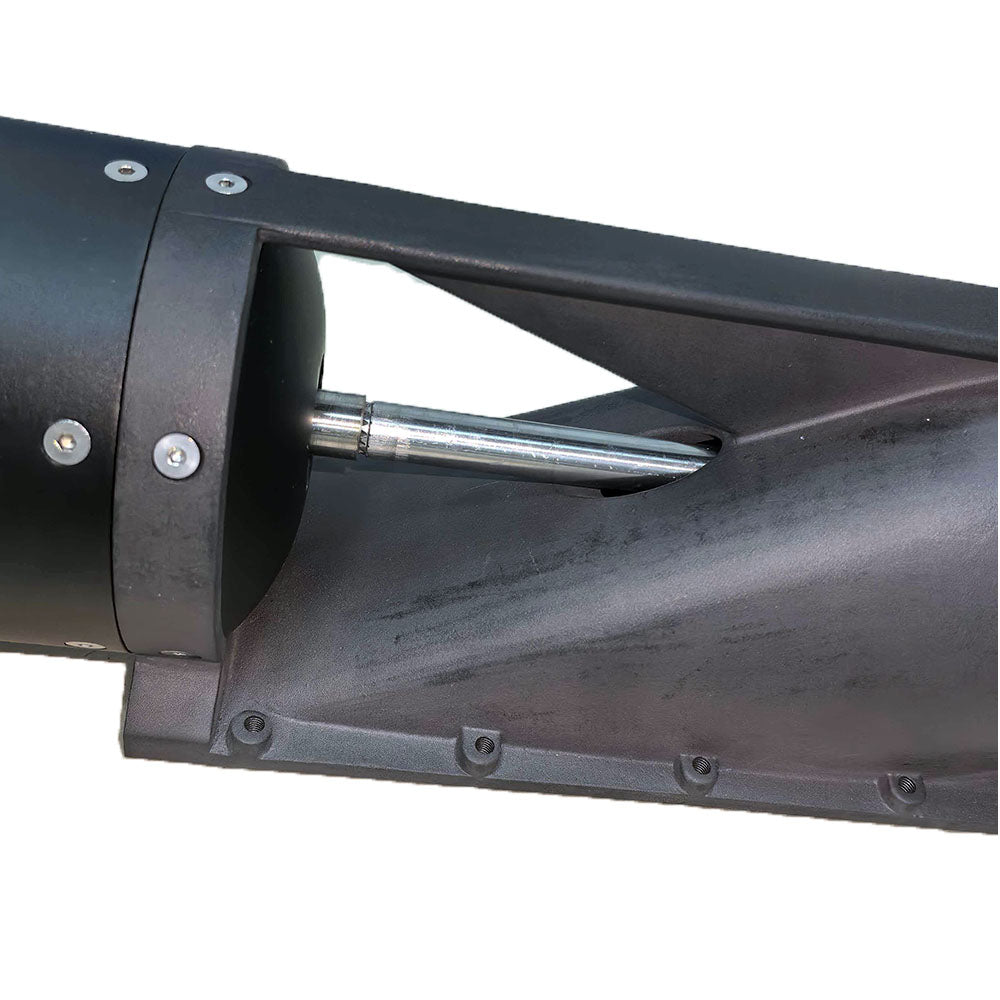

Maytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski Jetboard

Maytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski Jetboard

$1,093.40 USD
$1,093.40 USD
Sale Sold out
Shipping calculated at checkout.
MTWJ15KW-S
Connector Type
Compatible Products

Maytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski Jetboard

Specification:

Model No

MTWJ15KW-S

Recommended ESC

MTSF300A-WP32-HVPRO 10-20S Lipo Max 85V with Bluetooth module BLT32PROHV

Max Current

300A

Max Output Watt

13.9KW at 84V

Motor Construction

12N10P

KV

130

Cable length

0.2m

Input Volt

36-85V

Max Thrust

90.6kg at 84V

Temperature sensor

Without

Max Working Temp

120℃

Application

Electric watercraft, Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive, outboard, jet drive kayak, etc.
Customize KV, logo, shaft, cable, connector, etc., contact Email: eileen@maytech.cn


> Check our test on karting boat

> Check our test in water tank

> Check our test on karting boat up to 48km/h

Maytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski Jetboard

Maytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski JetboardMaytech MTWJ15KW Water Jet Motor With Steering Nozzle Max 15KW with Impeller Jet Thruster for Jet Boat Jetski Jetboard

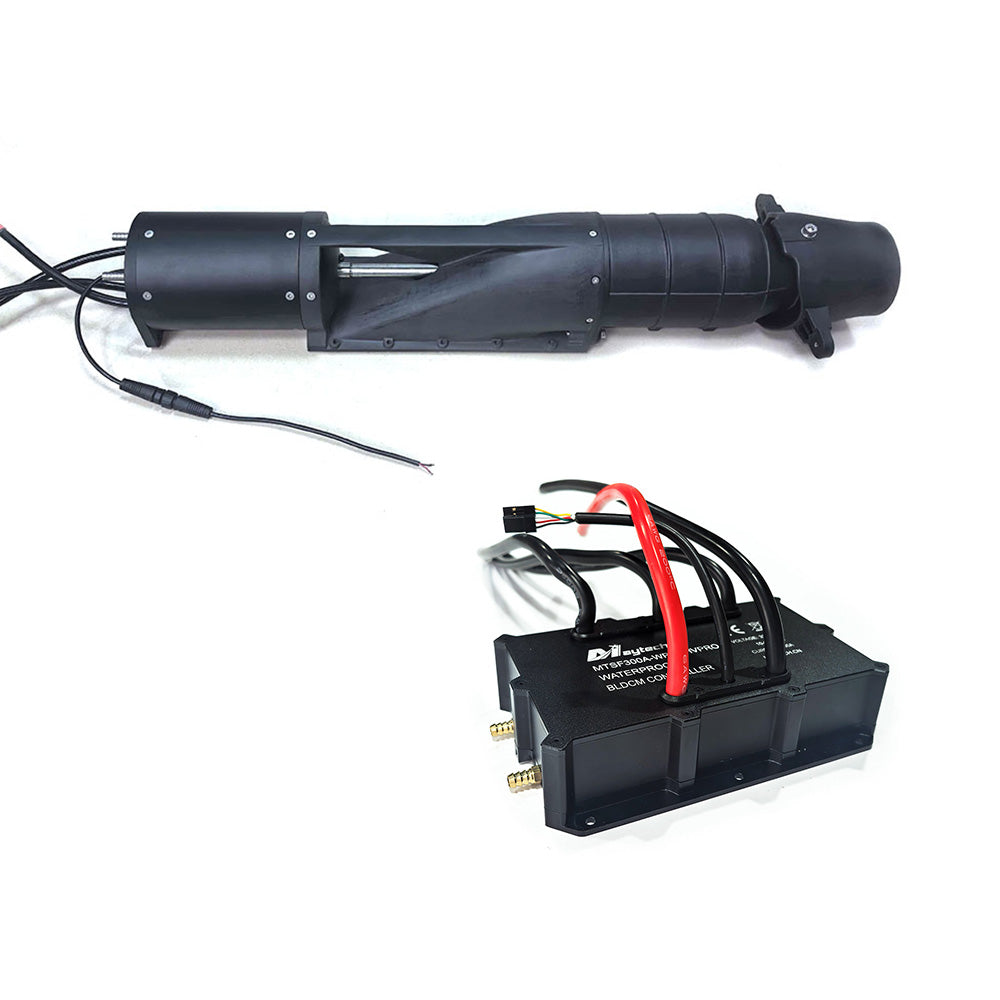

Settings and wiring to work with MTSF300A-WP32-HVPRO ESC and MTSKR1905WF Waterproof Remote:
In ESC App:
Motor Poles: set according to your motor pole number, if your motor pole number is 10, then in ESC set to 10

In Remote MTSKR1905WF:
Data Source: MTSESC-WP32
M.Pole Pairs: 1
Gear Drive: 1.0 (for direct drive), if you need to use gear then set according to your actual gear ratio
Batt type and Batt Ser Num: Set accoding to your battery specs

Stock Notice before Place Order:

The motor stock is limited, please confirm order asap.

And if you need very urgently, please contact us eileen@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.

If not in stock, production time 30-50 days after order confirmed.

Related Products: Clicking the following pictures to check specs

View full details
Variant Variant total Quantity Price Variant total
With / Ring terminal / Without (Select this if you need MTWJ15KW-S)
With / Ring terminal / Without (Select this if you need MTWJ15KW-S)
$1,093.40/ea		 $0.00
$1,093.40/ea $0.00
With / 8mm bullet male connector / Without (Select this if you need MTWJ15KW-S)
With / 8mm bullet male connector / Without (Select this if you need MTWJ15KW-S)
$1,093.40/ea		 $0.00
$1,093.40/ea $0.00
With / 10mm bullet connector / Without (Select this if you need MTWJ15KW-S)
With / 10mm bullet connector / Without (Select this if you need MTWJ15KW-S)
$1,093.40/ea		 $0.00
$1,093.40/ea $0.00

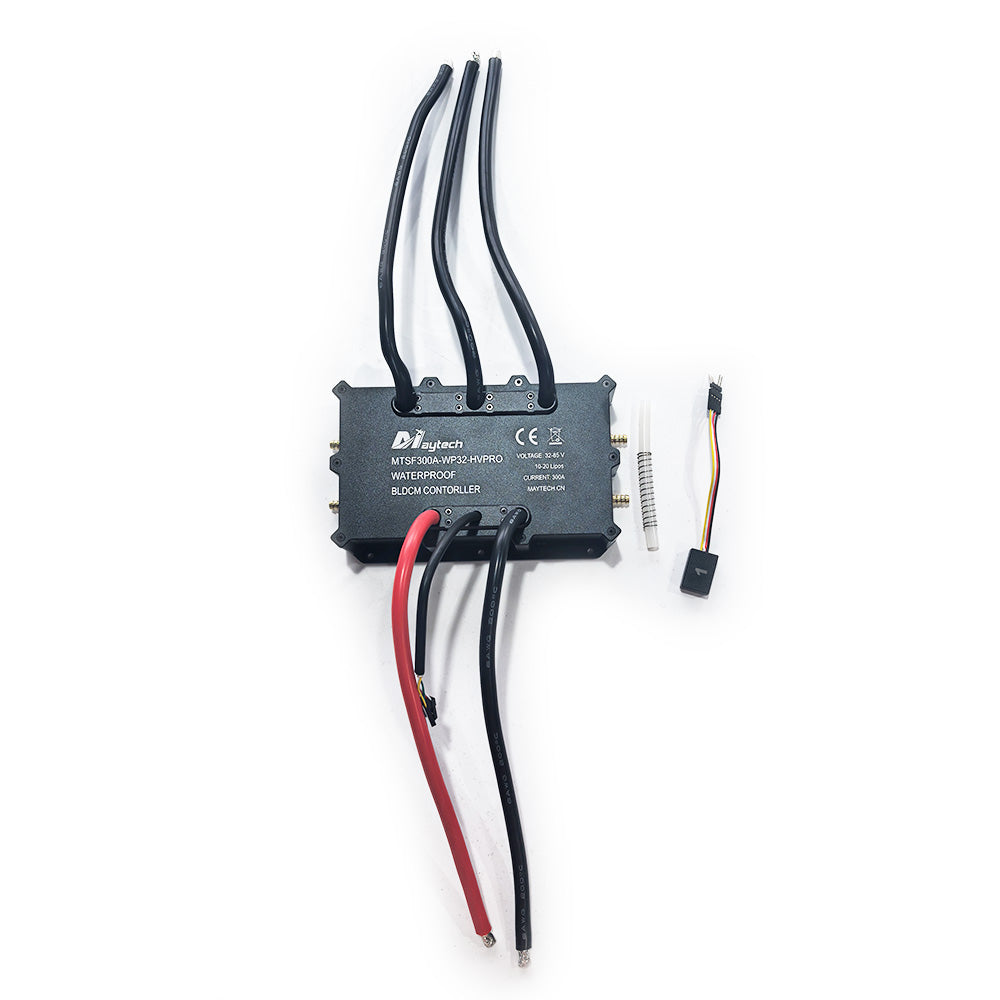

Without (Select this if you need compatible products) / 10mm bullet connector / MTSF300A-WP32-HVPRO ESC
Without (Select this if you need compatible products) / 10mm bullet connector / MTSF300A-WP32-HVPRO ESC
$360.00/ea		 $0.00
$360.00/ea $0.00

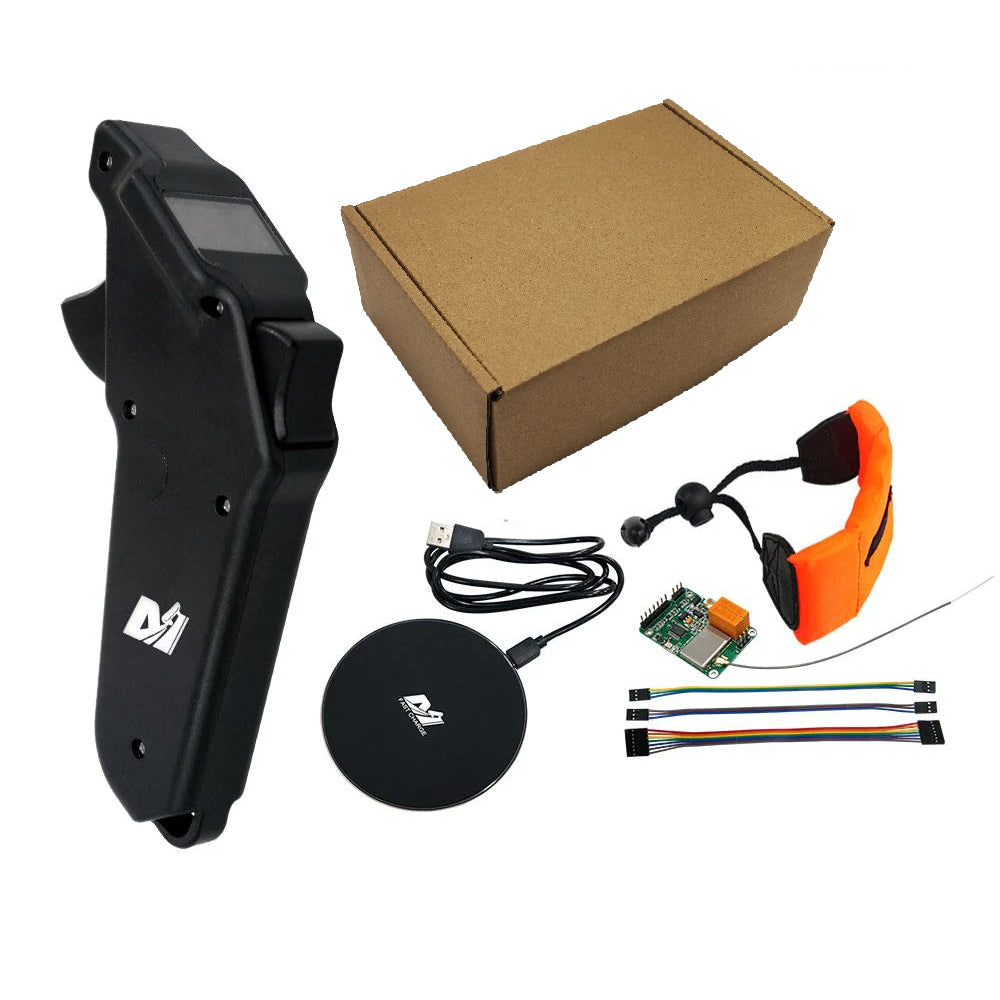

Without (Select this if you need compatible products) / Without / MTSKR1905WF V3 Wireless Remote
Without (Select this if you need compatible products) / Without / MTSKR1905WF V3 Wireless Remote
$89.90/ea		 $0.00
$89.90/ea $0.00

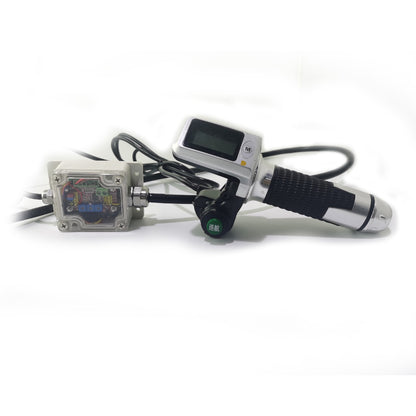

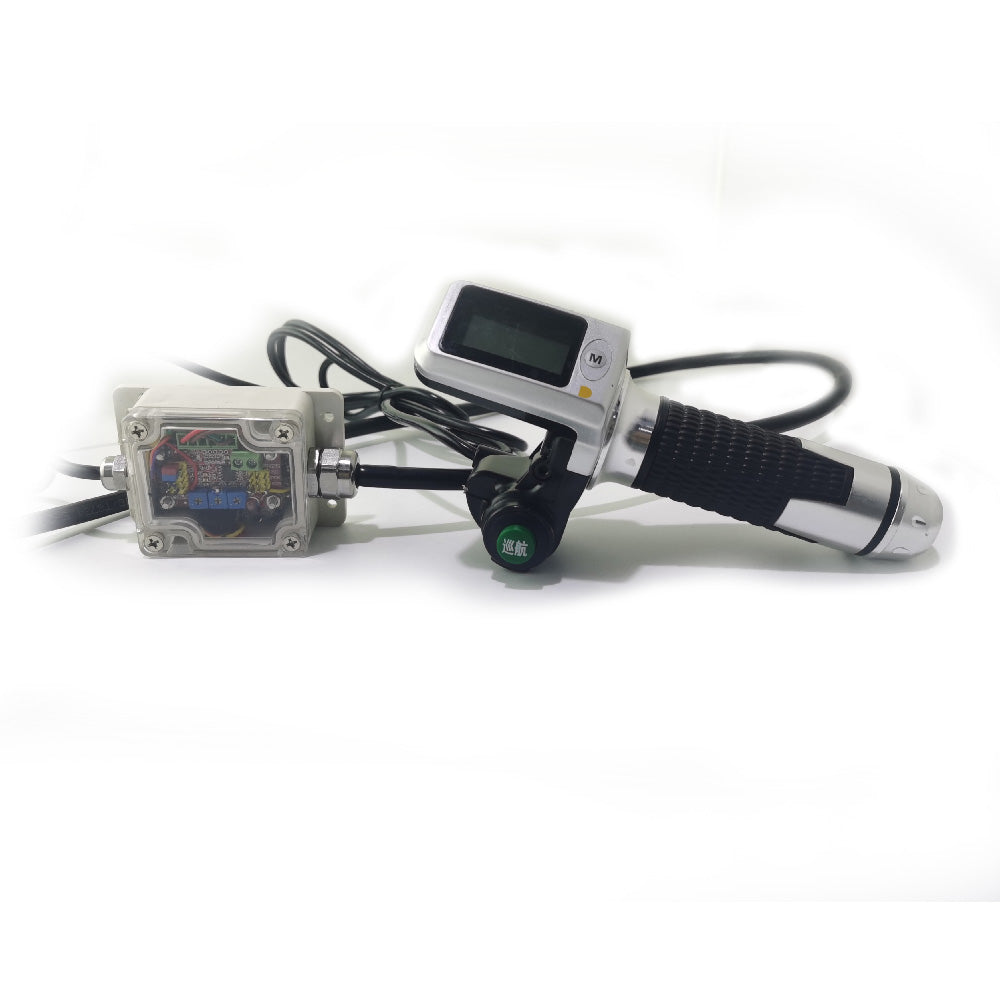

Without (Select this if you need compatible products) / Without / Twist throttle
Without (Select this if you need compatible products) / Without / Twist throttle
$89.90/ea		 $0.00
$89.90/ea $0.00

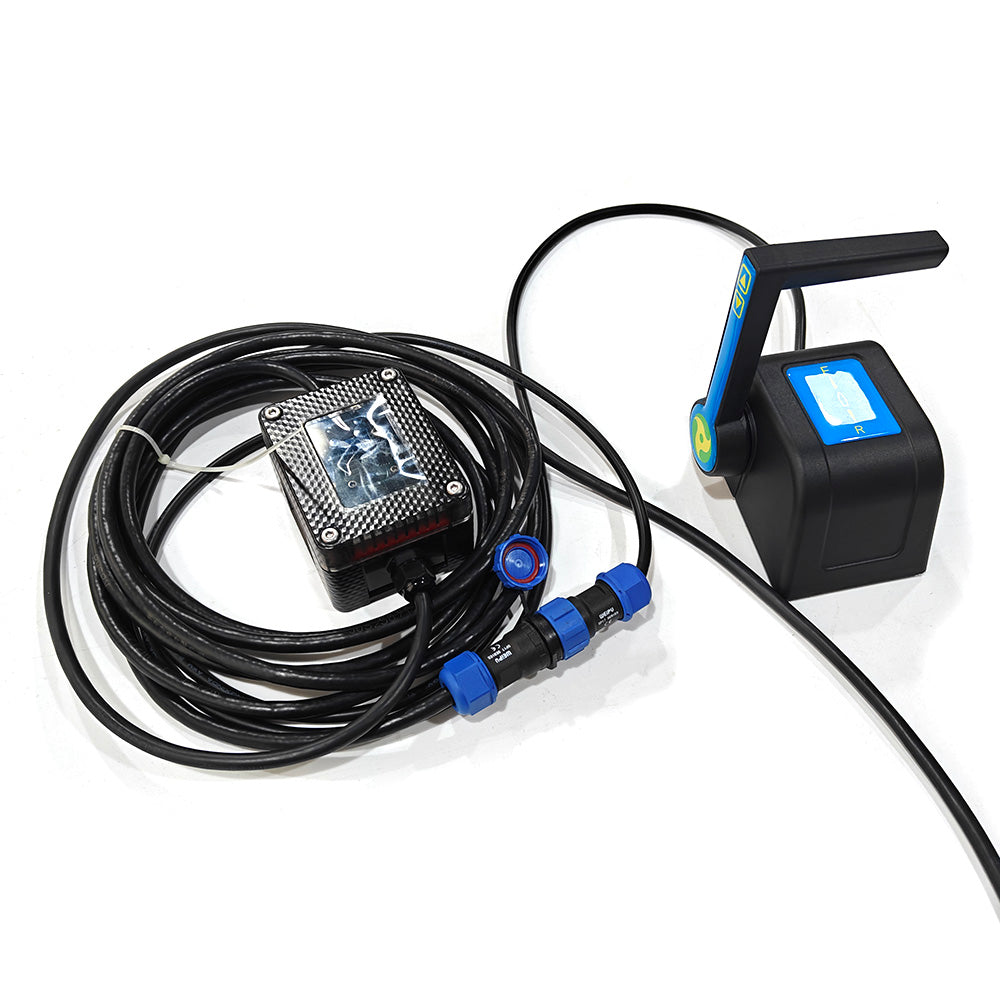

Without (Select this if you need compatible products) / Without / Throttle Lever (forward & reverse)
Without (Select this if you need compatible products) / Without / Throttle Lever (forward & reverse)
$89.90/ea		 $0.00
$89.90/ea $0.00

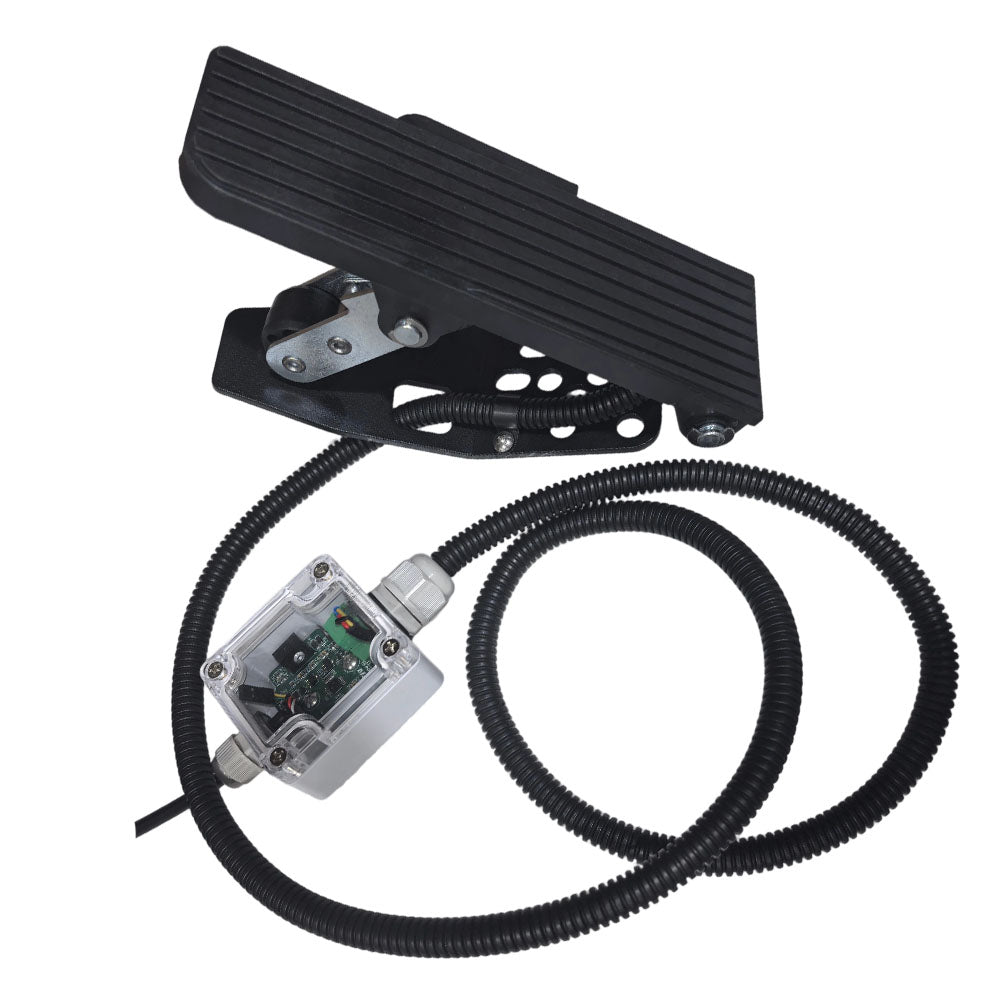

Without (Select this if you need compatible products) / Without / Pedal throttle
Without (Select this if you need compatible products) / Without / Pedal throttle
$89.90/ea		 $0.00
$89.90/ea $0.00

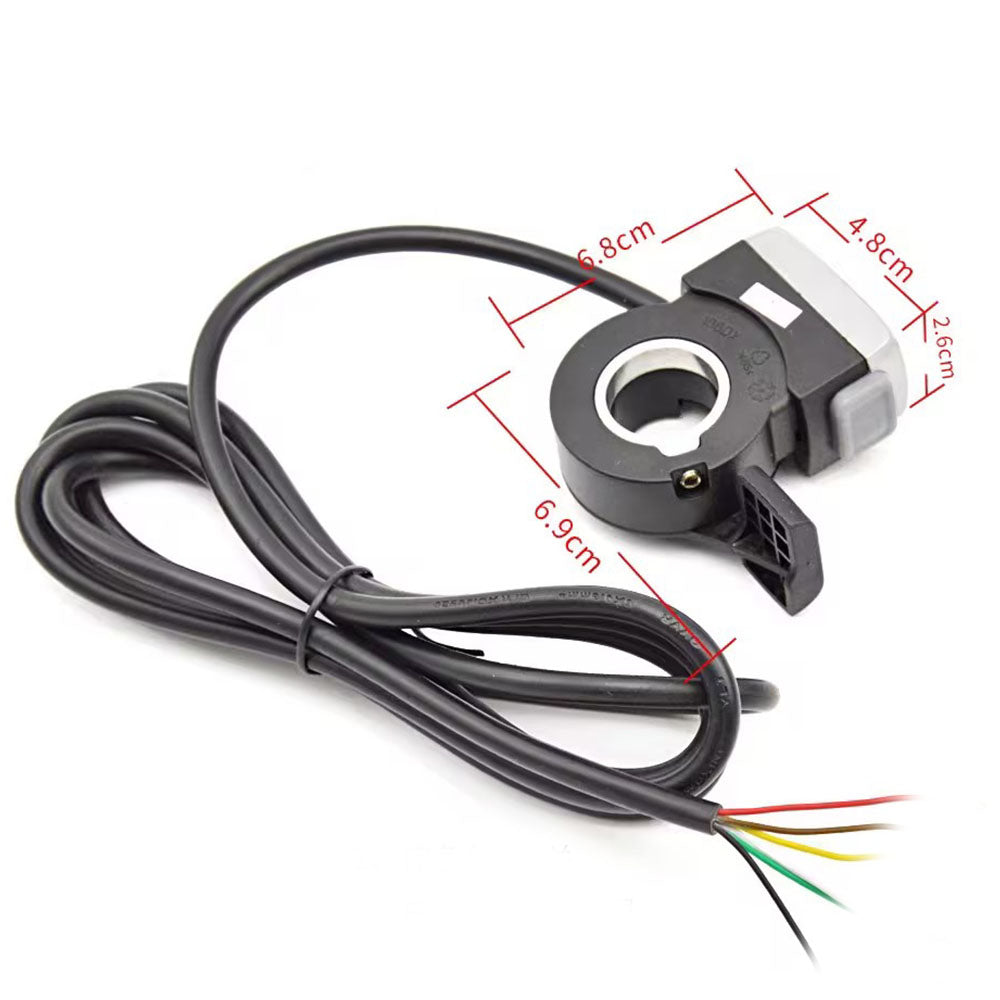

Without (Select this if you need compatible products) / Without / Thumb throttle
Without (Select this if you need compatible products) / Without / Thumb throttle
$89.90/ea		 $0.00
$89.90/ea $0.00

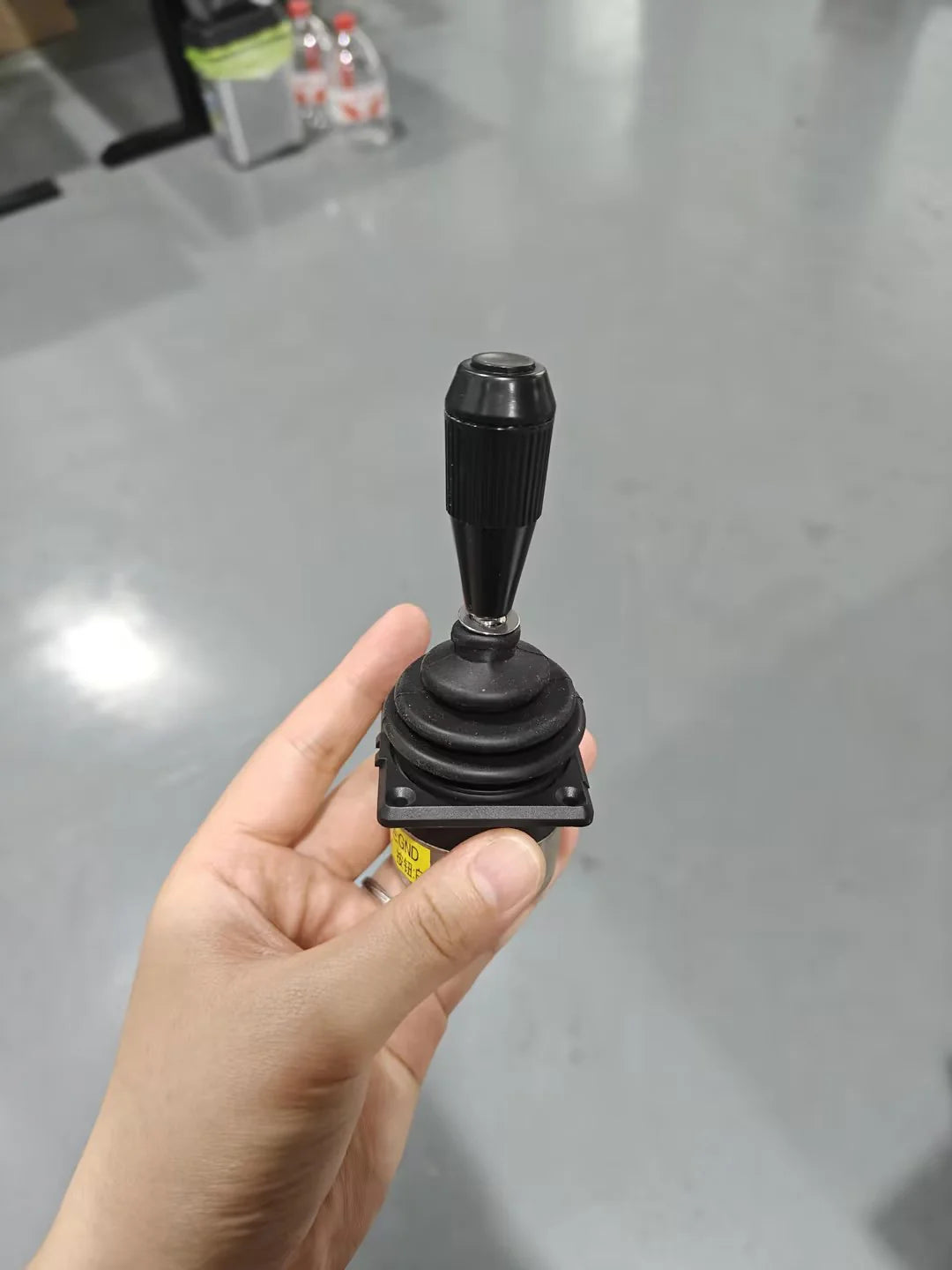

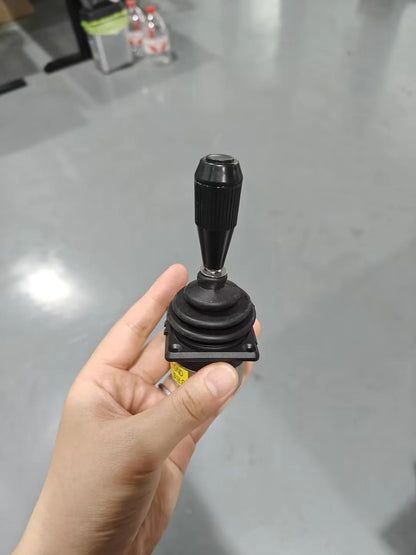

Without (Select this if you need compatible products) / Without / Joystick
