Maytech SUPERFOC6.8 50A V6.0 based Controller Comb with 5055/5065/5570 Brushless Outrunner Sensored Motor for Esk8/Robots
Maytech SUPERFOC6.8 50A V6.0 based Controller Comb with 5055/5065/5570 Brushless Outrunner Sensored Motor for Esk8/Robots
Regular price
$290.10 USD
Regular price
Sale price
$290.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Maytech SUPERFOC6.8 50A V6.0 based Controller SUPER FOC ESC Comb with 5055/5065/5570 Brushless Outrunner Sensored Motor for Esk8/Robots
4 Sets Comb:

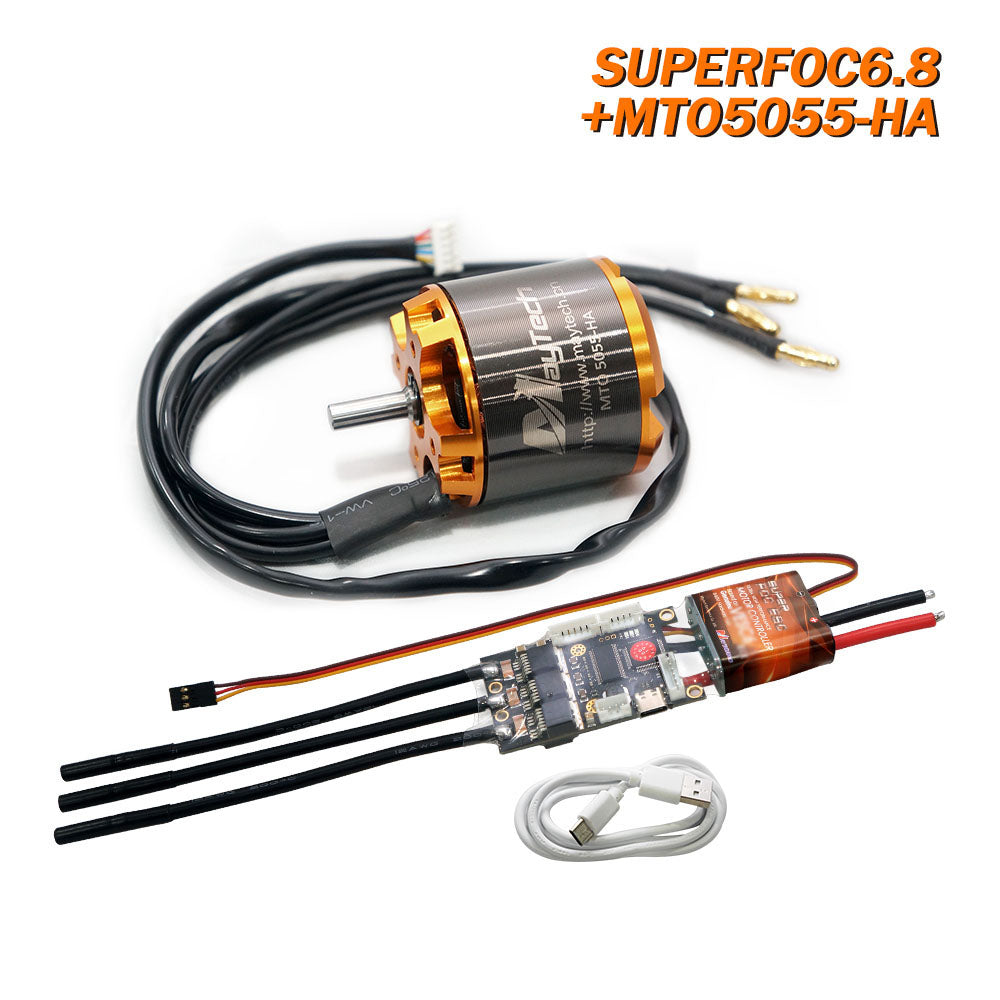

Comb 1: SUPERFOC6.8 + MTO5055-HA (220KV, Open cover, 6mm shaft)

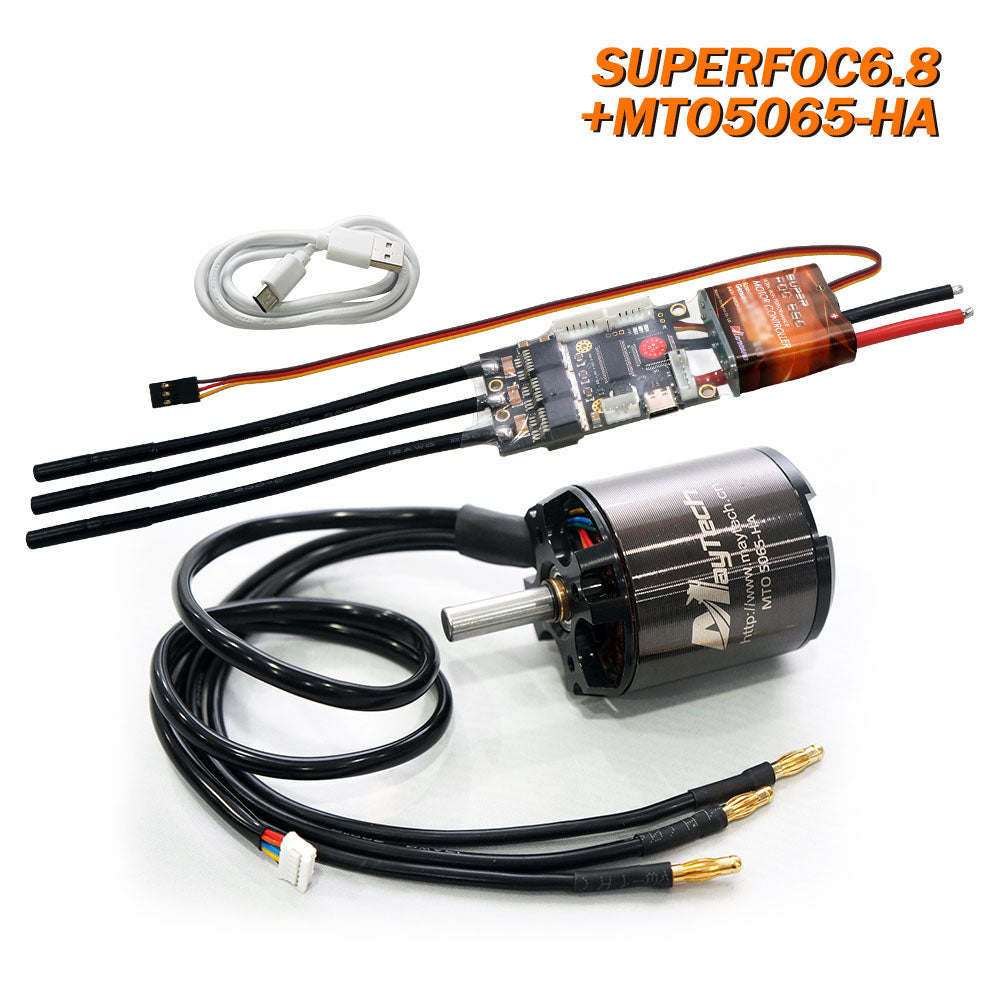

Comb 2: SUPERFOC6.8 + MTO5065-HA (220KV, Open cover, 6mm shaft)

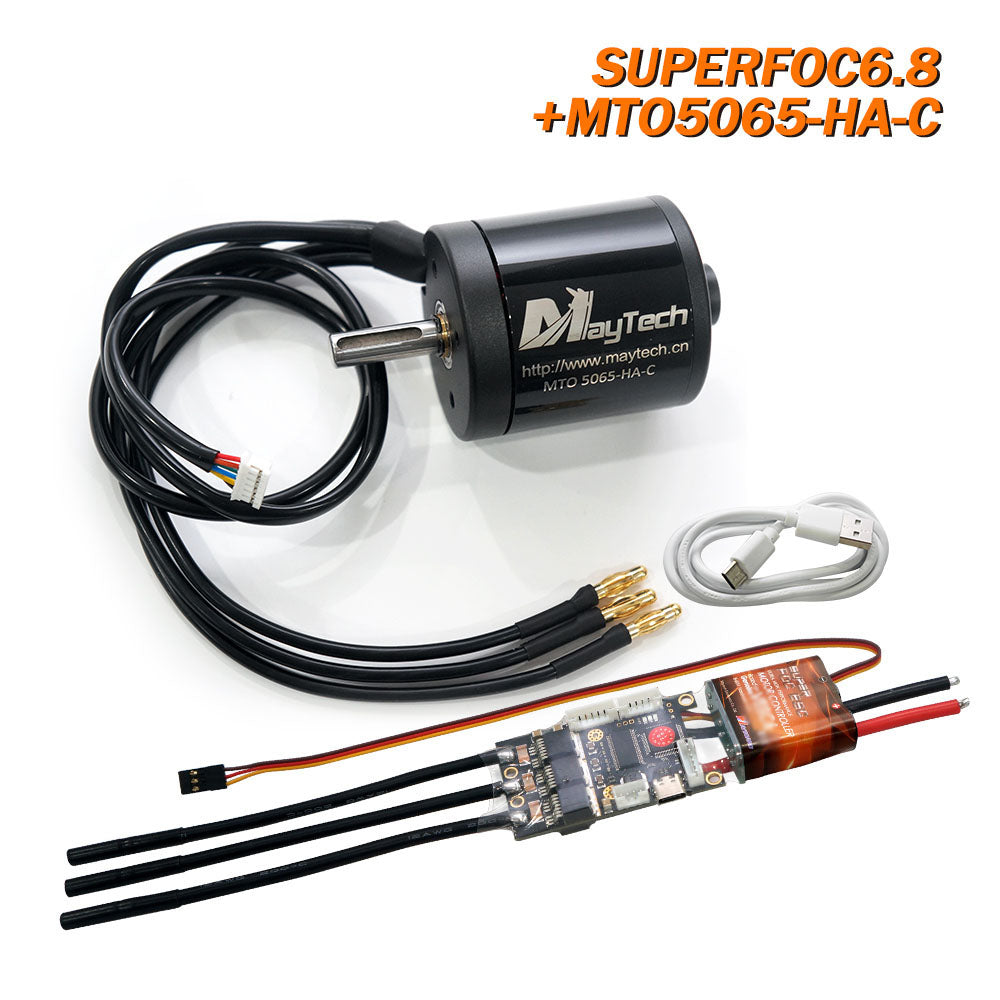

Comb 3: SUPERFOC6.8 + MTO5065-HA-C (170/190KV, Closed cover, 8mm shaft)

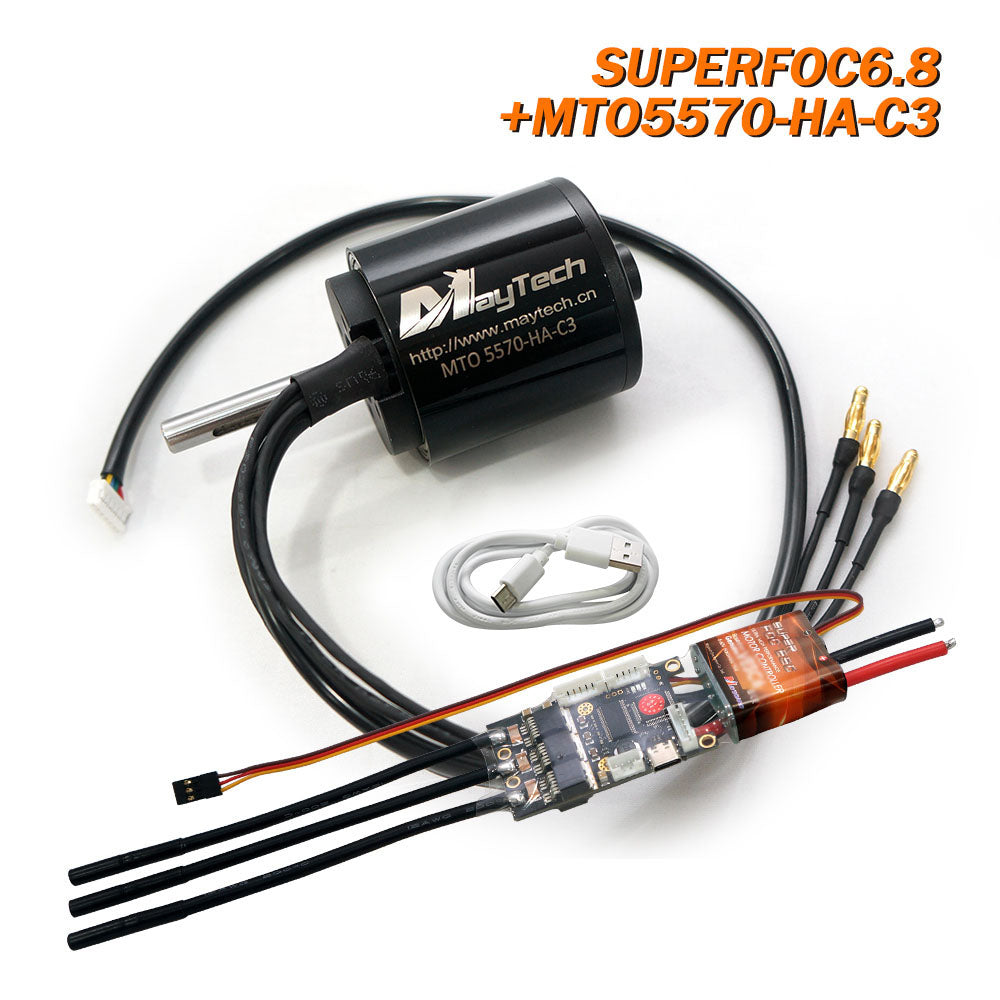

Comb 4: SUPERFOC6.8 + MTO5570-HA-C (170/190KV, Closed cover with big ball bearing, 8mm shaft)
Above motor KV is our standard KV, your order will be shipped as the KV we have. If you have other needs, please contact us first, we accept customize service.

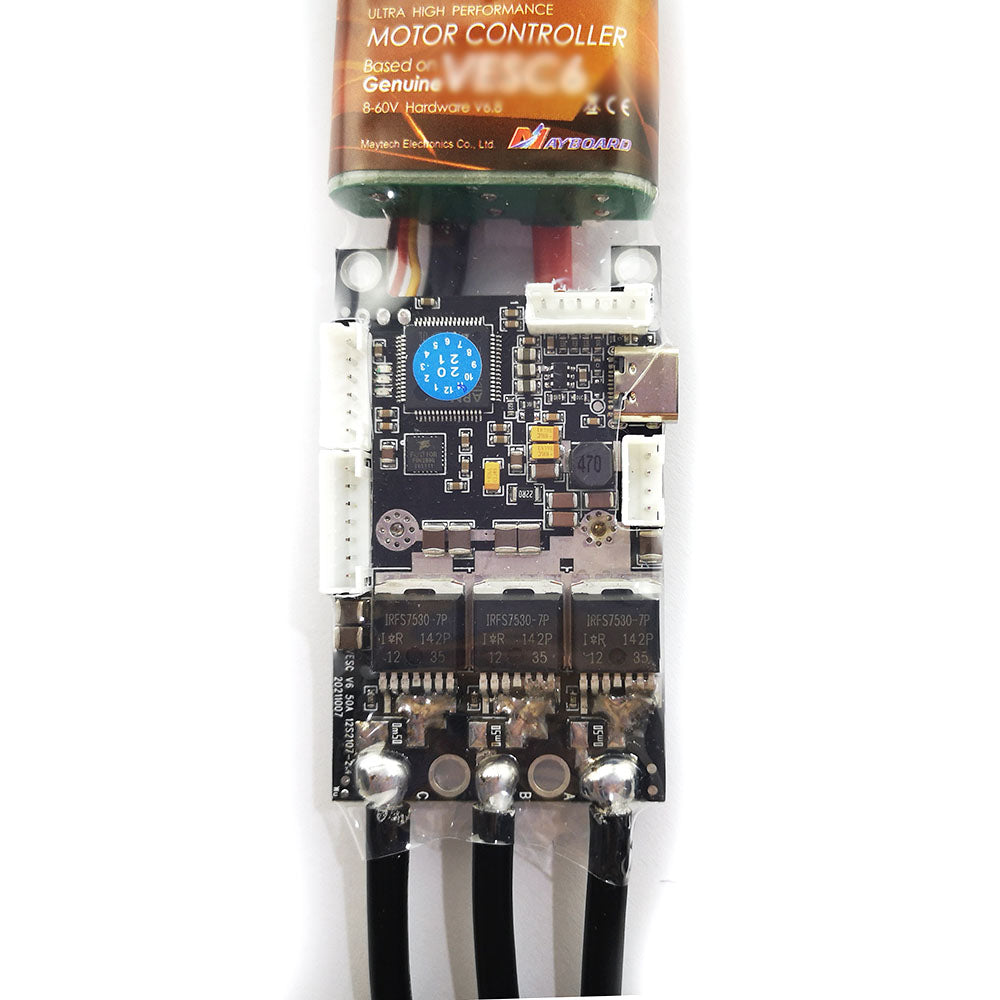

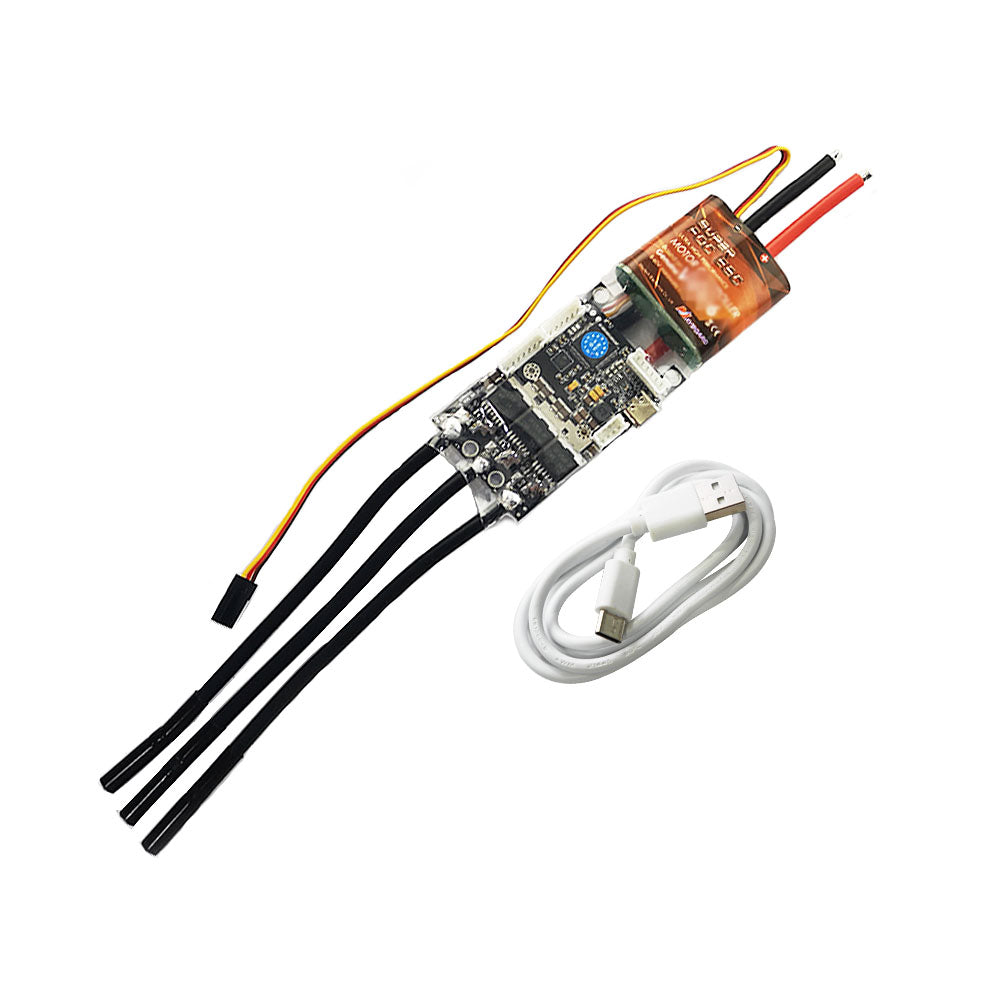

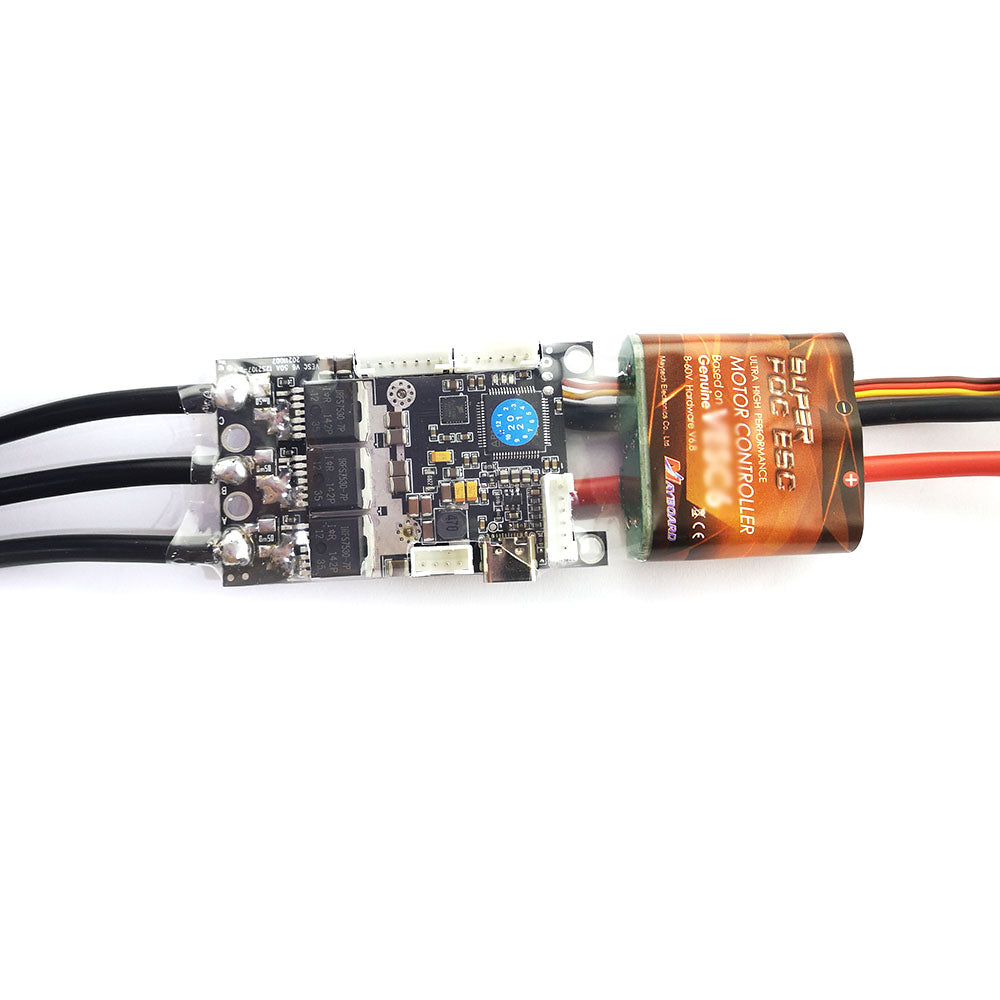

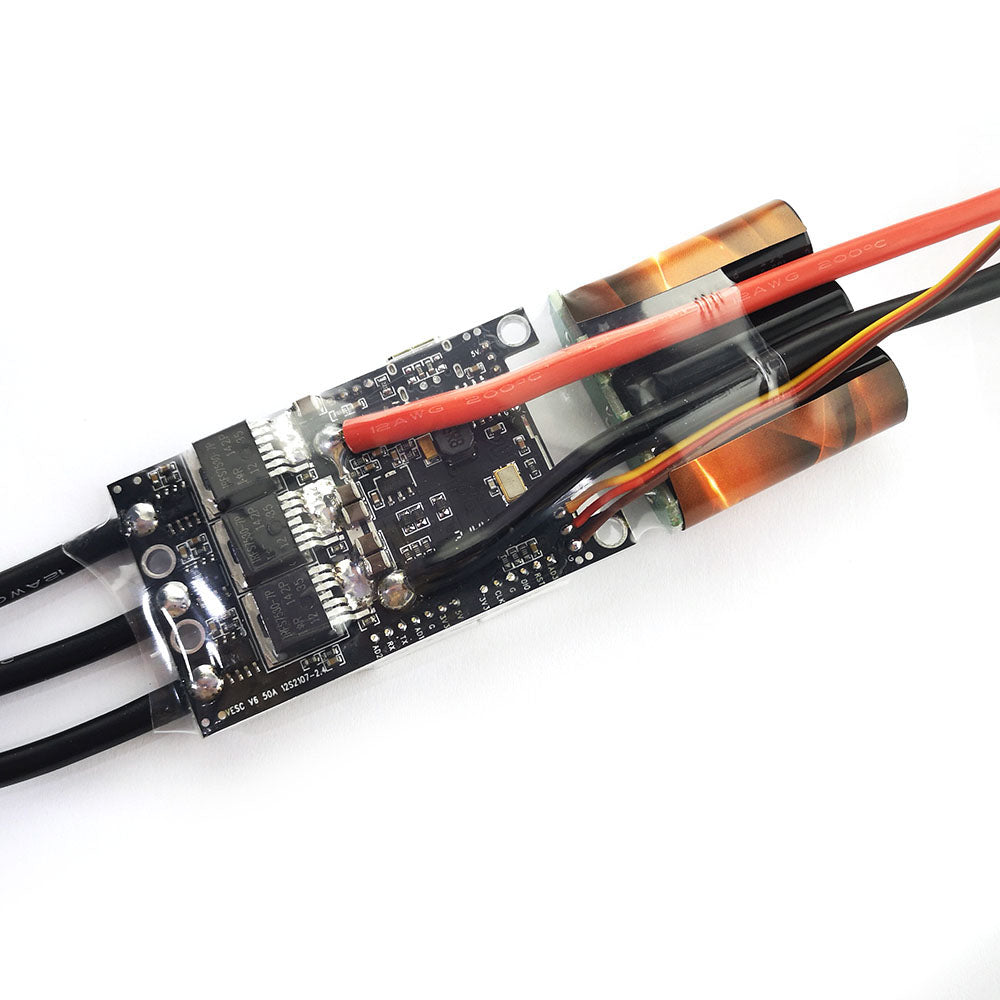

Product 1: Maytech SUPERFOC6.8 50A V6.0 based Controller with Great FOC Function with No case
|
Model No
|
MTSUPERFOC6.8 | Cont Current | 50A |
| Lipo Voltage | 3-12S |
Burst Current
|
240A
|
| BEC | 5V | PCB Size | 40mm*60mm |
| Capatitor | 3pcs 680uf63V | MOS | IRF7530 |
| Hardware | Based on V6.0 | Firmware | Updatable |

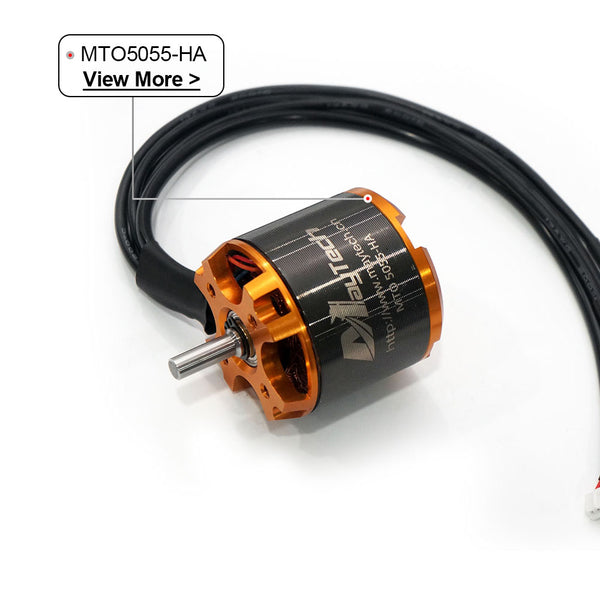

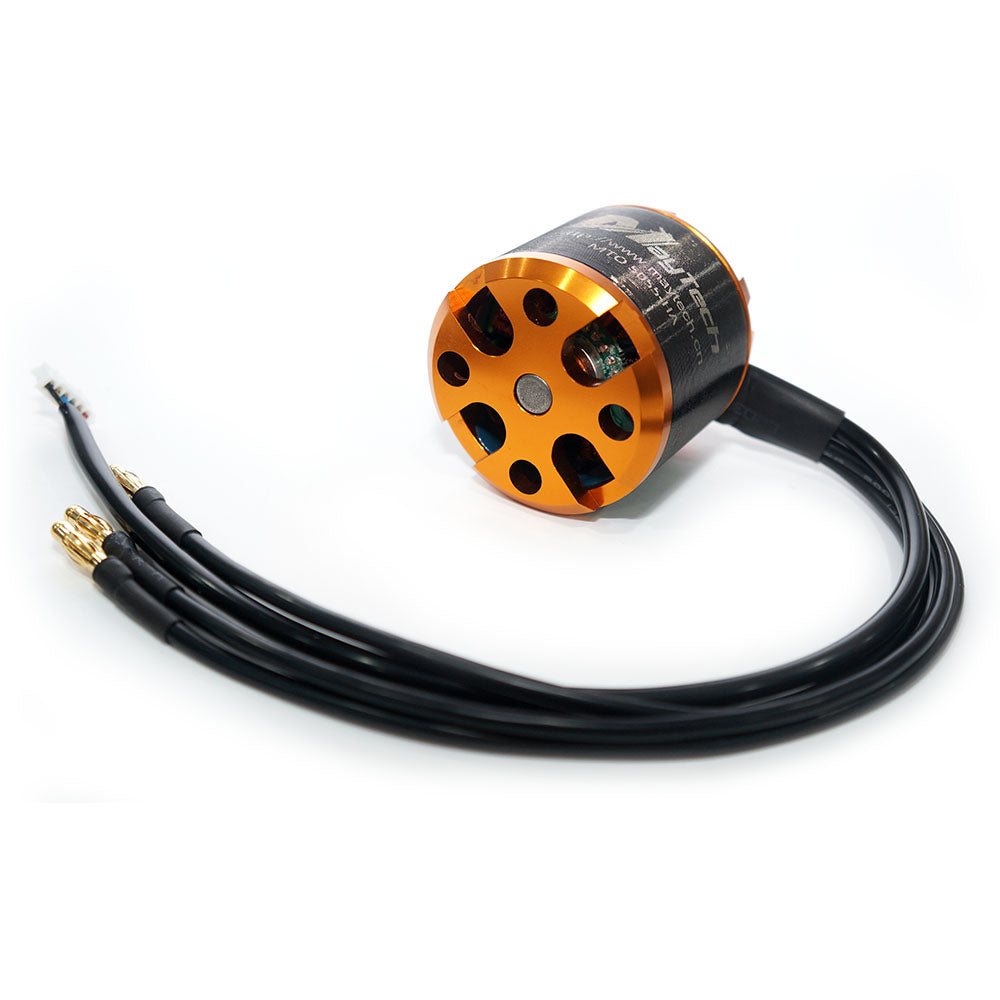

Product 2: Maytech MTO5055-HA 220KV Brushless Outrunner Sensored Motor Open Cover
- Open Cover: Better heat dissipation
- Motor Connector: 4mm golden male connector
- Hall Sensor: 6Pin, 2mm Pitch
- Motor Cable Length: 240mm
- Sensor Cable Length: 500mm
- Customize: KV, logo, motor case, color, etc.,
- Battle Hardened: Yes
|
Model No
|
MTO5055-220-HA |
KV
|
220 |
|
Idle Current
|
0.5A
|
Max Current
|
30A
|
|
Inpur Voltage
|
2-10s Lipo
|
Max Output Watt
|
1170W
|
|
Max Pull
|
5400g
|
Rated Current
|
25.5A
|
|
Motor Weight
|
335g
|
Shaft
|
6mm
|
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.1022
|

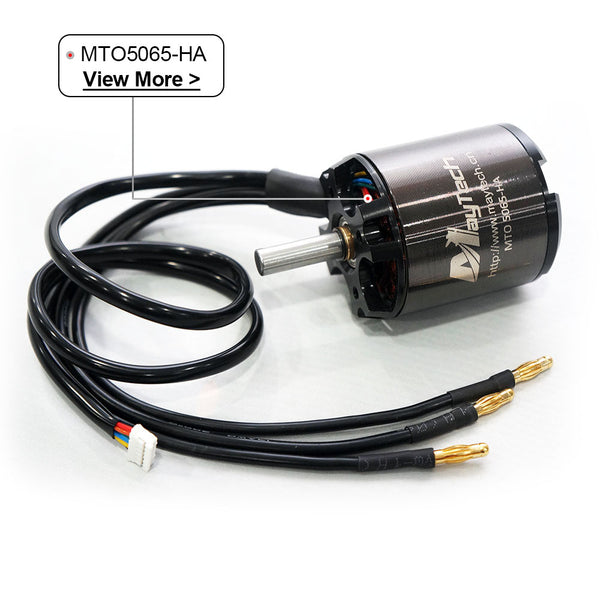

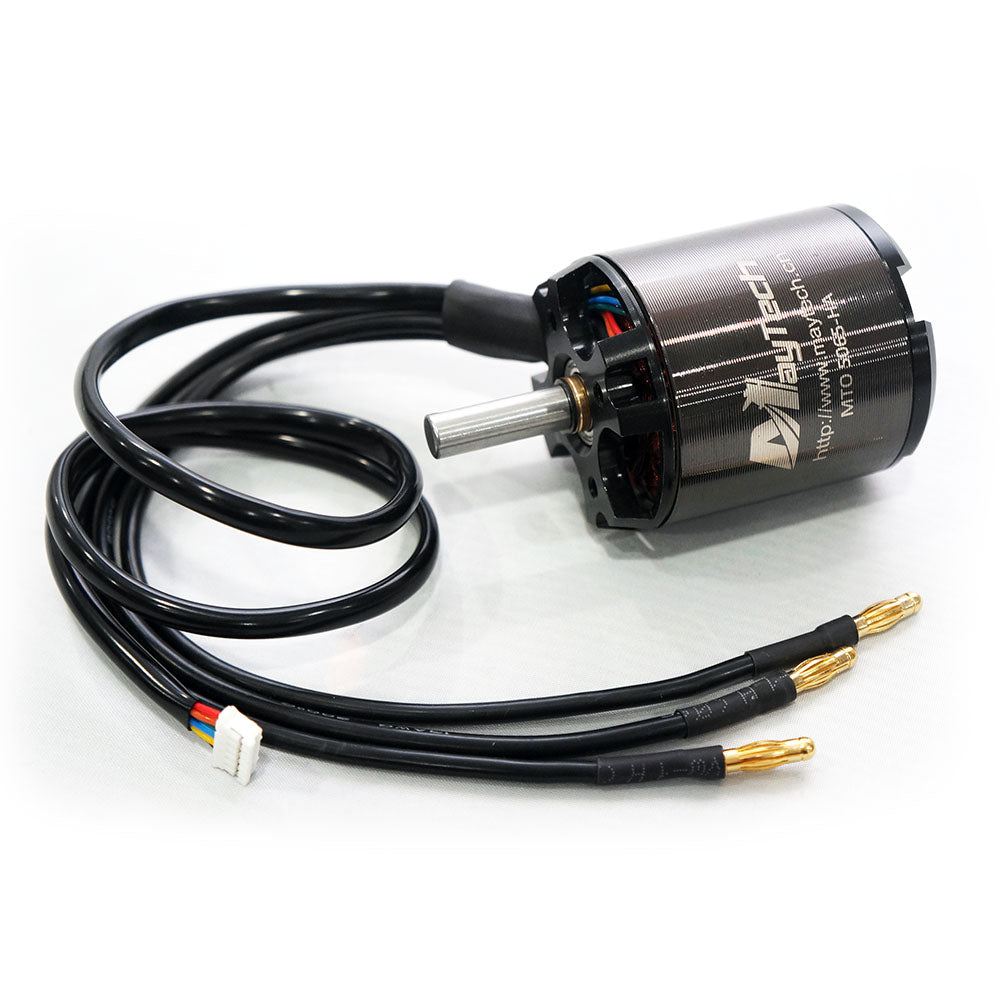

Product 3: Maytech MTO5065-HA 220KV Brushless Outrunner Sensored Motor Open Cover
|
Model No
|
MTO5065-HA |
KV
|
220 |
|
Idle Current
|
1.2A
|
Max Current
|
50A
|
|
Inpur Voltage
|
2-10s Lipo
|
Max Output Watt
|
1815W
|
|
Max Pull
|
6700g
|
Rated Current
|
42.5A
|
|
Motor Weight
|
435g
|
Shaft
|
8mm
|
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0361
|

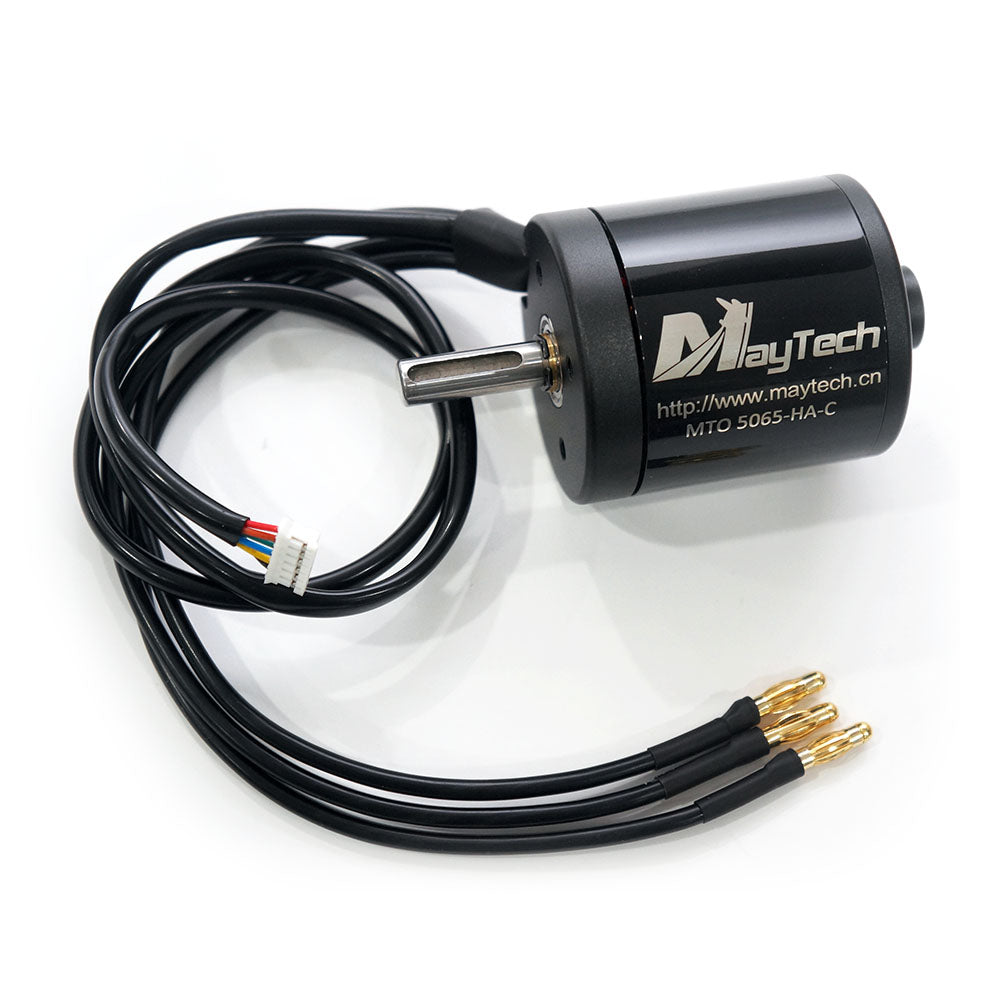

Product 4: Maytech MTO5065-HA-C 170KV Brushless Outrunner Sensored Motor
|
Model No
|
MTO5065-170-HA-C |
KV
|
170 |
|
Idle Current
|
1.2A
|
Max Current
|
50A
|
|
Inpur Voltage
|
2-10s Lipo
|
Max Output Watt
|
1815W
|
|
Max Pull
|
6700g
|
Rated Current
|
42.5A
|
|
Motor Weight
|
450g
|
Shaft
|
8mm
|
|
Output Shaft Length
|
26mm
|
Internal Resistance
|
0.0361
|

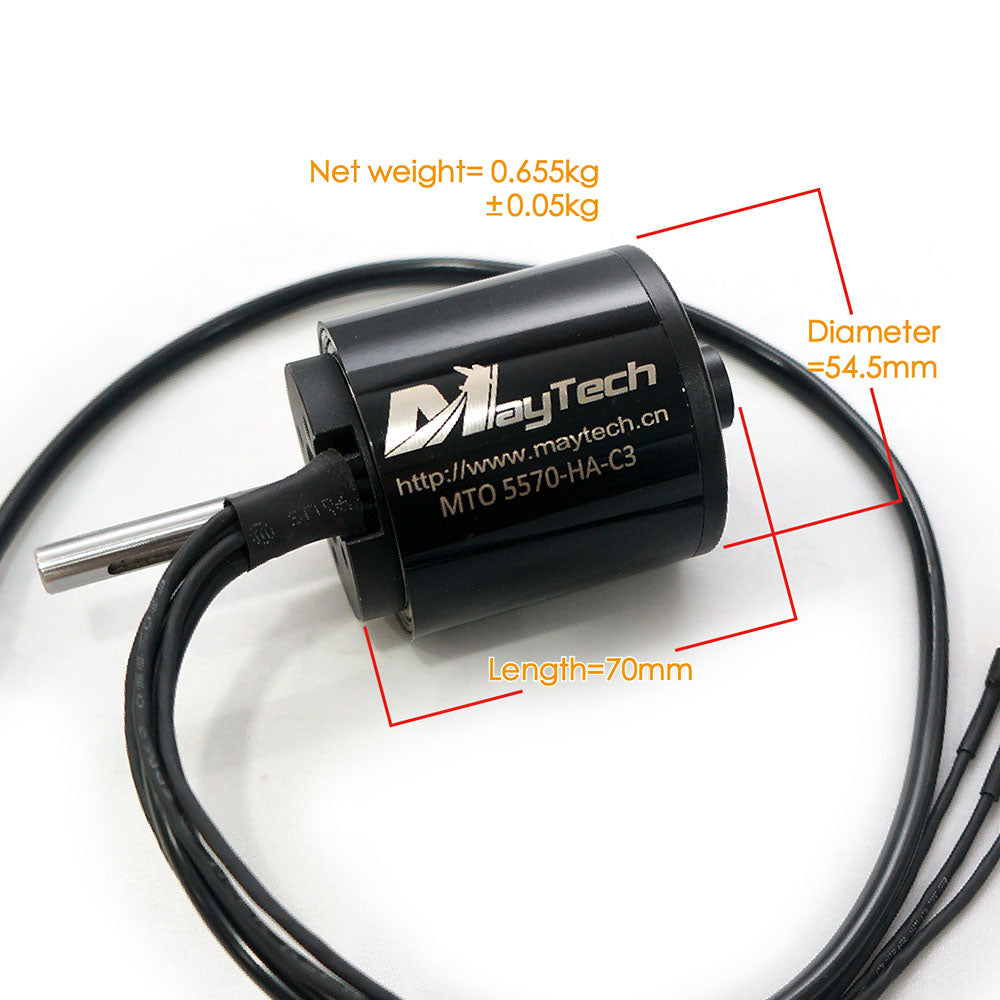

Product 5: Maytech MTO5570-HA-C3 190KV Brushless Outrunner Sensored Motor
- Closed Cover: Splash proof and dustproof
- Motor Connector: 4mm golden male connector
- Hall Sensor: 6Pin, 2mm Pitch
- Motor Cable Length: 240mm
- Sensor Cable Length: 500mm
- Customize: KV, logo, motor case, color, etc.,
- Battle Hardened: Yes
|
Model No
|
MTO5570-190-HA-C3 |
KV
|
190 |
|
Idle Current
|
1.2A
|
Max Current
|
50A
|
|
Inpur Voltage
|
2-10s Lipo
|
Max Output Watt
|
1815W
|
|
Max Pull
|
6700g
|
Rated Current
|
42.5A
|
|
Motor Weight
|
660g
|
Shaft
|
8mm
|
|
Output Shaft Length
|
45.5mm
|
Internal Resistance
|
0.0361
|
