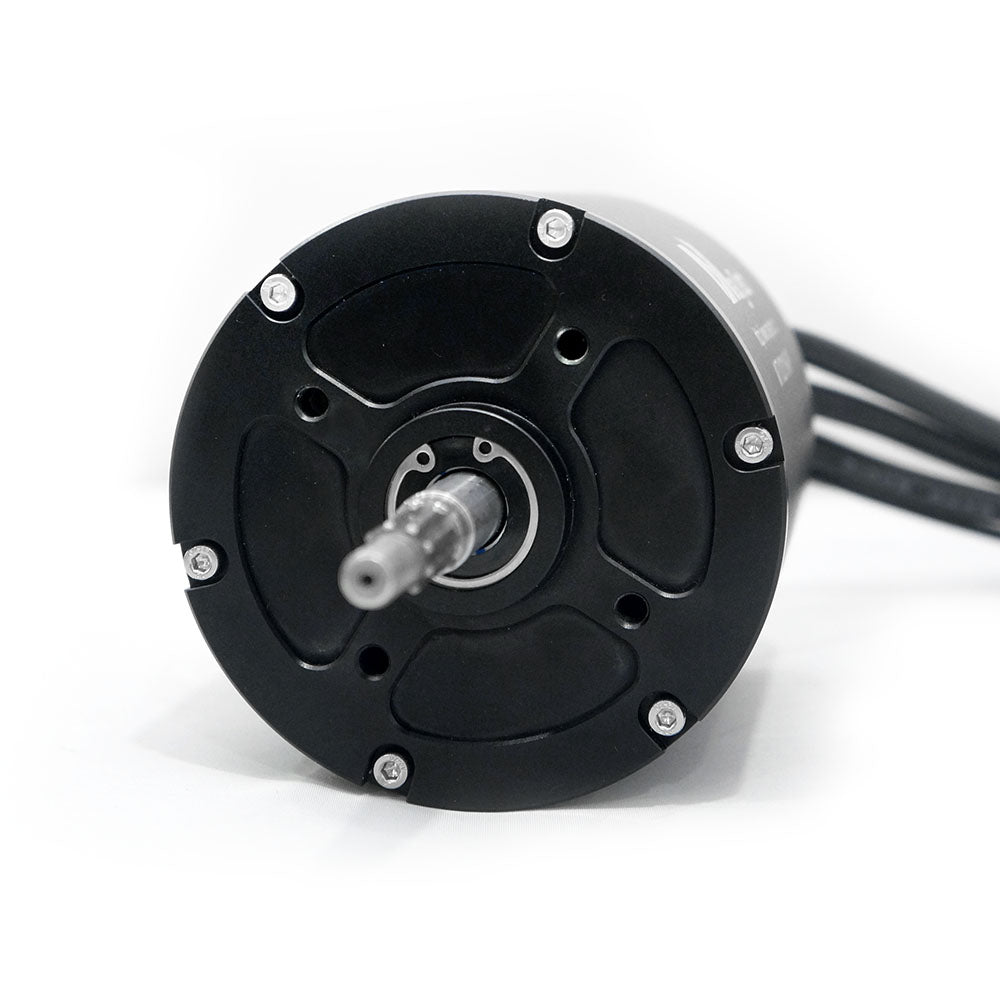

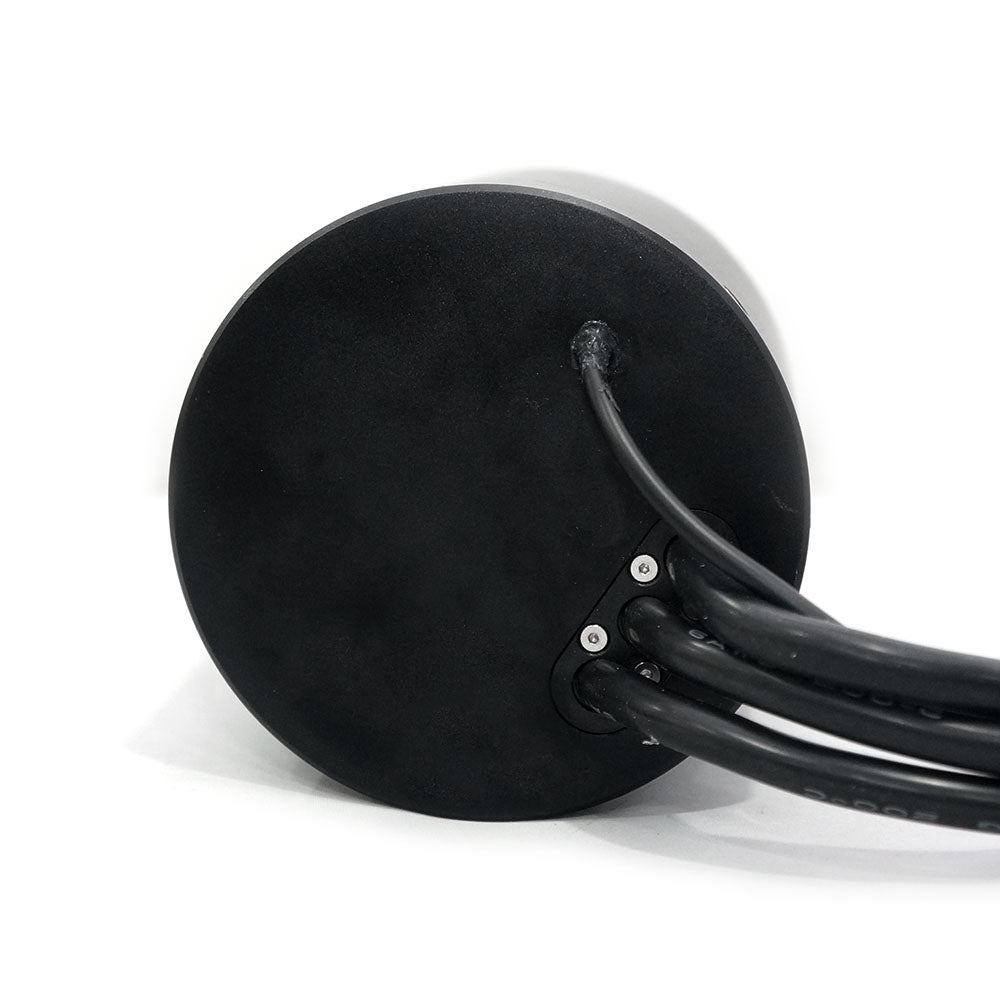

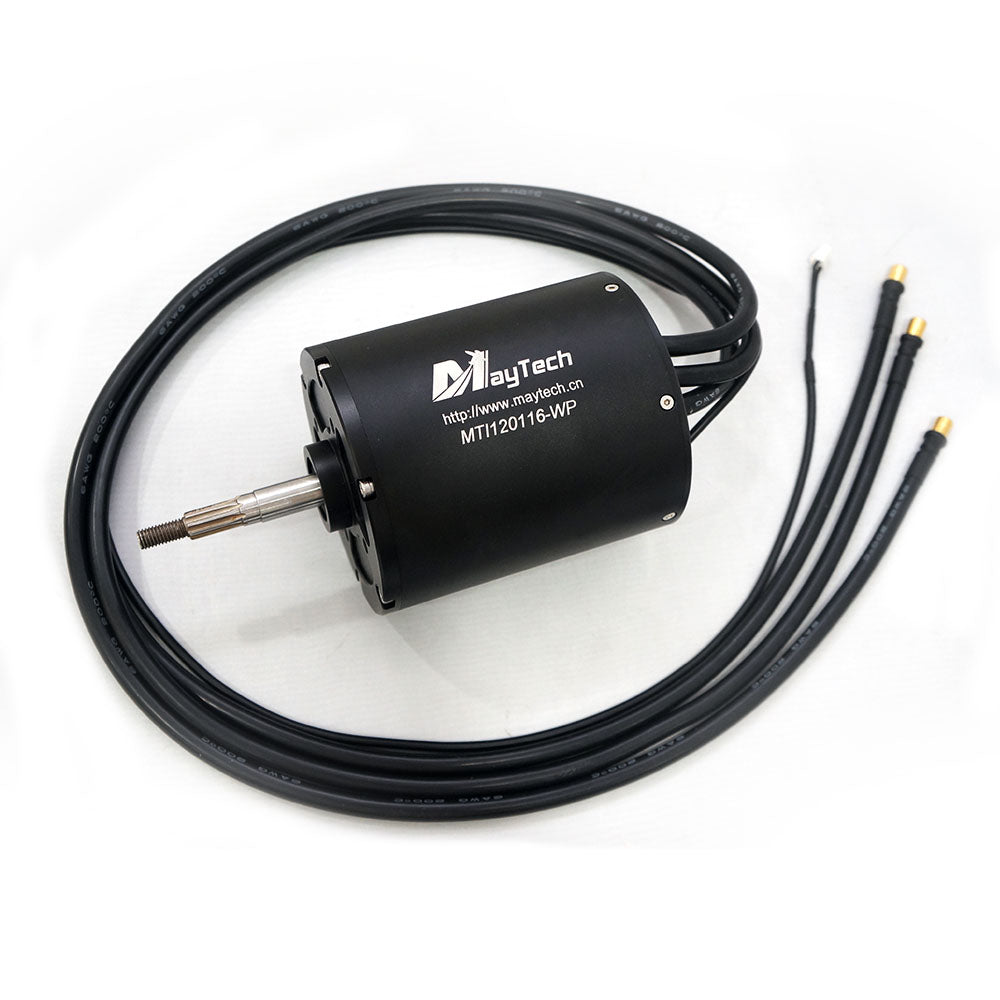

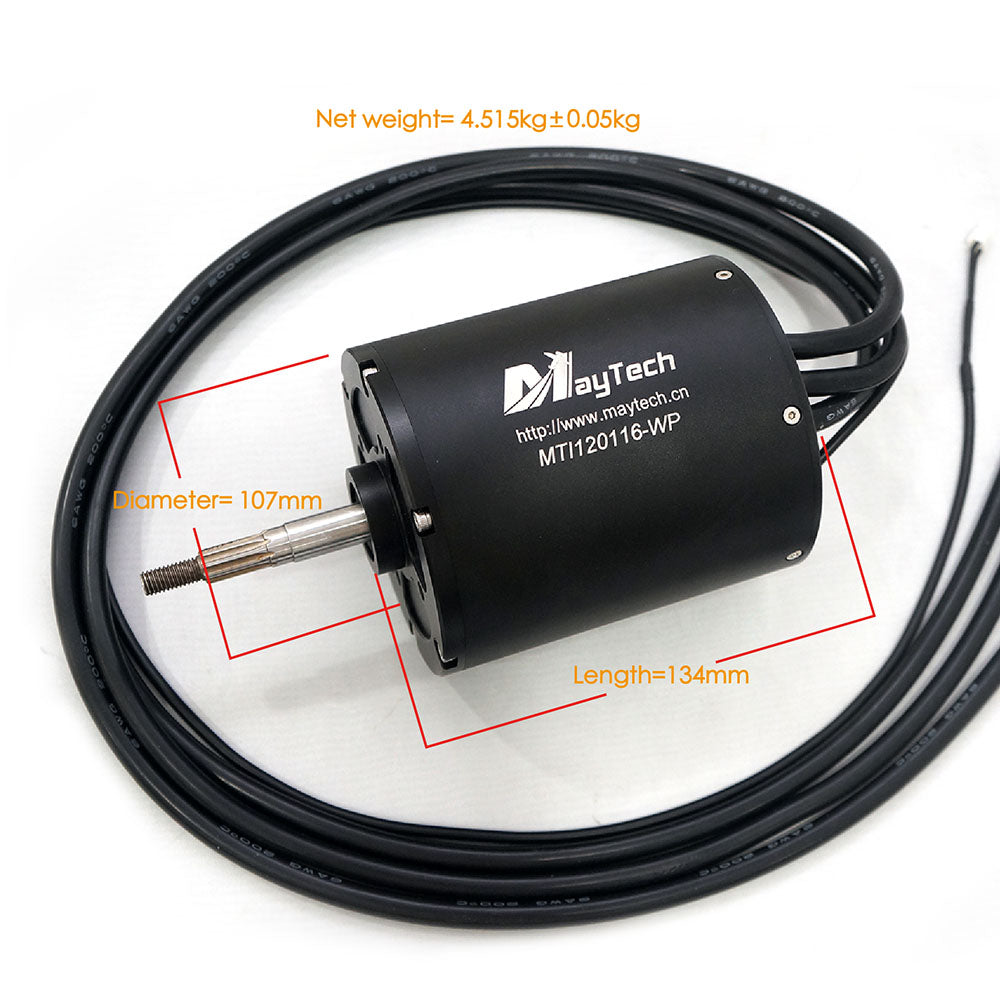

Maytech Waterproof 18KW Brushless DC Motor 120116 100KV Splined Shaft for Electric Surfboard Boat Jetboard
Maytech Waterproof 18KW Brushless DC Motor 120116 100KV Splined Shaft for Electric Surfboard Boat Jetboard
Couldn't load pickup availability
Maytech Waterproof 18KW Brushless DC Motor 120116 100KV Splined Shaft for Electric Surfboard Boat Jetboards
Specification:
| Model No. | MTI120116-100-WP | Idle Current | 2.8A/8.4V |
| KV | 100 | Max Current | 380A |
| Input Volt | 6-24S Lipo | Max Output Watt | 18.8KW |
| Shaft | Splined Shaft, compatible with Maytech MTSP7507 propeller | Construction | 12N10P |
Different application for Sensored and Sensorless Version:
To meet different customers requirements, we designed one version with hall sensor, one version without hall sensor.
Sensored version can not only be used underwater but also can be used on electric skateboard, fighting robots, electric cars, etc.,
Sensorless version usually use for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,
Application:
Electric surfboard/Hydrofoil/jetski/jetboard/waterboard/water jet propulsion/surffoil/foilsurf/foilboards/rc boat, foil boat, foiling boat, hydrofoil boat, catamaran, budsboat, pontoon, hydrofoiling boat, rescue boat, etc.,
Stock Notice before Place Order:
The motor stock is limited, please confirm order asap.
And if you need very urgently, please contact us agnes@maytech.cn to check stock first, if in stock, shipping time is about 1-2 days after order confirmed.
Warning:
Flier ESCs are not compatible to all Maytech motors, recommend to use our 300A ESC as following recommend products.
Esurf Kit Test: MTI120116-200-WP+MTSF300A-OPTO-WP+MTSKR1905WF
