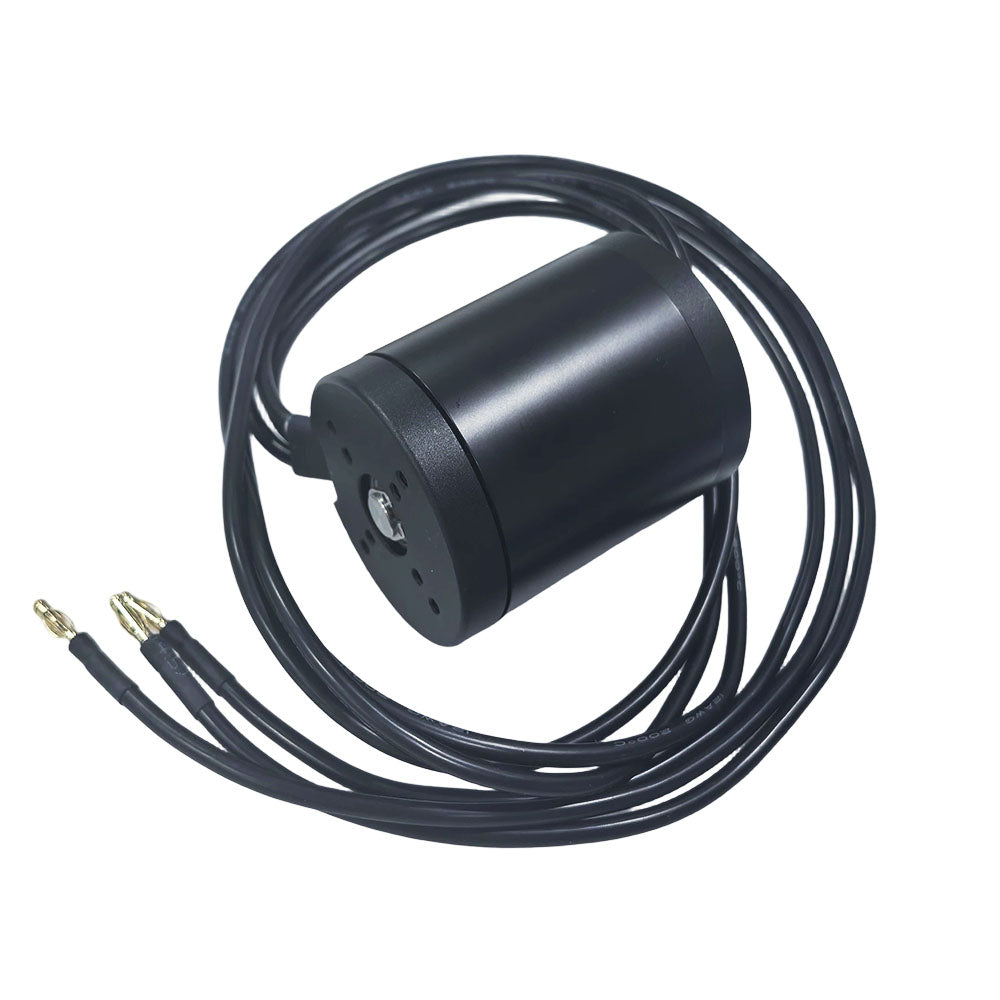

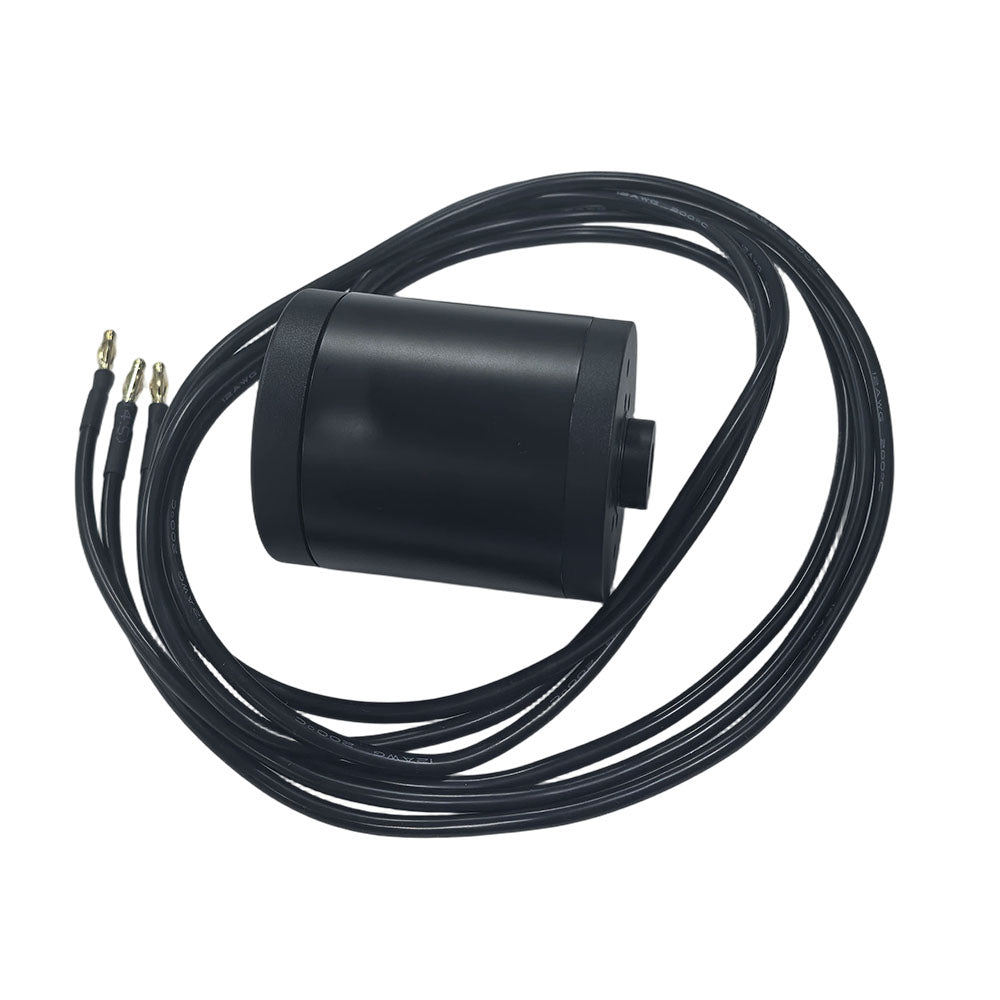

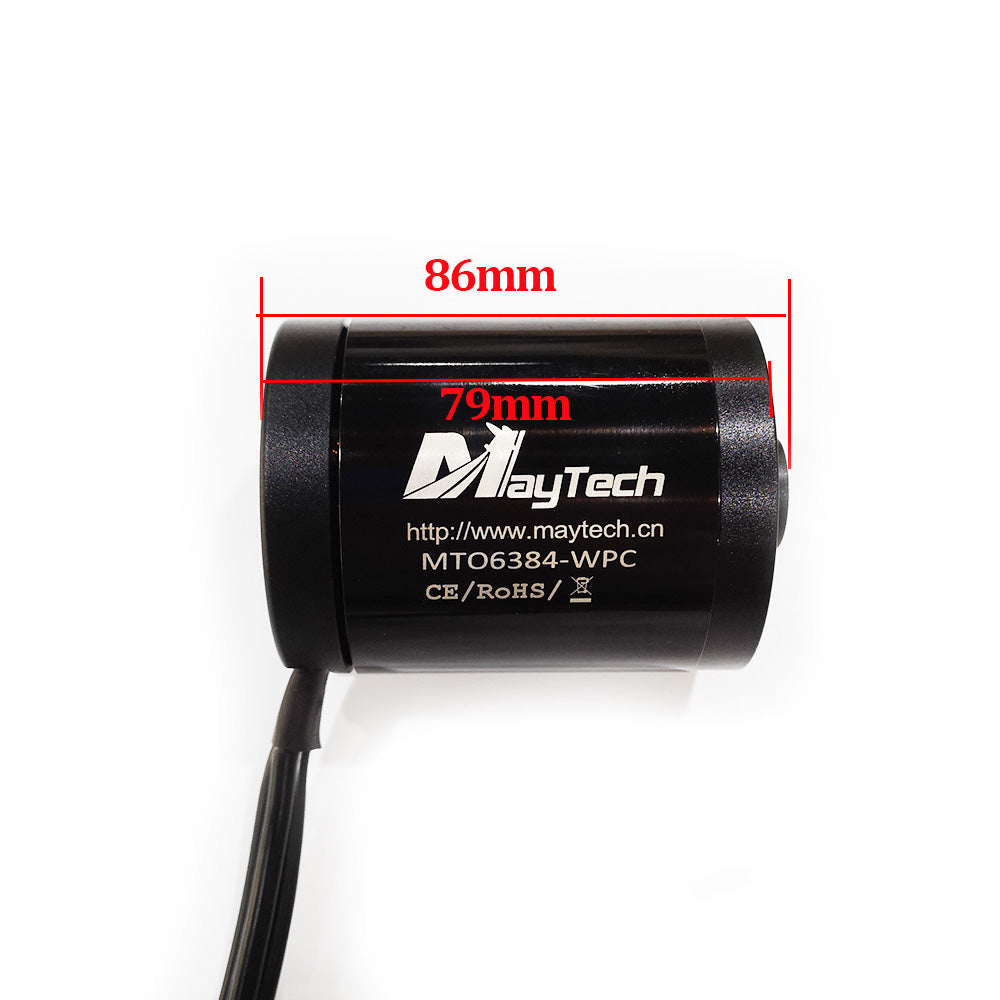

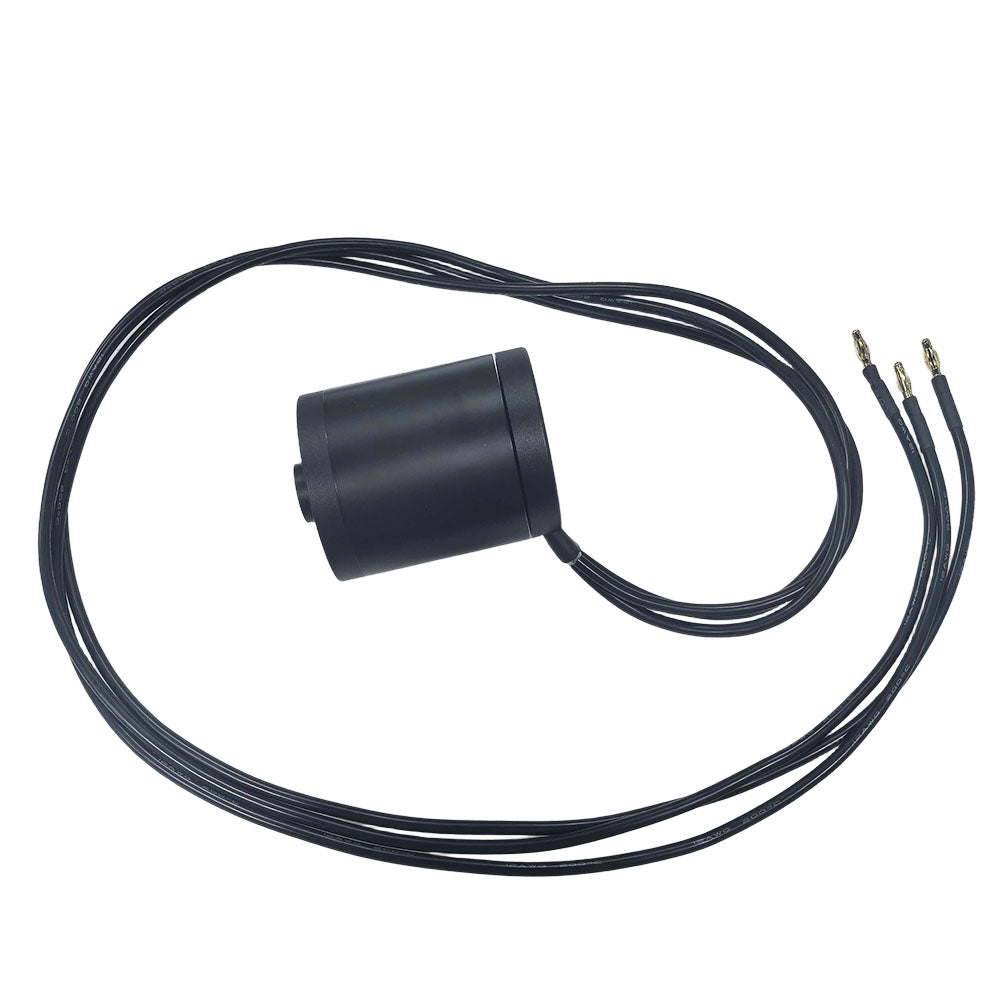

Maytech Waterproof 6384 140KV Marine Motor for Electric Foil Board
Maytech Waterproof 6384 140KV Marine Motor for Electric Foil Board
Couldn't load pickup availability
Specifictions:
1. MTO6384-140-WPC Motor
| Model No | MTO6384-140-WPC Motor Without logo |
| KV | 140, can customize, contact eileen@maytech.cn if you want other KV |
| Idle Current | 0.8A |
| Max Current | 100A |
| Rated Current | 60A |
| Input Voltage | 3-12S Lipo (12-50V) |
| Max Output Watt | 5000W |
| Shaft | No output shaft |
| Hall Sensor | Without |
| Waterproof Rank | IPX8 |
| Mounting Hole Pattern | 30mm, 44mm Hole distance |
| Mounting Hole Diameter | M4 |
| Bearing | Ceramic bearing, better waterproof |
| Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact eileen@maytech.cn |
Application:
DIY foil assist on wing foil, wind surf foil, sup foil board, kite foil, underwater thruster, sup foil assist, paddle assist, wind foil board, sup board, downwind, hull cleaning device, underwater rov, underwater cleaning robot, boat cleaner, quariums or submerged environments, tank cleaning, underwater drone, etc.,
Difference between ceramic bearing and stainless steel bearing:
Stainless Steel Bearing:
1. Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep the motor all dry, so to expand lifespan.
2. Can withstand higher speed.
3. Cost is less than cermic bearing.
Ceramic Bearing:
1. Better anti-rust performance, good for sea water condition
2. It’s brittle, can’t withstand very high speed, easier damage at high speed
3. cost is higher than stainless steel bearing.
2. MICHOBBY MICP27FP 3D Printed Plastic (nylon) folding propeller
Material: Nylon Powder
Blade: 2 folding Blades
Color: Black
Mounting Holes: 8xM4
Max Rotation Diameter: 165mm/6.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
3. MICP27FMA Aluminum alloy Folding propeller
Propeller hub: Plastic
1 set includes 2 metal blades& 1pcs plastic hub. Propeller for MTO6374-WPC, MTO6384-WPC and MTO6579-WPC motors
4. MICP27FMT Titanium alloy Folding propeller
Propeller hub: Plastic
1 set includes 2 metal blades& 1pcs plastic hub. Propeller for MTO6374-WPC, MTO6384-WPC and MTO6579-WPC motors
Stock Notice Before Place Order:
1. The motor 150KV is in limited stock, so please confirm your order asap, or please contact us eileen@maytech.cn to check stock first if you need very urgently.
2. Shipping time is about 24 working hours after your order confirmed for stock item, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
