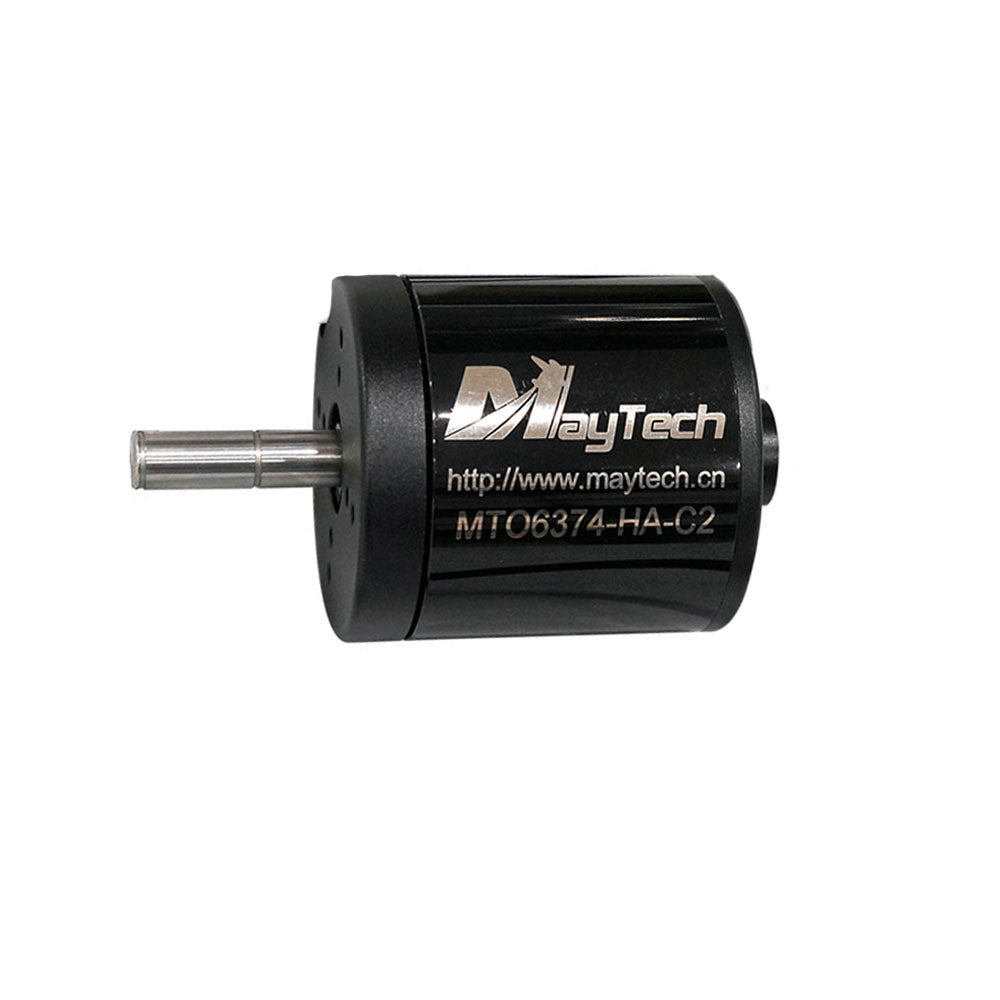

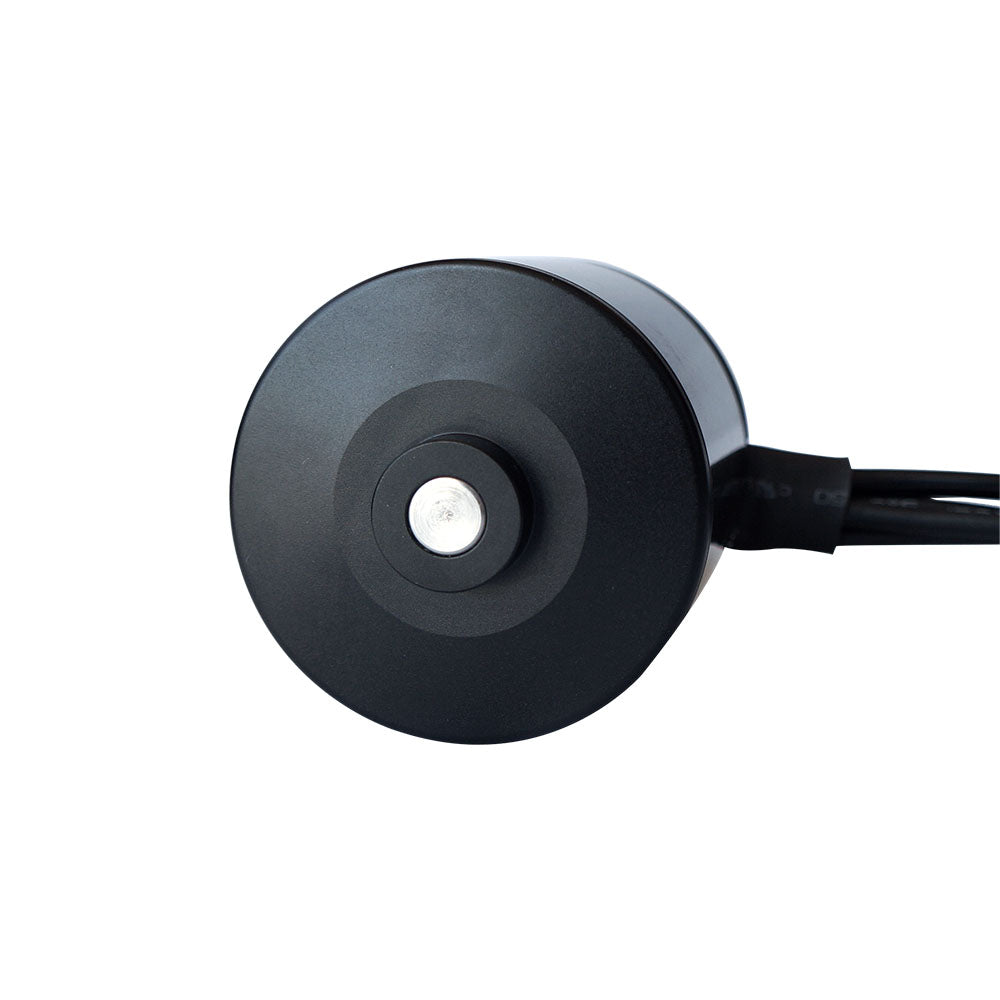

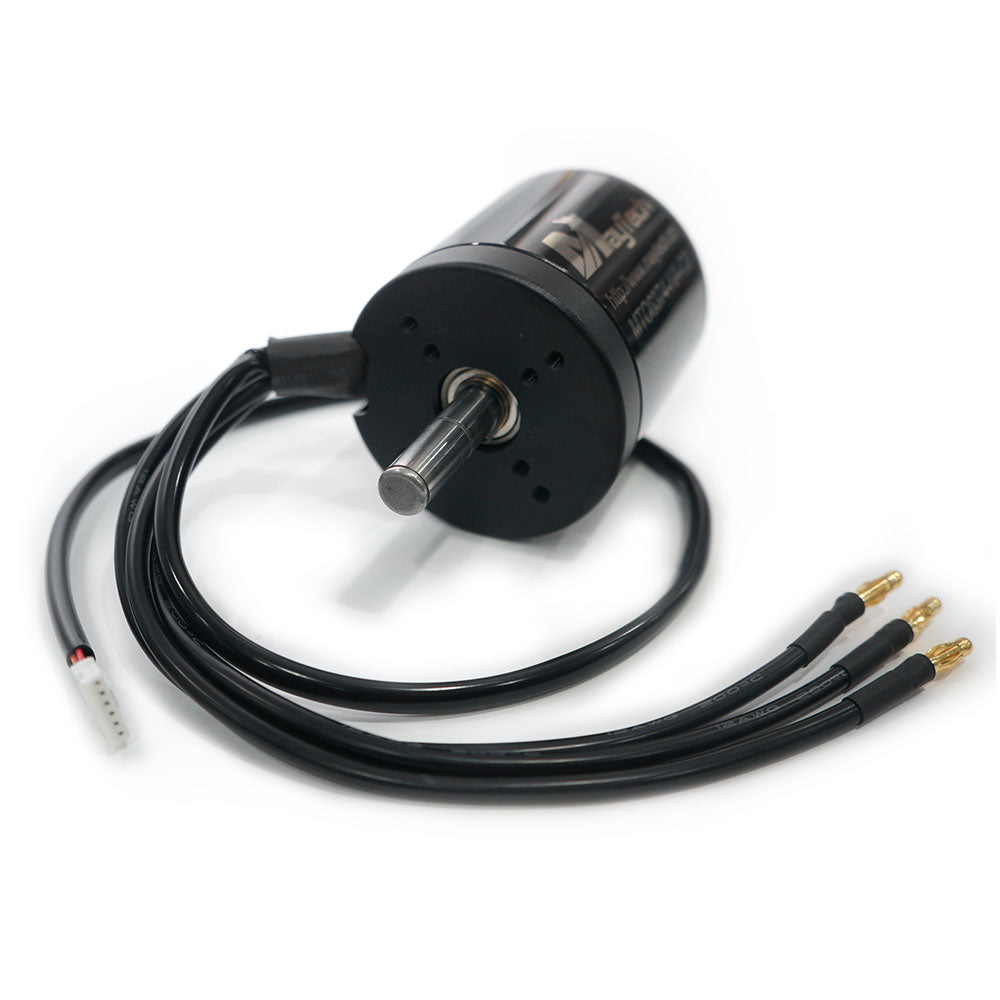

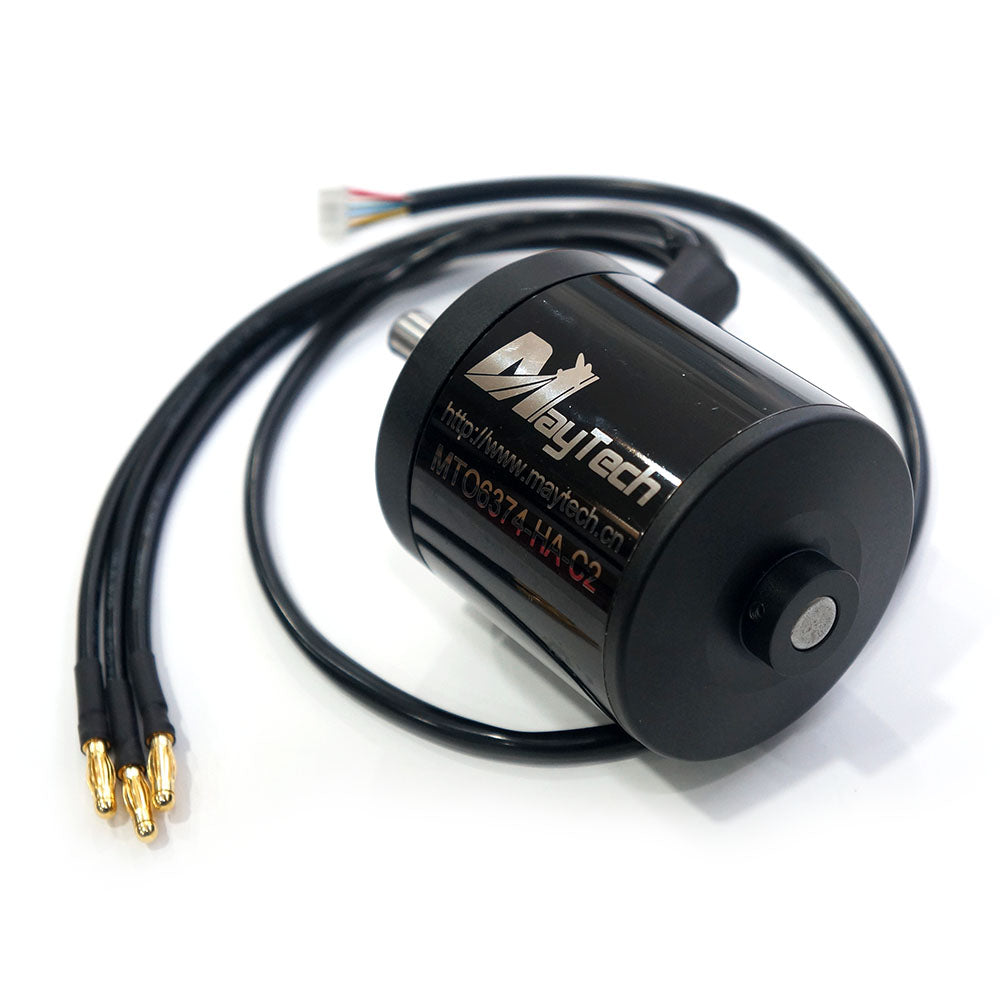

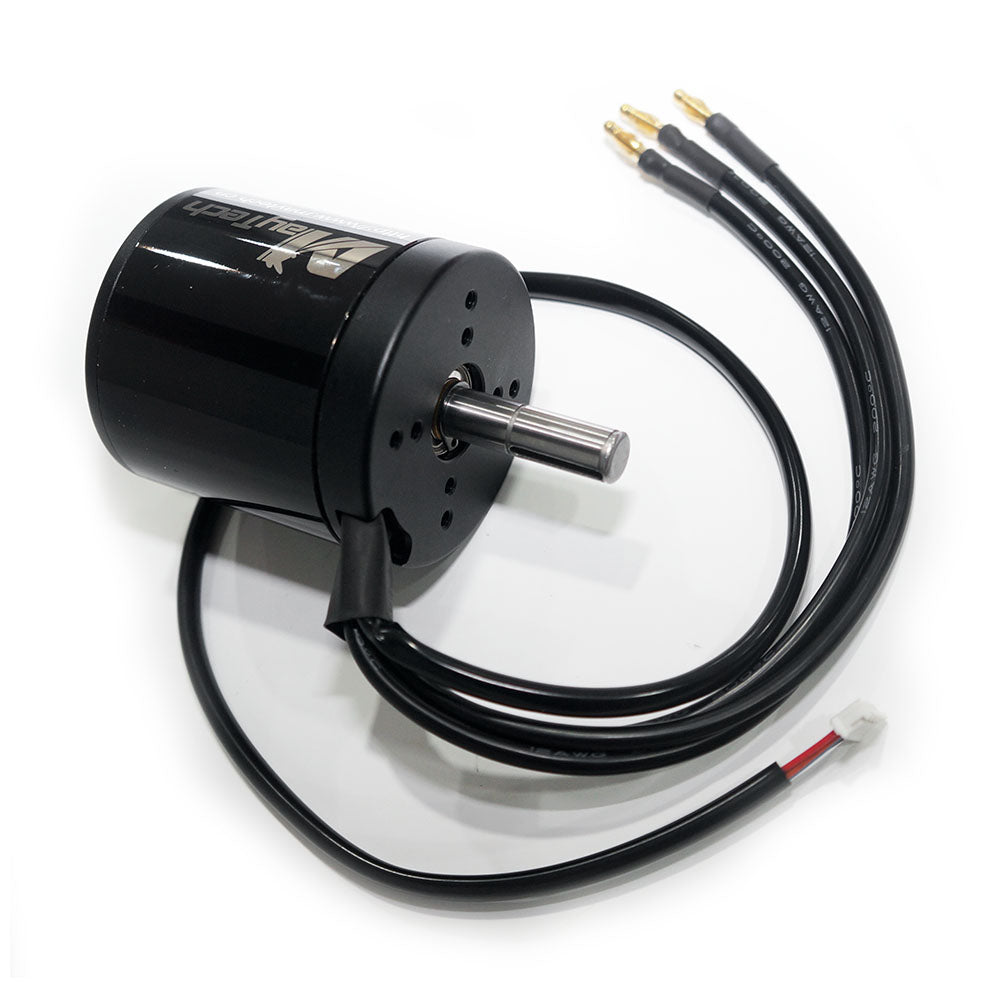

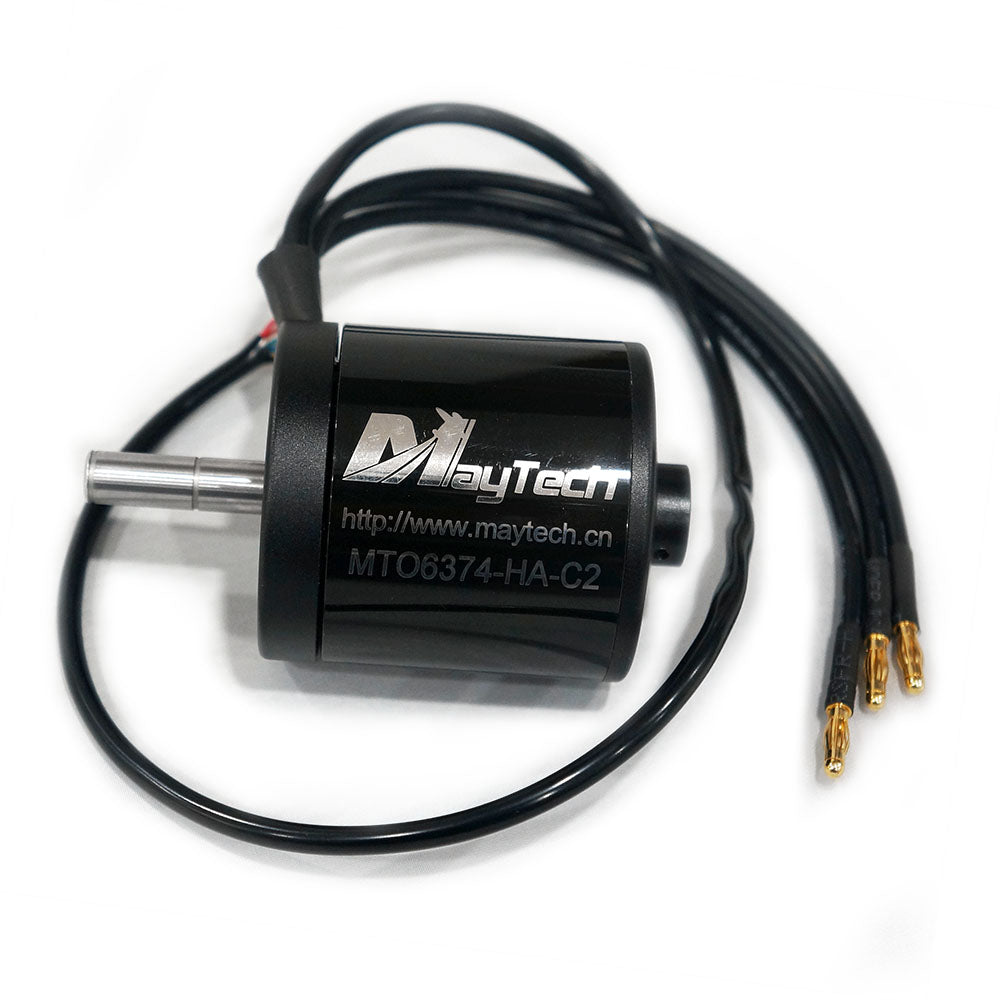

Maytech Brushless 6374 170/190KV Closed Cover Outrunner Sensored Motor 10mm Shaft IP54 Splash Waterproof Motor for Esk8/E-bike MTO6374-HA-C2
|
Model No
|
MTO6374-HA-C2
|
KV
|
170/190
|
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3550W
|
|
Max Pull
|
13000g
|
Rated Current
|
60A
|
|
Motor Weight
|
860g
|

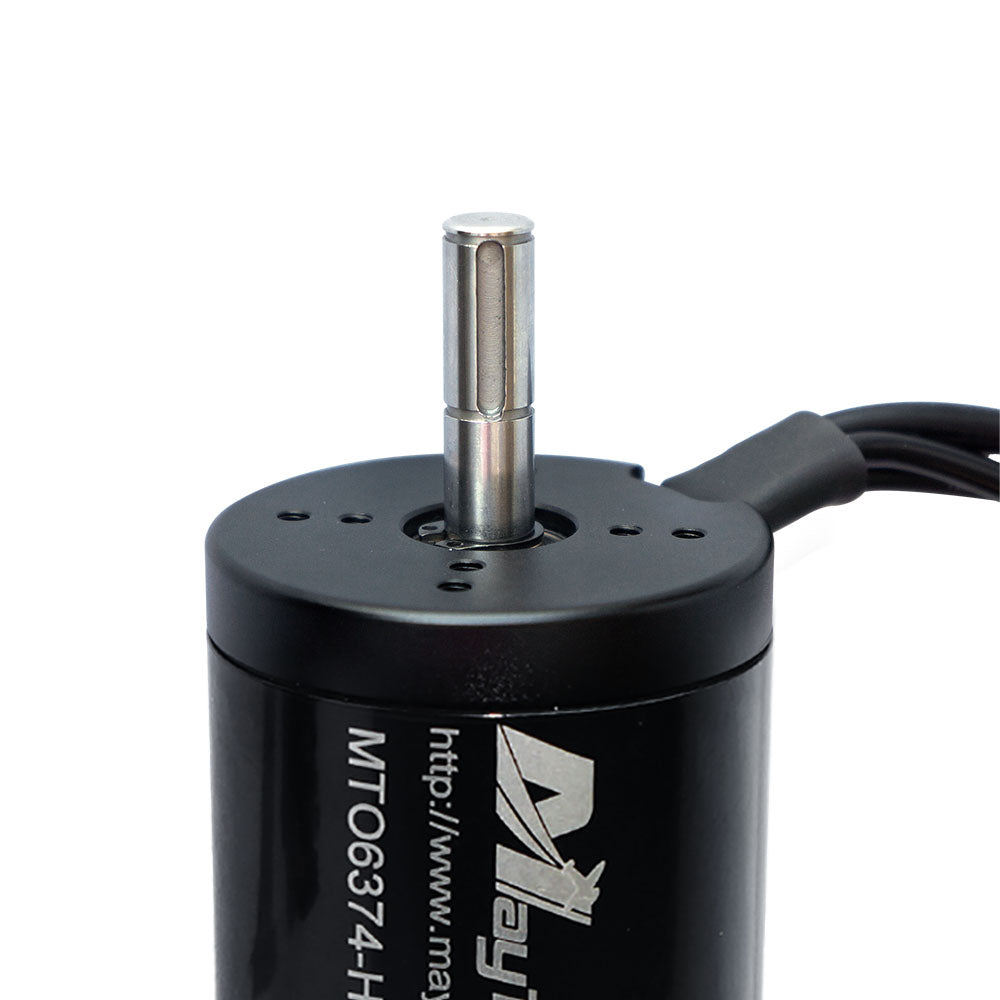

Shaft
|
10mm
|
|
Output Shaft Length
|
34mm
|
Internal Resistance
|
0.0402
|

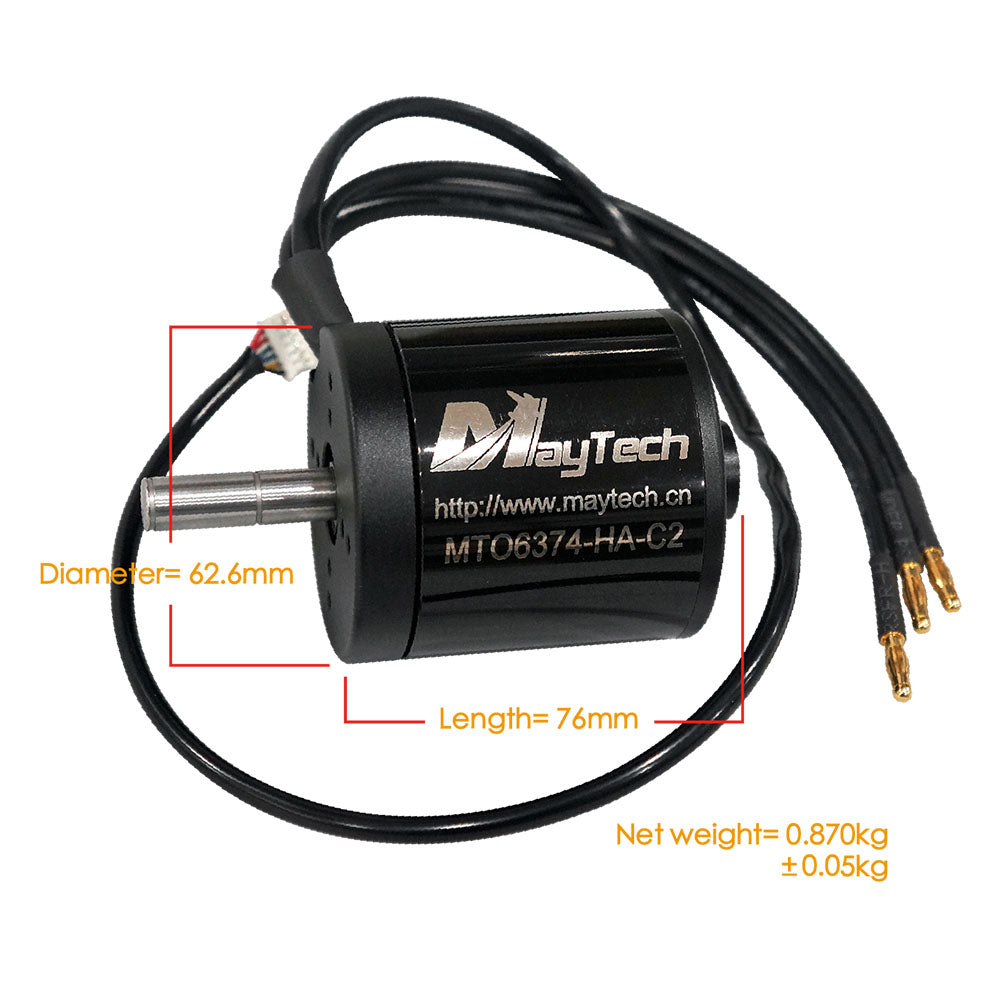

Motor Drawing:
Stock Notice Before Place Order:
1. The motor 170KV is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.90KV and 190KV are not stock item, lead time is about 35-50 days if you need this KV or other KV.
2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
