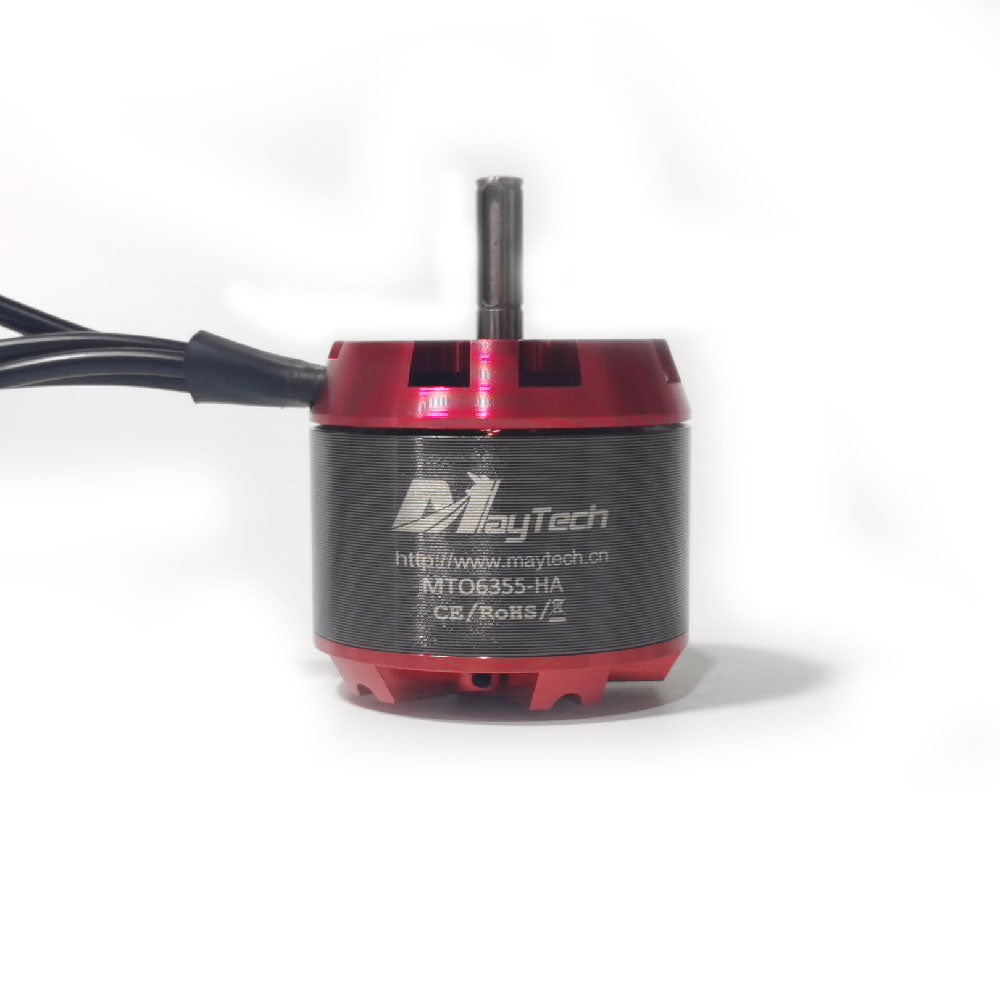

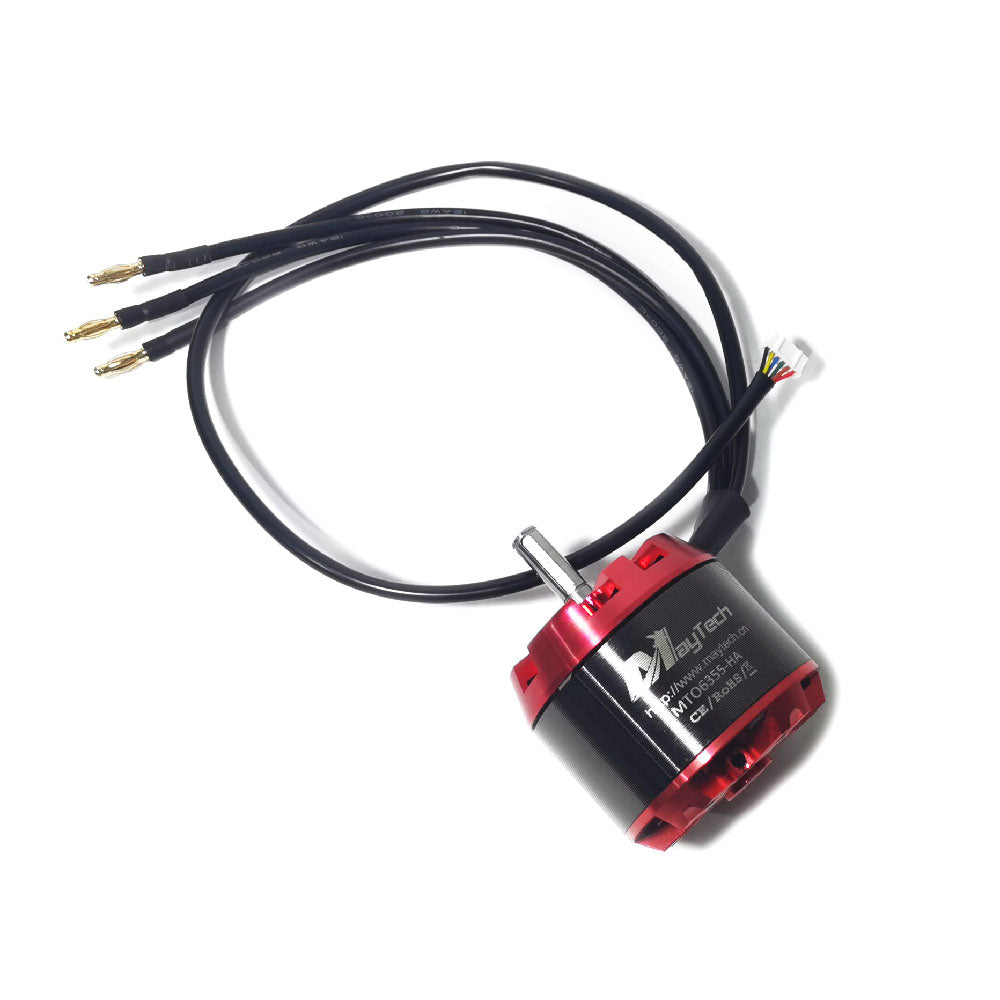

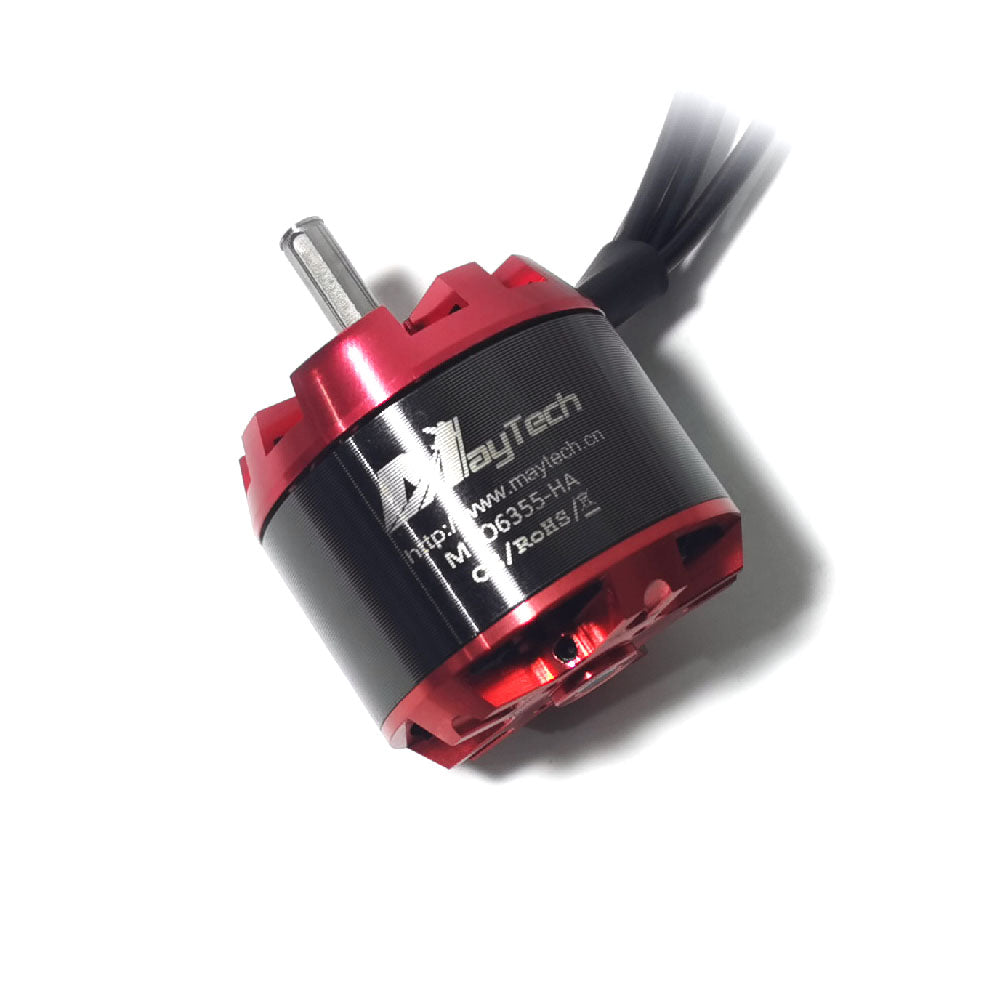

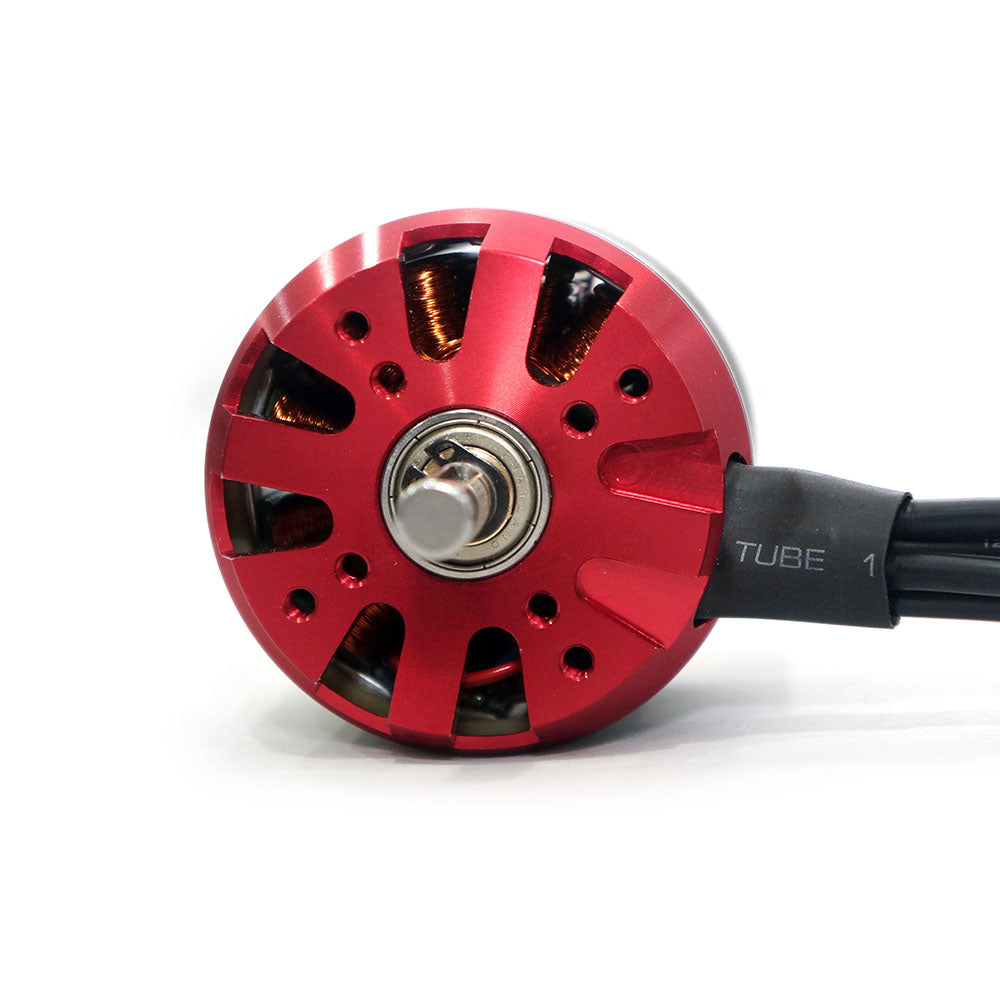

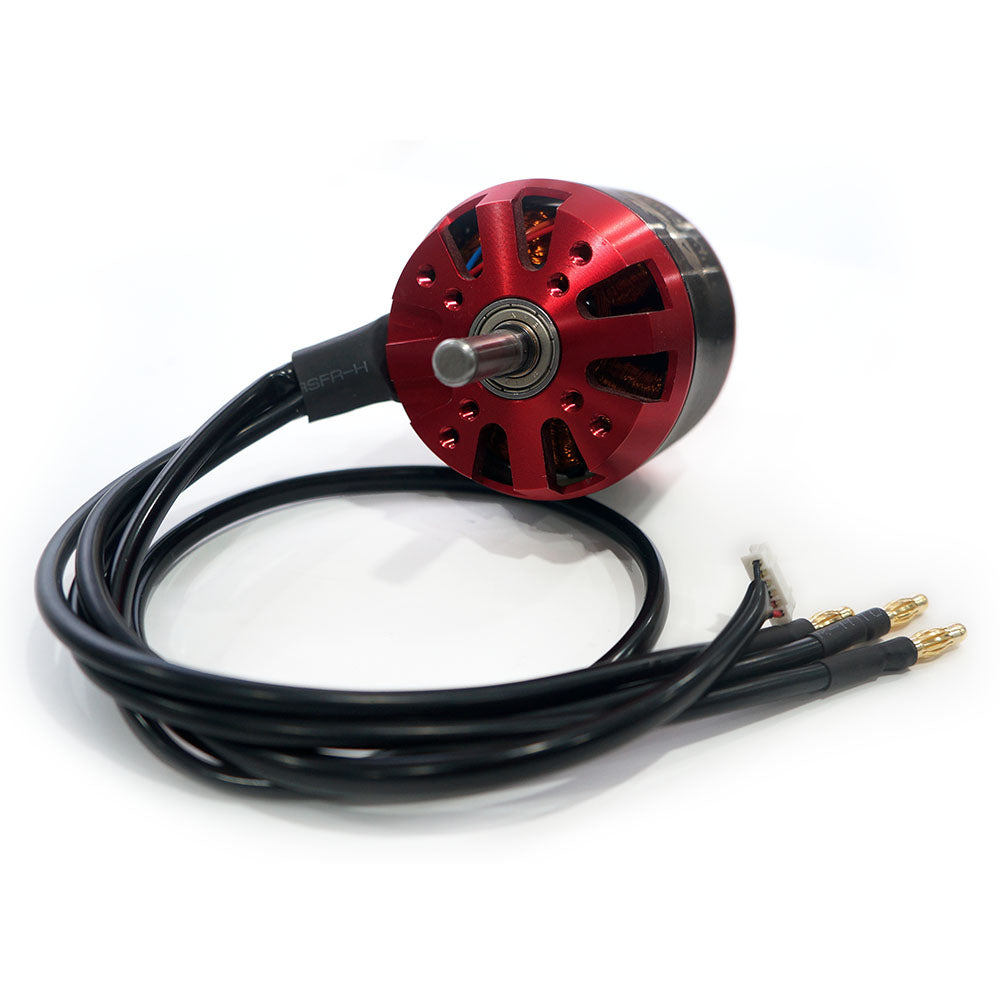

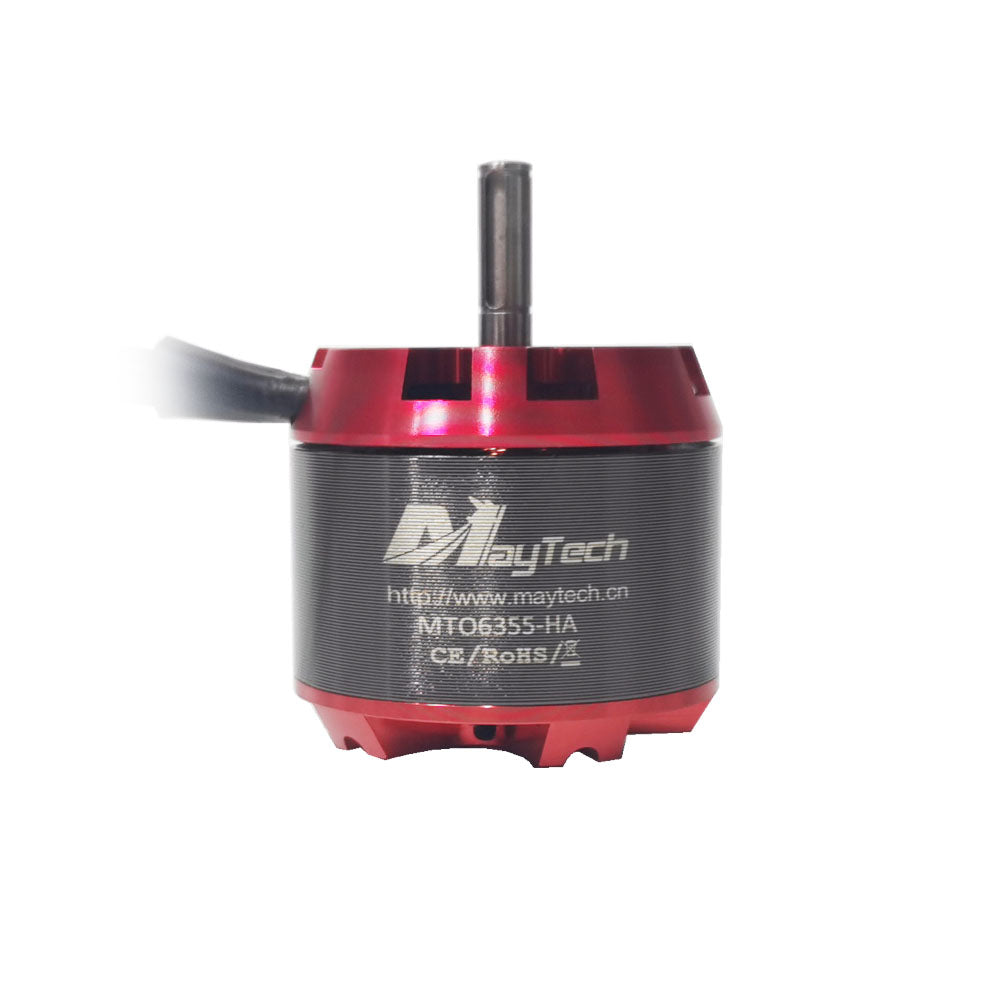

Brushless 6355 170KV Non-sealed Cover Sensored Motor for Esk8/E-bike/Robots/Mountainboard/E-scooter
This hall sensor motor comes with hall sensor board. Sensored will start from a dead stop very smoothly – while sensorless you’ll likely have to kick-push and once you’re moving, even if slowly, the motor can take it from there.
All parts are made of a high-precision CNC machining center, and all surfaces are made with oxidation treatment. High temperature and high purity oxygen-free copper wires were used. The motors use high-grade magnets and 0.2 mm lamination to improve efficiency.
The closed cover enables motors have dust-proof and water-proof function

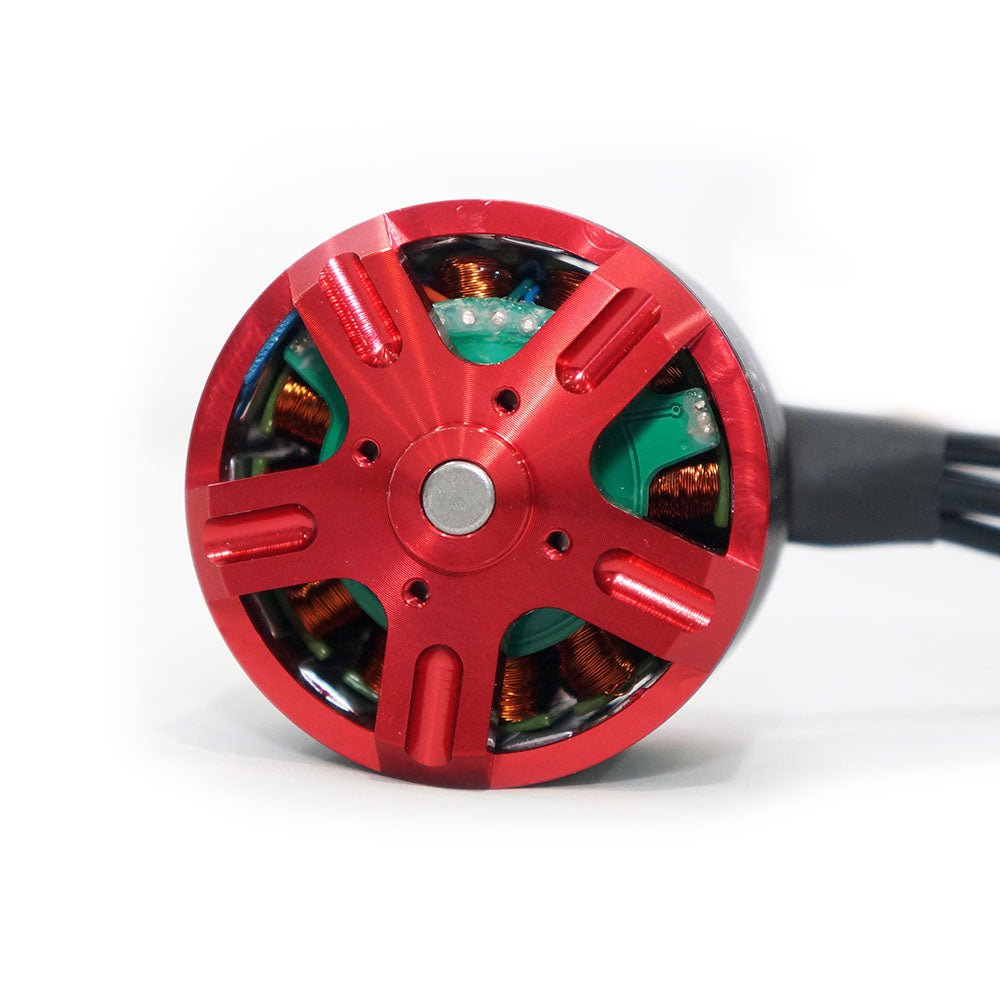

The hall-effect sensors inside tracks the motor’s position. This information permits the controller to alternate power with the right timing and in the right sequence and, voila, it spins.
Better efficiency means you get more mechanical energy per unit of power,
After a lot of development, we have put together what we know works best for an electric skateboard or ebike motor and made it small and compact.
Model NO.: MTO6355-170-HA
Idle Current: 1.0A
Max. Current: 65A
Input Volt.: 2-12s Lipo
Max. Output Watt: 3510W
Max. Pull: 12000g
Rated Current: 55A
Motor Weight: 600g

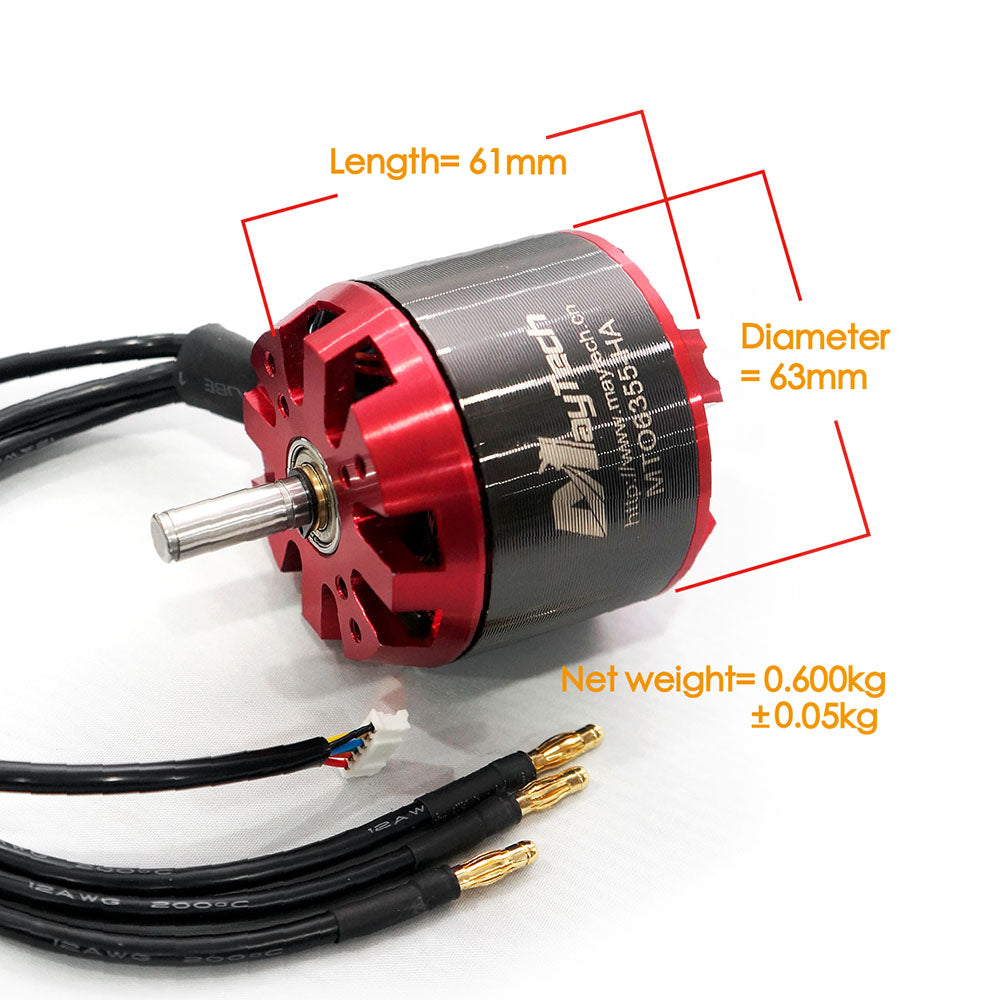

Motor dimension: Φ62.6x 54mm
Internal Resistance: 0.0441

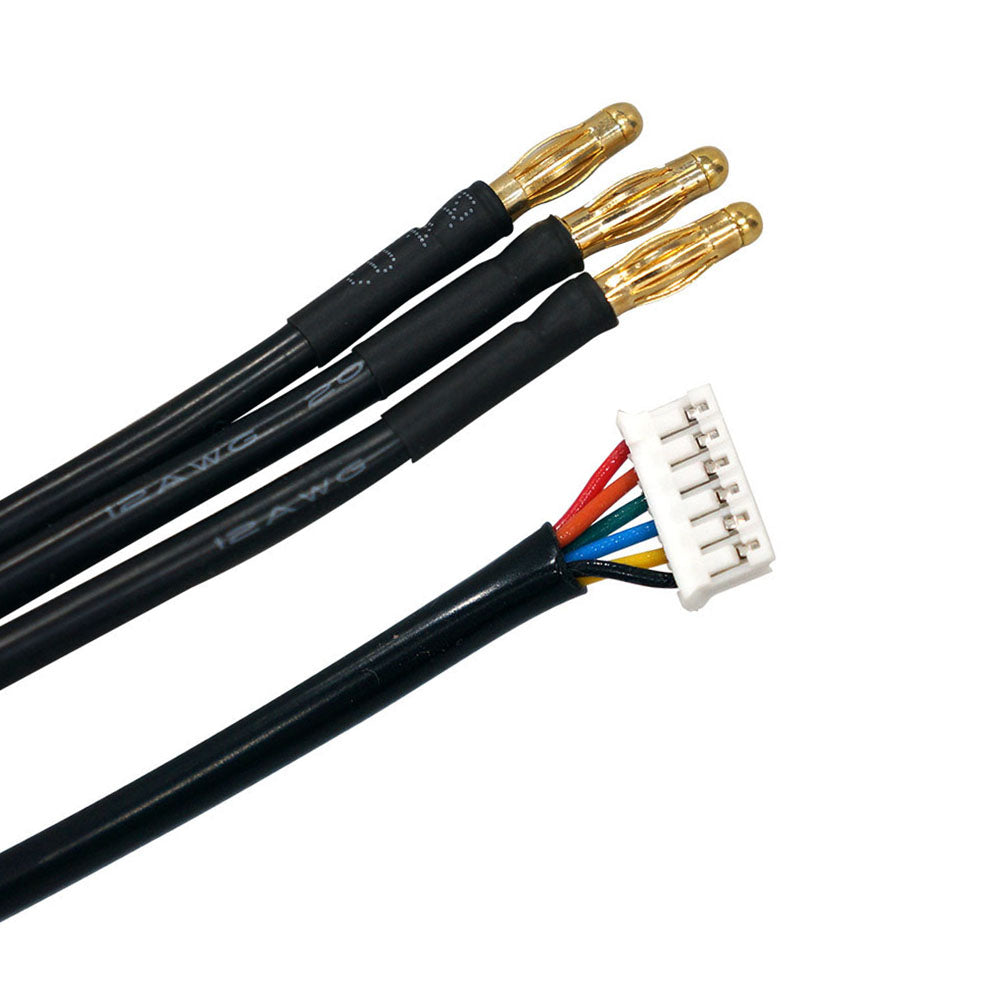

With Hall Sensor
Price does not include accessory
Application: for electric skateboard, ebike, electric bike, underwater robots, Marine robots, fighting robots, War robots, delivery robots, electric power tools, hydrofoil board, MegaBots, Battlebots, Robot combat, Combat Robots, etc.
