In Stock Brushless 6365 Sealed Motor 10mm Shaft Sensored 170/190KV

$80.80 USD

Sale Sold out

Shipping calculated at checkout.

KV 170 190 90KV No Stock

Quantity

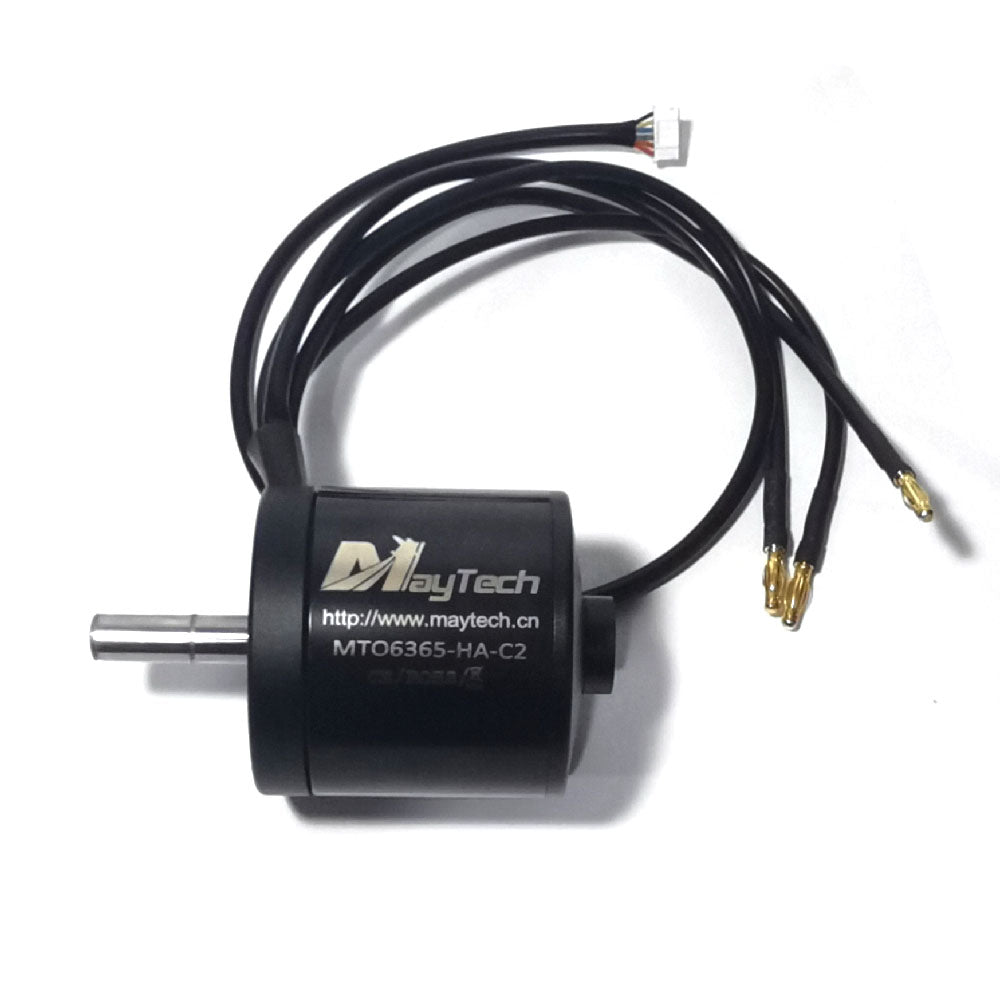

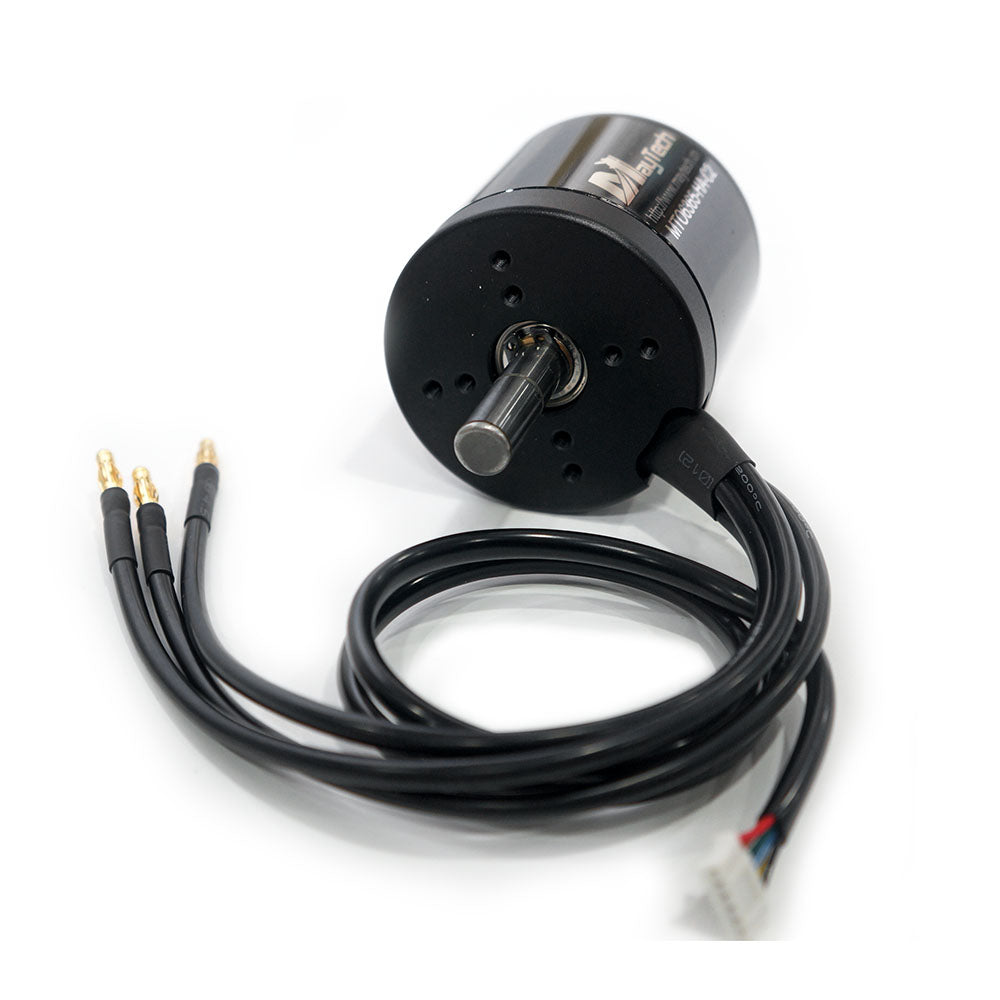

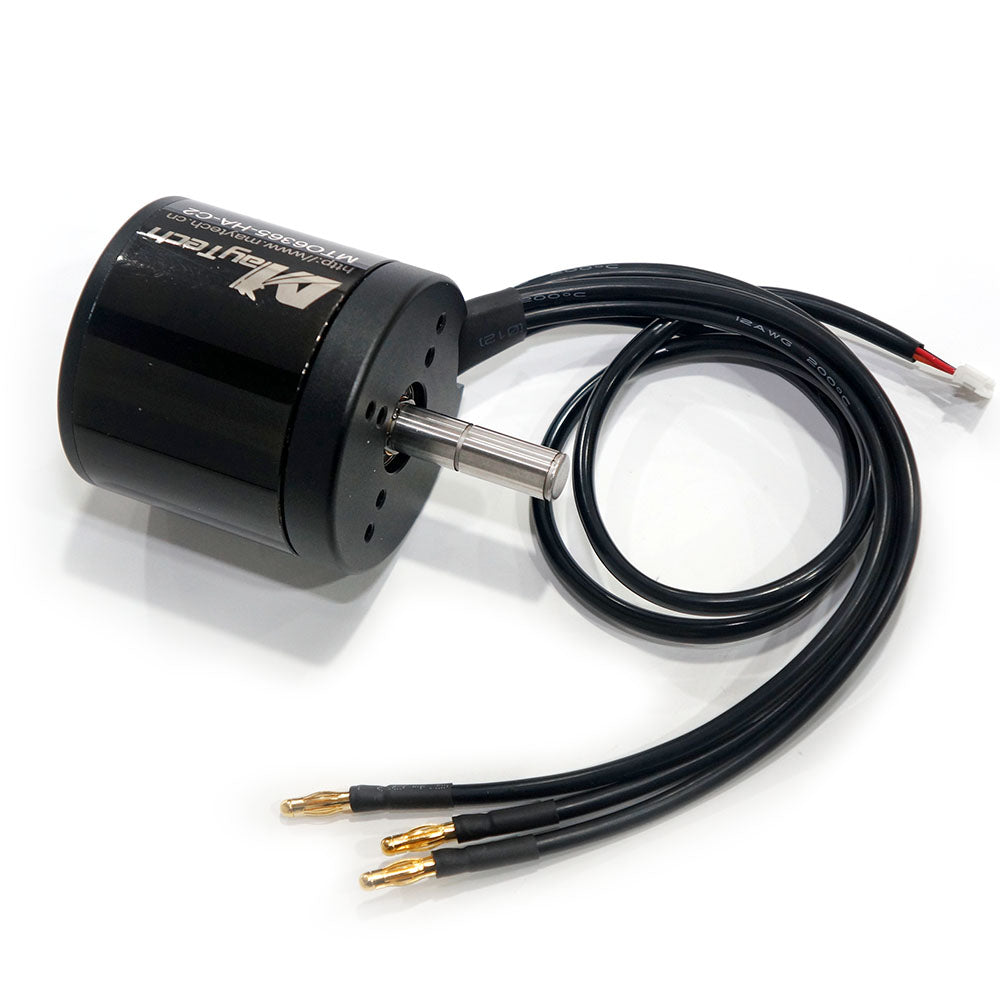

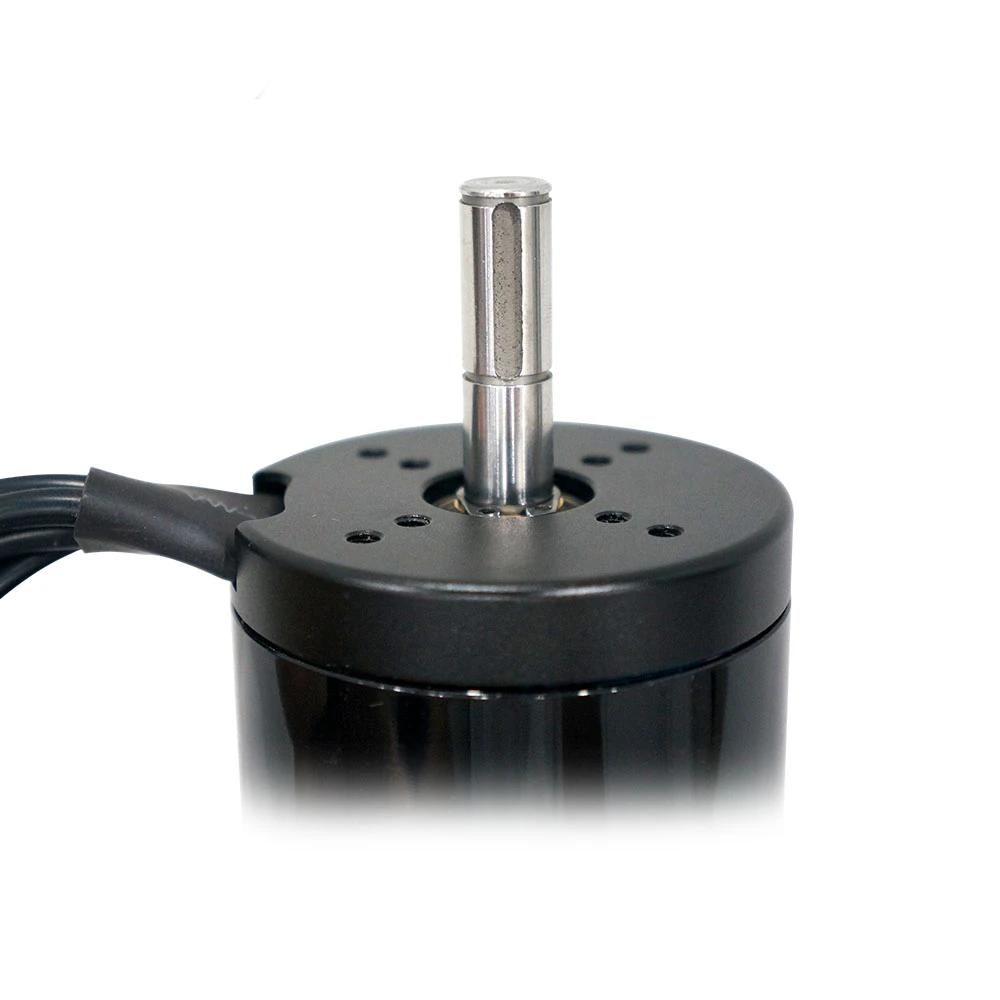

Maytech Brushless 6365 170/190KV Closed Cover Outrunner Sensored IP54 Splash Waterproof and Dustproof Motor for Esk8/E-bike/Robots/Mountainboard/E-scooter MTO6365-170-HA-C2

Model No	MTO6365-HA-C2	KV	170/190
Idle Current	0.8A	Max Current	65A
Inpur Voltage	2-12s Lipo	Max Output Watt	3520W
Max Pull	9700g	Rated Current	60A
Motor Weight	765g	Shaft	10mm
Output Shaft Length	34mm	Internal Resistance	0.0402

Notice:

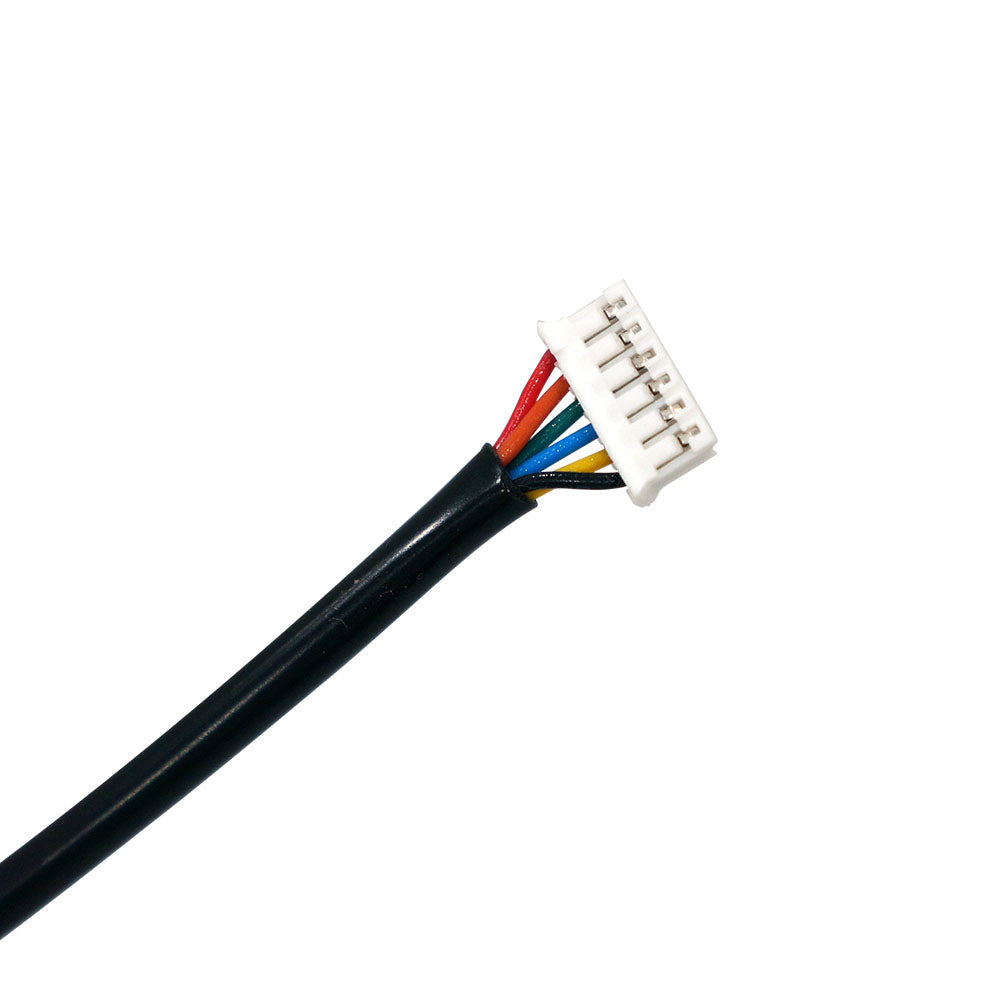

The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.

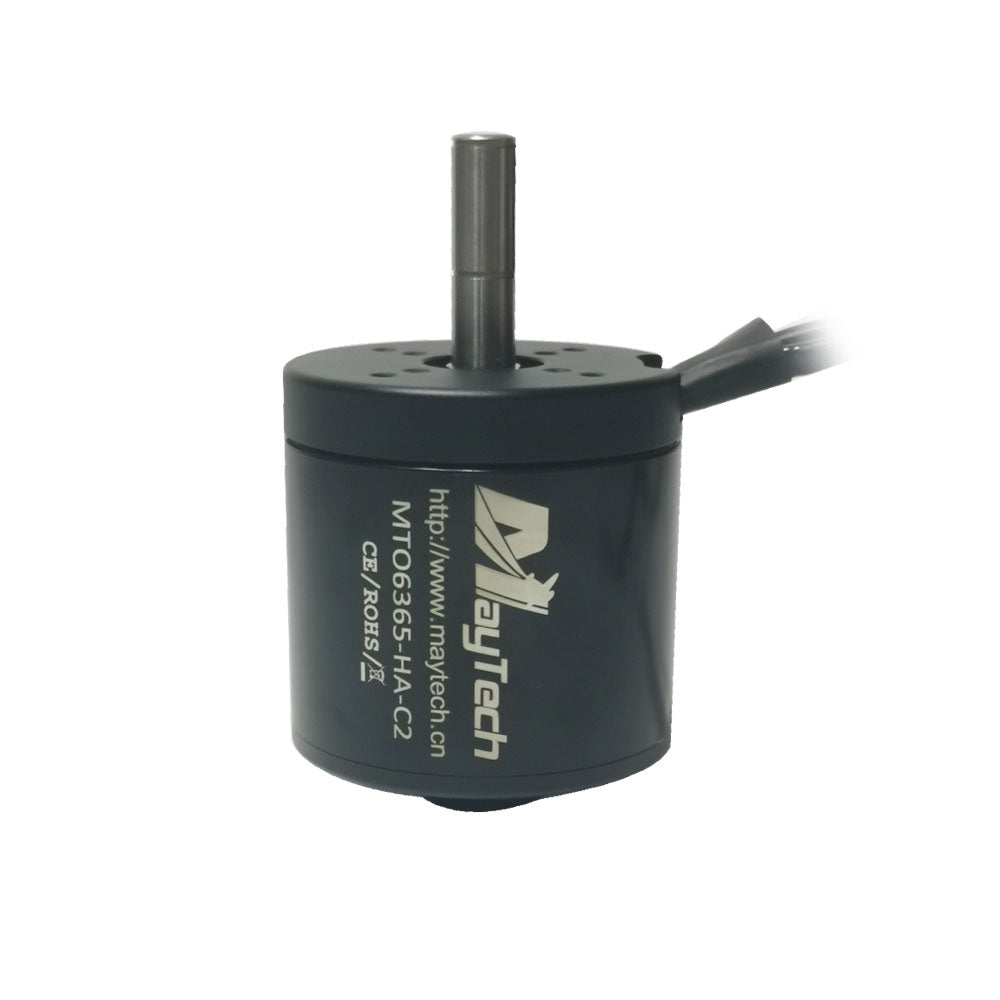

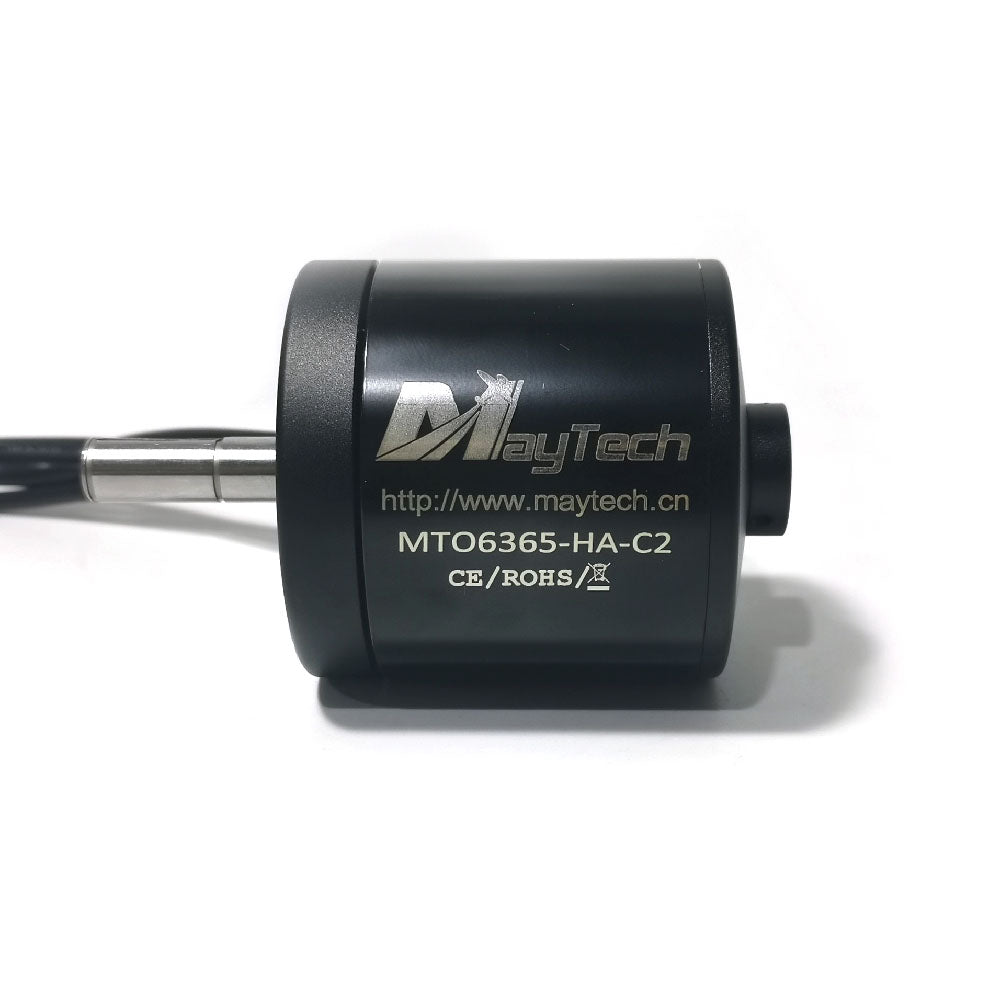

Printing on the motor case also has updated to with CE & ROHS symbol.

The upgraded version can work with previous version in same KV.

brushless motor with embeded hall sensor to stator, better performance,more stable electric skateboard bldc motor hall sensored

Maytech brushless outrunner sensored sealed cover motor for electric skateboard mountainboard longboard all terrain offroad skateboard fighting robots combat robots robotics delivery robots walking robots parking system electric vehicles

motor case can be customized maytech electric longboard/Esk8/Elongboard/E-longboard/Eskate/Mountainboard/Offroad skateboard 6374 170KV black sealed cover motor IP54 splash waterproof motor 8mm shaft

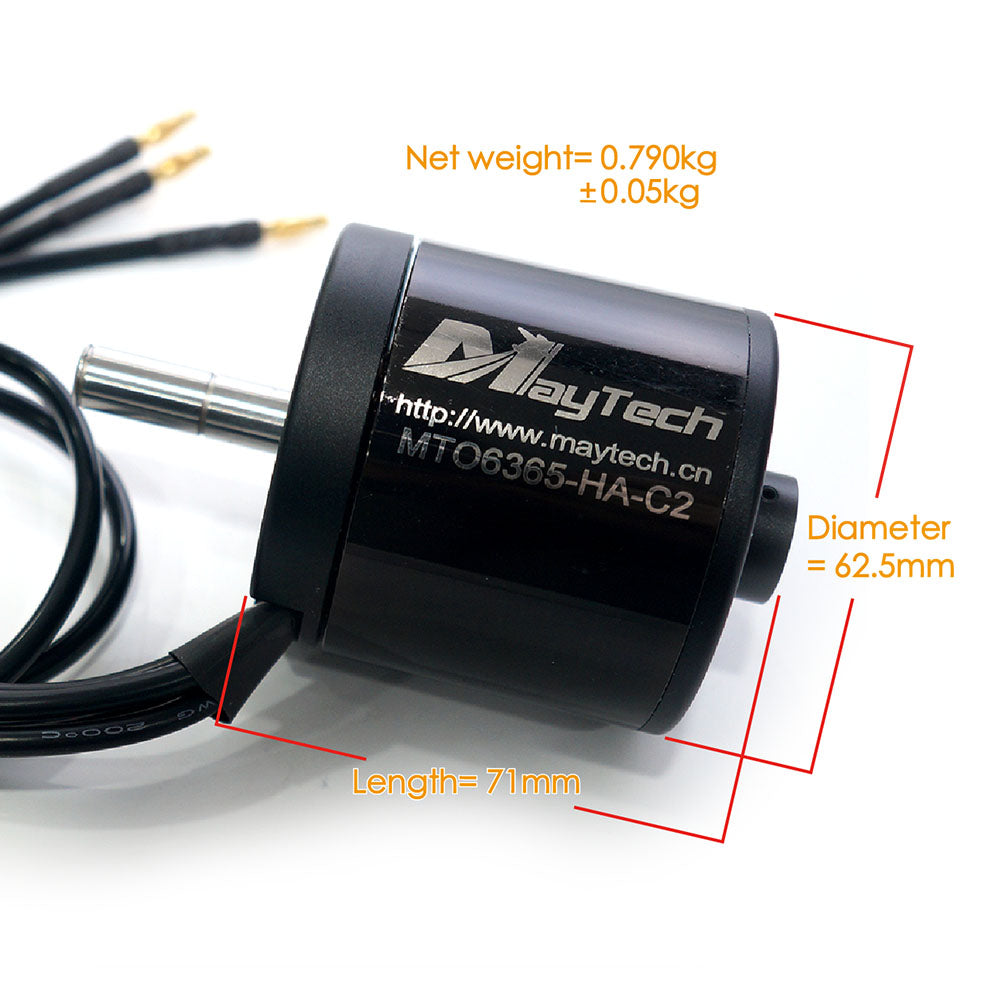

Motor Drawing:

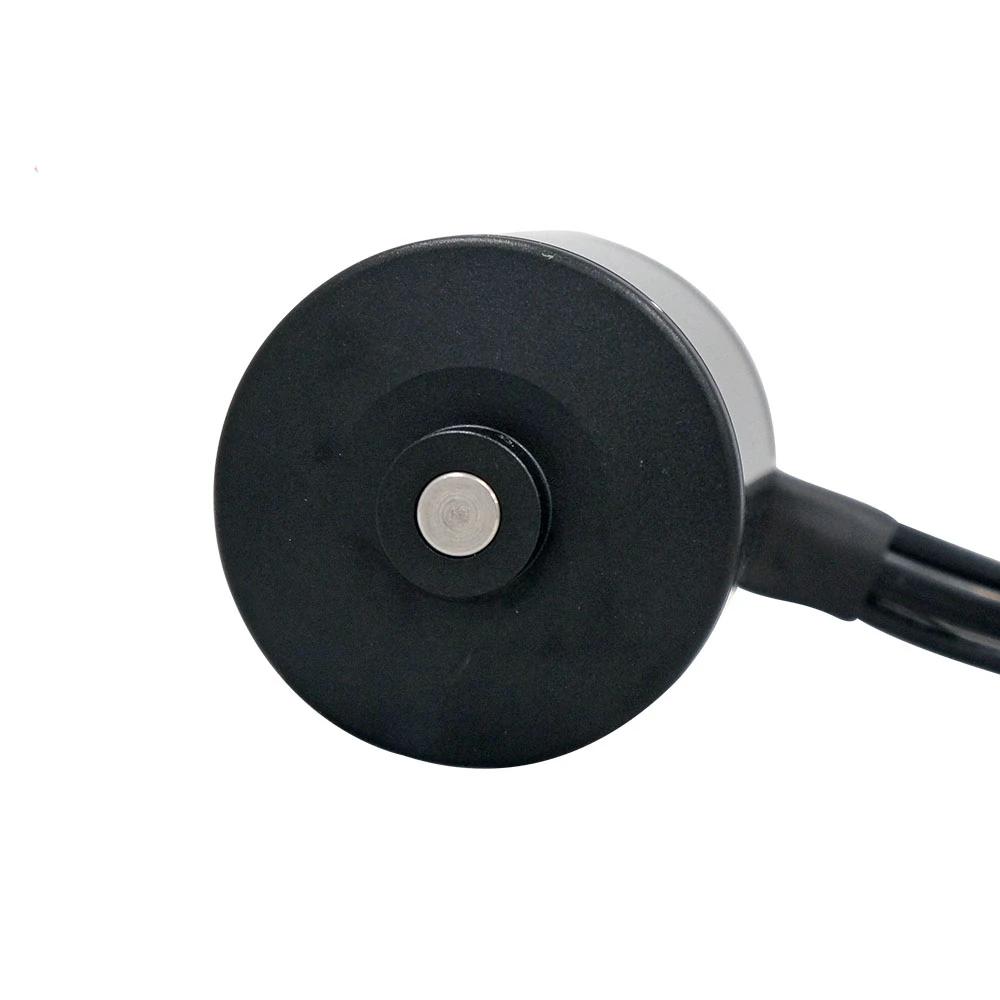

6365 black sealed cover motor

Stock Notice Before Place Order:

1. The motor 170KV is stock item, but stock is limited, so please confirm your order asap, or please contact us agnes@maytech.cn to check stock first if you need very urgently.

90KV and 190KV are not stock item, lead time is about 35-50 days if you need this KV or other KV.

2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.

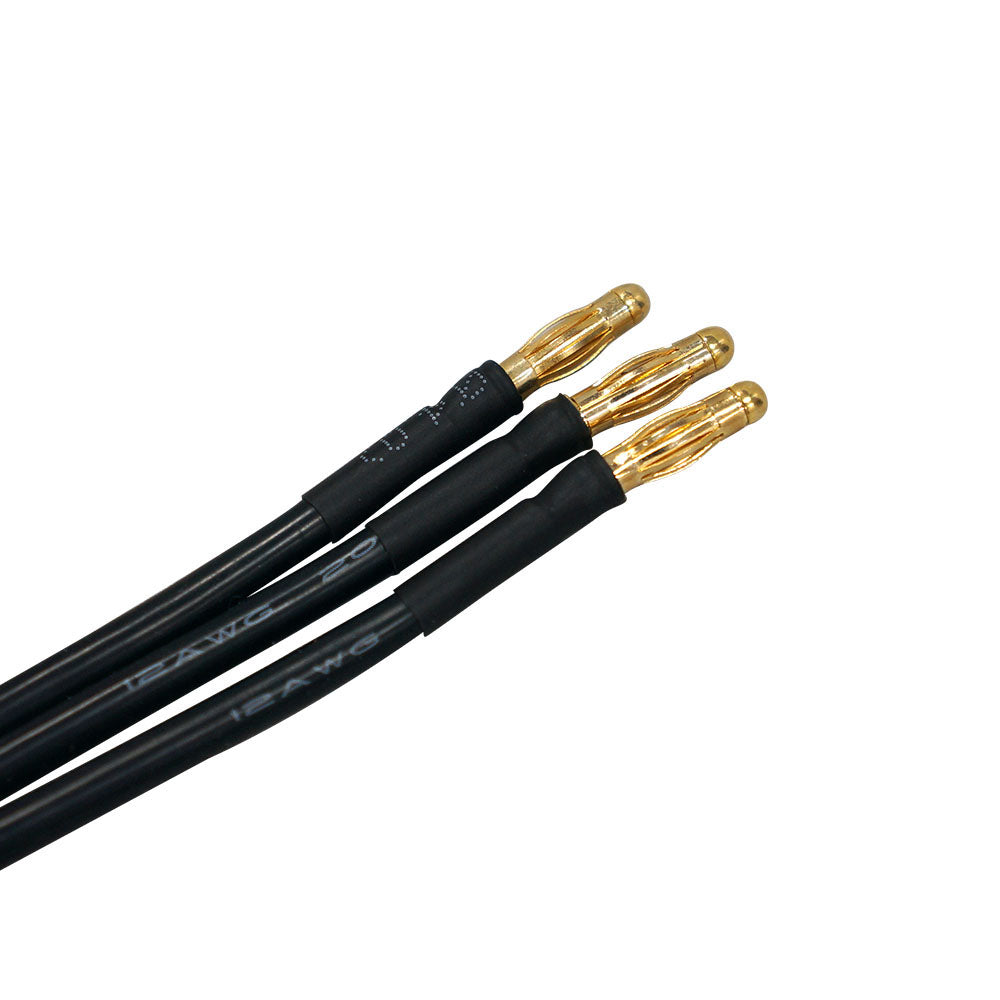

3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
