Maytech SUPERFOC6.8 Comb with 6355/6365/6374/6880 Motors Outrunner Sensored Motor for Electric Skateboard Mountainboard Fighting Robots
Maytech SUPERFOC6.8 Comb with 6355/6365/6374/6880 Motors Outrunner Sensored Motor for Electric Skateboard Mountainboard Fighting Robots
Couldn't load pickup availability
Maytech SUPERFOC6.8 Comb with 6355/6365/6374/6880 Motors Outrunner Sensored Motor for Electric Skateboard Mountainboard Fighting Robots
9 Sets Comb:

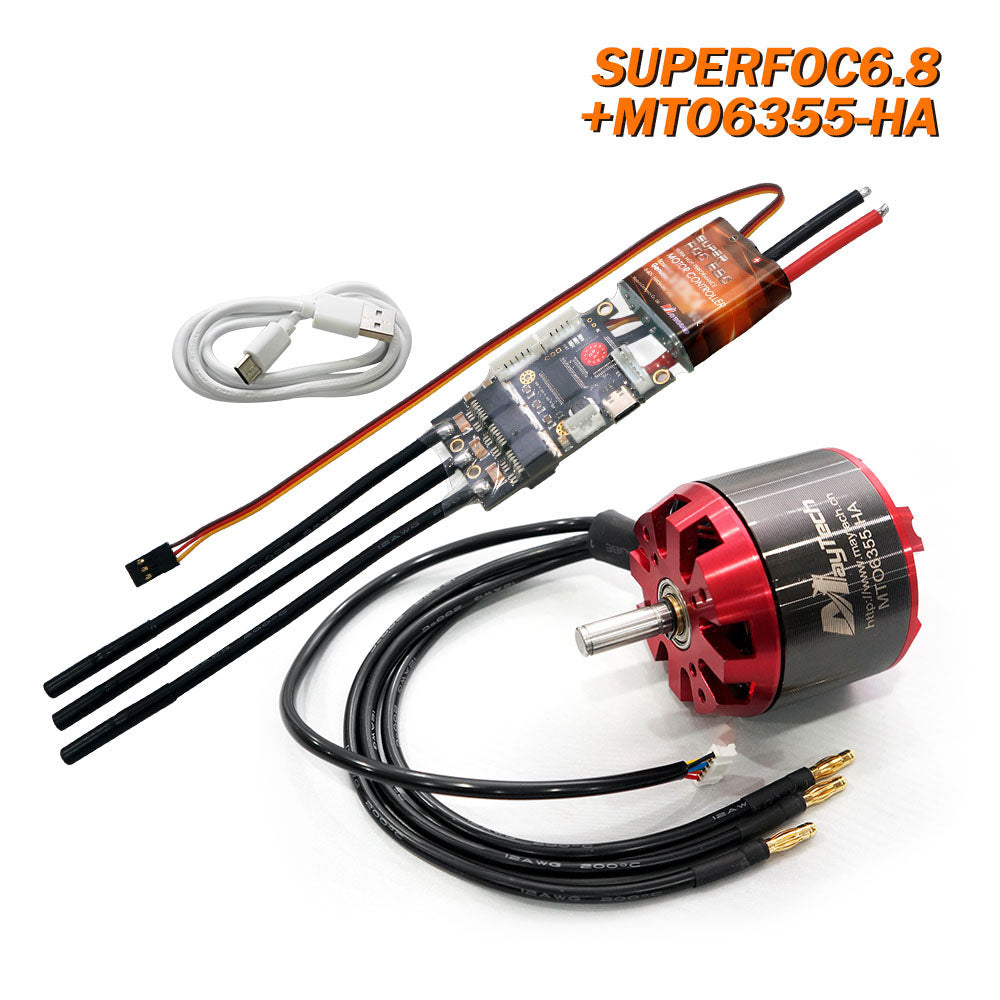

Comb 1: SUPERFOC6.8 + MTO6355-HA (200KV, Open Cover, 8mm shaft)

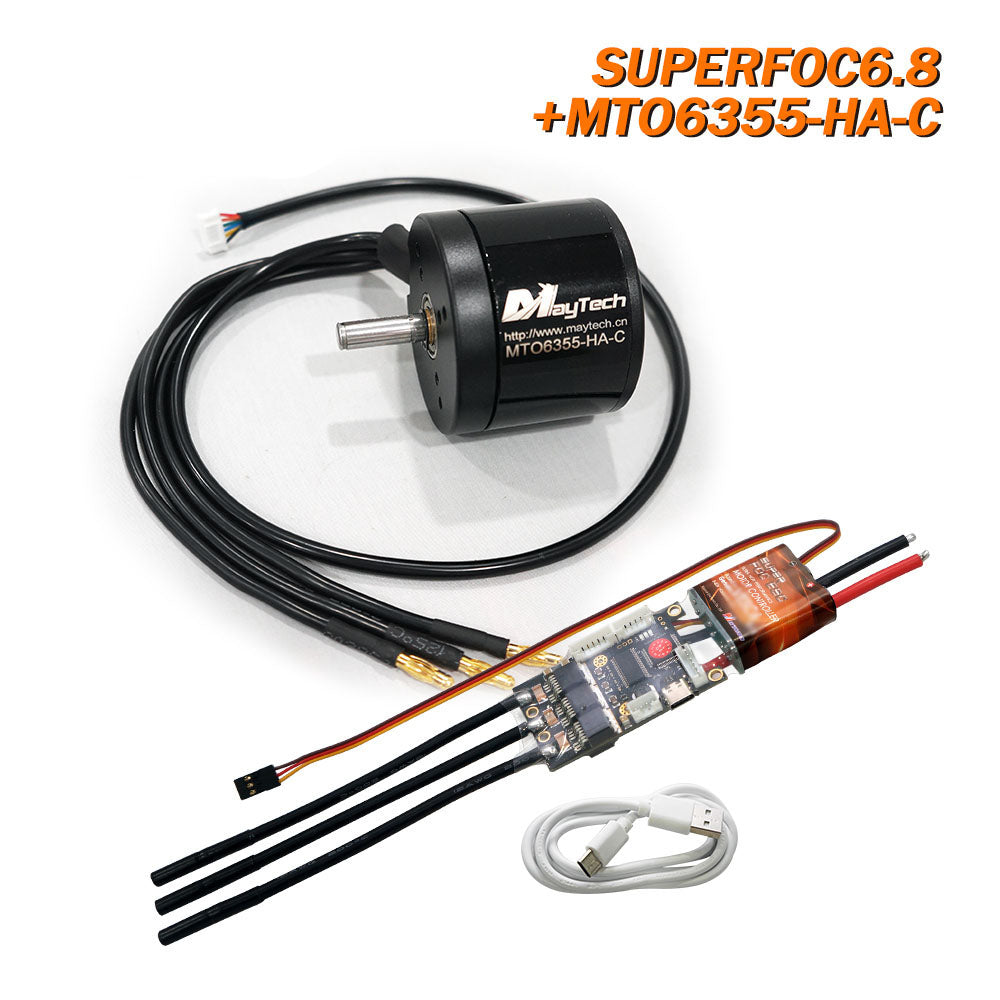

Comb 2: SUPERFOC6.8 + MTO6355-HA-C (170/190KV, Closed Cover, 8mm shaft)

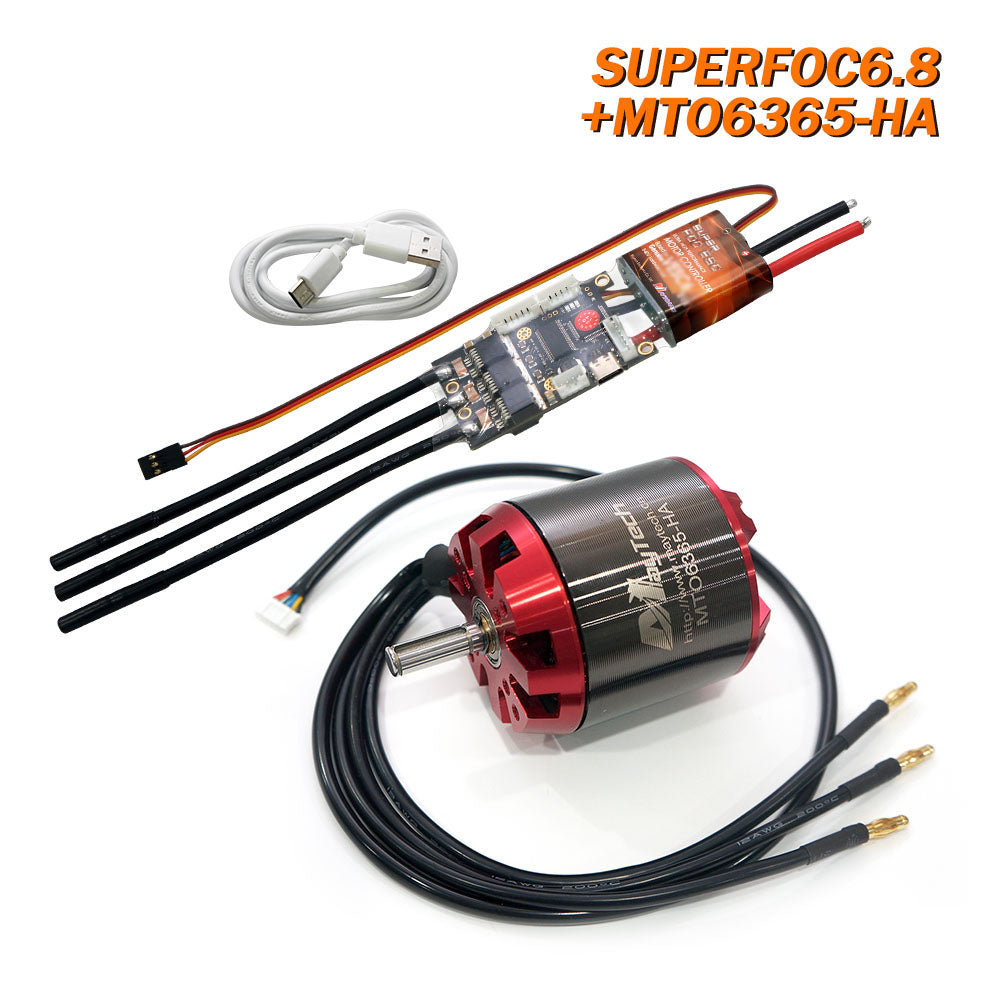

Comb 3: SUPERFOC6.8 + MTO6365-HA (200KV, Open Cover, 8mm shaft)

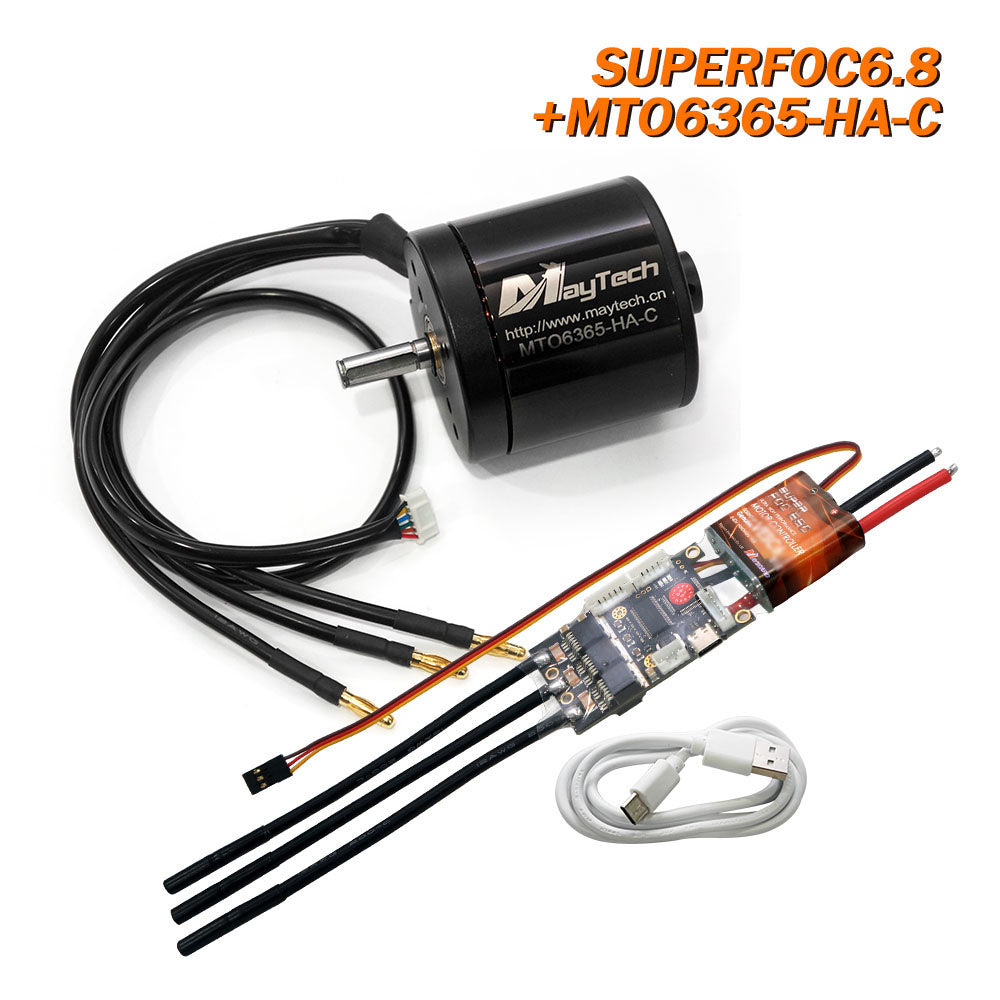

Comb 4: SUPERFOC6.8 + MTO6365-HA-C (170/190KV, Closed Cover, 8mm shaft)

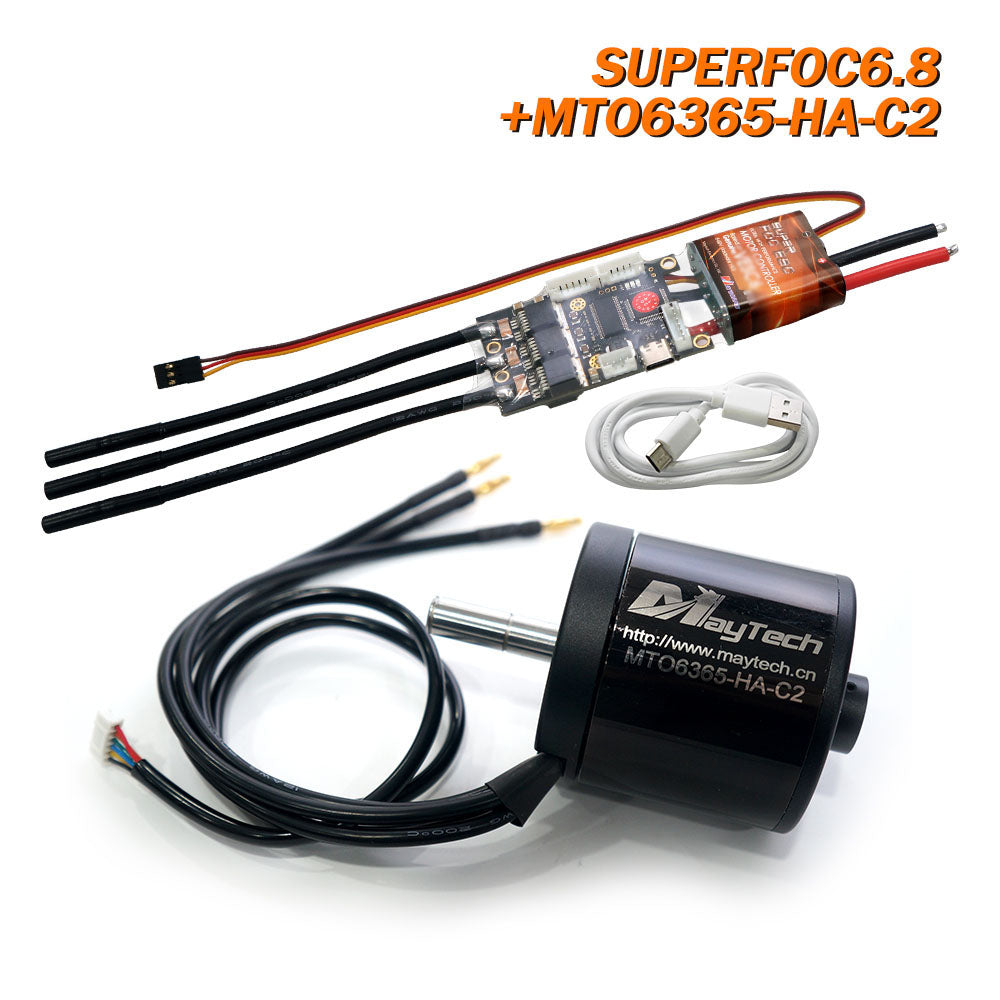

Comb 5: SUPERFOC6.8 + MTO6365-HA-C2 (170/190KV, Closed Cover, 10mm shaft)

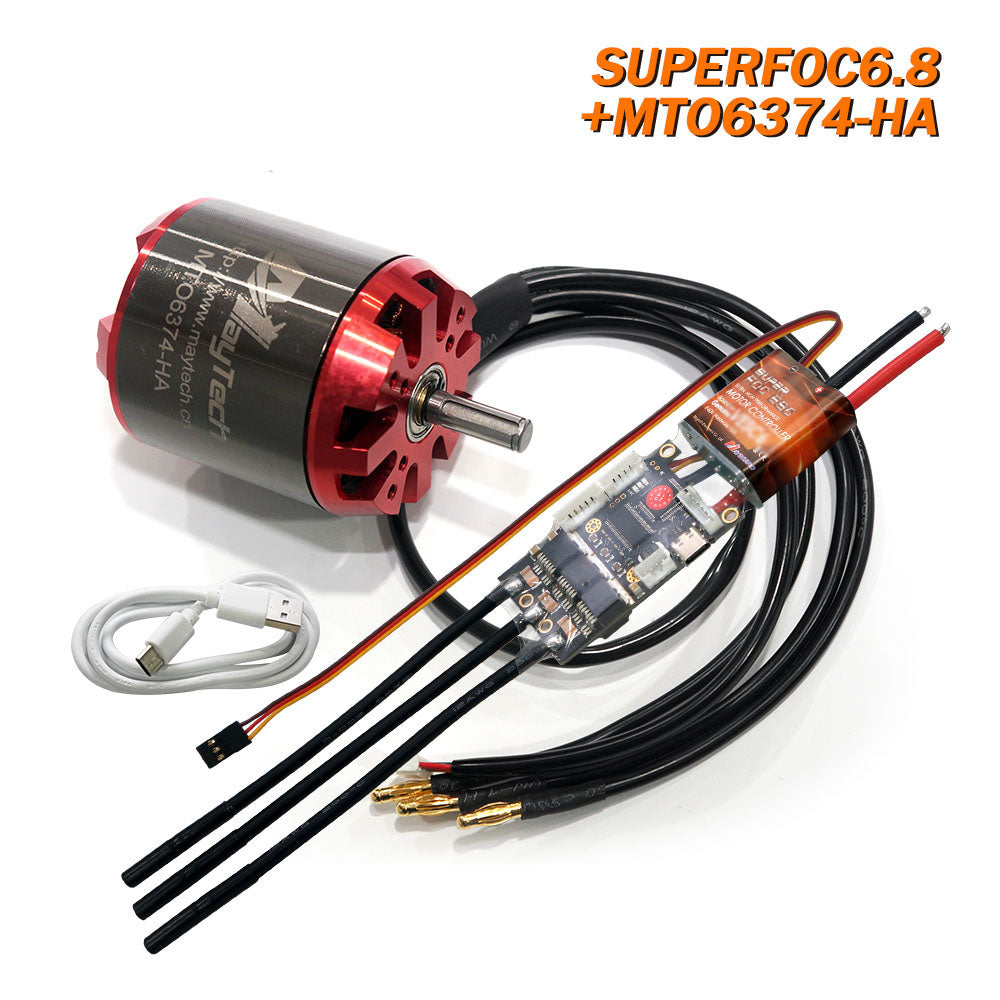

Comb 6: SUPERFOC6.8 + MTO6374-HA (170/190KV, Open Cover, 8mm shaft)

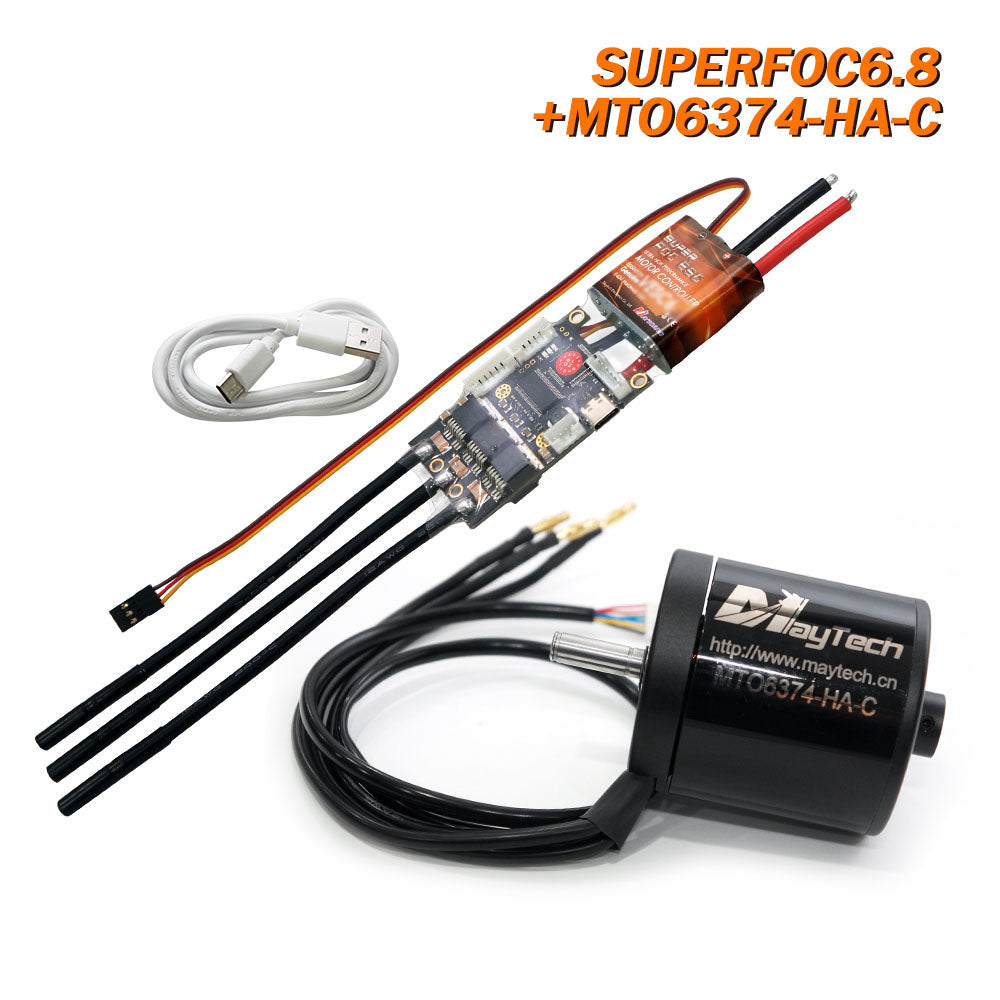

Comb 7: SUPERFOC6.8 + MTO6374-HA-C (170/210KV, Closed Cover, 8mm shaft)

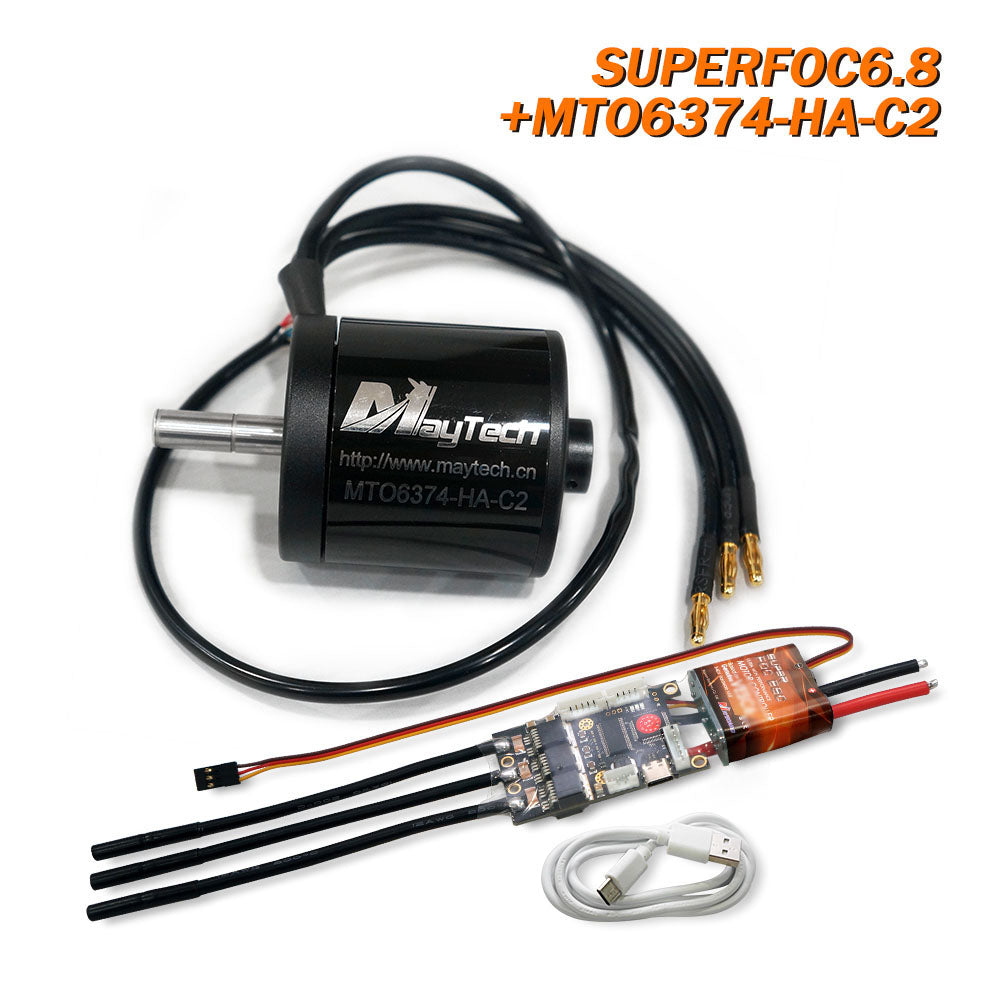

Comb 8: SUPERFOC6.8 + MTO6374-HA-C2 (170/190KV, Closed Cover, 10mm shaft)

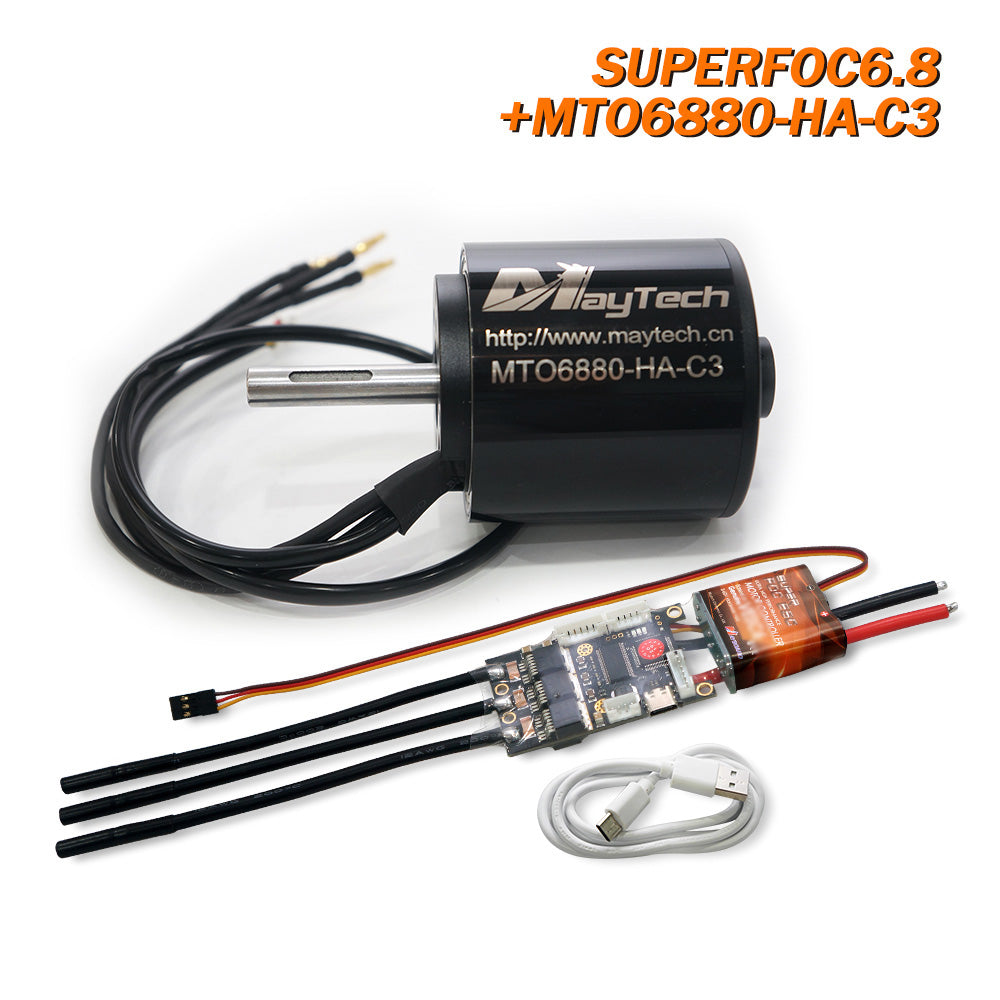

Comb 9: SUPERFOC6.8 + MTO6880-HA-C3 (190KV, Closed Cover, 10mm shaft)
Above motor KV is our standard KV, your order will be shipped as the KV we have. If you have other needs, please contact us first, we accept customize service.
Specifications:
Product 1: Maytech SUPERFOC6.8 50A V6.0 based Controller with Great FOC Function with No case
|
Model No
|
MTSUPERFOC6.8 | Cont Current | 50A |
| Lipo Voltage | 3-12S |
Burst Current
|
240A
|
| BEC | 5V | PCB Size | 40mm*60mm |
| Capatitor | 3pcs 680uf63V | MOS | IRF7530 |
| Hardware | Based on V6.0 | Firmware | Updatable |
Product 2: Maytech Motors Datasheets
-MTO6355 Motor:
|
Model No
|
MTO6355
|
KV
|
170/200
|
|
Idle Current
|
1.0A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3510W
|
| Internal Resistance |
0.0441
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|
-MTO6365 Motor:
|
Model No
|
MTO6365
|
KV
|
170/200
|
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3520W
|
| Internal Resistance |
0.0402
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|
-MTO6374 Motor:
|
Model No
|
MTO6374
|
KV
|
170/190/220
|
|
Idle Current
|
0.8A
|
Max Current
|
65A
|
|
Inpur Voltage
|
2-12s Lipo
|
Max Output Watt
|
3550W
|
| Internal Resistance |
0.0402
|
Battle Hardened
|
Yes
|
| Proof | Splash proof and dustproof (HA-C & C2) | Shaft |
8mm (HA & HA-C) 10mm (HA-C2) |
| Cover |
Open Cover (HA) Sealed Cover (HA-C & C2) |
Output Shaft Length |
26mm (HA & HA-C)
34mm (HA-C2)
|
-MTO6880 Motor:
| Model No. | MTO6880-HA-C3 | KV | 190 |
| Idle Current | 0.8A | Max Current | 65A |
| Input Voltage | 2-12S Lipo | Max Output Watt | 3550W |
| Internal Resistance | 0.0402 | Rated Current | 60A |
| Shaft | 10mm | Output Shaft Length | 45.5mm |
| Waterproof | Splash proof and dust proof | Battle Hardened | Yes |
| Feature | With big ball bearing | Motor Mount Hole Distance | 30mm and 44mm |
